USER MANUAL I80 SAMSUNG

Thank you for buying a Samsung Camera.

This manual has basic instructions for quick and easy picture taking.

For more information, refer to the user manual included in the supplied CD-Rom.

Getting to know your camera

• Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries
• All brand and product names appearing in this manual are registered trademarks of their respective companies.
• The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.
  Refer to the user manual included on the Software CD for more information.
• PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer. Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM.

SRS is a trademark of SRS Labs, Inc.
WOW HD technology is incorporated under license from SRS Labs, Inc.

Contents

Getting to know your camera 1 Identification of features / Contents of camera 4 Battery life & Number of shots (Recording time) 5 When Using the Camera for the First Time 6

LCD monitor indicator 7

Mode Button 8

Taking a picture 9

Playing back/Deleting images 10

MULTIMEDIA mode 11

Downloading images 14

Specifications 15

FCC notice

■ NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Address : 105 Challenger Road Ridgefield Park NJ

Telephone No. : 1-800-SAMSUNG(726-7864)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Getting to know your camera

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.

Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.

Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion.

Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.

Do not operate this camera with wet hands. This could pose a risk of electric shock.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject's eyes may cause eyesight damage.

For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.:

• Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.
• There is the possibility of injury from the camera's moving parts.

Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.

Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places with extremes in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fire.

When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

Getting to know your camera

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

Remove the battery when not planning to use the camera for a long period of time.

Otherwise the battery may leak corrosive electrolyte and permanently damage the camera's components.

Leaking, overheating, or damaged battery could result in fire or injury.

• Use battery with the correct specification for the camera.
• Do not short circuit, heat or dispose of battery in fire.
• Do not insert the battery with the polarities reversed.

Be sure to format the memory card if you are using a newly purchased memory card for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.

Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns.

Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.

Do not move the camera while it is switched on when you are using the AC Charger. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera.

Failure to do so may damage the cords or cables and cause a fire or electric shock.

Credit cards may be demagnetized if left near a camera case. Avoid leaving magnetic strip cards near the case.

Do not insert the memory card the wrong way round.

Before inserting any cables or AC adapter, check the directions and do not insert by force. It may cause breakage of cable or camera. Never the connect the 20 pin connector to a USB port of a PC. Doing so is highly likely to cause a computer malfunction.

Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions.

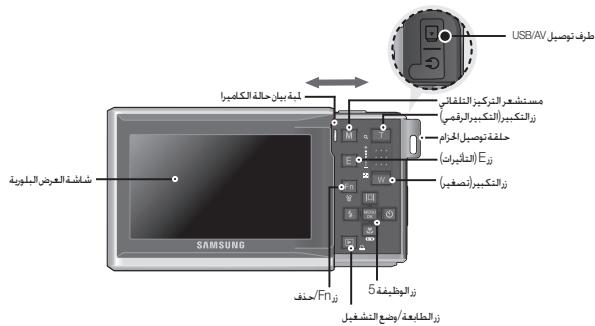

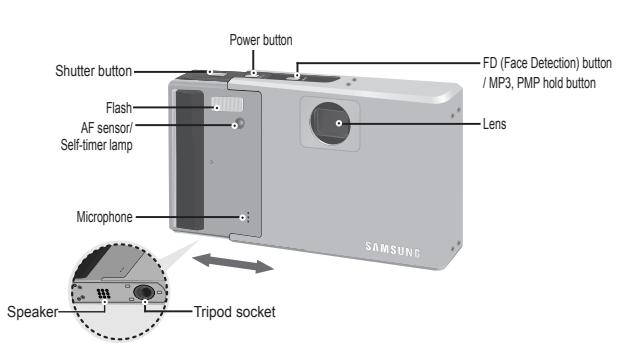

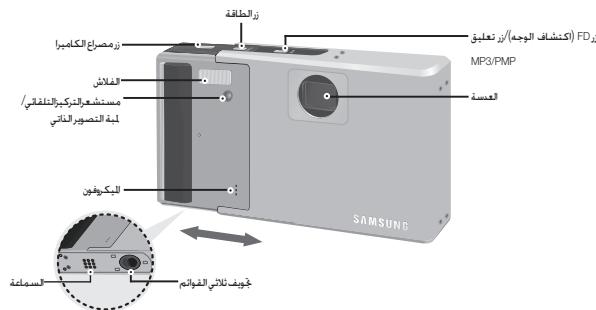

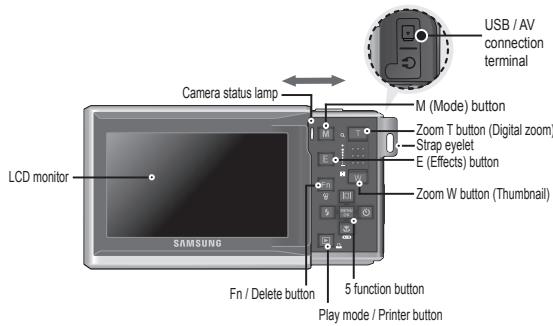

Identification of features / Contents of camera

Included items
Camera

Rechargeable battery (SLB-1137D)

AC adapter (SAC-47)/JSB cable (SUC-C3)

AV Cable

Camera strap

Earphones

Optional items
SD/SDHC memory card/MMC

Camera case

20 Pin Gender

User manual, Product warranty

Software CD

Battery life & Number of shots (Recording time)

Number of images and battery life: Using the SLB-1137D

		Battery life / Number of images	Conditions
Still image		Approx. 160 MIN / Approx. 320 shots	Using the fully charged battery, Auto mode, 8M image size, Fine image quality, Shot to shot interval: 30Sec. Changing the zoom position between Wide and Tele after every shot. Using the flash on every second shot. Using the camera for 5 minutes and then Powering it off for 1 minute.
Movie		Approx. 160 MIN	Using the fully charged battery 640x480 image size 30fps frame rate
Multi Media	MP3	Approx. 400 MIN	Using the fully charged battery Turning off the LCD monitor
	PMP	Approx. 380 MIN	Using the fully charged battery

These figures are measured under Samsung's standard conditions and shooting conditions and may vary depending on the user's methods.

• When using a 256MB MMC memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded image size		Super Fine	Fine	Normal	30 FPS	20 FPS	15 FPS
Still image	8+	About 58	About 89	About 137	-	-	-
	7+	About 66	About 100	About 150	-	-	-
	6+	About 77	About 115	About 177	-	-	-
	5+	About 91	About 133	About 198	-	-	-
	3+	About 155	About 190	About 216	-	-	-
	7+	About 355	About 414	About 452	-	-	-
*Movie clip	800	-	-	-	-	About 10'53"	About 12'00"
	720	-	-	-	-	About 11'41"	About 12'58"
	640	-	-	-	About 11'23"	-	About 17'47"
	320	-	-	-	About 38'51"	-	About 01:07'31"

The zoom button doesn't operate during the movie recording. The recording times can be changed by the zoom operation.

When Using the Camera for the First Time

Charge the rechargeable battery fully before using the camera for the first time.

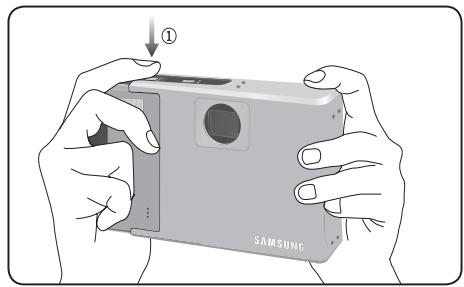

- Turning on the camera

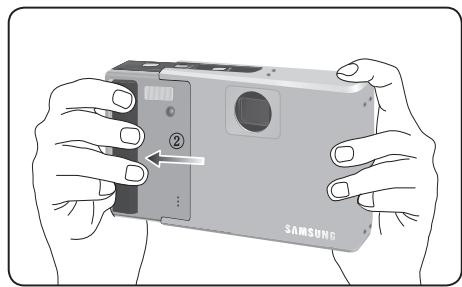

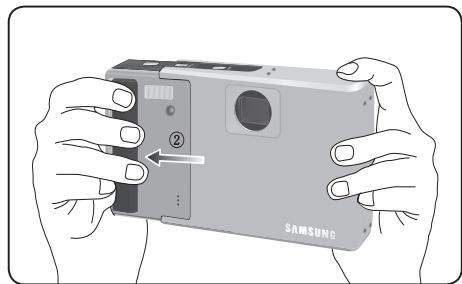

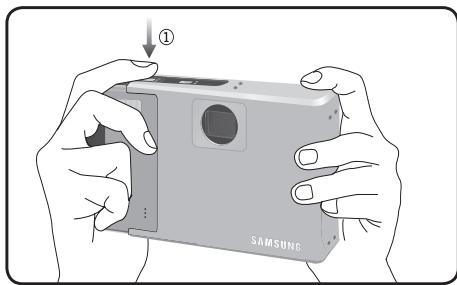

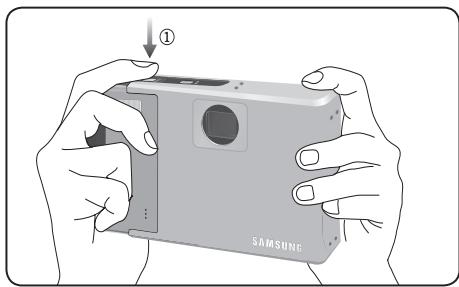

To turn on the camera, press the Power button (①) or Open the camera (②) as shown.

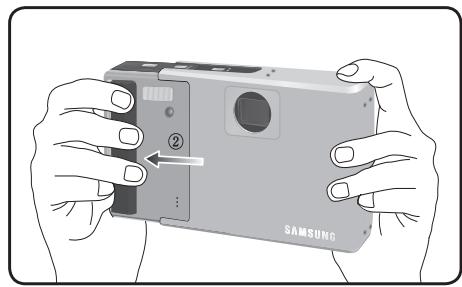

• When closing the camera, handle it as shown in the picture above. Your finger could be caught in the top or bottom groove and you could be injured as shown below.

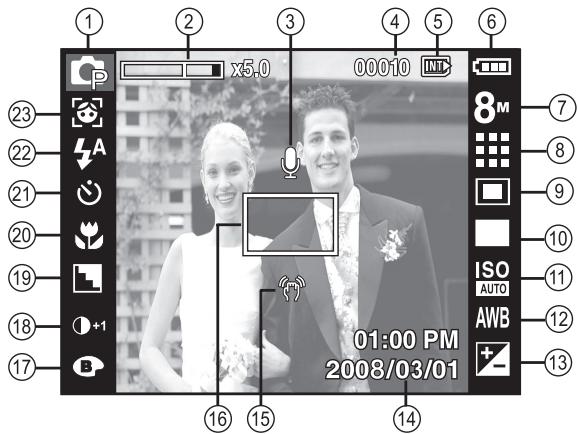

LCD monitor indicator

The LCD monitor displays information about the shooting functions and selections.

[Image & Full Status]

No.	Description	Icons
1	Recording mode
2	Optical / Digital Zoom bar / Digital Zoom rate	x5.0
3	Voice Memo
4	Number of available shots remaining	00010
	Remaining time	00:00:00

No.	Description	Icons
5	Memory card icon / Internal memory icon	/ INT
6	Battery
7	Image Size	3x24 10x10 3x10 300 720 140 320
8	Image Quality / Frame Rate	/ 30 20 15
9	Metering
10	Drive mode	AEB
11	ISO	ISO 150 ISO 100 ISO 200 ISO 200 ISO 1501 ISO 200
12	White Balance	AWB
13	Exposure compensation
14	Date / Time	2008/03/01 01:00 PM
15	Camera shake Warning
16	Auto Focus Frame
17	Color / Saturation
18	Contrast
19	Sharpness / Without Sound	/
20	Macro
21	Self-timer
22	Flash
23	Face Detection / Self Portrait / Photo Style Selector	/

Mode Button

• You can select a desired camera mode by using the M (Mode) button on the back of the camera.

AUTO

Selects this mode for quick and easy picture taking with minimal user interaction.

PHOTO HELP GUIDE

Helps the user to learn the correct picture taking method. This includes solutions for potential problems that may occur, and enables the user to practice shooting.

PROGRAM

Selecting the program mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed.

MOVIECLIP

A movie clip can be recorded for as long as the available recording time.

DIS

This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

SCENE

SCENE

#

Use the menu to easily configure optimal settings for a variety of shooting situations.

FUN

In this mode, you can take pictures with various effects easily and simply.

MULTIMEDIA

MULTIMEDIA

This camera has an embedded MP3, TEXT VIEWER & Portable Media Player program. You can take a picture, listen to the MP3 files and watch the movie clip (Movie and Video clip) whenever you want. You can listen to the MP3 music while reading the text on the LCD monitor or taking a picture.

How to take a picture

1. Turn on the camera and select a camera mode by using the M (Mode) button.

1. Hold the camera as shown

1. Confirm the composition

1. Take a picture.

Pressing halfway down Focus and Flash status are checked.

Pressing fully Image is taken

How to record a movie Select the Movie clip mode by pressing the M (Mode) button.

1. Confirm the composition

1. Start the recording Press the Shutter button and the recording starts and press the Shutter button again to stop the recording.

Playing back / Deleting images

Playing back the images
- The last image stored on the memory is displayed.

Press the play button (回)。

Select an image that you want to play back by pressing the Left/Right button

※Manner mode: Pressing the play mode button for more than 3 seconds changes the buzzer and start-up sound setting to OFF, even though you may have set these to ON.

• Deleting images

• This deletes images stored on the memory card.

• Select an image that you want to delete by pressing the Left / Right button and press the DELETE ( 合 ) button.

[Single image]

[Thumbnail Image]

1. To add images to delete, press the T button.

2. Left / Right button : Selects images

3. T button : Checks for deletion
4. OK button : deletes the selected images.

1. Select the submenu values by pressing the Up / Down button and then press the OK button.

2. If [No] is selected : cancels "Delete Image".

3. If [Yes] is selected : deletes the selected images.

4. This camera has an embedded MP3, TEXT VIEWER & Portable Media Player program. You can take a picture, listen to the MP3 files and watch the movie clip (Movie and Video clip) whenever you want. To use the PMP mode, you must convert the multimedia file with the Samsung Converter. In the TEXT VIEWER mode you can see the text on the LCD monitor when listening to MP3 music.

5. If the file or folder name is over 120 (Including 1 Byte/2 Byte language, Korean, Chinese, etc.) characters, the file or folder name doesn't appear on the play list.

Downloading files

To use MP3, PMP and TEXT VIEWER functions, MP3, PMP (multimedia files) and TEXT files must be saved in the internal memory or memory card of this camera.

1. Save the desired files on your PC.
2. Connect the camera to your PC with the USB cable and turn on the camera.
3. Open Windows EXPLOREER and search for Removable Disk.
4. Make a folder under the Removable Disk.

MP3 Mode: MP3

PMP Mode: PMP

TEXT VIEWER mode: [TEXT]

1. Select files that you want to save and copy them to the desired folder.

• Be aware of the illegal duplication of MP3 & multimedia files. It violates various copyright laws.
• Without permission of Samsung, you cannot copy, modify and/or distribute any part or all of MP3, PMP file provided in the internal memory.
• This camera can only play back MP3 files in the MP3 mode and SDC files (modified XviD MPEG4 video / MPEG Layer2 audio type) in the PMP mode.
• If a file can not be played back on this camera, convert it into the supported file format by using the Samsung Converter.
• Up to 200 files and 100 sub folders can be saved in a folder.
  You can only save a total of 200 files and sub folders at one time.
• New folders can be created within the MP3, PMP and TEXT folders. Otherwise any files in other folders that you create cannot be played back.

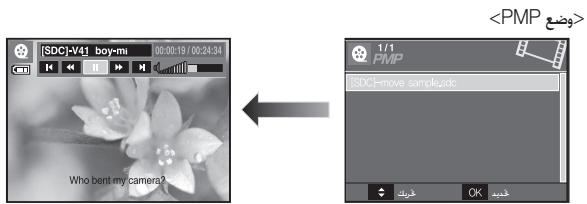

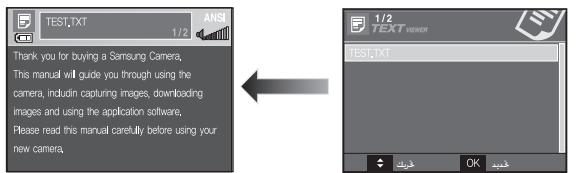

MULTIMEDIA mode

Insert the memory card that holds MP3, PMP and TEXT files. As this camera has a 40MB internal memory, you can save the files on the internal memory too.

1. Select a desired Multi media mode.
2. A menu will display as shown.

[Resume] : Memorizes the latest stopped frame.

MP3 mode : Plays back from the beginning of the file.

PMP mode: Plays back from the latest stopped frame.

TEXT VIEWER mode : Plays back from the latest stopped frame.

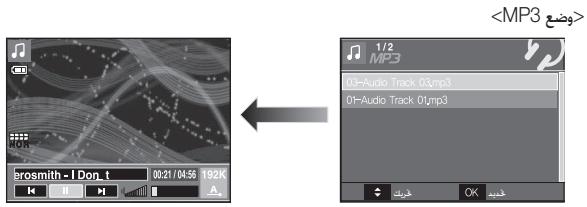

[Open] : The browsing menu will be displayed to select a desired file.

1. Select a desired file and press the OK button. The file will then be played back.

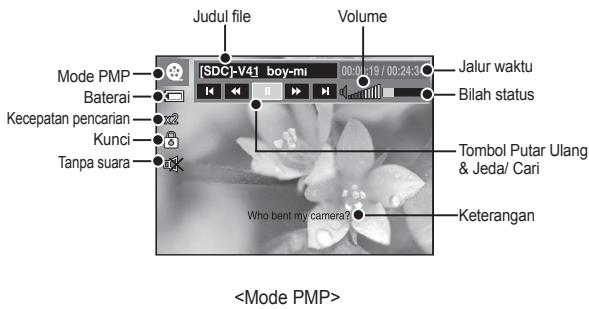

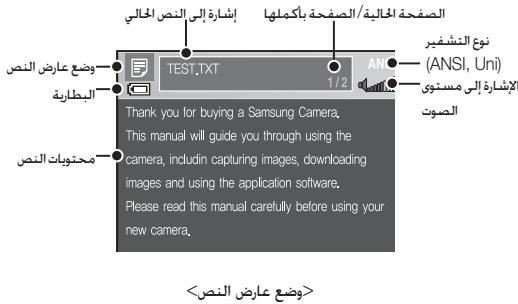

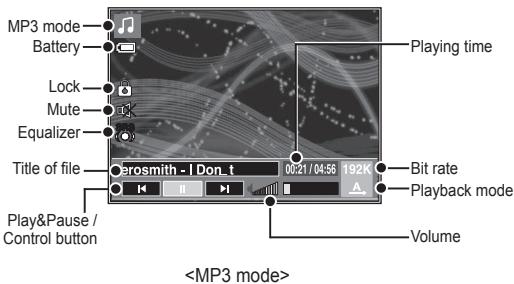

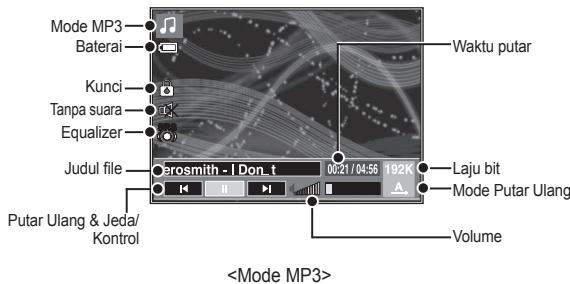

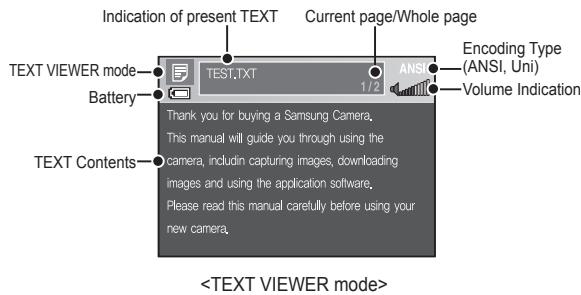

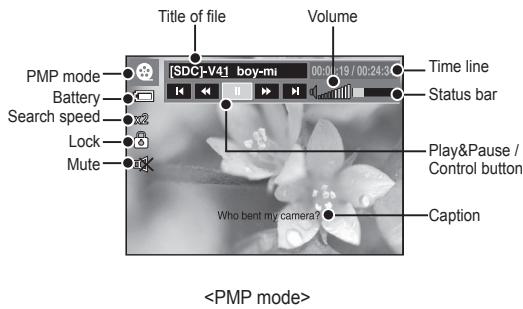

The LCD monitor displays information about the MP3, multimedia and Text file.

※ Encoding Type: ANSI (American National Standards Institute) Type, Uni (Unicode) Type

• When the ANSI encoding type is displayed:
• You should set the Language of the TEXT VIEWER menu to view the text.
• Set the Language menu as one that is the same as the Operating System language that the text was created.
• When the UNI encoding type is displayed: The text file will be displayed with any language menu.

※ If the text file size is over 10MB, it may take a long time or even be impossible to view the text file. In this case, please divide the text file.

Downloading images

For Windows	For Macintosh
PC with processor better than Pentium II 450MHz(Pentium II 800MHz recommended)※ Samsung ConverterPC with processor better than Pentium 500MHz(Pentium IV recommended)	Power Mac G3 or later
Windows 98SE / 2000 / ME / XP/ Vista※ Samsung ConverterWindows 2000 or later recommended	Mac OS 10.1 ~ 10.4
Minimum 128MB RAM(Over 512MB recommended)200MB of available hard disk space(Over 1GB recommend)	Minimum 256MB RAM110MB of available hard-disk space
USB port	USB port
CD-ROM drive	CD-ROM drive
1024x768 pixels, 16bit color displaycompatible monitor(24bit color display recommended)Microsoft DirectX 9.0 or later	MPlayer (For movie clip)

PC connection mode

1. Install the supplied Software.

1. Download the images

• Connect the camera and Computer with supplied USB cable and download the image on your computer to save them.

Specifications

Image Sensor - Type : 1/2.5" CCD

• Effective Pixel: Approx. 8.2 Mega-pixel
• Total Pixel : Approx. 8.3 Mega-pixel

Lens - Focal Length : Samsung Lens f = 6.3 ~ 18.9mm (35mm film equivalent : 38 ~ 114mm)

-F No.: F3.5(W) ~ F4.5(T)
- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X ·Play mode : 1.0X ~ 10.2X (depends on image size)

LCD Monitor - 3.0" Wide (16:9) color TFT LCD (230,000 pixel)

• Type : TTL auto focus (Multi AF, Center AF, Face Detection AF) - Range

	Normal	Macro	Super Macro	Auto Macro
Wide	80cm ~ Infinity	5cm ~ 80cm	1cm ~ 5cm	5cm ~ Infinity
Tele		40cm ~ 80cm	-	40cm ~ Infinity

Shutter - Speed 1~1/2,000 sec. (Night: 16~1/2,000 sec.)

Exposure - Control: Program AE

• Metering : Multi, Spot, Center-Weighted, Face Detection
• Compensation: ±2EV (1/3EV steps)
• ISO : Auto, 50, 100, 200, 400, 800, 1600, 3200(Upto 3M)

Flash	- Modes: Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red-eye Fix - Range: Wide: 0.2m ~ 3.2m, Tele: 0.5m ~ 2.5m - Recharging Time: Approx. 4 sec
Sharpness	- Soft+, Soft, Normal, Vivid, Vivid+
Color Effect	- Normal, B&W, Sepia, Red, Green, Blue, Negative, Custom Color
White Balance	- Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom
Voice Recording	- Voice Recording (max. 10 hours) - Voice Memo in Still Image (max. 10 sec.)
Date Imprinting	- Date, Date & Time, Off (user selectable)
Shooting	- Still Image ·Mode: Auto, Program, DIS, FUN, Photo Help Guide, Scene ·Scene: Nightscene, Portrait, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow, Self Shot, Food, Café ·Shooting: Single, Continuous, AEB, Motion Capture ·Self-timer: 10 sec., 2 sec., Double, Motion Timer

Specifications

- Movie Clip ·With Audio (recording time : max 2 hours) ·Size : 800x592, 720x480, 640x480, 320x240 ·Optical Zoom with sound recording ·Frame rate : 30 fps, 20 fps, 15 fps (15/20 fps for 800x592, 720x480) (15/30 fps for 640x480, 320x240) ·Optical Zoom up to 3.0X ·Movie Editing (Embedded) : Pause during recording, Still Image Capture, Time Trimming
Storage	- Media ·Internal memory : About 40MB flash memory ·External Memory (Optional): MMC card (Up to 2GB guaranteed) SD/SDHC card (Up to 4GB guaranteed, 4bit 20MHz) ※ Internal memory capacity is subject to change without prior notice. - File Format ·Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0 ·Movie Clip : AVI (MPEG-4) ·Audio : WAV - Image Size
8M	7°	6°	5M	3M	1M
3264x 2448	3264x 2176	3264x 1824	2592X 1944	2048X 1536	1024X 768

• Capacity (256 MB Size)
  These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.

	8#	7#	6#	5#	3#	1#
Super Fine	About 58	About 66	About 77	About 91	About 155	About 355
Fine	About 89	About 100	About 115	About 133	About 190	About 414
Normal	About 137	About 150	About 177	About 198	About 216	About 452

“E” Button	- Effect : Photo Style Selector (Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic), Color, Image Adjust (Sharpness, Contrast, Saturation), Fun (Cartoon, Photo Frame, High Light, Composite,Color Mask)
	- Editing : Image Edit (Resize, Rotate), Color, Image Adjust (ACB, Red Eye Fix, Brightness, Contrast, Saturation, Add Noise), Fun (Cartoon, Photo Frame, High Light, Composite, Sticker, Color Filter, Color Mask)
Image Play	- Type : Single image, Thumbsails, Multi slide show※ Multi Slide show : Slide show with Effect & Music by folders
Multi function	- MP3, PMP, Text Viewer, Storage Driver, Voice Recorder

Specifications

Interface	- Digital output connector : USB 2.0 - Audio: Mono(Speaker), Stereo(Earphone) - Video output : NTSC, PAL (user selectable) - DC power input connector : 4.2V (20-pin connector)
Power Source	- Rechargeable battery : SLB-1137D (1100mAh) - Adaptor : SAC-47, SUC-C3 (20pin) ※ Included battery may vary depending on sale region.
Dimensions (WxHxD)	- 90 X 62 X 21.6mm (excluding protrusions)
Weight	- Approx. 157g (without batteries and card)
Operating Temperature	- 0 ~ 40°C
Operating Humidity	- 5 ~ 85%
Software	- Samsung Master, Samsung Converter, Adobe Reader

※ MP3 Specification
Audio	- Frequency: 20Hz ~ 20KHz - Earphone Port: 20Pin Port (Stereo Type) - Output: Maximum Volume Left 40mW + Right 40mW (16Ω) - Noise Ratio: 80 dB
File	- File Format: MP3 (MPEG-1/2/2.5 Layer 3) - Bit Rate: 48 ~ 320kbps (Including VBR)
Sound Effect	- SRS, Normal, Classic, Dance, Jazz, Live, Rock
Play Mode	- All, Repeat One, Repeat All, Shuffle - Skipping in Play, Auto Skipping - Slide Show On/Off (User Selectable) - MP3&Capturing (Capturing Mode is Auto Default, 3M) - Remember last played file - Background skin of MP3 playback using user images

※ PMP Specification
PMP Decoder	- Movie: Xvid MPEG4 (Using Samsung Converter S/W) - Audio: MPEG Layer 2 (Samsung Convert S/W)
Play Mode	- Fast Forward/Rewind(Max 32x) - Seeking in Play, Skipping in Play - Auto skipping after one file played - Remember last played frame - Support Full Screen in Converting S/W
Subtitle	- Support SMI file (Using Samsung Converter S/W)

Specifications

Text Specification

File	- TXT extension name, up to 99999 pages
File format	- Window: ANSI (Windows 98 or later), Unicode /Unicode (Big-Endian) / UTF-8 (Windows 2000/XP) - Mac: ANSI, Unicode (UTF-16)
Function	- Auto Scroll (0.8 sec ~ 2.3 sec) - Skipping by 1 page / 10 pages - Auto reload function (Remember last page) - Support MP3 BGM during displaying text file
Language	- English, Korean, French, German, Spanish, Italian, Chinese, Taiwanese, Japanese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Bahasa, Polish, Hungarian, Czech, Turkish. ※ Supportable language is subject to change without prior notice.

※ Specifications are subject to change without prior notice. ※ All trademarks are the property of their respective owners

Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should

not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable re-use of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.

eco

RoHS compliant

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

MEMO

Table des matieres

Pile rechargeable (SLB-1137D)

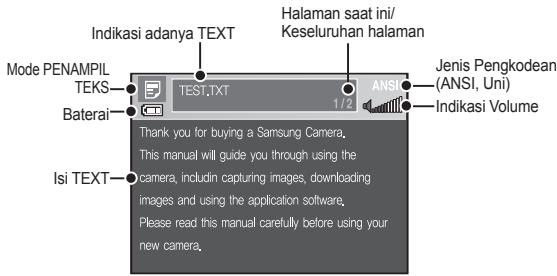

Thank you for buying a Samsung Camera.

This manual will guide you through using the

camera, includin capturing images, downloading

images and using the application software,

Please read this manual carefully before using your

new camera,

Görüntü Sensörü	- Tür: 1/2,5" CCD - Etkin Piksel: Yaplacık 8,2 Megapiksel - Toplam Piksel: Yaplacık 8,3 Megapiksel
Merçek	- Odak Uzakkı: SHD Merçkı f = 6,3 ~ 18,9mm (35 mm film dengi: 38 ~ 114mm) - F No.: F3,5(W) ~ F4,5(T) - Dijital Yakinl Mustangıma: - Durağan Görüntü modu: 1,0X ~ 5,0X - Oynatma modu: 1,0X ~ 10,2X (görüntü boyutuna®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®	- Tü: TÜ	- Tü: TÜ	- Tü: TÜ
LCD Ekran	- 3.0" Wide (16:9) renkli TFT LCD (230.000 nokta)
Odaklama	- Tür: TTL otomatik odaklama (Çoklu AF, Orta AF, Yüz Algilama AF) - Menzil
	Normal	Mako	Süper Makro	Oto Makro
Geniş	80cm ~ Sonsuz	5cm ~ 80cm	1cm ~ 5cm	5cm ~ Sonsuz
Tele		40cm ~ 80cm	-	40cm ~ Sonsuz
Obtüratör	- Hiz 1 ~ 1/2.000 sn. (Gece Sah.: 16 ~ 1/2.000 sn.)
Poz	- Kontrol: Program AE - Poz Olçümü: Çoklu, Nokta, Merkez a®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,-, Yüz Algilama - Telafi: ±2PD (1/3PD adimi) - ISO: Oto, 50, 100, 200, 400, 800, 1600, 3200(3M'ye kadar)

Thank you for buying a Samsung Camera. This manual will guide you through using the camera, including capturing images, downloading images and using the application software. Please read this manual carefully before using your new camera.

Monitor LCD menampikan informasi(OPM3, file multimedia dan file Teks.

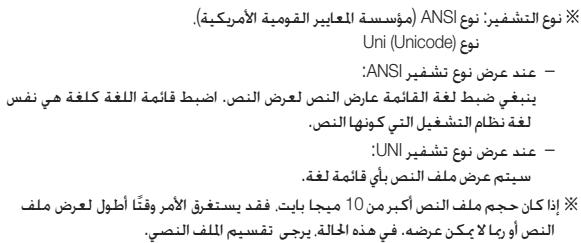

※ Penis Pengkodean: Penis ANSI (American National Standards Institute), Penis Uni (Unicode)

. SRS Labs, Inc 1000000000000000000000000000000000000000000000000000000000

l_ = 12l

1

10.10.11 10.10.12 4

（）/a 5

6

a aai 7

8

9

10

11

14

15

#

jolay jayeill aaiy piay jay, aic qiy ay hao yag Jay lalalalpaaay

1

JliljI Jglio jcI aLal oI IaIg laiiaI gaiI yIeIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIy

L. 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

aI aI I aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aII

LgSllpsslgl Llaolal 1sLg 1sLg 1sLg 1sLg 1sLg 1sLg 1sLg 1sLg 1sLg 1sLg 1sLg 1sLg 1sLg 1sLg

aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU, aIgU,

a a a a a a a a a a a a a

aIepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepe pe

aLlJyjEeJI. aIiLi pOJIb, aie Cii jz JzBc iEgo Ie Jua llipaiu wuu

yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI

gIyio I LgJyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIy

aS1pssuicui 5i j.5111ai1ai1gai 51
a,5111aiL5110c2 Lc gai a Jgai aJgai aai i aai ai

1 1111111111111111111111

a#yjzjgablizlljaiawellbtae jolalSLLAowwulpocj 1jolalSLJU JLd

1_3 ≤ 0 < 11·s 1_4 = 20·s < 1 + 10

3

1_2 a < 5( 1 - a) p > 0

AVL

SUC-C3.csB 1234567890

SLB-1137D

1 ≤ a_0 < 1
aeejulol

alogiallcalilalglal

111111111

20g

1_n + 1 < 12 + 13 + ·s + 1n + 1

SD/SDHC/MMC
aL

gwlwssjyglgwlwjgyelgljydljzalajzlylcllllglj. glllalaiioi lslgogellgoligowelisi dillilipplsiuJgagllc

La5 256 MMCCs aill plsslln iie aillc gag yaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

\( \begin{array}{ll} \text{10} & \text{15}\\ \text{3} & \text{4} \end{array} \)	\( \begin{array}{ll} \text{10} & \text{20}\\ \text{3} & \text{4} \end{array} \)	\( \begin{array}{ll} \text{10} & \text{30}\\ \text{3} & \text{4} \end{array} \)	\( \begin{array}{ll} \text{30} & \text{30}\\ \text{3} & \text{4} \end{array} \)	\( \begin{array}{ll} \text{30} & \text{30}\\ \text{3} & \text{4} \end{array} \)	\( \begin{array}{ll} \text{30} & \text{30}\\ \text{3} & \text{4}\end{array} \)
\( \begin{array}{ll} - & - \end{array} \)	-	-	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :137 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :89 \)	\( \begin{array}{ll} \text{3} & \text{4} \\ \text{3} & \text{4} \end{array} :58 \)
-	-	-	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :150 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :100 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :66 \)
-	-	-	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :177 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :115 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :77 \)
-	-	-	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :198 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :133 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :91 \)
-	-	-	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :216 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :190 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :155 \)
-	-	-	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :452 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :414 \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :355 \)
\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :12'00" \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :10'53" \)	-	-	-	\( \begin{array}{ll} \text{300} & \text{300} \\ \text{720} & \text{720} \end{array} \)
\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :12'58" \)	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :11'41" \)	-	-	-
\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :17'47" \)	-	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :11'23" \)	-	-	\( \begin{array}{ll} \text{340} & \text{340} \\ \text{320} & \text{320} \end{array} \)
\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :01:07'31" \)	-	\( \begin{array}{ll} \text{1} & \text{2} \\ \text{3} & \text{4} \end{array} :38'51" \)	-	-

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

SLB-1137D

العربية	العربية/العربية
العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية	/العربية/160yllg العربية/320yglg	العربية/العربية
Ja:480x640 ydgallpplattalldalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalok	/العربية/160yglg العربية/320yglg	العربية
Ja:480x640 ydgallpplattalldalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolalolal	/العربية/160yglg العربية/320yglg	MP3	العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/العربية/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع-ie/الع PIE/380yglg	PMP

Gwolw a5, w j o Jggl 1a wll gj yagall gj bI gpl 20 ao 10

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

10

.②）

gai j S ay. iayl l oayy 100o Ls yao Jolayi yiyjLs gll ic . aai yagogao Ls ayuoyoo jS ayuyy

aJlal aIbIyajjgljgawll jllipg

（）i j 1

[0,0]

[22]

T_1 ij = 12 bc = 12 lg = 12 且当 x = 2 .

jss 1 j

： TJJ-

. 3.5.5.1 g.2.11.4.5.12

j 3

"aaa"

.12345678901234567890

J

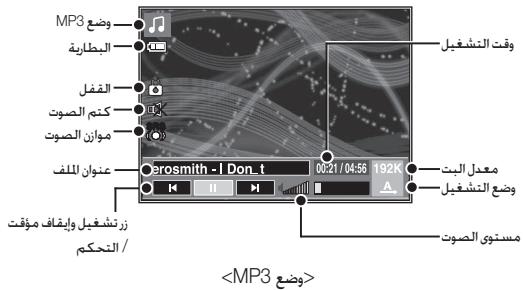

LLaLog MP3 gog MP3 LLaLo IolSIOIgai

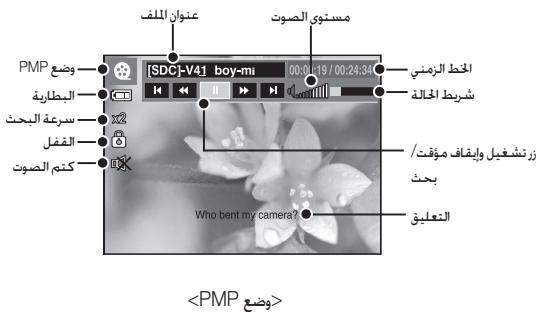

.PMP g (MPEG Layer2 /XviD MPEG4) SDC

AALLI jaiyai jaiyai pa aai kaii oia iie lao iaiu icaiyai pac all yai. .Samsung Jgao plaoaui aogcal

100g 200

200 1

10.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99..

Lgii 5c 8 Lgiiipgai 1

L 1. jaiil MPg yll jyIg aIg bI gblwgl Ie ooljlcIe lclall oie giz

gao) pIyI gao bao dao luog yI yI ciaLo yI gaiwgyjll baill aik

ailll lalwlll al 1g3 clc wPMP gag plasw. wJ Laiag (alalgall all JI aalalw yle aalil yk sllnol .Samsung Jyaa plasw.

5.52 1 p! a wgo J! LaiwJg

Log a2a2g 2/g1 2/gy1 1 (L) Lg) 120 2a2a2a1

J 1

JLL

STXTMgMPgMP3 1000000000000000000000000000000000000000000000

aIJIIOgOyS1JdALbgl

1

.1.205SJI JzJg USB JLs pssuwrjssu JI 1.205SJI JzJg .2

.3

.4

[TEXT]:

ii 11 111

Ie 15SII aie Iy. g. aaiil lalgPMPgMP3 ciao Jy jy S
. ai1lJI ySllaiie faii iia 40 Igwe daiy
wgljlll 1
2
.
:MP3
.
.aaieagjI, jLb, jI JaiJ: aJIJIaJc
11111111111111111111111111111111111111：[c]
.
0000000000000000000000000000000000000000000000
1

JIL 111111111111111111111111111111

34 ÷ 11( 2.)

jg jLj

jollloljoll

y 2

jIUSBJLSJxoojoooSSJJgololss

1gtaa jggccsll Lc0gagaa Jyjia

Macintosh Jazalil Power Mac G3	Windows Jazalil Power Mac
Mac OS 10.1 ~ 10.4	Windows 98SE / 2000 / ME / XP/VistaSamsung Jazalil Windows 2000
USB i2io	USB i2io
a logot e o u l g b u l j E h i n	a logot e o u l g b u l j E h i n
(r) a l l g h i l MPlayer	c) 16 a l g l a l a l g b u l a l b u l g j L a s s 768 x 1024(c) 24 a l g l a l a l g b u l a l b u l g j L a s s 768 x 1024

jLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLj p 2.5 ~ 0.5: jLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjL LjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLJ + gJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJ LjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLjLjLj (LjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLjLj LjLjLjLjLjLjLjLj LjLjLjLjLjLjLj LjLjLjLjLjLj LjLjLjLjLj LjLjLjLj LjLjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj LjLj

(panillalabwgluyycllllJLb)NTSC.PAL:golll

(20 4.2V:JLJI JIJI JIJI

(1100mAh) SLB-1137D:JL

(20pin)SUC-C3,SAC-47:J5

gallabioalisiiaaiialaillaii

jolieghuo

（clcL2j：Jg）

240x320.480x640.480x720.592x800:

gAJI JIJI 0JJIJIJIJI

1. a. 20. 30:

(480x720.592x800 a b c d e f g h i j k l m n o p q r s t

(240x320.480x640.a 30/15) a

3.0X

aaiyaiyiyuyyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiy

g = 1

:1jLwgl

40 40

glll lio glll glll glll glll glll glll glll

i111100000000000000000000000000000000000000000000

JSLs aiaiaoscljaoaagaiyJSL

Lc loglogagjg jgsyJgssyJgssyJgssyJgssyJgssyJgssy

.

1

.

·s + 14 = 1_4011

99999	TEXT
Unicode, (Windows 98) ANSI: Window -
(Windows 2000/XP) UTF-8 / (Big-Endian) Unicode/
(UTF-16) Unicode ,ANSI :Mac -
(a+b) 2,3~a+b 0,8)
a+b 10,a+b 1
(a+b) a+b 1
(b+c) b+c 1
(b+c) b+c 1
b+c 10,b+c 1
MP3 BGM .mp3 -
a+b a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 11
a+b a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b
a+b a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 10 a+b 0

：

111111111111111111

JS Joljic Jcbl Samsung Techwin 2w w j

jaiyoluyuoyuulayuoyuuluyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyu

Samsung Techwin Ecoo

.EU RoHSol

∠

#

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

Hnnaaannnnnnae

Microsoft,Windows 11 Windows 11 Microsoft Corporation
aannnnnne nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
-
-
PDF PDF Explorer Windows 7 PDF Adobe Reader
SRS(●) SRS Labs, Inc.
WOW HD SRS Labs, Inc.

#

aannnnnnaanennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

wannnnaaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanara an

nannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nna

aannnnnnaanennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

wuwuwruszlnannunneoadn nwnwnwnnnnnae nnwnnnnwnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

• nnnnnaaannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
  -0000000000000000000000000000

aannnnnnaanennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

wnnnnnaaannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn

wuuuunnnnnaaannnnnne

回回回

y

aannnnnnae

y

nnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanaraannanananaaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaennanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanananaannanna

□LCD
[ntw&wnznnn]

mnnnnnnaaennnnae nanaanaaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanaraannnna

SCENE

#

ywnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

MULTIMEDIA

Jn

#

nanaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanana anana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana ana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anara anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana anana

2

• wwnnnn nn nnnn nn nnnn

WwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWwWw

nnae

### Windows	### Macintosh
Pentium II 450MHz (Penium II 800MHz) ※ Samsung Converter Pentium IV	Power Mac G3 ### Pentium IV
Windows 98SE / 2000 / ME / XP/Vista ※ Samsung Converter Windows 2000 ### Pentium IV	Mac OS 10.1 ~ 10.4
RAM ### 128MB (Penium II 512MB) Pentium IV 200MB (Penium IV 1GB)	RAM ### 256MB Pentium IV 110MB
WOR USB	WOR USB
### WOR WOR	### WOR WOR
1024x768 WOR WOR 16 WOR (Penium II 24 WOR) Microsoft DirectX 9.0 WOR WOR	MPlayer (### WOR WOR)

1

1.

1. aunnnn

---

- 15mm : 1/2.5" CCD - 15mm : 15mm : 8.2 mm : 7.5mm - 15mm : 15mm : 8.3 mm : 7.5mm
- 15mm : 15mm : 100 SHD f = 6.3 ~ 18.9 mL. (15mm : 15mm : 35 mL : 38 ~ 114 mL) -F No.: F3.5(W) ~ F4.5(T) - 15mm : 15mm : 1.0X ~ 5.0X - 15mm : 1.0X ~ 10.2X (15mm : 15mm)
LCD	- 3.0" Wide (16:9) TFT LCD (230,000 m)
LCD	- 15mm : 15mm : 100 TTL (AF : 15mm, AF : 10m, AF : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10m : 10

Wide	80mm. ~ 50mm.	5mm. ~ 80mm.	1mm. ~ 5mm.	5mm. ~ 50mm.
Tele		40mm. ~ 80mm.	-	40mm. ~ 50mm.

• MP3, PMP, Text Viewer, w

• • USB 2.0

-uuu:huu（）wu
- nnnnnt:NTSC, PAL (
- w DC:4.2V(20W)

###	- ### SLB-1137D (1100mAh)
	- ### : SAC-47, SUC-C3 (20pin)
	※ ###
### (WxHxD)	- 90 X 62 X 21.6 mm. (###)
###	- 155 mm. (###)
###	- 0 ~ 40°C
###	- 5 ~ 85%
###	- Samsung Master, Samsung Master, Adobe Rea

※VSWB2 MP3
- 20Hz: 20KHz - 20Hz: 20 V (50Hz)	- 20Hz: 20KHz - 20Hz: 20 V (50Hz)
- 40mW + 100mW (16Ω) - 80 dB	- 40mW + 100mW (16Ω) - 80 dB
- 80 mW: MP3 (MPEG-1/2/2.5 Layer 3) - 48 ~ 320kbps (720 VBR)	- 80 mW: MP3 (MPEG-1/2/2.5 Layer 3) - 48 ~ 320kbps (720 VBR)
- SRS, 250Hz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz - 250mHz: 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 3M) - 250mHz: 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz,250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz, 200 mHz - 250mHz: 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz,250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 250mMHz, 200mHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz, 200mMHz,250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 80 dB	- 250mHz: 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz,
- 250mHz: 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, - 250mHz: 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, - 250mHz: 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, - 250mHz: 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 250mHz, 80 dB	- 200mHz: 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 200mHz, 80 dB
※VSWB2 MP3
- Xvid MPEG4 (396kbit/s) - MPEG Layer 2 (Samsung Convert S/W)	- Xvid MPEG4 (396kbit/s) - MPEG Layer 2 (Samsung Convert S/W)
- 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s(3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x)	- 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s(3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x)
- 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 80 dB	- 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 80 dB
- 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 127 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s(3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s(3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x)	- 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 128 Mbit/s (3x) - 96 dB

yuaanw

※

W -wnana TXT, qnnn 99999 nn

• Window: ANSI (Windows 98 w#n nnnn), Unicode / Unicode (Big-Endian) / UTF-8 (Windows 2000/XP)

• Mac: ANSI, Unicode (UTF-16)

Please refer to the warranty that came with the product you purchased, or go to our website http://www.samsungcamera.com/ for after-sales service or inquiries.

Internet address - http ://www.samsungcamera.com

The CE Mark is a Directive conformity mark of the European Community (EC)

AD68-02906A
