Product type	Digital camera
Brand	SAMSUNG
Model	VLUU WB500
Dimensions (L x H x D)	105 x 61.4 x 36.5 mm
Weight (without battery or card)	225 g
Power supply	Rechargeable lithium-ion battery SLB-10A (1050 mAh)
Image sensor	CCD 1/2.33" (approx. 1.09 cm), 12.2 effective megapixels
Lens	Samsung f=4.2-42 mm (equiv. 24-240 mm), aperture F3.3 (W) - F5.8 (T)
Display	QVGA TFT LCD 3.0" (230,000 pixels)
Focusing	TTL autofocus: multi, center, manual, selection, face detection
Shutter speed	Auto 1/8-1/1500 s, Program 1-1/1500 s, Manual 16-1/1500 s, Night 8-1/1500 s, Fireworks 4 s
Internal storage	Approx. 21 MB
External storage (optional)	SD card (up to 4 GB), SDHC (up to 8 GB), MMC Plus (up to 2 GB)
Connectivity	USB / AV / DC / earphones, HDMI
Main functions	Photo and video shooting, 10x optical zoom, digital zoom, multiple modes (Auto, Program, Manual, Night, etc.)
Safety	Do not use near flammable gases or liquids. Keep out of reach of children. Flash more than 1 m from eyes.
Maintenance and cleaning	Avoid dust, humidity, extreme temperatures (0-40°C, humidity 5-85%). Clean the lens with a soft cloth.
Spare parts and repairability	Battery, charger, cables and memory cards optional. Use original Samsung accessories.
General information	Manual available in several languages. User manual included on CD-ROM.

Frequently Asked Questions - VLUU WB500 SAMSUNG

How to insert the battery and memory card?

Open the compartment located under the device. Insert the battery with the Samsung logo facing up. Insert the memory card with the contacts facing up (chip facing up). Close the cover.

How to charge the battery?

Use the supplied charger. Plug it into a power outlet. The indicator light is red during charging and turns green when charging is complete.

How to set the date and time?

Turn on the device. On first startup, the setup screen appears. Use the navigation buttons to select 'Date & Time', then adjust the values with the arrows. Confirm with OK.

How to take a photo in automatic mode?

Turn the dial to AUTO mode. Frame your subject. Press the shutter button halfway to focus (a green frame appears). Press fully to take the photo.

How to record a video?

Turn the dial to video mode. Press the shutter button to start recording. Press again to stop. You can pause recording with the appropriate button.

How to transfer photos to a Windows PC?

Install the supplied CD-ROM. Connect the device to the PC with the USB cable. Turn on the device. On the computer, go to 'My Computer' > 'Removable Disk' > 'DCIM' > '100SSCAM'. Copy the desired files.

What memory card can I use?

The device accepts SD cards up to 4 GB, SDHC up to 8 GB and MMC Plus up to 2 GB. Use recognized brand cards.

How to clean the lens?

Use a soft, dry cloth to gently wipe the lens. Avoid any contact with liquids. Do not use chemicals.

What are the important safety precautions?

Do not use the device near flammable gases or liquids. Keep it out of reach of children. Do not use the flash less than 1 meter from eyes (risk of injury). Use only Samsung batteries and chargers.

How to use the zoom?

Use the zoom lever located on top of the device. Push towards T (Tele) to zoom in, towards W (Wide-angle) to zoom out. The optical zoom is 10x; beyond that, digital zoom activates.

USER MANUAL VLUU WB500 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG/GER/FRE/SPA/ITA/DUT/POR

Contents

Health and safety

information 2

Camera layout 4 8

Setting up your camera 5

Unpacking 5

Inserting the battery and memory card 6 15

Charging the battery 6 14

Turning on your camera 7 18

Selecting options 7 40

Capturing photos or videos 8 20

Playing files 9 56

Transferring files to a PC

(Windows) 10 98

Specifications 11 105

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

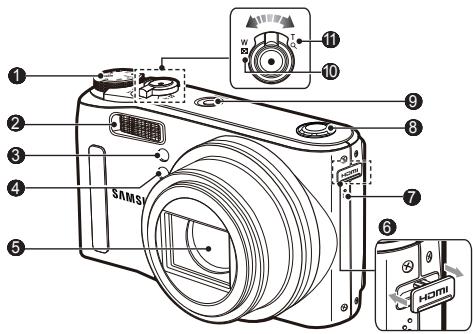

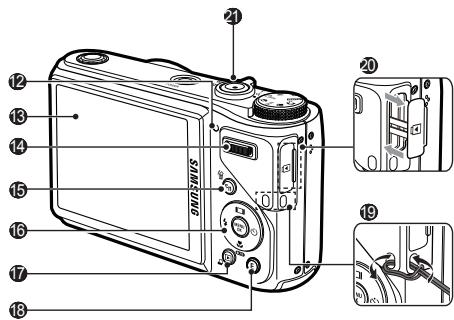

Camera layout

1 Mode dial
2 Flash
3 'AF sensor/Self-timer lamp
4 Remote control sensor
5 ;Lens
6HDMI connection terminal
7 'Microphone
8 Speaker
9 POWER button
10:Zoom W Lever (Thumbnail)
11:Zoom T Lever (Digital zoom)

12 'Camera status lamp
13 LCD monitor
14:Command Lever
15:Fn/Delete button
16:5-function button
17 Play mode /Print button
18:E (Effect) button
19 Camera strap
20:USB/AV/DC terminal
4 'Shutter button

Setting up your camera

Unpacking

Camera

AC adapter/ USB cable

Rechargeable battery

Strap

Software CD-ROM (User manual included)

Quick Start Manual

Optional accessories

Camera case

Remote control

Memory cards
HDMI cable

AV cable

Setting up your camera

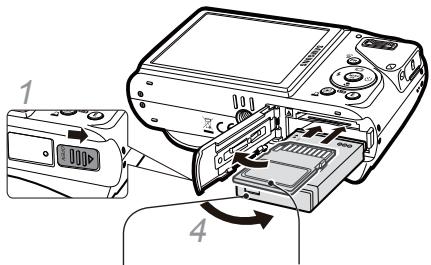

Inserting the battery and memory card

2 With the Samsung logo facing up
3 With the gold-coloured contacts facing up

Removing the battery

Removing the memroy card
Push gently until the card disengages from the camera and then pull it out of the slot.

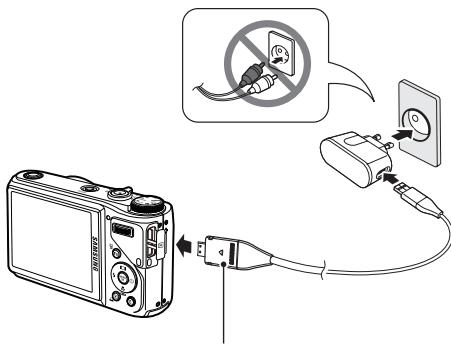

Charging the battery

Before using the camera for the first time, you must charge the battery.

Indicator light

Red:Charging
- Green: Fully charged

Turning on your camera

1 Press [POWER].

• The initial setup screen appears.

2 Press [O].
3 Press [ ] or [ ] to select a language and press [OK].
4 Press [■] or [■] to select Date & Time and press [心].
5 Press [4] or [0] to select an item.
6 Press [■] or [■] to change the number or select another date format and press [OK].

In Shooting mode, press [Fn].
2 Use the navigation buttons to scroll to an option or menu.

• To move left or right, press [4] or [心].
  To move up or down, press [■] or [■].

3 Press [OK] to confirm the highlighted option or menu.

• Press [Fn] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Rotate the mode dial to AUTO.
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

• A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Rotate the mode dial to
2 Align your subject in the frame.
3 Press [Shutter].

• Press [ ] to pause or resume.
  4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution		Super fine	Fine	Normal
12M	4000 x 3000	147	285	404
410M	3984 x 2656	168	314	442
9M	3968 x 2232	203	368	529
8M	3264 x 2448	212	375	538
5M	2592 x 1944	334	558	780
3M	2048 x 1536	524	790	1,049
1M	1024 x 768	1,449	1,645	1,845

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [D].
2 Press [ ] or [ ] to scroll through files. Press and hold to view files quickly.

Viewing videos

1 Press [□].
2 Press [].

3 Use the following buttons to control playback.

[+]	Scan backward
[...]	Pause or resume playback
[...]	Scan forward
[Command Level]left or right	Adjust the volume level

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Disconnecting safely (for Windows XP)

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100SSCAM.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	• Type: 1/2.33" (approx. 1.09 cm) CCD • Effective pixels: approx. 12.2 mega-pixels • Total pixels: approx. 12.4 mega-pixels
Lens	• Focal length: Schneider lens f = 4.2 - 42.0 mm (35 mm film equivalent: 24 - 240 mm) • F-stop range: F3.3 (W) - F5.8 (T)
Display	3.0" QVGA TFT LCD (230,000 pixel)
Focusing	TTL auto focus (Multi-AF, Center AF, Manual Focus, Selection AF, Face Detection AF)
Shutter speed	• Auto: 1/8 ~ 1/1,500 sec • Program: 1 ~ 1/1,500 sec • Manual: 16 ~ 1/1,500 sec • Nightscene: 8 ~ 1/1,500 sec • Firework: 4 sec
Storage	• Internal memory: approx. 21 MB • External memory (Optional): SD card (up to 4 GB guaranteed), SDHC card (up to 8 GB guaranteed), MMC Plus (Up to 2GB guaranteed, 4bit 20MHz) Internal memory capacity may not match these specifications.
DC power input connector	20 pin
Rechargeable battery	Lithium-ion battery (SLB-10A, 1,050 mAh)
Dimensions (W x H x D)	105 x 61.4 x 36.5 mm
Weight	225 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %

Inhalt

Batterie rechargeable

Dragonne

Specifications 11 105

NL-2

Please refer to the warranty that came with your product or visit our website http://www.samsungcamera.com/ for after-sales service or inquiries.

AD68-03939A (1.1)
