PL100 SILVER FRONT - Camera SAMSUNG - Free user manual and instructions

Product type	Compact digital camera
Brand	Samsung
Model	PL100 Silver Front
Sensor	CCD 1/2.33", 12.2 effective megapixels
Lens	Focal length 6.3-18.9 mm (equiv. 35-105 mm), aperture F3.0-F5.6
Main screen	LCD 2.7", 230,000 dots
Front screen	LCD 1.5", 61,000 dots (self-portrait)
Dimensions (W x H x D)	95.7 x 56 x 20.3 mm
Weight	111 g (without battery or card)
Power supply	Rechargeable lithium-ion battery BP70A, 740 mAh
Internal storage	Approximately 5 MB
External storage	SD/SDHC card (up to 8 GB)
Shutter speed	Auto 1/8-1/1500 s, Program 1-1/1500 s, Night 8-1/1500 s
Main functions	Photo, video, self-portrait with front screen, face detection, focus tracking
Connectivity	USB 2.0, AV output, DC input
Provided software	Intelli-studio (transfer and editing)
Operating temperature	0°C to 40°C
Operating humidity	5% to 85%
Maintenance and cleaning	Clean the lens with a soft cloth; avoid dust and moisture
Safety	Do not use near flammable gases; keep out of reach of children; do not use flash within 1 m of eyes
Spare parts and repairability	Specific Samsung battery and charger; standard memory card

Frequently Asked Questions - PL100 SILVER FRONT SAMSUNG

How to turn on the camera?

Press the Power button (number 2 on the diagram). On first power-up, set the language, date, and time.

How to take a self-portrait with the front screen?

In Shooting mode, press the Front LCD button (number 4). The front screen turns on to frame yourself. Press the shutter halfway then fully.

How to transfer photos to a Windows computer?

Connect the camera to the computer with the supplied USB cable. Turn on the camera. Under Windows Vista/7, select 'Run Installer.exe'. The Intelli-studio software opens and guides you through the transfer.

What type of memory card can I use?

You can use an SD card (up to 4 GB) or SDHC card (up to 8 GB). Insert it with the chip facing up.

How to charge the battery?

Use the supplied AC adapter and USB cable. Connect the camera (off) to a wall outlet. The indicator is red during charging and green when charging is complete.

How to record a video?

Turn the dial to (video) mode. Frame your subject and press the shutter to start. To pause, press OK. Press the shutter again to stop.

What to do if the camera does not turn on?

Check that the battery is charged and properly inserted. If the problem persists, remove the battery and memory card, wait a few seconds, then reinsert them.

How to clean the lens?

Use a soft, dry cloth (microfiber type). Do not blow directly with your mouth to avoid moisture. Avoid solvents.

Which accessories are optional?

You can buy a protective case, an audio/video cable for viewing on a TV, an additional battery charger, or larger memory cards.

How many photos can I store on a 1 GB card?

At maximum resolution (12M), about 147 photos; at normal resolution, about 403 photos. These figures are approximate and vary depending on shooting conditions.

USER MANUAL PL100 SILVER FRONT SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG / FRE / T.CHI / IND / ARA / THA / PER

Contents

Health and safety information 2 1

Camera layout 4 13

Setting up your camera ..... 5 12

Unpacking 5

Inserting the battery and memory card 6

Charging the battery 6

Turning on your camera......7

Selecting options 7

Capturing photos or videos 8 27

Playing files 9 55

Transferring files to a PC (Windows) 10 68

Specifications 11 91

2

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

Camera layout

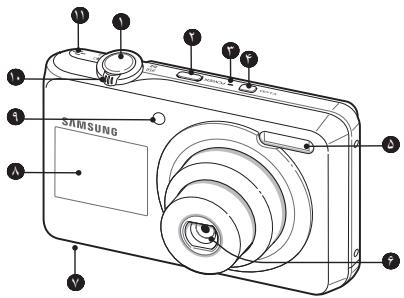

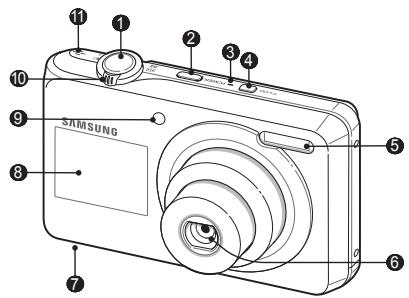

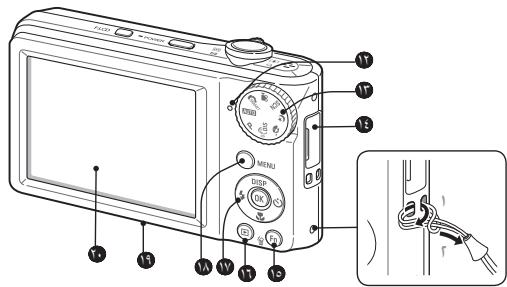

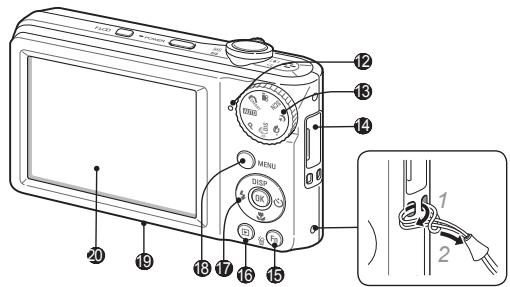

1 2 3 4 5 6 7 8 9 SAMSUNG

Diagram of a digital camera with numbered parts and a close-up view of the cable connector

① Shutter button
② POWER button
③ Microphone
4 Front LCD button
⑤ Flash
6 Lens
⑦ Battery chamber cover
8 Front display
9 AF-assist light/timer lamp
10 Zoom button
11 Speaker

⑫ Status lamp
13 Mode dial
14 USB and A/V port (Accepts USB cable or A/V cable)
15 Function button
16 | Playback button
17 Navigation button/OK button
18 MENU button
19 Tripod mount
20 Main display

Setting up your camera

Unpacking

Line drawing of a digital camera with no text or symbols

Camera

Line drawing of a handheld electronic device with coiled cable (no text or symbols)

AC adapter/USB cable

Rechargeable battery

Strap

Software CD-ROM (User manual included)

Quick Start Manual

Optional accessories

Camera case

Memory card

A/V cable

Line drawing of a handheld electronic device with a coiled cable and rectangular housing (no text or symbols)

Battery charger

Setting up your camera

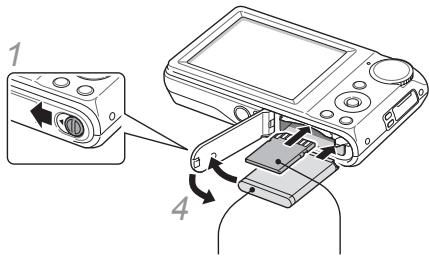

Inserting the battery and memory card

Diagram showing a device with labeled parts and an inset view of a camera module

3 With the Samsung logo facing up
2 With the gold-colored contacts facing up

▼ Removing the battery

Diagram of a door handle with a scroll wheel and directional arrow indicating rotation (no text or symbols)

▼ Removing the memory card

Diagram of a device interior showing a handle and control panel with arrows indicating movement (no text or symbols)

Push gently until the card disengages from the camera and then pull it out of the slot.

Charging the battery

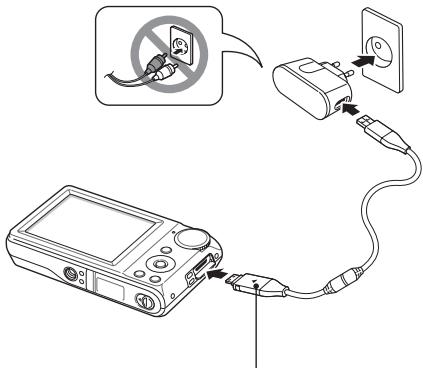

Before using the camera for the first time, you must charge the battery.

Diagram showing connections between a device, a plug, and a power outlet with no visible text or symbols.

Indicator light

• Red: Charging
• Green: Fully charged

Turning on your camera

1 Press [POWER].

- The initial setup screen appears when you turn on your camera for the first time.

Line drawing of a digital camera with an arrow pointing to the screen (no text or symbols present)

2 Select a language, set the date and time, and select a time zone.

Display Language Date & Time Time Zone MENU Exit ▶ Change

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

12M -2 -1 0 +1 +2 ISO EV MENU MENU - MENU Back Move

• To move left or right, press [⚡] or [💡].
• To move up or down, press [DISP] or [✿].

3 Press [OK] to confirm the highlighted option or menu.
- Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Rotate the mode dial to AUTO.
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

- A green frame means the subject in focus.

Silhouette of a person holding a rectangular object, no text or symbols present

4 Press [Shutter] all the way down to take the photo.

Taking a photo of yourself using the front display

The front display will help you take self-portraits.

1 In Shooting mode, press [Front LCD] once.

- The front display turns on in the Self-portrait mode.

Silhouette of a person holding a camera with a face detection bounding box (no text or symbols)

2 Press [Shutter] halfway down to focus.
3 Press [Shutter] all the way down to take the photo.

8

Recording a video

1 Rotate the mode dial to 🎨.
2 Align your subject in the frame.
3 Press [Shutter].
- Press [OK] to pause or resume.
4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution		Super Fine	Fine	Normal
12^M	4000 X 3000	147	284	403
10^M	3984 X 2656	167	313	441
3^M	3840 X 2160	202	367	528
8^M	3264 X 2448	211	374	537
5^M	2560 X 1920	339	566	792
3^M	2048 X 1536	510	802	1,065
2^M	1920 X 1080	735	1,144	1,437
1^M	1024 X 768	1,287	1,670	1,872

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [▶].
2 Press [⚡] or [💡] to scroll through files.

- Press and hold to scroll through files quickly.

Viewing videos

1 Press [▶].
2 Press [OK].
3 Use the following buttons to control playback.

[⚡]	Scan backward
[OK]	Pause or resume playback
[💡]	Scan forward
[Zoom] left or right	Adjust the volume level

Transferring files to a PC (Windows)

1 Connect the camera to your computer with the USB cable.

Diagram showing connection between a device and a laptop via cable (no text or symbols present)

2 Turn on the camera.

• The computer recognizes the camera automatically.
• For Windows Vista, select Run Installer.exe from the AutoPlay window.

3 Select a folder on your computer to save new files.

- If your camera has no new files, the pop-up window for saving new files will not appear.

4 Select Yes.

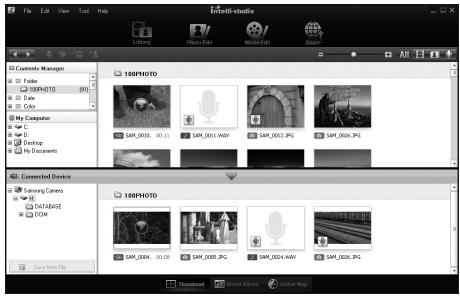

- New files will be transferred to your computer. You can now use the Intelli-studio program.

File Edit View Tools Help 19BP1HOTO SAP_0024.350.08 SAP_0024.JPG SAP_0024.HAV SAP_0023.JPG SAP_0024.JPG SAP_0023.JPG SAP_0024.JPG SAP_0023.JPG SAP_0024.JPG SAP_0023.JPG SAP_0024.JPG SAP_0023.JPG SAP_0024.JPG SAP_0023.JPG SAP_0024.JPG SAP_0023.JPG

Note

About Intelli-studio

Intelli-studio is a program that allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube.

10

Specifications

Image sensor	Type: 1/2.33" (approx. 7.79 mm) CCDEffective pixels: approx. 12.2 mega-pixelsTotal pixels: approx. 12.4 mega-pixels
Lens	Focal length: Samsung lens f = 6.3 - 18.9 mm (35 mm film equivalent: 35 - 105 mm)F-stop range: F3.0 (W) - F5.6 (T)
Display	Main Display: 2.7" (approx. 6.9 cm) QVGA (230 K)Front Display: 1.5" (approx. 3.8 cm) 61 K TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF, Tracking AF)
Shutter speed	Auto: 1/8 - 1/1,500 sec.Program: 1 - 1/1,500 sec.Night: 8 - 1/1,500 sec.Fireworks: 2 sec.
Storage	Internal memory: approx. 5 MBExternal memory (Optional): SD card (up to 4 GB guaranteed),SDHC card (up to 8 GB guaranteed)Internal memory capacity may not match these specifications.
DC power input connector	20 pin
Rechargeable battery	Lithium-ion battery (BP70A, 740 mAh)
Dimensions (W x H x D)	95.7 x 56 x 20.3 mm
Weight	111 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %

Sommaire

Diagram of a digital camera with numbered parts and a close-up view of the cable connector

Line drawing of a digital camera with no text or symbols

Appareil photo

Line drawing of a handheld electronic device with coiled cable and connector (no text or symbols)

Batterie rechargeable

Dragonne

Line drawing of a rectangular device with a coiled cable and connector (no text or symbols)

Diagram showing a device with labeled parts, including a camera module and a connector with arrows indicating rotation.

Diagram of a door handle with a curved arrow indicating rotation or movement (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram showing electrical connection with a device, plug, and socket connected to a power outlet, accompanied by a no-smoking symbol.

Voyant lumineux

Line drawing of a digital camera with an arrow pointing to the front panel (no text or symbols present)

Language Date & Time Time Zone Display MENU Exit ▶ Change

Silhouette of a person holding a rectangular object, with camera and meter UI elements (no text or symbols on the figure itself)

Silhouette of a person taking a photo with a magnified inset showing a face (no text or symbols)

Diagram showing connection between a device and a laptop via cable (no text or symbols present)

Color palette bar with 12 distinct color swatches (yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray) arranged horizontally.

健康與安全資訊

警告

Diagram of a digital camera with numbered parts and a close-up view of the cable connector

Gradient bar transitioning from black to white with no text or symbols

Color palette bar with 12 distinct color swatches (yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray) arranged horizontally.

安裝相機

拆封

Line drawing of a digital camera with no text or symbols

相機

Line drawing of a handheld electronic device with coiled cable (no text or symbols)

交流電轉接器/ USB 纜線

充電電池

吊帶

軟體光碟 (含使用手冊)

快速入門手冊

選購配件

相機套

記憶卡

A/V 繫線

Line drawing of a handheld electronic device with a coiled cable and square base (no text or symbols)

充電器

T.ZH-5

繁體中文

安裝相機

插入電池和記憶卡

Diagram showing camera module assembly with labeled parts and directional arrows indicating movement

Diagram of a door handle with a scroll wheel and directional arrow indicating rotation (no text or symbols)

▼ 取出記憶卡

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing electrical connection with a device, plug, and socket connected to a power outlet, accompanied by a no-pin electrical plug.

指示燈亮起

• 紅色：充電
• 綠色：電池已充滿電

開啟相機

1 按下 [POWER]。

Line drawing of a digital camera with an arrow pointing to the front panel (no text or symbols present)

Display Language Date & Time Time Zone MENU Exit ▶ Change

使用觸控式螢幕

Silhouette of a person holding a rectangular object, no text or symbols present

4 將 [快門] 全部按下，即可拍照。

使用前螢幕自拍

前螢幕可協助您自拍。

Silhouette of a person taking a photo with a magnified inset showing a face (no text or symbols)

Line drawing showing a device connected to a laptop via cable (no text or symbols)

2 開啟相機。

File Edit View Tools Help Library Photolat Moviebox Book Contents Manager On Folder 180F1HOTD SAP_0013. 30:11 SAP_0014.WHY SAP_0015.JPG SAP_0016.JPG Connected Device Samsung/Carens DATABILE COM 180F1HOTD SAP_0024. 30:18 SAP_0025.JPG SAP_0024.WHY SAP_0025.JPG Download Refresh Window Help

備註

關於 Intelli-studio

Diagram of a digital camera with numbered parts and a close-up view of the cable connector

① Tombol bidik
② Tombol daya
③ Mikrofon
4 Tombol LCD depan
⑤ Lampu kilat
⑥ Lensa
⑦ Tutup ruang baterai
⑧ Tampilan depan
9 AF-cahaya bantuan/Lampu Pewaktu
10 Tombol zoom
11 Pengeras Suara

12 Lampu status
13 Pilihan mode
USB dan port A/V (Menerima kabel USB atau kabel A/V)
15 Tombol Fungsi
16 Tombol putar
17 Tombol Navigasi/Tombol OK
18 Tombol menu
19: Dudukan tripod
20 Tampilan Utama

ID-4

Mengatur kamera

Line drawing of a digital camera with no text or symbols

Kamera

Line drawing of a handheld electronic device with coiled cable (no text or symbols)

Adaptor AC/Kabel USB

Baterai isi ulang

Pengikat

Line drawing of a handheld electronic device with a coiled cable and square base (no text or symbols)

Charger baterai

ID-5

Bahasa

Mengatur kamera

Memasukkan baterai dan kartu memori

Diagram showing a device with labeled parts and an inset view of a camera module

Diagram of a door handle with a scroll wheel and directional arrow indicating rotation (no text or symbols)

▼ Mengeluarkan kartu memori

Diagram of a device interior showing a handle and control panel with arrows indicating movement (no text or symbols)

Diagram showing connections between a device, a plug-in socket, and an electrical outlet with no visible text or symbols.

Lampu indikator

Line drawing of a digital camera with an arrow pointing to the screen (no text or symbols present)

Display Language Date & Time Time Zone MENU Exit ▶ Change

Memilih pilihan

2M -2 -1 0 +1 +2 ISO EV KEMBAI Pindah

Silhouette of a person holding a rectangular object, no text or symbols present

Silhouette of a person taking a selfie with a smartphone, alongside a video call interface showing a woman's face (no text or symbols on the image itself)

2 Tekan [Bidik] separuh jalan untuk memfokuskan.
3 Tekan [Bidik] penuh untuk mengambil foto.

Merekam video

Diagram showing connection between a device and a laptop via cable (no text or symbols present)

2 Hidupkan kamera.

Tentang Intelli-studio

Line drawing of a handheld electronic device with coiled cable (no text or symbols)

Line drawing of a digital camera with no text or symbols

الكاميرا

دليل التشفيل السريع

Line drawing of a handheld electronic device with a rectangular housing and cable (no text or symbols)

شاحن البطارية

A/V كبل

بطاقات الذاكرة

حقية الكاميرا

AR-5

تصميم الكاميرا

Diagram of a digital camera with labeled buttons and ports, including a close-up view showing the cable being inserted.

Simple geometric shapes: a gray rectangle and a target symbol with crosshair (no text or symbols)

اختيار创业者

تشغيل الكاميرا

Line drawing of a digital camera with an arrow indicating compression or disassembly (no text or symbols present)

Display Language Date & Time Time Zone MENU Exit ▶ Change

AR-7

إعداد الكاميرا

اشحن البطارية

ECRAGI BAPTACCA DZAKRA

Silhouette of a person taking a photo with a magnified inset showing a face (no text or symbols)

Silhouette of a person pointing at a rectangular box, with camera and monitor icons above (no text or symbols on the person or background)

Line drawing showing a device connected to a laptop via cable (no text or symbols)

قم بتشغيل الكاميرا.

5

Diagram of a digital camera with numbered parts and a close-up view of the cable connector

Line drawing of a digital camera with no text or symbols

กล้อง

Line drawing of a handheld electronic device with coiled cable (no text or symbols)

Line drawing of a handheld electronic device with a coiled cable and square base (no text or symbols)

Diagram showing a device being inserted into a digital camera module, with labeled parts 1 and 4 indicating component insertion.

Diagram of a door handle with a curved arrow indicating rotation or movement (no text or symbols)

Diagram of a device interior showing a door handle and internal components with directional arrows (no text or symbols)

Diagram showing electrical connection with a device, plug, and socket connected to a power outlet, accompanied by a no-smoking symbol.

ไฟแสดงสถานะ

Line drawing of a digital camera with an arrow pointing to the top panel (no text or symbols present)

Display Language Date & Time Time Zone MENU Exit ▶ Change

การเลือกตัวเลือก

Silhouette of a person pointing upward with a rectangular frame, accompanied by camera and UI elements (no text or symbols on the figure itself)

Silhouette of a person taking a selfie with a smartphone, accompanied by a magnified view of a woman's face (no text or symbols present)

Diagram showing connection between a device and a laptop via cable (no text or symbols present)

2 เปิดกล้อง

Line drawing of a handheld electronic device with coiled cable (no text or symbols)

Line drawing of a digital camera with lens and screen (no text or symbols)

دوربين

Line drawing of a handheld electronic device with a rectangular housing and cable (no text or symbols)

شارژر باتری

Diagram of a digital camera with labeled buttons and screen, showing internal components like MENU, DSP, and control knobs.

شکل ظاهری دورین

N A L SAMSUNG A Y M I Y F Z

jergiwozogiet	11
klid jerdchéi hat	17
( A/V USB ( صد/taçpouir) A/V	15
( A/V USB ( kabil yia kabil)	13
dkmh oelkrd	12
dkmh pchiş	17
dkmh hadiyit/dkmh tajyid	17
dkmh mnü	14
mcll swaar tshn rwi se syahe	13
sphcne nmaish apli	14

Line drawing of a digital camera with an arrow pointing to the screen (no text or symbols present)

Display Language Date & Time Time Zone MENU Exit ▶ Change

راه اندازی دوربين

شارز کردن باتری

Diagram of a door handle with a circular arrow indicating clockwise motion (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Silhouette of a person taking a photo with a computer monitor displaying a face (no text or symbols visible)

Silhouette of a person pointing at a rectangular box, with camera and monitor icons above (no text or symbols on the person or background)

Diagram showing connection between a device and a laptop via cable (no text or symbols present)

Please refer to the warranty that came with your product or visit our website http://www.samsungimaging.com/ for after-sales service or inquiries.

AD68-04785A (1.0)
