USER MANUAL HRFK-250DAA HAIER

HRFK-250DAA HRFK-250DAAB HRFK-250DAAS Refrigerator-freezer

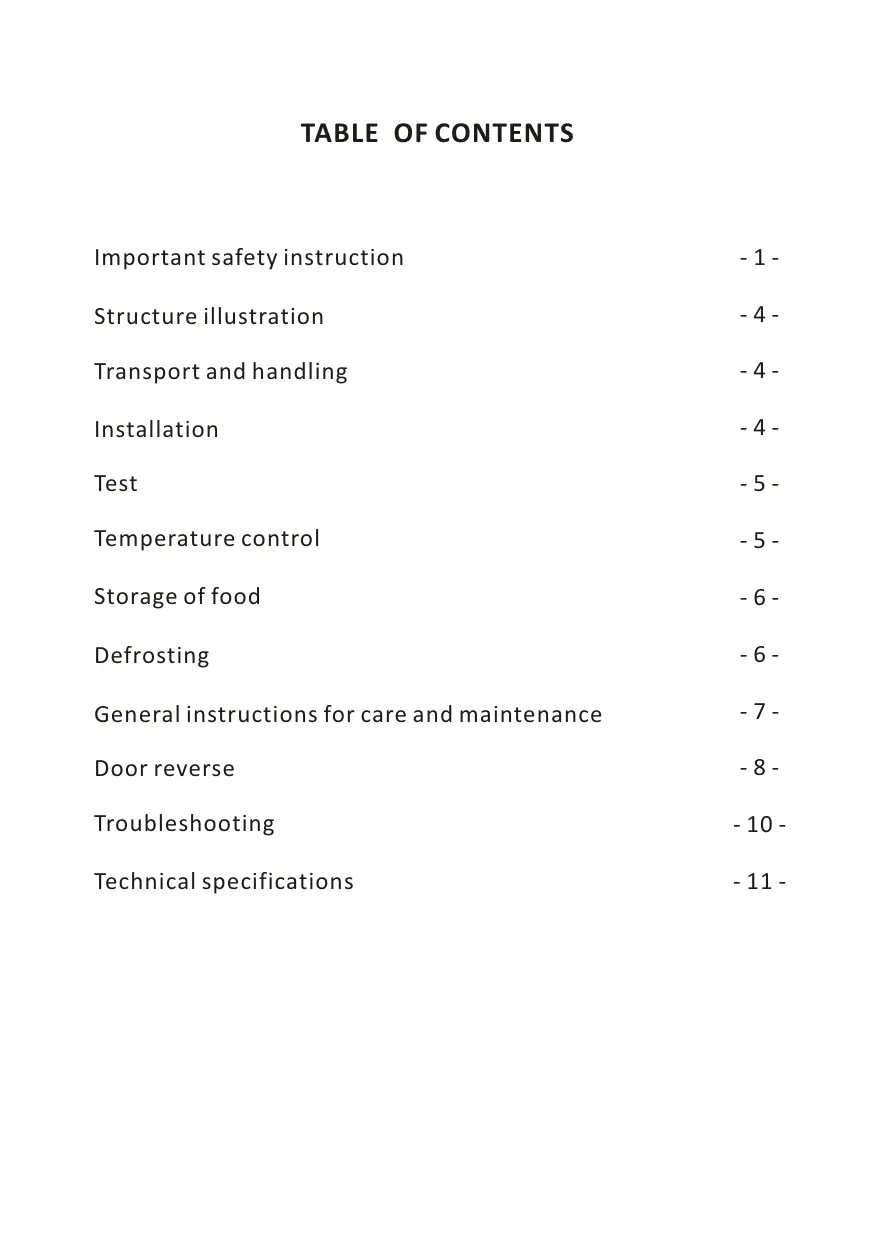

USER’S INSTRUCTIONS TABLE OF CONTENTS Important safety instruction

Structure illustration

Transport and handling

General instructions for care and maintenance

Technical specifications

This product is for household use only!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

IMPORTANT SAFETY INSTRUCTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 2. This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments - Farm houses and by clients in hotels, motels and other residential type environments - Bed and breakfast type environments - Catering and similar non-retail applications 3. Warning: Do not use mechanical devices or other mean to accelerate the defrosting process, other than those recommended by the manufacturer.

4. Warning: Except the items recommended by manufacturer, DO NOT use any electric appliance in the units.

5. Warning: Never try to use this appliance for applications or in a way which is not described in the instruction, otherwise severe hazards may occur.

6. Warning: If the supply cord is damaged, or if the appliance has malfunctions or it has been damaged in any manner, please return the appliance to the manufacturer, its authorized service agent or similarly qualified persons for examination, repair or adjustment in order to avoid a hazard. 7. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. 8. WARNING: Do not damage the refrigerant circuit. 9. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. 10. Do not use the appliance in a dusty environment or in an explosive and inflammable atmosphere (inflammable gases, vapors, vapors from organic solvents, etc.) 11. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. 12. Do not pour water directly onto the freezer, which may cause declining of insulation and corrosiveness. 13. Insert the plug into a single grounded socket. Make sure to place the plug all the way into socket when connecting your appliance. -2-

14. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points.

15. Appliance should be placed on a horizontal floor and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary. 16. Always handle the appliance to avoid any damage. 17. Caution: Do not connect grounding wire to a water or gas pipe. 18. Strictly no storing strong base, strong acid, organic solvent and corrosive goods together with food. 19. Please refer to the “Trouble Shooting” references when the unit is facing some problems. Do not attempt to solve the problem on your own, please refer to certified technician only. 20. As regards the information for the installation, operation, maintenance and disposal of the device, refer to the following parts of the manual. This device was tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and was manufactured in accordance with the latest safety regulations.

STRUCTURE ILLUSTRATION

5 7 6 1.Freezer shelf 2.Refrigerator temperature control knob 3.Refrigerator shelf 4.Crisper cover

5.Fruit and vegetable case

6.Regulating feet(2 purchase) 7.Big bottle rack 8.Egg shelves fence

TRANSPORT AND HANDLING When transportation, hold the base and lift the refrigerator carefully with an angle inferior at 45 degree. Never hold the door handle as support. Never place it upside down nor horizontally. Push refrigerator on its basis and place it thanks to its roller feet.

INSTALLATION To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

Choose a well-ventilated place. A space of at least 5cm must be left at the sides and 10cm at the back of the refrigerator. The cabinet spacers supplied with the appliance must be installed to protect and control distance from the wall. -4-

Choose a location where there is no heat source. Keep the refrigerator away from direct sunlight or other appliance producing heat.

Choose a dry and well-ventilated place where there is no corrosive air.

TEST Clean the parts of the refrigerator with lukewarm water on a soft cloth or with a neutral detergent and with clear water, then wipe them dry.

Notes: Electric parts of the refrigerator can only be wiped by dry cloth. Turn the thermostat knob on the "3" position and turn on electricity. The compressor and the light inside the refrigerator begin to work. Close the door and wait 30 minutes. If the temperature in the freezer compartment decreased obviously, it shows that the refrigerator system works well. When the refrigerator operates for a period of time, the temperature controller will automatically set the temperature on conditions that the door is not too often opened. If the above steps are successful, the trial operations are finished. The refrigerator works normally.

TEMPERATURE CONTROL The temperature in the refrigerator compartment and in the freezer compartment is controlled by the temperature controller installed on the right side of the refrigerator compartment.

Turn the thermostat knob to regulate the temperature inside the refrigerator. The marks on the knob are not the exact number of the degrees of temperature but the temperature grades from “0” to “7”. The first grade corresponds to a forced STOP of the refrigeration and the 7th grade corresponds to the lowest temperature the refrigerator can produce. Turn the knob from "1"position to "7"position, the temperature decreases continuously. Set the thermostat knob to "3-4"position for a normal use. Notice that the product is set for operation at a specific ambient range between 16 and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicate range. -5-

The indoor temperatures are influenced by the following factors: l Ambient temperature l Frequency of door opening l Amount of stored foods l Installation of the appliance

STORAGE OF FOOD How to Use the Freezer Compartment? l Put fresh food, such like fish or meat, into the freezer to save their taste and nutrient. l Wrapped food has to be frozen in aluminum sheet or cellophane sheet or in airtight plastic boxes. l Do not put fresh food directly in contact with food already frozen. l If you buy frozen food, bring it home and place it in freezer as quickly as possible. l Never re-freeze a defrosted product. l Do not store liquids in bottles or cans(besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing l The storage time for the respective food (especially for commercially frozen food) recommended by the food manufactures should not be exceeded. Only take the required amount of food out pf the freezer. l During defrost or, maintenance and care the temperature of frozen food could arise and the storage time could be shorter

How to Use the Refrigerator Compartment? Eggs have to be put in the eggs’ pockets, bottles in the bottles’ pocket, etc. l Fruits and vegetables have to be put in the salad crisper. l Jars have to take place in the tubs of the door of the refrigerator. l Other perishable food, or which can loosen stenches in the refrigerator, must be separately packed. l

Placement of Food l Please not accumulate too much food in the refrigerator because it would engender a loss of cold. l Food has to be wrapped separately in aluminum sheet or in cellophane sheet or in airtight plastic boxes. l Hot food cannot be put in the refrigerator or in the freezer until they have reached the ambient temperature, or it will increase electrical consumption. l Never place vegetables and fruits into freezer compartment because they will be unfit for the consumption once defrosted.

DEFROSTING When the refrigerator working for a long time, the inner surface of the freezer will be covered with a layer of hoarfrost. It may raise the electricity consumption and decrease the effect of refrigeration. Then you should defrost your freezer once a month.

When defrosting, cut off the power, open the door and move frozen foods to a cool place. Use a plastic spatula to remove the hoarfrost. Then remove the hoarfrost so unstuck and wipe the inside of your freezer with a sweet and dry cloth.

Notes: Never use metal tools to defrost your freezer because it could damage it.

GENERAL INSTRUCTIONS FOR CARE AND MAINTENANCE The refrigerator should be cleaned once a month. Before cleaning, the electric plug must be removed from the power supply.

Wipe the inside and the outside of the refrigerator with a wet soft cloth. If it's too dirty, clean with a soft cloth with neutral detergent and, then remove the moisture with dry cloth. If you leave the refrigerator idle for a long time, proceed as follows: l Disconnect the refrigerator from the electric power supply. l Remove all food. l Clean and dry the inside as instructed in the direction given above for cleaning. l Leave the doors open to prevent any unpleasant smells while the refrigerator is not used. Cleaning When cleaning the refrigerator the electric plug must be removed from the power supply. Use water or a non-abrasive detergent on a soft cloth and remove the moisture with a dry soft cloth. Remember to clear the defrost drain at the back just above the glass cover. Replacing the light bulb If the internal light does not work anymore, disconnect then reconnect at once the device. If the light does not still work, verify if the light bulb is correctly screwed. If in spite of these tests, there is no light, it is necessary to change the light bulb. Use a 220240V~, 10W light bulb. l Disconnect the appliance; l Open the light cover (1); l Undo the defective light bulb anticlockwise. l Screw the new light bulb clockwise.

DOOR REVERSE Users can change the direction of opening according to one's own needs. The concrete operating sequence is as follows:

1. Screw off the two bolts which in the back of the top cover with cross opener, take off the top cover, screw off the six square nut of the doorpost of the right side.

2. Lift the door upwards to disengage it from the middle hinge. Put the door to one side and lay it down gently on a padded surface.

3. Using a screwdriver, dismantle the middle hinge. Lift the door upwards to disengage it from the lower hinge. Put the door to one side and lay it down gently on a padded surface.

4. Swap over the position of the lower hinge and the adjustable leg to the other side of the cabinet.

5. Remove the hinge pin that is in the bottom of the fridge and freezer door. At the other side of the fridge and freezer door, insert the replacement hinge pin that is supplied with the appliance.

6. Place the fridge door on the lower hinge, making sure that the hinge pin is inserted in the hole at the bottom of the fridge door. Put the middle hinge back on the cabinet, making sure that it is on the opposite side from its original position.

7. Place the freezer door on the middle hinge, making sure that the hinge pin is inserted in the hole at the bottom of the fridge door. Aim at the door and screw down the bolt, pull back the top cover from the front to the back, insert it in the top cover from side to side.and screw down the two bolts of the back of the top cover.

TROUBLESHOOTING If your device shows the other symptoms that those described above, please call the service after sale of the shop a retailer.

The appliance does not work

The appliance makes a lot of noise

The appliance doesn’t cool enough

There are smells in the appliance

There is no power supply

Check the plug connecting it others appliance, or verify that the appliance is connected to the plug

The fuse doesn’t work

The appliance is too close to the wall, or is not stable, or the accessories inside the refrigerator are placed in wrong position

Stabilize the base of the refrigerator by adjusting the position of feet, take away the device of the wall, place correctly the accessories inside the refrigerator

The door is too often opened or was left opened for a long time

Close the door and do not open it too much frequently

The refrigerator is too close to the wall

Take away the device of the wall to favor the ventilation

The refrigerator is too full

Remove food of the device

The temperature is badly, adjusted

Turn the knurl of regulation of temperature on "3" or more

Food made obsolete inside the refrigerator

Throw away obsolete food and wrap the other

The inside of the device at need to be cleaned

Clean the inside of the refrigerator

The following symptoms are not breakdowns: l The noise of the cooling liquid which circulates in pipes can be heard, it is normal. l The humidity on the surface outside of the device during the wet seasons is not a problem of the device; you just need to wipe it with a dry soft cloth. l The compressor and the condenser can warm more during the periods of strong heat. l The frame of the door is a bit hot; it means that the condenser works to evacuate the humidity of air.

In the event of a power cut, food should remain safely cold for about 16 hours. Follow these tips during a prolonged power interruption, especially in summer: l Open the door/drawer as few times as possible. l Do not put additional food into the appliance during a power interruption. l If prior notice of a power interruption is given and the interruption duration is longer than 16 hours, make some ice and put it in a container in the top of the refrigerator compartment. l An inspection of the goods is required immediately after the interruption. l AS temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

TECHNICAL SPECIFICATIONS Reference:

Rated voltage: Rated power: Rated frequency: Rated current: Refrigerant: Lamp power: Total net volume: Storage volume refrigerator: Storage volume freezer: Climate tape: Freezing capacity: Energy consumption: Protection against electrical shock: Foam: Energy class:

HRFK-250DAA;HRFK-250DAAB;HRFK-250DAAS

220-240V~ 85W 50Hz 0.6A R600a(52g) 10W 206L 166L 40L ST 2kg/24h 208kWh/year I CYCLOPENTANE A+

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

DISPOSAL Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Risk of injury or suffocation! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

HRFK-250DAA;HRFK-250DAAB;HRFK-250DAAS

220 - 240 V~ 80 W 50 Hz 0,6 A R600a (52 g) 10 W 206 l 166 l 40 l ST 2 kg/24 h 208 kWh/an I CYCLOPENTANE A+

HRFK-250DAA;HRFK-250DAAB;HRFK-250DAAS

220-240V~ 80W 50Hz 0,6A R600a (52g) 10W 206L 166L 40L ST 2 kg/24 h 208kWh/Jahr I CYCLOPENTAN A+

HRFK-250DAA HRFK-250DAAB HRFK-250DAAS Frigo-congelatore

ISTRUZIONI D′USO INDICE GUIDA ALLA RISOLUZIONE DEI PROBLEMI

HRFK-250DAA;HRFK-250DAAB;HRFK-250DAAS

220-240V~ 80W 50Hz 0,6A R600a(52g) 10W 206L 166L 40L ST 2kg/24h 208kWh/anno I CYCLOPENTANO A+

HRFK-250DAA;HRFK-250DAAB;HRFK-250DAAS

220-240V~ 80W 50Hz 0,6A R600a(52g) 10W 206L 166L 40L ST 2kg/24h 208kWh/año I CICLOPENTANO A+

HRFK-250DAA HRFK-250DAAB HRFK-250DAAS

· Lodówko-zamrazarka

INSTRUKCJA UZYTKOWNIKA SPIS TREŚCI HRFK-250DAA;HRFK-250DAAB;HRFK-250DAAS

220–240 V~ 80 W 50 Hz 0,6 A R600a(52g) 10 W 206 L 166 L 40 L Umiarkowany 2 kg/24 h 208 kWh/rok I CYCLOPENTANE A+
