USER MANUAL CFD734CX HAIER

Description of various components2-3

Safety precautions 4-6

Placing environment 7

Preparation prior to use 8-9

Function introduction11-16

About the fridge storage

Fridge storage precautions19

Tips on food storage in the fridge

Storage compartment20

Freezer storage precautions 21

Icemaker instructions(option) 22

Defrosting and cleaning 23

Safety instructions10

Please read this Operation Manual carefully before using the appliance.

Keep this Manual for future reference.

See the physical object for the appearance, color and the door pattern.Install the appliance in a cool, well ventilated room, far from a heat source (radiator,

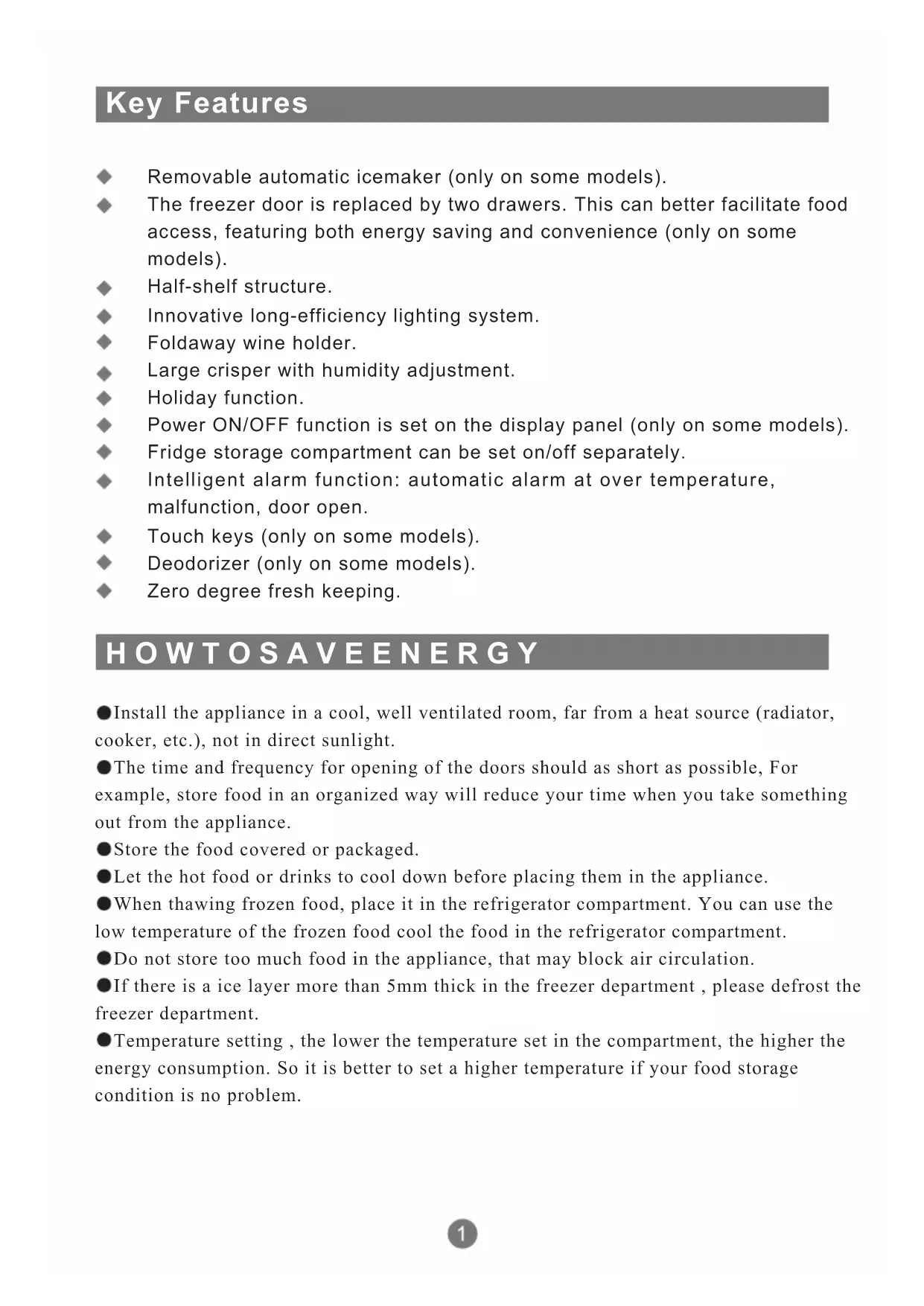

cooker, etc.), not in direct sunlight.

The time and frequency for opening of the doors should as short as possible, For

example, store food in an organized way will reduce your time when you take something

out from the appliance.

Store the food covered or packaged.

Let the hot food or drinks to cool down before placing them in the appliance.

When thawing frozen food, place it in the refrigerator compartment. You can use the

low temperature of the frozen food cool the food in the refrigerator compartment.

Do not store too much food in the appliance, that may block air circulation.

If there is a ice layer more than 5mm thick in the freezer department , please defrost the

Temperature setting , the lower the temperature set in the compartment, the higher the

energy consumption. So it is better to set a higher temperature if your food storage

condition is no problem.

Removable automatic icemaker (only on some models).

The freezer door is replaced by two drawers. This can better facilitate food

access, featuring both energy saving and convenience (only on some

Half-shelf structure.

Innovative long-efficiency lighting system.

Foldaway wine holder.

Large crisper with humidity adjustment.

Power ON/OFF function is set on the display panel (only on some models).

Fridge storage compartment can be set on/off separately.

Intelligent alarm function: automatic alarm at over temperature,

malfunction, door open.

Touch keys (only on some models).

Deodorizer (only on some models).

Zero degree fresh keeping.

HOWTOSAVEENERGYDescription of various components

Fresh keeping box cover

The accessories shown are for several models. There may be slight

differences between them and the ones on your refrigerator.

AFL631CB/AFL631CS/AFL631CW/AFL634CW/AFD631CX/AFD631CB/AFD631CS/

AFD632GW/AFD632GB/AFD630IX/AFD630IB/AFD630IS/

HRF-338SS/HRF-388SG/HRF-338SB AFT630IX/ AFT630IB/

AFL634CB/AFD634CX/AFD633IX/AFL631CC/AFL631CO/AFL631CR/AFL631CF/

AFL631CX/AFL631NW/AFL631NS/AFL631NB/

AFL631CWE/AFL631CSEDescriptions of various components

Fresh keeping box cover

The accessories shown are for several models. There may be slight

differences between them and the ones on your refrigerator.

CFD634CW/CFD634CS/CFD629CX/CFD629CB/CFD633CX/CFD633CS/CFD734CW/CFD734CX CFE629CWE/CFE629CSE/CFE633CWE/CFE633CSESafety precautions

The refrigerator is operated through a 220-

240VAC/50Hz power supply. Abnormal

voltage fluctuation may cause the refrigerator

to fail to start, or damage to the temperature

control or compressor, or there may be an

abnormal noise when the compressor is

operating. In such a case, an automatic

regulator shall be mounted.

A dedicated socket with reliable grounding must

be provided for the refrigerator. The

refrigerator's power cable is fitted with 3-cord

(grounding) plug that fits a standard 3-cord

(grounding) socket. Never cut off or dismount

the third pin (grounding). After the refrigerator is

installed, the plug should be accessible.

Care for the power cord

Hold the plug, not the cord, when

unplugging the refrigerator.

Ensure that the power cord is not trapped

by the refrigerator. Do not step on the

Take care not to roll over the power cord or

damage it when moving the refrigerator

When the power cord is damaged or the plug is

worn, turn off the refrigerator and consult an

authorized service agent for replacement

If coal gas or other inflammable gas is

leaking in the vicinity of the refrigerator

Turn off the valve of the leaking gas;

Open the doors and windows;

Do not unplug or plug the power cords of

the refrigerator or any other appliance.

Unplug the refrigerator for the following

Cleaning or maintenance;

Lamp replacementSafety precautions

Never store inflammables, explosives or

corrosive materials in the refrigerator.

Do not store medicines, bacteria or chemical

agents in the refrigerator. This refrigerator is a

household appliance. It is not recommended

to place materials that require strict

Do not store or use gasoline or other

inflammable materials in the vicinity of the

refrigerator to avoid a fire.

Do not place unstable articles (heavy objects,

containers filled with water) on the top of the

refrigerator, to avoid personal injury caused

by falling or electric shock caused by contact

Do not swing from the bottle racks on the door.

The door may be pulled slant, the bottle rack

may be pulled away, or the refrigerator may

topple. Do not step on the freezer storage

compartment door or cabinet when putting in or

Do not touch the inside surface of the freezer

storage compartment when in operation,

especially with wet hands, as your hands

may freeze onto the surface.Safety precautions

Open/close the doors only with the handles.

The gap between the two doors and between

the doors and the cabinets is very narrow. Do

not extend your hands in these areas to avoid

pinching your fingers. Open or close the

refrigerator doors only when there are no

children standing within range of door

To ensure the refrigerator's electrical

insulation, do not spray or flush the

refrigerator when cleaning, nor place the

refrigerator in a damp area or a location

where it may be splashed with water.

Disassembly and alteration of the refrigerator

must be authorized. Any agitated movement of

the refrigerator may damage the cooling pipes.

Property loss or personal injury may result.

Repair of the refrigerator must be performed by

professional personnel.

Never store bottled beer or beverages in the

freezer, as these will burst during freezing.

Unplug the refrigerator in the event of a power

interruption or before cleaning. Allow at least 5

minutes before restarting the refrigerator, as

frequent starting be damage the compressor.

When discarding the refrigerator, to avoid the

accidental entrapment of children, please

remove the refrigerator doors, door gaskets

and shelves and put them in an appropriate

place.Placing environment

Leveling of the cabinet

The refrigerator should be placed on a flat and

solid surface. If the refrigerator is placed on a

pedestal, flat, strong and fire-resistant materials

must be used. Never use the foam packing

material for a pedestal. If the refrigerator is

slightly unstable, you can prolong or shorten the

adjustable foots of the refrigerator by turning

them clockwise or counterclockwise.

Never place the refrigerator in a damp area

or a location where it may be splashed with

water. Clean and dry any water splashes and

stains with soft cloth.

The direction shown is clockwise

The refrigerator should be placed in a well-

ventilated place not far from a drink water

source. A space of at least 20cm above and

10cm around the refrigerator must be kept.

The appliance must be positioned so that the plug is accessible.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear

of obstruction. Warning:Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

This appliance is not intended for use by persons (including children) with reduced

physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the appliance by a person responsible

Children should be supervised to ensure that they do not play with the appliance.

Do not store too much food in the freezer storage

compartment to avoid long operation time of the

compressor or falling food. It is recommended not

to exceed the load line of the drawers. The total

weight of the food should not exceed 30kg. To

prevent the food from falling on the ground, do

not pull open the freezer drawer too strong or

slanted.The space behind the beam is suitable

for food storage, but be careful that food access

should be from top by removing the top drawer.Preparation prior to use

Remove all package parts

Please also remove the foam base and the adhesive tape fixing accessories.

Check accompanying accessories and documents

Check the items inside the package box against the

Packing List. Please inquire with the purchase shop if

there is any discrepancy.

handles from the accessory box and insert them in

the handle seats respectively as shown in the

figure. Secure the handles on the doors with the

supplied (4) screws from bottom to upper

AFT630IX/ AFT630IB AFL631CB/AFL631CS/AFL631CW/AFD631CX/A FD631CB/AFD631CS/AFD630IX/AFD630IB/AFD6

Move the refrigerator into a proper location

(See section “Placing environment”)

It is advisable to clean the cabinet before use

Please clean the inside and outside of the refrigerator with

water before putting into any food in it.

After the appliance has been leveled and cleaned, let it

remain idle for at least 6 hours before switching it on so as to

ensure its normal running.

8Preparation prior to use

Connection to power supply

When the refrigerator is connected to power supply, the fridge temperature and freezer

temperature are automatically set to 5 and -18 respectively.

Operation modes of the refrigerator

Manual adjustment mode: can set temperature by pressing the temperature setup key

(see “Function description” hereafter).

Loading the refrigerator with food

Load the refrigerator with food after it has been operates for

a period and the inside is cool enough.

Some time will be required for the refrigerator to reach the set temperature when

the setting is changed. The length of this period depends on the difference between

the existing and set temperatures, ambient temperature, door opening frequency

and the amount of food in storage.

Safety instructions for installation

Safety instructions for installation

Never place the refrigerator in a damp area or location where it might be splashed with water.

Clean and dry water splashes and stains with a soft clean cloth.

The refrigerator should be placed in a well-ventilated place not far from a drink water source.

Ensure a space of at least 20 cm above and 10 cm around the refrigerator.

Keep ventilation openings in the appliance or in the in-built structure clear of obstruction,

The refrigerator is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation

may cause the refrigerator to fail to start, or damage to the temperature control or compressor, or

there may be an abnormal noise when operating. In such case, an automatic regulator shall be

A dedicated socket with reliable grounding must be provided for the refrigerator. The refrigerator's

power cable is fitted with a 3-pin (grounding) plug that fits a standard 3-pin (grounding) socket.

Never cut off or disassemble the grounding.

The appliance must be positioned so that the plug remains accessible.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.

Do not damage the refrigerant circuit.

The Ice Maker and its water hose should be installed and tested by authorized professional

Cut the water hose to the desired length while ensuring that it does not bend excessively.

Generally, its total length is not more than 5 meters. Longer hoses may reduce the water pressure

and produce poor ice making results.

The water hose should not be in contact with any heat sources as it is not heat-resistant.

The Ice Maker should be connected to a water source with a pressure between 150 and 700

Never install the Ice Maker hose in an area where the ambient temperature can drop to 0° C to

The Ice Maker will start making ice when the internal temperature reaches -12° C.

After the device is positioned, the hose should be properly arranged to prevent it from being

This Ice Maker must be supplied from a drink water source.

If the Ice Maker is used for the first time or after not being used for a longer period, the first loads

of ice cubes should be discarded as there may be impurities in the water hose.

For a newly installed refrigerator, please let the appliance operate for 24 hours before making ice.

The hose-set is delivered with the device and must be used. New hose-sets are only available via

the customer service.Intended use: This appliance has been designed exclusively for use in dry-interior households.

Every other use is improper and may lead to injuries, whereby the liability of the manufacturer will

- Hold the plug, not the cable, when unplugging the refrigerator.

- Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

- Take care not to roll over the power cable or damage it when moving the refrigerator.

- When the power cable is damaged or the plug is worn, turn off the refrigerator and consult an

authorized service agent for replacement.

- If cool gas or other inflammable gas is leaking in the vicinity of the refrigerator, turn off the valve

of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of

the refrigerator or any other appliance.

- Never store inflammable, explosive or corrosive materials in the refrigerator

- Do not store medicines, bacteria or chemical agents in the refrigerator. This refrigerator is a

household appliance. It is not recommended to store materials that require strict temperatures.

- Do not store of use petrol or other inflammable materials in the vicinity of the refrigerator to avoid

- Do not place unstable articles (heavy objects, containers filled with water) on top of the

refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with

- Do not pull on the bottle racks in the door. The door may be pulled askew, the bottle rack may be

pulled away, or the refrigerator may topple. Do not step on the freezer storage compartment door

or cabinet when putting in or taking out food. Do not touch the inside surface of the freezer

storage comportment when in operation, especially with wet hands, as your hands may freeze

- Do not touch the inside surface of the freezer storage compartment when in operation, especially

with wet hands, as your hands may freeze onto the surface.

- Open and dose the doors only with the handles. The gap between the doors and the cabinet is

very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or

close the refrigerator doors only when there are no children standing within me range of door

- To ensure the refrigerator s electrical insulation, do not spray or flush the refrigerator when

cleaning, nor place the refrigerator in a damp area or location where it might be splashed with

- Disassembly and alteration of the refrigerator must be authorized. Any agitated movement of the

refrigerator may damage the cooling pipes. Property damage or personal injury may result.

Repair of the refrigerator must be performed by professional personnel.

- Never store bottled beer or beverages in the freezer, as these will burst during freezing.

- Unplug the refrigerator in the event of a power interruption or before cleaning. Allow at least 5

minutes before restarting the refrigerator, as frequent starting may damage the compressor.

- When discarding the refrigerator, to avoid the accidental trapping of children, please remove the

refrigerator doors, door seals and shelves and put them in on appropriate place.

- Do not use electrical devices inside the food storage comportments of the appliance, unless they

are of the type recommended by the manufacturer.

- This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for their

- Do not store too much food in the freezer storage comportment to avoid longer operation time of

the compressor or falling food. It is recommended not to exceed the load tine of the drawers. The

total weight of the food should not exceed 30 kg. To prevent the food from failing on the ground,

do not pull open the freezer drawer too strongly or at an angle.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than

those recommended by the manufacturer.

- Children should be supervised to ensure that they do not play with the appliance.

Upon initial powering on, the power indicator will illuminate. There will be alarm due to high

temperature in the freezer storage compartment. You can cancel the alarm by pressing any key.

The temperature in the fridge storage compartment can be set by turning the fridge storage

temperature setup knob. There are three temperature positions for refrigerating: Holiday, Moderate

The temperature in the freezer storage compartment can be set by turning the freezer storage

temperature setup knob. There are three temperature positions for freezing: Weak, Moderate and

Select this function after you have put fresh food in the fridger storage compartment. Press the super

cooling button, the refrigerator activates this function and corresponding indicator illuminates. This

function will automatically deactivate when the temperature decreases to the required level. You can

also deactivate it by pressing the super cooling button again.

When the temperature in the refrigerator storage compartment is too low, the super-cooling function

may not work. That is, when you press the “super-Cooling” button once, the buzzer will beep once

and the indicator will not blink, meaning the temperature in the refrigerator storage compartment is too

low and the super-cooling function doesn't need to be activated.

Turning the fridge storage temperature setup knob to “Holiday” will activate the holiday function of the

fridge storage compartment. It will operate at a relatively high temperature. (Please remove any fresh

food from the fridge storage compartment and close the door before activating this function)

The display screen will turn off automatically 1 minute after an operation is finished. It will be lit up by

opening the door or pressing any key. (Alarm does not light up the display screen)

When the refrigerator door is open for more than 3 minutes, the super cooling indicator will flash and

the buzzer will sound 3 beeps every 30 seconds. The buzzer can be silenced by closing the door or

Fridge storage temperature setup

Freezer storage temperature setup

If you are freezing large quantities of food in the freezer compartment, please switch on super

freezing by 24 hours before the food is placed in the freezer compartment. This function will quit

automatically after 56 hours. You can deactivate it by pressing the super freezing button manually.

11Function introduction

When the temperature in the freezer storage compartment rises to a certain value, the Super Freeze

indicator will flash and the buzzer will sound 1 beep every second. The buzzer may be silenced when

the temperature in the freezer storage compartment drops to a specified level or by pressing any key.

Over temperature alarm

Set the fridge storage temperature to 0. The fridge storage compartment will be turned off while the

freezer storage compartment operates normally.

Turning off the fridge storage compartment

Set the freezer storage temperature to 0. The refrigerator will stop operating.

This function is not equivalent to turning off the power.

Turning off the refrigerator

A1 Switch on/off the fridge storage compartment

A5 Fridge temperature down

A7 Freezer temperature down

A9 Over-temperature/door open alarm

A4 Fridge temperature up

A6 Freezer temperature up

A10 Power ON/OFF When the refrigerator is powered on for the first time, the power indicator and the fridge storage

compartment indicator will light. The fridge storage temperature will be displayed as “-” due to the high

temperature inside. The freezer storage temperature will be displayed as“- -” due to high temperature

inside. The buzzer will beep. Press key A9, and the buzzer will be silenced. After the temperature

decreases to certain level, the displayed temperatures of the fridge storage compartment and the

freezer storage compartment will become the ex-factory settings “5” and “-18” respectively.

Press key A4 or A5 to set the fridge storage temperature. The fridge storage temperature cycles from

2 to 8. The setting is confirmed automatically 5 seconds after the operation is finished or by pressing

Fridge storage temperature setup

CFL533CB/CFL533CS/CFL533AB/CFL533AS/CFL633CB/CFL633CS/

CFL633CW/CFL634CW/CFL634CX/

AFL631CC/AFL631CO/AFL631CR/AFL631CF/

AFL631CX/AFL631NW/AFL631NS/AFL631NB/

AFL631CB/AFL631CS/AFL634CB/

Freezing storage temperature setup

Over temperature alarm

Turning off the fridge storage compartment

Turning off the refrigerator

Press key A6 or A7 to set the freezer storage temperature. The freezer storage temperature cycles

from -16 to -24 . It will be confirmed automatically 5 seconds after the operation is finished or by

pressing any other key.

Select this function after you have put fresh food in the fridge storage compartment. Press key A3,

and this function is activated and the corresponding indicator illuminates. This function will

automatically deactivate when the temperature decreases to the required level. You can also

deactivate it by pressing key A3 again.

Press key A2, corresponding indicator illuminates and the holiday function of the fridge storage

compartment is activated. It will operate at a relatively high temperature in Holiday mode. The fridge

storage temperature will be indicated as “-” (Please take out the fresh food in the refrigerator and

close the door before activating this function). Press key A2 again, and the corresponding indicator

goes off and the refrigerator comes into normal control.

The display screen will turn off automatically 1 minute after an operation is finished. It can be lit up by

opening the door or pressing any key. (Alarm does not light up the display screen)

When the refrigerator door is open for more than 3 minutes, the alarm indicator will flash and the

buzzer will sound 3 beeps every 30 seconds. The buzzer can be silenced by closing the door or

When the temperature in the freezer storage compartment rises to a certain value, the alarm indicator

will illuminate solid and the buzzer will sound 1 beep every second. The buzzer can be silenced when

the temperature in the freezer storage compartment drops to a specified level or key A9 is pressed.

Press and hold key A1 for 3 seconds, and the corresponding indicator will turn off and the fridge

storage compartment will be turned off while the freezer storage compartment operates normally. The

fridge storage temperature indication icon will also go off. Press and hold key A1 for 3 seconds again,

the corresponding indicator will illuminate, the fridge storage compartment will be turned on, and the

fridge storage temperature indication icon will recover.

When the temperature in the refrigerator storage compartment is too low, the super-cooling function

may not work. That is, when you press the “super-Cooling” button once, the buzzer will beep once

and the indicator will not blink, meaning the temperature in the refrigerator storage compartment is

too low and the super-cooling function doesn't need to be activated.

If you are freezing large quantities of food in the freezer compartment, please switch on super

freezing by 24 hours before the food is placed in the freezer compartment. Press key A8, the function

is activated and the corresponding indicator illuminates. The function will become inactive

automatically after 56 hours. You can also deactivate it by pressing key A8 again.

13Function introduction

Press and hold key A10 for 3 seconds, corresponding indicator will go off, the display panel will go off

and the refrigerator will stop operating.

Press and hold key A10 for 3 seconds again, corresponding indicator will light up, the display panel

will light up, and the refrigerator will start operating normally.

This function is not equivalent to turning off the power.

When E or F is displayed due to fault, the refrigerator can still refrigerate. Please contact professional

after-sales service personnel as soon as possible.

A1 Switch on/off the fridge storage

D Fridge storage temperature display

E Fridge compartment indicating icon

F Freezer compartment indicating icon

H Freezer storage temperature display

I Super freezing icon

J Icemaker icon (only on models with an

K Water input time adjustment icon

(only on models with an icemaker)

3 Models AFD631CX/AFD631CB/AFD631CS/AFD632GW/AFD632GB/AFD630IX/

AFD630IB/AFD630IS/ AFD634CX/AFD633IX/

HRF-338SS/HRF-388SG/HRF-338SB/CFD629CW/CFD629CS/CFD633CW/

CFD734CW/CFD734CX Initial powering on

When the refrigerator is powered on for the first time, icon G will light. The fridge storage temperature

will be displayed as “-” due to high temperature inside. The freezer storage temperature will be

displayed as“- -” due to high temperature. The buzzer will beep. Press key A5, the buzzer will be

silenced and icon G will remain lit. After the temperature decreases to certain level, icon G will turn off

and the displayed temperatures of the fridge storage compartment and the freezer storage

compartment will become the ex-factory settings “5” and “-18” respectively.The brightness of D,E, H

icon will decrease to half automatically when the refrigerator is not being operated.

14Function introduction

Fridge storage temperature setup

Press key A2 until icon D flashes. Then, press key A3 or A4 to set the temperature. The refrigerating

storage temperature cycles from 2 to 8. After you have set it to the desired value, press key A5 to

Note: Flashing of icon D is accompanied by flashing of icon E Press key A2 until icon H flashes. Then, press key A3 or A4 to set the temperature. The freezing

storage temperature cycles from -16 to -24. After you've set it to the desired value, press key A5 to

Note: Flashing of icon H is accompanied by flashing of icon F Freezer storage temperature setup

Ice making function (only on models with an icemaker)

Icemaker's water injection time adjustment (only on models with an icemaker)

Press key A2 until icon B flashes. Then, press key A5 to confirm the super cooling function. Icon B

will illuminate solid. You can deactivate the super cooling function with the same operation.

Press key A2 until icon C flashes. Then, press key A5 to confirm the holiday function. Icon C will

illuminate solid. You can deactivate the holiday function with the same operation.

Press key A2 until icon J flashes. Then, press key A5 to confirm the ice making function. Icon J will

illuminate solid. You can deactivate the ice making function with the same operation.

Press key A2 until icon K flashes. Then, press key A5 to confirm the icemaker's water injection time

adjustment. Icon K will illuminate solid. The water injection time will be indicated with icon H and icon

D. For example, if the time is 4.0s, icon H will be 4 and D will be 0. Press key A3 or A4 to set the time

in an increment of 0.5s. It cycles from 2s to 7s. After you have set it to the desired value, press key

A5 to confirm. Icon K will go off. You can exit the icemaker's water injection time adjustment with the

Note: this operation can be performed only when the ice making function is selected.

The display screen will dim 1 minute after an operation is finished. It will recover to normal

brightness when you open the door or press any key. (Alarm does not light up the display screen)

When the fridge storage compartment door is open for more than 3 minutes, icon G will flash and the

buzzer will give out 3 beeps every 30 seconds. If you close the door, the alarm will be silenced and

icon G will go off. You can also silence the buzzer by pressing key A5.

When the temperature in the refrigerator storage compartment is too low, the super-cooling function

may not work. That is, when you press the “super-Cooling” button once, the buzzer will beep once

and the indicator will not blink, meaning the temperature in the refrigerator storage compartment is

too low and the super-cooling function doesn't need to be activated.

If you are freezing large quantities of food in the freezer compartment, please switch on super

freezing by 24 hours before the food is placed in the freezer compartment.Press key A2 until icon I

flashes.Then,press key A5 to confirm the the super freezing function.Icon I will illuminate solid.You

can deactive the super freezing function with the same operation. The function will become inactive

automatically after 56 hours.

Note: If the ice machine is not installed, the H icon on the display panel will be displayed as “Er”.

15Function introduction

Over temperature alarming

Switching off the fridge storage compartment

Switching off the refrigerator

When the temperature in the freezer storage compartment rises to a certain value, icon G will

illuminate solid and the buzzer will sound 1 beep every second. When the temperature in the freezer

storage compartment drops to a specified level, the alarm will silence and icon G will go off. You can

also silence the buzzer by pressing key A5.

Press and hold key A1 for 3 seconds, the fridge storage compartment will be turned off while the

freezer storage compartment is operating normally. At this time, icon D will go off and icon E will

Press and hold key A1 for 3 seconds again, the fridge storage compartment will be turned on, icon D

will recover, and icon E will recover its normal brightness.

Note: if super cooling or holiday function is selected previously, the function will be deactivated and

corresponding icon will turn off when the fridge storage compartment is turned off

Press and hold key A6 for 3 seconds, the display panel will go off and the refrigerator will stop

operating. Press and hold key A6 for 3 seconds again, the display panel will light up and the

refrigerator will start operating normally. This function is not equivalent to turning off the power.

When E or F is displayed due to fault, the refrigerator can still refrigerate. Please contact professional

after sales service personnel as soon as possible.

4 Models: AFT630IX/ AFT630IB Appendix

16About the fridge storage compartment

Please put the food to be stored for short period or for daily

consumption in the fridge storage compartment:

Although the average temperature in most areas in the fridge storage

compartment can be regulated between 0 and 10 , extended

period of food storage is not recommended. The fridge storage

compartment should only be used for short-term storage.

Adjusting shelf height

The shelf can be relocated to accommodate food size or height. To

adjust the height of a shelf, remove it first in this way: uplift its front

edge and then pull it out.

To install the shelf, put the dogs on both sides of the shelf on the

supporting ribs and push it to the most inward end.

Fruit & Vegetable box

Disassemble of Clean the bottle

The refrigerator has a crisper. You can adjust the humidity inside it

according to the properties of the foods.

Turning the humidity control button rightward enables the

crisper to keep in a higher humidity suitable for cucumbers, grapes,

Chinese gooseberries, persimmons, etc.

Turning the humidity control button leftward enables the crisper

to keep in a lower humidity suitable for strawberries, oranges, beans,

garlic, watermelon, plums, tomatoes, etc.

The temperature in this box is kept at approx 0 , it may be slightly

changed due to the different ambient temperature or refrigerator

working style. It is suitable to store fresh fish, meat and cooked food

To take out a bottle guard, uplift the bottle guards in direction and

grip both sides and pull it out in direction . After cleaning, install it

with the operation in the reversed direction.

17About the fridge storage compartment

Use of the foldaway shelf

Fig. shows the extended state of the foldaway shelf in which

you can put lower food containers.

Fig. shows the folded state of the foldaway shelf in which

you can put higher food containers.

To fold the shelf from state to state , simply push structure

A upwards, and push structure B inward in the direction of the

arrow shown in the figure.

To extend the shelf from state to state , push structure A

upwards, and pull structure B in the direction of the arrow

shown in the figure.

Use of the wire wine holder

Fig. shows the folded state of the wire wine holder. In this

state large space can be spared.

Fig. shows the extended state of the wire wine holder. In

this state it can hold various wines.

To extend it from state to state , simply pull the wire

down.The maximum load of the bottle holder is 10 kg.

To fold it from state to state , simply push the wire up.

make sure to keep the two ends of a shelf on the same level.

Otherwise it may fall or the food on it may dump.

Recommended storage areas for various foods

As cold air circulates inside the refrigerator, there is

temperature difference inside the fridge storage

compartment. Different foods should be placed in

different areas according to their properties.

Eggs, butter, cheese and etc.

Drinks, canned food and etc.

Seasonings and pickled food

Beverages, canned food, cake, etc.

Wine, champagne, etc.

Cooked meat, fresh fish and meat, etc.

Fruit, vegetables, salad, etc.

Lamp in the fridge storage compartment and its replacement

Parameters of the lamp: 12V, max 5W(the power depends on the model). The lamp

adopts LED as its light source, featuring low energy consumption and long service life. If

there is any abnormality, please contact the after-sales service personnel.

18Fridge storage precautions

Hot foods must be cooled to room

temperature before storing in the refrigerator.

Clean the food and dry any droplets on it

before placing in the refrigerator.

Food to be stored should be properly sealed.

This will prevent moisture in the food from

evaporating and prevent them from spoiling.

Sorted storage of food.

Food to be stored should be sorted according

to their category. Food consumed daily should

be placed on the front part of the shelves. This

can avoid unnecessary delays in door opening

as well as expiration of the storage period

because you forgot to eat it.

Do not store excess quantities of food.

Food should be stored with spaces in between

them. This allows cold air to flow smoothly and

therefore obtain better storage results.

Do not place the food too near to the inner

Do not store foods with high moisture content

clinging to the inner walls. Otherwise they may

freeze to the walls. Place food a little away

from the inner walls.

Avoiding food (especially oil food) contact with the inner liner directly, as oil can

erode the inner liner. So it's better to clean the oily dirt whenever it is found.

19Tips on food storage in the fridge storage compartment

For turnip radish and other similar

vegetables, please cut off their leaves

before storage so as to prevent the

nutrition from being absorbed by the

Defreeze frozen food in the fridge storage

compartment. In this way you can use the

frozen food to decrease the temperature in

the compartment and save energy.

Some vegetables, for example, onion,

garlic, ginger, water chestnut, and other

rhizomatic foods, can be stored for long

periods at normal temperature. There is no

need to store them in the refrigerator.

The metabolism of vegetable marrow,

melons, pawpaw, banana, pineapple can

be quickened in the refrigerator, so it is not

suitable to store them in the fridge storage

compartment. But storing green fruits in

the refrigerator for certain periods can

promote its maturing.

20Freezer storage precautions

Hot food should not be stored in the

refrigerator until it has cooled down to

Food cut into small portions will freeze

faster and be easier to defrost and cook.

The recommended weight for each portion

It's better to pack food before putting it in

the freezer. The outside of the packing

must be dry to avoid bags sticking together.

Packing materials should be odor-free,

airtight, non-poisonous and nontoxic.

In order to avoid expiration of storage

period, please note the freezing date, time

limit and name of the food on the packing

according to the storage periods of

Only take the required amount of food

from the freezer. Defrosted food cannot be

re-frozen unless it is first cooked,

otherwise it may be less edible.

Do not load excessive quantities of fresh

food in the freezer. It is better to refer to

the cooling capacity of the refrigerator.

(See “Technical data”.)

When the room temperature is high, the

freezer temperature can be set into the

lowest temperature setting directly so as to

get the best freezing effect.Icemaker use instructions (only on models with an icemaker)

Preparations before using the icemaker

Cut the water pipe to desired length while ensuring it free from excessive bend. Generally its

total length is not more than 5m. Excessive longer pipe may reduce water pressure and, as a

result, the water output flow-rate and ice-making capacity;

The water pipe should be away from any heat sources as it is not heat-resistant;

The water pipe should be installed and tested by authorized professional personnel;

The icemaker should be connected to a water source of a pressure between 1.5bar and 7bar;

Cleaning the ice cube tray

Deactivate the ice machine function from the

display panel,take out the icemaker assembly from

the refrigerator. Turn the icemaker over and you

can see the ice cube tray.

Pull the elliptical fastener of the icemaker in

Take out the ice cube tray in direction .

After cleaning, install it back in reversed

direction,push the ice machine firmly, close the

freezing door, and activate the ice machine

function from the display panel.

Never install the icemaker's water tube in an area with the ambient temperature below 0 to

avoid icing of water in it.

The icemaker will start ice cube making when the internal temperature reaches or is below -

12 . (If the icemaker is used for the first time or after an extended period of vacation, the first

loads of cubed ices should be discarded as there are impurities in the water tube)

After the appliance is located, the water tube should be properly arranged to prevent it from

Installation of the icemaker can only be carried out by an authorized service agent.

This icemaker can only be supplied with drinking water.

Operating principle of the icemaker

8 cubed ices are made in every cycle. The ice making capacity depends on ambient

temperature, door-opening frequency, water pressure, freezer temperature and other conditions.

To ensure that the storage box is fully filled with cubed ices, arrange the cubed ices in the

As the icemaker makes 8 cubed ices in one cycle, it is normal that some of them stick to each

other (This can be improved by decreasing water supply duration).

For a newly installed refrigerator, please let the appliance operate for 24 hours

If this is your first icemaker

Some “crack” sound may be heard in the process of ice making. Don't worry, it's normal.

Cubed ices stored for an extended period may become opaque or emit a strange odor. Please

empty the cubed ice storage box regularly and clean it with warm water. Before putting the box

back, make sure to cool it down and to dry it under sunshine. Otherwise cubed ices may

If you do not want to use the cubed ice storage box for an extended period

Please take out all the cubed ices from the storage box and wash the box with warm water. Wipe

the box with a dry towel before replacing it to the appliance. After that, turn off the valve between

the water source and the appliance.

In order to obtain a larger available space of freezer storage compartment, the icemaker

assembly can be taken out and kept outside separately.

If you do not use cubed ices frequently

22Defrosting ·Cleaning

Defrosting the freezer

The freezer defrosts automatically. No manual operation is needed.

The refrigerator should be cleaned regularly to prevent bad stored food

For safety, unplug the power cord before cleaning the refrigerator.

Clean the refrigerator with a soft cloth or sponge with warm water (can

be added with mild detergent).

Dry water droplets on the refrigerator surfaces with a dry cloth.

Use of the cleaning filter (on some models)

The design service life is from 5 to 6 years. But as the kind and

concentration of odors in each refrigerator is uncertain due to different

operation condition and environment, we recommend you to set the

replacement cycle within 3 years.

After prolonged use, you can put it under sunshine for 30 minutes to

recover the deodorization effect. To clean, please use slow water flow.

The refrigerator is very heavy. When you are moving it for cleaning or repairs,

take care not to damage the floor. Keep the refrigerator upright during moving. Do

not move the refrigerator by rocking it to avoid damage to the floor.

Do not spray or flush the refrigerator with water to avoid impact on its electrical

insulation property.

Do not clean with hard brush, wire brush, detergent powder, gasoline, amyl

acetate, acetone and similar organic solutions, warm water or acid or alkaline

solutions. Please clean with special refrigerator detergent to avoid damage.

Do not touch the cold iron parts with wet hands, otherwise your skin may stick on

the cold iron parts.

When cleaning, do not clean the cold glass shelves with warm water. Otherwise

the glass may break due to sudden temperature change and cause personal injury

Always keep the door gasket clean.

Measures on power interruption

Even in summer, food may be stored in the refrigerator for a few

hours after a power interruption. If a power interruption occurs,

please call the power company to ask about the interruption

Do not put additional food into the refrigerator during a power

interruption and try to open the door as few times as possible.

If prior notice of a power interruption is given and the interruption

duration is over 24hrs, make some ice and put it in a container in

the top of the fridge storage compartment.

As temperature in the refrigerator will rise during a power interruption or other

failures, the storage period and edible quality of food will be reduced.

If the refrigerator will not be used for an extended period, please unplug the power cord,

disconnect the water source, and clean it with the method described above.

Keep the refrigerator door open to prevent any food remaining in the compartment from

producing bad odors.

To ensure the service life of the refrigerator, it is recommended that the refrigerator

not be turned off unless it is necessary.

Before leaving for a vacation

If leaving on an extended vacation, please disconnect the power and

water source. remove any food, wait for the frost to melt. Afterwards,

clean and dry the interior, and keep the door open to prevent any food

remaining in the compartment from producing bad odors. If the room

temperature is expected drop below 0 , please ask a qualified

service person to drain the water in the water supply system.

Otherwise serious property loss may be caused due to overflow of

water if the water pipe or joint breaks.

Moving the refrigerator

Unplug the refrigerator.

Secure the shelves and crisper in the fridge storage compartment

as well as the shelves and other movable parts in the freezer with

Close the door and secure with adhesive tape.

Do not tilt the refrigerator more than 45 degrees (angle to vertical)

to avoid damaging the refrigerating system.

Do not move the refrigerator by its handle to avoid property

damage or personal injury.

Never place the refrigerating horizontally down.

Before calling for service, please read the following troubleshooting table first. This can save

both your time and money. The table contains common problems except those caused by

defects in workmanship or material of the refrigerator.

Refrigerator operation

The refrigerator is in the

The refrigerator is not

plugged into a power

This is normal for an automatic defrosting

Verify the plug is plugged in the socket firmly.

Press the “Power” button for 3 seconds or

more to restart the refrigerator or turn the knob

from OFF to temperature selection position.

The indoor or outdoor

temperature is high.

The refrigerator has

been powered off for a

The automatic icemaker

The door is opened too

frequently or for long

The door of the fridge /

compartment is not tightly

The temperature setting

for the freezer storage

compartment is too low.

The door gasket of the

fridge/freezer storage

compartment is dirty, worn,

cracked or mismatched.

The condenser is dirty.

In this case, it is normal for the refrigerator

Normally, it takes 8 to 12 hours for the

refrigerator to totally cool down.

Ice-making process makes the refrigerator

Warm air enters the refrigerator and causes

it to start frequently. Please do not open the

door too frequently.

Ensure the refrigerator is located on a level

ground and there is no food or container

jarring the door. See “door/drawer

opening/closing” in section “Problem”

Set the temperature higher until a

satisfactory refrigerator temperature is

obtained. It takes 24 hours for the refrigerator

temperature to become stable.

Clean or replace the door gasket. A leakage

gap of door gasket can cause a longer running

time of the refrigerator in order to maintain

desired temperature.

Clean the condenser.

Too high temperature

OK The door is opened too

frequently or for too long

Temperature is set too

The door is not closed

The condenser is dirty.

temperature is set too

Warm air will enter the refrigerator

whenever the door is opened. Try to open the

door as less frequently as possible.

Reset the temperature.

See “Door/drawer opening/closing in

Clean the condenser.

Set the freezer temperature lower. It

takes 24 hours for the temperature of the

refrigerator to become stable.

Problems Causes Solutions

Too high temperature

The temperature in the

freezer is OK The fridge temperature

Set the fridge temperature lower. It

takes 24 hours for the temperature of the

refrigerator to become stable.

Water/moisture/frost in the refrigerator

Hot and moist climate.

The door is not closed

The door is opened too

frequently or for too long

Accumulation of frost and moisture

accelerate in such climate.

See “Door/drawer opening/closing” in

Do not open the door so frequently.

Water/moisture/frost on outside surface of the refrigerator

The refrigerator door is

not closed tightly. This

causes condensation of the

cold air in the refrigerator

and the warm air outside it.

This is normal in damp climate. The

moisture will decrease when the humidity

See “Door/drawer opening/closing” in

The water supply valve is

The temperature in the

freezer is not low enough

Turn on the icemaker on the display

Turn on the water supply valve.

See “Too high temperature” in section

Push the icemaker to its proper place.

The ice-making capacity

is less than expected

The temperature in the

freezer is not low enough

The icemaker can make approximately

1kg of cubed ices in 24 hours.

Set the freezer temperature lower.

Its ice detection bar is

pushed to a lower position

by some object in the

Tainted by odors in the

fridge or freezer storage

The water supplied to the

icemaker is not fresh.

Cover all the food closely. Discard the

ices stored for long period or made in the

Add a filter on the water supply pipe.

Please consult a water purification

Discard the cubed ices stored too long.

Bad odors in the refrigerator

refrigerator is dirty

refrigerator needs cleaning

Food of strong odor is

stored in the refrigerator

Clean the internal of the refrigerator.

Wrap the food tightly.

Remove the object that is restricting the

ice detection bar, free the ice detection bar

and remove all frozen ice patches from

around the ice detection bar.

Problems Causes Solutions

compartment door is open.

The temperature in the

freezer is too high.

Close the door or silence the alarm

The alarm is normal when it is first started

due to relatively higher temperature. You can

silence the alarm manually.

The refrigerator is not

located on a level place.

The refrigerator touches

some object around it.

Adjust the feet to level the refrigerator.

Remove objects around it.

Slight sound similar

Thid is the sound of the

refrigerating system

working.refrigerating

This prevents condensation and is normal.

Meaning of crossed out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection

facilities. Contact you local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into

the groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new ones, the retailer is legally obligated to take back your

old appliance for disposals at least free of charge.

AFL631CB/AFL631CS/AFL631CW/AFL634CW/AFD631CX/AFD631CB/AFD631CS/

AFD632GW/AFD632GB/AFD630IX/AFD630IB/AFD630IS/

HRF-338SS/HRF-388SG/HRF-338SB AFL631CWE/AFL631CSE AFT630IX/ AFT630IB/

AFL631CB/AFL631CS/AFL631CW/AFD631CX/A FD631CB/AFD631CS/AFD630IX/AFD630IB/AFD

Gefrierbereichtemperatur

CFL533CB/CFL533CS/CFL533AB/CFL533AS/CFL633CB/CFL633CS/

CFL633CW/ AFL631CB/AFL631CS/AFL634CB/

AFL631CW/AFL634CW CFL634CW/CFL634CX/

/AFL631CC/AFL631CO/AFL631CR/AFL631CF/

AFL631CX/AFL631NW/AFL631NS/AFL631NB/AFL631CWE/AFL631CSE

HRF-338SB/CFD629CW/CFD629CS/CFD633CW/CFD633CB/CFD634CB/

4 Models: AFT630IX/ AFT630IB (Anhang )

AFL631CB/AFL631CS/AFL631CW/AFL634CW/AFD631CX/AFD631CB/AFD631CS/

AFD632GW/AFD632GB/AFD630IX/AFD630IB/AFD630IS/AFT630IX/ AFT630IB/

AFL634CB/AFD634CX/AFD633IX/

/HRF-338SS/HRF-388SG/HRF-338SB/

AFT630IB AFL631CB/AFL631CS/AFL631CW/AFD631CX/AFD631C B/AFD631CS AFD630IX/AFD630IB/AFD630IS/

CFL634CW/CFL634CX/ /AFL631CC/

AFL631CO/AFL631CR/AFL631CF/AFL631CX/AFL631NW/AFL631NS/AFL631NB/

CFL533CB/CFL533CS/CFL533AB/CFL533AS/CFL633CB/CFL633CS/CFL633CW/

AFL631CB/AFL631CS/AFL634CB/AFL631CW/AFL634CW AFL631CWE/

AFL631CSE Température du

CFD629CW/CFD629CS/CFD633CW/CFD633CB/

AFL631CB/AFL631CS/AFL631CW/AFL634CW/AFD631CX/AFD631CB/AFD631CS/

AFD632GWAFD632GB/AFD630IX/AFD630IB/AFD630IS/AFT630IX/ AFT630IB/

AFL634CB/AFD634CX/AFD633IX/

/HRF-338SS/HRF-388SG/HRF-338SB/

basso e andando verso l'alto.

(AFL631CB/AFL631CS/AFL631CW/AFD631CX/AFD631

CB/AFD631CS/AFD630IX/AFD630IB/AFD630IS/

CFL533CB/CFL533CS/CFL533AB/CFL533AS/CFL633CB/CFL633CS/

CFL633CW/ AFL631CB/AFL631CS/AFL634CB/

AFL631CW/AFL634CW CFL634CW/CFL634CX/

/AFL631CC/AFL631CO/AFL631CR/AFL631CF/

HRF-338SB/CFD629CW/CFD629CS/CFD633CW/CFD633CB/CFD634CB/

AFL631CB/AFL631CS/AFL631CW/AFL634CW/AFD631CX/AFD631CB/

AFD631CS/AFD632GW/AFD632GB/AFD630IX/AFD630IB/AFD630IS/

AFT630IX/ AFT630IB/AFL634CB/AFD634CX/AFD633IX/

/HRF-338SS/HRF-388SG/HRF-338SB/

AFL631CB/AFL631CS/AFL631CW/AFD631CX/A FD631CB/AFD631CS/AFD630IX/AFD630IB/AFD6

CFL533CB/CFL533CS/CFL533AB/CFL533AS/CFL633CB/CFL633CS/

CFL633CW/ AFL631CB/AFL631CS/AFL634CB/

AFL631CW/AFL634CW CFL634CW/CFL634CX/

/AFL631CC/AFL631CO/AFL631CR/AFL631CF/

AFL631CX/AFL631NW/AFL631NS/AFL631NB/AFL631CWE/AFL631CSE12

HRF-338SB/CFD629CW/CFD629CS/CFD633CW/CFD633CB/CFD634CB/

refrigerator until it has cooled down to

AFL631CB/AFL631CS/AFL631CW/AFL634CW/AFD631CX/AFD631CB/AFD631CS/

AFD632GW/AFD632GB/AFD630IX/AFD630IB/AFD630IS/AFT630IX/ AFT630IB/

AFL634CB/AFD634CX/AFD633IX/

/HRF-338SS/HRF-388SG/HRF-338SB/

CFL533AB/CFL533AS/CFL633CB/CFL633CS/CFL633CW/CFL634CW/CFL634CX/

Abra as portas e as janelas;

AFT630IX/ AFT630IB) Retire as duas pegas

AFL631CB/AFL631CS/AFD631CX/AFD631C B/AFD631CS/AFD630IX/AFD630IB/AFD630IS

CFL533CB/CFL533CS/CFL533AB/CFL533AS/CFL633CB/CFL633CS/

CFL633CW/ AFL631CB/AFL631CS/AFL634CB/

AFL631CW/AFL634CW CFL634CW/CFL634CX/

/AFL631CC/AFL631CO/AFL631CR/AFL631CF/

AFL631CX/AFL631NW/AFL631NS/AFL631NB/AFL631CWE/AFL631CSEApresentação das funções

HRF-338SB/CFD629CW/CFD629CS/CFD633CW/CFD633CB/CFD634CB/

AFL631CB/AFL631CS/AFL631CW/AFL634CW/AFD631CX/AFD631CB/AFD631CS/

AFD632GW/AFD632GB/AFD630IX/AFD630IB/AFD630IS/AFT630IX/ AFT630IB/

AFL634CB/AFD634CX/AFD633IX/

/HRF-338SS/HRF-388SG/HRF-338SB/

AFL631CWE/AFL631CSE AFL631CC/AFL631CO/AFL631CR/AFL631CF/

AFL631CX/AFL631NW/AFL631NS/AFL631NBBeschrijving van de onderdelen

AFL631CB/AFL631CS/AFL631CW/AFD631CX/A FD631CB/AFD631CS/AFD630IX/AFD630IB/AFD6

CFL634CW/CFL634CX/ /

AFL631CC/AFL631CO/AFL631CR/AFL631CF/AFL631CX/AFL631NW/AFL631NS/

CFL533CB/CFL533CS/CFL533AB/CFL533AS/CFL633CB/CFL633CS/AFL631CB/

F Indicatorpictogram van vriescompartment

HRF-338SB/CFD629CW/CFD629CS/CFD633CW/CFD633CB/CFD634CB/

ijsmaker is in werking.

condensatiesysteem is
