USER MANUAL TDC112V ASKO

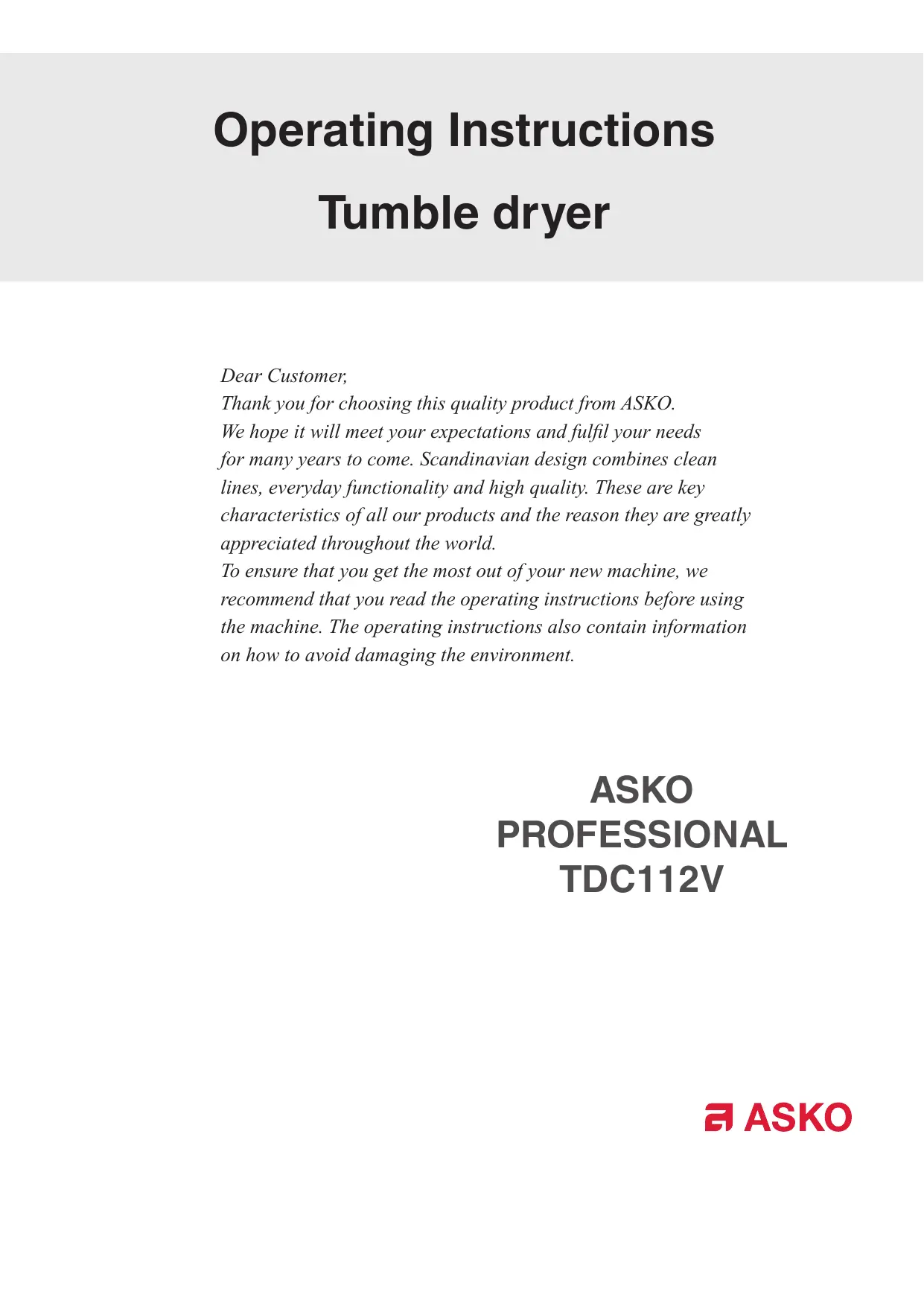

Operating Instructions Tumble dryer Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfil your needs for many years to come. Scandinavian design combines clean lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world. To ensure that you get the most out of your new machine, we recommend that you read the operating instructions before using the machine. The operating instructions also contain information on how to avoid damaging the environment. ASKO PROFESSIONAL TDC112V Contents Before using your machine for the first time  Language selection  Laundry labels  Safety instructions  Safety  Installation  Packing material  Recycling  Child safety  General  Child-safe start  Activating/deactivating Child-safe  start.  Description of the tumble dryer  Advice and tips before you tumble-dry  Materials that can be tumble-dried  Materials that must not be tumble-dried  Static electricity  Tumble drying  Sort your fabrics  Select the programme  Press the Start button  Drying programme finished 

Settings  You can carry out the following settings  How to choose the settings:  Audible Volume  Language  Child-safe  Heater 2 

Troubleshooting  The machine will not start  The machine loses all power during a programme   Drying takes too long 

Care and cleaning  Cleaning the lint filter  Cleaning the outside of the machine  

Before using your machine for the first time Language selection You will be prompted to select the display language when you have connected your machine and start it for the first time. Do as follows:

1. Turn the programme selector to choose from:

US English, English, Svenska, Dansk, Norsk, Suomi, Français, Deutsch, Italiano, Espanol, Русский, Nederlands.

2. Press Stop to save the setting.

Laundry labels Certain materials are not suitable for tumbledrying. Always check and follow the instructions on each item’s laundry label. You can find more information in the Advice and tips before you tumble-dry chapter. NOTE! When starting the tumble dryer for the first time or after a long period without use, you may notice a slight thumping noise. This noise is completely normal and will disappear after a few loads.

Safety instructions Read the operating instructions and keep them in a safe place! Safety

• Electrical installation, if required, should be carried out by a qualified electrician.
• The machine should only be used for tumbledrying as described in these instructions.
• Repairs and maintenance relating to safety or performance must be carried out by a qualified professional.
• Damaged mains cables must only be replaced by a qualified electrician.
• Sufficient ventilation is required to prevent smoke from open fires or fumes from equipment burning other fuels being sucked into the room when the tumble dryer is running.
• Do not dry dirty laundry in the tumble dryer.
• Items that are stained with e.g. cooking oil, acetone, alcohol, petrol, kerosene, stain remover, turpentine, wax and wax remover should be washed in hot water with extra detergent before they go in the tumbler dryer.
• Items such as foam rubber, latex, plastic, waterproof textiles, rubber-coated items and clothes and foam-rubber filled cushions must not be dried in the tumbler dryer.
• Fabric softener or similar products should be used as per the recommendations of the detergent manufacturer.
• The machine is not designed to be used by persons (even children) that are physically or mentally handicapped or lack experience and knowledge. Such persons must receive instruction in how to use the machine from the person responsible for their safety.
• Children must be watched to ensure they do not play with the machine. WARNING!

• The machine must not be used for drying items that have been dry-cleaned at home or fabrics that may contain residues of flammable liquids.
• The tumble dryer is protected by an overheating cut-out. This shuts off the machine if the temperature gets too high. When the tumble dryer is operating, the back of the tumble dryer will get very hot. Leave the machine to cool completely before touching the back. Installation See the separate installation instructions. Packing material Please sort waste materials in accordance with local guidelines. Recycling This machine is manufactured and labelled for recycling. In order to prevent personal injury, the machine must be made inoperable after deciding to take it out of service. Contact your local authority for information about where and how your machine should be correctly recycled. Child safety General WARNING! Do not allow children to play with the tumble dryer.

• If the door is opened when a programme is running the garments may be very hot, with a risk of burn injuries.
• The tumble dryer does not start automatically when the door is closed (if a child pulls the door shut from the inside, for example). Child-safe start By activating the child-safe start function you can prevent children from starting the tumble dryer or changing the current programme. Activating/deactivating Child-safe start. Do as follows to open the settings menu:

1. Turn off the machine using the main power

2. Press the Stop button and switch on the

machine with the main power switch. Then press the Stop button 5 times within 10 seconds.

3. Select the setting you want to change by

turning the programme selector.

4. Press the Stop button once.

5. Change and save the setting as described

6. Press the Start button to return to the

programme menu. You can activate the Child-safe start option to prevent children from starting the machine.

1. Turn the programme selector and choose

Child-safe On or Child-safe Off.

2. Press the Stop button once to save the setting.

You can temporarily deactivate Child-safe start by pressing the Start and Stop buttons at the same time. Child-safe start will be deactivated for 3 minutes.

Description of the tumble dryer

Main power switch Panel Type plate

Lint filter Outer door Advice and tips before you tumble-dry Here are some tips that may help you before you begin tumble-drying. Static electricity Items to be tumble-dried should be spun at 1000 rpm or faster. Higher spin speeds save energy and reduce drying time. To reduce the risk of static electricity in the laundry after tumble drying you can:

• Use fabric softener when washing.
• Wait five minutes after the drying program ends before opening the door and removing the laundry from the dryer. Materials that can be tumble-dried NOTE! NOTE! You can stop the tumble dryer by pressing the Stop button for three seconds or by opening the door. In both cases the programme is stopped and starts from the beginning if restarted. If you do not want to restart the programme then immediately remove all laundry and spread it out to allow the heat to dissipate. Have the clothes been spun? This symbol means that the material is suitable for tumble-drying. Fabrics best suited to tumble-drying are cotton fabrics, terry cloth and synthetic fibres. Garments will be softer and lighter when tumbled than when hung out to dry. The tumble dryer does not cause any significant wear on fabrics. The lint that collects in the lint filter consists of dust and fibre residues formed when the items are used. Materials that must not be tumbledried This symbol means that the material is not suitable for tumble-drying. Certain materials may melt or become a fire hazard if exposed to heat, and others can lose their shape or shrink. And do not tumble-dry
• materials labelled "Do not dry near heat".
• garments that have been dry-cleaned at home.
• fibreglass material.
• wool must not be tumble-dried because of the risk of felting.

Tumble drying Below are step-by-step instructions to help you achieve the best possible tumble-drying results.

Sort your fabrics You will achieve the most uniform drying results if the items are made of the same type of material. Do up zips and buttons, fasten belts, sort the items and adjust the load and temperature.

Press the main power switch until the display lights. Open the door, load the items and then close the door Tumble drying

Select the programme Programme selector Start Programme name Stop Select a programme by turning the programme selector. The selected programme is shown in the display window. Guidelines as to what specific programmes can be used for: The Auto extra dry, Auto dry and Auto normal dry programmes have two temperature settings. Normal temperature but also low temperature for more delicate items. Auto extra dry Temperature normal. This programme is for items that are particularly difficult to dry, such as jeans with very thick seams. Auto dry Temperature normal. These programmes shut off the heat once the load is dry but before it is bone dry. The Auto dry programme shuts off the heat slightly later than Auto normal dry. Use trial and error to find out what works best. Auto normal dry Temperature normal. These programmes shut off the heat once the load is dry but before it is bone dry. The Auto dry programme shuts off the heat slightly later than Auto normal dry. Use trial and error to find out what works best. Auto extra dry (low temperature) Energy Save. This programme is for items that are particularly difficult to dry, such as jeans with very thick seams. Auto dry (low temperature) Energy Save. These programmes shut off the heat once the load is dry but before it is bone dry. The Auto dry programme shuts off the heat slightly later than Auto normal dry. Use trial and error to find out what works best. Auto normal dry (low temperature) Energy Save. These programmes shut off the heat once the load is dry but before it is bone dry. The Auto dry programme shuts off the heat slightly later than Auto normal dry. Use trial and error to find out what works best. Auto Iron dry This programme shuts off the heat once the load is just damp enough for ironing or pressing.

Energy consumption, approx. (kWh) 3,03 2,0 1:25 0:50 Tumble drying

Press the Start button Remaining drying time An estimate of the remaining drying time will be shown on the display a few minutes after the drying programme starts. For example, 1:35 means that it will take approximately 1 hour and 35 minutes for the load to dry. The actual remaining time may be longer than the estimated time shown on the display. The remaining time is then shown as 0:15 until the load is sufficiently dry. You can stop the tumble dryer by pressing the Stop button or by opening the door. In both cases the programme is stopped and starts from the beginning if restarted. NOTE! The programme will not be affected if you change the programme selector after the programme has started.

Drying programme finished The text Done appears on the display when the programme is finished. Backlighting Two minutes after the drying programme finishes the backlighting on the display and option buttons enters energy saving mode. NOTE!

• Clean the lint filter after each load. WARNING! If the lint filter becomes clogged, the machine’s automatic overheating cut-out may be triggered. Clean the filter, wait until the machine has cooled then try starting it. If it still does not start: Call the service division. Once drying has finished Turn off the main power switch. Remove the clothes and close the door to prevent small children from climbing into the machine.

Settings You can carry out the following settings

Language Child-safe Audible Volume Heater 2 How to choose the settings: Do as follows to open the settings menu:

1. Turn off the machine using the main power switch.

2. Press the Stop button and switch on the machine with the main power switch. Then press the Stop

button 5 times within 10 seconds.

3. Select the setting you want to change by turning the programme selector.

4. Press the Stop button once.

5. Change and save the setting as described below.

1. Turn the programme selector and choose Buzzer On or Buzzer Off to set whether the tumble dryer

should audibly indicate that the programme is finished or that an error has occurred.

2. Press the Stop button once to save the setting.

1. Turn the programme selector to choose from: US English, English, Svenska, Dansk, Norsk, Suomi,

Français, Deutsch, Italiano, Espanol, Русский, Nederlands.

2. Press the Stop button once to save the setting.

Child-safe You can activate the Child-safe start option to prevent children from starting the machine.

1. Turn the programme selector and choose Child-safe On or Child-safe Off.

2. Press the Stop button once to save the setting.

You can temporarily deactivate Child-safe start by pressing the Start and Stop buttons at the same time. Child-safe start will be deactivated for 3 minutes. Heater 2

1. Turn the programme selector and choose "Heater 2 On" (3000W/16A) or "Heater 2 Off" (1950W/10A)

to increase or decrease the heat output.

2. Press the Stop button once to save the setting.

NOTE! The switchover must be performed by a qualified electrician.

Care and cleaning Cleaning the lint filter The lint filter must be cleaned after each load.

1. Grasp the filter holder handle and pull it

towards you to open the lint filter.

3. Use your hand or a soft cloth to remove the lint

from all sides of the filter. If necessary, use a damp sponge and a small amount of washingup liquid to remove any deposits. Dry the filter thoroughly with a towel.

4. Close the lint filter before closing the door.

2. Open the lint filter. Use your thumb to press on

the edge as illustrated and pull it out. Cleaning the outside of the machine Clean the outside of the machine and the programme panel with a mild cleaner. Do not use solvents, as these can damage the machine. Do not hose down or spray the machine with water. NOTE! Do not allow dust to accumulate around the machine. Keep the area around the tumble dryer clean and cool; dust, heat and moisture prolong drying times.

Troubleshooting The machine will not start Drying takes too long Check

• that the door is properly closed.
• that the main power switch is on.
• that the plug is connected.
• that the main fuses have not blown.
• that the overheating cut-out has not been triggered. Error messages The machine loses all power during a programme The overheating cut-out shuts off the tumble dryer if the temperature is too high, e.g. because dust is clogging the lint filter.
• Clean the lint filter.
• Wait until the machine has cooled then try starting it. If it still does not start: Call the service division.

• Check that the lint filter is not blocked. See the
• Care and cleaning chapter.

• Read Drying takes too long in this chapter if
• Max program time appears on the display.
• If Clean Lint Filter appears on the display, clean the lint filter.
• Call the service division if Thermistor fault appears on the display.
• Press the Stop button to close any error messages. Technical information Technical data Height: 850 mm Width: 595 mm Depth: 585 mm Weight (net): 40 kg Cylinder volume: 112 l Max. drying capacity: 7 kg Speed: 50-55 rpm Rated power: See type plate. Drum material: Stainless steel Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel. Setup Stacking or freestanding Standard tests Europe: Drying performance: EN 611 21 (95/13/EEC). Auto normal dry, 7 kg cotton Energy declaration: EN 611 21 (95/13/EEC). Auto normal dry, 7 kg cotton Test method for noise measurement: IEC 60 704-2-6.

Service Before contacting the service division See the Troubleshooting and Care and cleaning chapters to see whether you can rectify the problem. If you need to contact the service division, make sure that you know the model designation, type designation and serial number. The model designation (1) can be found on the first page of the operating instructions and on the machine panel. The type designation (2) and serial number (3) can be found on the type plate, which is found on the front of the tumble dryer inside the outer door.

Installation Installation See the separate installation included in the set of documents. instructions Electrical installation If the machine is delivered from the factory with a plug attached it can be connected to an earthed wall socket. Otherwise, a permanent connection using a multipolar circuit breaker must be made by a qualified professional. Connection on delivery

440V, 3-Phase without neutral conductor, 10A 60Hz Heat output 3000W Use a type A residual-current device. Switch-over The switchover must be performed by a qualified electrician. See the section Settings.

Hinge pins (top and bottom) Cover plate Plastic plugs (on the upper and lower edges)

Locking hook Hinges (left + right side) Plinth Door hanging You can choose whether the door is hung on the right or the left. Follow these instructions:

1. Remove the plinth.

2. Remove the hinge, two screws.

3. Lift the door up and remove it. Support the

door at the same time.

4. Remove both door pins (top and bottom). Fit

them on the other side of the machine. Refit the hinge.

7. Switch the catch (magnetic lock) and the

cover plate. First loosen the screw holding the catch (magnetic lock) in place. Then use a flat-bladed screwdriver to remove the cover plate. Refit the catch (magnetic lock) and the cover plate on the other side.

8. Reattach the inner part of the door with the

screws (13 in total).

9. Move the plastic plugs on the upper and

lower edges of the door. Use a flat-bladed screwdriver to remove the plugs. 10.Loosen the two screws holding the handle in place on the door. Push out the two plastic plugs inside the screw holes on the other side of the door. Use the two screws to attach the handle to the other side of the door and press the plastic plugs into the holes where the handle was previously fitted. 11.Refit the door by loosening the hinge screws slightly, affixing the door and closing it. Retighten the hinges. Replace the plinth.

5. Loosen the screws (13 in total) on the inside

• Dry fabrics of the same type together to ensure that they dry as evenly as possible. Turn on the main power switch Load the garments

Select a programme and any options

• Turn the programme selector to the required programme. Press the Start button Drying programme finished

• Done appears on the display when the programme is finished.
• Clean the lint filter after each load. Once drying has finished

• Turn off the mains power switch and close the door. We reserve the right to make changes.
