USER MANUAL QA506 MOULINEX

Line drawing of a modern kitchen mixer with control knobs and a side bowl (no text or symbols)

1 2 1 1.1a

1 2 1.1b

1 2 3 4 1.1c

Illustration of a kitchen mixer with a side panel and handle, no text or symbols present

2 1 2.1a

1 2 2.1b

3 4 1 2 2.1c

2 1 3.1a

1 2 3 4 3.1b

3 2 1 5 4 3,2a

3.2b

1 2 3.3a

1 2 3.3b

2 1 4.1a

1 2 4 3 4.1b

1 2 3 4 4.1c

4 3* 5.1b 2 1 5* 5.1c 5.1a

3* 5.1b

5* 5.1c

1 2 5.2a

1 2 5.2b

1 2 3 5.2c

5.2d

Diagram showing a cable being inserted into a connector, with arrows indicating direction (no text or symbols)

- Tête hachoir assemblée (F)

3.1 - MISE EN PLACE DE L'ADAPTATEUR

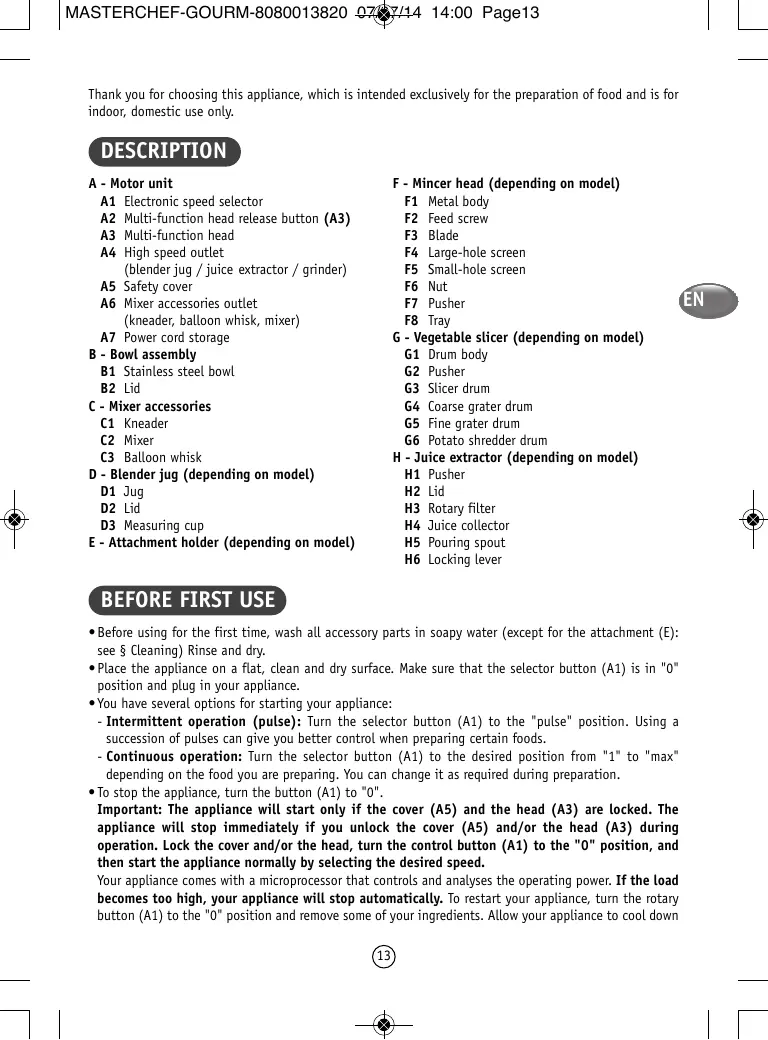

Thank you for choosing this appliance, which is intended exclusively for the preparation of food and is for indoor, domestic use only.

DESCRIPTION

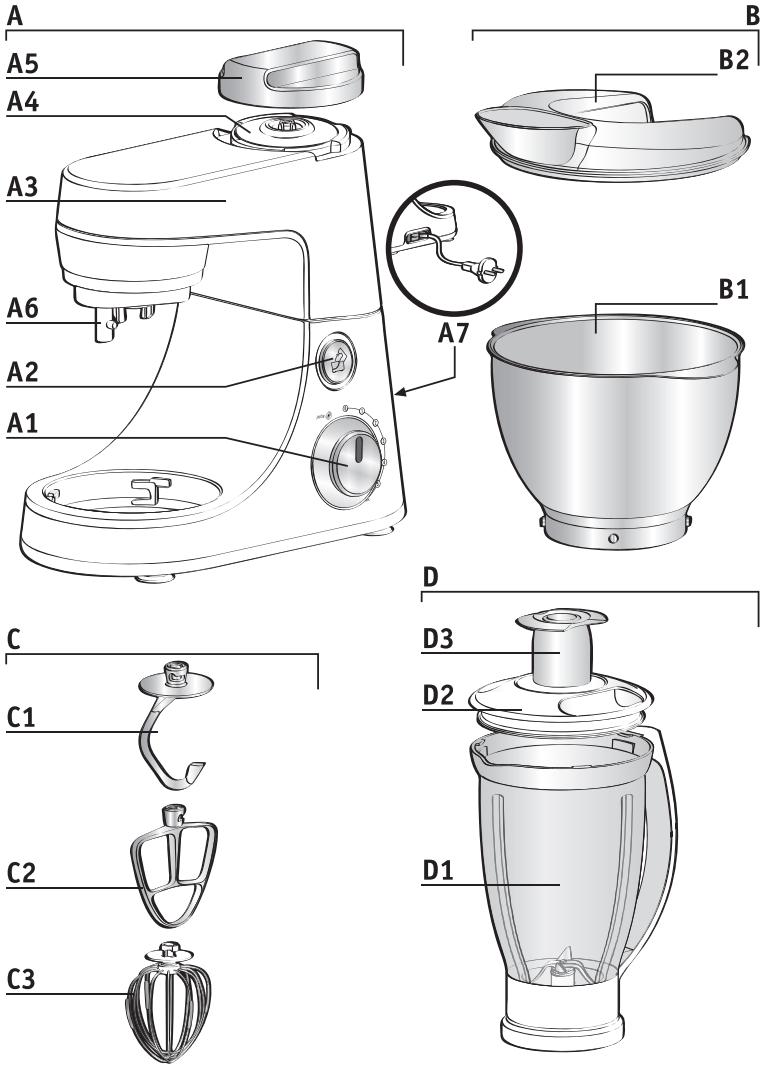

A - Motor unit

A1 Electronic speed selector
A2 Multi-function head release button (A3)
A3 Multi-function head
A4 High speed outlet (blender jug / juice extractor / grinder)
A5 Safety cover
A6 Mixer accessories outlet (kneider, balloon whisk, mixer)

A7 Power cord storage

B - Bowl assembly

B1 Stainless steel bowl

B2 Lid

C - Mixer accessories

C1 Kneader
C2 Mixer
C3 Balloon whisk

D - Blender jug (depending on model)

D1 Jug
D2 Lid
D3 Measuring cup

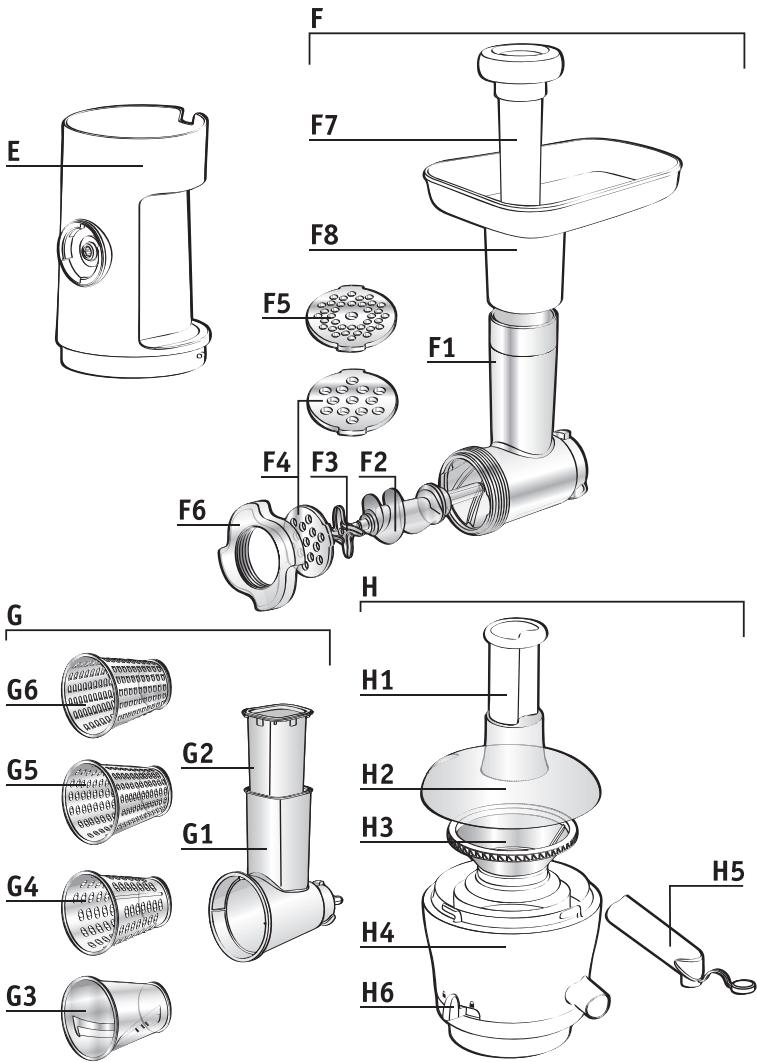

E - Attachment holder (depending on model)

F - Mincer head (depending on model)

F1 Metal body
F2 Feed screw
F3 Blade
F4 Large-hole screen
F5 Small-hole screen
F6 Nut
F7 Pusher
F8 Tray

G - Vegetable slicer (depending on model)

G1 Drum body
G2 Pusher
G3 Slicer drum
G4 Coarse grater drum
G5 Fine grater drum
G6 Potato shredder drum

H - Juice extractor (depending on model)

H1 Pusher
H2 Lid
H3 Rotary filter
H4 Juice collector
H5 Pouring spout
H6 Locking lever

BEFORE FIRST USE

• Before using for the first time, wash all accessory parts in soapy water (except for the attachment (E): see § Cleaning) Rinse and dry.
• Place the appliance on a flat, clean and dry surface. Make sure that the selector button (A1) is in "0" position and plug in your appliance.
• You have several options for starting your appliance:

- Intermittent operation (pulse): Turn the selector button (A1) to the "pulse" position. Using a succession of pulses can give you better control when preparing certain foods.

- Continuous operation: Turn the selector button (A1) to the desired position from "1" to "max" depending on the food you are preparing. You can change it as required during preparation.

- To stop the appliance, turn the button (A1) to "0".

Important: The appliance will start only if the cover (A5) and the head (A3) are locked. The appliance will stop immediately if you unlock the cover (A5) and/or the head (A3) during operation. Lock the cover and/or the head, turn the control button (A1) to the "0" position, and then start the appliance normally by selecting the desired speed.

Your appliance comes with a microprocessor that controls and analyses the operating power. If the load becomes too high, your appliance will stop automatically. To restart your appliance, turn the rotary button (A1) to the "0" position and remove some of your ingredients. Allow your appliance to cool down

The paragraph numbering corresponds to the numbers in the diagrams.

1 - MIXING / KNEADING / BEATING / EMULSIFYING / WHISKING

You can prepare up to 1.8 kg light dough and heavy dough made with up to 500 g flour using the stainless bowl (B1) and its lid (B2) depending on the food.

ACCESSORIES USED:

• Stainless steel bowl (B1).
• Lid (B2)
• Kneader (C1) or mixer (C2) or balloon whisk (C3)

1.1 - ASSEMBLING THE ACCESSORIES

• Press the button (A2) to release the multi-function head (A3) and raise it until it locks in place.
• Lock the stainless steel bowl (B1) (clockwise) on the appliance and put in the ingredients.
• Insert the desired accessory (C1, C2 or C3) on the outlet (A6), push and rotate it anti-clockwise a quarter turn to lock the accessory in its housing.
• Place the multi-function head (A3) to the horizontal position: press the button (A2) and manually lower the multi-function head (A3) until it locks (the button (A2) returns to its initial position).
• Slide the lid (B2) over the stainless steel bowl (B1).

Note: It is not essential to use the lid but it prevents splashing.

- Make sure that the cover (A5) is locked correctly (clockwise) on the high-speed outlet (A4).

1.2 - USAGE

Start by turning the selector button (A1) to the desired position according to the recipe.

- The appliance starts running immediately.

You can add food through the hole in the lid (B2) during preparation.

- To stop the appliance, turn the button (A1) to "0".

Tips:

- Kneading

• Use the kneader accessory (C1) at speed "1". You can knead up to 500 g of flour (e.g. white bread, grain bread, short crust pastry, etc.).
• Maximum time of use: 13 minutes.

- Mixing

• Use the mixer (C2) at speed "1" to "max".
• You can mix up to 1,8 kg of light dough (light cake mixture, sponge cake, biscuit or cookie dough).
• Maximum time of use: 13 minutes.
• Never use the mixer (c2) to knead heavy dough.

- Beating / emulsifying / whisking

• Use the balloon whisk (c3) at speed "1" to "max".
• You can prepare: mayonnaise, aioli, sauces, whisked egg whites (up to 8 egg whites), whipped cream (up to 500 ml), meringues etc.
• Maximum time of use: 10 minutes.
• Never use the balloon whisk (C3) to knead heavy dough or mix light dough.

1.3 - DISMANTLING THE ACCESSORIES

• Wait for the appliance to come to a complete stop.
• Remove the lid (B2).

• Using the button (A2), release the multi-function head (A3) and raise it to the upper position.

• Release the accessory (C1), (C2) or (C3) from the multi-function head by pushing the accessory into the head and rotating it clockwise a quarter turn.

• Remove the stainless steel bowl.

2 - BLENDING/MIXING (DEPENDING ON MODEL)

Depending on the nature of the food, you can use the blender (D) to prepare up to 1.5 L of thick mixtures and 1.25 L of liquid mixtures.

ACCESSORIES USED:

- Blender jug (D).

2.1 - ASSEMBLING THE ACCESSORIES

• Place the multi-function head (A3) in the horizontal position: press the button (A2) and manually lower the multi-function head (A3) until it locks (the button (A2) returns to its initial position).
• Unlock the safety cover (A5) from the high-speed outlet (A4) by rotating it anti-clockwise and then remove it.
• Make sure that the appliance is switched off before locking the blender (D).
• Lock the blender jug (D) on the outlet (A4) by rotating it clockwise.
• Place the food in the blender jug, and lock the lid (D2) fitted with the measuring cap (D3), by rotating it anti-clockwise.

2.2 - USAGE

• Start by turning the selector button (A1) to the desired position (from speed 4 to Max or pulse) according to the recipe.
  Use the "Pulse" position for better mixing control and for a better blending of your preparation.
  You can add food through the hole in the measuring cap (D3) during preparation.

- To stop the appliance, turn the button (A1) to "0".

- Maximum time of use: 3 minutes.

Tips:

You can prepare:

• finely blended soups, cream soups, stewed fruit, milkshakes and cocktails.
• liquid batter (pancake, fritters, Yorkshire pudding, waffles, clafoutis and custard flans).
  If ingredients stick to the sides of the bowl when mixing, stop the appliance and wait until the blades have stopped completely. Remove the blender and push the food down onto the blades using a spatula, and put your blender back on the appliance to continue processing.

- Never fill the blender jug with boiling liquid.

- Never run the blender jug empty.

• Always use the blender jug with its lid.

- Never remove the lid before the blades have stopped completely.

- Always pour liquid ingredients into the blender jug first before adding solid ingredients.

2.3 - DISMANTLING THE ACCESSORY

- Wait for the appliance to come to a complete stop before removing the blender by unlocking it in the anti-clockwise direction and put back the cover (A5) by locking it on the outlet (A4) (clockwise).

3 - MINCING (DEPENDING ON MODEL)

ACCESSORIES USED:

- Attachment holder (E)

- Assembled mincer head (F)

3.1 - FITTING THE MINCER ATTACHMENT

• Press the button (A2) to release the multi-function head (A3) and raise it until it locks in place.
• Place the attachment (E) and lock it in the anti-clockwise direction such that the outlet is in alignment with the appliance.
• Place the multi-function head (A3) in the horizontal position by pressing the button (a2) once again.

3.2 - ASSEMBLING THE MINCER HEAD

• Hold the body (F1) by the feed tube, with the wider opening uppermost.
• Insert the feed screw (F2) (long shaft first) into the body (F1).
• Fit the blade (F3) onto the short shaft protruding from the feed screw (F2) with the cutting edges facing outwards.
• Fit the chosen screen (F4 or F5) on the blade (F3), aligning the two lugs with the two notches in the body (F1).
• Screw the nut (F6) home on the body (F1) in the clockwise direction, without locking it.
• Check the assembly. The shaft should have no play, neither should it be able to turn on its own. Otherwise, repeat the assembly procedure.

3.3 - FITTING THE MINCER HEAD ON THE APPLIANCE

• Facing the attachment outlet (E), insert the assembled mincer head (F) inclined to the right, aligning the two bayonets in the mincer head with the two notches in the attachment. Push the mincer head home into the attachment and turn the mincer head anti-clockwise until it latches with the feed tube in the vertical position.
• Place the removable tray (F8) on the feed tube.

3.4 - USAGE, TIPS AND DISMANTLING

• Make sure that the safety cover (A5) is locked correctly (clockwise) on the high-speed outlet (a4).
• Place a container to collect the preparation in front of the appliance.
• Run the appliance by turning the selector (A1) to speed "3" or "4".
• Push the meat, piece by piece, down the feed tube, using the pusher (F7). Never push the ingredients down the feed tube with your fingers or any other utensil.

- You can chop up to 3 kg of meat (gristle, bone and sinew removed).

- Maximum time of use: 10 minutes.

- Leave your appliance to cool down completely before using again.

- To stop the appliance, turn the selector to "0" speed and wait for the appliance to come to a complete stop.

- Unlock the mincer head in the reverse order of the assembly.

Tips:

• Prepare all of the foodstuffs to be minced (for meat, remove the bones, gristle and tendons and cut it into pieces of approximately 2 x 2 cm).
• Make sure that frozen meat is thoroughly thawed.
• At the end of the operation, you can feed a few small pieces of bread into the feed tube to clear any meat remaining in the machine.

4 - GRATING / SLICING (DEPENDING ON MODEL)

ACCESSORIES USED :

• Attachment holder (E)
• Assembled vegetable slicer (G)
• Drums (depending on model)

4.1 - ASSEMBLING THE ACCESSORIES

- Press the button (A2) to release the multi-function head (A3) and raise it until it locks in place.

• Place the attachment (E) and lock it in the anti-clockwise direction such that the outlet is in alignment with the appliance.
• Place the multi-function head (A3) in the horizontal position by pressing the button (A2) once again.
• Make sure that the safety cover (A5) is locked correctly (clockwise) on the high-speed outlet (A4).
• Facing the attachment (E) outlet, insert the drum body (G1) inclined to the right, aligning the two bayonets in the drum body with the two notches in the attachment. Push the drum body home and turn the drum body anti-clockwise until it latches with the feed tube in the vertical position.
• Insert the chosen drum into the body, and make sure that it is fully engaged in the body.

4.2 - USAGE AND TIPS

- Place a container to collect the preparation in front of the appliance.

- Run the appliance by turning the selector (A1) to speed "3" to slice and to speed "4" to grate.

- Place the food in the feed tube on the body and press down with the pusher (G2). Never push the ingredients with your fingers or any other utensil.

- You can prepare up to 2 kg of food.

- Maximum time of use: 10 minutes.

• To stop the appliance, turn the selector to "0" speed and wait for the appliance to come to a complete stop.
• Unlock the drum body in the reverse order of the assembly.
• Use the drums to:

- Grate coarsely (G4) / grate finely (G5) : carrots, celery, potatoes, cheese, etc.

- Slice thickly (G3) : potatoes, carrots, cucumbers, apples, beetroot, etc.

- Potato shredder (G6): potatoes, parmesan, etc.

5 - EXTRACTING JUICE FROM FRUITS AND VEGETABLES (DEPENDING ON MODEL)

ACCESSORIES USED:

- Assembled juice extractor (H).

5.1 - ASSEMBLING THE JUICE EXTRACTOR

• Place the filter (H3) in the middle of the juice collector (H4).
• Lock the lid: turn it anti-clockwise and lock the lid (H2) on the juice collector (H4) (closed padlock position).
• General locking: push the locking lever (H6) to closed padlock position.

5.2 - FITTING THE JUICE EXTRACTOR ON THE APPLIANCE

• Place the multi-function head (A3) in the horizontal position: press the button (A2) and manually lower the multi-function head (A3) until it locks (the button (A2) returns to its initial position).
• Unlock and remove the cover (A5) from the outlet (A4) by turning it anti-clockwise.
• Make sure that the appliance is switched off before locking the juice extractor (H).
• Lock the assembled juice extractor on the outlet (A4) by turning it clockwise, so as to have the outlet for the pouring spout aligned with the appliance.
• Fit the pouring spout (H5) on the collector (H4).
• Check that the pouring spout (H5) is fully open.

5.3 - USAGE AND TIPS

• Place a large glass under the pouring spout (H5).
• Run the appliance by turning the selector (A1) to speed "3".
• Cut the fruits and/or vegetables into pieces.
• Insert them down the feed tube in the lid (H2) push them slowly using the pusher (H1). Never push the ingredients with your fingers or any other utensil.

• Do not process 500 g of food more than 5 times continuously, without allowing your appliance to cool down completely.
• Maximum time of use: 10 minutes.
• For best results, clean the filter after every 300 g of ingredients.
• Important: When the pulp collector is full, stop the appliance and empty the collector.
• To stop the appliance, turn the selector to "0" speed and wait for the appliance to come to a complete stop.
• Wait until the rotary filter comes to a complete stop before removing the assembly from the appliance.
• To remove the juice extractor, unlock it by turning it anti-clockwise.
• Place the locking lever (H6) in the open padlock position. Open the lid (open padlock position). You can then remove the filter (H3) to clean it and empty the collector (H4).

Tips:

• You can make juice from: carrots, tomatoes, apples, grapes, raspberries, etc.
• Peel fruits with thick skins; remove stones and the core of pineapples.
• It is not possible to extract juice from certain fruits and vegetables: bananas, avocado pears, blackberries, some varieties of apples, etc...
• You can prepare juices with different fruits and vegetables without having to clean the juice extractor every time, the flavours will not be mixed. Just run the extractor with a little water to rinse it between two different juices.
• Drink the juices immediately after preparation, and add lemon juice to keep them in the fridge for a few hours.

6 - ADJUSTING THE CORD LENGTH

For more comfortable use or for storage, you can reduce the cord length by pushing it inside the motor unit (A) via the opening on the rear (A7).

7 - FINELY CHOPPING SMALL QUANTITIES (DEPENDING MODEL)

ACCESSORY USED:

- Assembled grinder.

You can use the grinder to:

- Chop in a few seconds by pulsing: dried figs, dried apricots, etc.

Quantity / max time: 100g / 5s

This grinder is not designed for hard products like coffee beans or hard spices.

CLEANING

• Unplug the appliance.
• Do not immerse the motor unit (A) or the attachment (E) in water or under running water. Wipe them with a dry or slightly damp cloth.
• For easier cleaning, rinse the accessories quickly after use. Dismantle the mincer head assembly fully. Handle the blades with care to prevent injury.
• Wash, rinse and dry the accessories: they are dishwasher-safe, except for all the metal components in the mincer head: body (F1), feed screw (F2), blade (F3), screens (F4 and F5), nut (F6).
• The screens (F4) and (F5) as well as the blade (F3) must remain greased. Coat them with cooking oil.

Tips:

• In the event any of your accessories are coloured by food (carrots, oranges, etc.), rub with a cloth soaked in cooking oil and then clean them as usual.
• Blender jug (D): pour some hot water containing a few drops of washing up liquid into the blender. Close the lid. Place it on the appliance and pulse a few times. After removing it, rinse the bowl in running water and allow to dry (bowl upside down).

STORAGE

Do not store your appliance in a humid environment.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

EN

If your appliance does not work, check:

• that it is plugged in correctly.
• that the accessories are correctly locked.
• The position of the electronic speed selector (A1): put it back to the "0" position, then select the desired speed again.

Your appliance comes with a microprocessor that controls and analyses the operating power. If the load becomes too high, your appliance will stop automatically. To restart your appliance, turn the rotary button (A1) to the "0" position and remove some of your ingredients. Allow your appliance to cool down for a few minutes. You can then select the desired speed to complete your preparation.

Your appliance still does not work? Contact an authorised service centre (see the list in the service booklet).

DISPOSAL OF PACKAGING AND THE APPLIANCE

The packaging is comprised exclusively of materials that present no danger for the environment and which may therefore be disposed of in accordance with the recycling measures in force in your area.

For disposing of the appliance itself, please contact the appropriate service of your local authority.

ACCESSORIES

You can customise your appliance and obtain the following accessories from your usual retailer or an authorised service centre:

• Stainless steel bowl
• Stainless steel bowl lid
• Kneader
• Mixer

• Balloon whisk

• Blender jug

• Juice extractor
• Grinder
• Mincer head

• Attachment holder

• Vegetable slicer:

• Slicer
• Coarse grating
• Fine grating

• Potato shredder

• Pasta kit

• Coulis attachment
• Pasta rolling mill

Caution: This booklet contains instructions for additional accessories. Please keep safe for future reference. Please contact Tefal Customer Relations for further information on how to purchase accessories.

5 - ENTSAFTEN VON OBST UND GEMÜSE (JE NACH MODELL)

VERWENDETES ZUBEHÖR:

3.4 - ACCENSIONE, CONSIGLI E SMONTAGGIO

4.2 - ACCENSIONE E CONSIGLI

5.3 - ACCENSIONE E CONSIGLI

Recycling symbol with Union Jack (RU) label, no additional text or symbols present

1.1 - retirement Maple清洁
