SOUP & PLUS LM9221 - Hand blender MOULINEX - Free user manual and instructions

Product type	Heating immersion blender with cooking function
Brand	Moulinex
Model	SOUP & PLUS LM9221
Power supply	1100 W, 220-240 V ~, 50/60 Hz
Maximum temperature	100 °C
Maximum programming time	59 minutes
Bowl material	Stainless steel
Bowl capacity	Approximately 1.5 L (MIN and MAX marks)
Automatic programs	P1 Cream soup, P2 Chunky soup, P3 Steam cooking (depending on model), P4 Autoclean (depending on model)
Operating modes	Automatic, manual, blender (without cooking)
Special functions	Keep warm (40 min), crushed ice (30 s), pulse
Number of blending speeds	5 speeds + pulse
Provided accessories	Motor unit, stainless steel bowl, lid, removable blade, seal, locking ring, cooking basket (depending on model)
Safety	Bowl and lid locking, red heating indicator, overload protection, motor safety
Cleaning	Autoclean program, bowl and accessories hand washable, motor unit wiped with damp cloth
Maintenance	Disassemble blade and seal for cleaning, do not immerse motor unit
Spare parts and repairability	Removable blade, sealing gasket, locking ring available from after-sales service
Country of manufacture	Not specified

Frequently Asked Questions - SOUP & PLUS LM9221 MOULINEX

How to use the automatic program?

Place the ingredients in the bowl, lock the lid and place the bowl on the motor unit. Select a program (P1, P2, P3 or P4) with the P button, then confirm with OK. The red indicator lights up and cooking starts.

How to clean the appliance?

Use the Autoclean program (P3 or P4) with 1 liter of hot water and a few drops of dish soap. After the cycle, disassemble the blade and seal for hand cleaning. The motor unit should be wiped with a damp cloth, never immersed.

What to do if the appliance does not work?

Check that the bowl and lid are correctly positioned and locked. If the click indicator does not appear, the appliance will not start. Consult the troubleshooting table: display STOP = overload, SECU = lack of liquid, Err or ntc = contact customer service.

How to install the removable blade?

Place the seal on the blade, insert the blade into the bottom of the bowl aligning the tabs, turn the bowl over and screw on the locking ring. The blades are very sharp, handle with care.

What is the maximum capacity of the bowl?

Do not exceed the MAX mark engraved inside the bowl. For liquid preparations, the level must at least reach the MIN mark. For frozen vegetables, reduce the volume to avoid overflow.

Can I blend ice cubes?

Yes, use the Ice button (crushed ice) to crush up to 6 to 8 ice cubes maximum. The automatic duration is 30 seconds, you can stop with OFF.

How to use the steam cooking basket?

Place the cut vegetables in the basket, fill the bowl with 0.5 liter of cold water without exceeding the bottom of the basket. Start the P3 program (depending on model) for automatic steam cooking.

What does the red indicator light mean?

The red indicator indicates that the heating element is heating and the surfaces (bowl, lid) are hot. Risk of burns: handle only the cold plastic parts.

How to adjust the temperature in manual mode?

After selecting the time, the temperature flashes. Use the + and - buttons to set from 60 to 100 °C, then confirm with OK.

Can I put the bowl in the dishwasher?

No, the removable blade is not dishwasher safe. Wash the bowl, lid, seal and basket by hand with a non-abrasive sponge to preserve their appearance.

USER MANUAL SOUP & PLUS LM9221 MOULINEX

Line drawing of a kitchen blender with control panel and digital display (no text or symbols)

b3

E

D

Diagram of a mechanical component with two arrows indicating assembly or force direction (no text or symbols)

Illustration of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical device with a knob and handle, shown in cross-section (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Illustration of a trash bin with a lock icon and warning symbols (no text or labels)

Illustration of a kitchen blender with play button and lock icon, enclosed in a circular frame (no text or symbols)

DESCRIPTION DE L'APPAREIL

D Ensemble Bol blender

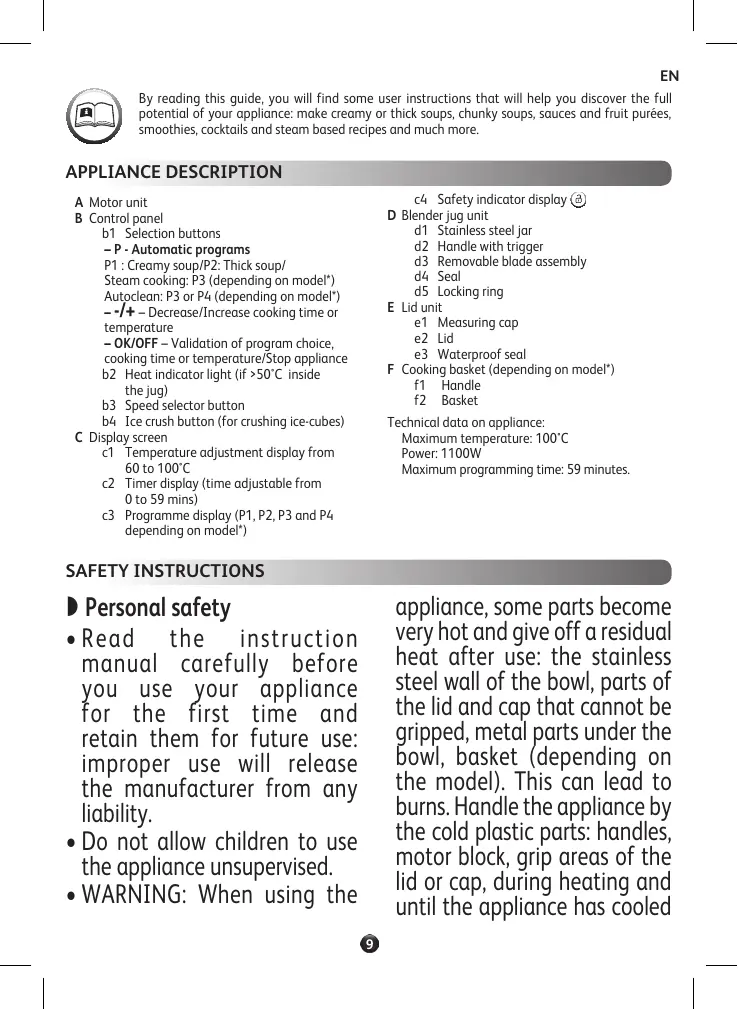

APPLIANCE DESCRIPTION

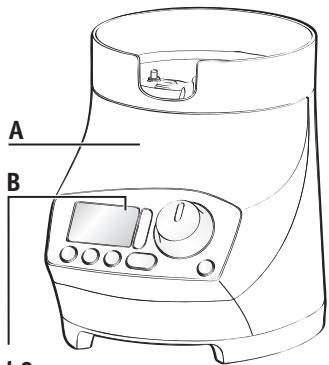

A Motor unit

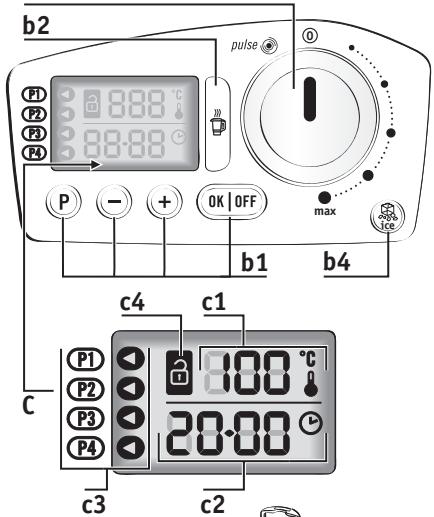

B Control panel

b1 Selection buttons

- P - Automatic programs

P1 : Creamy soup/P2: Thick soup/Steam cooking: P3 (depending on model*)

Autoclean: P3 or P4 (depending on model*)

- -/+ - Decrease/Increase cooking time or temperature

- OK/OFF – Validation of program choice, cooking time or temperature/Stop appliance

b2 Heat indicator light (if >50°C inside the jug)

b3 Speed selector button

b4 Ice crush button (for crushing ice-cubes)

C Display screen

c1 Temperature adjustment display from 60 to 100°C

c2 Timer display (time adjustable from 0 to 59 mins)

c3 Programme display (P1, P2, P3 and P4 depending on model*)

c4 Safety indicator display 🔒

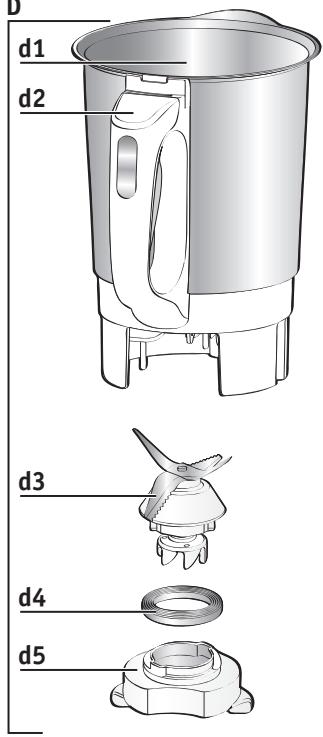

D Blender jug unit

d1 Stainless steel jar

d2 Handle with trigger

d3 Removable blade assembly

d4 Seal

d5 Locking ring

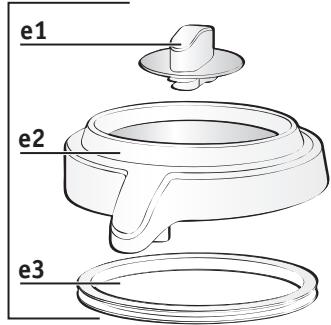

E Lid unit

e1 Measuring cap

e2 Lid

e3 Waterproof seal

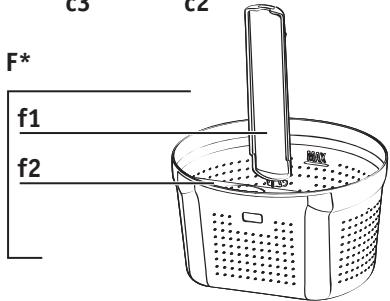

F Cooking basket (depending on model*)

f1 Handle

f2 Basket

Technical data on appliance:

Maximum temperature: 100°C

Power: 1100W

Maximum programming time: 59 minutes.

SAFETY INSTRUCTIONS

▶ Personal safety

- Read the instruction manual carefully before you use your appliance for the first time and retain them for future use: improper use will release the manufacturer from any liability.

- Do not allow children to use the appliance unsupervised.

- WARNING: When using the

appliance, some parts become very hot and give off a residual heat after use: the stainless steel wall of the bowl, parts of the lid and cap that cannot be gripped, metal parts under the bowl, basket (depending on the model). This can lead to burns. Handle the appliance by the cold plastic parts: handles, motor block, grip areas of the lid or cap, during heating and until the appliance has cooled

completely. The red heating indicator light warns of a risk of burns.

• Do not use your appliance if it is not working correctly, if it has been damaged or if the power cord or plug have been damaged. To avoid any danger have the cord replaced by an approved service centre (see list in the service booklet).
• Your appliance has been designed for domestic use only and at an altitude lower than 2000 m. The manufacturer shall not accept any liability and reserves the right to cancel the guarantee in the event of commercial or unsuitable use, or if the instructions have not been followed.

- WARNING: Your appliance releases steam that could cause burns.

Handle the lid and measuring with care (if necessary, use a glove, hotpad, etc.). Handle the measuring by its central part.

• Be careful if pouring hot liquid into the food processor or mixer, as it could be ejected from the appliance due to a sudden steaming.

- Do not operate the appliance if

the measuring is not correctly positioned in the hole in the lid and/or if the seal is not correctly positioned on the lid.

- WARNING: Injuries may occur if the appliance is used incorrectly.

• The blades are very sharp: handle them with care so as not to injure yourself when emptying the bowl, as well as cleaning, assembling and disassembling the blade assembly.

- WARNING: Take care when handling your appliance (cleaning, filling and pouring): prevent any liquid from spilling onto the connectors.

- Refer to the instruction manual to set the speeds and operating times for each program.

- Refer to the instruction manual for details on assembling and fitting the accessories to the appliance.

- Refer to the instruction manual for details on cleaning and maintaining your appliance.

• Always follow the cleaning instructions to clean your

appliance:

• Disconnect the appliance.
• Do not clean the appliance when it is hot.
• Clean with a damp cloth or sponge.
• Never put the appliance in water or under running water.
• This appliance is not intended to be used in the following applications, and the guarantee will not apply for:
• kitchen work areas in shops, offices and other work environments.
• kitchens used by employees in shops, offices and other working environments.
• farms.
  -use by guests in hotels, motels and other residential environments.
• other bed and breakfast-type accommodation.

Electrical connection

• The appliance must be connected to an earthed electrical socket.

• The appliance is designed to operate on alternating current only. Check that your mains voltage matches the voltage indicated on the appliance's identification plate.

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.

• Always disconnect the appliance from the mains if leaving unattended and before assembling, disassembling and cleaning.
• Any error in connection will invalidate the guarantee.
• Never pull out the power cable to disconnect the appliance.
• Never submerge the appliance, power cable or plug in liquid.
• The appliance must not be immersed in water or any other liquid..
• The power cord must be kept out of the reach of children and must not be placed near or come into contact with the hot parts of the appliance, sources of heat or sharp edges.

Incorrect use

• Never use the blender bowl without ingredients or with only dry products.
• Always add solid ingredients into the bowl before adding liquid ingredients, without exceeding the MAX mark engraved or marked on the bowl (depending on the model). If the blender is too full, boiling water may be ejected. Ensure that the liquid

level is sufficient to cover the minimum mark (Fig.7).

- Some recipes can cause unwanted overflows, due to the appearance of bubbles, especially when using frozen vegetables. In this case, it is up to you to reduce the volumes accordingly.

- Never place your fingers or other objects in the blender bowl while the appliance is operating.

- Do not use the bowl as a container (freezing, sterilisation).

- Set the appliance on a stable, heat-resistant, clean and dry work surface.

- Do not place the unit near a wall or cupboard: the steam produced may damage the components.

- Do not allow your hair, scarf, tie, etc. to hang over the bowl during operation.

- Never put the accessories into a microwave oven.

- Never use the appliance outdoors.

- Never exceed the maximum quantity indicated in the instructions.

- Store the appliance when it has cooled down. Do not put water on the control panel.

NON-EUROPEAN MARKETS ONLY

- This appliance is not intended to be used by those (including children) with reduced physical, sensory or mental abilities, or those lacking experience or knowledge, unless they have been given prior instruction on how to safely use the appliance or are under the supervision of a person responsible for their safety.

- Children must be supervised to ensure that they do not play with the appliance.

EUROPEAN MARKETS ONLY:

- When heating only: This appliance can be used by children aged 8 years or over, on the condition that they are supervised or that they have received instructions on how to use the appliance in total safety and that they fully understand the dangers related to the appliance. Cleaning and maintenance of the appliance should not be performed by children without supervision, unless they are 8 years of age or older and under the supervision of an adult.

- When using the mixer or blender: This appliance must not be used by children. Keep the appliance and its cable out of reach of children.

When heating only: Keep the

appliance and its cord out of the reach of children less than 8 years old.

• Children must not use the appliance as a toy.
- This appliance can be used by persons with reduced physical, sensory or mental abilities or lacking experience or knowledge on the condition that they have been given supervision or instructions

for using the appliance in a safe way and understand the dangers involved.

AFTER-SALES

• For your safety, do not use accessories or spare parts, other than those provided by authorised service centres.
• Any operation other than cleaning or routine maintenance should be performed by an approved service centre.

BEFORE FIRST USE

Your appliance has 3 operating modes:

• Automatic program mode: temperature, cooking and mixing times are pre-programmed to make soups and to carry out automatic steam cooking.
• Manual Mode: personalised adjustments in temperature and cooking time for one use can be made according to your preferences.
• Blender Mode: select the motor speed without using the cooking function to make some tasty smoothies or cocktails.

Positioning of the jug and the lid unit

• Before using for the first time, wash all the accessories (D, E and F) in hot soapy water except for the motor unit (A).
• Make sure that all packaging is removed before operating the appliance.
• Place the seal on the lid (Cf. Fig. 1).
• To steam cook, put the basket with the sliced vegetables in position and fill up the jug with 0.5 litres of cold water without exceeding the bottom of the basket (Cf. Fig.13 a; b; c).
• Position the lid (E) on the jar (D) (Cf. Fig. 2), lock the lid without pressing by turning it in the direction of the arrow (Cf. Fig. 3).
• Position the blender jar (D) on the motor unit (A) until you hear it click (Cf. Fig. 4).
• The appliance only starts up once the jug and lid are correctly in place and are locked onto the motor unit.

In the event of incorrect positioning or locking of one or the other (Cf. Fig. 5 and 6), the lock sign ⓐ starts to flash when you activate a function.

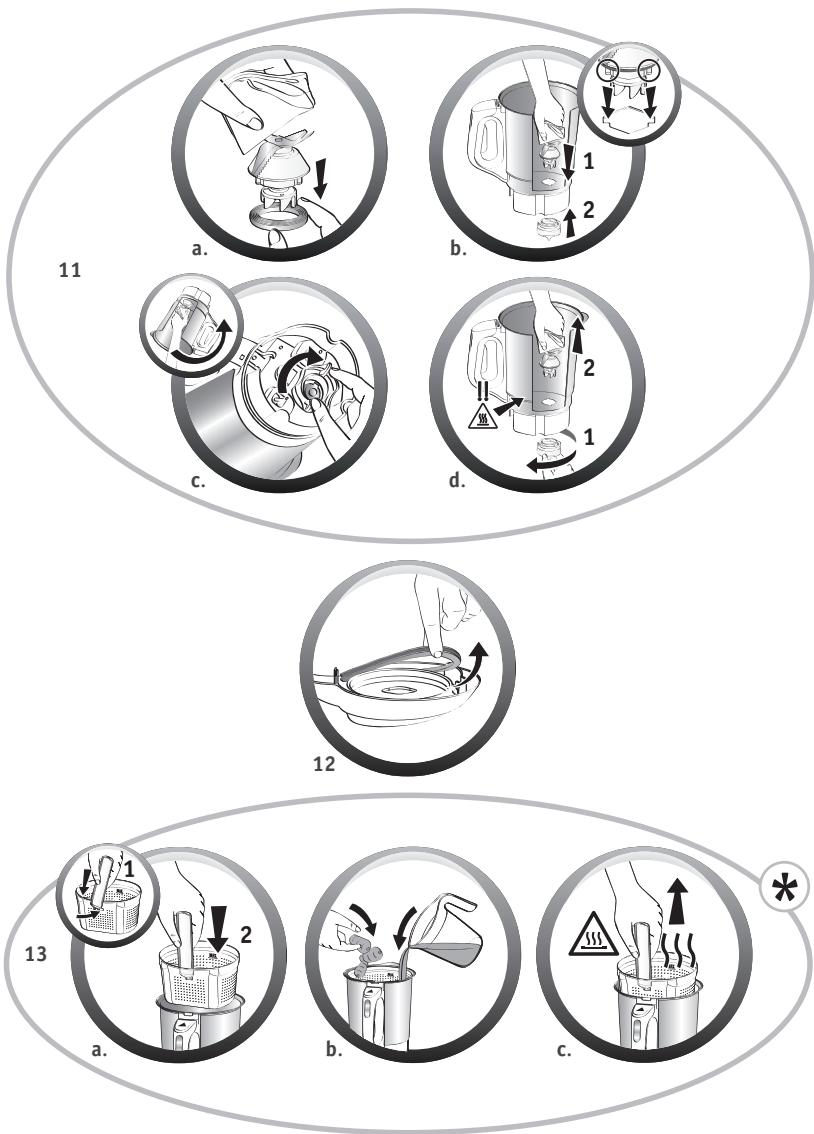

Installing the blade assembly in the jar (*depending on the model)

• Fitting the removable blade assembly (*depending on the model Cf. Fig. 11 a; b; c):
• Make sure that the seal is properly positioned over the blade assembly (Cf. 11.a).
• Pick up the blade assembly using a cloth and place it in its slot at the bottom of the jar, making sure you carefully position the blade assembly grips in the jar grooves (Cf. 11.b).
• Return the jar keeping the blade assembly in its slot (Cf. 11.c).
• Lock the blade assembly section using the locking ring (Cf. 11.c).

- Dismounting the removable blade assembly (*depending on the model Cf. Fig. 11.d): Place the jar on a work surface.

1. Use a cloth to help hold the blade assembly.
2. Return the jar while holding the blade assembly.
3. Turn the locking ring to unlock the blade assembly.

Warning: the blades are very sharp: handle them with care so as not to injure yourself whilst fitting, dismounting and cleaning the jar and the blade assembly.

PROGRAM MODE

Once the water and the ingredients are placed into the jug or into the steam basket, lock the lid and position the jug onto the motor unit (see before first use).

Select one of the automatic programs suggested below (P button) and validate (OK button). The red indicator light illuminates and a ‘beep’ will sound to inform you that the cooking has started.

Introducing the suggested automatic programs
	Temperature (Max)	Adjustable times	Mixing
P1 - Creamy soup (thin texture)	100°C	30 min. (+ or -10 min)	Max speed 1 min
P2 - Chunky Soup (texture dense)	100°C	40 min. (+ or -10 min)	Min speed 13 secs
P3 - (only for model with cooking basket) – Steam cooking with cooking basket and 50 cl water (depending on model*)	100°C	30 min. (+ or -20 min)	No
P3 - (or P4 for model with cooking basket) - Autoclean: automatic cleaning programme	100°C	30 s. (adjustable up to 1 min)	Max speed

When the program is finished, the appliance gives out 3 beeps.

Unlock the jug by pressing the trigger (d2) located on the inside of the handle (cf. Fig. 9) and serve immediately or leave the jug in place to keep warm (up to 40 minutes).

PRACTICAL GUIDANCE

• Make sure you have enough liquid to cover the Min limit marker (Cf. Fig. 7). and take care not to exceed the MAX limit marker engraved inside the jug (Cf. Fig. 8).
• Some recipes may cause sudden overflowing, due to the formation of bubbles, particularly when using frozen vegetables. In this case, it is up to you to reduce the quantities accordingly.
• Time and temperature information is flashing: you can modify this information. Adjust the time as required with the aid of the + (increase) and - (decrease) buttons, depending on the ingredients used and the amount to be made (see table of the cooking times for soups in the recipe booklet).
• With the cooking basket (depending on model*) you can steam cook (use P3 with 0.5 litres of water), or for chunky soup recipes and cooking whole ingredients such as meat, fish, vegetables at the same time as your soup (use P1 or P2).

• At the end of the programs, the appliance automatically keeps the recipe warm for 40 minutes so it remains ready to be consumed. To stop warming, simply press the OFF button.

• If you open the lid, press the trigger or remove the jug, the warming process will automatically stop.

• When the program has started, you can stop the appliance at any time by pressing the P button (2 beeps will sound). The program is then in pause mode and you can restart it by pressing the P button again or by pressing the OK button (a beep signal will be emitted).
• If you choose the wrong program by mistake and you wish to cancel it, press the OFF button for 2 seconds and that will allow you to restart the times and the temperatures.

MANUAL MODE

• Adjust the cooking time with the aid of the + (increase) and - (decrease) buttons, depending on the ingredients used and the amount to be made (see table of the cooking times for soups in the recipe booklet).
• You have to then validate the time chosen by pressing the OK button.
• The temperature information is flashing, you can change this information. Adjust the cooking

temperature with the aid of the + (increase) and - (decrease) buttons.

• You then have to validate the temperature chosen by pressing the
• OK button.
• The red indicator light illuminates and a ‘beep’ will sound to inform you that the cooking has started.
• At any point you can adjust the motor onto either:
• slow speed (position 1) to mix liquid ingredients (e.g. to make sauces).
• quick speed (position 2 onwards) to mix solid ingredients.

BLENDER MODE (without cooking)

- Select a speed by turning the speed selector to the right. The mixing starts and the time appears on the screen.

In blender mode, you can select up to 5 speeds with different mixing types.

The pulse speed can be found to the left of position 0.

• Turn the speed selector to position 0 to stop the appliance.
• Press on the trigger (d2) then remove the blender jug (D). If you wish to program an operation time which stops automatically:

- Adjust the operation time with the aid of the + (increase) and - (decrease) buttons.

- Select a speed by turning the speed selector. The count time appears on the screen.

- The motor stops automatically at the end of the count time.

Ice crushing button: The "Ice" button starts the ice crushing operation; this takes 30 seconds. You can stop the appliance as required by pressing the "OFF" button. You can crush a maximum of 6 to 8 ice cubes.

CLEANING THE APPLIANCE

• Do not immerse the appliance in water. Never put the motor unit (A) under hot running water.
• Clean the jug immediately after use.
• Fill up the jug with 1 litre of hot water along with 2 or 3 drops of washing up liquid Only use the recommended amount of water and washing up liquid. An excess of washing up liquid creates more foam and consequently can lead to overflowing.
• Use the automatic Autoclean programme: P3 or P4 (depending on model*) to carry out a prewash of the bowl.
• Once the program has stopped, unplug the appliance.
• Press on the trigger (d2) then remove the blender jug (D).
• Place the jug on a flat surface.
• Unlock the lid by turning it a quarter turn clockwise. Remove the lid with care.
• When the lid is cool, remove the carrier seal. To do so, grip it between your thumb and index finger, then pull to extract it. The seal dismounts without risk of deterioration (Cf. Fig. 12).

• Finish cleaning the jug with the aid of a sponge.

• Rinse the inside of the jug and the lid under running water.

• In the event of the heated part of the jug getting extremely dirty, leave to soak for a few hours in a mix of water and washing up liquid to help get it clean.

• Take care when cleaning the blades (d3) in the blender jug and when you empty the bowl as they are sharp.

• Use a damp cloth to clean the motor unit (A). Dry it carefully.
• The detachable parts (lid, seal, measuring cap, cooking basket) can be cleaned with a sponge and hot soapy water.
• To preserve the appearance and service life of the lid of your appliance, hand wash it. Do not use the abrasive side of the sponge to avoid scratches.
• The removable blade is not dishwasher safe — wash it under running water using a brush.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

PROBLEMS	CAUSES	SOLUTIONS
The appliance does not work.	It is not plugged in.	Plug your appliance into the mains power supply.
	The jug and the lid are not in the correct place or are not locked correctly.	Check that the jug and the lid are correctly positioned and locked following the diagrams in the instructions
Excessive vibrations.	The appliance is not placed on a flat surface, the appliance is not stable	Place the appliance on a flat stable surface.
	Volume of ingredients is too high.	Reduce the quantity of ingredients processed.
Leak through lid.	Volume of ingredients is too high.	Reduce the quantity of ingredients processed.
	The lid is not positioned or locked correctly	Lock the lid firmly onto the jug
	The waterproof seal is not present	Position the carrier seal on the lid.
	The waterproof seal has been cut through or damaged	Change the seal or contact an approved service centre
The blades do not rotate easily	Pieces of food too big or too hard	Reduce the size or quantity of the ingredients processed.Add some liquid
Display “STOP”	Motor overload caused by too large an amount of ingredients or pieces of food that are too hard or too large	Let the motor cool down and reduce the amount of ingredients in the jug.
Displays “SECU” + red indicator light is flashing	Empty jug, nearly empty or not enough liquid in recipe	Add liquid up to the jug’s minimum level marker (Cf. Fig. 7)
Displays “Err” + red indicator light is flashing	The heating element does not work	Contact the Customer Relations Helpline - see contact list
Displays « ntc » + red indicator light is flashing	The temperature sensor is no longer working	Contact the Customer Relations Helpline - see contact list
Motor stops during use, without any fault being displayed.	If the jug and lid are not correctly assembled and fastened, the safety motor overload will be triggered.	Leave it to cool down for 30 minutes and reduce the quantity of ingredients to process.

Your appliance still doesn't work?

Contact the Customer Relations Helpline - see contact list.

RECYCLING

- Disposal of packaging materials and the appliance.

The packaging is made of exclusively environmentally safe materials that can be disposed of according to current recycling regulations.

To dispose of your appliance, consult the appropriate department of your local authority.

- Expired electronic or electrical products:

Think of the environment!

Your appliance contains valuable materials which can be recovered or recycled.

Please take it to a local waste collection point where it will be disposed

DESCRIZIONE DELL'APPARECCHIO

A Blocco motore

APENAS MERCADOS FORA DA EUROPA

b1 Selection buttons

BESCHRIJVING VAN HET APPARAAT

A Motorblok

B Bedieningspaneel

b1 Selectieknoppen

- P - Automatische programma's

HET APPARAAT SCHOONMAKEN

UW APPARAAT WERKT NIET. WAT NU?
