USER MANUAL TQ907R05 - TQ907R03 SIEMENS

Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home Appliances

Futher information and explanations are available online: Table of contents 1 Safety 9 1.1 General information 9 1.2 Intended use 9 1.3 Restriction on user group 9 1.4 Safety information 9 2 Environmental protection and saving energy 13 2.1 Disposing of packaging 13 2.2 Tips for saving energy 13 3 Installation and connection 13 3.1 Scope of delivery 13 3.2 Installing and connecting the appliance 13 4 Familiarising yourself with your appliance 14 4.1 Appliance 14 4.2 Control panel 14 5 Accessories 15 6 Before using for the first time ... 16 6.1 Preparing and cleaning the appliance 16 6.2 Checking the water hardness 16 6.3 Water filter 16 6.4 Performing initial start-up 17 6.5 General information 17 7 Basic operation 18 7.1 Switching the appliance on or off 18 7.2 Dispensing beverages 18 7.3 doubleShot and tripleShot 18 1

7.4 Dispensing a coffee drink with milk 19 7.5 baristaMode or comfortMode 20 7.6 Dispensing two cups at once... 20 7.7 Saving favourite beverage 20 7.8 Using electronic grinding level adjustment eGrinder 20 7.9 Using beanIdent System 1 21 8 Childproof lock 21 8.1 Activating the child-proof lock 21 8.2 Deactivating the childproof lock 21 9 Cup heater1 21 9.1 Activating and deactivating the cup heater1 21 10 Personalisation 21 10.1 Create first profile 21 10.2 Create other profiles 22 10.3 Edit profile 22 10.4 Delete profile 22 10.5 Sort profiles 22 10.6 Add beverage to a profile 22 10.7 Add a beverage from Classic or coffeeWorld to the profile 22 10.8 Create profile from Classic or coffeeWorld 22 10.9 Edit beverage in profile 23 10.10 Delete beverage in profile .... 23

Depending on the appliance specifications 7

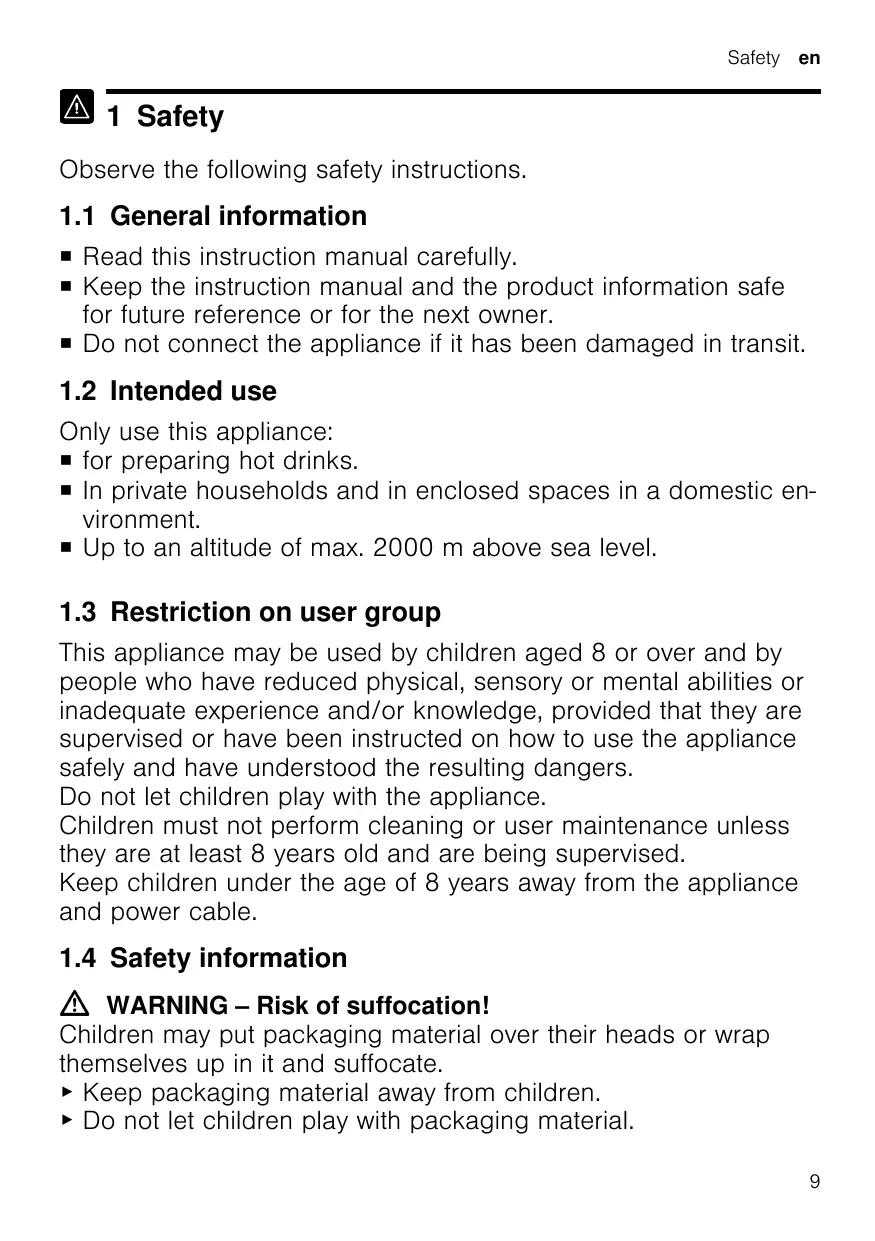

1 Safety Observe the following safety instructions.

1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use Only use this appliance: ¡ for preparing hot drinks. ¡ In private households and in enclosed spaces in a domestic environment. ¡ Up to an altitude of max. 2000 m above sea level.

1.3 Restriction on user group This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Do not let children play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safety information WARNING ‒ Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material. 9

Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not let children play with small parts. WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing. ▶ The protective conductor system of the domestic electrical installation must be properly installed. If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box. ▶ Call customer services. → Page 36 Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. An ingress of moisture can cause an electric shock. ▶ Never immerse the appliance or the power cord in water. ▶ Liquids must not be spilled on the appliance plug connection. ▶ Only use the appliance in enclosed spaces. ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING ‒ Risk of fire! The appliance will become hot. ▶ Ventilate the appliance adequately. ▶ Never operate the appliance in a cupboard. It is dangerous to use an extended power cord and non-approved adapters. ▶ Do not use extension cables or multiple socket strips. ▶ Only use adapters and power cords approved by the manufacturer. ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of burns! Some parts of the appliance become very hot. ▶ Never touch hot appliance parts. ▶ Allow hot appliance parts to cool down before touching. WARNING ‒ Risk of scalding! Freshly prepared drinks are very hot. ▶ Leave drinks to cool down if necessary. ▶ Do not let escaping liquids or steam come into contact with your skin. A remote start via the Home Connect app while the appliance is unattended may cause scalding to third parties. ▶ Do not reach under the coffee outlet during the dispensing of drinks. ▶ Keep other persons, in particular children, away from the appliance. WARNING ‒ Risk of injury! Improper use of the appliance may endanger the user. ▶ To avoid injuries, only use the appliance for its intended purpose. Trapped fingers when closing the appliance door. ▶ Be careful of your fingers when closing the appliance door.

The grinder rotates. ▶ Never reach into the grinder. WARNING ‒ Danger: Magnetism! The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps. ▶ People with electronic implants must stand at least 10 cm away from the appliance. ▶ This minimum distance of 10 cm must also be observed for the water tank when removed. WARNING ‒ Risk of harm to health! Soiling on the appliance may be harmful to health. ▶ To ensure hygiene, follow the cleaning instructions for the appliance.

Environmental protection and saving energy

2 Environmental protection and saving energy 2.1 Disposing of packaging The packaging materials are environmentally compatible and can be recycled. ▶ Sort the individual components by type and dispose of them separately.

2.2 Tips for saving energy If you follow these instructions, your appliance will use less power. Set the interval for automatic switchoff to the smallest value. a If the appliance is not being used, it will switch itself off earlier. → "Basic settings", Page 25 Do not interrupt the dispensing process prematurely. a The amount of water or milk that is heated is used optimally. Descale the appliance regularly. a Limescale deposits increase the appliance's energy consumption.

3 Installation and connection 3.1 Scope of delivery After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line. → Fig. 1

A B C D E F G H I J K 1

Fully automatic coffee machine Milk container Milk tube Adapter for milk containers

User manual Insertion aid for water filter Descaling tablet Cleaning tablet

Water filter Water hardness testing strip Microfibre cloth

Depending on the appliance specifications

3.2 Installing and connecting the appliance ATTENTION! Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged. ▶ Use the appliance in frost-free rooms only. ▶ If the appliance has been transported or stored below 0 °C, wait 3 hours at room temperature before starting it up. ▶ After plugging in, always wait approx. 5 seconds. 1. Place the appliance on a level, wa-

ter-resistant surface that is capable of bearing its weight. 13

Familiarising yourself with your appliance

2. Using the mains plug, connect the

appliance to an earthed socket that has been correctly installed.

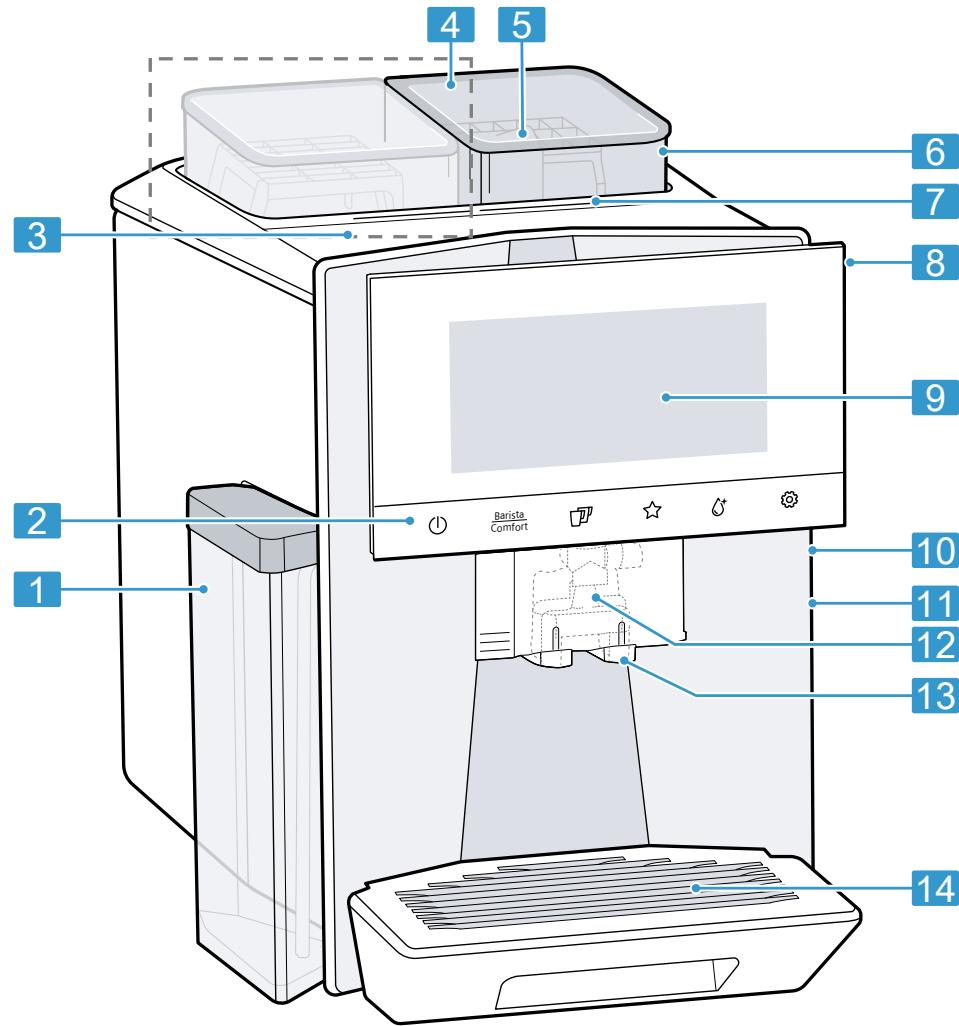

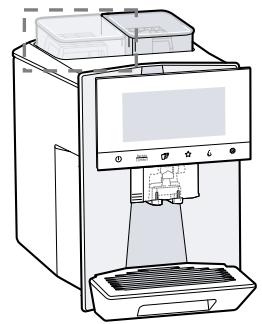

4 Familiarising yourself with your appliance 4.1 Appliance You can find an overview of the parts of your appliance here. Notes ¡ Individual details and colours may differ, depending on the appliance model. ¡ The operating instructions describe two product variants: – Appliance has a bean container. – Appliance has two bean containers. → Fig. 2

Depending on the appliance specifications

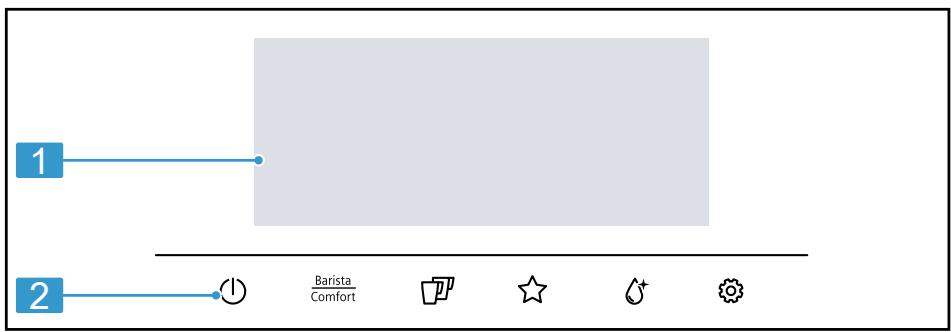

4.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. → Fig. 3

Touch display Touch fields

Touch display The touch display functions both as a display and a control element. Main menu

Profiles Classic coffeeWorld

Tablet compartment Aroma lid1

Beverage outlet cover

Select saved beverages with personal settings. Select standard beverages. Select basic beverages which can be extended in conjunction with Home Connect.

Brewing chamber door

Depending on the appliance specifications

Depending on the appliance specifications

Appliance is not connected to Home Connect. Appliance is not connected to the server.

Select bean container1. 1

Depending on the appliance specifications

Tip: You can find other beverage settings in the basic settings.

Touch fields Here you can find an overview of the symbols that are always visible.

Switch the appliance on or off. Select baristaMode or comfortMode. Dispense two cups.

Appliance is in baristaMode or comfortMode. Cup warmer is switched on. aromaBoost

Save favourite beverage. Open or close the service programmes. Open or exit the settings.

Appliance is connected to Home Connect.

5 Accessories Use original accessories. These have been made especially for your appliance. Accessories Cleaning tablets Descaling tablets Water filter Water filter pack of 3 Microfibre cloth Care set Adapter for milk containers

Retail TZ80001A TZ80001B TZ80002A TZ80002B TZ70003 TZ70033A TZ80004A TZ80004B TZ70001

6 Before using for the first time

Prepare the appliance for use.

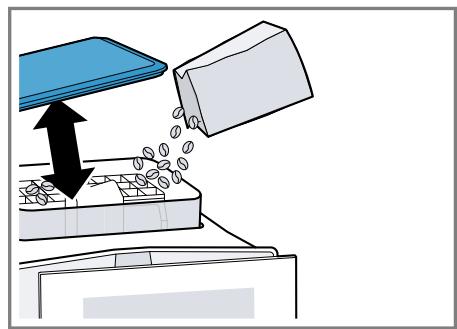

6.1 Preparing and cleaning the appliance Remove the protective foils and clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual. ATTENTION! Unsuitable beans can block up the grinder. ▶ Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines. ▶ Do not use glazed coffee beans. ▶ Do not use caramelised coffee beans. ▶ Do not use coffee beans that have been treated with additives containing sugar. ▶ Do not add ground coffee. → Fig. 4 - 29 Notes ¡ Fill the water tank each day with fresh, cold, non-carbonated water. ¡ If you have the product variant with 2 bean containers, you can add 2 different types of coffee. The LED of the active bean container lights up. ¡ The appliance memorises the bean container last selected for each drink. You can change this default setting. → "Basic settings", Page 25

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place. You can keep the coffee beans in the bean container for several days without them losing their aroma.

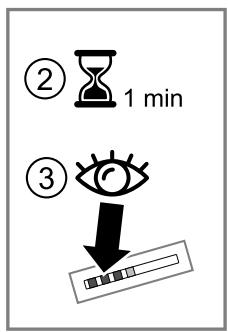

6.2 Checking the water hardness It is important to set the water hardness correctly so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company. 1. Briefly dip the test strip in fresh tap water. 2. Allow the water to drain off the test strip. 3. Read the water hardness off the test strip after 1 minute. The table shows allocation of the levels to the different degrees of water hardness: Level German degrees in °dH 1 1-7 2 8-14 3 15-21 1 4 22-30 1 Factory setting

Total hardness in mmol/ l < 1.3 1.3-2.5 2.5-3.8 > 3.8

Note: If a water softening system is installed in your house, you can select "Water softening system". Tip: You can change the settings at any time. → "Basic settings", Page 25

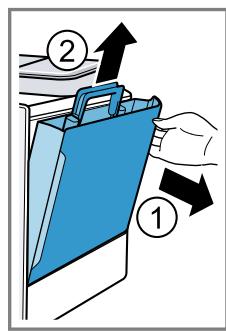

6.3 Water filter You can use a water filter to minimise limescale deposits and reduce impurities in the water. 16

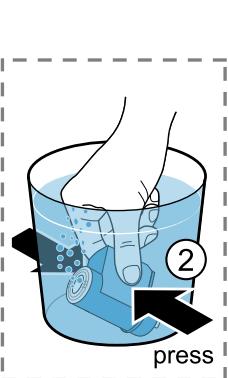

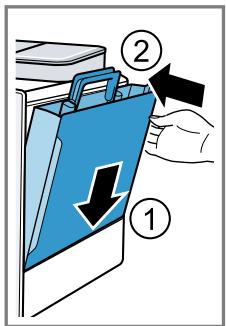

Inserting the water filter ATTENTION! Possible damage to the appliance due to limescale build-up. ▶ Change the water filter in good time. ▶ Change the water filter after 2 months at the latest. ▶ Observe the display messages. 1. Press ⁠. 2. Press "INTENZA filter" and follow

the instructions on the display.

Changing or removing the water filter You can also operate your appliance without a water filter. 1. Press ⁠. 2. Press "INTENZA filter". 3. Press "Replace" or "Remove" and follow the instructions on the display. Tips ¡ You should also change your water filter for reasons of hygiene. ¡ With a water filter you need to descale your appliance less frequently. ¡ If you use a water filter, your coffee will be more flavoursome. ¡ If your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water. ¡ The water filter can be purchased from retailers or customer service. → "Accessories", Page 15

6.4 Performing initial start-up

to switch the appliance on. 2. Follow the instructions on the display. a The display will guide you through the programme. 1. Press

Notes ¡ If you want to set up Home Connect now, follow the instructions in the Home Connect app. → "Setting up Home Connect", Page 23 ¡ If "Demo mode" is selected, only the display screens will work. You cannot dispense a beverage or run a programme.

6.5 General information Please bear this information in mind so that you can get the best out of your appliance. Notes ¡ The appliance has been programmed at the factory with standard settings for optimum operation. ¡ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can set the grinding level. → "Using electronic grinding level adjustment eGrinder", Page 20 ¡ During operation water droplets may form at the ventilation slits and on the lid of the tablet compartment. ¡ If you do not perform any actions on the appliance for a certain period, it will switch off automatically. You can change the duration in the basic settings. → Page 25

After connecting the appliance to the power supply, configure the settings for initial start-up. Initial start-up only appears when switching on for the first time. 17

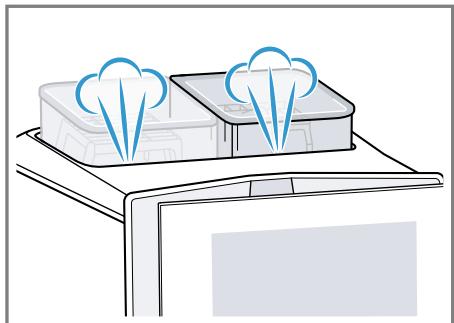

¡ For technical reasons steam can escape from the appliance.

7.2 Dispensing beverages Find out how to prepare a drink of your choice. WARNING Risk of scalding! Freshly prepared drinks are very hot. ▶ Leave drinks to cool down if necessary. ▶ Do not let escaping liquids or steam come into contact with your skin.

¡ The first beverage will not yet have its full aroma if: – You are using the appliance for the first time. – You have run a service programme. – You have not used the appliance for a long time. Do not drink the beverage. Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

7 Basic operation ope r a ito n

7.1 Switching the appliance on or off ▶ Press

.⁠ When the appliance switches on, the display shows the logo. When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if the appliance is still warm when switched on or if no beverage was dispensed before it was switched off.

Notes ¡ With a number of settings your coffee is prepared in several steps. Wait until the process is fully completed. ¡ If you are dispensing a beverage with milk, always connect the milk container filled with milk or the milk adapter to a milk carton. ¡ You can only insert or remove the beverage outlet if the milk container or milk adapter is not connected. ¡ The milk container is specially designed for this appliance. Only use the milk container for storing milk in the refrigerator and in the house. ¡ If the milk system has not been cleaned, small amounts of milk may escape when hot water is dispensed.

7.3 doubleShot and tripleShot Your appliance grinds the coffee two or three times. To ensure that only pleasant-tasting and easily digestible aromatic substances are released, coffee beans are freshly ground and brewed again by the appliance. The longer coffee brews, the more bitter substances and undesirable aromas are released. These bitter

substances and undesirable aromas affect the taste and digestibility of coffee. Note: The functions "doubleShot" and "tripleShot" depend on the beverage, the beverage strength and the beverage size selected.

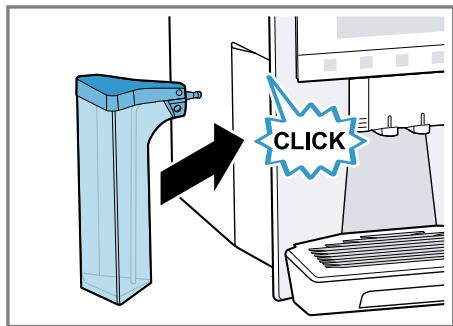

7.4 Dispensing a coffee drink with milk An example explains how to make a latte macchiato. WARNING Risk of burns! The milk system can become extremely hot. ▶ Never touch the milk system when it is hot. ▶ Allow the hot milk system to cool down before touching it. Requirements ¡ The appliance is switched on and the water tank and bean container have been filled. ¡ The milk container or milk adapter is connected. ¡ The milk container is filled with milk or the milk adapter hose is immersed in milk. 1. Place a glass underneath the beverage outlet. and select 2. Press "baristaMode". 3. Press "Classic". 4. Select the beverage symbol for latte macchiato. 5. Press the beverage symbol and set the beverage parameters. ‒ To set the strength , press the segments.

To set the per-cup quantity , press the segments. ‒ To set the milk ratio , press the segments. ‒ To set the grinding level , press the segments. → "Using electronic grinding level adjustment eGrinder", Page 20 ‒ To set the contact time , press the segments. ‒ To set the brewing temperature , press the segments. 1 ‒ To change the bean container , press ⁠. 6. Press "Start" and wait until the process is complete. ‒ To completely stop dispensing the beverage, press "Stop". ‒ To only stop the current dispensing step, press "Skip". ‒

Notes ¡ If you do not change any settings for approx. 30 seconds, the appliance will exit settings mode. ¡ The appliance saves the settings automatically. ¡ To reset all beverage parameters, press "Reset". Tips ¡ You can also pre-heat cups before dispensing using hot water or the cup heater1. ¡ The appliance variant with 2 bean containers allows you to switch containers 1 while dispensing a beverage if the bean container is empty. Dispensing will then continue with the full bean container. ¡ You can also use plant-based alternatives to milk, e.g. soya milk. ¡ The quality of the milk froth depends on the type of milk or plantbased alternative used.

Depending on the appliance specifications 19

7.5 baristaMode or comfortMode You can select the mode. When selecting "baristaMode", more setting options are available for the individual beverages, e.g. contact time.

7.6 Dispensing two cups at once Depending on your beverage, you can make 2 cups at the same time. Note: If the "doubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible. 1. Press the symbol for the required beverage. 2. Press ⁠. a The display shows the setting ⁠. 3. Place two cups on the left and right underneath the beverage outlet. 4. Press "Start". The beverage is prepared in 2 steps. The beans are ground in 2 grinding operations. a The beverage is brewed and then runs into the cups. 5. Wait until the process is complete.

7.7 Saving favourite beverage You can directly save a favourite beverage that you frequently dispense. 1. Press the symbol for the required beverage. 2. Press the beverage symbol and set the beverage parameters. 3. To save, press for 3 seconds.

Tips ¡ To display and start your favourite beverage at any time, briefly press ⁠. ¡ You can save a new favourite beverage at any time. Note: If you save a new favourite beverage, this will replace your existing favourite.

7.8 Using electronic grinding level adjustment eGrinder Your appliance has an adjustable grinder, which you can use to customise the grinding level of the coffee beans in "baristaMode". 1. Press and select "baristaMode". 2. Press the symbol for the required beverage. and set the grinding level. 3. Press The grinding level setting only takes effect after the second cup. Note: The appliance variant with 2 bean containers allows you to set the grinding level for each bean container separately. Tips ¡ You can set the basic grinding level for the "comfortMode" in the beverage settings. ¡ In "comfortMode" you can also use the [aromaBoost] function for small beverages, e.g. espresso. With [aromaBoost] the grinding level is set slightly finer than the basic grinding level selected. ¡ If the coffee is only dispensed drop by drop, set a coarser grinding level. If the coffee is too thin with too little crema, set a finer grinding level.

7.9 Using beanIdent System 1 You can set your appliance to the type of coffee bean you are using. 1. Press ⁠. 2. Select "Beverage settings". 3. Select "beanIdent System". 4. Select the type of coffee.

8 Childproof lock You can lock the appliance, to protect children against scalding and burns.

8.1 Activating the child-proof lock Requirement: The appliance is switched on. for at least ▶ Press and hold 3 seconds. a The childproof lock is activated.

8.2 Deactivating the childproof lock ▶ Press and hold

for at least 3 seconds. a The childproof lock is deactivated.

9 Cup heater1 You can use the cup heater to preheat your cups.

9.1 Activating and deactivating the cup heater1 WARNING Risk of burns! The cup heater1 can become very hot. ▶ Never touch the cup heater1 while hot. ▶ Allow the hot cup heater1 to cool down before touching it. Tip: Place the cups with their base on the cup heater to warm them to optimum effect1. ▶ You can activate or deactivate the cup heater1 in the basic settings.

10 Personalisation Save beverages in your personal profile. A profile contains preferred beverages with personal settings. To exit the settings, press ⁠. Tip: You can change the settings at any time.

10.1 Create first profile Press "Profiles". Press "Create profile". Enter a profile name, e.g. Tom. Press "Save". Select a background picture. Press "Continue". Press ⁠ "Add beverage". Select a beverage and press "Select". 9. Set the beverage parameters and press "Save".

1. 2. 3. 4. 5. 6. 7. 8.

Depending on the appliance specifications 21

10.2 Create other profiles 1. Press "Profiles". 2. Press "Profiles" at the bottom of

the display. Press ⁠ "Add profile". Enter a profile name. Press "Save". Select a background picture. Press "Continue". Press ⁠ "Add beverage". Select a beverage and press "Select". 10. Set the beverage parameters and press "Save". 11. Enter a beverage name and press "Save".

3. 4. 5. 6. 7. 8. 9.

Note: The profile used last is always shown in the profiles. If several profiles have been created, press "Switch profile" at the bottom of the display to create new profiles or edit existing ones.

10.3 Edit profile 1. Press "Profiles". 2. Press "Profiles" at the bottom of

6. Select the required background

picture and press "Continue".

10.4 Delete profile 1. Press "Profiles". 2. Press "Profiles" at the bottom of

the display. 3. Press "Delete profile". 4. Press the required profile. 22

10.5 Sort profiles 1. 2. 3. 4.

10.6 Add beverage to a profile 1. Press "Profiles". 2. Press "Profiles" at the bottom of

10.7 Add a beverage from Classic or coffeeWorld to the profile 1. Select a beverage from "Classic"

or "coffeeWorld". Set the beverage parameters. Press "Save in profile". Select the required profile. Enter a name for the beverage. Press "Save". a The beverage is now saved in the profile. 2. 3. 4. 5. 6.

10.8 Create profile from Classic or coffeeWorld 1. Select a beverage from "Classic"

2. Set the beverage parameters. 3. Press "Save in profile". 4. Press ⁠ "Add profile".

Enter a profile name. Press "Save". Select a background picture. Press "Continue". Enter a beverage name and press "Save". a The profile and beverage are now saved. 5. 6. 7. 8. 9.

10.9 Edit beverage in profile 1. Press "Profiles". 2. Press "Profiles" at the bottom of 3. 4. 5. 6. 7. 8.

the display. Press the required profile. Select a beverage. Set the beverage parameters. Press "Save". Press "Overwrite". Start the beverage or use to return to the menu.

10.10 Delete beverage in profile 1. Press "Profiles". 2. Press "Profiles" at the bottom of

3. Select and press the profile. 4. Press the beverage. 5. Press "Delete".

11 Home Connect Home Conne c t

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status. The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Conne c t

Home Connect services in your country. You can find information about this at: www.home-connect.com. The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings. Tip: Please also follow the instructions in the Home Connect app. Notes ¡ Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. → "Safety", Page 9 ¡ Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.

11.1 Setting up Home Connect Requirements ¡ The appliance is already connected to the mains power supply and switched on. ¡ You have a mobile device with a current version of the iOS or Android operating system, e.g. a smartphone. ¡ The mobile device and the appliance are within range of your home network's WiFi signal. ¡ The Home Connect app has been installed on your mobile device. 1. Open the Home Connect app and scan the following QR code. → Fig. 30 2. Follow the instructions in the Home Connect app.

11.2 Home Connect settings Adapt Home Connect to your needs. 23

You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether

Home Connect has been set up and whether the appliance is connected to your home network.

Overview of the Home Connect settings Here you can find an overview of the "Home Connect" settings and network settings. Basic setting WiFi connection

Add mobile device Network information Delete

Description Switch off the wireless module during long absences or to save energy. Note: In networked standby mode your appliance requires max. 2 W. Switch remote start on the appliance on and off. Note: With the "Home Connect" app only switch-off is possible. Connect the appliance to the "Home Connect" app or additional accounts. Display network information and appliance information. Note: You cannot operate your appliance via the "Home Connect" app without a network connection. Note: This setting is only available with a software update.

11.3 Remote diagnostics

11.4 Data protection

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance. Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com

Please see the information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration): ¡ Unique appliance identification (consisting of appliance codes as well as the MAC address of the Wi-Fi communication module installed).

¡ Security certificate of the Wi-Fi communication module (to ensure a secure data connection). ¡ The current software and hardware version of your appliance. ¡ Status of any previous reset to factory settings. This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time. Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

12 Basic settings You can configure the basic settings for your appliance to meet your needs and call up additional functions.

12.1 Changing the basic settings 1. Press ⁠. a The display shows the list of basic settings. 2. Change the required basic setting. a The appliance saves the basic setting automatically. 3. To exit the basic settings, press ⁠.

12.2 Overview of the basic settings You can find an overview of the basic settings here. Basic setting Beverage setting

Selection Bean container

Use Set allocation of the bean containers. "Electronic grinding level adjustment" Electronic grinding level adjustment Set the basic grinding level in "comfortMode". beanIdent System Select the type of beans used. → "Using beanIdent System ", Page 21 Milk sequence Select the sequence for milk and coffee. Latte macchiato pause Select the pause between milk and coffee. Brewing temperature Set the brewing temperature. Resetting beverage para- Reset the beverage setmeters tings. Depending on the appliance specifications 25

Selection Cup heater1 Automatic switch-off Display brightness Sounds Water hardness Language Factory settings

Start category Profile sequence

Home Connect Appliance information

Beverage sequence in profile Information about Home Connect Beverage counter Cleaning information

Version information Licence information Mode

Mode for demonstration purposes

Quick guide to user interface 1 Depending on the appliance specifications 26

Use Switch the cup heater1 on or off. Set the time after which the appliance switches off. Set the brightness in steps. ¡ Switch sounds on and off. ¡ Set the volume. Set the water hardness. Set the language. Reset the appliance to the factory settings. Set the menu display after switching on, e.g. "Classic". Set the sequence of profiles. Set the sequence of beverages in the profile. → "Setting up Home Connect", Page 23 Display the number of beverages dispensed. Time until the water filter should next be changed or a service programme started. Display network information and appliance information. Display FOSS licence text. Switch "Demo mode" on or off. Get to know the appliance settings.

Cleaning and servicing

Basic setting Customer service 1

Use Find QR code and country-specific Customer service.

Depending on the appliance specifications

13 Cleaning and servicing To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

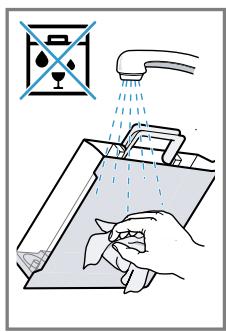

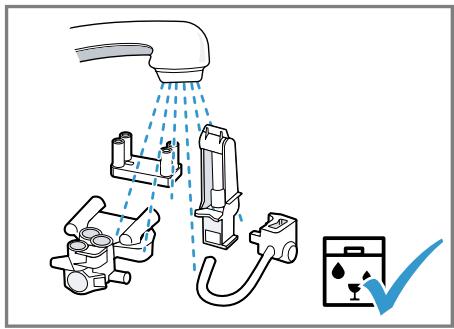

13.1 Dishwasher-safe components Here you can find an overview of the components you can clean in the dishwasher. ATTENTION! Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher. ▶ Follow the operating instructions of the dishwasher.

▶ Only clean dishwasher-safe com-

ponents in the dishwasher.

▶ Only use programmes that do not

heat the components above 60 °C.

Suitable: Not suitable: ¡ Drip tray ¡ Water tank – Drip plate ¡ Aroma lid – Coffee dregs container ¡ Brewing unit – Mechanical fill level indicator ¡ Cover of brewing unit ¡ Milk system with adapter ¡ Beverage dispenser cover ¡ Milk container with lid ¡ Red trays of the brewing unit ¡ Adapter for milk container1 1 Depending on the appliance specifications

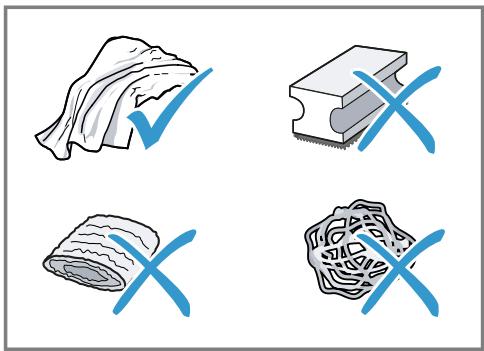

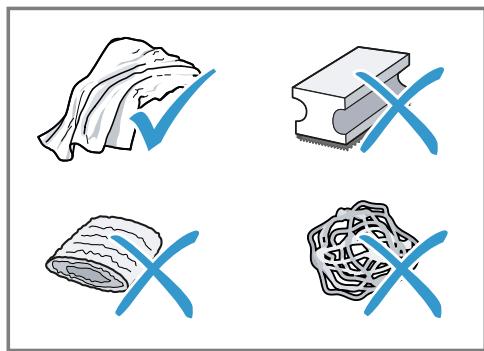

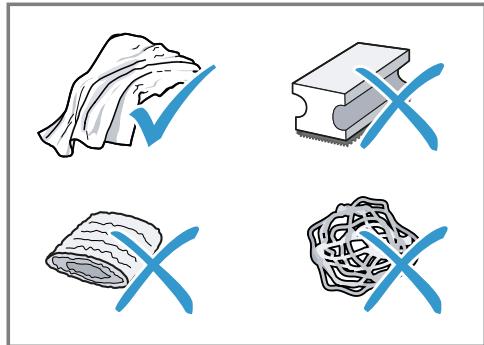

13.2 Cleaning agent Only use suitable cleaning agents. ATTENTION! Unsuitable cleaning products may damage the surfaces of the appliance. ▶ Do not use harsh or abrasive detergents. ▶ Do not use cleaning agents containing alcohol or spirits.

▶ Do not use hard scouring pads or

cleaning sponges. Unsuitable cleaning agents and descalers may damage the appliance. ▶ Do not use pure citric acid, vinegar or any vinegar-based agents to descale the appliance. ▶ Do not use descaling agent with phosphoric acid.

Cleaning and servicing

▶ Only use cleaning tablets and de-

scaling tablets that have been specially developed for the appliance. → "Accessories", Page 15

Tips ¡ Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces. ¡ Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

13.3 Cleaning the appliance WARNING Risk of electric shock! An ingress of moisture can cause an electric shock. ▶ Never immerse the appliance or the power cord in water. ▶ Liquids must not be spilled on the appliance plug connection. ▶ Do not use steam- or high-pressure cleaners to clean the appliance. WARNING Risk of burns! Some parts of the appliance become very hot. ▶ Never touch hot appliance parts. 28

▶ Allow hot appliance parts to cool

down before touching.

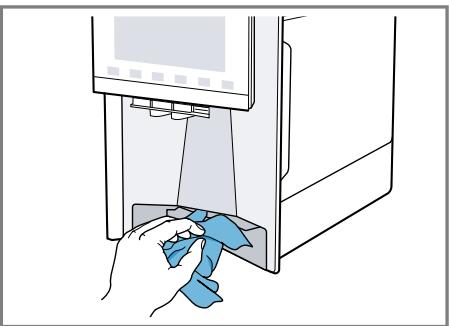

1. Clean the housing, the high-gloss

surfaces and the control panel with the enclosed microfibre cloth. 2. Clean the outlet system with a soft, damp cloth after beverages have been dispensed. 3. Rinse the water tank with fresh, clean water. 4. If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, including moving parts such as the brewing unit or water tank. Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

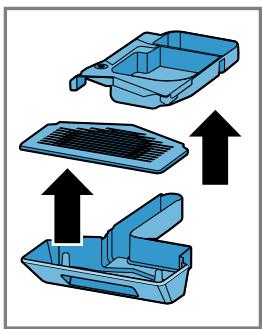

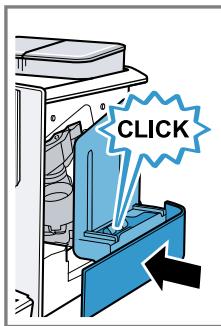

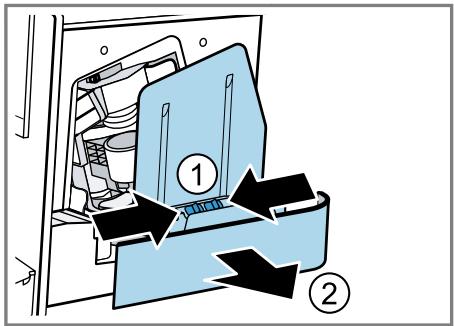

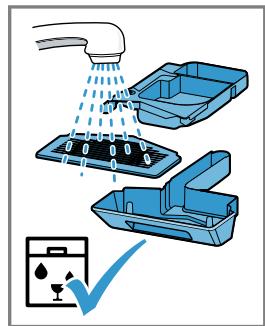

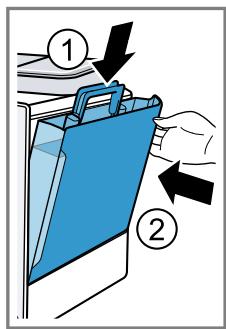

13.4 Cleaning the drip tray and coffee dregs container Clean and empty the drip tray and coffee dregs container every day to prevent deposits. Follow the illustrated instructions at the beginning of this manual. → Fig. 31 - 33

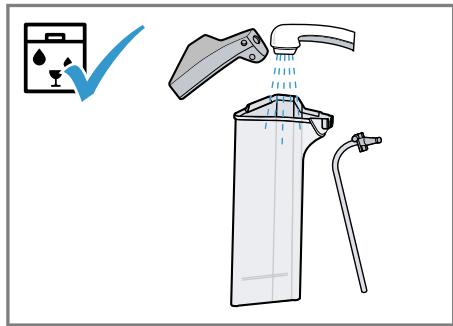

13.5 Cleaning the milk container Clean the milk container regularly for hygiene reasons. You can clean the milk container in the dishwasher. Follow the illustrated instructions at the beginning of this manual. → Fig. 22 - 25

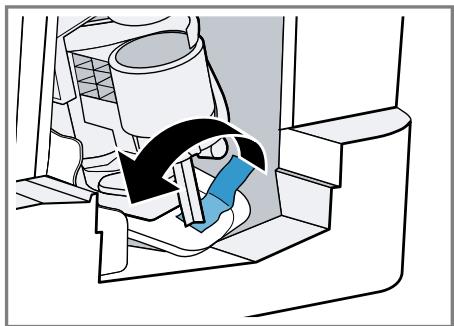

13.6 Service programmes Use the service programmes if you insert or remove a water filter or in order to clean your appliance thor-

Cleaning and servicing

oughly. Your appliance will tell you when you need to perform a service programme, e.g. cleaning. ATTENTION! Improper cleaning and descaling or a delay in doing so may damage the appliance. ▶ Immediately perform the descaling process in accordance with the instructions. ▶ Only use cleaning tablets in the tablet compartment. ▶ Do not put descaling tablets or other products in the tablet compartment.

Notes ¡ The display indicates the progress of the descaling or cleaning process. ¡ If your appliance has been locked, you can only operate it again once the descaling process has been carried out. Tip: In addition to the automatic rinsing process, regularly also remove and clean the brewing unit.

Using the service programmes 1. Press ⁠. 2. Press the symbol for the required programme. a The display will guide you through the programme.

Overview of service programmes You can find an overview of the service programmes here. Note: The start image shows the remaining number of beverages that can be dispensed until running the programme and the duration. INTENZA filter

Insert, replace or remove the water filter.

Cleaning the milk sys- Rinse the milk system automatically. tem calc'nClean

Combine cleaning and descaling. Remove residues of limescale and coffee from the pipes.

Remove residues of coffee from the pipes.

Remove residues of limescale from the pipes.

Cleaning brewing unit

The display shows optimum cleaning of the brewing unit step by step.

Cleaning and servicing

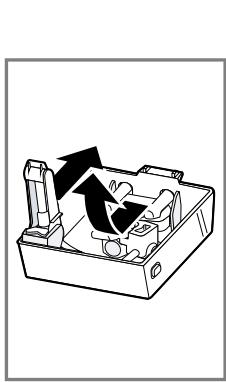

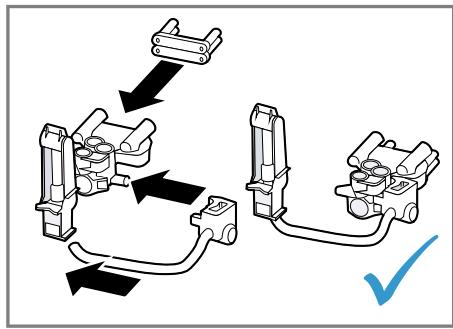

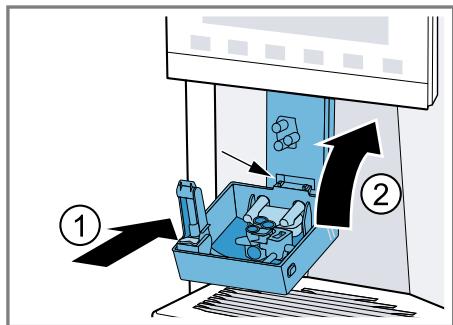

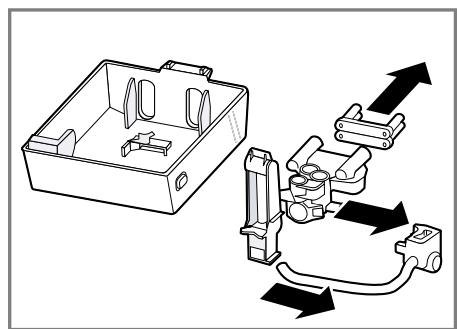

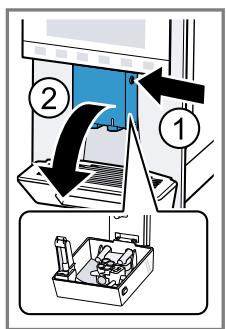

Beverage outlet clean- The display shows optimum cleaning ing of the outlet step by step. Frost protection

Drain the pipes to protect the appliance during transport or storage.

If a service programme is interrupted, e.g. due to a power failure, it will rinse itself automatically. The appliance is then ready for use again.

Tips ¡ If you are starting the "Descaling" or "calc'nClean" programme, keep a container with a capacity of min. 1 l at the ready. ¡ If you use a water filter, this will prolong the time until you have to run a service programme. ¡ You can combine "Descaling" and "Cleaning" with the "calc'nClean" service programme.

14 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. Fault Appliance no longer responds.

Cause and troubleshooting Appliance has a fault. 1. Pull out the mains plug and wait 60 seconds. 2. Re-insert the mains plug.

Home Connect is not working properly.

Different causes are possible. ▶ Go to www.home-connect.com.

Appliance only disEmpty bean container is not detected by the applipenses water, not cof- ance. fee. ▶ Pour in coffee beans. Coffee shaft on brewing unit is blocked. ▶ Clean the brewing unit. Beans are too oily and are not falling into the grinder. ▶ Gently tap the bean container. ▶ Change the coffee variety. ▶ Do not use oily beans. ▶ Clean the empty bean container with a damp cloth. Brewing unit is not inserted properly. 1. Check whether the brewing unit is inserted correctly and is securely locked. 2. Push the red lever up to the left. 3. Insert the brewing unit cover. Appliance is not dispensing milk froth.

Milk system is soiled. ▶ Clean the milk system in the dishwasher. Milk tube not immersed in milk. ▶ Use more milk. 31

Fault Appliance is not dispensing milk froth.

Cause and troubleshooting ▶ Check whether the milk tube is immersed in the milk. Heavy build-up of limescale in the appliance. ▶ Descale the appliance.

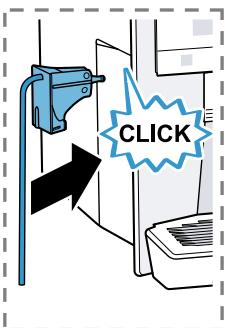

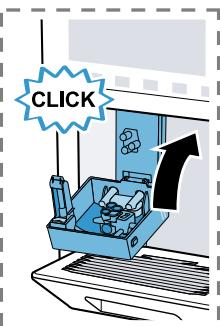

No milk intake by the milk system.

The milk system is assembled incorrectly. ▶ Assemble the milk system correctly. Order for connecting the milk container and milk system is wrong. ▶ First insert the milk system into the outlet and then the milk container. Milk tube not immersed in milk. ▶ Use more milk. ▶ Check whether the milk tube is immersed in the milk.

Milk froth is too cold.

Milk is too cold. ▶ Use lukewarm milk.

Appliance is not dispensing hot water.

Milk system is soiled. ▶ Clean the milk system in the dishwasher.

Milk system cannot be Order of assembly is wrong. assembled or disas▶ First connect the milk system and then the milk sembled. container. When disassembling, you must first remove the milk container and then the milk system. Appliance is not dispensing drinks.

Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter. ▶ Firmly press the water filter straight down into the tank connection. Residues of limescale remover are blocking the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly.

There is dripping water on the inner floor of the appliance.

Drip tray was removed too soon. ▶ Wait a few seconds after the last drink was dispensed before removing the drip tray.

Brewing unit cannot be removed.

Locking device cannot be released, brewing unit is jammed. ▶ Switch the appliance off and back on after 3 minutes.

Fault Grinder won't start.

Cause and troubleshooting Appliance is too hot. 1. Disconnect the appliance from the mains. 2. Wait 1 hour so the appliance can cool down.

Grinder is not grinding any coffee beans despite full bean container.

Beans are too oily and are not falling into the grinder. ▶ Gently tap the bean container. ▶ Change the coffee variety. ▶ Do not use oily beans. ▶ Clean the empty bean container with a damp cloth.

Coffee or milk froth quality varies widely.

Build-up of limescale in the appliance. ▶ Descale the appliance.

Milk froth quality varies widely.

Milk froth quality depends on the type of milk or plantbased alternative used. ▶ Optimise the result through the selection of the milk or vegetable-based drink type.

Coffee is not dispensed or has slowed to a trickle. Set quantity is not reached.

Grinding level is set too fine. ▶ Set a coarser grinding level. Heavy build-up of limescale in the appliance. ▶ Descale the appliance. Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter. Appliance is soiled. ▶ Clean the brewing unit. ▶ Descale and clean the appliance.

Coffee has no crema.

Type of coffee is not optimal. ▶ Use a coffee variety with a higher proportion of Robusta beans. ▶ Use beans with a darker roast. Beans are no longer fresh. ▶ Use fresh beans. Grinding level is not appropriate for coffee beans. ▶ Adjust the grinder to a finer setting.

Coffee is too acidic.

Grinding level is set too coarse. ▶ Adjust the grinder to a finer setting. Type of coffee is not optimal. ▶ Use a coffee variety with a higher proportion of Robusta beans. ▶ Use beans with a darker roast. 33

Fault Coffee is too bitter.

Cause and troubleshooting Grinding level is set too fine. ▶ Set a coarser grinding level. Type of coffee is not optimal. ▶ Change the coffee variety.

Coffee tastes burnt.

Grinding level is set too fine. ▶ Set a coarser grinding level. Type of coffee is not optimal. ▶ Change the coffee variety. Coffee temperature setting is too high. ▶ Set the coffee temperature lower.

Coffee grounds are not compact and are too wet.

The grinding level is not set optimally. ▶ Adjust the grinder to a coarser or finer setting. Beans are too oily. ▶ Use a different type of bean.

Display shows "Please Cover is wrongly inserted. insert brewing unit.". 1. Check whether the brewing unit is inserted correctly and is securely locked. 2. Push the red lever up to the left. 3. Insert the brewing unit cover. Display shows "Please Water tank is wrongly inserted. fill water tank." despite ▶ Insert the water tank correctly. the fact that the water Carbonated water is in the water tank. tank is full. ▶ Fill the water tank with fresh tap water. Float is stuck in the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly. New water filter was not rinsed as per instructions. 1. Rinse the water filter according to the instructions. 2. Place the water filter into operation. Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter. Water filter is old. ▶ Insert a new water filter. Limescale deposits in the water tank are blocking the system. 1. Clean the water tank thoroughly. 34

Fault Display shows "Please fill water tank." despite the fact that the water tank is full. Display shows "Please clean brewing unit.".

Cause and troubleshooting 2. Start the descaling programme.

Brewing unit is soiled. ▶ Clean the brewing unit. Mechanism of brewing unit is stiff. ▶ Clean the brewing unit.

Display shows "Incorrect voltage".

There are problems with the power supply. ▶ Only operate the appliance at 220 - 240 V.

Display shows "Restart appliance".

Appliance has a fault. 1. Pull out the mains plug and wait 60 seconds. 2. Re-insert the mains plug.

Display very frequently Decalcified water still contains small amounts of lime. shows " ". 1. Insert a new water filter. 2. Set the corresponding water hardness. Incorrect or too little descaling agent used. ▶ When descaling, only use suitable tablets. Service programme has not been carried out in its entirety. ▶ Start the "Special rinsing" service programme. → "Service programmes", Page 28

Transportation, storage and disposal

15 Transportation, storage and disposal 15.1 Activating frost protection Protect your appliance from frost during transport and storage. ATTENTION! Residues of liquid in the appliance may damage it during transport or storage. ▶ Empty the pipe system before transport or storage. 1. Run the "Frost protection" pro-

gramme. → "Overview of service programmes", Page 29 2. Disconnect the appliance from the mains power supply.

15.2 Disposing of old appliance Valuable raw materials can be reused by recycling. 1. Unplug the appliance from the mains. 2. Cut through the power cord. 3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

16 Customer Service Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area. Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge. Detailed information about the warranty period and the warranty terms in your country is available in the enclosed customer service directory, from our customer service, your retailer or on our website. If you contact Customer Service, you will require the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

16.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) You can find the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate.

Technical specifications en

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

17 Technical specifications Voltage Frequency Connection rating Maximum static pump pressure Maximum capacity of water tank (without filter) Maximum capacity of bean container Maximum capacity of right/left bean container Length of the power cable Appliance height Appliance width Appliance depth Weight, empty Type of grinder

220– 240 V ∼ 50 Hz 1500 W 20 bar 2,3 l 375 g 260 g / 280 g 100 cm 40 cm 32 cm 47 cm 12 kg Ceramic

17.1 Information regarding Free and Open Source Software This product includes software components that are licensed by the copyright holders as free or open source software.

The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your Home Connect app: "Profile -> Legal information -> Licence Information".1 You can download the licence information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from ossrequest@bshg.com or BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany. The source code will be made available to you on request. Please send your request to ossrequest@bshg.com or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany. Subject: „OSSREQUEST“ The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

18 Declaration of Conformity BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the basic requirements and other relevant provisions of Directive 2014/53/ EU. A detailed RED Declaration of Conformity can be found online at siemens-home.bsh-group.com among the additional documents on the product page for your appliance.

Depending on the appliance specifications 37

Declaration of Conformity

Hereby, BSH Hausgeräte GmbH declares that the appliance with Home Connect functionality is in compliance with relevant statutory requirements.1 A detailed Declaration of Conformity can be found online at siemenshome.bsh-group.com/uk/ among the additional documents on the product page for your appliance.1 BE FR MT SE

5 GHz WLAN BG HR NL NO (Wi-Fi):

CZ DK IT CY AT PL CH TR For indoor use

Only applies to Great Britain 2.4 GHz band (2400–2483.5 MHz): Max. 100 mW 5 GHz band (5150–5350 MHz +

Only applies to Great Britain

B C D E F G H I J K 1

7.5 baristaMode of comfortMode

B C D E F G H I J K 1

A B C D E F G H I J K 1
