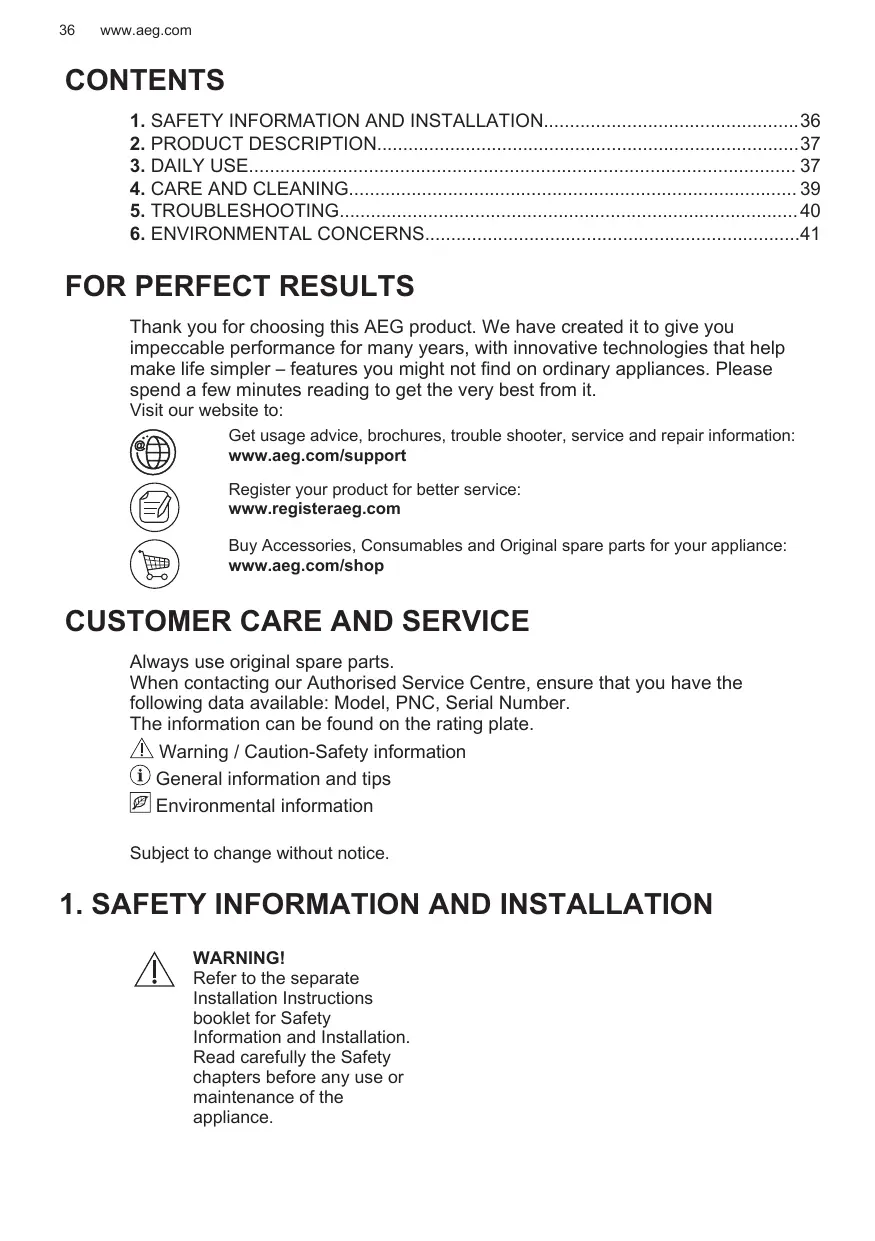

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION AND INSTALLATION

WARNING!

Refer to the separate Installation Instructions booklet for Safety Information and Installation.

Read carefully the Safety chapters before any use or maintenance of the appliance.

1 2 1"

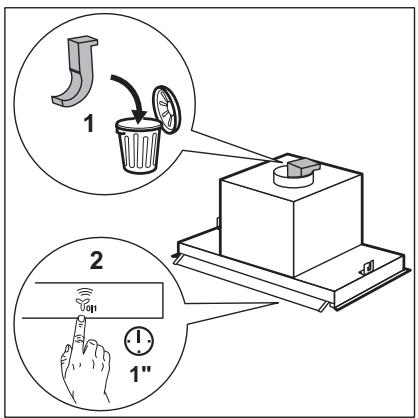

WARNING!

Before connection to electricity make sure the blower support has been removed from the motor.

2. PRODUCT DESCRIPTION

2.1 Control panel overview

	Function	Description
1	Lamp	Turns the lights on and off.
2	First speed / Off	The motor switches to first speed level. Second press turns off the appliance.
3	Second speed	The motor switches to second speed level.
4	Third speed	The motor switches to third speed level.
5	Maximum speed	The motor switches to maximum speed level. After 5 minutes appliance switches to third speed.
6	Timer	Turns off the appliance after 5 minutes. Reminds to clean or replace the filter. Refer to Filter notification in Daily use chapter.

3. DAILY USE

3.1 Using the hood

Check the recommended speed according to the table below.

Y01	While heating up food, cooking with covered pots.
Y2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
Y3	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
	While boiling and frying big quantities of food without a lid, big humidity.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control Panel is a sensor field. To operate the hood touch the symbol exactly in the middle for at least 1 second.

To operate the hood:

1. Open the glass with control panel symbols.

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

1. Touch the 🍼 to switch on the appliance.
2. If needed, change the speed by touching the desired symbol.

To turn off the appliance touch 🌿011 again.

3.2 Timer

This function allows to turn off the appliance after 5 minutes of operating. The function can be used only if the appliance operates on first 3 motor speeds.

1. Touch the ⏻5' symbol.
   Timer starts to flash.
2. After 5 minutes the appliance turns off.
   To turn off the function touch ⏻5' again.

3.3 Hob ^2 Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.

Led lamp switches on when the connection is established between the hob and hood.

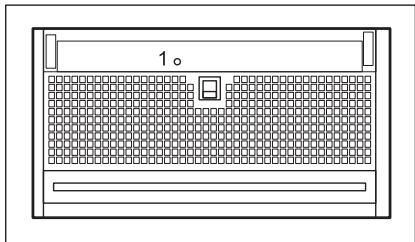

The element underneath the hood (1) is a signal receiver of the function.

Technical line drawing of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

For more information how to use the function refer to the hob user manual.

3.4 Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter.

- After 40 hours of usage, the symbol ⏻ turns on for 30 seconds. The grease filter must be cleaned.

- After 160 hours of usage, the symbol ⏻ flashes for 30 seconds. The grease filter must be cleaned and charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in care and cleaning chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function touch ⏻5' for 3 seconds.

4. CARE AND CLEANING

4.1 Notes on cleaning

Cleaning Agents	Do not use abrasive detergents and brushes.Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
	Clean stains with a mild detergent.
Keep the hood clean	Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.
	Grease filters can be washed in a dishwasher.The dishwasher must be set to a low temperature and a short cycle.The grease filter may discolour, it has no influence on the performance of the appliance.
Charcoal filter	The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter.

4.2 Cleaning mode

Cleaning mode blocks the functionality of control panel for 5 minutes. When active, touching symbols has no effect.

Hob2Hood function is disabled when cleaning mode is active.

1. To activate the mode touch and hold

1. To deactivate the mode touch and hold the symbols again for 1 second.

4.3 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

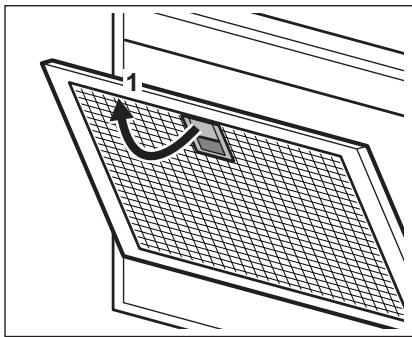

To clean the filter:

1. Pull the handle on the filter underneath the hood (1) and slightly tilt the front of the filter down.

1

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable.

4.4 Replacing the charcoal filter - optional

WARNING!

Depending on type, filter can be or cannot be regenerated. Refer to the leaflet provided with the filter.

5. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

5.1 What to do if...

Problem	Possible cause	Remedy
You cannot activate the appliance.	The appliance is not connected to a power supply or it is connected incorrectly.	Check if the appliance is correctly connected to the electrical supply.

To replace the filter:

1. Remove the grease filters from the appliance.
   Refer to "Cleaning the grease filter" in this chapter.
2. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1 2

1. Slightly tilt the front of the filter downwards (2), then pull. Repeat the first two steps for all filters.

2. To install a new filter, perform the same steps in reverse order. In any case, it is necessary to replace the filters at least every four months.

4.5 Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

Problem	Possible cause	Remedy
You cannot activate the appliance.	The fuse is blown.	Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
You cannot activate the appliance.	Cabinet doors are not aligned with the cabinet frame.	Align the cabinet doors.
You cannot activate the appliance.	The glass panel is not fully opened.	Fully open the glass panel. Refer to daily use chapter.
You cannot activate the appliance or functions.	Incorrect usage of control panel.	Touch the symbols on the control panel directly in the middle for at least 1 second to activate appliance or function.
The lamp does not operate.	The lamp is defective.	Replace the lamp. Refer to the "Care and Cleaning" chapter.
The appliance does not absorb enough vapours.	The motor speed is not adequate to the appearing vapours.	Change the speed of the motor.
The appliance activate itself or change function itself	There is a big condensation of vapour on the glass.	Clean the glass from the water, ventilate the kitchen and increase the speed of the hood.
The filter alarm indicator is on.	The filter alarm is on. The grease filter must be cleaned or the charcoal filter (optional) must be replaced or cleaned.	Refer to the filter notification in "Daily use" chapter.

6. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📊. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📄 with the household waste. Return the product to your local recycling facility or contact your municipal office.

CONTENIDO

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Diagram of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Technical line drawing of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Diagram of a solar panel with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Diagram of a server rack with mesh pattern and labeled component '1°' (no text or symbols beyond basic label)

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Line drawing of a front panel with a mesh pattern and a labeled dimension (no text or symbols beyond the label)

Diagram of a solar panel with a grid pattern and directional arrow, no text or symbols present

3. SVAKODNEVNA UPORABA

3.1 Uporaba nape

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Za više informacija o uporabi funkcije, pogledajte korisnički priručnik ploče.

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a server rack with a mesh pattern and labeled component '1°' (no text or symbols beyond basic labels)

Diagram of a solar panel with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Line drawing of a front panel with a grid pattern and a labeled dimension (no text or symbols beyond the label)

Diagram of a solar panel with a grid pattern and directional arrow, no text or symbols present

Diagram illustrating two steps of a mechanical device with labeled parts and directional indicators.

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a storage unit with mesh pattern and labeled dimension (no text or symbols beyond basic geometry)

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Diagram of a storage unit with a grid-patterned panel and labeled dimension (no text or symbols beyond the label)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a rectangular device with a grid pattern and labeled dimension '1°' (no text or symbols beyond basic geometry)

i

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Line drawing of a rectangular device with a grid-patterned panel and a labeled component '1°' (no text or symbols beyond basic geometry)

5. PROBLEEMOPLOSSING

WAARSCHUWING!

Betjeningspanelet er et sensorfelt. To operate the hood touch the symbol exactly in the middle for at least 1 second.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Led lamp switches on when the connection is established between the hob and hood.

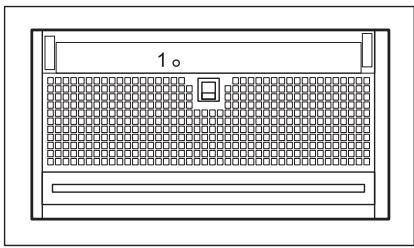

The element underneath the hood (1) is a signal receiver of the function.

Diagram of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Hob2Hood function is disabled when cleaning mode is active.

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a server rack with mesh pattern and labeled component '1°' (no text or symbols beyond basic geometry)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Technical line drawing of a front panel with a mesh pattern and a labeled dimension (no text or symbols beyond the label)

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a server rack with mesh pattern and labeled component '1' (no text or symbols beyond basic label)

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Diagram of a storage unit with mesh pattern and labeled dimension (no text or symbols beyond basic geometry)

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

1. Z dotikom tipke 🍼01 vklopite napravo.
2. Po potrebi z dotikom želenega simbola spremenite hitrost.
   Za izklop naprave se ponovno dotaknite simbola 🌐1.

3.2 Časovnik

Diagram of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

2. PËRSHKRIM I PRODUKTIT

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Diagram of a front panel with a grid-patterned backrest and a labeled dimension (no text or symbols beyond the label)

Diagram of a solar panel with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a server rack with mesh pattern and labeled dimension (no text or symbols beyond basic geometry)

Diagram of a solar panel with a grid pattern and directional arrow, no text or symbols present

reparationsinformation:

www.aeg.com/support

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Technical line drawing of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Technical line drawing of a rectangular device with a grid-patterned panel and labeled dimension '1°' (no text or symbols beyond basic geometry)

Diagram of a solar panel with a grid pattern and a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a rectangular device with a mesh pattern and labeled dimension '1°' (no text or symbols beyond basic geometry)

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)
