USER MANUAL VS4-1-4AG AEG

Avoid using liquids in the bag

Vacuum & Seal:
Press for auto function

Seal:
Press to create a seal only

Pulse: Press to manually control
the vacuum level. Press seal when

shop.aeg.com

Vacuum Sealer Bags

50x Precut Bags (22 x 30cm)

AVSB1

Vacuum Sealer Rolls

2x Rolls (28cm x 6m)

AVSR1

Kitchen scale

ABKS1

EN - Safety Precautions

Please carefully read all the instructions before using this appliance and save for future use. Make sure before plugging in the machine that the cover top is unlocked. Always unplug from the mains supply when the appliance is not in use and before cleaning.

This appliance is not a toy, when used by or near children, close attention is necessary. Store this appliance in a safe place, out of the reach of children.

Only use original parts from AEG. Always check the appliance, the cord and the switch panel before use. If the cord is damaged, it must be replaced by a professional.

Keep away from moving parts.
Do not touch the heating element when it is hot.

Do not try to repair this appliance by yourself.

Don't use the appliance if it has fallen or appeared to be damaged.

Avoid pulling or carrying by the cord, using cord as a handle, getting the cord stuck somewhere, or pulling cord around sharp edges or corners. Do not operate appliance when cord / plug is wet.

Keep away from hot gas, heated oven, electric burner or any other hot surfaces. Do not use this appliance on wet or hot surface or near a heat source.

It's better not to use an extension cord with this unit. However, if one is used, it must have a rating equal to or exceeding the rating of this appliance.

When unplugging the machine to avoid any injury, please grasp the plug not the cord.

Before plugging appliance in or

operating, make sure your hands are dry and safe to do the actions.

When it is in "ON" or working position, always be on a stable surface, such as table or counter. No need to use any lubricant, such as lubricating oils or water, on this appliance.

Do not immerse any part of this appliance, power cord or plug in water or any other liquid.

The appliance is for domestic use only.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Close supervision is required when this product is used near children.

If the supply cord is damaged, It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

To reduce the risk of electric shock, this product has a polarized plug (one blade is wider than the other). This plug is intended to fit in a polarized outlet only one way. When the plug does not fit fully in the outlet, reverse the plug. When it still does not fit, contact a qualified electrician to install the proper outlet.

Do not change the plug in any way.

If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user.

Any damages as a consequence of the above to the product are

not covered by the warranty.

Troubleshooting

1. Nothing happens when I try to vacuum package

Check that the vacuum sealer is connected to a working plug

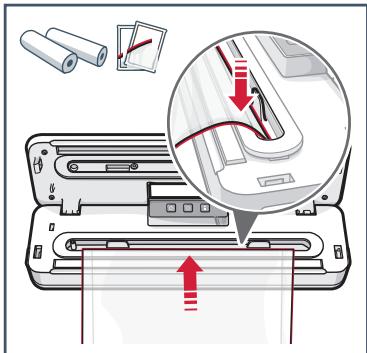

Make sure bag is placed correctly in the vacuum chamber and beneath the air intake

2. Air is not removed from the bag completely

Make sure the open side of bag is resting entirely inside vacuum chamber area.

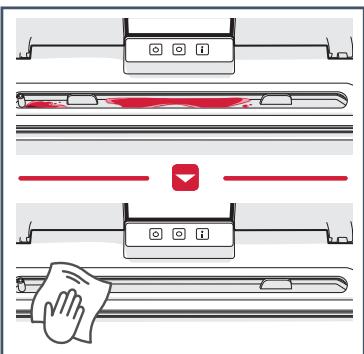

Check sealing strip, heating element surface, and the foam gasket beneath the lid for debris and position. Make sure no breaking or distortion of the foam seal gaskets on both the cover and on the base around the vacuum chamber. Wipe clean and smooth them back into place.

Vacuum bag may have a leak.

Reseal or use another bag.

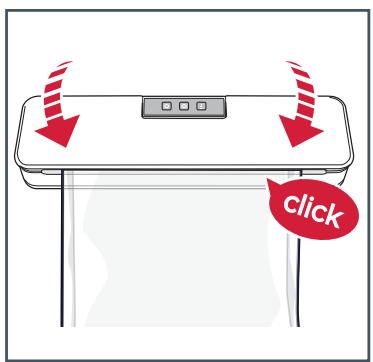

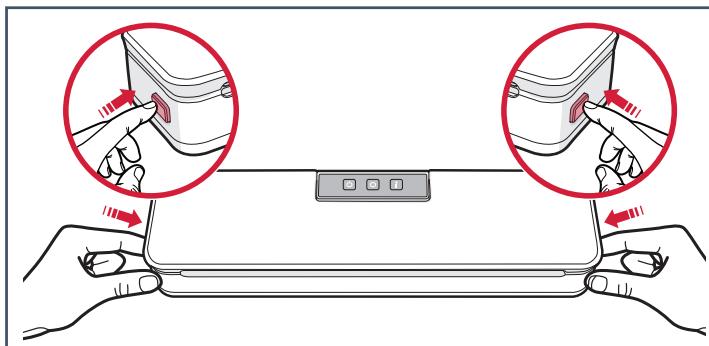

Ensure top cover is pushed down and locked on both ends of the machine at the beginning of the operation before starting the vacuuming process.

Leaks caused by wrinkles, debris crumbs, grease or liquids from the bag. Reopen bag, wipe the top inside of the bag and smooth it out along the sealing strip before resealing.

3. The machine does not turn to seal after vacuuming

The machine will not turn to seal automatically if the vacuum pressure inside the bag is not able to reach to the predetermined vacuum pressure. Check sealing strip and foam gasket beneath the lid for debris, wipe clean and try again.

Make sure no breaking or distortion of the foam seal gaskets on both the cover and on the base

around the vacuum chamber. Take it out from the groove, wash and dry it thoroughly; or replace with a new foam gasket (get it from where you brought or your nearest service center).

Vacuum bag may have a leak.
Reseal or use another bag.
Ensure top cover is pushed down and locked on both ends of the machine at the beginning of the operation before starting the vacuuming process.

Leaks caused by wrinkles, debris crumbs, grease or liquids from the bag. Reopen bag, wipe the top inside of the bag and smooth it out along the sealing strip before resealing.

4. Air has re-entered into the bag after being sealed.

Leaks caused by wrinkles, debris crumbs, grease or liquids from the bag. Reopen bag, wipe the top inside of the bag and smooth it out along the sealing strip before resealing.

The release of natural gases or fermentation form foods (such as fresh fruits and vegetables) may occur. Open bag, if you think food has begun to spoil, and discard food. Lack of refrigerator or fluctuating temperatures in the refrigerator can cause food to spoil. If food is not spoiled, consume food immediately. Check the bag for a puncture or hole which may have released the vacuum. Do not vacuum packaging hard items with sharp points (like bones or cracks of nut shell).

Cushion sharp edges in the contents of the bag with paper towels.

5. Bag is melting

The heating element is overheated. Let the machine cool down for a few minutes and try again.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
