BHG6502X - Basket BRANDT - Free user manual and instructions

Product type	Range hood
Brand	BRANDT
Model	BHG6502X
Use	Domestic
Installation type	Extraction or recirculation
Minimum distance from cooking surface	650 mm
Exhaust duct diameter	120 mm (minimum)
Power supply	220-240 V ~50/60 Hz
Electrical class	I
Number of speeds	3 (0, 1, 2, 3)
Lighting	4 W bulb
Bulb type	DRBB/F-4-220-240-E14-35/100
Bulb socket	E14
Grease filter	Metallic, dishwasher safe
Carbon filter	Active, not washable, replaceable
Grease filter cleaning frequency	Every 2 months
Carbon filter replacement frequency	Every 4 months
After-sales service	Brandt France, 0 892 02 88 01
Repair	By qualified approved professional
Spare parts	Certified original parts

Frequently Asked Questions - BHG6502X BRANDT

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm. If your gas hob specifies a greater distance, follow that.

How to clean the grease filters?

The grease filters are metallic and can be washed in the dishwasher. It is recommended to clean them every 2 months.

When should the carbon filter be replaced?

The active carbon filter is not washable and must be replaced approximately every 4 months.

Can I use the hood in recirculation mode?

Yes, the hood can be used in recirculation mode with an active carbon filter. Ensure the room is well ventilated.

How to change the hood bulb?

Use a E14 bulb of max 4 W, reference DRBB/F-4-220-240-E14-35/100.

Is the hood compatible with gas cooking?

Yes, but respect the minimum distance of 650 mm and ensure adequate room ventilation.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer or an approved technician.

Can I wash the carbon filters?

No, active carbon filters cannot be washed or regenerated. They must be replaced.

How to adjust the hood speed?

Use the V button: position 0 for stop, 1 for minimum speed, 2 for medium speed, 3 for maximum speed.

Where to find spare parts for my hood?

Contact Brandt consumer service at 0 892 02 88 01 or go to www.brandt.fr. Ask for certified original spare parts.

USER MANUAL BHG6502X BRANDT

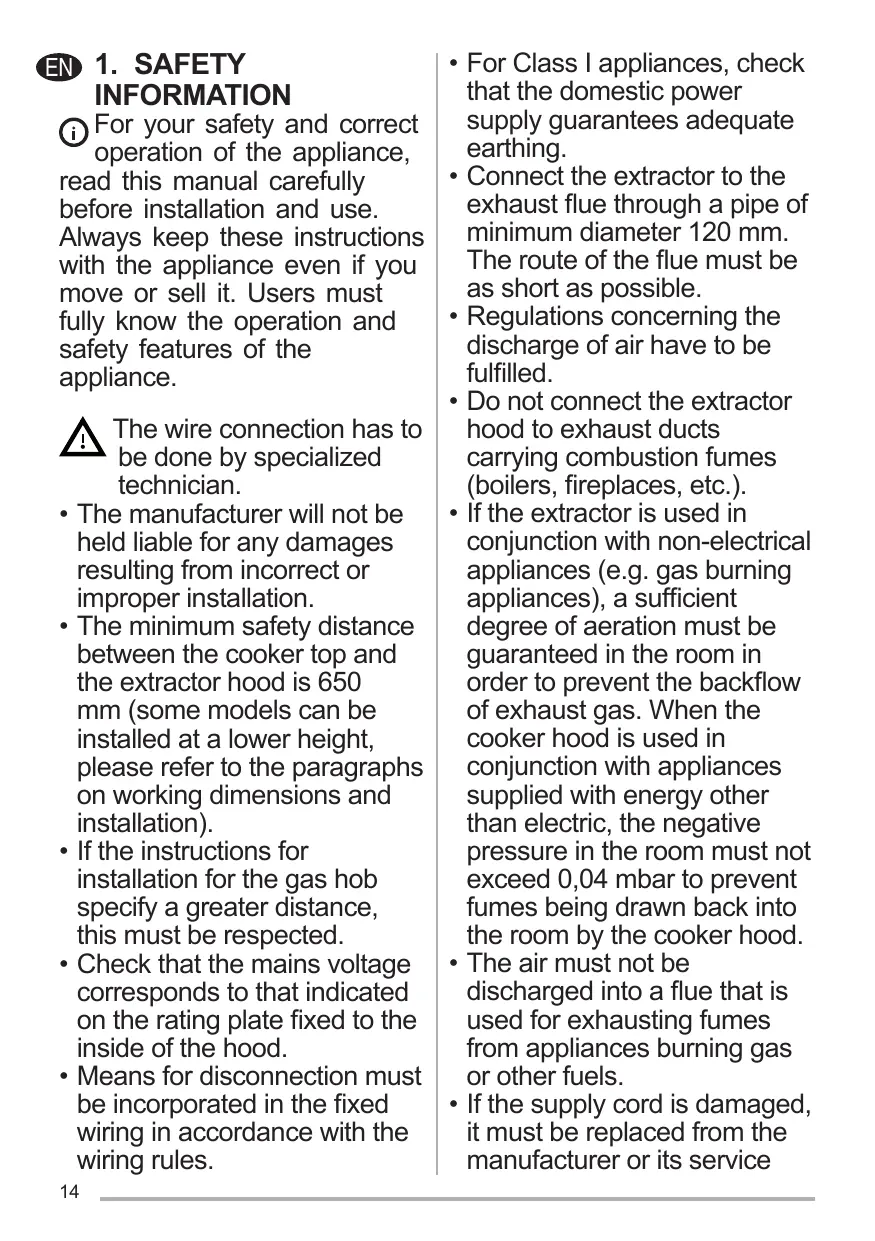

1- RELATIONS CONSOMMATEURS FRANCE

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.

• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 ~mm . The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service

agent.

• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

• Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

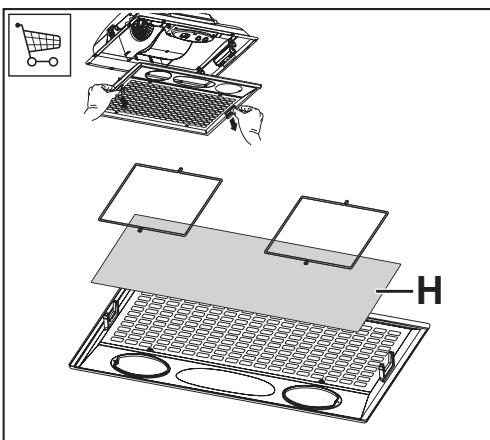

• This filter cannot be washed and should be replaced every 2 months (H).

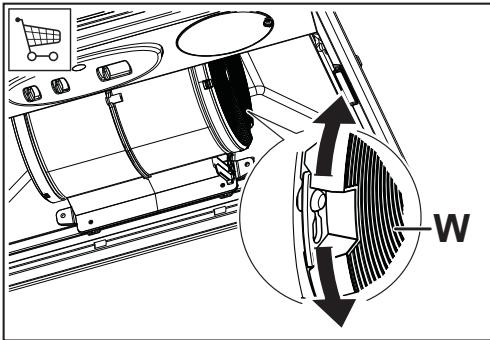

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

01

0123

L

Light

Switches the lighting system on and off.

V

Speed

Sets the operating speed of the extractor:

0.Motor Off.

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

5. LIGHTING

Lamp	Power (W)	Socket	Voltage (V)	Dimension (mm)	ILCOS Code
	4	E14	220 – 240	107 x 37	DRBB/F-4-220-240-E14-35/100
