Product type	Extractor hood
Brand	AIRLUX
Model	AHE66WH
Usage	Domestic
Power supply	See rating plate (mains voltage)
Appliance class	Class I (earthing required)
Minimum distance to cooking surface	650 mm (some models less)
Exhaust diameter	120 mm minimum
Functions	Lighting, extraction motor, 3 speeds
Controls	Buttons for lights, motor, speeds
Grease filter	Dishwasher-safe, every 2 months
Active carbon filter	Not washable, replace every 4 months
Cleaning	Damp cloth and neutral detergent
Lighting	Replace by after-sales service
Safety	Do not flambé under the hood, adequate ventilation
Installation	By a competent technician, comply with local regulations
Number of pages of the manual	28 pages

Frequently Asked Questions - AHE66WH AIRLUX

How to clean the grease filters?

The grease filters should be cleaned every 2 months. They can be washed in a dishwasher or by hand with a neutral detergent.

When to replace the active carbon filter?

The active carbon filter cannot be washed and should be replaced approximately every 4 months of use, or more often with heavy usage.

What is the minimum distance between the hood and the cooker?

The minimum safety distance is 650 mm. Check your cooker's instructions; some may require a greater distance.

Can I use the hood without external extraction?

Yes, the hood can operate in recirculation mode with an active carbon filter to purify the air before returning it to the room.

What to do if the hood does not turn on?

Check the power supply and that the outlet is working. If the cord is damaged, have it replaced by an authorized technician.

How to adjust the extraction speed?

Use the V button: speed 1 for quiet operation, speed 2 for normal use, speed 3 for heavy steam.

The lighting no longer works, how to replace it?

For bulb replacement, contact the After-sales service. Do not try to do it yourself.

Can I install the hood myself?

No, the electrical installation and connection must be carried out by a competent technician to comply with safety standards.

The hood is noisy, is this normal?

Some noise level is normal. If the noise becomes excessive, check that the filters are clean and that nothing is blocking the duct.

How to recycle the hood at end of life?

Do not discard the appliance with household waste. Take it to a collection center for recycling of electrical waste.

USER MANUAL AHE66WH AIRLUX

LIBRETTO DI USO 3
ENUSERMANUAL 7
FR MANUEL D'UTILISATION 10
PT LIVRO DE INSTRUÇOES PARA UTILIZATION 14

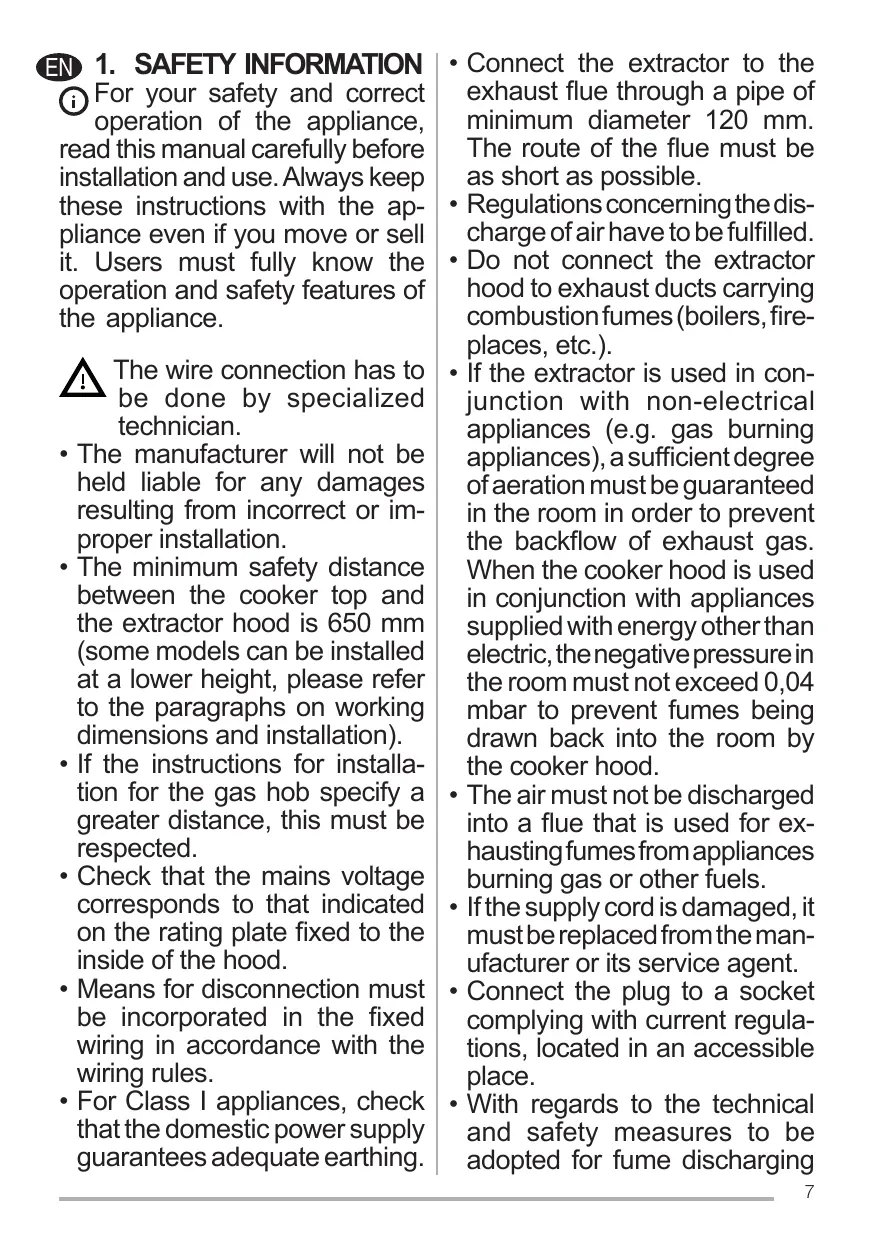

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120~mm . The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances, burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.
- Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
- Do not flambé under the range hood; risk of fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Children should be supervised to ensure that they do not play with the appliance.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

! Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

• TheActivated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

L	Light	Switches the lighting system on and off.
M	Motor	Switches the extractor motor on and off.
V	Speed	Sets the operating speed of the extractor: 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio. 3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

5. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").

FR 1. CONSIGNES DE SECURITE

EN INSTALLATION MANUAL

Warning! Before proceeding with installation, read the safety information in the User Manual.

FR MANUEL D'INSTALLATION
