USER MANUAL CUBIA GLOSS ACTIVE FABER

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly

with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Dimensions

Components

Ref.	Q.ty	Product components
1	1	Hood Body complete with: Controls, Light, Suction Unit, Filters, Lower Duct
7	1	PVC Pipe (fitted)
8	1	Inclinable grid (fitted)
9	1	Reduction flangeø 150-120 mm
10	1	Metal cover
Ref.	Q.ty	Assembly components
11a	2	SB 12/10 Plugs
	Q.ty	Documents
	1	Instruction Manual

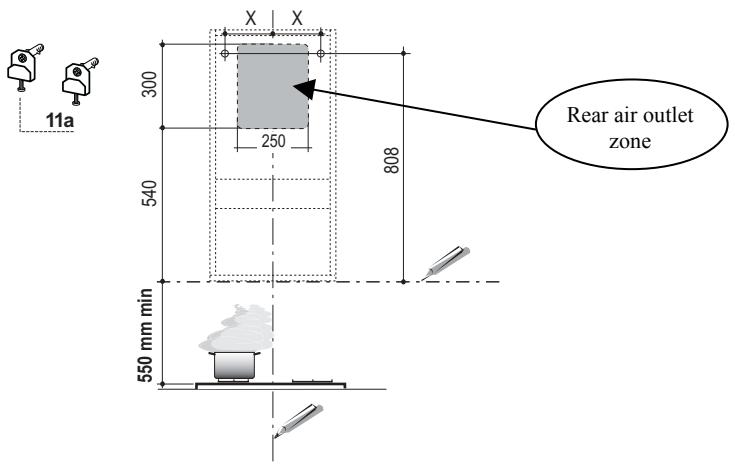

Boring the wall

If you want to use the hood in suction version with the air outlet at the back of the hood, make sure to follow the indications given below in the drawing for a correct boring operation of the air outlet opening.

Type Hood	45	60	90
X	180	240	390

When installing the hood in recycling version it has to be taken into consideration that space remaining between the hood and the upper limit (ceiling or self) is at least 8-10 cm.

On the wall, trace:

• a vertical line up to the ceiling or top limit, at the centre of the area where you intend to fit the hood;
• a horizontal line at: 550mm min. above the cooking hob;
• As shown, mark a reference point at 808mm above the horizontal reference line, and at X mm (X= see table in figure) to the right of the vertical reference line.
• Repeat this operation on the opposite side, checking levelling.
• Drill the points marked using a 12 mm bit

• Insert plugs with screws and brackets 11a in the holes then tighten them.

• Adjust the two screws Vr of brackets 11a, by just placing them in position.

• Hook the hood body to the two brackets 11a.
• Pull the Comfort Panel to open it, remove the filters one by one, push them towards the rear part of the unit and pull downwards at the same time.
• From inside the hood body, tighten the screws Vr to level the body.

Connection

AIR OUTLET IN A DUCTING HOOD VERSION

When installing the hood in ducting version, basing on the installer's choice, a rigid or a flexible pipe with a 0.150 or 120mm is used in order to connect the hood to the air outlet piping. The pipe connection can be made on the upper part or on the rear side of the hood.

Before connecting the hood to the air outlet ducting remove the lateral air outlet grid 8 and the plastic tube 7. The adapting flange 9 has to be removed only in case the connecting diameter is 150.

REAR AIR OUTLET

• When drilling the air outlet hole in the wall proceed in accordance with the scheme in the part concerning the wall drilling.
• Use a pair of tongs when breaking the rear air outlet hole in the wall.
• In case the connection is made by using a 120 mm pipe insert the reduction flange 9 on the hood body outlet.
  Fix the pipe with an adequate quantity of pipe clamps. This material is not supplied together with the hood.
• Remove the charcoal filter if present.
  Fix the metal cover 10 to the upper air outlet hole of the hood by using the screws supplied.

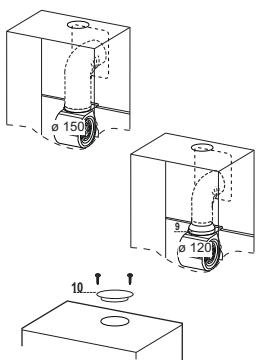

UPPER AIR OUTLET

• In case the connection is made by using a 120 mm pipe insert the reduction flange 9 on the hood body outlet.
• Use a pair of tongs when removing the central part of the metal cover 10. Fix the cover to the air outlet hole of the hood by using the screws supplied.
  Fix the pipe with an adequate quantity of pipe clamps. This material is not supplied together with the hood.
• Remove the charcoal filter if present.

AIR OUTLET IN A RECYCLING HOOD VERSION

• In case the components requested for the recycling functioning have been removed earlier these have to be positioned again.
• Put the plastic tube onto the flange 7.
• Place the air outlet grid 8 on the air outlet. Make sure that the position of the grid is correct.
• Make sure that charcoal filters have been placed inside the hood.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Control panel

Button	Function	Display
A	Turns the suction motor on and off at speed one.	Displays the set speed
B	Decreases the working speed.	Displays the set speed
C	Increases the working speed.	Displays the set speed
D	Activate intensive speed from any other speed, including motor off. This speed is set to operate for 6 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes.	Displays HI and the time remaining once very second.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm On and Off.	FC+Punto (2 flashes)-Alarm On. FC+Punto (1 flash)-Alarm Off.
E	24H function Turns the suction motor on at speed one and effects one 10 minute extraction every hour.	Displays 24 and the spot at the bottom right flashes once every second, while the motor is running. It is disabled by pressing the button.
	When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off.	FF flashes three times. When the procedure terminates, the indication shown previously turns off. FG indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. FC indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.
F	Delay function Activate automatic switch-off with a 30' delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off.	Displays the operating speed and the spot at the bottom right flashes once a second.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Remote Control On and Off.	IR+Punto (2 flashes)-Alarm On. IR+Punto (1 flash)-Alarm Off.
G	Turns the lighting system on and off at maximum intensity.
H	Turns the Courtesy Lighting on and off.

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
  Used batteries must be disposed of in the proper manner.

Cleaning the Comfort Panels

Pull the Comfort Panel to open it.
- Disconnect the panel from the hood canopy by sliding the fixing pin lever.
- The comfort panel must never be washed in a dishwasher.
- Clean the outside by using a damp cloth and neutral liquid detergent.
- Clean the inside as well by using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.
- When the above operation has been completed, hook the panel back to the hood canopy and close it by turning the knob in the opposite direction.

Metal grease filters

They can be washed in the dishwasher, and need to be cleaned whenever the FG sign appears on the display or at least once every 2 months use, or more frequently if use is particularly intensive.

Resetting the alarm signal

• Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.
• Press button E (see the paragraph on Use).

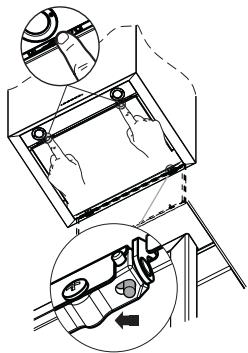

Cleaning the Filters

• Open the Comfort panels by pulling on the recess.
• Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry completely before replacing. (If the surface of the filter changes colour as time goes by, this will have absolutely no effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.
• Close the Comfort panels.

It cannot be washed or regenerated, and must be changed when the FC symbol on the display appears, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.

• Press D and hold for approximately 5 Seconds:

• The message FC+Dot flashes twice, A.C. Filter saturation alarm ACTIVATED

• The message FC+Dot flashes once, A.C. Filter saturation alarm DEACTIVATED

CHANGING THE ACTIVATED CHARCOAL FILTER

Resetting the alarm signal

• Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.
• Press button E (see the paragraph on Use).

Changing the Filter

• Open the Comfort panels by pulling on the recess.
• Remove the Metal grease filters.
• Remove the saturated charcoal filter by releasing the fixing hooks.
• Fit the new filter and fasten it in its correct position.
• Replace the Metal grease filters.
• Close the Comfort panels.

LIGHT REPLACEMENT

20 W halogen light.

• Remove the 2 screws fixing the Lighting support, and pull it out of from the Hood.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.
• Refit the Support, fixing it in place with the two screws removed as above.

Lamp	Power (W)	Socket	Voltage (V)	Dimension (mm)	ILCOS Code
	28	E14	220 - 240	104 x 35	HSGSB/C/UB-28-220/240-E14
	28	E14	230	85x25	HDG-28-230-E14-25
	20	G4	12	33 x 9	HSG/C/UB-20-12-G4
	35	GU10	230	51 x 50,7	HAGS-35-230-GU10-51/40
	50	GU10	230	51 x 50,7	HAGS-35-230-GU10-51/20
	20	GU4	12	40 x 35	HRGS-20-12-GU4-35/30
	20	GU5.3	12	46 x 51	HRGS-20-12-GU5.3-50/10
	16	G13	95	720 x 26	FD-16/40/1B-E-G13-26/720
	18	G13	57	589,8 x 26	FD-18/40/1B-E-G13-26/600
	9	G23	60 (lamp) 220-240 (starter)	167 x 28	FSD-9/27/1B-I-G23
	11	G23	91 (lamp) 220-240 (starter)	235,8 x 28	FSD-11/40/1B-I-G23

BbIITYCK BO3IYXA C3AIN

• TTObI cIeJIaTb OTBepCTHe IJIg OTBeIeHnBa BO3JyXa, cJIeIyET IIpIePJIHBaTbc CXeMbI, IIpIbEJIeHHoB B pa3JeIe "OTBepCTHnB CTeHE".
  KJIeIaMn OTKpbITb 3aJHee BbIyckHoe OTBepCTne BOzIyxa.
  -Для coeДинHeHЯ c Tpy6KoI 0 120 MM BcTaBnTb IpeXOДиH bJIaHeII 9 B bblnyckHoe OTBepCTne KOpIyca BbITJxKN.
  3aKpeIHTb Tpy6ky CIIeIHaJIbHbIMN Tpy6HbIMN 3aJHMamn. He06XoIHMbl MaTePnaJI He BXOJNT B KOMIIJEKT IIOCTaBKN.
• EcJH ecTb, BbHyTb ΦJIbTpbl IIpoTHB 3aIIaxOB Ha aKTHBOM yrJIe.
• YCTaHOBHTb 3aIgIyIIky 10 Ha BepXHEM BbIIyCKHOM OTBepCTHN BbITJIKKIN IIpHJIaIgEMbIMN BbHTAMH.

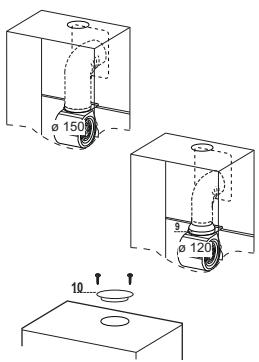

BbIIYCK BO3JvXACBEPXY

-Дя coeINHeHnC Tpy6KoI 120 MM BCTaBHTb IepexOHNbI ΦJIaHeI 9 B BbIyckHoe OTBepCThe KOpIyca BbITJxKN.
KJIeIaMn BbHyTb IeHTpaJIbHyIO qAcTb 3aIpyIiKN 10 N 3akpeIITb ee Ha BepXHEM BbIIyCKHOM OTBepCTHN BbITgKKN IIpHJa-raEMbIMn BnHTaMn.
3aKpeIHTb Tpy6ky CIIeHnJIbHbIMN Tpy6HbIMN 3aKHMamM. He06XoHNMbI MaTePnaJI He BXOJNT B KOMIIJEKT IIOCTaBKN.
- EcJIH ecTb, BbIHyTb ΦJIbTpbl IIpoTHB 3aIIaXOB Ha aKTINBHOM yrJIe.

BbIyCK BO3dYXA N3 ΦNJIbTPYIOUeM BbITJAKK

• EcJHn H3 ΦHJIbTpUIOIIe BbITIaKKN CHrTbI paHee ycTaHOBJIeHNbIe ee qactH, IIOCTaBHTb Hx Ha MeCTO.
  BcTaBnTb Tpy6ky H3 IxBx 7 BoФlaHeI.
• IIpHbHHTnTb peRyIINpyeMyIO peIeTky 8 K BbIINcKHomOy OTBepCTNIO BO3DyXa I INPOBepNTb ee IIOJIOKeHne Ha Tpy6Ke.
• IpoBepHTb HaJIHcHe 9HJIbTpOB IpOTnB 3aIIaXOB Ha aKTnBHOM yTJIe.

3JIeKTPnueCKOEIOJIKJIOUHHE

• CoeINHHNtB BbITJgKc C cTeBBIM HnIpyKeHHeM, yCTaHOVB DByXIOJIIOCHbI BbIKJIIOHaTeJIb C pa3BeJeHHem KOHTAKTOB He MeHee 3 MM.
  CHTbIPOTHBOKHNPOBBEi H 日 T 比 (CMOTPNpa3Je"YXoJ) HIOPBepHTb IpaBnJIbHOCTb IOJOKeHHra pa3BeMa IINTaHOIIeRo Ka6eJI Bpo3ETke BBITJIKN

A

B

C

D

E

F

G

H

Panaelb ynpablenia

aaiiaai iao jaii dai jieai jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii

1

Jblll jill jil l 1jol jgswal no aai

11 60 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 6

444 Juaa a laa y bily jill

aiaaii jia 100

a# 15

a 15

bawj jzj jy bai jai jia jia

120.

Jl) jlll lalil ylll rlll aalil 1ylll abelll alldll

（）dL 20

jbs jil gill jlll

a 102

j 1

i 1

.

aiisall aiiall ojiall 1j5j5 jol lal

aalbll g sllg cial 1 1 1 1 1 1 1 1 1 1 1 1 1

y

J 1234567890

3

Jaeu

aill jai i 1i aai k

j 1

y jll jjll aIac elil xiaill lgl aai

Jaa

"aaa" 1

：

jill jabl aiziu y j 2 jglll

Jai

y 1 y

y 1

j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

12 12

15

a

aayaaayaaayae ayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaaayaa

（）

Jl 2 Jll

Jalil 1llluee Iie Jleue JSoJgKall Jlaaiu

delyi aaiial jalall alil jali jll jalsill iic. jia jgs

i 1

Juiyai yiaowiyai yie aiaaiyaiyui jiyie gao xuei

cubllcbuocjduyglpeu550:asluuogaii his

Jgjbj=X) X 808 a

jss

.

adall bll 012 jui

11a 11

JSSALLsallgagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagag

11a jieole all 1ibill

gai gai jil jil

aas

Gvr gulllg 1

.

#

jaii jia jia jia jia jia jia

a a a a a a a a a a a a a a a a a a a a a

j 120 150

aill galllll lal lglalllll alg

8 j 10

1 7

.0150

gall

Jaa aaiy

alall xclw gll

aissall g j 9 aaii j 0120

jglll gdo jno cuiol aoi joll glal. ciuilll ciuie aowy bi y

J 1

.00000000000000000000000000000000000000000

gall

9 120

a.s 2ol

gall jlll 0111111111

ai = 70% all aj = 20% all

jssllgdo jooa oJoll gall ciiil lalabw y baiy

Jg j 1

ealil ydi o! 4ygi gglg

g Ieauu uuey uuuuie 1 aIae aaiuuaaal luiuau

.

.7 aaiil 1e ay

a 8 a

.

y

( jnblll 1j) Jx n e y

. 1

ylll llll jssj g no sLi (aillll ajj jbj) jn all jj

aagall galege gaaal aaiall

A

B

C

D

E

F

G

H

a < 1, - 4 < 0

.

j

aannnnn aen annnnae an ene eanee

Jauuui

Ji jLgji jgsjglg jglgge gagall

jlll j 100000000000000000000000000000000000000000

jilll lll

a jll a jll al a jll a jll a jll a jll a jll

.

a a a a a a a a a a a a a a a a a a a a a a a a a a

blalil jc

g( 1) S( 2) = 12 · S( 1) · S( 2) = 12 × 2t × ( 1 - 12t)

1

J 1

Lagjpi jni jnil jnilaill b jui xil bll i jx1

LJw

ILCOS	(اللهadam)	(اللهadam)	اللهadam	(اللهadam)	(اللهadam)
HSGSB/C/UB-28-220/240-E14	104 x 35	220 - 240	E14	28
HDG-28-230-E14-25	85x25	230	E14	28
HSG/C/UB-20-12-G4	33 x 9	12	G4	20
HAGS-35-230-GU10-51/40	51 x 50,7	230	GU10	35
HAGS-35-230-GU10-51/20	51 x 50,7	230	GU10	50
HRGS-20-12-GU4-35/30	40 x 35	12	GU4	20
HRGS-20-12-GU5.3-50/10	46 x 51	12	GU5.3	20
FD-16/40/1B-E-G13-26/720	720 x 26	95	G13	16
FD-18/40/1B-E-G13-26/600	589,8 x 26	57	G13	18
FSD-9/27/1B-I-G23	167 x 28	60 (اللهadam)220-240 (اللهadam)	G23	9
FSD-11/40/1B-I-G23	235,8 x 28	91 (اللهadam)220-240 (اللهadam)	G23	11
