Product type	Extractor hood
Brand	Franke
Model	BOX PLUS FBI 737 XS
Color	Not specified (probably stainless steel or white)
Minimum installation height above cooking surface	650 mm
Air outlet diameter	150 mm (reducible to 120 mm)
Installation type	Built-in under wall cabinet (extraction or recirculation mode)
Number of motor speeds	4 speeds (including one timed 6 minutes)
Controls	4 touch keys: motor on/off, speed selection, lighting
Lighting	Integrated, controlled by key L
Grease filter	Self-supporting metal filters, dishwasher safe
Activated charcoal filter (recirculation mode)	Replacement about every 4 months, not washable
Power supply	Mains, with bipolar switch (contact opening ≥3 mm)
Protection class	Class I (requires grounding)
Built-in dimensions (width x depth)	Approximately 495-675 mm (depending on image)
Weight	Not specified
Material	Stainless steel or lacquered
Maintenance	Clean exterior and interior with damp cloth and neutral detergent; avoid abrasive products
Warranty	Not specified
Included accessories	Frame profile, air outlet grille, reduction flange, nozzle with flap, fixing screws, manual
Standards	Compliant with applicable safety and installation standards

Frequently Asked Questions - BOX PLUS FBI 737 XS FRANKE

How to install the BOX PLUS FBI 737 XS extractor hood?

Installation must be carried out by a competent technician. The hood is mounted under a wall cabinet at a minimum distance of 650 mm from the cooking surface. Cut the opening in the cabinet according to the provided dimensions, insert the hood and fix it with the 10 screws supplied. In extraction mode, connect the 150 mm outlet (or 120 mm with reducer) to an exhaust duct. In recirculation mode, install the activated charcoal filters and direct the recycled air via the adjustable grille.

How to electrically connect the hood?

Connect the hood to the mains via a bipolar switch with a contact opening of at least 3 mm. Ensure the voltage matches that indicated on the rating plate and that the installation has a proper earth connection (class I).

What are the functions of the control panel keys?

The keys are: T1 to stop the motor, T2 speed 1, T3 speed 2, T4 for speed 3 (short press) or timed speed 4 for 6 minutes (long press 2 seconds), and L for lighting. Each key lights up solid when active.

How often should the grease filters be cleaned?

The self-supporting metal filters should be washed about every 2 months of use, or more frequently under heavy use. They are dishwasher safe. After washing, dry them before reinstalling.

How to replace the activated charcoal filters?

Activated charcoal filters are not washable and must be replaced about every 4 months. Open the panel, remove the grease filters, then the saturated charcoal filters (unclip). Install new filters and reassemble. Contact after-sales service to purchase filters.

Can I use the hood without external exhaust?

Yes, in recirculation mode. You need to install activated charcoal filters (not supplied) and direct the recycled air outlet grille. Ensure the room is properly ventilated if you use combustion appliances simultaneously.

What to do if the hood does not work?

First check the power supply (switch, fuse). Ensure filters are clean and properly placed. If the cord is damaged, have it replaced by the manufacturer or an authorized service. For any other issues, consult the manual or contact customer service.

What safety precautions should be observed during use?

Never flambé food under the hood. Avoid looking directly at the light with optical instruments. Do not touch hot parts. Ensure adequate ventilation if the hood operates with gas appliances. Respect safety distances.

How to clean the hood?

Clean the exterior with a damp cloth and a mild liquid detergent. For the interior, use a damp (not wet) cloth and mild detergent. Never use abrasive products, wet sponges, or water jets.

Where to find spare parts or accessories?

Contact Franke after-sales service or an authorized dealer. Activated charcoal filters, screws, grilles and other components are available. Consult the manual for exact references.

USER MANUAL BOX PLUS FBI 737 XS FRANKE

SAFETY INFORMATION......4

CHARACTERISTICS 7

INSTALLATION....8

USE 10

CARE AND CLEANING 11

INDICE

IT

CARACTERISTIQUES....25

INSTALLATION 26

UTILISATION 28

NETTOYAGE ET ENTRETIEN 29

INHALTSVERZEICHNIS

DE

INFORMACE O BEZPEČNOSTI....67

HLAVNÍ PARAMETRY 70

INSTALACE 71

POUŽITÍ 73

ČIŠTĚNÍ A ÚDRŽBA....74

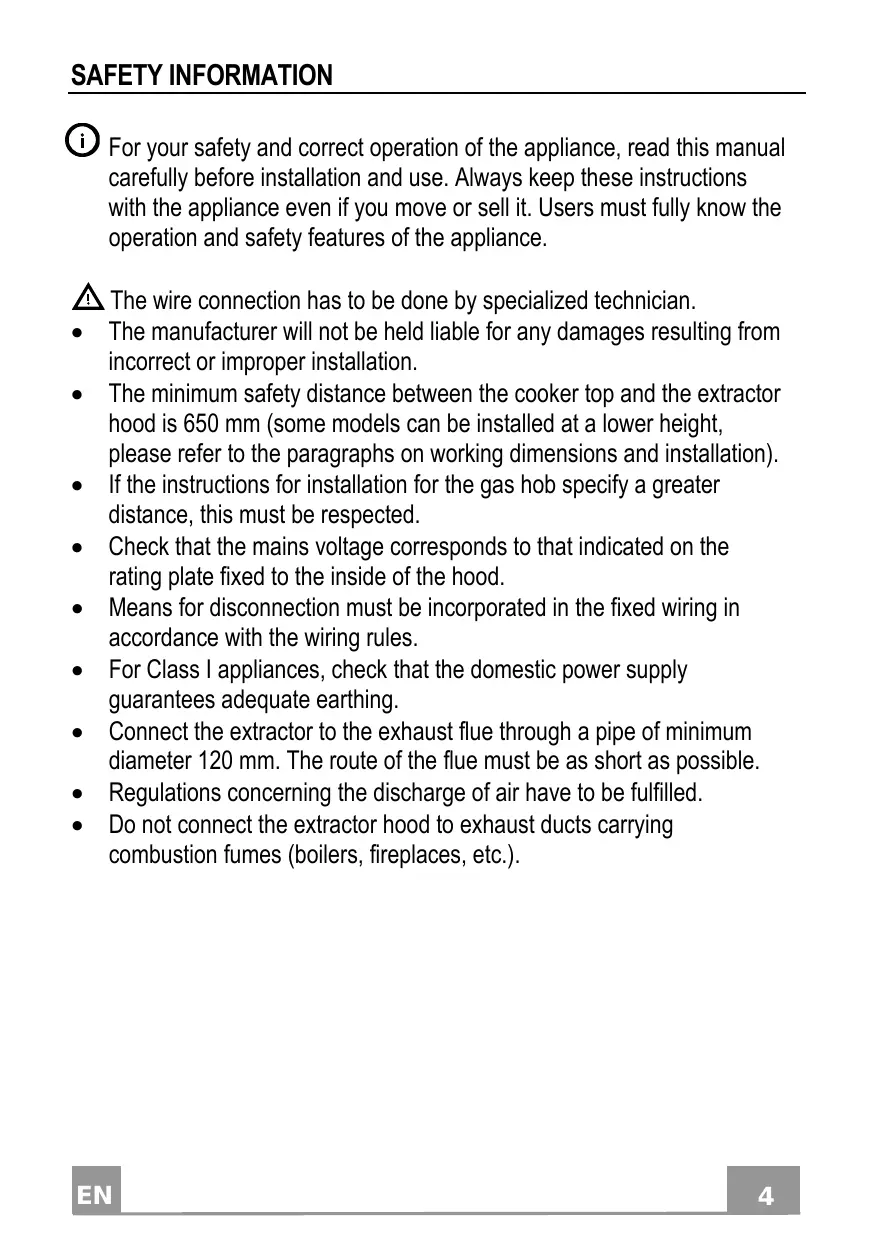

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

⚠ WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

⚠ WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

⚠️ Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol 📁 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

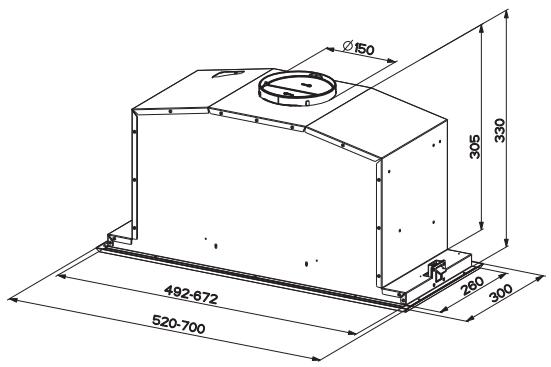

Dimensions

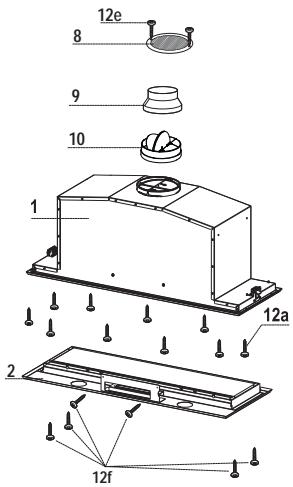

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with :Controls, Light, Blower, Filters
2	1	Frame
8	1	Directioned grid
9	1	Reducer Flange ø 150-120 mm
10	1	Damper ø 150 mm
Ref.	Q.ty	Installation Components
12a	10	Screws
12e	2	Screws 2,9 x 9,5
12f	6	Screws 2,9 x 6,5
	Q.ty	Documentation
	1	Instruction Manual

Fitting the Hood canopy

BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS:

• Disconnect the wires to the Commands at the connectors.
• Disconnect the wires to the Light at the connectors.
• The Hood can be installed directly on the underside of the wall unit (Minimum 650 mm from the Cooker Hob).
• Create an opening in the bottom of the wall unit, as shown.
• Insert the hood until the side supports snap into place.
• Fasten using the 10 screws 12a provided.
• Lock in position by tightening the screws Vf from underneath the hood.

Technical line drawing of a mechanical housing or enclosure with green directional arrows indicating motion (no text or symbols)

Technical diagram of a mechanical housing with mounting holes and green arrows indicating direction (no text or symbols)

• Open the suction panel by turning the specific knob.
• Disconnect the panel from the hood canopy by sliding the fixing pin lever.

- Remove grease filters.

- Screw the Frame into place using the 6 screws 12f, reconnect the wires to the Commands and Light, replace the metal grease filter and the Panel.

Illustration of a hand holding a tablet with a green arrow pointing to it, enclosed in a circular frame (no text or symbols)

Diagram showing a mechanical component with an arrow indicating rotational motion (no text or symbols present)

Pure diagram of a rectangular frame with circular tops and arrows indicating direction, no text or symbols present.

Pure structural diagram of a truss structure without any text, numbers, or symbols

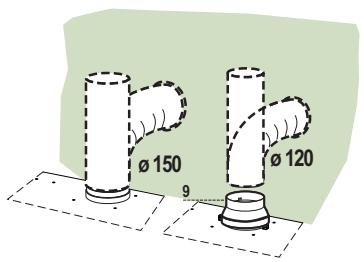

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

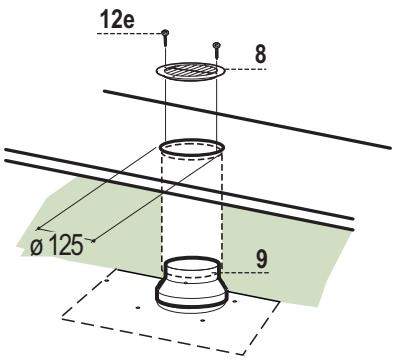

RECIRCULATION VERSION AIR OUTLET

• Cut a hole 125 mm in any shelf that may be positioned over the hood.
• Insert the reducer flange 9 on the hood body outlet.
• Connect the flange to the outlet on the shelf over the hood by using a flexible or rigid pipe 120mm .
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Fix the air outlet grid 8 on the recirculation air outlet by using the 2 screws 12e (2,9 x 9,5) provided.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm..

Control panel

T1	T2	T3	T4	L
○	1	2	3/i

BUTTON	FUNCTIONS
T1 Motor	Turns the Motor off.
T2 Speed	Turns the Motor on at Speed one. Button lights up continuously.
T3 Speed	Turns the Motor on at Speed two. Button lights up continuously.
T4 Speed	When pressed briefly, turns the Motor on at Speed three. Button lights up continuously.
	Pressed for 2 Seconds. Button flashes.Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
L Light	Turns the Lighting System on and off. Button lights up continuously.

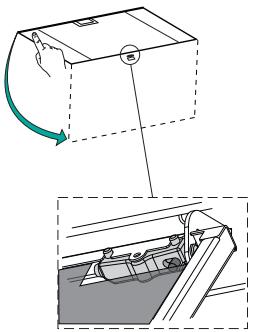

Opening Panel

• Open the Panel by pulling it.
• Clean the outside with a damp cloth and neutral detergent.
• Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Pull the comfort panels to open them.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.
• Close the comfort panel.

Illustration of a hand pressing a green arrow on a smartphone screen (no text or symbols)

Activated charcoal filter (Recirculation version)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

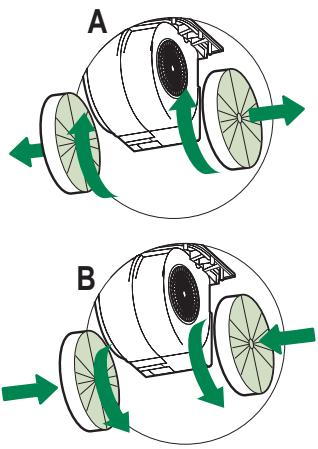

REPLACING THE ACTIVATED CHARCOAL FILTER

• Open the comfort panels pulling them downwards.
• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A).

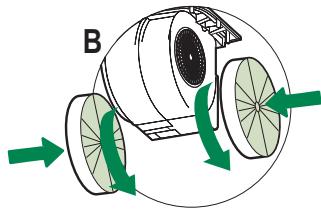

• Fit the new filters (B).
• Replace the metal grease filters.
• Close the comfort panels.

Diagram of two mechanical components labeled A and B with green directional arrows indicating rotation or movement (no text or symbols beyond labels)

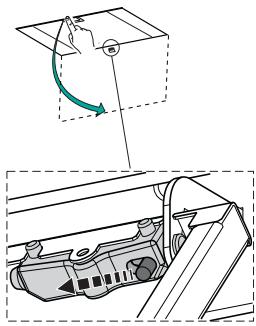

Lighting unit

- For replacement contact technical support ("To purchase contact technical support").

Isometric diagram of a mechanical housing with green directional arrows indicating movement or force (no text or symbols)

Technical diagram of a mechanical housing with green arrows indicating upward motion and 12a bolted detail (no text or symbols)

Hand holding a tablet device with a green arrow pointing to it, enclosed in a circular frame (no text or symbols)

Diagram showing a mechanical component with a green curved arrow indicating rotation or motion, no text or symbols present.

Pure technical diagram of a rectangular frame with circular ends and directional arrows, no text or symbols present.

Pure structural diagram of a truss structure without any text, numbers, or symbols

Connessioni

USCITA ARIA VERSIONE ASPIRANTE

Filtri antigrasso

PULIZIA FILTRI ANTIGRASSO METALLICI AUTOPORTANTI

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the left side (no text or symbols present)

Diagram of two mechanical components labeled A and B with green directional arrows indicating rotation or movement (no text or symbols beyond labels)

Illuminazione

3D diagram of a mechanical housing with green directional arrows indicating movement or force (no text or symbols)

Technical diagram of a mechanical housing with mounting holes and green arrows indicating direction (no text or symbols)

Illustration of a hand interacting with a smartphone screen showing a green directional arrow (no text or symbols)

Pure diagram of a rectangular frame with corner arrows and circular tops, no text or symbols present.

Pure architectural or structural diagram with no visible text, numbers, or symbols

SORTIE AIR VERSION ASPIRANTE

Illustration of a hand pressing a green arrow on a smartphone screen (no text or symbols)

Diagram of two mechanical components labeled A and B with green directional arrows indicating rotation or movement (no text or symbols beyond labels)

Éclairage

Technical diagram of a mechanical housing with mounting holes and green arrows indicating direction (no text or symbols)

Illustration of a hand inserting a green arrow on a smartphone screen (no text or symbols)

Diagram showing a mechanical component with an arrow indicating rotation or force direction (no text or symbols present)

Pure diagram of a rectangular frame with circular ends and directional arrows, no text or symbols present.

Pure architectural line drawing of a symmetrical structure with two arrows pointing to specific points (no text or symbols)

Fettfilter

SELBSTTRAGENDER METALLFETTFILTER REINIGUNG

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the left side (no text or symbols present)

Diagram of two mechanical components labeled A and B with green directional arrows indicating rotation or movement (no text or symbols beyond labels)

Beleuchtung

LED-Strahler

Technical diagram of a mechanical housing with two green arrows indicating upward motion, and 12a bolt holes below (no text or symbols)

Illustration of a hand interacting with a tablet device (no text or symbols visible)

Diagram showing a mechanical component with a green curved arrow indicating rotation or motion, no text or symbols present.

Pure electrical circuit lines without any symbols

Pure architectural or structural line drawing without any text, numbers, or symbols

ASPIRATÖRLÜ MODEL HAVA ÇIKIŞI

Illustration of a hand pressing a green arrow on a smartphone screen (no text or symbols)

Koku Önleyici Aktif Karbon Filtreler (Filtreli Sistem)

Diagram of two mechanical components labeled A and B with green directional arrows indicating rotation or movement (no text or symbols beyond labels)

Aydınlatma

Technical diagram of a mechanical housing with mounting holes and green arrows indicating direction (no text or symbols)

Illustration of a hand holding a tablet with a green arrow pointing to it, enclosed in a circular frame (no text or symbols)

Pure diagram of a rectangular frame with circular tops and arrows indicating direction, no text or symbols present.

Pure structural diagram of a truss structure without any text, numbers, or symbols

SYSTEM WENTYLACJI W TRYBIE CYRKULACJI ZEWNETRZNEJ

Filtry tłuszczowe

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the left side (no text or symbols present)

Diagram of a mechanical device with rotating wheels and green arrows indicating motion (no text or symbols)

Diagram of a mechanical device with green arrows indicating rotational or directional movement (no text or symbols)

Oświetlenie

Illustration of a hand interacting with a smartphone displaying a green arrow (no text or symbols)

Pure electrical circuit lines without any symbols

Isometric diagram of a mechanical device with green directional arrows indicating motion or force (no text or symbols)

Technical diagram of a mechanical housing with mounting holes and green arrows indicating direction (no text or symbols)

Technical diagram showing a mechanical component with an arrow indicating rotation or motion, no text or symbols present.

Pure architectural line drawing of a symmetrical structure with two arrows pointing to the bottom section (no text or symbols)

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the left side (no text or symbols present)

Isometric diagram of a mechanical device with green directional arrows indicating motion or force (no text or symbols)

Technical diagram of a mechanical housing with mounting holes and green arrows indicating direction (no text or symbols)

Illustration of a hand holding a tablet with a green arrow pointing to it, enclosed in a circular frame (no text or symbols)

Pure electrical circuit lines without any symbols

Pure architectural or structural line drawing without any text, numbers, or symbols

VÝSTUP VZDUCHU U NASÁVACÍHO PROVEDENÍ

Tukové filtry

ČIŠTĚNÍ KOVOVÝCH SAMONOSNÝCH TUKOVÝCH FILTRŮ

Illustration of a hand pressing a green arrow on a smartphone screen (no text or symbols)

Diagram of two mechanical components labeled A and B with green directional arrows indicating rotation or movement (no text or symbols beyond labels)

Světlení
