TUNNEL FTU 3807 W XS 89H - Range hood FRANKE - Free user manual and instructions

Product type	Canopy extractor hood
Brand	Franke
Model	TUNNEL FTU 3807 W XS 89H
Dimensions (W x D x H)	89 cm x 50 cm x 15-20 cm (body height), total height up to 150 cm with chimney
Weight	Approximately 25 kg
Power supply	220-240 V ~ 50 Hz
Motor power	280 W
Lighting	White LED (class 1M per EN 60825-1), 7 W
Speeds	4 speeds (including timed intensive boost 6 min)
Special functions	24h function (extraction 10 min/h), delayed shut-off 30 min, optional remote control
Grease filters	Metallic, dishwasher-safe, clean every 2 months (or more often)
Charcoal filter	Active, non-washable, replacement every 4 months (or more often)
Alarms	Filter saturation alarm (FG for grease, FC for charcoal)
Minimum safety distance	650 mm between hood and cooking surface
Electrical class	Class I (earthing required)
Exhaust	Diameter 120 or 150 mm (with included reducer)
Recirculation version	Possible with included connection
Noise level	Approximately 52-62 dB(A) depending on speed
Maintenance	Clean exterior with a damp cloth and mild detergent
Spare parts	Filters, LED, remote control available via Franke technical support
Repairability	Replace LED bulbs by a professional (contact technical support)

Frequently Asked Questions - TUNNEL FTU 3807 W XS 89H FRANKE

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm for electric and gas hobs. Check the specific instructions of your hob if a larger distance is required.

How to clean the grease filters?

The metal grease filters can be cleaned in a dishwasher or by hand with a mild detergent. It is recommended to clean them every 2 months, or more often with heavy use. The FG alarm lights up after 100 hours of use.

When to replace the activated charcoal filter?

The activated charcoal filter should be replaced approximately every 4 months, or more often if the hood is used heavily. It is not washable. The FC alarm activates after 200 hours of operation.

How to reset the filter alarm?

Turn off the lights and the motor, then deactivate the 24h function if active. Press the E button for about 3 seconds to reset the alarm.

Can I use the hood in recirculation mode?

Yes, the hood can be used in recirculation mode. The recirculation kit is supplied: it includes a recirculated air outlet piece and adapters. Follow the assembly instructions to install the activated charcoal filter.

How to activate the 24h function?

Press the E button to activate the 24h function. The hood extracts at speed 1 for 10 minutes each hour. The symbol 24 is displayed and a dot flashes at the bottom right. Press again to deactivate.

How to use the delayed shut-off (Delay)?

Press the F button to activate the 30-minute delayed shut-off. The hood continues to run at the current speed and then turns off automatically. The dot at the bottom right flashes. Press again or turn off the motor to cancel.

Can I control the hood remotely?

Yes, an optional remote control (not supplied) allows you to control the hood. To activate the remote control, turn everything off and hold the F button for 5 seconds. Use a LR03-AAA 1.5 V battery.

How to replace the LED lighting?

The LED lighting is integrated and must be replaced by a professional. Contact Franke technical support to obtain a spare part and have the repair done.

What to do if the hood stops working?

First check the power supply and circuit breaker. Make sure the filters are not clogged. If the problem persists, contact Franke after-sales service. Do not disassemble the hood yourself.

USER MANUAL TUNNEL FTU 3807 W XS 89H FRANKE

FTU 3807 I XS 77H V2

INDEX

EN

RECOMMENDATIONS AND SUGGESTIONS 3
CHARACTERISTICS 6
INSTALLATION 8
USE 12
MAINTENANCE 13

INDICE

IT

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

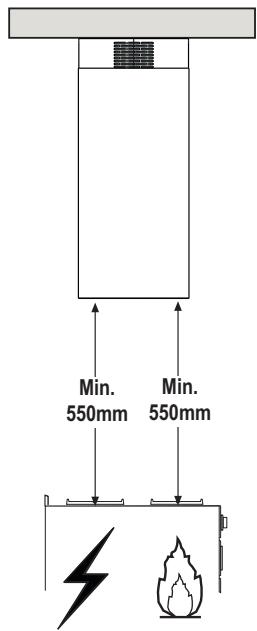

• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with nonelectrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

When the cooker hood is used in conjunction with

appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use; overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

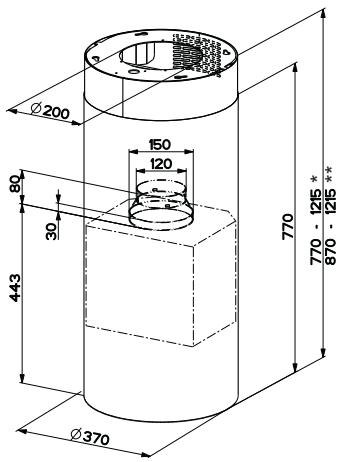

Dimensions

• Dimensions of the hood in ducting version.
  ** Dimensions of the hood in recycling version.

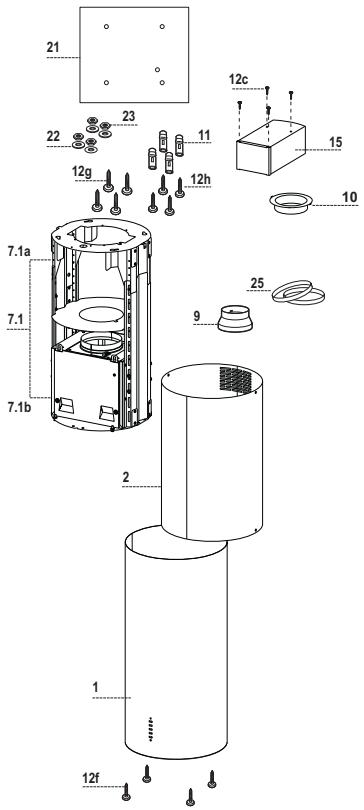

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Chimney Upper
7.1	1	Telescopic frame complete with extractor, consisting of:
7.1a	1	Upper frame
7.1b	1	Lower frame
9	1	Reduce Flangeø 150-120 mm
10	1	Flangeø 120 mm
15	1	Recirculation Air Outlet Connection
25		Pipe clamps (not included)

Q.ty Documentation

Ref.	Q.ty	Installation Components
11	4	Wall Plugsø 10
12c	4	Screws 2,9 x 6,5
12f	4	Screws M6 x 10
12g	4	Screws M6 x 80
12h	4	Screws 5,2 x 70
21	1	Drilling template
22	4	6.4 mm int. dia washers
23	4	M6 nuts

1 Instruction Manual

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

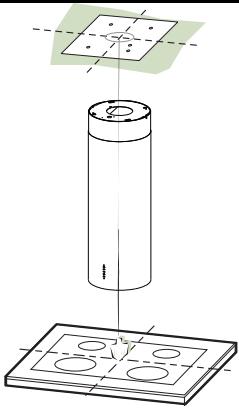

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20mm : drill 10mm (immediately insert the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill 7 mm .
• For the power supply cable feed, drill 0.10mm .

• For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust duct connection.

• Insert two screws of the following type, crossing them and leaving 4 - 5mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20mm , Screws 12h, supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

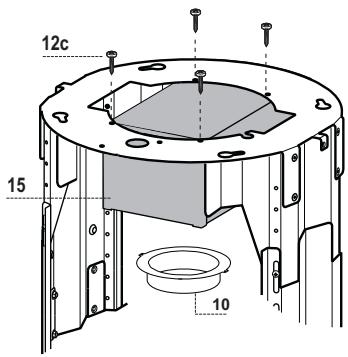

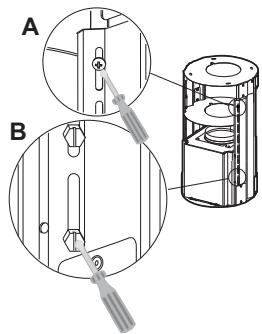

PREPARATION OF THE FRAME FOR THE HOOD IN RECYCLING VERSION

In case the hood is used in recycling version it is necessary to prepare the frame with all the necessary connection pieces. In order to make the installation easier it is necessary to lengthen the frame:

• Unscrew the two screws 2.1 fixing the upper chimney to the frame and pull the chimney out.
• Unscrew the four safety screws placed at the top in the frame separation area. (A).
• Unscrew the eight metric screws connecting the two columns, placed on both sides of the frame (B).

Installation of components in recycling version:

Fix the recycling air outlet piece 15 to the upper part of the frame using four 12c screws supplied with the hood.
Fix the flange (0120) 10 to the lower part of the recycling air outlet 15.
- Put the reducer flange 9 on the hood body outlet.
- At this point, join the flanges with a pipe. In order to calculate the height of the pipe it is necessary to estimate the height of the hood (mm) and subtract 615 mm. (H pipe = H hood-615).
- Lengthen the frame so that the pipe can be inserted. Place the pipe between the two flanges and block it. Make sure that the height of the frame is correct considering the height of the cooker hood (H frame = H hood - 184). Adjust the height of the frame and tighten again the earlier removed screws. Tighten again the safety screws in order to give more stability to the structure.
Fix the pipe with the pipe clamps 25 supplied with the hood.

WARNING: For the Recirculation version only: remove the sticker from the slots on the upper chimney!

FIXING THE FRAME

• Lift the frame up, making sure that the index over the frame plate is turned forwards.
• Fit the frame slots onto the two screws inserted in the ceiling as above, and turn until reaching the centre of the adjustment slot.
• Tighten the two screws and fasten the other two screws provided; before locking the screws completely, it is possible to adjust the frame by turning it, making sure that the screws do not come out of their housing in the adjustment slot.
• The Frame must be securely fastened so as to support both the weight of the Hood and the stress caused by occasional axial pressure against the fitted Appliance. After fixing, make sure that the base is stable even when the Frame is subjected to lateral stress.
• If the Ceiling is not strong enough in the area where the hood is to be fixed, the Installer must strengthen the area using suitable plates and counterplates anchored to resistant structures.

Ducted version air exhaust system Connection

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120~mm the choice of which is left to the installer.

• To install a 0.120 ~mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
  Fix the pipe using the pipe clamps 25 (not provided).
• Remove any activated charcoal filters.

Installing of the chimney and fixing of the hood

When the hood is installed in recycling version the chimney has to be positioned with the slots upwards. When the hood is installed in ducting version it has to be positioned in the opposite way.

• Place the chimney on the frame and fix it to the upper part of it with the earlier removed screws. When installing the hood in recycling version make sure that the slots correspond to the air outlet of the recycling air outlet piece 15.
• Open the lighting unit by slightly pulling the notch. Remove the unit from the hood by sliding the fixing pivot.
• Remove the filter pushing it towards the back side of the hood unit and simultaneously pulling downwards.
• Remove possible charcoal filters.
• In order to fix the hood body to the frame insert the 4 screws 12f in their seats. It is necessary to leave at least 4 - 5mm gap between the screw heads and the frame plate.
• Hook the hood canopy to the frame and turn it to the left until it reaches the stop, then lock the screws immediately to prevent the hood canopy from falling out accidentally.

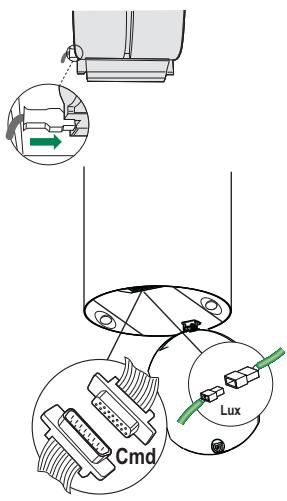

Electrical connection

• Connect to hood to the mains supply through a double pole switch with at least 3mm clearance between the contacts.
• Make sure that the connecting piece of the cable is correctly put in the socket.
• Connect the Cmd- connectors of the controls.
• Connect the Lux-connectors of the lighting system.
• In the recycling hood put the charcoal filter in its place.
• Put the metal grease filter and the comfort panel into their proper seats.

Control panel

Button	Function	Display
A	Turns the suction motor on and off at speed one.	Displays the set speed
B	Decreases the working speed.	Displays the set speed
C	Increases the working speed.	Displays the set speed
D	Activate intensive speed from any other speed, including motor off. This speed is set to operate for 6 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes.	Displays HI and the time remaining once very second.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm On and Off.	FC+Punto (2 flashes)-Alarm On. FC+Punto (1 flash)-Alarm Off.
E	24H function Turns the suction motor on at speed one and effects one 10 minute extraction every hour.	Displays 24 and the spot at the bottom right flashes once every second, while the motor is running. It is disabled by pressing the button.
	When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off.	FF flashes three times. When the procedure terminates, the indication shown previously turns off: FG indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. FC indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.
F	Delay function Activate automatic switch-off with a 30' delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off.	Displays the operating speed and the spot at the bottom right flashes once a second.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Remote Control On and Off.	IR+Punto (2 flashes)-Alarm On. IR+Punto (1 flash)-Alarm Off.
G	Turns the lighting system on and off at maximum intensity.
H	Turns the Courtesy Lighting on and off.

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

Cleaning the Comfort Panels

Pull the Comfort Panel to open it.
- Disconnect the panel from the hood canopy by sliding the fixing pin lever.
- The comfort panel must never be washed in a dishwasher.
- Clean the outside by using a damp cloth and neutral liquid detergent.
- Clean the inside as well by using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.
- When the above operation has been completed, hook the panel back to the hood canopy and close it by turning the knob in the opposite direction.

Metal grease filters

They can be washed in the dishwasher, and need to be cleaned whenever the FG sign appears on the display or at least once every 2 months use, or more frequently if use is particularly intensive.

Resetting the alarm signal

• Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.
• Press button E (see the paragraph on Use).

Cleaning the Filters

• Open the lighting unit by pulling on the nocth.
• Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry completely before replacing. (If the surface of the filter changes colour as time goes by, this will have absolutely no effect on the efficiency of the filter itself.)
• Replace, taking care to ensure that the handle faces forwards.
• Replace the lighting unit.

It cannot be washed or regenerated, and must be changed when the FC symbol on the display appears, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.

• Press D and hold for approximately 5 Seconds:

• The message FC+Puntino flashes twice, A.C. Filter saturation alarm ACTIVATED

• The message FC+Puntino flashes once, A.C. Filter saturation alarm DEACTIVATED

CHANGING THE ACTIVATED CHARCOAL FILTER

Resetting the alarm signal

• Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.
• Press button E (see paragraph on Use).

Changing the Filter

• Open the lighting unit by pulling on the notch provided.
• Remove the Metal grease filters.
• Remove the saturated Activated charcoal filter, using the hooks provided.
• Fit the new Filter, hooking it into place.
• Replace the Metal grease filters.
• Close the lighting unit again.

Lighting unit

Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7 W . Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

• For replacement contact technical support. ("To purchase contact technical support")

Franke S.p.a.

Via Pignolini,2

37019 Peschiera del Garda (VR)

www.franke.it
