OKC6111MW - Range hood AMICA - Free user manual and instructions

Product type	Extractor or recirculation hood
Brand	Amica
Model	OKC6111MW
Dimensions (L x H x P)	717 - 890 mm x 250 mm x 505 mm
Estimated weight	15 kg
Power supply	230 V / 50 Hz
Motor power	200 W (estimated)
Lighting	2 bulbs (incandescent, halogen or LED type depending on model)
Speeds	3 speeds (1 low, 2 medium, 3 high)
Control	Slider for fan and lighting
Grease filter	Aluminum, dishwasher safe
Charcoal filter	Optional for recirculation mode, replace every 2 months
Duct diameter	120 mm or 150 mm
Minimum distance above the cooktop	See the technical data sheet (generally 65 cm for electric, 75 cm for gas)
Installation	Wall-mounted, permanent fixing
Warranty	According to warranty card
Standards	CE, directives 2014/35/EU, 2014/30/EU, 2009/125/EC, 2011/65/EU

Frequently Asked Questions - OKC6111MW AMICA

How to clean the grease filter of the hood?

The aluminum grease filter must be cleaned at least once a month. You can wash it in the dishwasher or by hand with a mild detergent.

When should I replace the charcoal filter?

The charcoal filter is used in recirculation mode. It must be replaced every 2 months, or more often with heavy use. It cannot be washed or regenerated.

How to change the hood bulb?

Refer to figure 7 in the manual. Use a bulb with the same specifications as the original (incandescent, halogen or LED). If the diagram is not present, contact an authorized service.

Can I use the hood without a grease filter?

No, it is strictly prohibited to operate the hood without the aluminum grease filters. This presents a fire risk.

What is the recommended mounting height?

The minimum height above an electric cooktop is generally 65 cm, and 75 cm for a gas cooktop. Consult the product's technical data sheet for exact values.

Does the hood work in extraction or recirculation mode?

Both modes are possible. In extraction mode, air is exhausted outside through a duct. In recirculation mode, air is filtered by a charcoal filter and returned to the room. The mode must be set manually depending on the model.

What to do if the hood does not turn on?

First check that the appliance is plugged in and that the circuit breaker has not tripped. If the problem persists, contact an authorized service. Do not attempt to repair it yourself.

Can I clean the hood with abrasive products?

No, use a damp cloth and a neutral detergent. Avoid solvents, alcohol and caustic products, especially on stainless steel.

Is the hood suitable for flambé cooking?

No, it is strictly prohibited to cook with an open flame (flambé) under the hood due to fire risk.

Where can I find spare parts?

Contact Amica after-sales service or an authorized center. Charcoal filters and bulbs are available from authorized dealers.

USER MANUAL OKC6111MW AMICA

Simple line drawing of a kitchen chimney with steam rising (no text or symbols)

OKC6111MI / OKC5111MW / OKC6111MW / SKM 61 AW / OKC5111MI

EN- Table of contents

NOTES ON SAFETY 7

UNPACKING 10

DISPOSAL OF OLD APPLIANCE 10

OPERATION 11

KITCHEN HOOD CONTROLS 11

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 12

CLEANING AND MAINTENANCE 13

MAINTENANCE 13

GREASE FILTER 13

ACTIVATED CHARCOAL FILTER 13

LIGHT 13

WARRANTY AND AFTER SALES SERVICE 14

WARRANTY 14

PL- Spis treści

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA 16

ROZPAKOWANIE 20

USUWANIE ZUŻYTYCH URZĄDZEŃ 20

OBSŁUGA 21

STEROWANIE OKAPEM 21

INNE WAŻNE INFORMACJE DOTYCZĄCE OBSŁUGI OKAPU 22

CZYSZCZENIE I KONSERWACJA 23

KONSERWACJA 23

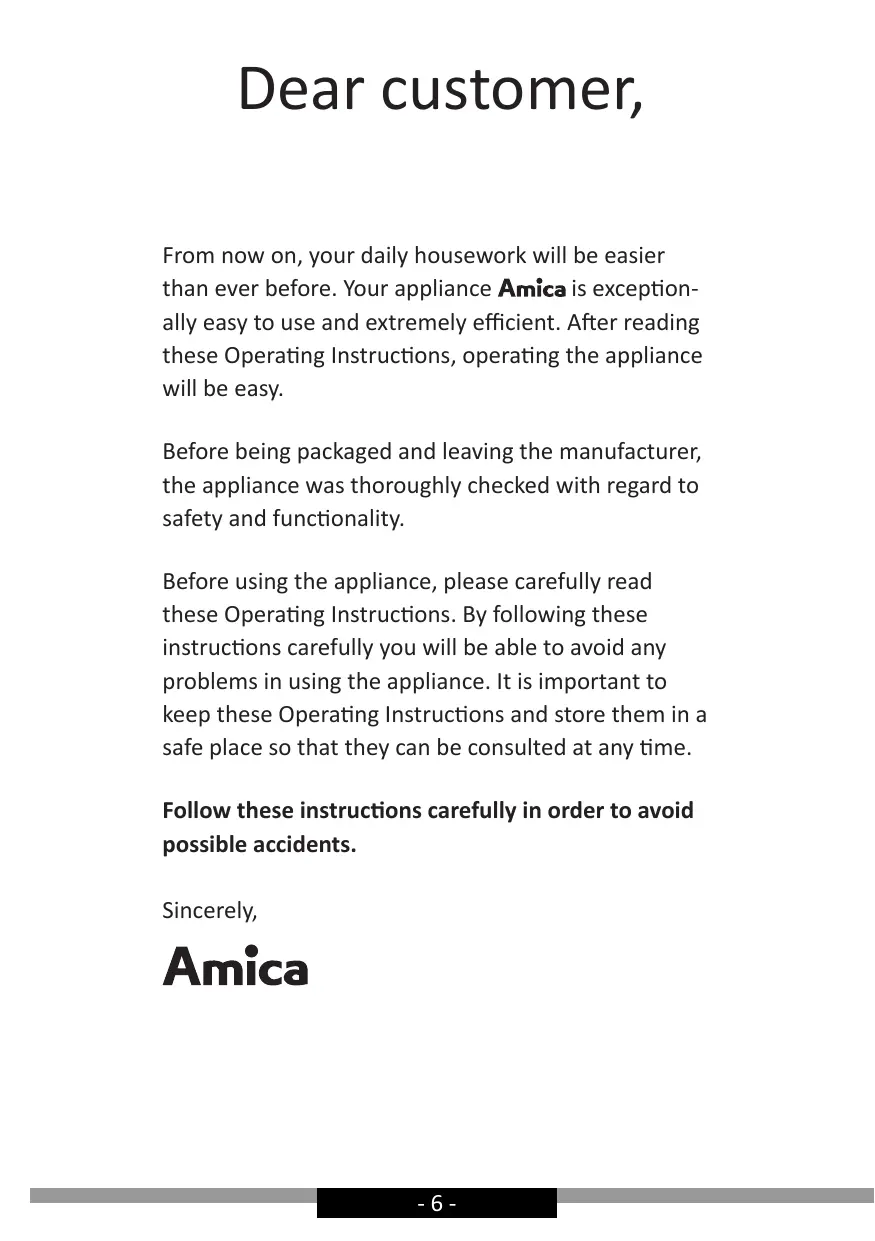

From now on, your daily housework will be easier than ever before. Your appliance Amica is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture

over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.
• When cooking on fat, supervise the pans constantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replacing the filter or repair work.
• Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.
• Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)
• Do not lean on the hood.
• The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters

results in a fire risk.

- If the power cord is damaged it should be replaced by a specialised service centre.

- Ensure that it is possible to disconnect the appliance from the mains by removing the plug or switching off the bi-polar switch.

- This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.

- Particular attention should be paid not to allow unaccompanied children to use the appliance.

- Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.

- Before use, extend and straighten the power cord.

- Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

- Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.

- Do not operate your kitchen hood without the aluminium grease filters.

- It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.

- Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.

- Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.

- Hanging kitchen hoods operate only in air circulation / odour absorber mode

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Kitchen hood controls

Control Panel is shown in Figure 4, for reference it is also shown below:

3210

10

The control panel is equipped with two sliders:

1- Low speed. Use this speed when cooking a little food with hardly any fumes.
2- Medium speed. Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
3- High speed. Use this speed when frying or grilling, with large amount of fumes.
0- Set the slider in this setting to turn off the fan

Use lighting slider 🙏 to turn lighting on (1) / off (0). The lighting operates independently of hood fan.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the € symbol and been issued with a declaration of compliance made available to market regulators.

Szanowny Kliencie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing no waste or elimination (no text or labels present)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two crossed lines (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

OKC5

OKC6

CARBON FILTER CONDUIT

h = 650mm h = 650mm h = 450mm h = 650mm

	EN	PL	CS	SK	RO	HU	BG
1	Upper chimney cover	Maskownica górna	Horní krycí lišta	Horná krycia lišta	Element de mascare superior	Felső díszítóelem	Горен маскиращ елемент
2	Lower chimney cover	Maskownica dolna	Spodní krycí lišta	Dolná krycia lišta	Element de mascare inferior	Alsó díszítóelem	Долен маскиращ елемент
3	Control Panel	Panel sterowania	Ovládací panel	Ovládací panel	Panou de comandă	Irányítópanel	Панел за управление
4	Lighting	Oświetlenie	Osvětlení	Osvetlenie	Sistem de iluminare	Világítás	Осветление
5	Screws and wall plugs	Wkręty i kołki rozpo- rowe	Vruty a hmoždinky	Skrutky a rozperné kolíky	Śruburi și dibluri	Csavarok és tiplik	Дюбели и винтове
6	Upper chimney cover holder	Uchwyt maskownicy górnej	Úchyt horní krycí lišty	Držiak hor- nej krycej lišty	Suportul capacului superior	Felső fedél fogantyúja	Държач на горния маскиращ елемент
7	Air guide	Kierownica powietrza	Ovládání vzduchu	Smerovač vzduchu	Volanul aerului	Légterelő kormány	Елемент направля-ващ потока въздух
8	Air flaps	Klapki zwrotne	Zpětné klapky	Spätné klapky	Plăcuțe retur	Visszacsapó szelepek	Възвратни клапи

Technical diagram of a car interior showing engine, fan, and dashboard components (no text or labels)

3m

Technical line drawing of a mechanical assembly with a conical component and two spring-like components, no text or symbols present.

3n

2x 3,9x9,5

30

3210

10

Technical diagram of a mechanical component with arrows indicating direction (no text or symbols)

5a

Technical diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

5b

Diagram showing three views of a solar panel structure with grid patterns and mounting points (no text or symbols)

6

Diagram of a car interior showing a vehicle's side profile with a red arrow indicating direction (no text or symbols present)

Diagram showing a red directional arrow pointing downward through a circular component, with no visible text or symbols.

7

Amica S.A.
