KH 17179 E - 4040729171793 - Range hood AMICA - Free user manual and instructions
Find the device manual for free KH 17179 E - 4040729171793 AMICA in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Extractor hood |
| Brand | AMICA |
| Model | KH 17179 E |
| Power supply | 220-240 V ~ 50 Hz |
| Number of speeds | 4 speeds (1 to 4) |
| Controls | Touch controls with digital display |
| Lighting | LED with intensity adjustment (full power / reduced) |
| Special functions | Automatic mode with odor sensor, timer (10-90 min), filter saturation indicator |
| Operating modes | Extraction (external exhaust) or recirculation (with charcoal filter) |
| Grease filter | Washable aluminium filter (monthly cleaning in dishwasher or by hand) |
| Charcoal filter | Replaceable activated charcoal filter (replace every 2 months under normal use) |
| Minimum mounting height | Depending on hob: generally 65-75 cm for electric, 75 cm for gas |
| Exhaust duct diameter | 120 or 150 mm |
| Maintenance | External cleaning with damp cloth and neutral detergent; do not use abrasive products |
| Safety | Programmable automatic shut-off, child safety (not suitable for unsupervised children), must disconnect before maintenance |
| Spare parts available | Aluminium grease filter, activated charcoal filter |
| Warranty | According to the provided warranty card |
Frequently Asked Questions - KH 17179 E - 4040729171793 AMICA
How to install the KH 17179 E extractor hood?
Installation must be carried out by a qualified installer. Follow the steps illustrated in the manual (fig. 3). Ensure the wall can support the weight of the hood and respect the indicated mounting heights. Before plugging in, check that the power cord is not crushed.
What is the recommended mounting height?
The mounting height above the hob is generally 65 to 75 cm for an electric hob and at least 75 cm for a gas hob. Refer to the product card for exact values.
How to clean the grease filter?
The aluminium grease filter must be cleaned at least once a month. You can wash it in the dishwasher or by hand with a mild detergent. After a few washes, the colour may change, this does not affect its function.
When and how to replace the charcoal filter?
The activated charcoal filter is used in recirculation mode. It must be replaced every 2 months (or more often under heavy use). It cannot be washed or regenerated. Follow the instructions in fig. 6 for removal.
How to set the timer?

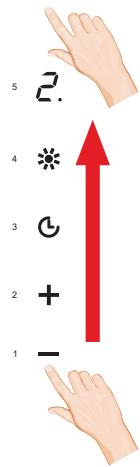

Start the motor at the desired speed. Press the Clock button (clock symbol). Use the '+' button to select the shut-off time (from 1 to 9, multiplied by 10 minutes). Confirm by pressing the Clock button again. To cancel, press the Clock button again during the countdown.
What to do if the display shows 'F' or 'C'?

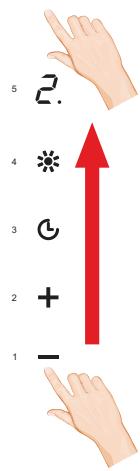

'F' indicates that the grease filter needs cleaning (after 100 operating hours) and 'C' indicates that the charcoal filter needs replacing (after 220 hours). After performing the maintenance, clear the icon by pressing and holding the Clock button.
How to change the lighting intensity?
Press the lighting button (L) briefly to turn on/off. Hold the button for about 2 seconds to switch from full intensity to reduced intensity, and vice versa.
The hood is noisy, what should I do?
Check that the filters are clean and correctly installed. A blocked filter can increase noise. Ensure the exhaust duct is not obstructed. If the noise persists, contact customer service.
Can I use the hood without a grease filter?
No, it is forbidden to use the hood without a grease filter. The grease filter protects the motor and prevents fire hazards. Always ensure it is in place.
What to do in case of breakdown or malfunction?
Unplug the appliance. Check the fuses and that the plug is fully inserted. If the problem persists, call a qualified professional. Do not attempt to repair yourself. The damaged cord must be replaced by the manufacturer or its after-sales service.
User questions about KH 17179 E - 4040729171793 AMICA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
