USER MANUAL UA-HG30E-B SHARP

Operation Manual UA-HG30E Air Purifier With Huidifying Function

EN DE ES PT FR PL NL UA-HG30E

“Plasmacluster” and “Device of a cluster of grapes” are trademarks of Sharp Corporation.

* The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm3, which is measured around the centre of a room with the “high-density Plasmacluster 7000” applicable

ﬂoor area (at 1.2 m height above the ﬂoor) when the product is placed close to a wall at the MAX mode setting.

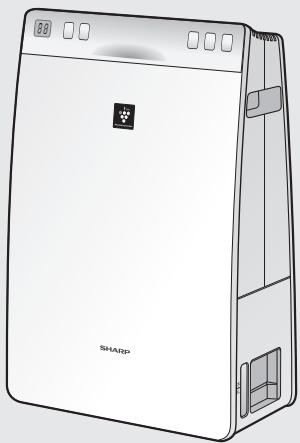

AIR PURIFIER with Humidifying Function

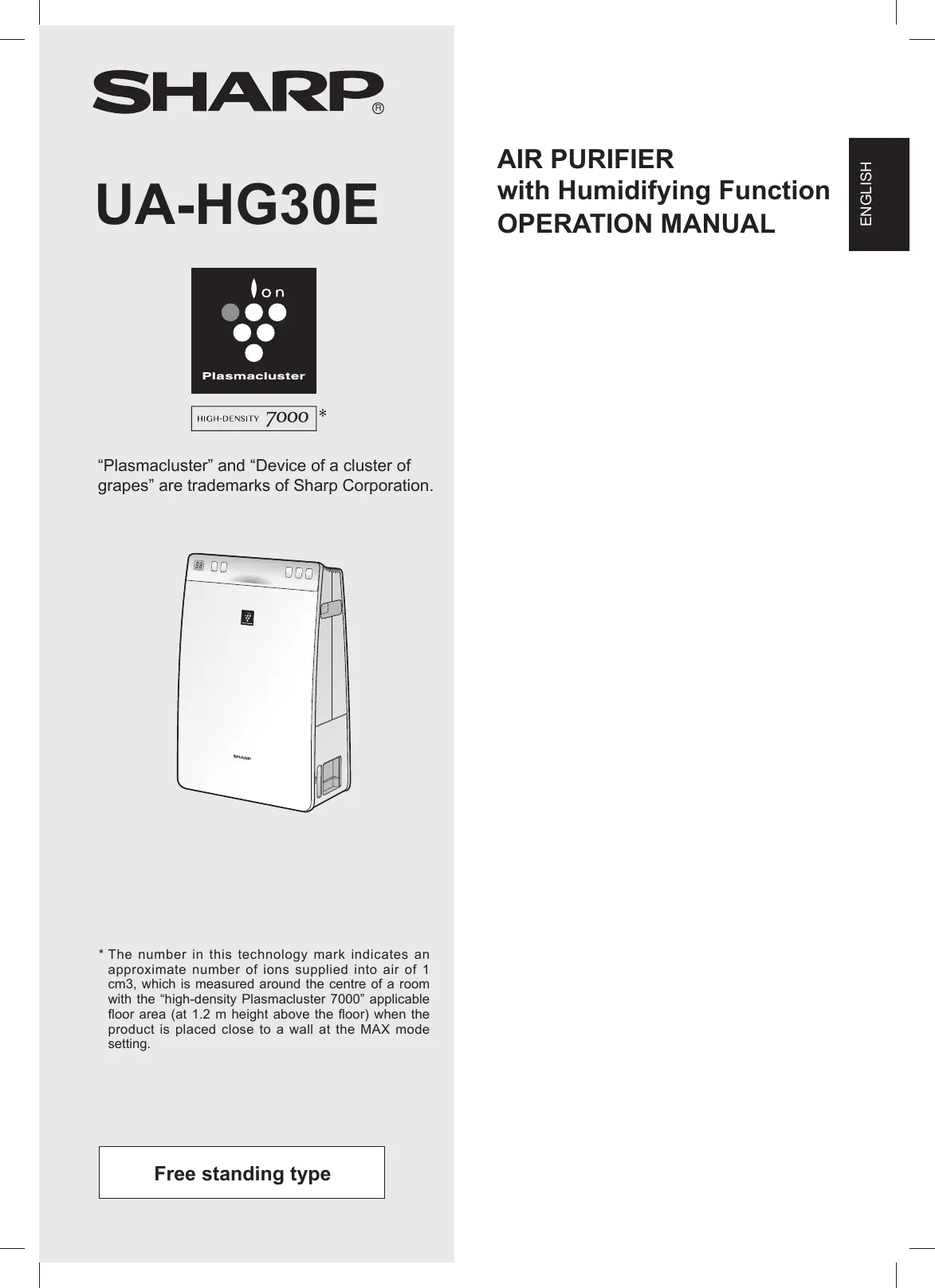

OPERATION MANUAL ENGLISH R Before operating your new air puriﬁer, please read the following

The air puriﬁer draws in room air through the air intake, circulates it through a Pre-Filter, a Deodorizing Filter and a HEPA Filter inside the unit, and then discharges it through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns that pass through the ﬁlter and also helps absorb odours. The Deodorizing Filter gradually absorbs odours as they pass through the ﬁlter. Some odours absorbed by the ﬁlters will break down over time, causing additional odours. Depending on usage conditions, and especially if the product is used in environments signiﬁcantly more severe than a normal household, these odours may become noticeable sooner than expected. If these odours persist, replace the ﬁlters. (Ref. E-16)

• The air puriﬁer is designed to remove air-suspended dust and the odours. The air puriﬁer is not designed to remove harmful gases such as carbon monoxide contained in cigarette smoke. The air puriﬁer may not completely remove an odour if the source of the odour is still present.

FEATURES CONTENTS A Unique Combination of Air Treatment

Technologies Triple Filtration System + Plasmacluster + Humidiﬁcation

IMPORTANT SAFETY INSTRUCTIONS E-2

Pre-Filter traps dust and other large airborne particles.

Deodorizing ﬁlter absorbs many common household odours.

HEPA ﬁlter traps 99.97% of particles as small as 0.3 microns.

FRESHENS By emitting a balance of positive and negative ions, Plasmacluster air treatment is a natural process.

HUMIDIFIES Can operate up to 5 hours per ﬁlling.**

*When air is circulated through the ﬁlter system. **Room size: up to 16 m2 Sensor technology continuously monitors air quality and automatically adjusts operation based on air purity and humidity level.

Thank you for purchasing this SHARP Air

Puriﬁer. Please read this manual carefully before using the air puriﬁer. After reading, keep the manual in a convenient location for future reference.

ENGLISH ENGLISH IMPORTANT SAFETY INSTRUCTIONS Always follow basic safety precautions when using electrical appliances, including the following:

WARNING – Always observe the following to reduce the risk of electrical shock,

• Read all instructions before using the unit.

• Use only a 220-240 volt outlet. • Do not use the unit if the power cord or plug is damaged or if the connection to the wall outlet is loosened. • Periodically remove dust from the power plug. • Do not insert ﬁngers or foreign objects into the air intake or air outlet. • When removing the power plug, always hold the plug and never pull the cord. Failure to do so can cause a short circuit resulting in electrical shock or ﬁre. • Do not remove the plug when your hands are wet. • Do not use this unit near gas appliances or ﬁreplaces. • Always unplug the unit when reﬁlling the Humidifying Tray, cleaning the unit, or when the unit is not in use. Failure to do so can cause a short circuit resulting in electrical shock or ﬁre. • In order to avoid safety hazards, if the power cord is damaged, it must be replaced by either the manufacturer, a service agent, a Sharp authorized Service Centre or a similarly qualiﬁed service provider. • Only a Sharp Authorized Service Centre should service this air puriﬁer. Contact the nearest Service Centre for any problems, adjustments, or repairs. • Do not operate the unit in rooms where aerosol insecticides are present. Do not operate the unit in rooms where there is oily residue, incense, sparks from lit cigarettes, or chemical fumes in the air. Do not operate the unit in places where it may get wet, such as a bathroom. • Be cautious when cleaning the unit. Strong corrosive cleansers can damage the exterior. • When carrying / moving the unit, ﬁrst remove the Humidifying Tray, and then hold the unit by the handles on both sides. • Carrying / moving the unit when there is water in the Humidifying Tray can cause the following: • Electrical shock. • Damage to the unit caused by internal spillage. • Water spillage. • Do not drink the water in the Humidifying Tray.

NOTE – What to do if the unit interferes with radio or TV reception

If the air puriﬁer interferes with radio or television reception, try one or more of the following measures: • Adjust or reposition the receiving antenna. • Increase the distance between the unit and the radio or TV. • Connect the equipment into an outlet on a circuit different from that of the radio or TV receiver. • Consult the dealer or an experienced radio/TV technician for help.

CAUTIONS CONCERNING OPERATION

• Do not operate the unit without the ﬁlters and the Humidifying Tray properly installed. • Keep the unit away from water. • Do not wash and reuse the HEPA ﬁlter and Deodorizing ﬁlter. Doing so will not improve ﬁlter performance and can also cause electric shock or operating malfunctions. • Clean the exterior with a soft cloth only. Do not use volatile liquids or detergents. Doing so can damage or crack the exterior of the unit. In addition, doing so can cause sensor malfunctions. • The frequency of descaling maintenance will depend on the hardness of and the impurities in the water that you use; the harder the water the more often descaling will be necessary.

• Replace the water in the Humidifying Tray daily with fresh tap water, and regularly clean it (Ref. E-14 and E-15). When the unit is not in use, dispose of the water in the Humidifying Tray.

Leaving water in the Humidifying Tray can cause mold, bacteria, and bad odours. In rare cases, such bacteria can be a health hazard. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

IMPORTANT SAFETY INSTRUCTIONS

• Before moving the unit, make sure it is not operating, and remove the Humidifying Tray while holding the side handle of the unit. • When removing / reattaching the Humidifying Tray, be careful not to get your ﬁngers caught inside the unit. • When moving the unit, use the handles on both sides. Do not move the unit when it is in operation. • Do not block the air intake or air outlet. • Do not place the unit near or on hot objects, such as stoves or heaters, or where it may come into contact with steam. • Always operate the unit in an upright position.

INSTALLATION GUIDELINES

• When using the unit, place it at least 2 metres away from equipment that emits electric waves, such as televisions or radios, to avoid electrical interference. • Avoid locations where the sensors are exposed to direct wind. Failure to do so can cause the unit to malfunction. • Avoid locations where furniture, fabrics, or other objects can come in contact with the unit and interfere with the intake and outtake of air. • Avoid locations where the unit is exposed to condensation or drastic changes in temperature. Appropriate room temperature is between 0 – 35 ºC. • Place the unit on a level and stable surface with sufﬁcient air circulation. When placed on heavy carpet, the unit may vibrate slightly. Place the unit on a level surface to avoid water leakage from the Humidifying Tray. • Avoid locations that generate grease or oily smoke. Failure to do so can cause the unit exterior to crack and the sensors to malfunction. • The dust collecting ability of the unit is effective even when the unit is as close to 3 cm from the wall, the surrounding walls and ﬂoor may get dirty. Please place the unit at a distance from the wall. The wall directly behind the air outlet may become dirty over time. When using the unit for an extended period of time at the same location, periodically clean the walls adjacent to it.

• Follow the instructions in this manual for proper ﬁlter care and maintenance.

1. In the European Union

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste.

There is a separate collection system for these products.

IF YOU WISH TO DISPOSE OF THIS EQUIPMENT, DO NOT USE THE ORDINARY WASTE BIN, AND DO NOT PUT THEM INTO A FIREPLACE!

Used electrical and electronic equipment should always be collected and treated SEPARATELY in accordance with local law. Separate collection promotes an environment-friendly treatment, recycling of materials, and minimizing ﬁnal disposal of waste. IMPROPER DISPOSAL can be harmful to human health and the environment due to certain substances! Take USED EQUIPMENT to a local, usually municipal, collection facility, where available. If in doubt about disposal, contact your local authorities or dealer and ask for the correct method of disposal. ONLY FOR USERS IN THE EUROPEAN UNION, AND SOME OTHER COUNTRIES; FOR INSTANCE NORWAY AND SWITZERLAND: Your participation in separate collection is requested by law. The symbol shown above appears on electrical and electronic equipment (or the packaging) to remind the users of this. Users from PRIVATE HOUSEHOLDS are requested to use existing return facilities for used equipment. Return is free of charge. If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer who will inform you about take-back. You might be charged for the costs arising from take-back. Small equipment (and small quantities) might be taken back by your local collection facility. For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities. For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

ENGLISH A. Information on Disposal for Users (private households)

(Plug shape varies by country.)

10 11 12 13 14 15 16

Operation Panel / Display (Ref.E-5)

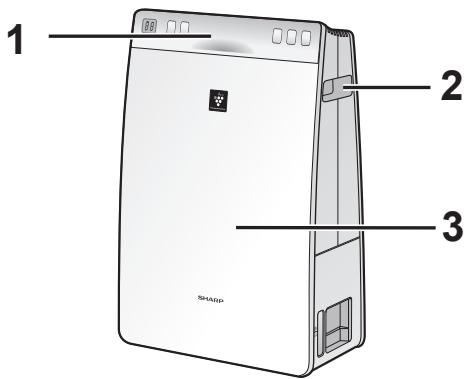

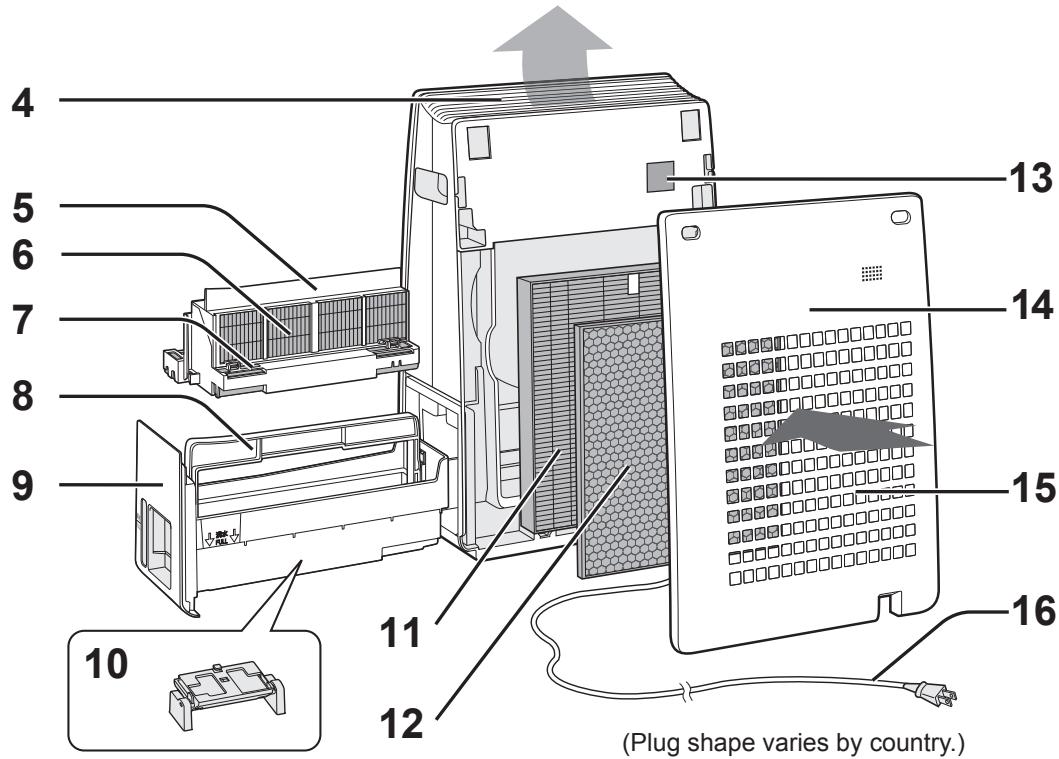

Handle (2 Locations) Main Unit Air Outlet Filter Frame Humidifying Filter Float (in Filter Frame) Tray Handle

Float HEPA Filter Deodorizing Filter Sensor Filter / Sensor (internal) Back Panel (Pre-Filter) Air lnlet Power Cord / Plug

Display Dust Sign Indicates the air purify level 3 colours. Clean

Humidity / Temperature monitor

Indicates the approximate humidity / temperature level in the room.

Green Unit needs water

Temperature 0 to 50ºC is displayed at 1ºC-intervals.

Humidity 20 to 90% is displayed at 1%-intervals.

1 START/STOP Display Select Button

2 Indicator Light (green)

(Press 3 sec.) LIGHT ON/OFF Button

FAN SPEED Button 7 (Press 3 sec.) Plasmacluster Ion ON/OFF Button 8 Fan Speed Indicator Lights (green) 9

(Press 3 sec.) FILTER RESET Button

Filter Indicator Light (orange) Plasmacluster Ion Indicator Light (blue) OFF Timer Indicator Light (green)

ENGLISH Always be sure to remove the power plug from the wall outlet.

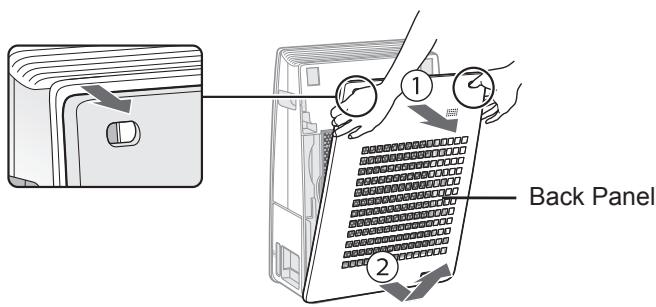

Remove the Back Panel.

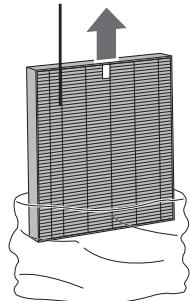

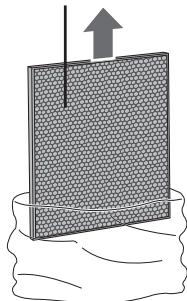

Remove the Filters from the plastic bag.

Place the surface with tag.

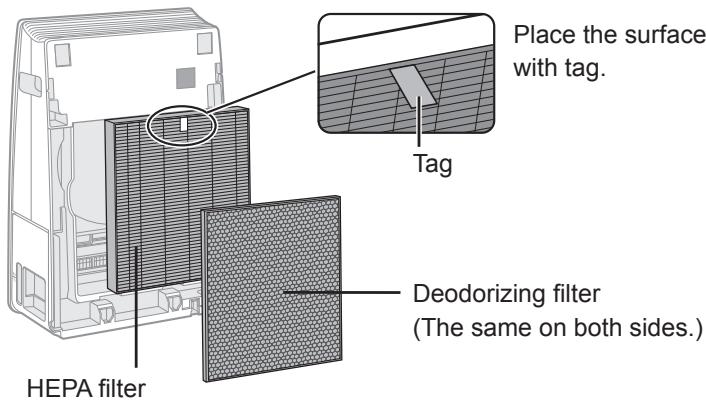

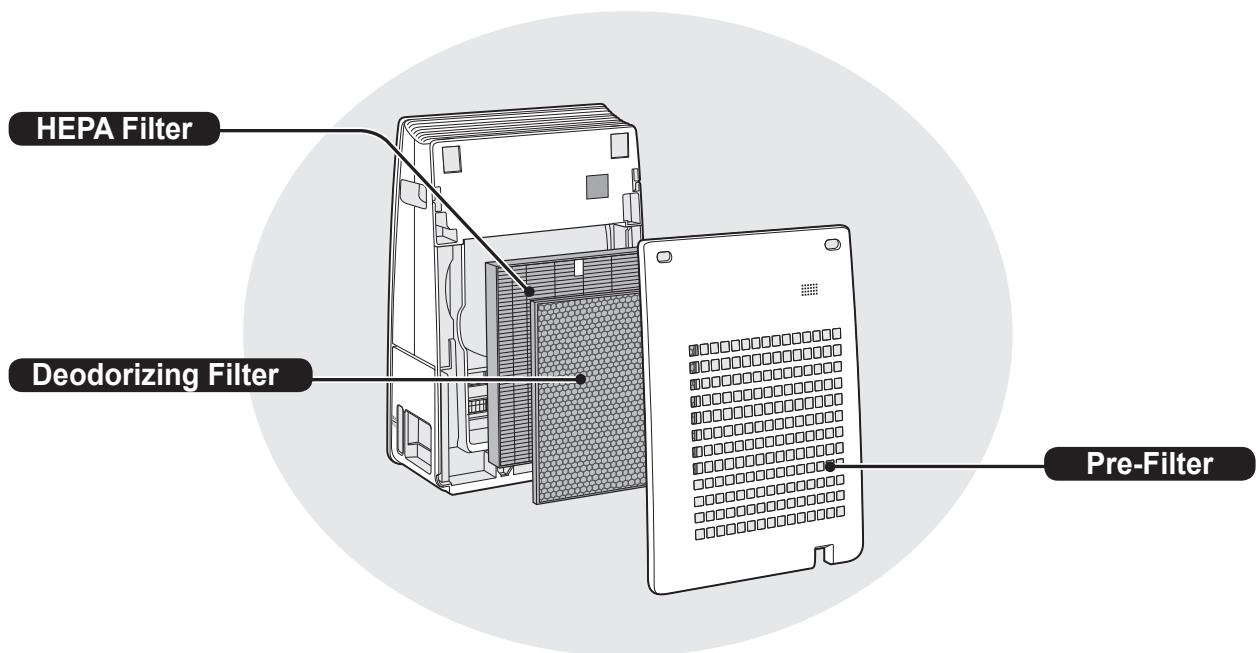

Install the Filters in the correct order as shown.

(The same on both sides.) HEPA ﬁlter

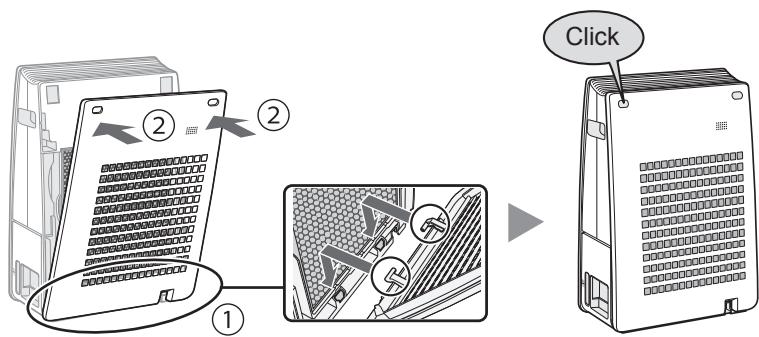

Install the Back Panel.

ENGLISH REFILLING THE HUMIDIFYING TRAY Humidify air passed through by vaporizing water pumped up from Humidifying Tray.

The unit can be used even without water in the Humidifying Tray.

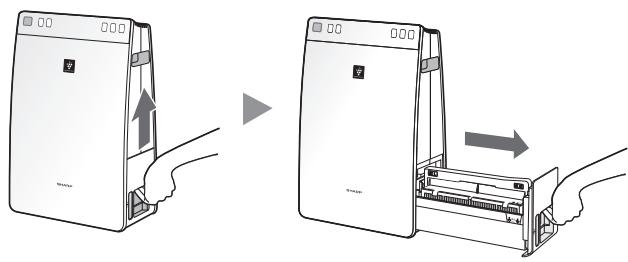

Pull out the Humidifying Tray.

CAUTION Clean the Humidifying Tray if it becomes dirty or there is a noticeable odour. (Ref. E-14,E-15)

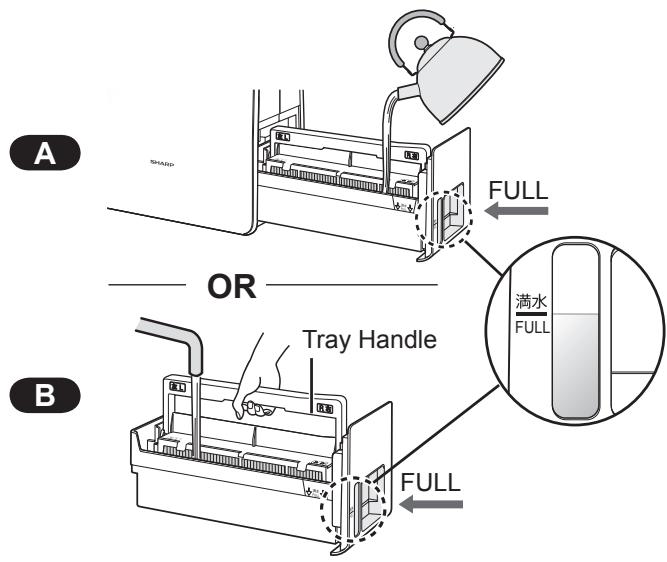

Fill the Humidifying Tray with tap water by method A or B .

• The Filter Frame is ﬂoated up when water is ﬁlled.

• When carrying the Humidifying Tray, hold it with both hands or grip the Tray Handle. • Gently ﬁll it with water to avoid splash water. • Do not ﬁll beyond the “FULL” indicator. The Humidifying Tray does not get into the unit if water is ﬁlled too much.

Install the Humidifying Tray.

• Return the Tray Handle to its original position before installing.

Locate the Handle in front of Separator.

Handle on or behind Separator.

• Do not expose the unit to water. Doing so can cause a short circuit or electrical shock. • Use only fresh tap water. Using other water sources risks the growth of molds, fungi, or bacteria. • Do not use hot water (40 ºC), chemical agents, aromatic substances. Doing so can deform the unit or cause it to malfunction. • When removing and installing the Humidiﬁying Tray, be careful not to spill any water.

• Select the desired fan speed by

• Unless the power cord has been unplugged, the operation starts in the previous mode it was operated in.

CLEAN ION SHOWER Releases high-density Plasmacluster ions and discharges strong air ﬂow for 60 minutes.

• When the operation ﬁnishes, the unit will return to the prior operation mode. It is able to change the other mode during this mode.

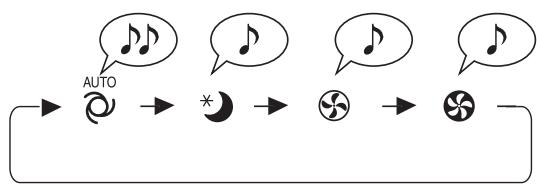

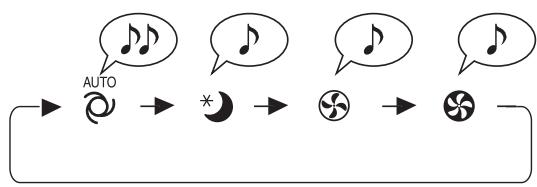

FAN SPEED Select the desired fan speed.

• Front surface Indicators go off automatically.

• The fan speed is automatically switched between HIGH and LOW depending on the humidity and the amount of impurities in the room.

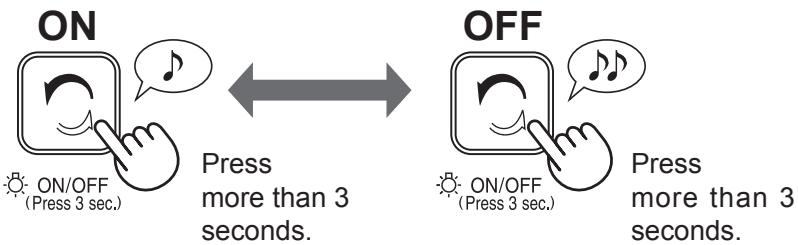

USEFUL FUNCTION ENGLISH LIGHT CONTROL You can set the front surface Indicators to OFF when the Indicator is too bright.

ON OFF Press more than 3 seconds.

Press more than 3 seconds.

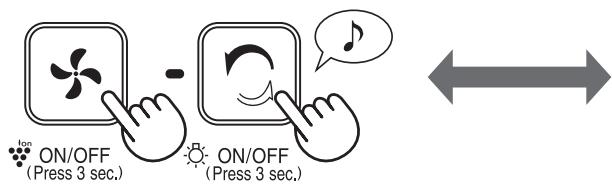

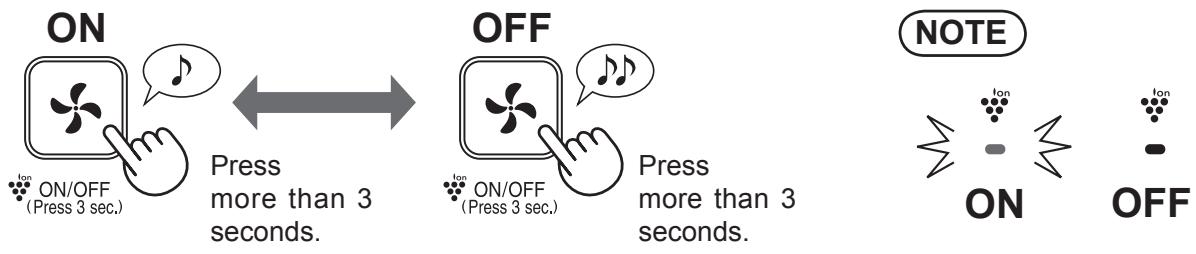

Plasmacluster Ion ON/OFF When Plasmacluster Ion is ON, the Plasmacluster Ion Indicator Light is on. (blue)

OFF ON Press more than 3 seconds.

NOTE Press more than 3 seconds.

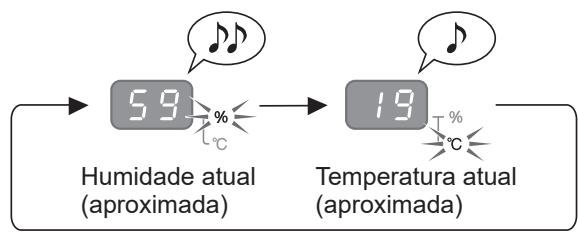

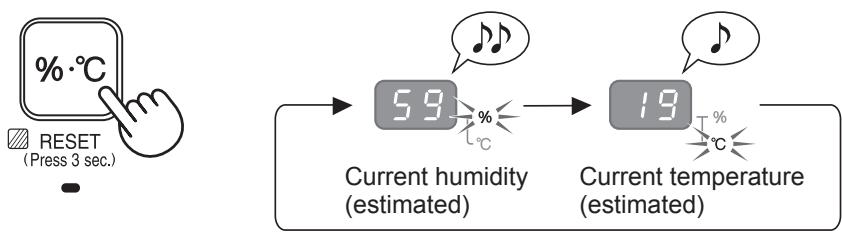

ON OFF Changing display (humidity / temperature)

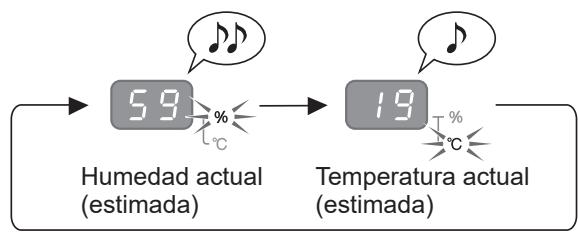

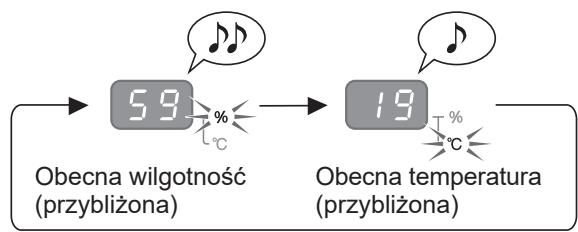

You can select either humidity or temperature at the time to be displayed.

NOTE Current temperature and current humidity indicate the estimated values.

The values may be different from values indicated by other temperature gauge hygrometer. • There is no function for adjusting the temperature. • Humidity setting cannot be adjusted. • Cannot dehumidify .

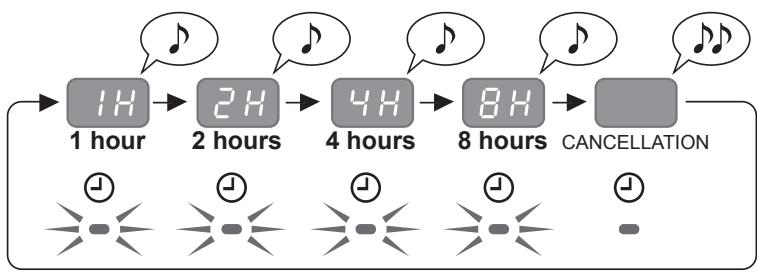

USEFUL FUNCTION Off TIMER Select the length of time you want. The unit automatically stops once the selected time is reached.

• Pressing displays the remaining time. while the remaining time is being displayed. • To reset the operating time, press

Auto RESTART If the unit is unplugged or if there is a power failure, the unit will resume operation with the previous settings after power is restored. The default setting is ON.

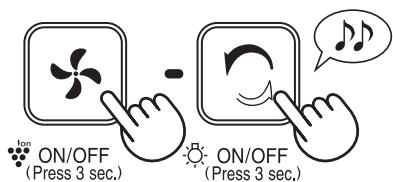

Press both buttons at the same time for 3 seconds or more.

, and indicators light up for 10 seconds, the setting is completed.

CARE AND MAINTENANCE The ﬁlter Indicator Light will turn on after approximately 720 hours.

(30 days × 24 hours =720 hours) This is a reminder to perform the maintenance described below. (Ref.E-13,E-14,E-15,E-16)

CARE INDEX ENGLISH FILTER INDICATOR After performing maintenance, reset the Filter Indicator.

Press more than 3 seconds.

In case of using at the location where air pollution and odour are signiﬁcant, maintain frequently even if Filter Indicator Light is not ON.

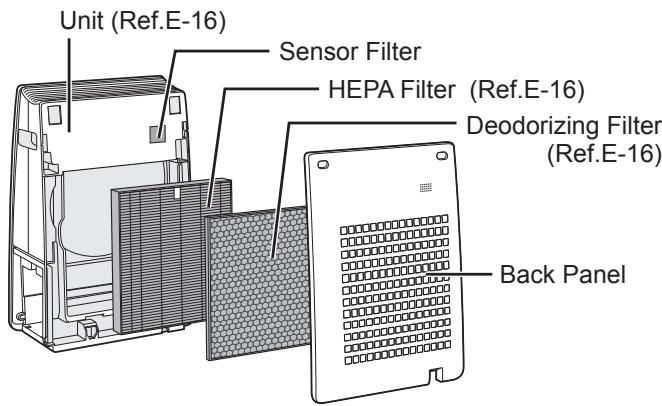

Sensor Filter HEPA Filter (Ref.E-16) Deodorizing Filter (Ref.E-16)

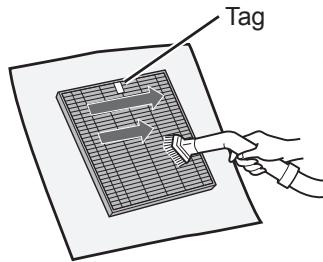

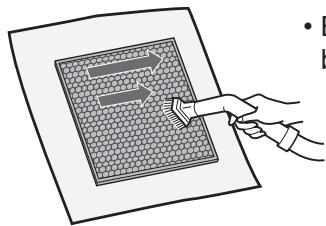

Gently remove dust with an appropriate cleaning tool, such as a vacuum cleaner with the proper attachment.

NOTE How to clean when overly dirty

1. Add a small amount of kitchen detergent to water and soak for about 10 minutes.

• DO NOT apply excessive pressure when scrubbing the back panel. 2. Rinse off the kitchen detergent with clean water. Back Panel

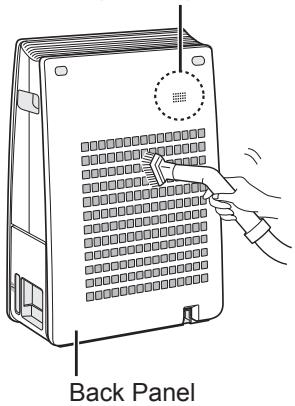

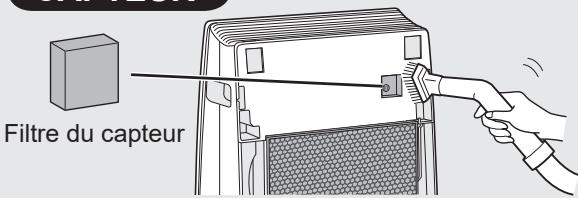

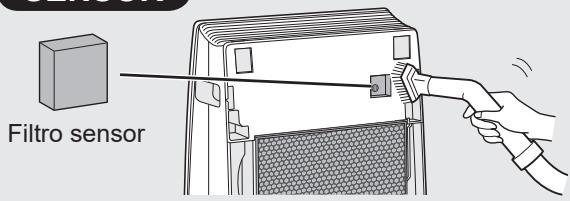

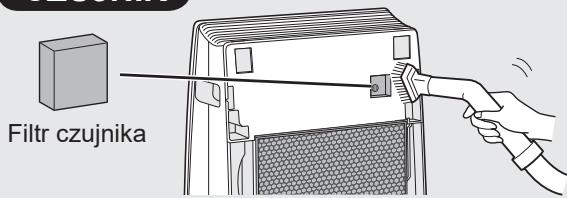

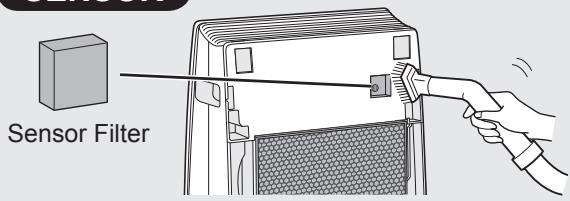

SENSOR Sensor Filter

3. Completely dry the ﬁlter in a well-ventilated area.

1. Remove the Back Panel and removing the Sensor Filter. 2. Gently remove dust from the Sensor with an appropriate cleaning tool, such as a vacuum cleaner with the proper attachment. 3. If the Sensor Filter is overly dirty, wash it with water and dry it thoroughly.

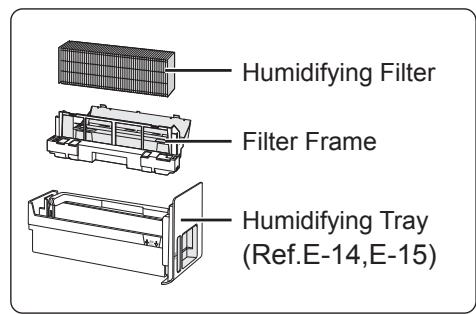

CARE AND MAINTENANCE HUMIDIFYING FILTER / TRAY Odour occurrence may be suppressed when washing Humidifying Filter and Humidifying Tray with water carefully even if the Filter Indicator Light is not ON.

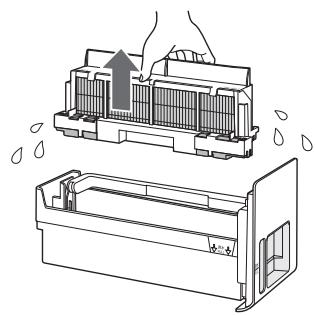

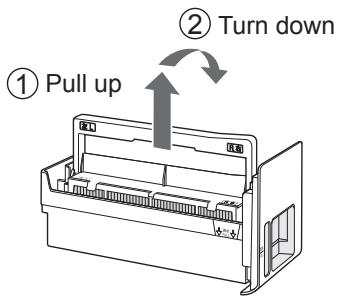

Remove the Humidifying Filter from the Tray.

Turn the handle down on the reverse side.

CAUTION Remove the Filter Frame.

Remove the Humidifying

• Drops of water may drip from the Humidifying Filter and the Filter Frame.

Rinse the Humidifying Tray, the Filter Frame and the Humidifying Filter.

CAUTION Cross-Section view

• Do not remove the Floats.

• If the Float comes off from the Humidifying Tray, install it in the order shown below. 1. Insert the ﬂoat under this tab.

3. Insert the tab on the other side of the ﬂoat into the hole.

2. Insert the tab of the

How to remove the water scale

NOTE Recommended descaling solutions

• Citric acid (available at some drugstores) • 100% bottled lemon juice with no pulp.

1. Soak in water with a descaling solution for about more 30 minutes.

• When using lemon juice as your descaling solution, allow for more soak time.

2. Rinse off the descaling solution with plenty of water.

2 1/ 2 cups of water

3 teaspoons stir well!

How to clean the Humidifying Tray and the Filter Frame when overly dirty

1. • Remove the Filter Frame from the Humidifying Tray and ﬁll it with water until the “FULL” indicator.

• Put the Filter Frame in water. 2. Add a small amount of kitchen detergent to the water. 3. Soak for 30 minutes. 4. Rinse off the kitchen detergent with clean water. • Clean any hard-to-reach parts which with a cotton swab or toothbrush.

After maintenance, correctly reattach the parts.

Hook latches of cover (3 positions).

1 Align the directions.

2 Install the Humidifying Filter

by ﬁtting the grooves at left and right side to the guides on the Humidifying Tray.

Also in the same left side.

Return the Tray Handle to its original position.

1 Lift the Tray Handle.

2 Return it to its original position.

ENGLISH Always be sure to remove the power plug from the wall outlet.

Wipe with a dry, soft cloth.

CAUTION • Do not use volatile ﬂuids. Benzene paint thinner or polishing powder can damage the surface. • Do not use detergents. Detergent ingredients can damage the unit.

CLEANING FILTERS Gently remove dust with an appropriate cleaning tool, such as a vacuum cleaner with the proper attachment.

In case of using at the location where air pollution and odour are signiﬁcant, maintain frequently even if Filter Indicator Light is not ON. DEODORIZING FILTER

• Maintain only the tagged surface. Do not clean up the opposite surface.

• Both surfaces can be maintained.

• Do not wash the ﬁlters. Do not expose to sunlight.

Some odours absorbed by the ﬁlters will break down over time, causing additional odours. Depending on usage conditions, and especially if the product is used in environments signiﬁcantly more severe than a normal household, these odours may become noticeable sooner than expected.

Replace the ﬁlter in those cases or if dust is unable to be removed after maintenance.

FILTER REPLACEMENT LIFE OF FILTERS Filter life varies depending on the room environment, usage conditions, and location of the unit.

Lifespan of HEPA ﬁlter and Deodorizing ﬁlter and replacement suggestions are based on purifying a room in which 5 cigarettes are smoked per day and the unit's dust collection and deodorizing performance has declined to half the level of a new ﬁlter. We recommend replacing the ﬁlter more frequently if the unit is used in conditions signiﬁcantly more severe than a normal household. •HEPA Filter •Deodorizing Filter •Humidifying Filter

About 2 years after opening

About 2 years after opening About 5 years after opening

Replacement Filter Model

Consult your dealer when purchasing a replacement ﬁlter.

AIR PURIFIER MODEL UA-HG30E REPLACEMENT FILTER MODEL HEPA Filter:

NOTE Use the date label to remind you when to replace the ﬁlter.

There is the date label on the left side of the unit.

Do not throw away the Filter Frame (gray)

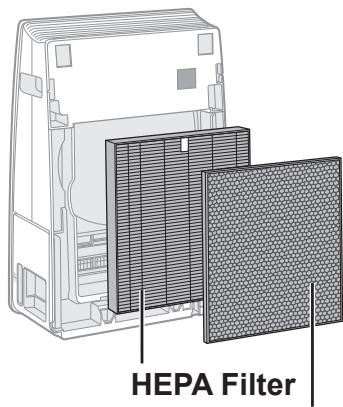

Dispose of used ﬁlters according to local laws and regulations. HEPA Filter material : • Filter : Polypropylene • Frame : Polyester Deodorizing Filter material : • Filter : Activated charcoal, Polyrthylene terephthalate, Polypropylene • Frame : Paper Humidifying Filter material : • Filter : Rayon, Polyester

ENGLISH Always be sure to remove the power plug from the wall outlet.

TROUBLESHOOTING Before calling for service, review the troubleshooting chart below to make sure that the problem is not a unit malfunction.

SYMPTOM REMEDY (the following are not due to a malfunction)

Odour and smoke persists.

• Check the ﬁlters. If they appear to be extremely dirty, clean or replace them. (Ref. E-13,E-14,E-15,E-16,E-17)

The Dust Sign light is green even when the air is not clean.

• The air may have been dirty when the unit was plugged in.

Unplug the unit, wait one minute, and then plug the unit in again.

The Dust Sign light is orange or red even when the air is clean.

• Dirty or clogged dust sensor openings interfere with sensor operation. Gently clean the back panel. (Ref. E-13).

The unit makes a clicking or ticking sound.

• The unit may make clicking or ticking sounds when it is generating ions.

Air discharged from the unit has an odour.

• Check to see if the ﬁlters are extremely dirty.

• Clean or replace the ﬁlters. • Plasmacluster Air Puriﬁers emit small traces of ozone that can produce an odour.

The unit does not operate when cigarette smoke is in the air.

• Check to see if the unit is installed in a location that makes it difﬁcult for the sensors to detect cigarette smoke.

• Check to see if the dust sensor openings are blocked or clogged. If they are blocked or clogged, clean the back panel. (Ref. E-13)

The Filter Indicator Light is on.

• Whenever replacing the ﬁlters, connect the power cord to an outlet and then press the Filter Reset Button.

The Dust Sign lights are turned off.

• Check to see if the Lights OFF Mode is selected. If it is selected, press the Light ON/OFF Button to turn the indicator lights on.

(Ref. E-11) • Check to see if the SLEEP mode is selected. (Ref. E-10)

The Humidify Light does not light off when the Humidifying Tray is empty.

• Clean the Humidifying Tray. Make sure that the unit is on a level surface.

The water level in the Humidifying

Tray does not decrease or decreases slowly.

• Check to see if the Humidifying Tray is correctly installed. Check the Humidifying Filter.

• If the Humidifying Filter is extremely dirty, clean or replace it. (Ref. E-14, E-15, E-17). • Humidiﬁcation amount gets lower when humidity reaches to the proper amount (55 ~ 65%) by the actuation of humidity sensor in the case of fan speed automatic.

The Dust Sign lights change colour frequently.

• The Dust Sign lights automatically change colour when the dust sensor detect impurities.

There is a discrepancy between the unit’s Humidity Monitor and another hygrometer in the room.

• There is a difference in the humidity level within the same room.

• The sensor have different measurement parameters. • If the monitor indicates TEMPERATURE, press the Display Select Button. (Ref. E-11)

ERROR DISPLAY DIGITAL INDICATION If the error continues to occur, contact a Sharp Service Centre.

ERROR DETAILS REMEDY Unplug the unit, wait one minute, then plug the unit in again.

SPECIFICATIONS Fan Speed Adjustment

CLEAN AIR Rated Power (W)

Recommended Room Size (m )*2

High density Plasmacluster ion recommended room size (m2)*3

Humidifying Tray Capacity (L)

Dust / Temperature & Humidity

*1 • The amount of humidiﬁcation changes in accordance with indoor and outdoor temperature and humidity.

The amount of humidiﬁcation increases as temperatures rises or humidity decreases. The amount of humidiﬁcation decreases as temperatures decrease or humidity rises. • Measurement Conditions : 20 ºC, 30 % humidity (JEM1426) *2 • The recommended room size is appropriate for operating the unit of maximum fan speed. • The recommended room size is an area in which a given amount of dust particles can be removed in 30 minutes. *3 • Room size in which approximately 7000 ions per cubic centimeter can be measured in the centre of the room when the unit is placed next to a wall, is running at maximum settings, and is at a height of approximately 1.2 meters from the ﬂoor. *4 • The ﬁlter removes more than 99.97% of particles at least 0.3-microns in size. (JEM1467)

When the unit’s power plug is inserted in a wall outlet it consumes about 0.9 watts of standby power in order to operate electrical circuits. To conserve energy, unplug the power cord when the unit is not in use.

R DEUTSCH UA-HG30E HEPA-Filter (Vgl. D-16)

Deoﬁlter (Vgl. D-16)
