USER MANUAL TK52002 SIEMENS

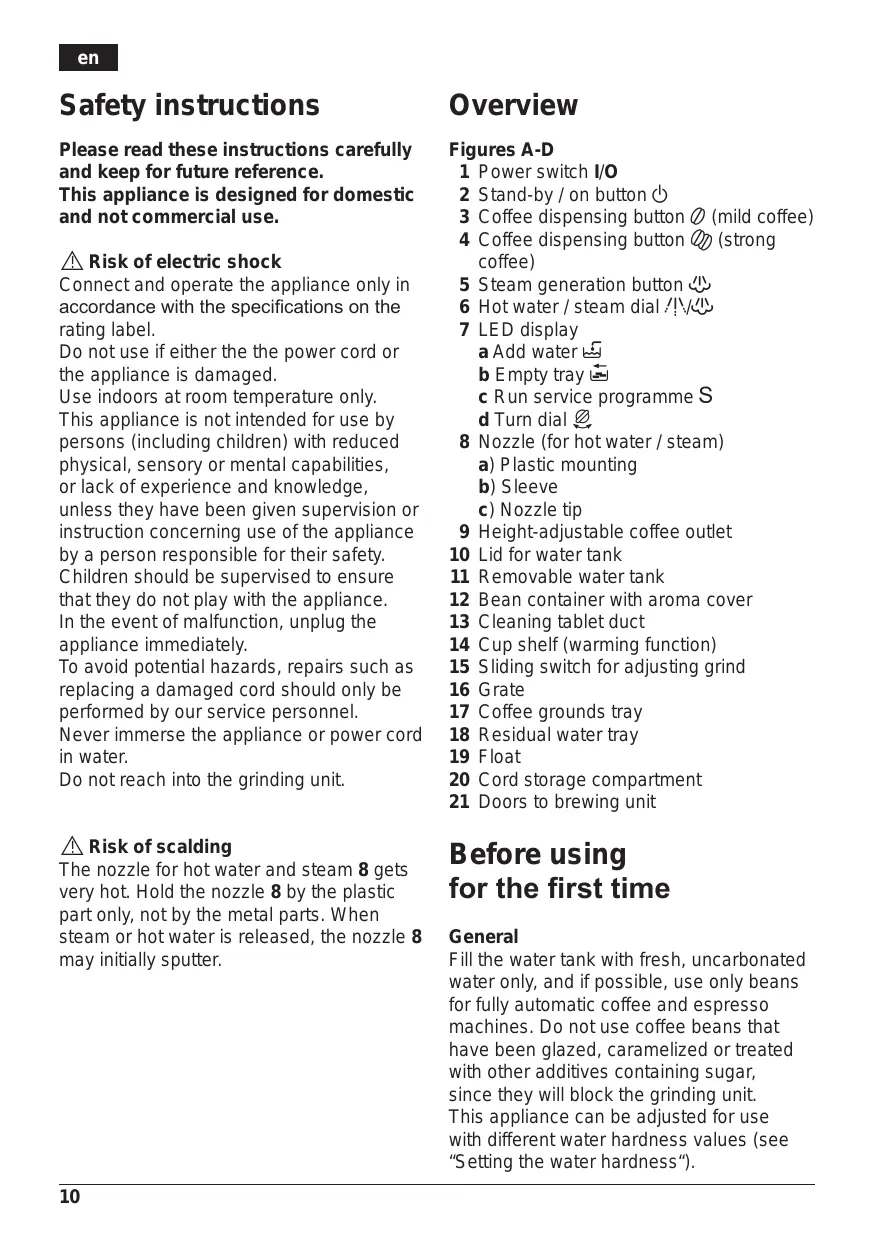

Please read these instructions carefully and keep for future reference. This appliance is designed for domestic and not commercial use.

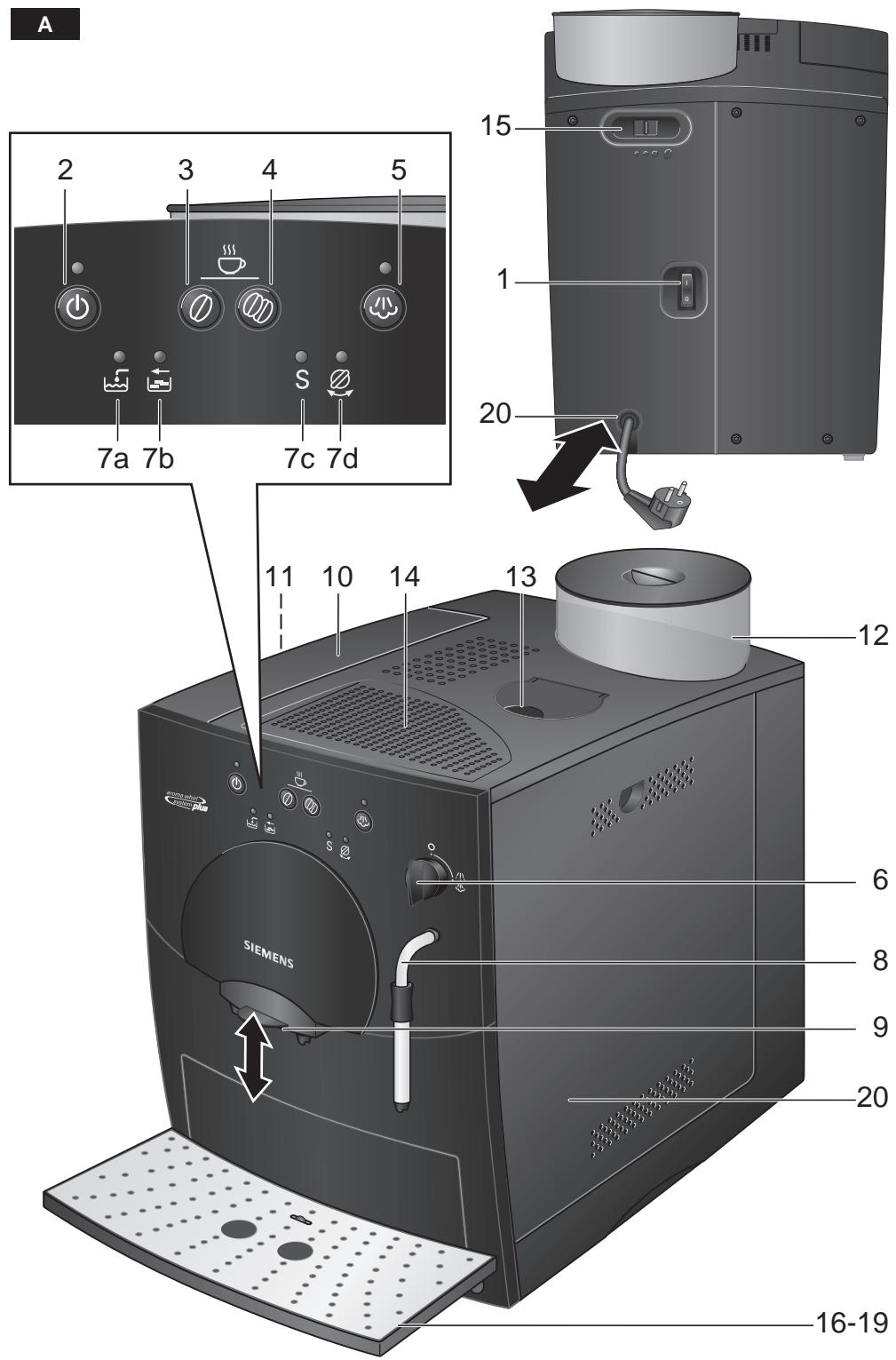

1 Power switch I/O 2 Stand-by / on button a 3 Coffee dispensing button 5 (mild coffee) 4 Coffee dispensing button K (strong coffee) 5 Steam generation button h 6 Hot water / steam dial g/h 7 LED display a Add water H b Empty tray I c Run service programme S d Turn dial J 8 Nozzle (for hot water / steam) a) Plastic mounting b) Sleeve c) Nozzle tip 9 Height-adjustable coffee outlet 10 Lid for water tank 11 Removable water tank 12 Bean container with aroma cover 13 Cleaning tablet duct 14 Cup shelf (warming function) 15 Sliding switch for adjusting grind 16 Grate 17 Coffee grounds tray 18 Residual water tray 19 Float 20 Cord storage compartment 21 Doors to brewing unit

! Risk of electric shock

Connect and operate the appliance only in accordance with the specifications on the rating label.

Do not use if either the the power cord or the appliance is damaged. Use indoors at room temperature only. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. In the event of malfunction, unplug the appliance immediately. To avoid potential hazards, repairs such as replacing a damaged cord should only be performed by our service personnel. Never immerse the appliance or power cord in water. Do not reach into the grinding unit. ! Risk of scalding 

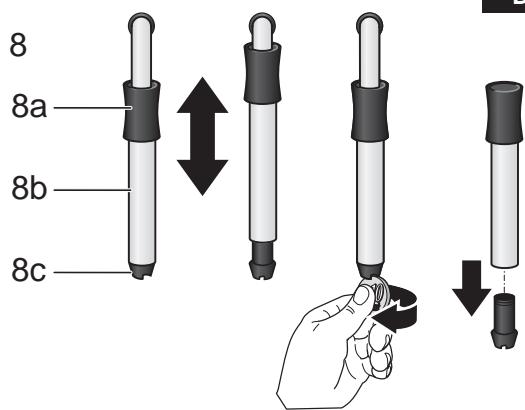

The nozzle for hot water and steam 8 gets very hot. Hold the nozzle 8 by the plastic part only, not by the metal parts. When steam or hot water is released, the nozzle 8 may initially sputter.

Before using for the first time

General Fill the water tank with fresh, uncarbonated water only, and if possible, use only beans for fully automatic coffee and espresso machines. Do not use coffee beans that have been glazed, caramelized or treated with other additives containing sugar, since they will block the grinding unit. This appliance can be adjusted for use with different water hardness values (see “Setting the water hardness“).

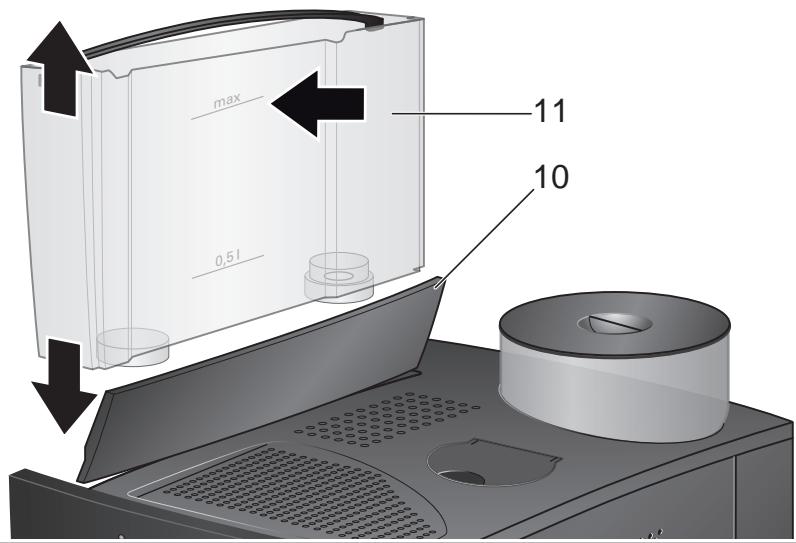

Switching on the appliance ● Pull enough of the power cord out of the storage compartment and plug it into the electrical socket. ● Remove and rinse the water tank 11 and fill it with fresh cold water. Do not fill above the “max“ mark. ● Replace the water tank 11 and push it firmly down into place. ● Fill the bean container with coffee beans. ● Set the power switch 1 to I. The stand-by LED a lights red. ● Make sure that the hot water/steam dial 6 is at O. ● Press the stand-by button a. The J LED flashes. Filling the system When switched on for the first time, the water pipes in the appliance must be filled. ● Place a cup under the nozzle 8. ● Turn the dial 6 to g/h. Water runs into the cup. As soon as J lights up, turn the dial 6 back to O. ● The stand-by button a will now flash. The appliance rinses and heats up. The appliance is ready for use when the stand-by LED a lights green. i The appliance’s factory settings are programmed for optimal performance.

1 Power switch The power switch 1 on the rear of the appliance switches the power supply on and off. When the power is switched on, the standby LED a lights red. The appliance is now in stand-by mode. Warning Do not press the power switch while the appliance is operating. The appliance should only be switched off when it is in stand-by mode.

11 2 Stand-by button a The stand-by button a switches the appliance from stand-by mode to on. When the stand-by button a is pressed, the appliance heats up. The stand-by button a flashes while the appliance heats up and is rinsed. When the stand-by button a lights green, the appliance is ready for operation. The appliance will not be rinsed if: – it is still warm when switched on, or – coffee was not dispensed before it was switched to stand-by mode. Note: After 3 hours, the appliance automatically switches to stand-by mode. 3 Coffee dispensing button 5 (mild coffee) This button is used to dispense mild coffee. When the button is pressed, the coffee is ground, brewed and dispensed into the cup. 4 Coffee dispensing button K (strong coffee) This button is used to dispense strong coffee. When the button is pressed, the coffee is ground, brewed and dispensed into the cup. 5 Steam generation button h The steam button h generates steam for foaming or warming. 6 Steam dispensing dial Hot water or steam can be dispensed by turning the dial to g or h. To dispense steam, the steam generation button h must be pressed first (see “Steam for frothing milk“). 7 LED display The various LEDs indicate the following: H on The water tank is empty and needs to be filled. I on Trays full: Empty and replace them. I flashing Trays missing: Reinsert them. 11

on Run the service programme

(see “Service programme“) flashing Service programme in operation flashing Turn dial to g/h. on Turn dial to O.

Settings and displays

Setting the water hardness It is important that the water hardness be set correctly, so that the appliance indicates accurately when the descaling programme should be run. The factory setting is a water hardness of 4. You can check the water hardness by asking your local water supplier. Degree Water hardness German (°dH) French (°fH) 1 2 3 4

● Switch the appliance to stand-by.

● Hold down the steam button h for at least 5 seconds. The number of LEDs 7a H, b I, c S, d J that light up indicates the selected water hardness. ● Press the steam button h repeatedly until the correct number of LEDs is lit; e.g. for a hardness of 3, the LEDs 7a, b and c (H, I, S) light up. ● Press the stand-by button a once. The selected number of LEDs should light up briefly; this indicates that the desired setting has been saved successfully. If a water filter (optional extra Order No. 461732) is used, the water hardness should be set to 1.

Note: If no button is pressed within 90 seconds, the appliance switches to standby mode without saving the new settings.

In this case, the previous water hardness setting is retained. The appliance must be rinsed when a filter is first used and after changing the filter. ● Fill the tank with water up to the 0.5 l mark. ● Place a suitable container (approx. 0.5 l) under the nozzle 8. ● Set the dial 6 to g/h. ● When water stops coming out of the nozzle 8, set the dial back to O. ● Fill the water tank and the water pipes (see “Switching on the appliance / Filling the system“). Adjusting the grinding unit Sliding switch 15 adjusts the degree of grinding, from coarse to fine. Warning Adjust the grinding unit only while it is running! Otherwise the appliance may be damaged. ● Press the strong coffee button K. ● While the grinding unit is running, move the sliding switch 15 to the desired po­ sition: the smaller the dots, the finer the grind. i The new setting will not become apparent until the second or third cup is brewed. Tip: For dark roast coffee beans, choose a coarser grind; for light roast beans, select a finer grind. Float The float 19 in the water tray 18 shows when the tray needs emptying. ● If the float 19 is clearly visible, empty the water tray 18.

This fully automatic espresso/coffee machine grinds beans freshly for each brew. If possible, use only beans for fully automatic coffee and espresso machines. Deep-freeze or store in a cool place in sealed, airtight containers. Coffee beans can be ground while frozen. Important: Fill the water tank with fresh water every day. The tank must always contain sufficient water for operating the appliance. Do not allow it to become empty. Tip: Pre-warm cups, especially small, thick espresso cups, by placing on the cup shelf 14 or rinsing with hot water. The appliance must be ready for use. ● Place the prewarmed cup(s) under the coffee outlet 9. ● Press 5 or K to select the desired coffee strength. The coffee is brewed and dispensed into the cup(s). ● Coffee delivery stops automatically when the selected quantity has been dispensed (factory setting approx. 125 ml).

i The brewing process can be terminated at any time by pressing the coffee dispensing button 5 or K.

It is possible to dispense the same amount of coffee a second time. ● Just press the coffee dispensing button 5 or K within 3 seconds after brewing is complete. Note: The second cup is brewed using the previously ground coffee.

Changing volume dispensed

It is possible to change the factory setting (approx. 125 ml) for the volume of mild or strong coffee to be dispensed. ● Press and hold the coffee dispensing button 5 or K until the desired volume of coffee has been delivered (range approx. 30 – 220 ml). i The volume can be changed again at any time. To restore the factory setting of approximately 125 ml, simply reset the appliance. Reset: Switch the appliance to stand-by and remove the trays 17 and 18. Press and hold the dispensing buttons 5 and K simultaneously for at least 5 seconds. The LEDs 7a, b, c and d (H, I, S, J) light up briefly. Replace the trays 17 and 18 and press the stand-by button a to switch the appliance on again.

The appliance must be ready for use. This function allows water to be heated for a cup of tea, for example. ! Risk of burns 

The nozzle gets very hot. Do not touch the metal parts!.

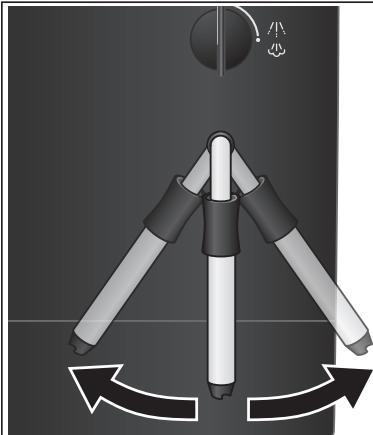

● Place an appropriate cup under the nozzle 8. ● Push the sleeve on the nozzle 8 all the way down. ● Turn the dial 6 to g/h. ! Risk of scalding 

When the dial is set to g/h, the nozzle may sputter a little. Do not touch the nozzle

8 or point it at anyone. ● End the process by turning the dial 6 back to O.

Steam for foaming milk

The appliance must be ready for use. You can foam the milk first and add the coffee on top, or foam the milk separately and pour it into the coffee. ! Risk of burns 

The nozzle gets very hot. Do not touch the metal parts!

● Push the sleeve on the nozzle 8 all the way down. ● Fill the cup approximately 1/3 full of milk. ● Press the steam button h. The LED will start to flash. i The appliance will heat up for approx. 20 seconds. ● Immerse the nozzle 8 deep into the milk, but do not let it touch the bottom of the cup. ● As soon as the J LED flashes, turn the dial 6 to g/h. ! Risk of scalding 

Steam for heating drinks

The nozzle gets very hot. Do not touch the metal parts!

The appliance must be ready for use. ● Push the sleeve on the nozzle 8 all the way up. ● Press the steam button h. The LED will start to flash. i The appliance will now heat up for approx. 20 seconds. ● Immerse the nozzle 8 deep into the liquid you want to heat. ● As soon as the J LED flashes, turn the dial 6 to g/h. ! Risk of scalding 

When the dial 6 is set to g/h, the nozzle 8 may sputter a little. Escaping steam is very hot and may cause liquid to sputter. Do not touch the nozzle 8 or point it at anyone.

● End the process by turning the dial 6 back to O. i To generate more steam, press the steam button h again and repeat the whole process.

When the dial 6 is set to g/h, the nozzle

8 may sputter. Escaping steam is very hot and may cause liquids to sputter. Do not touch the nozzle 8 or point it at anyone. ● Rotate the cup slowly until the milk is fully foamed. ● End the process by turning the dial 6 back to O. i To foam more milk, press the steam button h again and repeat the whole process.

Note: When the nozzle 8 has cooled down, clean immediately. Dried residue is difficult to remove.

Note: When the nozzle 8 has cooled down, clean it immediately. Dried residue is difficult to remove.

! Risk of electric shock

Maintenance and daily cleaning

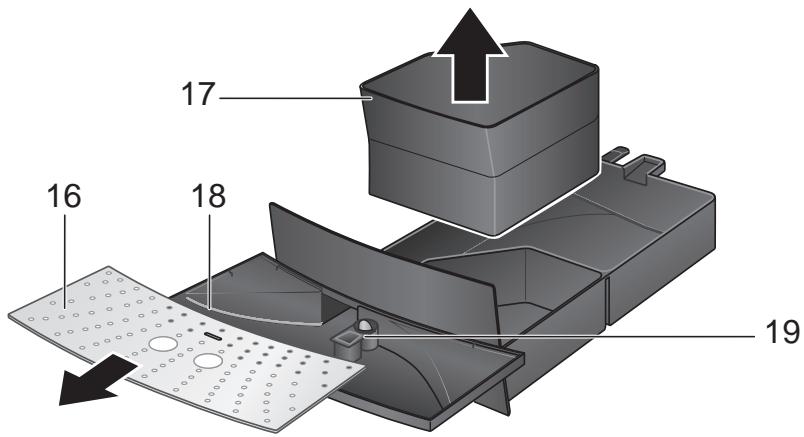

Unplug the appliance before cleaning it. Never immerse the appliance in water. Do not use a steam cleaner. ● Wipe the outside of the appliance with a damp cloth. Do not use scouring agents. ● Wash all removable parts by hand only. ● Rinse out the water tank 11 with water only. ● Remove, empty and clean the trays for coffee grounds 17 and residual water 18.

● Wipe out or vacuum the inside of the appliance (tray holders). ● Open the doors to the brewing unit 21 and remove any coffee residues. Close the doors. Note: If the appliance is cold when switched on with the stand-by button a, or if it is set to stand-by after brewing coffee, it is automatically rinsed, i.e. the system cleans itself. Nozzle 8 for hot water/steam ● Unscrew the nozzle 8 from the steam pipe. ● Dismantle all parts (Fig. D). ● Clean with a caustic cleaning solution and a soft brush. Clean the tip of the nozzle 8/c with a blunt needle. ● Thoroughly rinse and dry all parts.

Combined cleaning and descaling process If the S LED lights up while the appliance is on, the service programme must be run immediately to clean and descale the appliance. If the service programme is not run as instructed, the appliance may be damaged. Specially developed descaling (Order No. 310451) and cleaning agents (Order No. 310575) can be obtained from our customer service department. Warning Each time you run the service programme, follow the instructions for using the cleaning and descaling agents. Never interrupt the service programme. Do not drink the liquids. Never use vinegar or vinegar-based products. Never put descaling tablets or other descaling materials into the duct for cleaning tablets.

i The S LED flashes while the service programme is running (approx. 40 minutes).

Important: If there is a filter in the water tank, it must be removed before the service programme is run. Starting the service programme ● Switch the appliance to stand-by mode using the stand-by button a. ● Empty and replace the trays 17 and 18. ● Hold down the mild coffee button 5 for at least 5 seconds.  The S LED starts to flash and the appliance rinses the coffee dispenser through twice. ● Empty and reinsert the grounds tray 17.  The steam button LED h flashes and the H LED lights up. ● Place one cleaning tablet in the duct 13. ● Fill the water tank with lukewarm water, add descaling agent and dissolve completely (total liquid: 0.5 litres). or ● Pour prepared descaling mixture into the water tank (total liquid: 0.5 litres). ● Press the steam button h. The descaling process begins. Duration approx. 10 minutes. The descaling solution flows into the water tray 18.  The J LED flashes. ● Place a suitable container (approx. 0.5 litres) under the nozzle 8. ● Set the dial 6 to g/h. The descaling process begins. Duration approx. 5 minutes. The descaling solution flows into the container.  The I LED lights up. ● Empty and reinsert the grounds tray 17.  The steam LED h flashes. ● Empty and clean the water tank 11, fill with fresh water up to the “max“ mark and reinsert. 15

16 ● Place a suitable container (approx. 0.5 litres) under the nozzle 8. ● Press the steam button h. The cleaning process begins. Water flows into the container.  The J LED lights up. ● Turn the dial 6 to O. The cleaning process begins. Duration approx. 10 minutes. Liquid flows into the coffee grounds tray 17 inside the appliance, then out through the coffee outlet.  The I LED lights up. ● Empty, clean and reinsert the trays 17 and 18. The appliance heats up and is ready for use again when the stand-by LED a lights green. Important: If the service programme is interrupted, e.g. due to a power cut, it is vital that the appliance be rinsed before it is used again. ● Press the stand-by button a.  The stand-by a and steam h LEDs flash. ● Rinse the water tank 11 thoroughly and fill with fresh water. ● Press the steam button h. The appliance is rinsed and liquid flows into the tray. The J LED flashes. ● Hold a cup under the nozzle 8 and turn the dial 6 to g/h. Water runs into the cup.  The J LED lights up. ● Turn the dial 6 back to O. The appliance rinses and is ready for use again.

In order to avoid damage through cold during transportation and storage, the appliance must be emptied completely first. The appliance must be ready for use. ● Remove, empty, and replace water tank. ● Place a large, narrow container under nozzle 8. ● Press h button. ● As soon as J lights up on display, turn dial 6 to g/h. The appliance will release steam for a while. ● When nozzle 8 stops releasing steam, turn dial back to ‘O’. ● Turn off the appliance.

A This appliance is labelled in accordance with the European Directive 2002/96/EG relating to waste electrical and electronic equipment – WEEE. The directive provides the framework for the EU-wide take-back and disposal of end-of-life appliances.

Please ask your specialist retailer about current disposal facilities.

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was pur­ chased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Right of modification reserved.

No hot water or steam discharge.

Nozzle 8 is blocked.

Foam insufficient or too runny.

Sleeve b on nozzle 8 not in correct position.

Push down sleeve b on nozzle 8.

Milk not suitable for foaming.

Coffee dispensing slows to a trickle.

Coffee is ground too fine.

Adjust the grinding unit to a coarser setting.

Coffee not dispensed.

Water tank not filled or not correctly positioned.

Fill water tank and make sure it is in the right posi­ tion. If necessary, fill water pipes (see “Switching on the appliance“).

Coffee has no “crema“

Unsuitable type of coffee.

Beans no longer fresh.

Change type of coffee used.

Degree of grinding inappropriate for beans.

Optimize degree of grinding.

Grinding unit does not grind the beans.

Beans are not falling into the grinding unit (beans too oily).

Gently tap the bean container.

Grinding unit makes a loud noise.

Foreign objects in the grinding unit (e.g. grit, which can be found even in superior types of coffee).

If problems cannot be eliminated, always call the hotline.
