Product Type	Extractor hood
Brand	OCEANIC
Model	OCEAHC202SS
Dimensions (L x D x H)	545 x 215 x 89.5 mm
Power supply	220-240 V ~ 50 Hz
Motor power (at maximum output)	48.9 W
Lighting power	2 W (LED)
Maximum air flow	201.9 m³/h
Maximum noise level	55 dB(A)
Energy class	B
Annual energy consumption	30 kWh/year
Evacuation modes	Extraction (external) or recirculation (internal)
Number of speeds	3 (low, medium, high)
Filter type	Metal grease filter (washable) and active carbon filter (replaceable)
Grease filter maintenance	Monthly cleaning
Carbon filter maintenance	Replacement every 3 months (or 120 hours of use)
Lighting	Integrated LED, not user-replaceable
Minimum installation distances	Gas hob: 800 mm, electric hob: 700 mm
Air outlet diameter	150 mm
Material	Stainless steel

Frequently Asked Questions - OCEAHC202SS OCEANIC

How to install the OCEAHC202SS hood?

Installation must be carried out by a qualified professional. Fix the hood to the wall or under a cabinet using the provided screws. Respect safety distances: 800 mm for a gas hob, 700 mm for an electric hob. Ensure that the exhaust duct (if in extraction mode) does not exceed 2.50 m in length.

What are the possible evacuation modes?

The hood can operate in extraction mode (evacuation outside via a duct) or in recirculation mode (air filtration and return to the room). For recirculation, you must install an active carbon filter.

How to clean the grease filter?

The metal grease filter must be cleaned every month with household detergent or in the dishwasher. Use a soft brush and avoid abrasive products. A clogged filter reduces suction efficiency.

When to replace the carbon filter?

The active carbon filter is not washable and must be replaced every 3 months or after 120 hours of use. It is located behind the grilles.

What to do if the hood vibrates abnormally?

First check that the hood is properly fixed to the wall or cabinet. If vibration persists, the turbine may be stuck or the motor improperly secured. Cut the power and contact a professional.

What to do if the light does not turn on?

Check the power supply. If the LED lamp is defective, it cannot be replaced by the user. Call a professional for replacement.

How to switch from extraction mode to recirculation mode?

Turn the adjuster to the internal position (recirculation). Ensure the round and rectangular covers are in place and install a carbon filter. In extraction mode, turn the adjuster to external and connect the duct.

How to choose horizontal or vertical ventilation?

For vertical evacuation, remove the round cover on top. For horizontal evacuation, remove the rectangular cover at the back (adapter not supplied). Close the other opening with the corresponding cover.

Can the hood operate without external evacuation?

Yes, in recirculation mode with an active carbon filter. The air is filtered and then returned to the room. In this case, the front evacuation grille must not be obstructed.

How to change the LED bulb?

The LED lamp is not user-replaceable. In case of failure, contact customer service or a qualified electrician.

USER MANUAL OCEAHC202SS OCEANIC

Exterior view of a stainless steel oceania air purifier with ventilation grilles and control knobs (no text or symbols visible)

Installation (Mode extraction)....12

Installation (Mode recyclage)....14

27 4.5 2.5 *25.5 *33.5

Technical diagram of a mechanical component with labeled parts 1 and 2

Index	Description	Illustration	Quantité
PL-1	Caisson de la hotte		1
PL-2	Sortie d’évacuation / Clapet anti-retour		1
PL-3	Couvercle rond		1
PL-4	Vis (ST4 * 30 mm)		6
PL-5	Filtre plat carbone		2

Installation (Mode extraction)

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols present)

Simple line drawing of a mechanical component with a circular top and base (no text or symbols)

Line drawing of a rectangular electronic component with a central knob and base (no text or symbols)

Simple line drawing of a cylindrical object on a base with a small protrusion, no text or symbols present.

Simple line drawing of a cylindrical object placed on a base, no text or symbols present

Installation (Mode recyclage)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand holding a cable with an open electrical outlet, no text or symbols present

510 43.5 720~820

Diagram showing a kitchen appliance with a doorbell, brick wall, and close-up insets illustrating the components.

Technical diagram showing three labeled components (A, B, C) of a device with directional arrows indicating motion or assembly.

Simple line drawing of a car handle with two car windows and a small car nearby (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting holes and internal components (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

Diagram illustrating airflow or ventilation system with labeled components and directional arrows

Diagram showing a grid-patterned panel with an open rectangular box above it, no text or symbols present.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Read this guide carefully before installing and using this product and keep it for future reference.

Thank you for choosing Oceanic. This Use and Maintenance Guide is designed to provide you with all the necessary information regarding the installation, use and maintenance of the appliance.

In order to operate the unit properly and securely, read this user guide carefully before installing and using the product.

Contents

Find some informations....29

Important safety instructions.... 30

Lamp 35

Product Description....36

Description of the pieces....37

Installing the hood....38

Installation (Mode extraction) 38

Installation (Mode recycling)....40

Recommendations for wall mounting....41

Preparation before installation....42

INSTALLATION (Fixing on wall)....42

INSTALLATION (Fixing under a cupboard)....44

Adjusting the ventilation.... 46

Information about the carbon flat filter....47

Cleaning....48

Control Panel Functions....49

Help....50

Technical informations....51

Further information....53

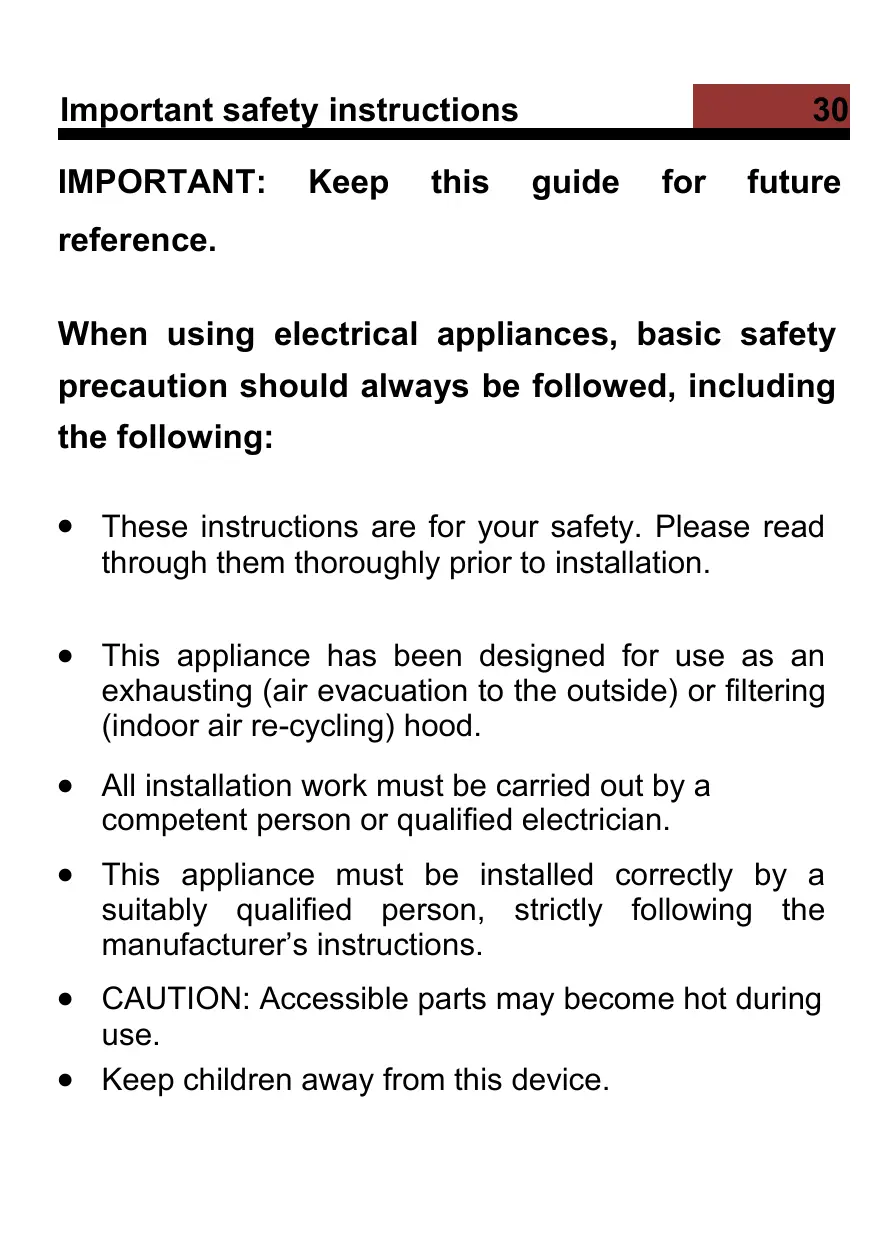

IMPORTANT: Keep this guide for future reference.

When using electrical appliances, basic safety precaution should always be followed, including the following:

• These instructions are for your safety. Please read through them thoroughly prior to installation.
• This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.
• All installation work must be carried out by a competent person or qualified electrician.
• This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer's instructions.
• CAUTION: Accessible parts may become hot during use.

• Keep children away from this device.

• The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Regularly check the power plug and power cord for signs of damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not allow the electric cables to touch the hot parts of the appliance.

- Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable.

• Do not use flammable sprays in close vicinity to the appliance.
• Please dispose of the packing material carefully.
• We also recommend that you pay special attention during use and during cleaning. Refer to the instructions in the "CLEANING" section.
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of external timer or separated remote-control system.
• Warning: When using for extraction, refer to thenational regulations for building ventilation systems. Do not connect the exhaust pipe to a VMC type ventilation system, to a flue (chimney, boiler, ...). Also check the absence of disturbance with the ventilation of the room when there are gas appliances (water heater, gas stove, ...). If in doubt, use the hood in recycling mode.

• Proper ventilation of the room must be provided when the hood is used simultaneously with appliances using gas or other fuel.

• Air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. The rules concerning the evacuation of the air must be respected.

• Warning: The hood may stop working during anelectrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.
• To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil.
• Flambe cooking must not be carried out underneath this appliance.
• Do not use the hood if it shows signs of damage or imperfection. Contact customer services.
• When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed:

Gas hobs: 800mm.

Electric hobs: 700mm.

• Warning: Before connecting the hood: switch offthe electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.
• Warning: There is a risk of electric shock and fire if cleaning is not carried out in accordance with the instructions.
• Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Electrical Shock Hazard

Failure to follow these instructions can result in death, fire, or electric shock.

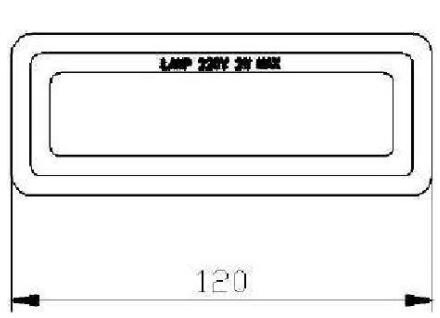

The available lamps and the correspondence ILCOS D codes and lamp pictures:

Use type lamp (or use in alternative type lamp) DBL-2-H-120 (ILCOS D code in according to standard IEC 61231).

• Non-replaceable LED lamp
• Max wattage: 2 W
• Voltage range: 220-240V\~50Hz

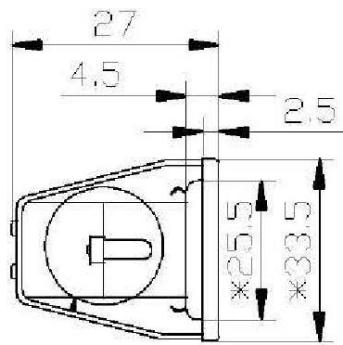

• Dimensions:

LMP 280 34 mm 120

27 4.5 2.5 25.5 33.5

Unit:mm

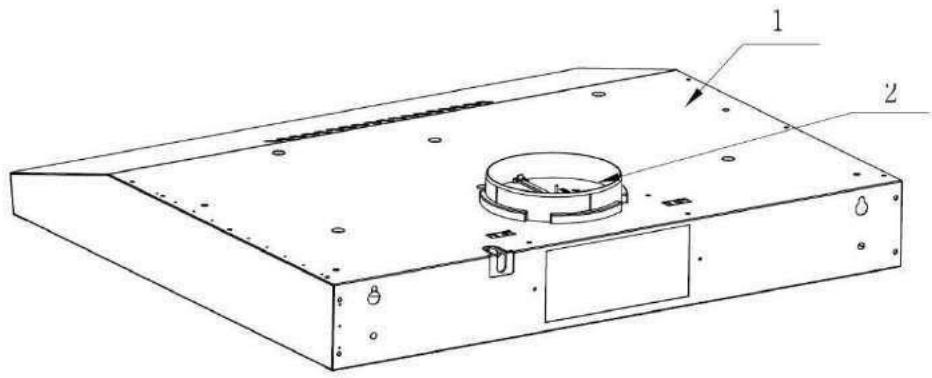

1. Hood casing
2. Exhaust outlet / check valve

Technical diagram of a mechanical component with labeled parts 1 and 2

Index	Description	Illustration	Quantity
PL-1	Hood casing		1
PL-2	Exit outlet/ Anti-return flag valve		1
PL-3	Round lid		1
PL-4	Screws (ST4 * 30 mm)		6
PL-5	Flat carbon filter		2

Preparation before installation

ATTENTION

Carefully remove the carton. Wear gloves to protect your hands from sharp edges.

ATTENTION

Remove the protective film from the product before putting it into service.

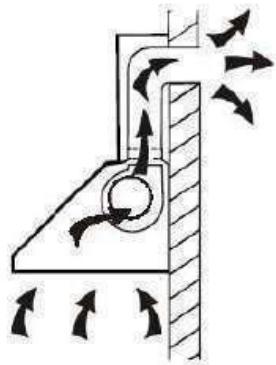

Installation (Mode extraction)

If the wall has an opening to the outside, your hood may be connected as shown in the diagram below

using the extraction duct provided or any suitable extraction conduit, for example a flexible aluminum sheath or constituted another non-flammable material with an insidediameter of less than 150mm.

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols present)

Installing the duct (not supplied)

• Determine the installation position exact of the hood.
• Plan the path of the air exhaust duct outward.

Simple line drawing of a mechanical component with a circular top and base (no text or symbols)

Line drawing of a rectangular electronic component with a small circular top and base (no text or symbols)

Simple line drawing of a cylindrical object on a base with a small protrusion, no text or symbols present.

Simple line drawing of a cylindrical object mounted on a base, no text or symbols present

• Make sure that the duct path is as short and straight as possible. To allow optimal use, the duct must not exceed 2.50m long in total.
• The duct must lead directly to the outside, and must not lead to a attic, a house, a garage or in an enclosed space.
• Duct accessories (elbows, fittings and adapters) would reduce the flow of air.

- Bent elbows and S-shaped profiles do not provide efficient air extraction. They are not recommended for using.

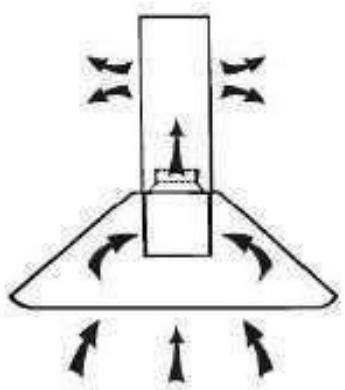

Installation (Mode recycling)

If you do not have an exit to the outside, the exhaust duct is not required, and the installation procedures aresame as those described except that no extraction duct is to be installed

Pure diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

When charcoal filters are used, the suction power is decreased.

Recommendations for wall mounting

Do not make any changes to the unit or its mounting bracket on the wall!

Before installing the device, check the condition of the wall on which it will be fixed: the wall must be in good condition, it must not show any damage (cracks, sagging, humidity, ...).

Do not drill a hole near old holes, even plugged It is imperative that you consult a building professional to use the anchoring system (screws, dowels, etc.) appropriate to the material that constitutes your wall, as well as to the weight of the appliance. Observe the diameter of the fixing screws indicated in this manual. Do not modify the holes for securing the unit or its mounting bracket to the wall.

Drill the wall with a drill of the appropriate size for the anchoring system. Remove debris and dust.

Regularly check the mounting points of the device on the wall. Tighten them if necessary.

Preparation before installation

• Before installing, make sure the unit is not plugged into an electrical outlet.
• The following diagrams show the distances and holes to be drilled. The 2 suspension screws of the main unit must be mounted at a maximum of 820 mm above the firebox.

Illustration of hands using a cable to switch an electrical outlet (no text or symbols present)

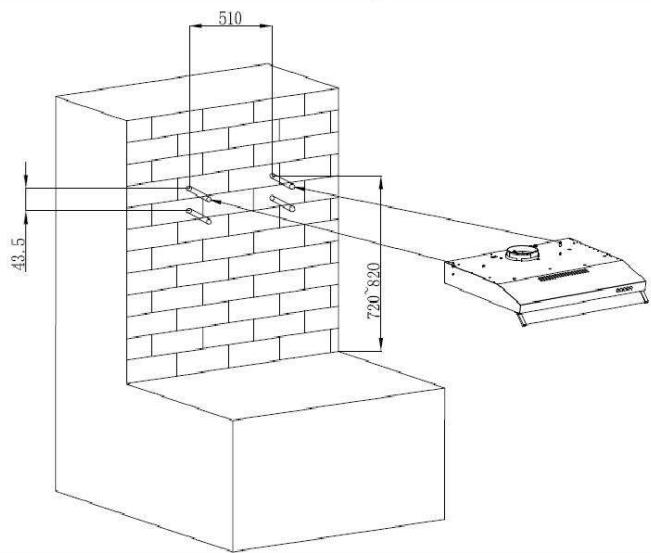

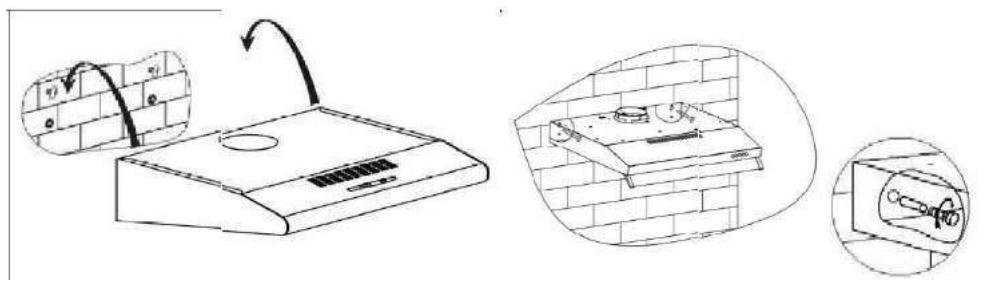

INSTALLATION (Fixing on wall)

510 43.5 720~820

Determine the location of the hood cabinet. This must be installed at a maximum distance of 820 mm from the box table.

To fix it to the wall, drill 4 holes by placing them so that they correspond to the hole in the back of the hood. Insert plugs corresponding to the type of material of your wall in the holes.

Technical line drawing of a kitchen air conditioner unit with a close-up inset showing internal components (no text or symbols)

Screw the two screws ST4x 30 mm from the top and hang the hood.

Remove the two filtersthen attach the hood box to the wall with 2 other ST4x 30mm screws. Place the check valve on the hood.

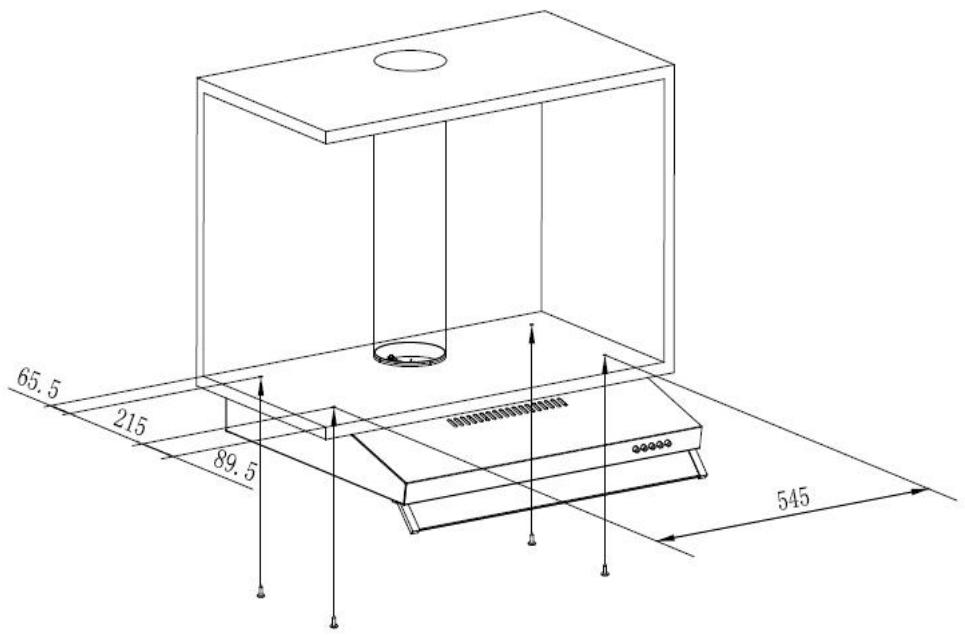

INSTALLATION (Fixing under a cupboard)

65.5 215 89.5 545

Place the one way valve on the hood.

Secure the hood to the cabinet with 4 screws ST4x30 mm.

WARNING ! In extraction mode, fastening underneath a cabinet requires the use of an exhaust duct extending to the top of the cabinet.

In recycling mode, the exhaust grids on the front of the hood must not be covered.

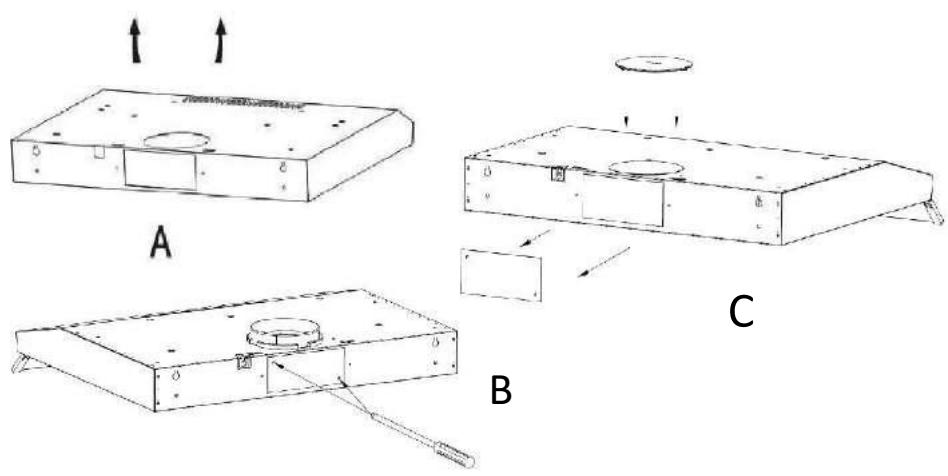

There are two modes of evacuation, horizontal evacuation and vertical evacuation. Please pay attention to the ventilation mode during installation.

Vertical ventilation : See Pic A

Please use tool take out the round cover before using, and the air can be vented from top.

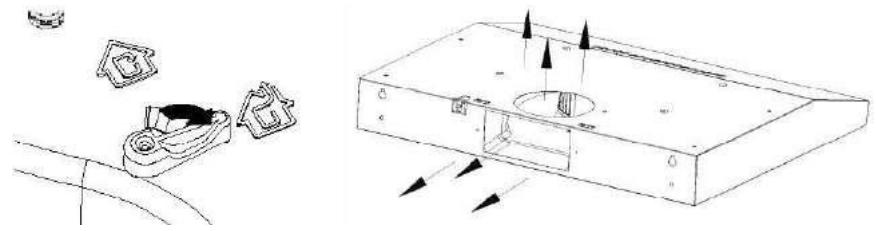

Horizontal ventilation : See Pic B and C.

Please use a tool to remove the rectangular cover before use, so that the air can be removed from the back. Cover the top drain with the round lid.

The rectangular air outlet adapter for horizontal ventilation is not provided.

Technical diagram showing three labeled components (A, B, C) of a device with directional arrows indicating motion or assembly.

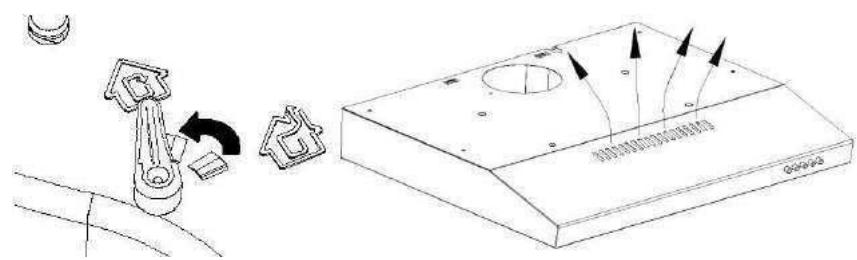

- Outdoor evacuation(mode extraction) : Turn the adjuster to outdoor position, install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet.

Technical line drawing of a mechanical assembly with exploded view and 3D rendering (no text or symbols)

- Internal evacuation(mode recycling):

Turn the adjuster to inner position, install the rould lid, Turn on the hood, the air is exhausted through the interior exhaust outlet.

The use of filters is necessary in this mode.

Technical diagram showing mechanical assembly with piston and rotating component, annotated with Chinese text indicating rotational motion.

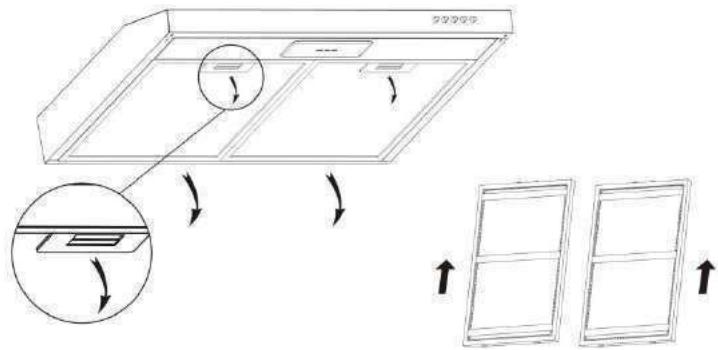

Replacement of the flat filter

(1) Remove the two grids

Diagram illustrating airflow or ventilation process with labeled components and directional arrows

(2) Flip the grid
(3) Draw out the old carbon flat filter and place the new ones.

Diagram showing a grid-patterned panel with an open rectangular box above it, no text or symbols present.

• Note: The flat carbon filter is installed at the back of the rack and must be changed every three months
• Caution: The flat carbon filter can not be washed or recycled. It must be changed after 120 hours of use (minimum). The flat filter should not be exposed to heat.

Attention! Before cleaning switch the unit off and pull out theplug.

- Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

• Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust. This directly affects the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Control Panel Functions :

Motor stop button 0

Press this button to stop motor.

Low speed button ↗

Press this button to operate the system at low speed.

Middle speed button ✿

Press this button to operate the system at medium speed.

High speed button ✿

Press this button to operate the system at high speed.

Lamp button

Press this button once to turn on the lights. Press again to turn off both lamps.

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Fan do not work	light burn	Replace the lamp with correct rating.
	Power cord looses.	Plug in to the power supply again
Serious Vibration of the unit	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch of the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Weak power	The filter is dirty	Clean the filter

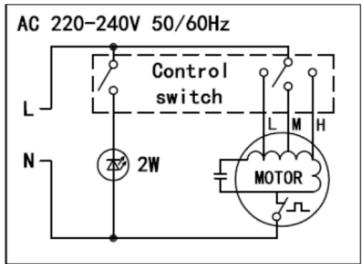

ELECTRICAL CONNECTION DIAGRAM

AC 220-240V 50/60Hz L N Control switch 2W MOTOR L M H

	Symbol	Value	Unit
Model identification	OCEAHC202SS /OCEAHC202SB / OCEAHC202SW (HJ2903K156)
Annual Energy Consumption	AEChotte	30.0	kWh/a
Energy Efficiency class		B
Time increase factor	f	1.6
Fluid Dynamic Efficiency	FDEhotte	10.7
Fluid Dynamic Efficiency class		E
Energy Efficiency Index	EEIhotte	69.3
Measured air flow rate at best efficiency point	QBEP	107.8	m3/h
Measured air pressure at bestefficiency point	PBEP	174	Pa
Maximum airflow	Qmax	201.9	m3/h
Air flow at working point(highest setting)	-	194	m3/h
Air flow at working point(lowest setting)	-	149	m3/h
Measured electric power input at best efficiency point	WBEP	48.9	W
Nominal power of the lighting system	WL	2,0	W
Average illumination of the lighting system on the cooking surface	Emoyen	141	lux
Lighting Efficiency	LEhotte	70,5	lux/W
Lighting efficiency class		A
Grease Filtering Efficiency	GFEhotte	64.1
Grease Filtering Efficiency class		E
Measured power consumption in standby mode	P_s	-	W
Measured power consumption offmode	P_o	0	W
Sound power level	LWA	Highest setting:55Lowest setting:46	dB

The method of measurement and calculation of the above table is in accordance with Commission Regulation (EU) No 65/2014 and 66/2014

ENERG eneprax - evpyra oceanic RMT: OCEAHC2028S Modina: FLJ2903K156 B 30 kWh/annum A+++ A++ A+ B C D ABCO EFG ABCDEFG ABCDEFG 55dB 65/2014

ENERG enerprin - evezyn oceanic RM: OCEAHC2020SW Mod#: HJ2263X15G B 30 kWh/annum 65/2014

ENERG eneprion - svepyra oceanic RMT: OCEAHC2028B Modina: HLJ2963K15G A+++ A++ A+ A B C D B 30 kWh/annum ABCD EFG ABCDEFG ABCDEFG 55dB 65/2014

OCEANIC

120-126 quai de Bacalan

CS11584

33000 Bordeaux

Importé par A.M.C.

123 quai Jules

Guesde 94400 Vitry

sur Seine

Note :

The following recommendations specify how to reduce the overall environmental impact of the cooking process.

(1) Install the range hood in a suitable location with good ventilation.
(2) Clean the cooker hood regularly so that nothing blocks the air.
(3) Do not forget to turn off the hood lamp once cooking is complete.
(4) Do not forget to turn off the range hood once cooking is complete.

Disassembly Information

Do not disassemble the unit in a manner that is not indicated in the operating instructions. This device must not be disassembled by the user. At the end of its life cycle, the appliance must not be disposed of with household waste. For recycling tips, please contact your local administration or dealer.

ENVIRONMENTAL PROTECTION

Electrical and electronic equipment is subject to selective collection.

Do not dispose of used electrical and electronic equipment with unsorted household waste; instead, take part in their selective collection.

It is for this reason that your appliance, as indicated by the symbol on its nameplate or on the packaging, must never be thrown in a public or private bin intended for household waste.

The user has the right to deposit the device in public collection places that selectively dispose of the waste to be recycled or reused for other applications. The packaging is recyclable..

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

oceanic

www.oceanic.eu
