USER MANUAL BALTIC 900 ROBLIN

Warning! Before proceeding with installation, read the Recommendations and Suggestions in the User Manual.

Recommendations and suggestions

clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

•The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). •In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks. •If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled. •Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. •Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

•The Instructions for Use apply to several versions of this appliance.

Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. •The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. •The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation). •Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. •For Class I appliances, check that the domestic power supply guarantees adequate earthing.Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible. •Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.). •If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient Use degree of aeration must be guaranteed in the room in order to prevent •The extractor hood has been designed exclusively for domestic use the backflow of exhaust gas. The to eliminate kitchen smells. kitchen must have an opening com• Never use the hood for purposes municating directly with the open air other than for which it has been in order to guarantee the entry of designed. 8

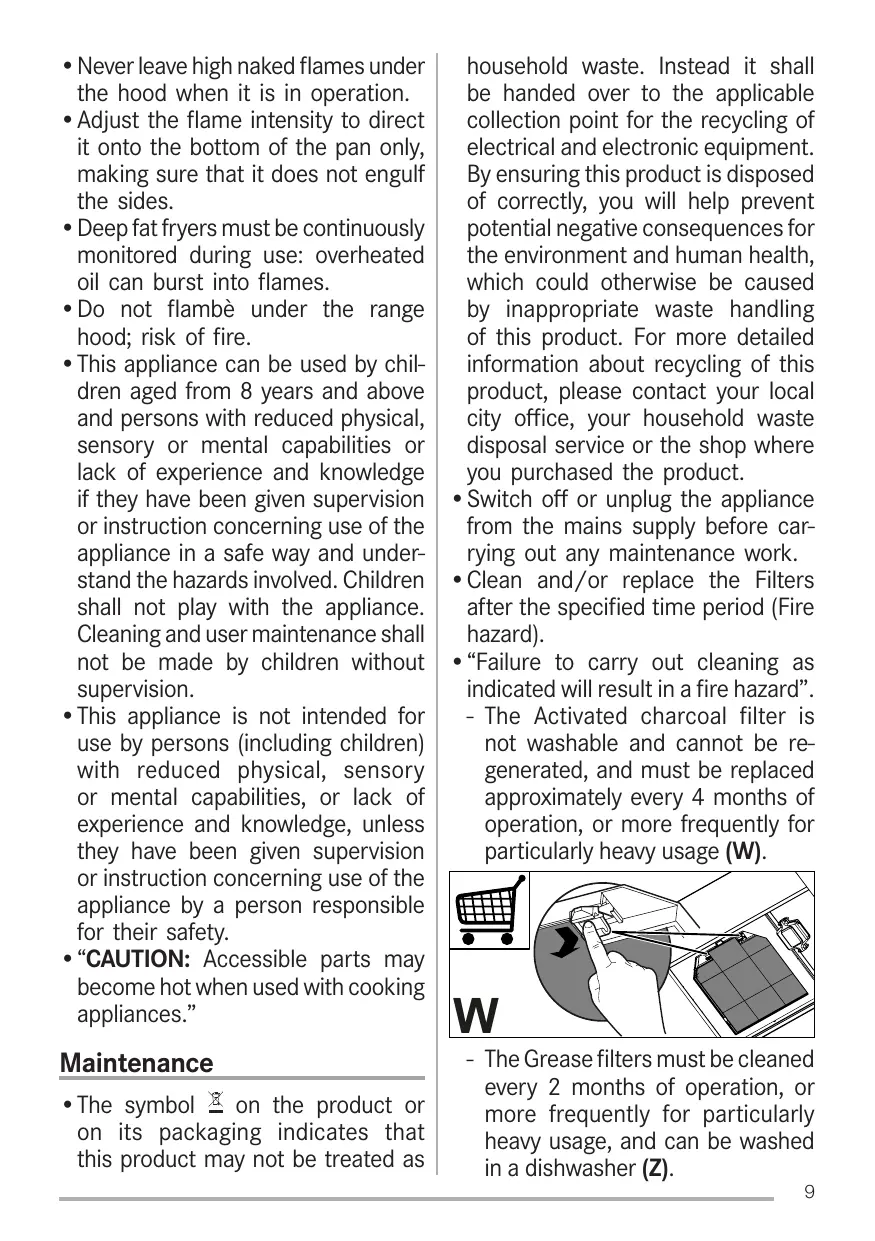

•Never leave high naked flames under household waste. Instead it shall the hood when it is in operation. be handed over to the applicable

•Adjust the flame intensity to direct collection point for the recycling of it onto the bottom of the pan only, electrical and electronic equipment. making sure that it does not engulf By ensuring this product is disposed the sides. of correctly, you will help prevent •Deep fat fryers must be continuously potential negative consequences for monitored during use: overheated the environment and human health, oil can burst into flames. which could otherwise be caused •Do not flambè under the range by inappropriate waste handling hood; risk of fire. of this product. For more detailed •This appliance can be used by chilinformation about recycling of this dren aged from 8 years and above product, please contact your local and persons with reduced physical, city office, your household waste sensory or mental capabilities or disposal service or the shop where lack of experience and knowledge you purchased the product. if they have been given supervision •Switch off or unplug the appliance or instruction concerning use of the from the mains supply before carappliance in a safe way and underrying out any maintenance work. stand the hazards involved. Children •Clean and/or replace the Filters shall not play with the appliance. after the specified time period (Fire Cleaning and user maintenance shall hazard). not be made by children without •“Failure to carry out cleaning as supervision. indicated will result in a fire hazard”. •This appliance is not intended for -- The Activated charcoal filter is use by persons (including children) not washable and cannot be rewith reduced physical, sensory generated, and must be replaced or mental capabilities, or lack of approximately every 4 months of experience and knowledge, unless operation, or more frequently for they have been given supervision particularly heavy usage (W). or instruction concerning use of the appliance by a person responsible for their safety. •“CAUTION: Accessible parts may become hot when used with cooking appliances.”

•The symbol on the product or on its packaging indicates that this product may not be treated as

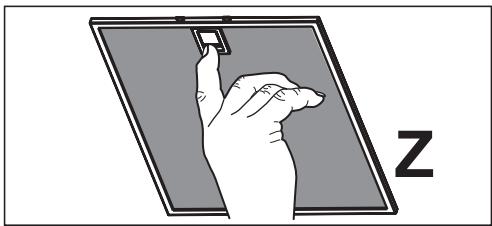

-- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

•For replacement contact technical support (“To purchase contact technical support”).

•Clean the hood using a damp cloth and a neutral liquid detergent.

A B C D E Button Function

A Turns the motor on/off at speed one. With the motor turned off: Saturation of the grease filters takes place after 100 hours of continuous operation of the hood. With the motor turned off: Saturation of the activated charcoal filters takes place after 200 hours of continuous operation of the hood. B Turns the motor on at speed two. Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor+Lights), to turn the Activated Charcoal Filter alarm on. LED (A) flashes twice to confirm. To turn the alarm off, press the button again and hold for at least 2 seconds. The relevant LED flashes once (A). C Turns the Motor on at speed three. Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor+Lights), to reset the Filter saturation alarm. LED A flashes three times. D Turns the motor on at INTENSIVE speed. This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, it will switch to OFF at the end of the time. To deactivate it, press button D once more or press button A. With all the loads turned off (Motor+Lights), press and hold D for approximately 2 seconds to enable the remote control. Button A flashes twice. With all the loads turned off (Motor+Lights), press and hold D for approximately 2 seconds to disable the remote control. Button A flashes once. E

Turns the lights on/off at maximum strength.

Fixed. Flashes once a second. Flashes once every 0.5 seconds. On. Flashing.

COMMERCIAL GUARANTEE AND GUARANTEE FOR AFTER SALES SERVICE COMMERCIAL GUARANTEE The commercial guarantee provided by FRANKE FRANCE SAS for products of the ROBLIN brand is limited to distribution professionals. It is applicable in continental France, Corsica and the DOM-TOM

(French overseas departments and territories). The commercial guarantee is a guarantee of 2 years for parts (excluding labour and travel expense). It applies starting from the billing date for the equipment to the consumer, provided that this occurs in the 12 months following the date of sale by ROBLIN to the Customer. In order to satisfy the consumer at the time of any intervention by the after-sales service department, the Customer agrees to direct it to the service put in place by ROBLIN in order to organise the service intervention as quickly as possible. The after-sales service department may be contacted at the following number: 04 88 78 59 93. The items to be provided to the ROBLIN after-sales service department are: - A description of the malfunction observed - The commercial reference of the product and its serial number - A copy of the purchase invoice of the consumer and his contact information This guarantee applies to any technical or functional problems. The following are excluded from the commercial guarantee: - Breakdowns related to accessories or consumables (filters, bulbs…), - Damage, malfunctions or defects attributable to external causes, - Damage due to corrosion, improper connection or feed, - Damage due to non-respect of the instructions provided by ROBLIN (installation, assembly…), - Breakdowns resulting from modification of the construction and characteristics of equipment of the ROBLIN brand, - Breakdowns and damage occurring after use of spare parts which do not correspond to those provided originally by ROBLIN, or due to an absence of maintenance, - Breakdowns resulting from professional or commercial use of the equipment. AVAILABILITY OF SPARE PARTS In application of article R 111-3 of the Consumer Code, for products placed on the market starting from 1 March 2015, ROBLIN guarantees the availability of the spare parts necessary for use of its Products for a period of 10 years following purchase of the product by the consumer, with the invoice being deemed as proof, provided that dated within the 12 months following the date of sale by ROBLIN to the Customer.
