Product type	Range hood
Brand	OCEANIC
Model	OCEAHT440R8
Reference	OCEAHT440R8
Energy class	B
Annual energy consumption	26.8 kWh/year
Maximum airflow rate	329.6 m³/h
Airflow at minimum speed	208.4 m³/h
Airflow at maximum speed	319 m³/h
Air pressure at maximum efficiency	140 Pa
Electrical power at maximum efficiency	45.6 W
Lighting power	2.5 W
Lighting type	LED (220-240 V, max 2.5 W)
Average illuminance	92 lux
Luminous efficacy	36.8 lux/W
Fluid dynamic efficiency class	E
Lighting efficiency class	A
Grease filtration efficiency class	E
Grease filtration efficiency	58.8 %
Acoustic emission (max)	64 dB
Acoustic emission (min)	57 dB
Number of speeds	2 (low, high)
Grease filter type	Metal, washable
Charcoal filter type	To be replaced (once a year)
Minimum distance above a gas hob	65 cm
Power supply	220-240 V
Installation	Wall-mounted or under cabinet
Importer	amc, 123 quai Jules Guesde, 94400 VITRY SUR SEINE, France

Frequently Asked Questions - OCEAHT440R8 OCEANIC

How to clean the grease filter?

The grease filter should be cleaned every month. Use a household detergent or soapy water. Never use metal pads or abrasives.

When to replace the charcoal filter?

The charcoal filter should be replaced at least once a year, depending on frequency of use.

How to replace the bulb?

Turn off the appliance and unplug it. Let it cool. Remove the metal filter, then turn the bulb counterclockwise. Replace with an identical bulb: 220-240 V, max 2.5 W LED, ILCOS code D DBS-2.5/65-H-120/33.

What is the minimum distance between the hood and a gas cooker?

The minimum distance is 65 cm. If the hob instructions specify a greater distance, that must be respected.

Can I use the hood without the grease filter?

No, never use the hood without the grease filter, as this presents a fire risk and reduces efficiency.

How to install the hood on a wall?

Drill 4 holes, insert suitable wall plugs. Attach the small L-brackets to the hood, then screw the hood to the wall using screws 4 mm x 30 mm. Make sure to use appropriate fixings.

Can the hood be installed above an electric cooker?

Yes, but respect the minimum distance of 65 cm for gas cookers. For electric cookers, a smaller distance may be acceptable, but follow the manufacturer's instructions.

Why is my hood making noise?

Excessive noise may be due to incorrect installation, ducts bent more than 90°, or a clogged filter. Check that the ducts are straight and the filter is clean. The normal sound level is 57 dB at minimum speed and 64 dB at maximum speed.

What to do if the power cable is damaged?

The cable must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger. Do not use the appliance.

How to reduce the hood's energy consumption?

Turn off the hood and light after cooking. Clean the filter regularly to maintain efficiency. Use the minimum speed when possible. The energy class of this model is B.

USER MANUAL OCEAHT440R8 OCEANIC

SAFETY PRECAUTIONS 2

INTRODUCTION 8
INCLUDED PARTS 8

PARTS LIST 8

INSTALLATION 9

WALL MOUNT 9-11
FURNITURE MOUNT 9-11

USE 16

REPLACING THE CHARCOAL FILTER. 17

REPLACING THE BULB. 18
MAINTENANCE 14-15

ADDITIONAL INFORMATION 19

ENVIRONMENTAL PROTECTION 20-21

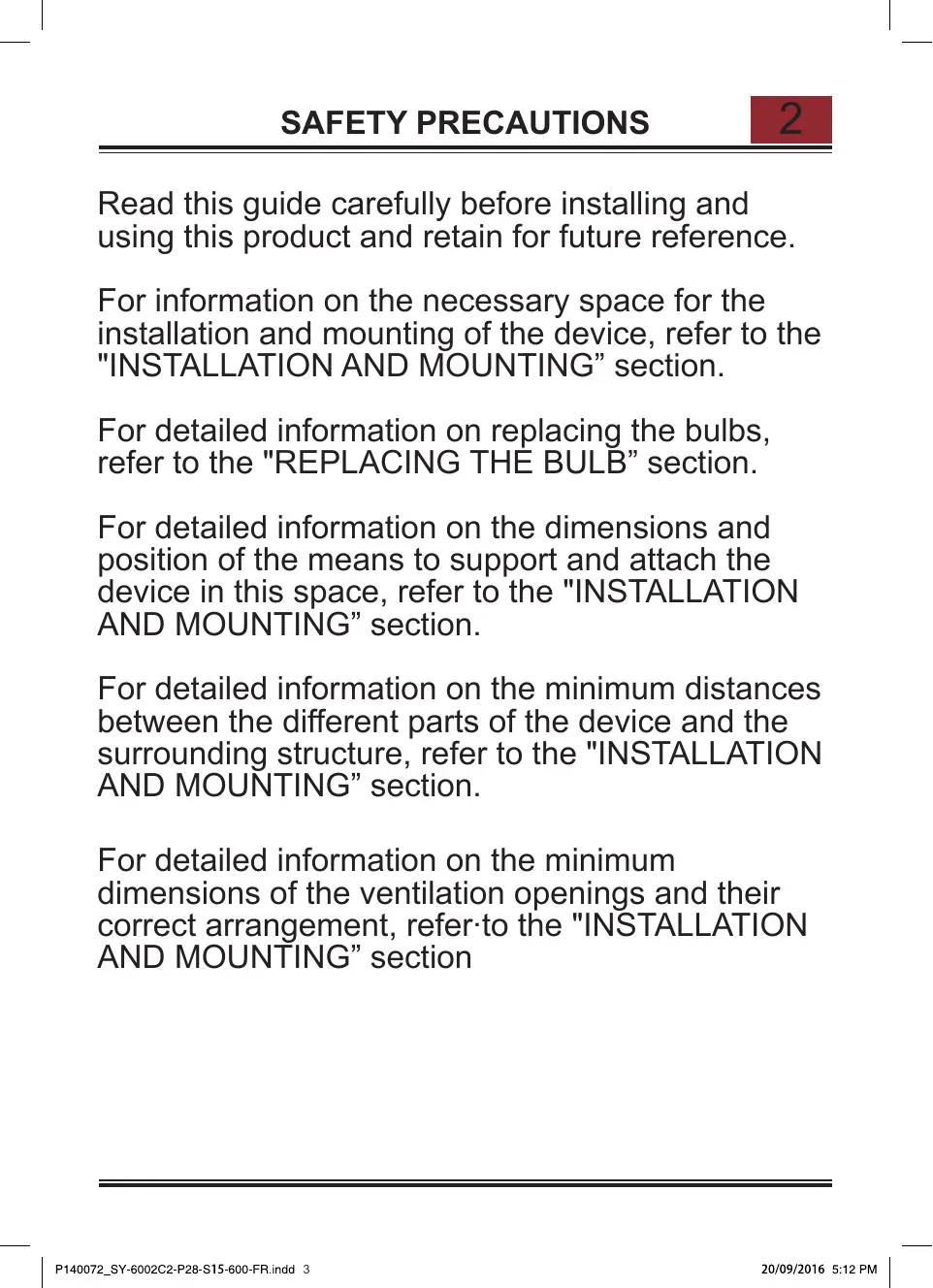

Read this guide carefully before installing and using this product and retain for future reference.

For information on the necessary space for the installation and mounting of the device, refer to the "INSTALLATION AND MOUNTING" section.

For detailed information on replacing the bulbs, refer to the "REPLACING THE BULB" section.

For detailed information on the dimensions and position of the means to support and attach the device in this space, refer to the "INSTALLATION AND MOUNTING" section.

For detailed information on the minimum distances between the different parts of the device and the surrounding structure, refer to the "INSTALLATION AND MOUNTING" section.

For detailed information on the minimum dimensions of the ventilation openings and their correct arrangement, refer to the "INSTALLATION AND MOUNTING" section

3

• Important! Always turn off the power before installing or servicing, including replacing a bulb.
• The range hood must be installed in accordance with the installation instructions and all measures must be observed.
• The entire installation must be entrusted to a competent person or to a professional electrician.
• Please dispose of packaging materials carefully. They are dangerous for children.
• Check that the ducts do not have bends greater than 90

degrees. This would reduce the efficiency of the range hood.

• This range hood is intended exclusively for domestic use.
• Do not blaze food under the hood.
• Do not try to use the kitchen hood without the grease filters or if the filters are too full of grease!

• Do not blow air into a duct used to evacuate fumes from appliances using gas or other fuel.

• Do not leave frying pans unattended during use as overheated fats or oils may catch fire.

• Never leave naked flames under the range hood.
  If the hood is damaged, do not attempt to use it.
• If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid a hazard.
• This device may be used by children 8 years of age or older and by persons with reduced physical, sensory or mental

capacity or lack of experience or knowledge, if they are properly supervised or if instructions for the safe use of the device have been given to them and the risks involved have been apprehended.

Children should not play with the device.
- Cleaning and user maintenance shall not be made by children without supervision.

5

• Watch your children to make sure they do not play with the device.
• The plug must be easily accessible after installation. There is minimum distance between the support surface of cookware on the cook top and the lowest part of the cooker hood. (When the range hood is placed over a gas appliance, this distance must be at least 65~cm . If the installation instructions for the gas cook top specify a larger distance, this should be taken into account.
• Proper ventilation of the room must

be provided when a kitchen hood is used simultaneously with appliances using gas or other fuel.

• Clean your appliance periodically using the method suggested in the MAINTENANCE chapter.
• There is a risk of fire if the cleaning is not done according to the instructions.
• Regulations regarding the discharge of air must be respected.

Clean the grease filter every month to prevent fire.
- The charcoal filter traps odors and must be replaced at least once a year depending on the frequency of use of the range hood.
WARNING: Accessible parts of this appliance may become hot when used with cooking appliances.
- For air extraction to be as efficient as possible, use a straight duct or with a minimum of elbows. Number of technicians recommended for installation: 2 to 3. Use appropriate wall

plugs and screws on the wall where the hood is to be installed. Ask a qualified installer or technician to select the right dowels and screws. In a cold climate, it is advisable to install an additional check valve to minimize cold air return, as well as a nonmetallic thermal barrier to minimize heat transfer by conduction to the outside. The valve must be installed on the side of the thermal barrier where the air is cold. The thermal barrier must also be installed as close as possible to the point where the duct enters the heated part of the building.

TO REDUCE FIRE HAZARDS, USE ONLY METALLIC DUCTS.

Install this hood in accordance with all specified requirements.

To reduce the risk of fire and extract air effectively, make sure the exhaust duct faces out. The extraction mouth must not be open on a space between two walls, ceilings, attics, reduced spaces or garages.

The code IT cos D for this lamp is DBS-2.5/65-H-120/33.

Presentation

Thank you for choosing this range hood. This user manual is designed to provide all necessary instructions for the installation, operation and maintenance of this appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

PARTS SUPPLIED

Description	Drawing	QTY(pc/set)
Cooker Hood		1
One-way-valve		1
screw (4*35mm)		6
screw (3*12mm)		2
Screw (4*10mm)		2
Small L-shaped bracket		2
L-Shaped Bracket		1
screw (4*8 mm)		2
Flat Washer		6
Carbon filter		2
screw (4*30mm)		4
wall plug (not included)		4

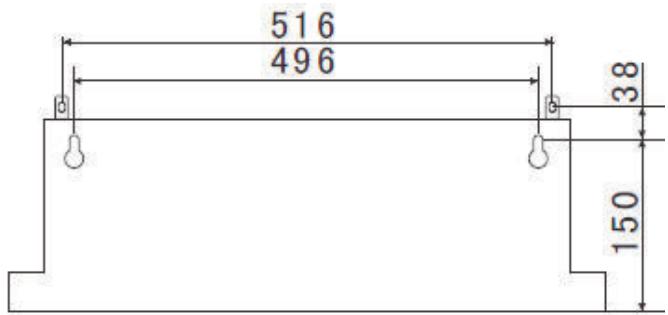

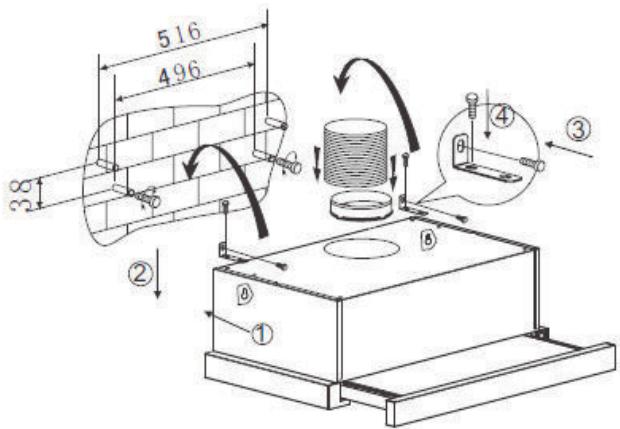

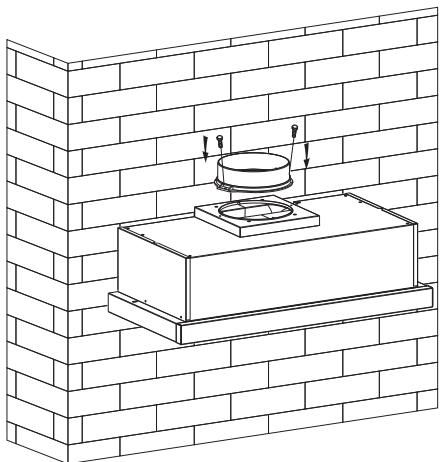

Wall Mounting

1. Decide the location of the holes for fixing the cooker hood.

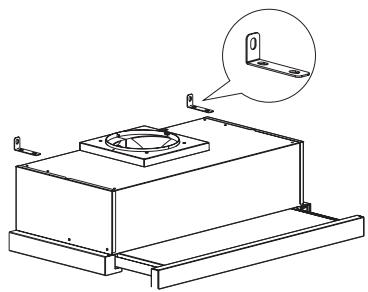

1. Install the two small L-shaped bracket on the top of the hood by two screws (4mm x 10mm)

1. The cooker hood is wall mounted by 4 screws (4mm x 30mm) and wall plugs. Mount the cooker hood on the wall on the back of the cooker hood by 2 screws (4mm x 30mm) and wall plugs. Then fix the cooker hood on the wall by 2 screws (4mm x 30mm) and wall plugs through the small L-shaped bracket.

1. Fix the one-way-valve to the air outlet of the cooker hood.

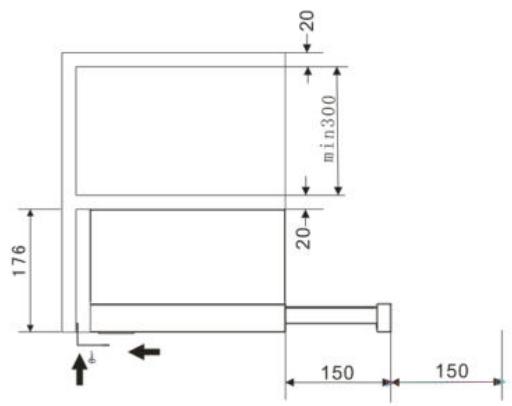

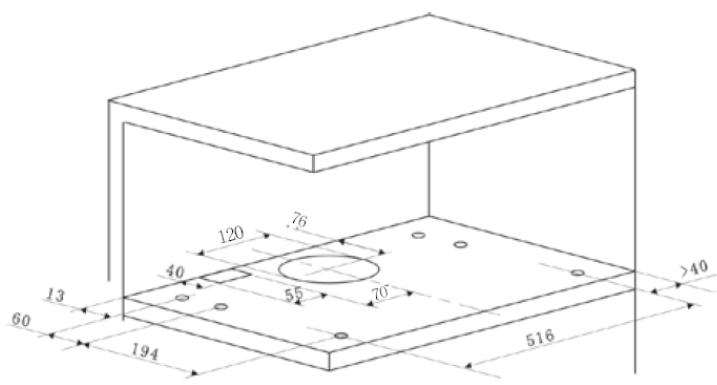

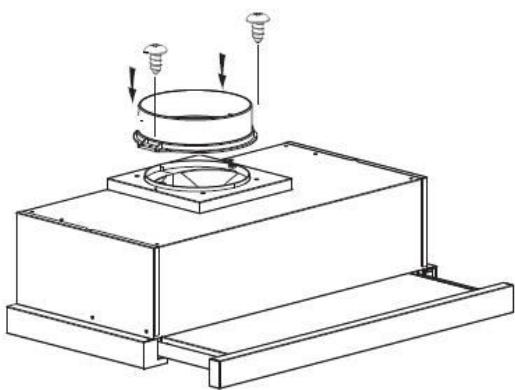

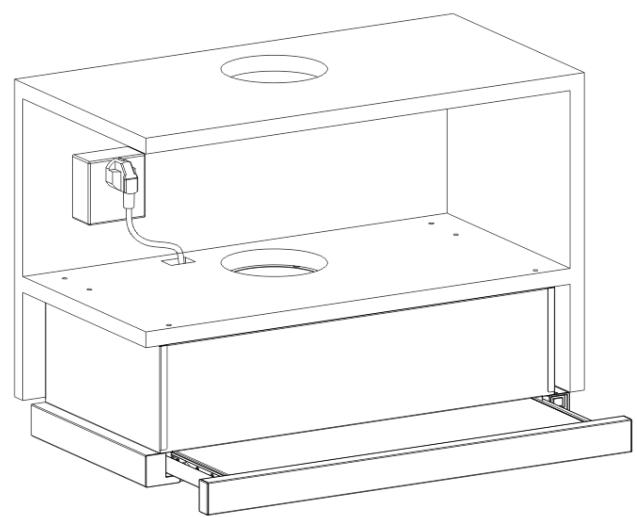

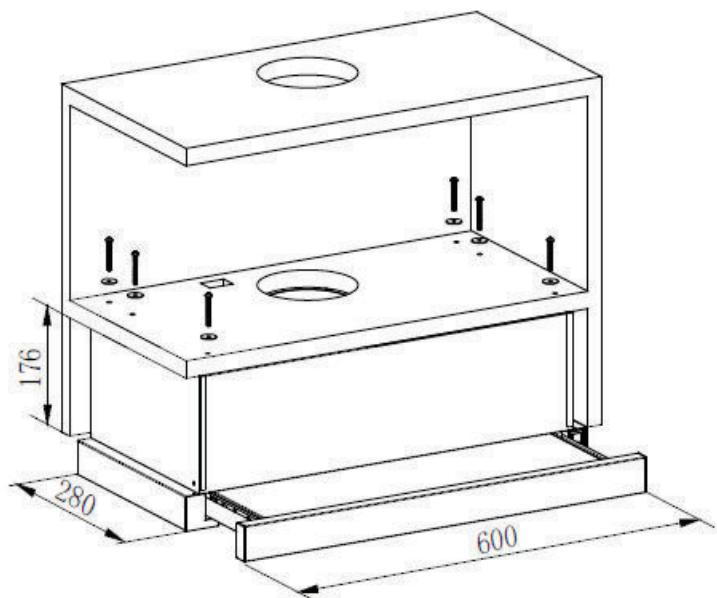

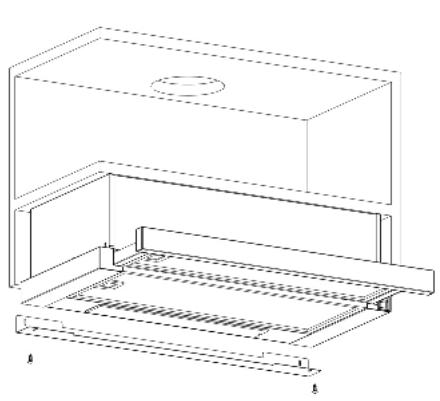

Cabinet Mounting

(1) Fix the one-way-valve to the air outlet of the cooker hood.

(2)Mount the cooker hood on the cabinet by 6 screws (4mmx35mm) and flat washers.

If there is gap between the wall and the cookerhood, you may Install the L-shaped bracket on the bottom of the hood by two screws (3 x 12mm). The installation of the L-shaped bracket is optional.

Before cleaning, switch the unit off and pull out the plug.

Make sure the hood has cooled down completely including its filter and lamp and that the grease is in solid form before cleaning any of its parts.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

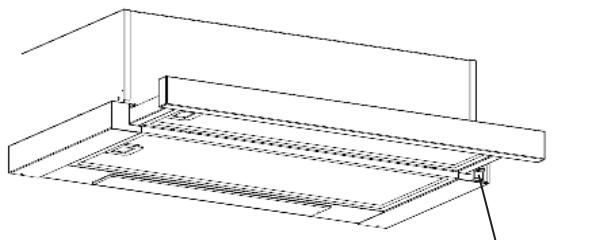

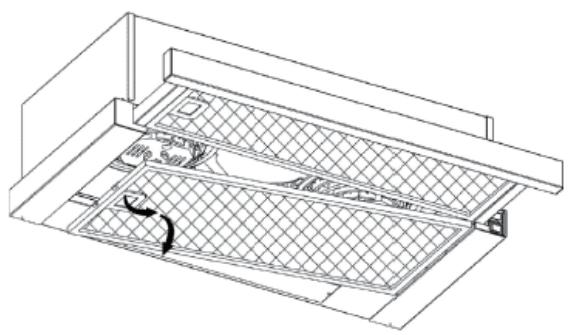

II. Monthly Cleaning for aluminum filter

ESSENTIAL CLEANING: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust.... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Rocker switch

1. Connect the plug into the power.
2. Push switch ① to , the lamp will be on; push switch ① to “0”, the lamp will be off.
3. Push the switch (2) into “I、II”, the motor will be on “low、high” two speeds, push into “0”, the motor will be off.
4. The power will be connected when pull out the front panel. Conversely, the power will be automatically disconnected.

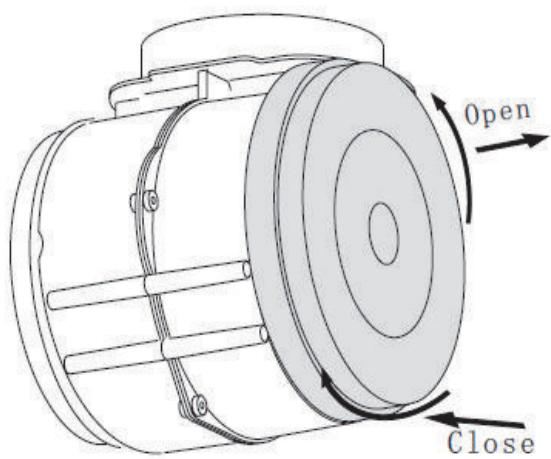

Carbon Filter Replacement

(1) Slide the front part of the cooker hood.
(2) The al filter should be detached first. Press the lock and pull it downward.
(3) Take out the carbon filter by rotating the carbon filter anti-clockwise.
(4) Replace the new carbon filter.

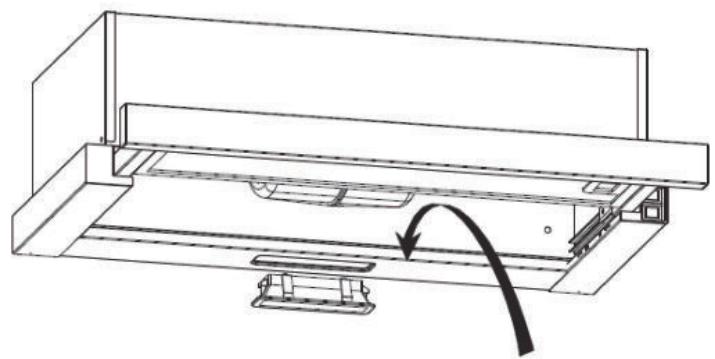

Bulb Replacement

1. Turn off the device and unplug it. Allow the bulb to cool before handling.
2. Slide the front part of the cooker hood.
3. The metallic anti-grease filter should be detached first. Press the lock and pull it downward.
4. Replace with same type of type (220-240V, MAX.2.5W LED).

ILCOS D code for this lamp is: DBS-2.5/65-H-120/33

	Symbol	Value	Unit
Reference	OCEAHT440R8
Model identification	SY-6002C-P1-C13-L41-600
Annual Energy Consumption	AEChood	26.8	kWh/a
Time increase factor	f	1,5
Energy Efficiency class		Class B
Energy Efficiency Index	EEIhood	64,1
Fluid Dynamic Efficiency	FDEhood	12,6
Measured air pressure at best efficiency point	PBEP	140	Pa
Measured airflow rate at the best efficiency	QBEP	147,8	m³/h
Measured electric power input at best efficiency point	WBEP	45,6	W
Fluid Dynamic Efficiency class		Class E
Nominal power of the lighting system	WL	2,5	W
Light Efficiency	LE hood	36.8	Lux/W
Light Efficiency Class		Class A
Average illumination of the lighting system on the cooking surface	EMiddle	92	lux
Grease Filtering Efficiency	GFEhood	58,8
Grease Filtering Efficiency(GFE hood) class		Class E
Air flow at working point		Highest setting:319 Lowest setting:208,4	m³/h
Maximum airflow	Qmax	329,6	m³/h
Air flow in intensive mode ('boost')
Noise emission at maximum speed in normal use	LWA	64	dB
Noise emission at maximum speed in normal use	LWA	57	dB
Measured power consumption on off mode	Po	0	W
Measured power consumption on standby mode	Ps	-	W

The measurement and calculation method of the above table was done in accordance with commission regulation (EU) No 65/2014 & 66/2014.

ENERG

eHepnra -Evpepyia

oceanic

Réf:OCEAHT440R8

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

Information for dismantling

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

ENVIRONMENTAL PROTECTION

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EC. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities.

IMPORTE PAR

amc
123 quai Jules Guesde 94400 VITRY SUR SEINE FRANCE
LOT #: amcMMYYYY
