Product type	Indoor/Outdoor Wi-Fi surveillance camera (charges indoors)
Brand	Logitech
Model	Circle 2
Video resolution	1080p HD
Field of view	180 degrees
Night vision	Yes
Connectivity	High-speed Wi-Fi and Bluetooth Low Energy
Power	Built-in rechargeable battery, charges via USB (AC adapter included)
Operating temperature	-20°C to 40°C
Compatibility	iOS 8.1+ (iPhone 4s or later, iPad mini or later, iPad 3 or later, iPod touch 5G or later); Android 4.4+
Mobile app	Logi Circle (free)
Video storage	Cloud via Circle Safe subscription (paid plans)
Audio	Built-in microphone and speaker (two-way audio)
Motion detection	Yes (via app)
Mounting	Wall, ceiling, shelf, window or outlet mount (optional accessories)
Box contents	Camera with battery cover, swivel stand, 61 cm USB cable, USB adapter, wall mount, 2 screws, 2 anchors, installation guide
LED indicators	Blinking blue (ready to pair), solid white (connected), blinking red (low battery), solid orange (charging), solid green (fully charged)
Reset	Circular button on side, press for 9 seconds until blinking magenta and green
Recommended installation height	2 to 2.5 meters (7-8 feet)
Color	White

Frequently Asked Questions - CIRCLE 2 LOGITECH

How do I install the Circle 2 camera?

Download the Logi Circle app, connect the USB cable to power, then follow the on-screen instructions. Make sure your Wi-Fi is enabled and Bluetooth is on. The camera is ready to pair when the LED blinks blue.

What does the blinking red LED mean?

The blinking red light indicates that the camera battery is very low. Plug the camera in via the USB cable to recharge. While charging, the indicator becomes solid orange, then solid green when fully charged.

How do I reset the Circle 2 camera?

Locate the circular reset button on the side of the camera. Press it for 9 seconds, then release when the light ring blinks magenta and green. The camera will restart.

Can I use the Circle 2 camera outdoors?

Yes, Circle 2 can be used outdoors, but it must be brought indoors for charging. It operates between -20°C and 40°C. Be careful not to expose it directly to sunlight to avoid overheating.

How do I mount the camera to a wall or ceiling?

Use the included wall mount. Screw the tabs onto the wall or ceiling with the included screws and anchors. Attach the stand base to the tabs, then mount the camera onto the stand. Adjust the angle. If ceiling mounted, you can flip the image in settings.

What accessories are available for Circle 2?

Logitech offers a window mount, an outlet mount, and an additional rechargeable battery. See logi.com/circle2/accessories for more options.

How do I flip the video image if the camera is ceiling mounted?

In the Logi Circle app, go to the camera menu (settings) and enable the flip image option. This keeps the image right-side up even if the camera is inverted.

What is the Wi-Fi range for Circle 2?

Range depends on your Wi-Fi network. Circle 2 uses high-speed Wi-Fi. For optimal connection, place the camera within your router's coverage area. If the signal is weak, move it closer or use a Wi-Fi extender.

What should I do if the camera does not connect?

Check that your mobile device is compatible (iOS 8.1+ or Android 4.4+), Bluetooth is enabled, and you are connected to Wi-Fi. Reset the camera if necessary (long press 9 seconds). Visit logi.com/circle2/support.

How do I change the battery of Circle 2?

Circle 2 comes with a built-in rechargeable battery. To replace it, contact Logitech support. The battery is not user-replaceable. Use the additional rechargeable battery accessory to extend battery life.

USER MANUAL CIRCLE 2 LOGITECH

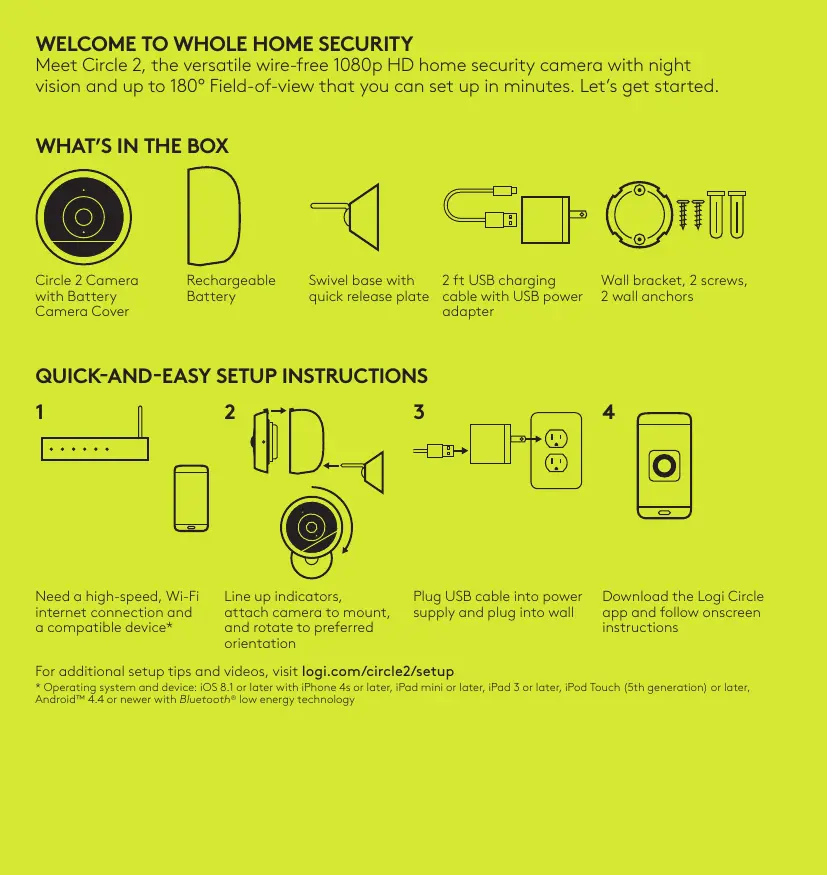

Meet Circle 2, the versatile wire-free 1080p HD home security camera with night vision and up to 180° field-of-view that you can set up in minutes. Let’s get started.

WHAT'S IN THE BOX

Circle 2 Camera with Battery Camera Cover

Rechargeable Battery

Swivel base with quick release plate

2 ft USB charging cable with USB power adapter

Wall bracket, 2 screws, 2 wall anchors

QUICK-AND-EASY SETUP INSTRUCTIONS

2

Need a high-speed, Wi-Fi internet connection and a compatible device* Line up indicators, attach camera to mount, and rotate to preferred orientation

Plug USB cable into power supply and plug into wall 4 Download the Logi Circle app and follow onscreen instructions

For additional setup tips and videos, visit logi.com/circle2/setup

• Operating system and device: iOS 8.1 or later with iPhone 4s or later, iPad mini or later, iPad 3 or later, iPod Touch (5th generation) or later, Android™ 4.4 or newer with Bluetooth® low energy technology

TIPS AND TRICKS

Camera and battery LED indicators

Blinking blue: Ready to pair

Solid white: Camera connected and ready for use

Blinking red: Camera critical battery

Solid amber: Camera plugged in and charging

Solid green: Camera charging complete

Note about charging: If you place Circle 2 100% wire-free outside, make sure you bring it inside to charge.

Reset camera steps

Locate the circular reset button on the side of the camera.

9 sec.

Press and hold the reset button for 9 seconds and release when you see the blinking magenta and green LED ring.

Make sure it's in Wi-Fi range

Circle 2 is a Wi-Fi security camera that streams HD video with audio, so it's recommended to be placed in a location that gets the best Wi-Fi reception - even moving the position of your camera a few feet can have a big impact. TIP: try streaming video to help determine optimal placement.

Don't leave it exposed to the sun

Circle 2 is designed to brave the cold and the heat and can operate in day time temperatures between -20°C to 50°C (-4° to 122°F).* However being in direct sunlight can cause the camera to heat up beyond this and impact performance, plus it may create unwanted glare in your videos.

• 40°C (104°F) in night vision mode

Pick a spot with a clear view

Place Circle 2 anywhere - on shelves, walls, and ceilings. When placing it, make sure it's high enough that it's not easy to tamper with but easy enough to get to when required. Around 7-8 ft (2-2.5 m) works best.

Easy mounting

Screw the bracket onto the wall/ceiling using the included screws and anchors. Snap the base of the mount onto the bracket and then attach the camera to the mount. Adjust the camera to the preferred angle and orientation. When placing it on a ceiling, you can flip the video using the camera menu.

MOUNTS AND ACCESSORIES

Circle 2 is the most versatile security camera that can be used anywhere at home.

To customize your experience even more, choose from a selection of accessories that fit your needs.

Window Mount

Simply put the Window Mount on the camera and place it on any window pane. Thanks to the Window Ring and unique in-app mode, it's that simple.

Plug Mount

Watch over your home from any wall outlet — in the kitchen, the garage, even down low to see your pet.

Rechargeable Battery

An additional Rechargeable Battery so you can swap Circle 2 Wire-Free's battery out quickly while the other is charging.

Find additional accessories at logi.com/circle2/accessories

Need more help?

Visit support and FAQs at logi.com/circle2/support

For additional Circle Safe subscription plans, go to logi.com/circle2/subscriptions

Rechargeable battery

Rechargeable battery

Visit support and FAQs at logi.com/circle2/support

For additional Circle Safe subscription plans, go to logi.com/circle2/subscriptions

WELCOME TO TOTAL HOME SECURITY

• Compatible operating systems: iOS 8.1 or later with iPhone 4s or later, iPad mini or later, iPad 3 or later, iPod Touch (5th generation) or later, Android™ 4.4 or later with Bluetooth® Low Energy technology

TIPS AND TRICKS

WHAT'S IN THE BOX

Circle 2 camera with battery cover

WHAT'S IN THE BOX

Circle 2 camera with battery cover

Rechargeable battery

Flashing blue: ready to pair

White, flashing slowly: camera is connected and ready to operate

Red, flashing: critically low battery level

Yellow, flashing slowly: camera is connected, no video

Green, flashing slowly: camera is fully charged

Charging instructions. If the Circle 2 wireless camera is installed outdoors, be sure to charge it indoors.

Camera reset instructions

Press the circular reset button on the side of the camera

9 sec.

Press and hold the reset button for 9 seconds. Release when the LED indicator ring starts flashing purple.

Make sure the device is within the Wi-Fi operating range

Circle 2 is a video surveillance camera that operates over Wi-Fi. The device performs streaming video and audio transmission in HD format, so it is recommended to install it in an area with good Wi-Fi signal reception. The placement of the camera plays a significant role. To determine the optimal camera placement, try turning on the video transmitter.

Do not expose the camera to direct sunlight

The Circle 2 camera is designed to operate at both high and low temperatures (from -20°C to 50°C). However, exposure to direct sunlight may cause the camera to overheat. This can affect the performance of the device and may also cause image artifacts.

*In night vision mode, the temperature is 40°C

Choose a location with good visibility.

The Circle 2 camera can be placed anywhere - on a shelf, on a wall, it's not heavy. When installing, place the camera at a height so you don't bump into it, but so you can easily reach it if needed. The optimal height is 2-2.5 m.

Simple installation

Using the mounting kit and screws included in the package, attach the mounting bracket to the wall or ceiling. Screw the base of the bracket, then attach the camera to the holder. Set the camera at the desired angle and orientation. If placed on a shelf, you can flip the image and the camera's field of view.

Mounting accessories

The Circle 2 is a versatile camera that can be installed anywhere in the home.

To adapt it to your needs as much as possible, use the provided accessories.

Mounting near a window

Simply attach the camera to the mount and place it on the windowsill. This is very easy thanks to the included mount.

logi.com/circle2/setup

logi.com/circle2/accessories

logi.com/circle2/support

logi.com/circle2/subscriptions
