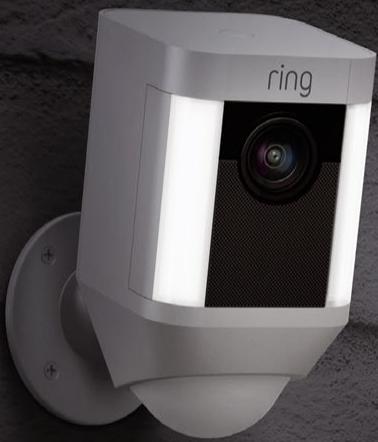

SPOTLIGHT CAM - Security Camera RING - Free user manual and instructions

Product Type	Outdoor security camera with LED floodlights
Brand	Ring
Model	Spotlight Cam
Video Resolution	1080p HD
Field of View	140° horizontal, 80° vertical
Night Vision	Yes, infrared with white LEDs
LED Lighting	2 motion-activated LED floodlights
Two-Way Audio	Yes, with noise reduction
Motion Detection	Yes, customizable zones
Power Source	Rechargeable lithium-ion battery (Quick Release Battery Pack)
Battery Life	Up to 6 months depending on usage
Connectivity	Wi-Fi 2.4 GHz 802.11 b/g/n
Weather Resistance	IP55 rating
Mounting	Wall mount included, screw kit provided
Dimensions (L x W x H)	12.4 x 7.4 x 7.4 cm
Weight	680 g (with battery)
Compatibility	Alexa, Ring app (iOS/Android)
App	Ring – setup, notifications, live video
Warranty	1 year (manufacturer)
Maintenance	Clean the lens with a soft, dry cloth
Security	Video encryption, secure connection, automatic updates
Replacement Parts	Battery, wall mount, cable (sold separately)

Frequently Asked Questions - SPOTLIGHT CAM RING

How to install the Ring Spotlight Cam?

Download the Ring app, create an account, and follow the setup instructions. Screw the wall mount into place, attach the camera, and insert the battery. Refer to the installation guide at ring.com/manuals.

What is the battery life?

The battery life can reach 6 months under normal use, depending on trigger frequency and outdoor temperature.

Does the camera work without a subscription?

Yes, you can use the camera live and receive notifications without a subscription. To record and review videos, a Ring Protect subscription is required.

What type of Wi-Fi is required?

The camera requires a 2.4 GHz Wi-Fi network (802.11 b/g/n). 5 GHz networks are not compatible.

Can the camera be used in rainy weather?

Yes, the Ring Spotlight Cam is IP55 certified, protecting it against water jets and dust.

How to set up motion zones?

In the Ring app, go to your camera's settings, then 'Motion Zones'. Draw the areas where you want to be alerted.

What to do if the camera does not connect?

Check that your phone is on the same 2.4 GHz network. Reset the camera by holding the setup button for 15 seconds, then try again.

Is the two-way audio clear?

Yes, the microphone and speaker provide real-time communication with noise reduction to limit interference.

How to replace the battery?

Detach the camera from the mount, remove the battery by pressing the latch, then insert a compatible Ring battery and put the camera back in place.

Is the camera compatible with voice assistants?

Yes, it works with Amazon Alexa to display the video stream on Echo Show or Fire TV devices.

USER MANUAL SPOTLIGHT CAM RING

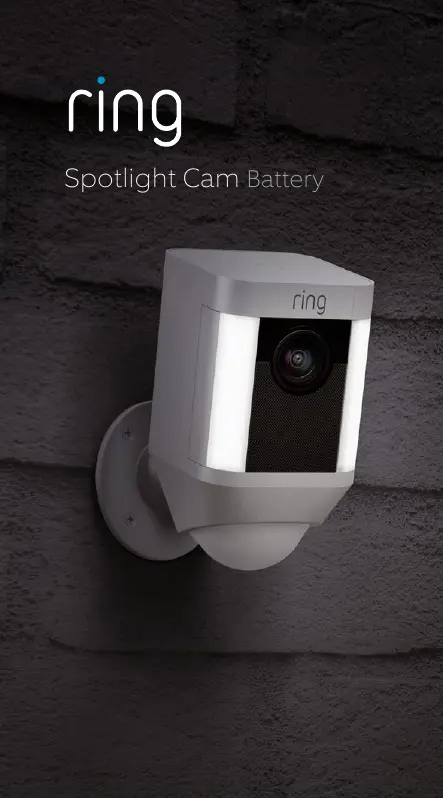

Spotlight Cam Battery

Quick Start...

1

Download the Ring app

Search for "ring" in one of the app stores below or visit ring.com/app

Download on the App Store

GET IT ON Google Play

2

Set up your Spotlight Cam in the app Select "Set Up Device" in the app, then select Spotlight Cam.

3

Install Spotlight Cam

Follow the steps at page 22, or in the Ring app, to install Spotlight Cam.

Physical Installation

Turn to page 22 for a visual overview of the installation steps.

Digital Download

Get detailed install directions in English at: ring.com/manuals

ring

Inicio=rápido...

1

Installer Spotlight Cam

Folg vejledningen på side 22
eller i Ring-appen for at installere
Spotlight Cam.

Fysisk installation

Installer Spotlight Cam

Installer Spotlight Cam

Følg trinnene på side 22, eller i Ringappen, forå installere Spotlight Cam.

Fysisk installasjon

© 2019 Ring LLC or its affiliates.

Ring and all related logos are trademarks of Ring LLC or its affiliates.

Last updated: 06/12/19
