Product type	Monochrome laser multifunction printer
Functions	Print, copy, scan, fax
Supported paper sizes	A4, A5, A6, JIS B5, Letter, Legal, Folio, Oficio (Mexico), Statement, Executive, Envelopes (7 3/4, 9, 10, DL, C5, B5), Universal (76.2 x 127 mm to 216 x 356 mm), Hagaki, Business card
Supported paper weight	Tray: 60–120 g/m²; Multipurpose feeder: 60–216 g/m²; Duplex: 60–90 g/m²; ADF: 52–120 g/m²
Paper input capacity	Standard tray 250 sheets, multipurpose feeder (multifeed), optional trays 250 or 550 sheets
Print speed	Up to 42 pages per minute (A4)
Print resolution	Up to 1200 x 1200 dpi
Monthly duty cycle	Up to 80,000 pages
Scanning	Flatbed scanner and automatic duplex ADF, resolution up to 1200 x 1200 dpi
Fax	33.6 Kbps modem, memory storage up to 400 pages
Connectivity	Ethernet 10/100/1000 Base-T, USB 2.0 Hi-Speed, Wi-Fi Direct, AirPrint, Mopria
Control panel	2.8-inch color touch screen with keypad
Memory	512 MB (expandable up to 2.5 GB), optional hard drive
Consumables	High-capacity toner cartridge (up to 10,000 pages), maintenance kit
Security	Hard drive encryption, secure memory erase, PIN codes for confidential prints, 802.1x protocol
Power	100–240 V AC, 50/60 Hz
Noise level	Standby: < 15 dB(A), printing: < 56 dB(A)
Included software	Drivers for Windows and Mac, Lexmark Mobile Print, Embedded Web Server
Warranty	1 year (extension possible)
Maintenance and cleaning	Cleaning of printer, scanner, rollers; replacement of consumables and wear parts

Frequently Asked Questions - MX522ADHE LEXMARK

How to load paper in the tray?

Remove the tray, adjust the guides to the paper size, fan and flex the stack, then load the paper print side down. Make sure the stack height does not exceed the maximum fill indicators. Insert the tray and set the paper type and size from the control panel if necessary.

How to print from a USB flash drive?

Insert the flash drive into the USB port on the front of the printer. On the home screen, press USB Drive, then select the document to print. You can adjust print settings before starting the job. The printer supports PDF, XPS, Microsoft Office, and various image formats.

How to scan a document to a computer?

Make sure the computer and printer are on the same network. From the computer, run Lexmark ScanBack Utility (downloadable from www.lexmark.com). Configure a scan profile by adding the printer's IP address. Place the document in the ADF or on the scanner glass, then from the printer, press Scan Profiles and select the created profile.

How to clear a paper jam?

Identify the jam area on the screen. Remove the jammed paper by pulling gently in the direction of extraction. Possible areas are: behind door A, behind the rear door, in the standard output bin, in the duplex unit, in the trays, in the multipurpose feeder, or in the ADF. Follow the on-screen instructions for each location.

How to set up fax on the printer?

Connect the telephone cable to the LINE port on the printer and to an analog wall jack. On the home screen, go to Settings > Fax > Fax Setup. Follow the initial setup wizard. You can adjust the number of rings before answer, reception mode (auto or manual), and set up forwarding if needed.

How to connect the printer to a Wi-Fi network?

From the control panel, go to Settings > Network/Ports > Wireless. Enable Wi-Fi, then select your network and enter the password. You can also use the WPS method (button or PIN) if your router supports it. Verify the connection by printing a network setup page.

How to replace the toner cartridge?

Open door A (front cover). Remove the old cartridge by pulling it toward you. Take the new cartridge out of its packaging, remove the protective tapes, then insert it by sliding it in until it clicks into place. Close the door. The printer will perform a calibration cycle.

How to make a duplex copy?

Place the original document in the ADF or on the scanner glass. On the home screen, press Copy > Settings > Sides. Select Duplex or Duplex (long edge/short edge flip) as needed. Press Copy to start the job.

How to send a scanned document by email?

First, configure the SMTP server settings in Settings > Email > Email Setup. Place the document in the ADF or on the glass, then on the home screen, press Email. Enter the recipient's address and, if necessary, adjust file settings (format, resolution). Press Send.

How to update the printer firmware?

Download the latest firmware file from the Lexmark support website (http://support.lexmark.com). Access the printer's Embedded Web Server by entering its IP address in a browser. Go to Settings > Firmware or Firmware Update, select the downloaded file, and apply the update. The printer will restart automatically.

USER MANUAL MX522ADHE LEXMARK

MFP MB2442, MB2546, MX421, MX521, MX522, XM1242, XM1246

Type(s) de machine(s):

7017

Modèles :

476, 478, 496, 636, 676, 678, 679, 686

Contenus

Gestion des services mobiles

5 Retirez le papier coincide.

2 Retirez le papier coince.

Retirez le papier coincide.

2 Retirez le papier coincide.

2 Retirez le papier coince.

3 Retirez le papier coince.

Fournitures non-Lexmark

Macintosh, Mac, OS X, App Store, Safari, and AirPrint are trademarks of Apple Inc., registered in the U.S. and other countries. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.

Notice to users of the Canadian telephone network

This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.

The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five. The REN is located on the product label.

This equipment uses CA11A telephone jacks.

Innovation, Science and Economic Development Canada

This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Innovation, Science and Economic Development Canada compliance statement

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Standard ICES-003.

Innovation, Science and Economic Development Canada compliance statement

This Class B digital apparatus meets all requirements of the Canadian Interference-Caising Equipment Standard ICES-003.

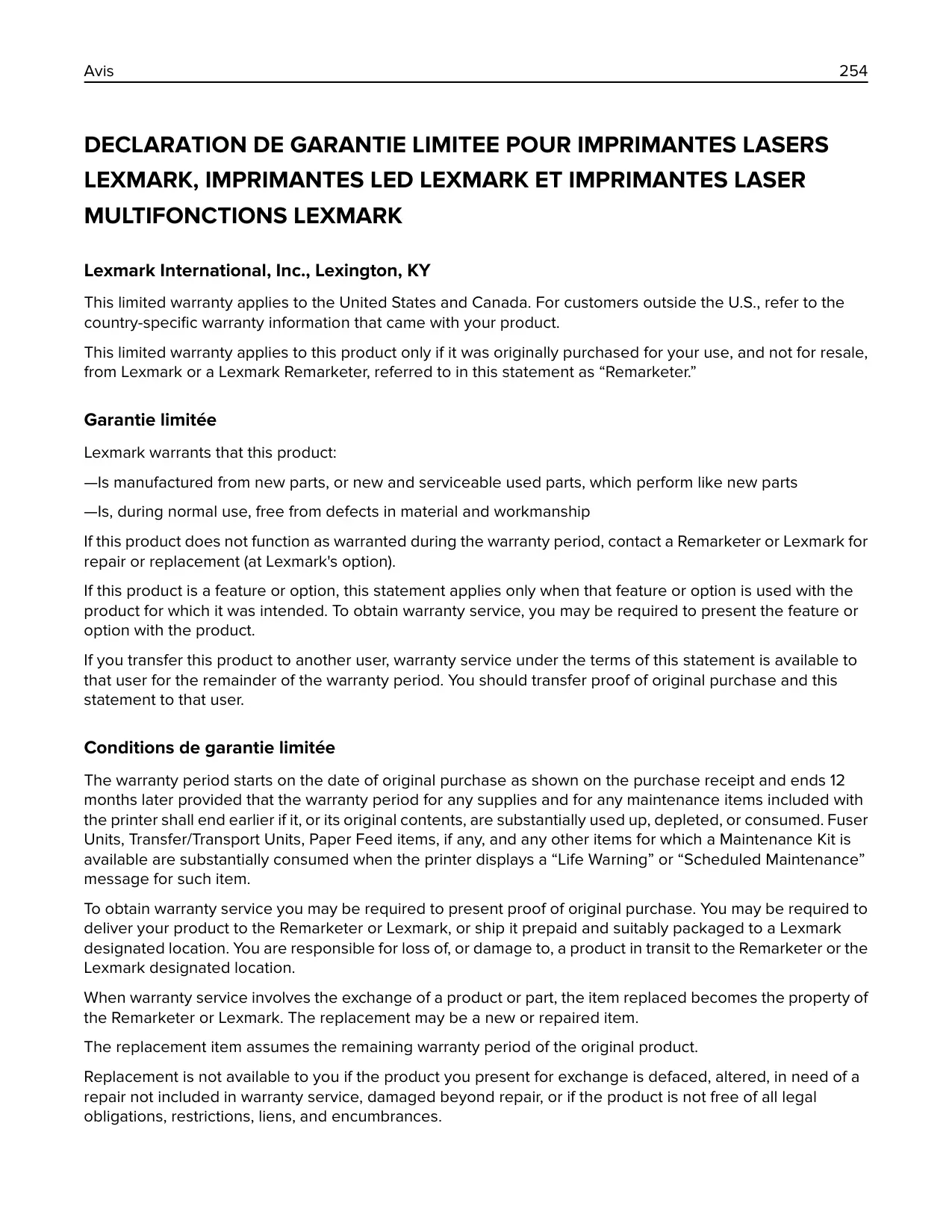

Lexmark International, Inc., Lexington, KY

This limited warranty applies to the United States and Canada. For customers outside the U.S., refer to the country-specific warranty information that came with your product.

This limited warranty applies to this product only if it was originally purchased for your use, and not for resale, from Lexmark or a Lexmark Remarketer, referred to in this statement as "Remarketer."

Garantie limitée

Lexmark warrants that this product:

—Is manufactured from new parts, or new and serviceable used parts, which perform like new parts

—Is, during normal use, free from defects in material and workmanship

If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for repair or replacement (at Lexmark's option).

If this product is a feature or option, this statement applies only when that feature or option is used with the product for which it was intended. To obtain warranty service, you may be required to present the feature or option with the product.

If you transfer this product to another user, warranty service under the terms of this statement is available to that user for the remainder of the warranty period. You should transfer proof of original purchase and this statement to that user.

The warranty period starts on the date of original purchase as shown on the purchase receipt and ends 12 months later provided that the warranty period for any supplies and for any maintenance items included with the printer shall end earlier if it, or its original contents, are substantially used up, depleted, or consumed. Fuser Units, Transfer/Transport Units, Paper Feed items, if any, and any other items for which a Maintenance Kit is available are substantially consumed when the printer displays a "Life Warning" or "Scheduled Maintenance" message for such item.

To obtain warranty service you may be required to present proof of original purchase. You may be required to deliver your product to the Remarketer or Lexmark, or ship it prepaid and suitably packaged to a Lexmark designated location. You are responsible for loss of, or damage to, a product in transit to the Remarketer or the Lexmark designated location.

When warranty service involves the exchange of a product or part, the item replaced becomes the property of the Remarketer or Lexmark. The replacement may be a new or repaired item.

The replacement item assumes the remaining warranty period of the original product.

Replacement is not available to you if the product you present for exchange is defaced, altered, in need of a repair not included in warranty service, damaged beyond repair, or if the product is not free of all legal obligations, restrictions, liens, and encumbrances.

Before you present this product for warranty service, remove all print cartridges, programs, data, and removable storage media (unless directed otherwise by Lexmark).

For further explanation of your warranty alternatives and the nearest Lexmark authorized servicer in your area contact Lexmark on the World Wide Web.

Remote technical support is provided for this product throughout its warranty period. For products no longer covered by a Lexmark warranty, technical support may not be available or only be available for a fee.

Lexmark does not warrant uninterrupted or error-free operation of any product or the durability or longevity of prints produced by any product.

Warranty service does not include repair of failures caused by:

—Modification or unauthorized attachments
—Accidents, misuse, abuse or use inconsistent with Lexmark user's guides, manuals, instructions or guidance
—Unsuitable physical or operating environment
—Maintenance by anyone other than Lexmark or a Lexmark authorized servicer
Operation of a product beyond the limit of its duty cycle
—Use of printing media outside of Lexmark specifications
—Refurbishment, repair, refilling or remanufacture by a third party of products, supplies or parts
—Products, supplies, parts, materials (such as toners and inks), software, or interfaces not furnished by Lexmark

TO THE EXTENT PERMITTED BY APPLICABLE LAW, NEITHER LEXMARK NOR ITS THIRD PARTY SUPPLIERS OR REMARKETERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THIS PRODUCT, AND SPECIFICALLY DISCLAIMT THE IMPLIED WARRANTYES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND SATISFACTORY QUALITY. ANY WARRANTYES THAT MAY NOT BE DISCLAIMED UNDER APPLICABLE LAW ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTYES, EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. ALL INFORMATION, SPECIFICATIONS, PRICES, AND SERVICES ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE.

Your sole remedy under this limited warranty is set forth in this document. For any claim concerning performance or nonperformance of Lexmark or a Remarketer for this product under this limited warranty, you may recover actual damages up to the limit set forth in the following paragraph.

Lexmark's liability for actual damages from any cause whatsoever will be limited to the amount you paid for the product that caused the damages. This limitation of liability will not apply to claims by you for bodily injury or damage to real property or tangible personal property for which Lexmark is legally liable. IN NO EVENT WILL LEXMARK BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, INCIDENTAL DAMAGE, OR OTHER ECONOMIC OR CONSEQUENTIAL DAMAGES. This is true even if you advise Lexmark or a Remarketer of the possibility of such damages. Lexmark is not liable for any claim by you based on a third party claim.

This limitation of remedies also applies to claims against any Suppliers and Remarketers of Lexmark. Lexmark's and its Suppliers' and Remarketers' limitations of remedies are not cumulative. Such Suppliers and Remarketers are intended beneficiaries of this limitation.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of incidental or consequential damages, so the limitations or exclusions contained above may not apply to you.

This limited warranty gives you specific legal rights. You may also have other rights that vary from state to state.

Index

A

à l'aide du DAA

copie 42

impression somebody 190

Types de supports 85

USB 128

Wi-Fi Direct 129

XPS 79

menu Aide 139

menu Sans fil 118

menu

Sans fil 118

I'installation de I'ISP 146

scanner 42, 45, 55, 58

copie 42

(DAA) 42, 45, 55, 58

Wi-Fi Protected Setup

réseau sans fil 144
