FSMO905BK - Range hood FRANKE - Free user manual and instructions

Product Type	Range Hood
Brand	Franke
Model	FSMO905BK
Dimensions (W x D x H)	900 x 500 x (adjustable height) mm
Approximate weight	~15 kg
Power supply	220-240 V ~ 50 Hz
Number of speeds	3 speeds + delayed shutdown
Control	Push buttons
Lighting	LED (replacement by technical support)
Grease filter	Metal, dishwasher safe (every 2 months)
Charcoal filter	Not washable, replace every 4 months
Minimum installation distance	650 mm between hob and hood
Exhaust duct diameter	120 mm minimum
Use	Domestic, for removing cooking odors
Installation	Wall-mounted or under cabinet
Material	Stainless steel
Electrical class	Class I (earthing required)
Safety	Do not flambé under the hood; do not leave open flames; not recommended for children without supervision
Maintenance	Clean with a damp cloth and mild detergent
Spare parts	Contact Franke technical support

Frequently Asked Questions - FSMO905BK FRANKE

What is the minimum installation distance between the hob and the hood?

The minimum safety distance is 650 mm. Some models can be installed lower, refer to the paragraphs on working dimensions and installation.

How to clean the grease filters?

The grease filters should be cleaned every 2 months of use, or more frequently with heavy usage. They are dishwasher safe.

When should the charcoal filter be replaced?

The charcoal filter is not washable and should be replaced approximately every 4 months of use, or more often with heavy usage.

Can I use the hood with a gas appliance?

Yes, but you must ensure adequate ventilation in the room to prevent backflow of combustion gases. The depression must not exceed 0.04 mbar.

How to activate the delayed automatic shutdown?

Press and hold the B, C or D buttons to activate the delayed shutdown of 5 minutes. The appliance will turn off automatically after this time.

What to do in case of lighting failure?

The lighting must be replaced by technical support. Contact the manufacturer or an authorized service for replacement.

Is the appliance suitable for children?

Children over 8 years and persons with reduced abilities may use it under supervision. Children must not play with the appliance or perform cleaning without supervision.

How to connect the hood electrically?

Connect the hood to the mains via a bipolar switch with a contact distance of at least 3 mm. Ensure the voltage matches the rating plate.

Where to find spare parts?

For spare parts, contact Franke technical support or visit www.franke.it.

Do I need to ventilate the room if I use the hood with a gas stove?

Yes, it is necessary to have an opening communicating with the outside to ensure fresh air intake and prevent fume backflow.

USER MANUAL FSMO905BK FRANKE

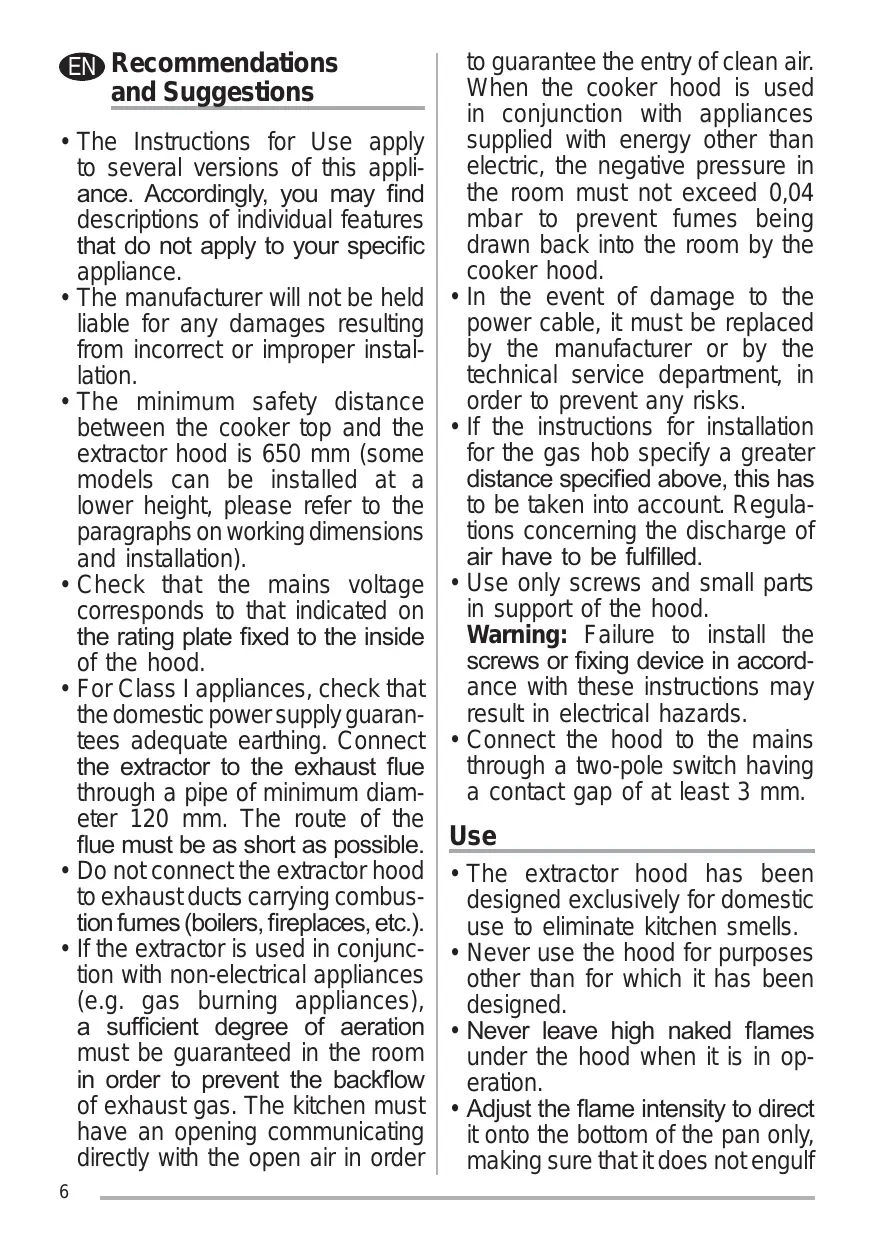

EN Recommendations and Suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 ~mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order

to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 ~mm .

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf

the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children over 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased

the product.

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

Controls

	1	2	3
|A	|B	|C	|D

Button	Function
A	Turns the lighting system on and off at maximum intensity.
B	Turns the suction motor on and off at speed one.
	DelayActivate automatic switch-off with a 5 minutes delay. Suitable to complete elimination of residual odours. Can be activated from any position, by a longer pressure of the icon and is disabled by pressing the button or turning the motor off.
C	Turns the suction motor on and off at speed two.
	DelayActivate automatic switch-off with a 5 minutes delay. Suitable to complete elimination of residual odours. Can be activated from any position, by a longer pressure of the icon and is disabled by pressing the button or turning the motor off.
D	Turns the suction motor on at speed three.
	DelayActivate automatic switch-off with a 5 minutes delay. Suitable to complete elimination of residual odours. Can be activated from any position, by a longer pressure of the icon and is disabled by pressing the button or turning the motor off.

Lighting

• For replacement contact technical support ("To purchase contact technical support").

Franke S.p.a.

Via Pignolini, 2

37019 Peschiera del Garda (VR)

www.franke.it
