USER MANUAL AHBF970IX AIRLUX

es en to tamper with the controls or play with the appliance.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

• Never use the hood without effectively mounted grating! • The hood must NEVER be used as a support surface unless specifically indicated. • The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

!It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

• The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

!Read the instructions carefully: there is important information about installation, use and safety. !Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

• The flaming of foods beneath the hood itself is severely prohibited. • The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

!Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

• Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

SAFETY INSTRUCTIONS • WARNING! Do not connect the appliance to the mains until the installation is fully complete.

• Accessible parts of the hood may became hot when used with cooking appliance. • With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. • Always wear work gloves for all installation and maintenance operations. • The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual).

• This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

• This appliance is designed to be operated by adults. Children should not be allowed

• Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

• We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the nonobservance

of the instructions included in this manual.

(boilers, fireplaces, stoves, etc). ! For the air vents comply with the provisions laid down by the competent authorities. In addition, the air must not be evacuated through a hole in the wall unless specifically intended for this purpose. ! Fit air intakes in the room to prevent the hood from creating a negative pressure in the room (which must not exceed 0.04 mbar); if the hood is used at the same time as non-electrical equipment (gas-, oil- and charcoal-fired stoves, etc.) the exhaust gas may be sucked in by the heat source.

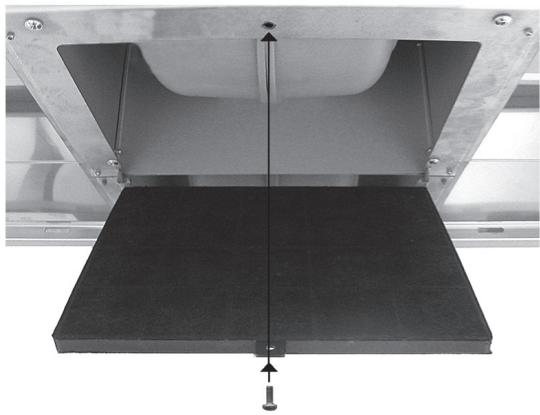

INSTALLATION The hood may be in filtering or in ducting version (see A-B pag.2). Decide from the outset which type is to be installed. For better efficiency, we recommend installing the hood in the ducting version (if possible). FILTERING VERSION (A) In order to transform your cooker hood from the exhaust version to the re-circulating version, ask your local retailer for active carbon filters and then carry out the following instructions. The filters must be applied to the suction kit located inside the cooker hood (fig. 4). The air is replaced in the environment via the eyelets impressed on the connector. the upper flue must have the air evacuation slots positioned in the upper part.

ASSEMBLY ! WARNING: Very heavy product; hood

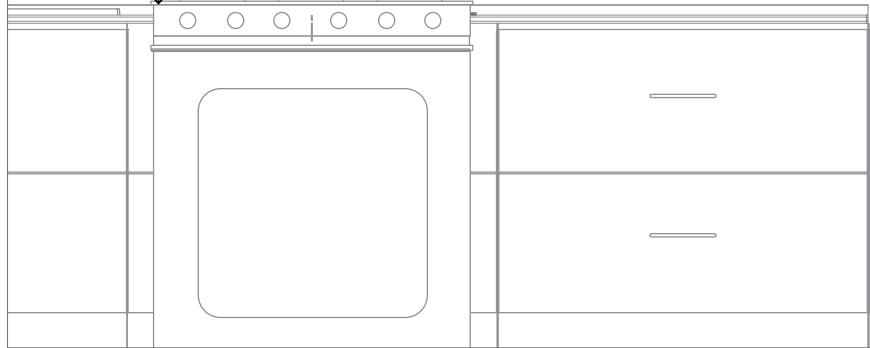

handling and installation must be carried out by at least two persons. ! WARNING: Wear gloves and goggles when carrying out installation and maintenance operations. ! WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. !The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 65 cm from electric cookers and 75 cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to. ! Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone. ! In case of doubt, consult an authorised service assistance centre or similar qualified person.

The hood purifies the air and evacuates it to the outside through an exhaust duct or hole (diameter 150 mm). Roof Venting (B) AIR VENT

(for ducting versions) ! Prepare the hole and the air vent duct (150 mm diameter - not provided with the product). ! Use a duct of the minimum indispensible length. ! Use a duct with as few elbows as possible (maximum elbow angle: 90°). ! Avoid drastic changes in the duct crosssection. ! Use a duct with an as smooth as possible inside. ! The duct must be made of certified material. ! Do not connect the hood to smoke exhaust ducts for the products of combustion

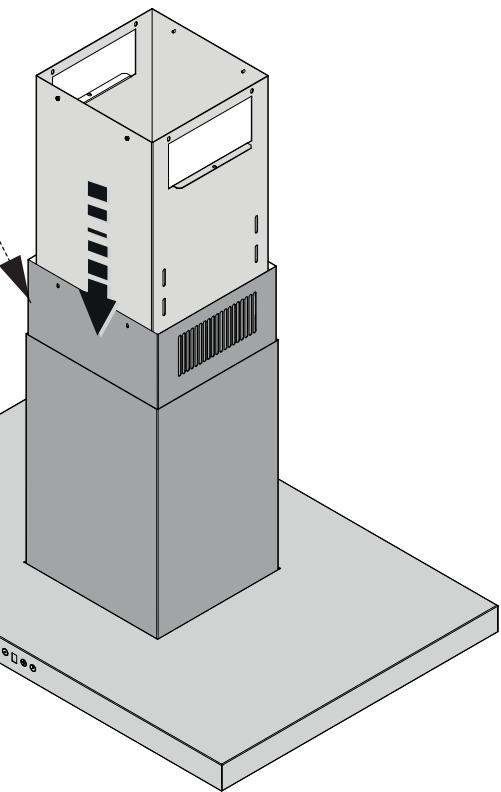

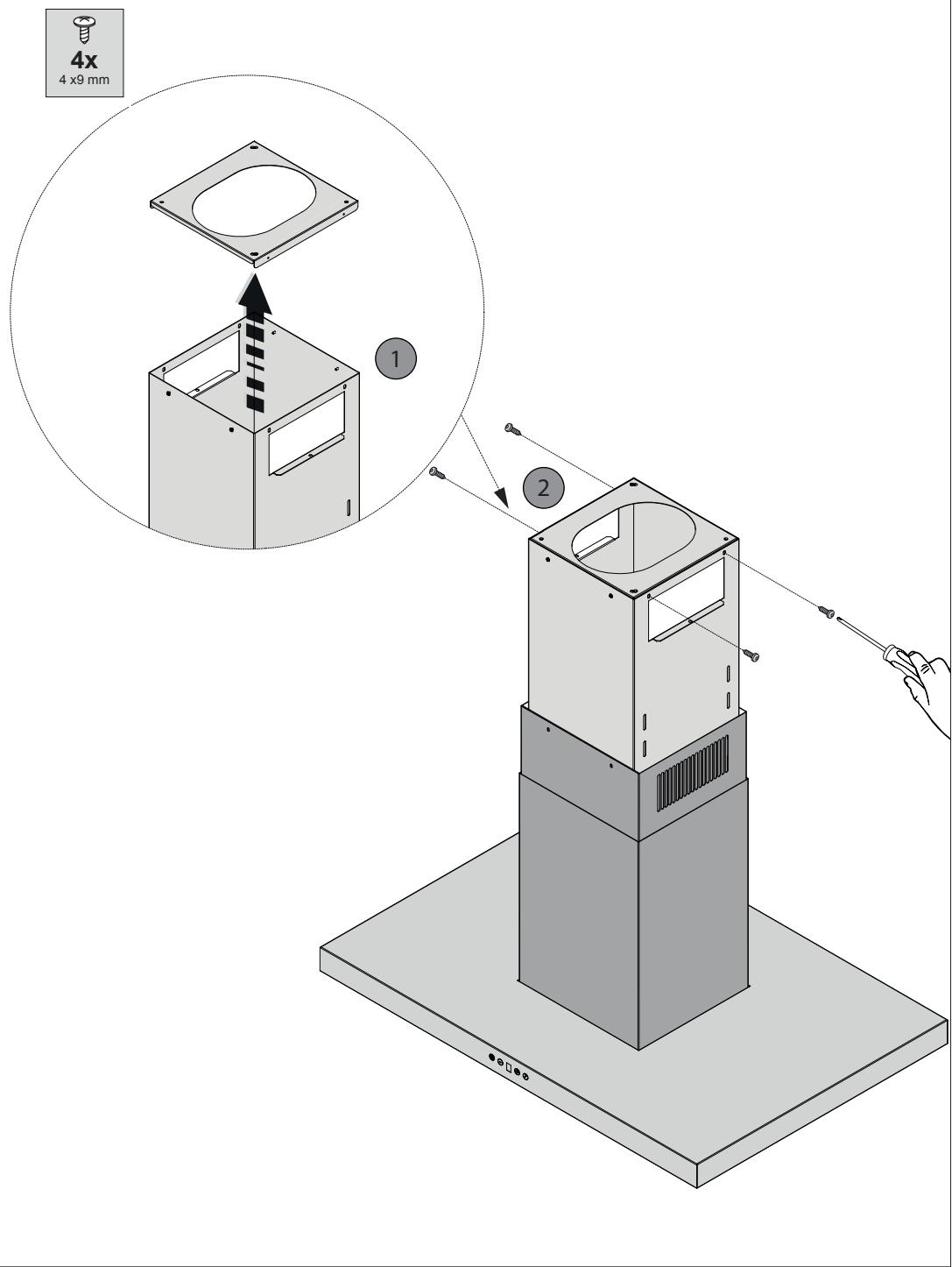

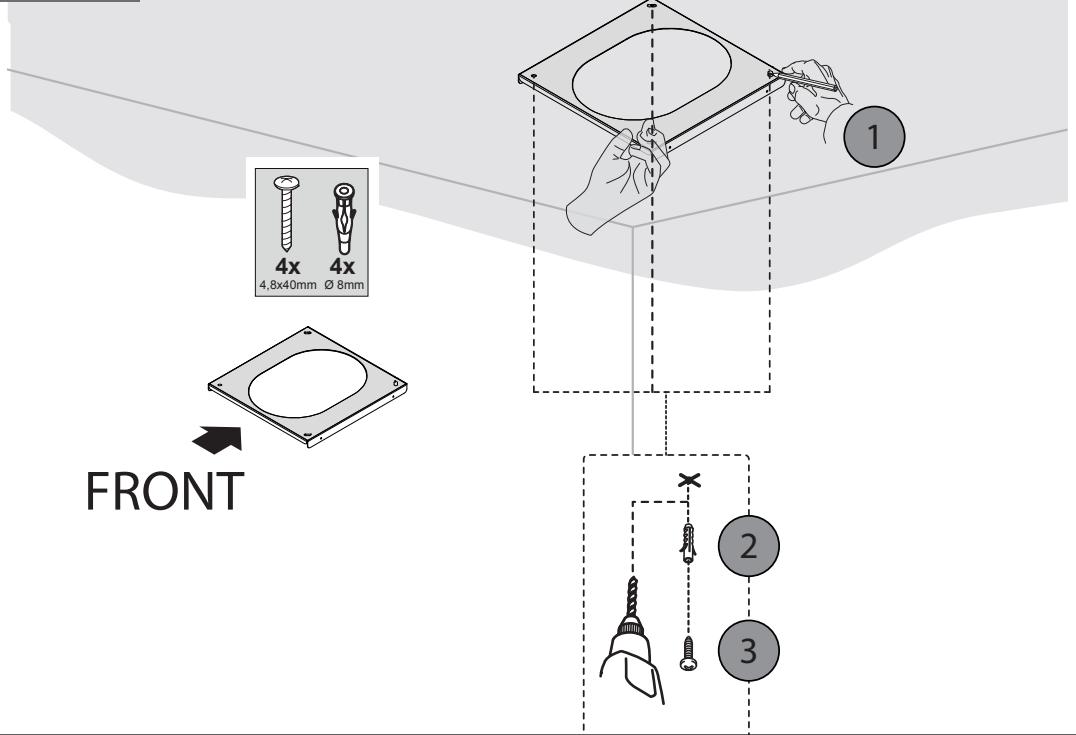

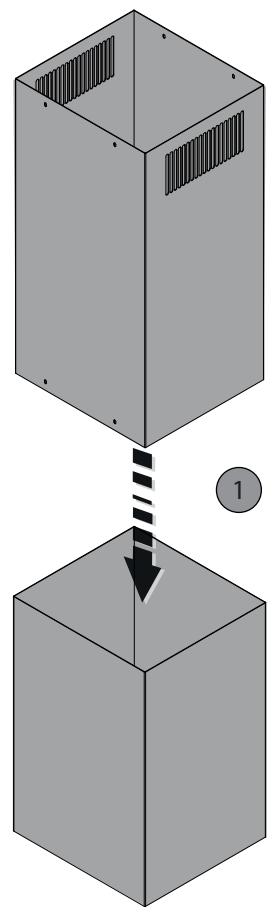

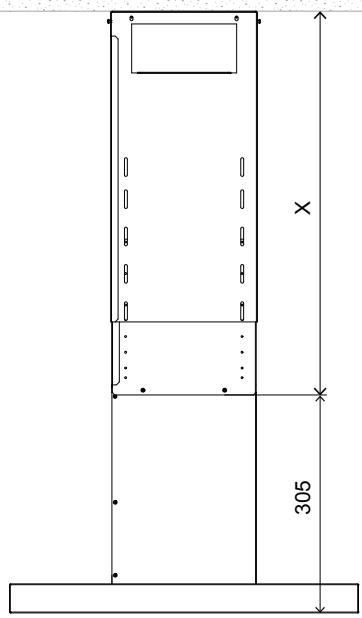

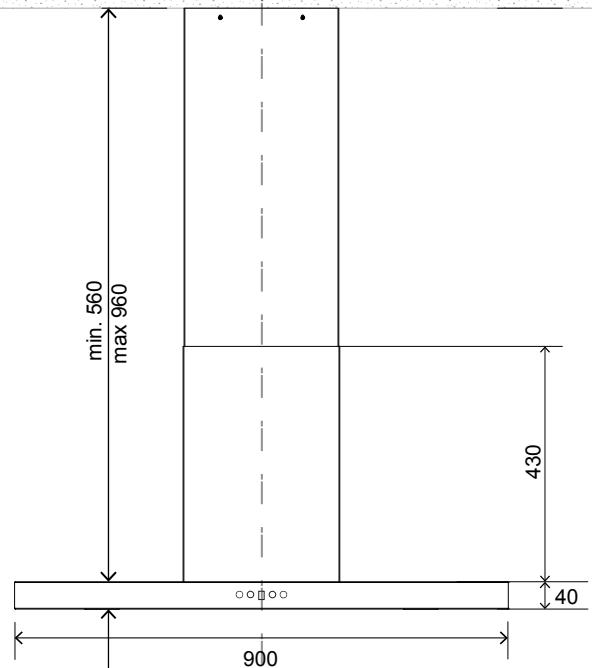

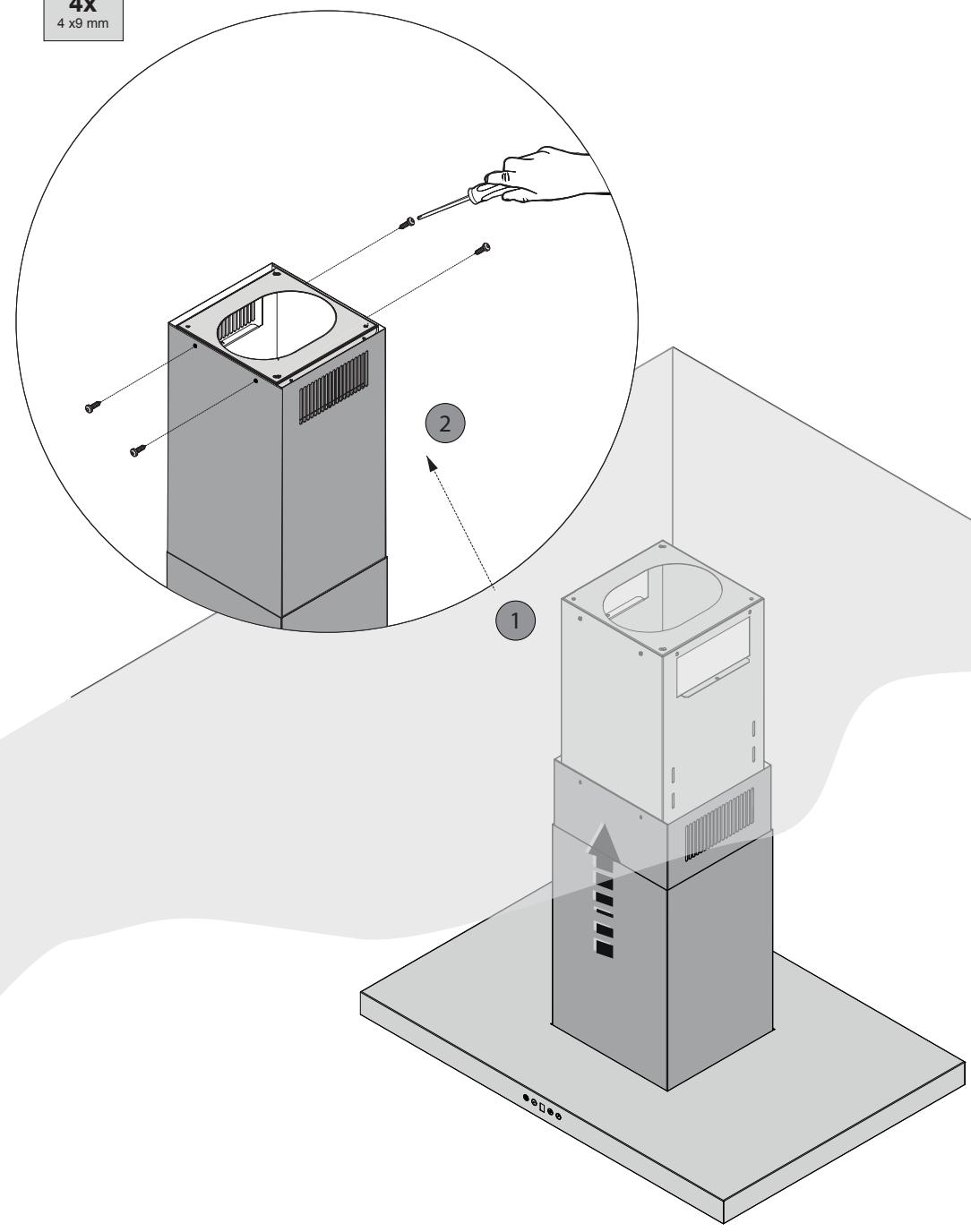

For installation instructions refer to figures at pag. 2/9

again to switch it off.

ELECTRICAL CONNECTION The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Plus key. Press this to switch on the hood at speed 1. Press it again to speed up until speed 4. Timer - this button activates the timer which will switch off the aspiration engine after 15 minutes. When the fan speed is set to 4 the timer activates automatically. After 7 minutes of activity the fan will automatically switch to speed 3.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

INSTALLATION INSTRUCTIONS This hood has been arranged to be installed above a cook top. It can be used in 2 ways:

Warning! The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

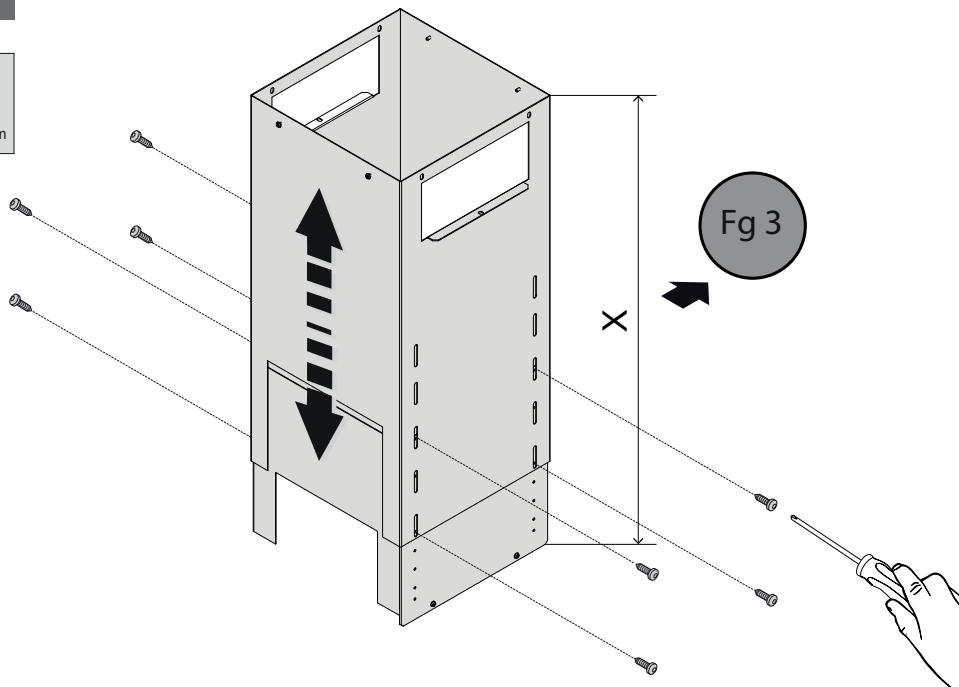

•EXHAUST MODE: the kitchen vapours are purified by the metal anti-grease filters and carried outside through a ducting system. (Fig. 3A; 3B)

CONTROL PANEL TYPE “A” -

MAINTENANCE Caution! Before any cleaning or maintenance disconnect the hood from the mains by removing the plug or disconnecting the main switch of the dwelling.

Pilot light Fan-off First speed (minimum) Second speed (medium) Third speed (maximum)

Light ON/OFF Cleaning The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL! WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate

TYPE “B” A First speed. B Second speed. C Third speed. D Fourth speed (maximum). E Light ON/OFF. TYPE “C” Lighting

Minus key. Press this to switch on the cooker hood at speed 1. Press it 15

maintenance or failure to observe the above safety recommendations.

es en • Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. • Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Grease filter Traps cooking grease particles. This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed-out dustbin symbol on the product reminds you of your obligation regarding separated waste collection. Consumers should contact their local public service or their local dealer for more information on the correct disposal of exhausted household appliances.

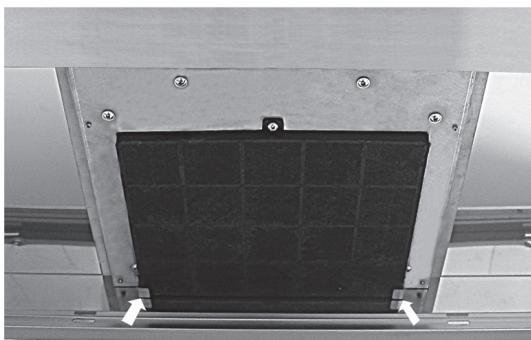

Charcoal filter (filter version only) It absorbs unpleasant odours caused by cooking. The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity).The charcoal filter may NOT be washed or regenerated.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREAKING THE ABOVE WARNINGS.

Replacing lamps The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy. For replacement, contact the technical service.

THE WARRANTY IS NOT VALID IN THE CASE OF DAMAGE CAUSED BY FAILURE TO COMPLY WITH THE ABOVE WARNINGS.

PROTECTING THE ENVIRONMENT Suggestions for a correct use in order to reduce the environmental impact • Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. • Increase the speed only in case of large amount of smoke and vapour. • Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. 16
