Product type	Pyramid wall-mounted extractor hood
Brand	Airlux
Model	AHP960BK
Dimensions (L x D x H)	900 x 500 x 400-780 mm
Weight	15 kg
Power supply	220-240 V / 50 Hz
Motor power	150 W
Lighting	LED, 2 x 3 W
Number of speeds	3 + intensive (booster)
Noise level	55-65 dB
Filters	Washable metal grease filter; Activated carbon filter (optional)
Extraction mode	External extraction (duct) or recirculation
Duct diameter	150 mm
Control	Push button or electronic with timer
Material	Stainless steel
Included accessories	Telescopic decorative chimney, air outlet adapter, wall brackets
Warranty	2 years
Minimum installation distance (electric)	650 mm
Minimum installation distance (gas)	750 mm

Frequently Asked Questions - AHP960BK AIRLUX

How to install the hood in extraction mode?

Connect a round metal duct of 150 mm diameter to the air outlet of the hood and lead it outside. Use aluminum tape to seal the connections. Install a wall outlet grille. Make sure the duct is short and straight for optimal efficiency.

How to install the hood in recirculation mode?

Install an activated carbon filter (not supplied) by turning it until it clicks into place. The hood returns filtered air to the room. Replace the carbon filter every 3 months for good odor absorption.

How to clean the grease filters?

Remove the filters by pressing the metal tab. Wash them in hot water with dish soap or in the dishwasher at low temperature. Dry them completely before reinstalling. Frequency: every 3 to 4 weeks.

When to replace the activated carbon filter?

Replace the carbon filter every 3 months, or more often if the smell persists. It is not washable. To change it, remove the grease filter, unlock the carbon filter by turning, insert the new one and turn until it clicks.

How to change the bulb?

Turn off the power supply. Remove the grease filter. Disconnect the bulb cable connector, then gently push the bulb from the back to extract it. Install a new compatible bulb, reconnect the connector and reassemble the filter.

What to do if the hood does not turn on?

Check that the hood is plugged in and the circuit breaker has not tripped. Make sure the voltage matches that indicated on the rating plate. If the cable is damaged, contact after-sales service.

Why is the hood noisy?

Excessive noise can come from dirty grease filters, a blocked duct or poor balancing. Clean the filters and check the duct. If the noise persists, have the motor checked by a professional.

How to set the timer?

On models with electronic controls, press the TIMER button to activate delayed shutdown. The hood will automatically turn off after a preset time (usually 15 minutes). See the manual for details.

What is the minimum distance between the hood and the hob?

For electric hobs, the minimum distance is 650 mm. For gas hobs, it is 750 mm. Always follow the hob manufacturer's instructions if they require a greater distance.

How to unlock the grease filters?

To remove a grease filter, press the metal tab on the filter to unlock it. Then pull the filter downwards. To replace it, align the rear lugs with the notches, push and release the tab.

USER MANUAL AHP960BK AIRLUX

To promote an environmentally friendly and ecological approach, Airlux prints its user manuals only in French and English. The German and Dutch versions are available on our website.

AHP960BK - AHP960SS - DTHP950SS - DTHP950SS - AHP760SS - AHP660BK - AHP660SS - AHP650SS - DTHP650SS

RECOMMENDATIONS AND SUGGESTIONS 11

TECHNICAL CHARACTERISTICS 12

INSTALLATION 13

USE 14

APPLIANCE MAINTENANCE 16

TROUBLESHOOTING 17

DISPOSAL AND RECYCLING 19

WARNINGS

IN CERTAIN CIRCUMSTANCES, ELECTRICAL APPLIANCES MAY PRESENT A DANGER.

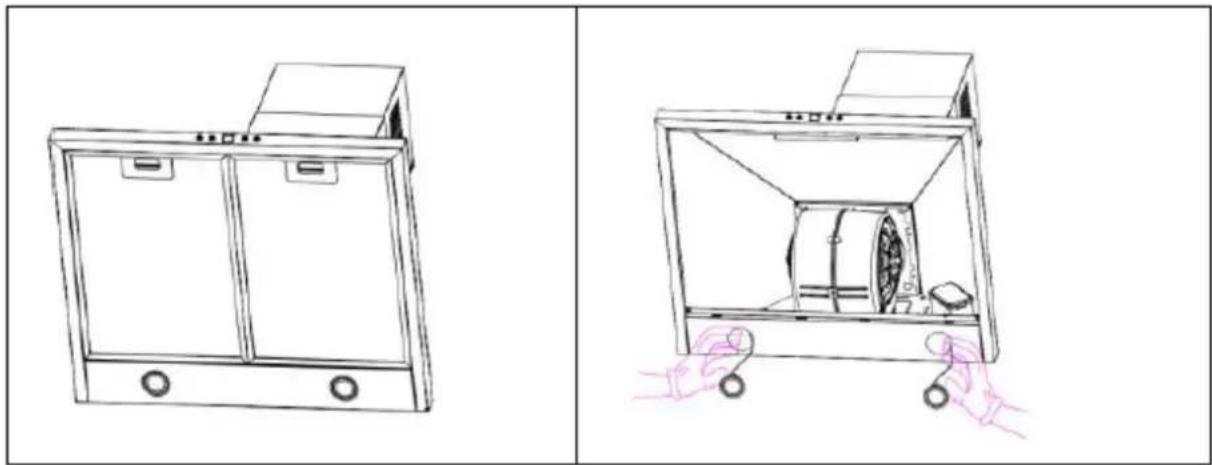

DO NOT CHECK THE CONDITION OF THE FILTERS WHILE THE HOOD IS IN OPERATION.

DO NOT TOUCH THE BULBS AFTER USING THE APPLIANCE.

DO NOT UNPLUG THE APPLIANCE WITH WET HANDS.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS HOOD WITH AN INCOMPATIBLE ELECTRONIC SPEED CONTROLLER. AVOID USING OPEN FLAMES UNDER THE HOOD, AS THIS PRESENTS A FIRE RISK AND MAY DAMAGE THE FILTERS.

CLOSELY MONITOR OIL COOKING, AS OVERHEATING CAN CAUSE A FIRE.

UNPLUG THE APPLIANCE BEFORE ANY MAINTENANCE OR SERVICING OPERATION.

CAUTION: SOME PARTS OF THE APPLIANCE MAY BECOME HOT WHEN USED IN COMBINATION WITH COOKING EQUIPMENT.

TO PREVENT FIRE, ELECTRIC SHOCK, OR INJURY, FOLLOW THESE INSTRUCTIONS:

A) INSTALLATION AND ELECTRICAL CONNECTION MUST BE PERFORMED ONLY BY QUALIFIED PERSONNEL, IN ACCORDANCE WITH LOCAL REGULATIONS, INCLUDING FIRE SAFETY STANDARDS.

B) ADEQUATE VENTILATION IS ESSENTIAL TO ENSURE PROPER COMBUSTION AND EFFICIENT EXHAUST OF GASES THROUGH THE DUCTS (CHIMNEY) OF COMBUSTION APPLIANCES, TO PREVENT ANY BACKDRAFT OF SMOKE.

C) WHEN DRILLING OR CUTTING INTO WALLS OR CEILINGS, BE CAREFUL NOT TO DAMAGE ELECTRICAL CABLES OR OTHER HIDDEN INSTALLATIONS.

D) IF THIS APPLIANCE IS INTENDED TO BE INSTALLED IN EXTRACTION MODE, IT MUST BE VENTED TO THE OUTDOORS.

DO NOT USE THIS APPLIANCE OUTDOORS.

THIS APPLIANCE CAN BE USED BY CHILDREN AGED 8 YEARS AND OLDER, AS WELL AS PERSONS WITH REDUCED PHYSICAL, SENSORY, OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE, PROVIDED THEY ARE SUPERVISED OR PROPERLY INSTRUCTED ON ITS SAFE USE AND POTENTIAL HAZARDS.

CHILDREN MUST NOT PLAY WITH THE APPLIANCE.

CLEANING AND MAINTENANCE MUST NOT BE PERFORMED BY CHILDREN WITHOUT SUPERVISION.

ENSURE SUFFICIENT ROOM VENTILATION WHEN THE HOOD IS USED SIMULTANEOUSLY WITH GAS OR COMBUSTION APPLIANCES (THIS REQUIREMENT DOES NOT APPLY IN RECIRCULATION MODE).

A FIRE RISK EXISTS IF THE APPLIANCE IS NOT CLEANED ACCORDING TO THE INSTRUCTIONS.

EXTRACTED AIR MUST NOT BE DISCHARGED INTO A DUCT USED FOR EXHAUSTING FUMES FROM OTHER GAS OR COMBUSTIBLE APPLIANCES.

NEVER FLAMBÉ FOOD UNDER THE HOOD.

FAILURE TO FOLLOW THE FIXING INSTRUCTIONS (SCREWS AND SUPPORTS) MAY RESULT IN ELECTRICAL HAZARDS.

WHEN AN EXTRACTION HOOD IS USED SIMULTANEOUSLY WITH A CHIMNEY OR OTHER COMBUSTION APPLIANCE, IT IS NECESSARY TO ENSURE THAT THE DEPRESSION IN THE ROOM DOES NOT EXCEED 4 PA (4 × 10-5 BAR).

RECOMMENDATIONS AND TIPS

INSTALLATION INSTRUCTIONS

USE

OPERATION OF THE CONTROLS

LIGHT SPEED 3 SPEED 2 SPEED 1 ON / OFF

REPLACING THE LED LAMPS

Required type: LED AC 230V 50Hz, 2 × 2W MAX

Steps:

COMPLIANCE WITH THE ROHS STANDARD

airlux

AHP960BK - AHP960SS - DTHP950SS - DTHP950SS - AHP760SS - AHP660BK - AHP660SS - AHP650SS - DTHP650SS

Thank you for choosing Airlux. Before using your new product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. The diagram above is just for reference. Please take the appearance of the actual product as the standard.

TABLE OF CONTENTS

WARNINGS 23

RECOMMENDATIONS AND SUGGESTIONS 25

CHARACTERISTICS 26

INSTALLATION 27

USE 31

MAINTENANCE 33

DISPOSAL AND RECYCLING 35

WARNINGS

IN CERTAIN CIRCUMSTANCES ELECTRICAL APPLIANCES MAY BE A DANGER HAZARD.

DO NOT CHECK THE STATUS OF THE FILTERS WHILE THE RANGE HOOD IS OPERATING.

DO NOT TOUCH THE LIGHT BULBS AFTER APPLIANCE USE.

DO NOT DISCONNECT THE APPLIANCE WITH WET HANDS.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE

AVOID FREE FLAME, AS IT WOULD DAMAGE THE FILTERS AND CREATE A FIRE HAZARD.

CONSTANTLY CHECK FOOD FRYING TO AVOID THAT OVERHEATED OIL MAY BECOME A FIRE HAZARD.

DISCONNECT THE ELECTRICAL PLUG PRIOR TO ANY MAINTENANCE OR SERVICING.

CAUTION: ACCESSIBLE PARTS OF THIS APPLIANCE MAY BECOME HOT WHEN USED WITH COOKING

APPLIANCES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A) INSTALLATION WORK AND ELECTRICAL WIRING MUST BE DONE BY QUALIFIED PERSON(S)

IN ACCORDANCE WITH ALL APPLICABLE CODES AND STANDARDS, INCLUDING FIRE-RATED CONSTRUCTION.

B) SUFFICIENT AIR IS NEEDED FOR PROPER COMBUSTION AND EXHAUSTING OF GASES THROUGH THE FLUE (CHIMNEY) OF FUEL BURNING EQUIPMENT TO PREVENT BACK DRAFTING.

C) WHEN CUTTING OR DRILLING INTO WALL OR CEILING, DO NOT DAMAGE ELECTRICAL WIRING AND OTHER HIDDEN UTILITIES.

D) DUCTED FANS MUST ALWAYS BE VENTED TO THE OUTDOORS.

DON'T USE THIS PRODUCT OUTDOORS.

THIS DEVICE MAY BE USED BY CHILDREN OF AT LEAST 8 YEARS OF AGE AND BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPACITIES OR

WITHOUT EXPERIENCE OR KNOWLEDGE, IF THEY ARE PROPERLY SUPERVISED OR IF THEY HAVE BEEN GIVEN INSTRUCTIONS RELATING TO THE SAFE USE OF THE DEVICE AND THE RISKS INVOLVED HAVE BEEN UNDERSTOOD. CHILDREN MUST NOT PLAY WITH THE DEVICE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.

THERE SHALL BE ADEQUATE VENTILATION OF THE ROOM WHEN THE RANGE HOOD IS USED AT THE SAME TIME AS APPLIANCES BURNING GAS OR OTHER FUELS (NOT APPLICABLE TO RECYCLING MODE).

THERE IS A FIRE RISK IF CLEANING IS NOT CARRIED OUT IN ACCORDANCE WITH INSTRUCTIONS.

THE EXHAUST AIR MUST NOT BE DISCHARGED INTO A FLUE WHICH IS USED FOR EXHAUSTING FUMES FROM APPLIANCES BURNING GAS OR OTHER FUELS.

DO NOT FLAMBE UNDER THE RANGE HOOD.

FAILURE TO INSTALL THE SCREWS OR FIXING DEVICE IN ACCORDANCE WITH THESE INSTRUCTIONS MAY RESULT IN ELECTRICAL HAZARDS.

WHEN AN EXHAUST-TYPE RANGE HOOD IS OPERATED SIMULTANEOUSLY WITH FIRE PLACES IT SHALL BE ENSURED THAT NO DANGEROUS NEGATIVE PRESSURE GREATER THAN 4 PA (4 × 10 - 5 BAR) CAN ARISE IN THE INSTALLATION ROOM.

RECOMMENDATIONS AND SUGGESTIONS

DIRECTIONS FOR INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• Please read this instruction manual before installing and using this range hood.
• Please keep this instruction manual in a safe place for future reference.
• Only a qualified and trained service technician can undertake the work of installation and servicing.
• Check that the main voltage corresponds to the one indicated on the rating plate fixed inside the hood.
• Do not connect the hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.)
• If the hood is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of ventilation must be guaranteed in the room in order to prevent the backflow of exhaust gas.
• The kitchen must have an opening directly with the open air to guarantee the entry of clean air.
• The minimum distance is 750 mm from the range hood to a gas hob and is 650 mm to an electric hob. If the installation instructions for gas hobs specify a greater distance, this must be considered.
• NOTICE: Two or more people are required to install or move this appliance. Failure to do so can cause physical injuries.

DIRECTIONS FOR USE

• The range hood has been designed only for domestic use to eliminate kitchen fumes.
• Never use the hood for purposes other than what it has been designed for.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only; making sure that it does not engulf the pan sides.
• Deep fat fryer must be continuously monitored during use: overheated oil can burst into flame.
• The hood should not be used by children or persons not instructed in its correct use.

DIRECTIONS FOR MAINTENANCE

• Proper maintenance of the range hood will assure proper performance of the unit.
• Disconnect the hood from the main supply before carrying out any maintenance work.
• Clean and/or replace aluminum grease filters after specified period of time.
• Clean the hood using a damp cloth and a neutral liquid detergent.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

CHARACTERISTICS

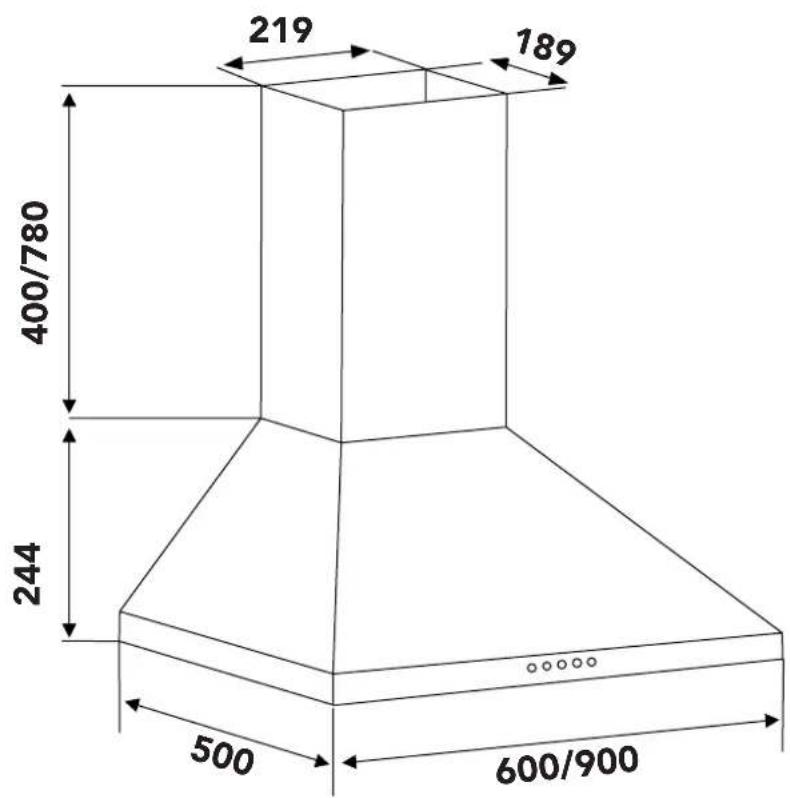

DIMENSIONS

INSTALLATION

BEFORE INSTALLING THE HOOD

The hood may be installed in the ducting or the recirculation version.

DUCTING VERSION

The hood draws cooking fumes saturated with fumes and odour through the grease filters and expels it to the outside through an outlet pipe.

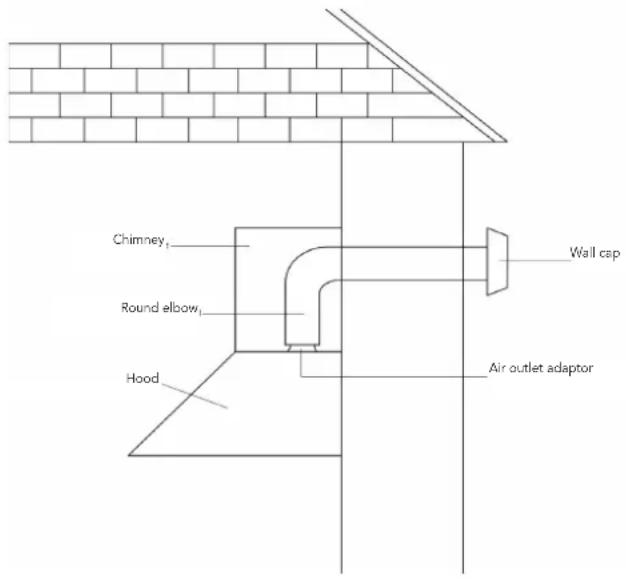

Caution: To reduce the risk of fire, use of metal ductwork is preferred.

Do not use flammable material to convey exhaust air.

1. Decide where the ductwork will run between the hood and the outside.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows, and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.
4. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Regulations concerning the discharge of air have to be fulfilled.
5. Install wall cap. Connect round metal ductwork to cap and work back towards hood location. Use duct tape to seal the joints between ductwork sections.

RECIRCULATION MODE

The hood draws cooking fumes saturated with fumes and odor through the grease filters and charcoal filters and returns clean air into the room. For constant efficiency, the charcoal filters must be replaced periodically.

Decide from the outset on the type of installation (recirculation or ducting). For greater efficiency, we recommend you install the hood in the ducting version.

ELECTRICAL CONNECTION

• Electrical wiring must be performed by a qualified technician, in compliance with applicable standards and regulations.
• Disconnect the power supply at the main circuit breaker before any intervention.
• If the power cord is damaged, it must be replaced by the manufacturer, their after-sales service, or a similarly qualified professional to avoid any danger.
• Use only the original plug and extension cord supplied with the hood.

INSTALLATION OF THE APPLIANCE

Note 1: On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood prior to final installation.

Note 2: At least two people will be required to mount the hood.

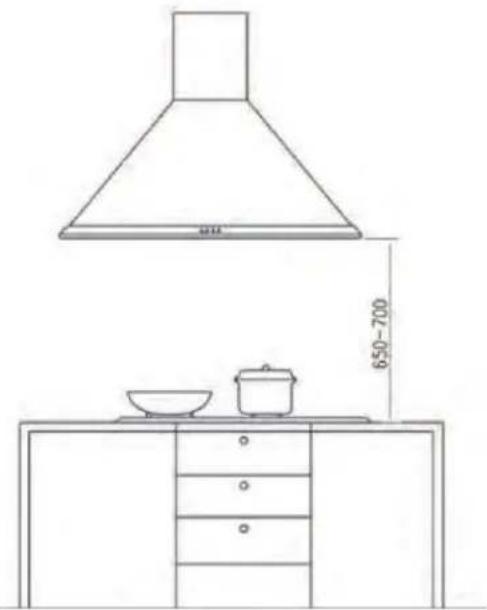

- Minimum hood distance above the cooker must not be less than 650mm.

- A maximum of 750mm above the cooker is highly recommended for best capture of cooking impurities.

- Distance cover 750mm above the cooker are at the installer's and user's discretion providing that ceiling height and flue length permit.

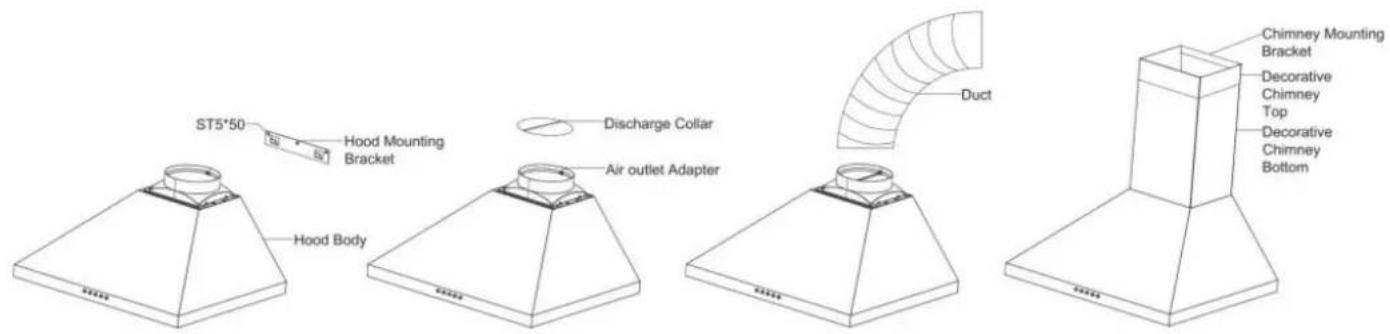

1. Secure the hood mounting bracket to the wall using (3) ST5x50 mounting screws and dry wall anchors. Align the hood body with the hood mounting bracket, gently lower the hood until it securely engages the bracket.
2. Fix the discharge collar into the air outlet adapter.
3. Attach an adequate length of 150mm round duct to the air outlet adapter. (Please note: the duct is not included in the package.)
4. Carefully slide the decorative chimney top down inside the decorative chimney bottom. Carefully place the decorative chimney bottom into the recessed area of the hood body top.
5. Secure the chimney mounting bracket to the wall using (2) ST4.2x30mm mounting screws and dry wall anchors.
6. Raise the decorative chimney top until its holes align with holes in the chimney mounting bracket (located on the wall).
7. Level the hood and secure the chimney with 2 chimney bracket screws.
8. Fix the hood body with two screws from inside of body.

INSTALL FILTERS

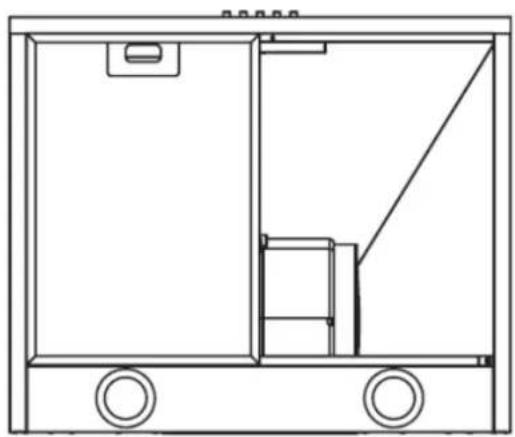

1. To remove the grease filter, push in on the metal latch tab. This will disengage the filter from the hood. Tilt the filter downward and remove.
2. To install the grease filter, align rear filter tabs with slots in the hood. Push in the metal latch tab, push filter into position and release. Make sure the filter is securely engaged after assembly.

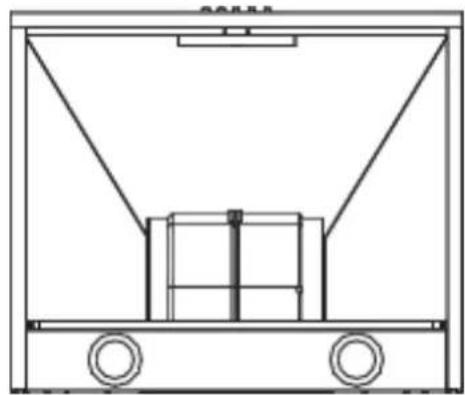

1. To install the charcoal filter, and lock it until the stop click is heard.
2. Install grease filter after charcoal filter is installed.

USE

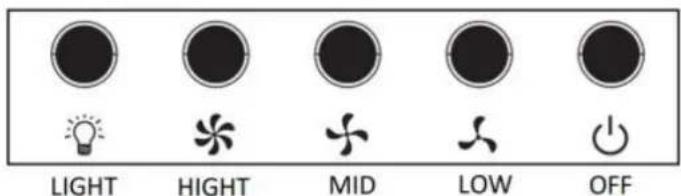

Model with push-button controls

The hood is operated using the push button on the front panel.

The light switch turns the lamps on and off. The power switch turns the range hood off.

The blower switch turns the blower on to three speed settings:

1 - LOW SPEED 2 - MEDIUM SPEED 3 - HIGH SPEED

Model with electronic controls

The hood is operated using the electronic switch on the front panel.

The power switch turns the range hood on and off.

The light switch turns the lamps on and off.

The blower switch turns the blower on to four speed settings.

LOW SPEED SHOW F1

The timer delay switch decides how long the hood stays on after switching off.

MAINTENANCE

Regular maintenance of your range hood is essential to ensure proper operation, extend the lifespan of the appliance, and maintain good air quality in your kitchen.

Grease filters collect cooking particles and must be cleaned frequently to prevent motor clogging and reduced extraction efficiency. Charcoal filters, used in recirculation mode, must be replaced periodically to ensure effective odor absorption.

Neglecting maintenance can result in increased energy consumption, excessive noise, and a higher risk of fire due to the accumulation of flammable grease.

Filter Type Frequency Maintenance Method
Grease filter (aluminum or stainless steel)	Every 3 to 4 weeks	- Remove the filters- Clean with hot water + dish soap or baking soda- Washable by hand or in a dishwasher (low temperature recommended)- Let dry completely before reinstalling
Activated charcoal filter (recirculation only)	Every 3 months (or more often depending on usage)	- Not washable (unless regenerable model)- Replace when saturated (reduced odor absorption, visible grease)

For grease filters, soaking them in hot water with white vinegar and baking soda is a very effective and natural cleaning method.

GREASE FILTERS

Grease filters are washable, and if necessary, can be washed in the dishwasher. After several washes, their color may change. This discoloration does not interfere with their proper functioning and does not give rise to complaints.

Tip: A saturated filter reduces extraction efficiency and increases the risk of ignition of accumulated grease.

CHARCOAL FILTERS

This filter is not washable and cannot be regenerated. It should be replaced approximately every 3 months, or more frequently in the case of heavy usage.

Installing the charcoal filter:

• Place the charcoal filter in its housing and turn it until you hear a "click" to lock it in place.
• Then reinstall the front panel.

Tip: To ensure optimal odor filtration, do not exceed the recommended usage period.

LED REPLACEMENT

The range hood requires LED lamp (AC 230V 50Hz, 2x2W MAX).

Replacement steps are as below:

WARNING:

Always switch off the electrical supply before carrying out any operation on the appliance.

1. Remove the aluminum filter.
2. Find the lamp wire terminal along the lamp wire and disconnect the lamp wire with the lamp wire terminal.
3. Put your thumbs on the lamp and gently push the lamp out of the light board from behind the lamp.
4. Take the new lamp and install it on the light board, reconnect the lamp wire with the wire terminal, and install the aluminum filter.

RISKS OF INADEQUATE MAINTENANCE

Failing to maintain your range hood properly can lead to several issues, including:

Grease buildup: increased fire hazard

Reduced extraction efficiency

Higher energy consumption

Increased noise levels

Persistent unpleasant odors in the kitchen

DISPOSAL AND RECYCLING

IMPORTANT INSTRUCTIONS FOR ENVIRONMENTAL PROTECTION

This appliance complies with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). To ensure proper disposal of this appliance, please return it to an appropriate collection point for WEEE recycling. By disposing of it correctly, you help prevent potential harm to the environment and human health that may result from improper disposal.

This symbol indicates that the product must not be disposed of with household waste. The used appliance must be returned to a designated collection point for the recycling of electrical and electronic devices. To locate these collection systems, please contact your local waste management authority or your retailer.

Each of us plays an important role in recovering and recycling old appliances. Proper disposal of used appliances helps prevent negative environmental and health impacts.

COMPLIANCE WITH ROHS STANDARD

This appliance requires specialized waste disposal and must not be disposed of with regular household waste. For detailed information on how to treat, recover, and recycle this product, please contact: Your local waste collection service, or the store where you purchased the appliance.

They can provide specific instructions for proper and environmentally friendly disposal.

COLLECTION AND RECYCLING OF PACKAGING MATERIALS

The packaging materials of this product are made from recyclable materials, in accordance with environmental regulations. Do not dispose of packaging with household waste. Take the materials to designated packaging waste collection points, as specified by local authorities.

This appliance complies with Directive 2012/19/EU (WEEE).
