FNE905XS - Built-in oven FRANKE - Free user manual and instructions

Product type	Built-in extractor hood
Brand	Franke
Model	FNE905XS
Air outlet diameter	150 mm (reducible to 120 mm with supplied collar)
Minimum installation height	650 mm above the hob (according to instructions)
Number of motor speeds	4 (including a 6-minute timed boost for smoke peaks)
Lighting	Yes, bulb to be replaced by after-sales service
Grease filters	Self-supporting metal, dishwasher safe (every 2 months)
Active carbon filter	Non-washable, replace every 4 months
Electrical class	Class I (earthing required)
Power supply	Mains, with bipolar switch (contact opening ≥ 3 mm)
Installation type	Extraction (external evacuation) or recirculation (with carbon filter)
Main material	Stainless steel (telescopic ducts)
Telescopic duct length	Height adjustable (adjustment screws)
Included accessories	Drilling template, reduction collar, clamps, screws, wall plugs, Novastick tape
Maintenance	Clean with damp cloth and neutral liquid detergent
Safety	Do not flambé under the hood, watch over deep fryers, risk of fire
Usage	Domestic use only, to eliminate cooking odors
Weight	Approximately 15 kg (estimated)
Dimensions (W x D x H)	Approximately 90 x 50 x 60 cm (estimated for built-in hood)

Frequently Asked Questions - FNE905XS FRANKE

What is the minimum installation height above the hob?

The minimum safety height is 650 mm between the hob and the hood. Some models can be installed lower, check the instructions.

How to clean the grease filters?

The metal grease filters are dishwasher safe. Remove them by pushing them back and then pulling downwards. Wash them without bending and dry them before reassembling. Clean them every 2 months.

When to replace the active carbon filter?

The active carbon filter is neither washable nor regenerable. It must be replaced at least every 4 months, or more frequently in case of heavy use.

What to do if the power cord is damaged?

Never use the hood with a damaged cord. Have it replaced by the manufacturer or an authorized after-sales service to avoid any risk of accident.

Can I use the hood in recirculation mode?

Yes, by installing the supplied active carbon filter. In this case, the air is recycled and returned to the room. Ensure the air outlet is properly connected and the carbon filter is in place.

Is an external evacuation required for the hood?

The hood can operate in extraction mode (with external evacuation) or recirculation mode (recycling). In extraction mode, connect it to an evacuation duct of 150 mm (reducible to 120 mm).

How to adjust the height of the telescopic duct?

Loosen the metric screws on the front part, adjust the desired height, then retighten the screws. Use the supplied clamping collar to hold the duct in place.

Can I use the hood with a gas hob?

Yes, but ensure the room is sufficiently ventilated (underpressure ≤ 0.04 mbar) to prevent backflow of combustion gases. Observe the minimum distance of 650 mm.

How to change the bulb?

The replacement of the lighting must be carried out by an authorized after-sales service. Contact the manufacturer or a qualified technician.

What to do if the hood does not turn on?

First check the electrical connection and the bipolar switch. Make sure the power cord connector is properly plugged into the diffuser socket. If the problem persists, contact after-sales service.

USER MANUAL FNE905XS FRANKE

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

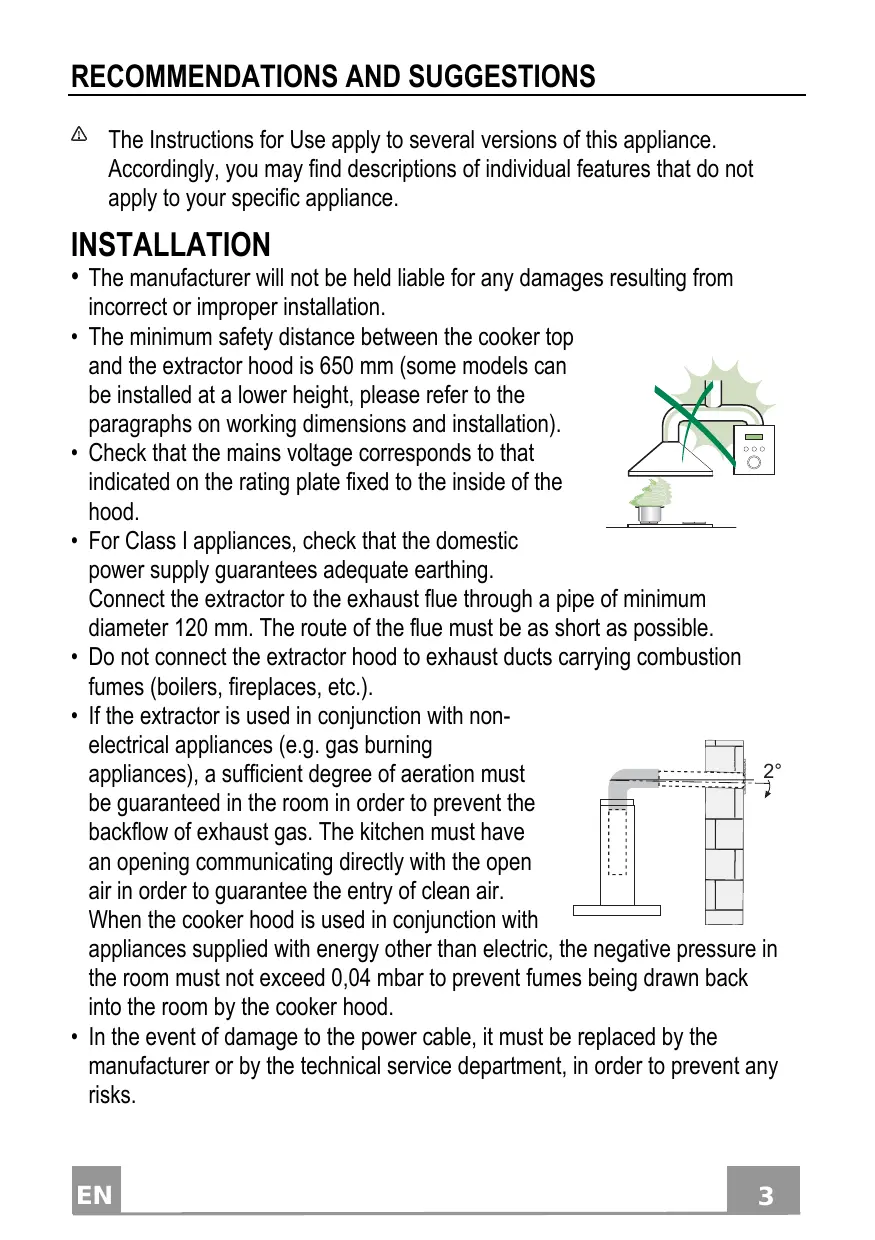

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

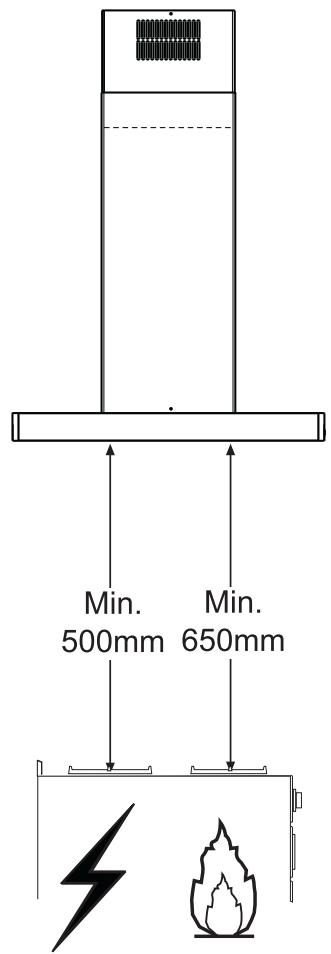

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with nonelectrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with

appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

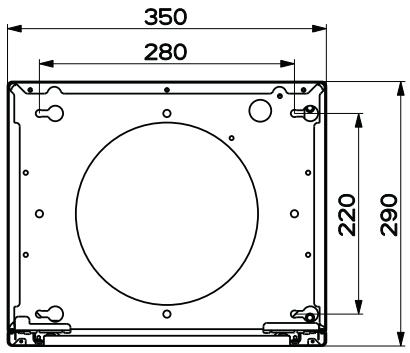

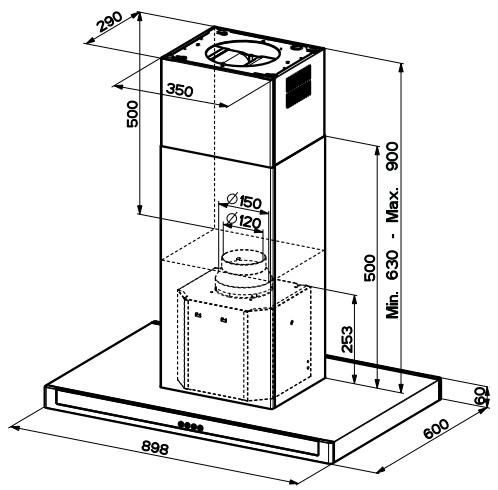

Dimensions

Components

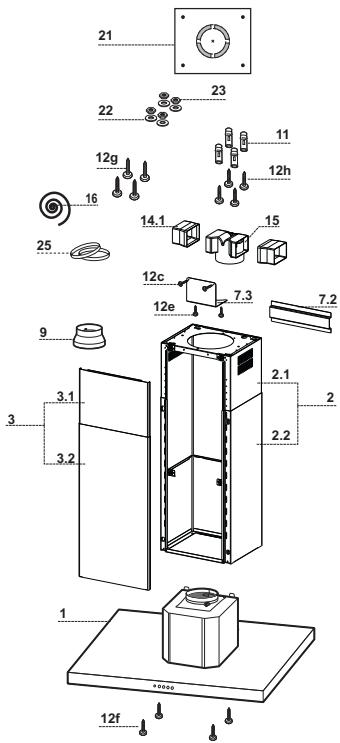

Ref.	Q.ty	Product Components
1	1	Hood Canopy complete with: Controls, Light, Filters
2	1	Telescopic chimney, made up of:
2.1	1	Upper chimney
2.2	1	Lower chimney
3	1	Telescopic panel, made up of:
3.1	1	Upper panel
3.2	1	Lower panel
9	1	Reduction flangeø 150-120 mm
14.1	1	Air Outlet Connector Extension
15	1	Air Outlet Connector
16	1	Novastick tape
25		Hose clamps (not supplied)

Ref.	Q.ty	Installation Components
7.3	1	Air outlet connector fixing bracket
7.2	1	Telescopic chimney fixing bracket
11	4	Wall plugsø 10
12c	2	Screws 2.9 x 6.5
12e	2	Screws 2.9 x 9.5
12f	4	Screws M4 x 80
12g	4	Screws M6 x 80
12h	4	Screws 5.2 x 70
21	1	Drilling template
22	4	Washersø 6.4
23	4	Nuts M6

Q.ty	Documentation
1	Instruction Manual

Drilling the Ceiling/shelf and fixing the frame

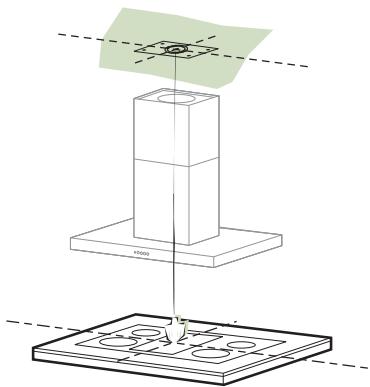

DRILLING THE CEILING/SHELF

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20mm : drill 10mm (immediately insert the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill 7 mm .
• For the power supply cable feed, drill 0.10mm .

• For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust duct connection.

• Insert two screws of the following type, crossing them and leaving 4 - 5mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).

• for Cavity ceiling with inner space, with wall thickness of approx. 20mm , Screws 12h, supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

Fixing the Frame/Chimney

Should it be necessary to adjust the height of the frame, proceed as follows:

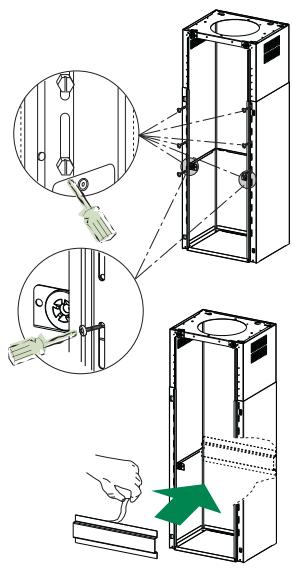

• Unfasten the metric screws joining the two opposite parts that can be seen from the front;
• Adjust the height of the frame as required, then replace the screws removed as above, making sure that you insert 2 of them close to the panel lock;
• Lift the frame, insert the slots onto the screws and slide them until they lock;
• Tighten the two screws and insert the other two screws provided.
• Take the telescopic chimney locking bracket 7.2, remove the film from the double sided adhesive and fix it inside the frame so as to hold it more firmly.

Before final locking of the screws it is possible to make small adjustments to the frame, making sure that the screws do not come out of the adjustment slot.

• The Frame must be securely fastened both due to the weight of the Hood and the stress caused by occasional sideways pressure on the Appliance when in position. When fastened, check that the base is stable even when the Frame is subjected to bending.
• In all cases where the Ceiling is not sufficiently strong at the point of suspension, the Installation technician must strengthen it with suitable plates and counterplates, anchored to structurally sound elements.

Ducted version air exhaust system Connection

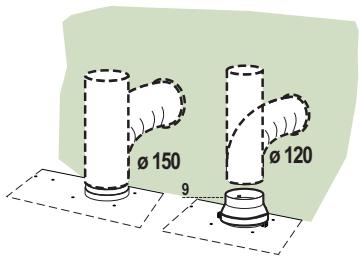

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm , the choice of which is left to the installer.

• To install a 0.120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
  Fix the pipe using the pipe clamps 25 (not provided).
• Remove any activated charcoal filters.

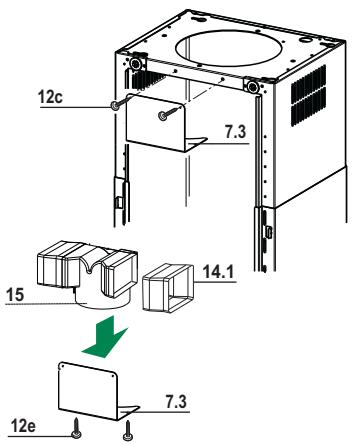

Air outlet – Recirculation Version

• Insert the Connector extensions 14.1 into the side of the Connector 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it with the screws.
• Fasten the Support bracket 7.3, fixing it to the upper part with the Screws.
• Make sure that the Connector extensions outlet 14.1 is in correspondence with the Chimney openings both horizontally and vertically.
• Join the Connector 15 to the Hood canopy outlet using a rigid or flexible pipe , 150mm , selection of which is at the discretion of the installation technician.
• Make sure that the Activated charcoal odour filter has been fitted.

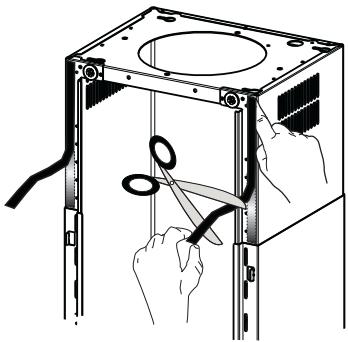

Application of Novastick Tape

• Apply the Novastick tape 16 to the front edge of the Upper Chimney from the top part down to the start of the Lower Chimney.

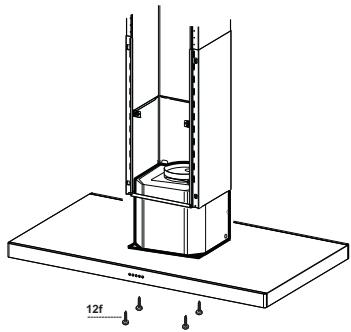

Fitting the Panel and Fixing the Hood Canopy

Before fixing the Hood Canopy to the Frame:

• Remove the Grease filters from the Hood Canopy;
• Remove any Activated charcoal filters.
• Working from below, fix the Hood canopy to the Frame provided, using the 4 screws 12f (M6 x 10) provided.

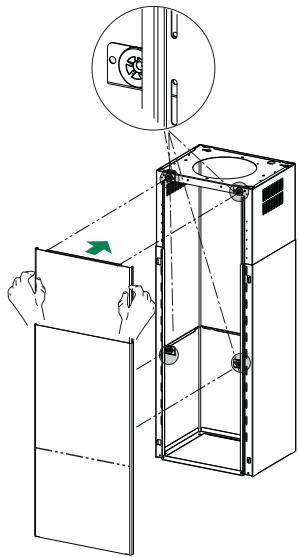

• Then hook the upper part of the Panel 3, adjusted to size, to the rubber supports in the upper part and in the lower part of the Frame.
• Slide the lower part of the Panel 3 until its metal tabs slot into the slots in the frame;

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

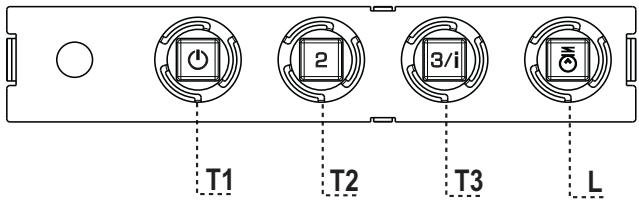

Control panel

BUTTON	LED	FUNCTIONS
T1 Speed	On	Turns the Motor on at Speed one.
		Turns the Motor off.
T2 Speed	On	Turns the Motor on at Speed two.
T3 Speed	Fixed	When pressed briefly, turns the Motor on at Speed three.
	Flashing	Pressed for 2 Seconds.
		Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
L Light		Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
• Fit the new filter by hooking it into its seating.
• Refit the metal grease filters.

Lighting unit

• For replacement contact technical support. ("To purchase contact technical support")

Anschluss in Abluftversion
