CIRCLE 2 WIRED - Surveillance Camera LOGITECH - Free user manual and instructions

Product Type	Wired Surveillance Camera
Brand	Logitech
Model	Circle 2 Wired
Video Resolution	1080p HD
Night Vision	Yes, up to 40°C
Field of View	Up to 180 degrees
Connectivity	Wi-Fi and Bluetooth Low Energy
Power Supply	Via 3m USB cable with power adapter (included)
Operating Temperature	-20°C to 40°C
Compatible Operating Systems	iOS 8.1+ (iPhone 4s or later, iPad mini or later); Android 4.4+ with Bluetooth LE
Weight	Approximately 132 g
Dimensions	Approximately 7.2 x 7.2 x 11.4 cm
Box Contents	Camera, swivel stand, USB cable 3m, adapter, wall mount, 4 screws, 2 cable clips, 4 wall anchors
Special Features	Privacy mode, two-way audio, motion detection (via app)
Mounting Type	On shelf, wall or ceiling; mounting kit included
Cable Length	3 m (integrated into stand)
Reset	Circular button on side, hold for 9 seconds
Indicator Lights	Flashing blue (pairing), solid white (ready), solid green (viewing), solid yellow (privacy), solid red (disabled)
Optional Accessories	Window mount, outlet mount, weather-resistant extension 4.5 m

Frequently Asked Questions - CIRCLE 2 WIRED LOGITECH

How to install and set up the Logitech Circle 2 Wired?

Download the Logi Circle app, plug the camera via USB to the power adapter, then follow the on-screen instructions. Make sure your Wi-Fi is enabled and your mobile device is compatible (iOS 8.1+ or Android 4.4+ with Bluetooth LE).

What do the different indicator lights on the camera mean?

Flashing blue: ready for pairing. Solid white: connected and ready. Solid green: viewing in progress. Solid yellow: privacy mode. Solid red: disabled, no recording or streaming.

How to reset the Circle 2 Wired camera?

Locate the circular reset button on the side of the camera. Press and hold for 9 seconds until the light ring flashes magenta and green, then release.

Is night vision available on this model?

Yes, the Circle 2 Wired has built-in night vision. It works even at temperatures up to 40°C in night mode.

What is the field of view of this camera?

The camera offers a field of view up to 180 degrees, allowing you to cover a wide area of your room.

Can the camera be mounted on the ceiling?

Yes, the included swivel stand and wall mount allow mounting on wall or ceiling. If mounted on ceiling, you can flip the video image via the app menu.

Which mobile devices are compatible with the Logi Circle app?

The app is compatible with iOS 8.1+ (iPhone 4s+, iPad mini+, iPad 3+, iPod touch 5th generation+) and Android 4.4+ with Bluetooth Low Energy technology.

How to activate privacy mode on the camera?

Privacy mode can be activated from the Logi Circle app. When active, the indicator light turns solid yellow and the camera stops all streaming or recording.

What accessories are available for this model?

Logitech offers several optional accessories: a window mount, a outlet mount for wall socket, and a weather-resistant extension of 4.5 meters for extra reach.

Does the camera record continuously?

Continuous recording depends on your Circle Safe subscription. Without a subscription, the camera can detect events and send alerts. For continuous recording, subscribe to a plan at logi.com/circle2/subscriptions.

USER MANUAL CIRCLE 2 WIRED LOGITECH

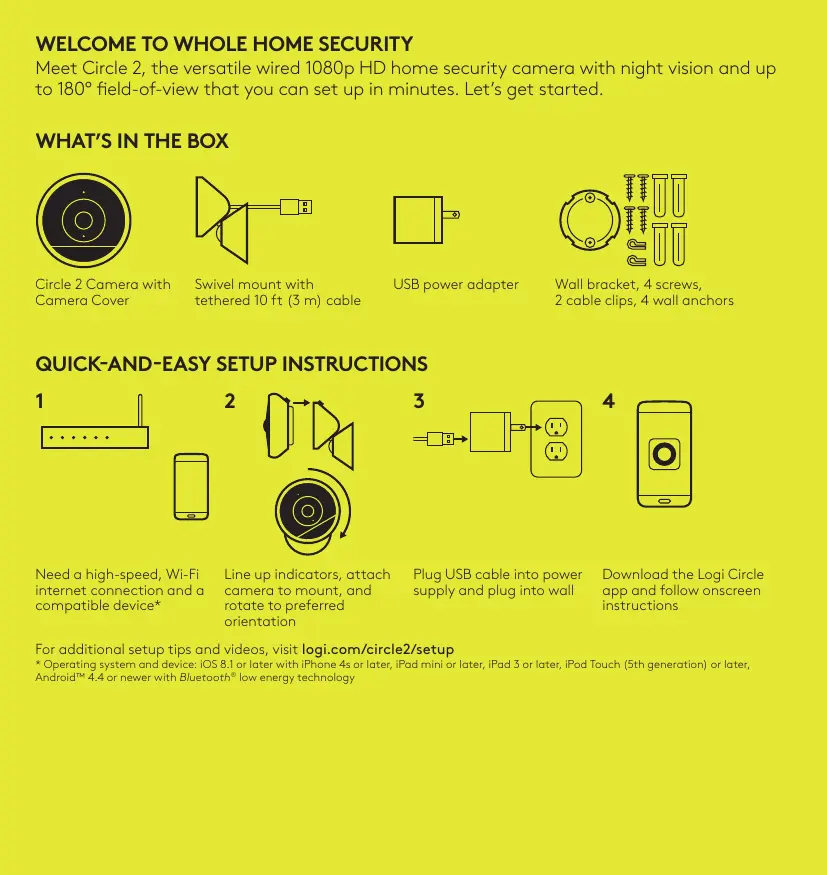

Meet Circle 2, the versatile wired 1080p HD home security camera with night vision and up to 180^ field-of-view that you can set up in minutes. Let's get started.

WHAT'S IN THE BOX

Circle 2 Camera with Camera Cover

Swivel mount with tethered 10 ft (3 m) cable

USB power adapter

Wall bracket, 4 screws, 2 cable clips, 4 wall anchors

QUICK-AND-EASY SETUP INSTRUCTIONS

2

Need a high-speed, Wi-Fi internet connection and a compatible device*
Line up indicators, attach camera to mount, and rotate to preferred orientation

Plug USB cable into power supply and plug into wall
4
Download the Logi Circle app and follow onscreen instructions

For additional setup tips and videos, visit logi.com/circle2/setup

• Operating system and device: iOS 8.1 or later with iPhone 4s or later, iPad mini or later, iPad 3 or later, iPod Touch (5th generation) or later, Android™ 4.4 or newer with Bluetooth® low energy technology

TIPS AND TRICKS

Camera LED indicator

Blinking blue:

Ready to pair

Solid white:

Camera connectedand ready for use

Solid green:

Someone watching/ viewing

Solid yellow:

Privacy mode

Solid red:

Camera off/ not recording or streaming

Reset camera steps

Locate circular reset button on side of camera

9 sec.

Press and hold the reset button for 9 seconds and release when you see the blinking magenta and green LED ring

USAGE GUIDELINES

Make sure it's in Wi-Fi range

Circle 2 is a Wi-Fi security camera that streams HD video with audio, so it's recommended to be placed in a location that gets the best Wi-Fi reception - even moving the position of your camera a few feet can have a big impact. TIP: try streaming video to help determine optimal placement.

Don't leave it exposed to the sun

Circle 2 is designed to brave the cold and the heat and can operate in day time temperatures between -20^ to 50^ (-4^ to 122^) .* Do not place in direct sunlight as it can cause the camera to heat up and impact performance, cause material degradation, plus it may create unwanted glare in your videos.

• 40°C (104°F) in nightvision mode

Pick a spot with a clear view

Place Circle 2 anywhere on shelves, walls, and ceilings. When placing it make sure it's high enough that it's not easy to tamper with but easy enough to get to when required. Around 7-8 ft (2-2.5 m) works best.

Easy mounting

Screw the bracket onto the wall/ceiling using the included screws and anchors. Snap the base of mount onto the bracket and then attach the camera to the mount. Adjust the camera to the preferred angle and orientation. When placing it on a ceiling, you can flip the video using the camera menu.

MOUNTS AND ACCESSORIES

Circle 2 is the most versatile security camera that can be used anywhere at home.

To customize your experience even more, choose from a selection of accessories that fit your needs.

Window Mount

Simply put the Window Mount on the camera and place it on any window pane. Thanks to the Window Ring and unique in-app mode, it's that simple.

Plug Mount

Watch over your home from any wall outlet — in the kitchen, the garage, even down low to see your pet.

Weatherproof Extension

Additional 15 ft (4.5 m) Weatherproof Extension lets your Circle 2 Camera reach even further.

Need more help?

Visit support and FAQs at logi.com/circle2/support

For additional Circle Safe subscription plans, go to logi.com/circle2/subscriptions
