Product type	Extractor/recirculating cooker hood
Brand	Franke
Model	487702
Hood width	60 cm (depending on variant)
Minimum safety distance (cooking surface)	650 mm (550 mm for some models)
Duct diameter	120 mm or 150 mm (with reducer)
Power supply	220-240 V ~, 50/60 Hz
Electrical class	Class I (requires earthing)
Controls	Mechanical buttons for lighting, motor and 3 speeds
Lighting	Replaceable lamps
Grease filters	Metallic, dishwasher safe (every 2 months)
Activated charcoal filter	Not washable, replace every 3-4 months
Operation	Extractor or recirculation mode (with oriented grille)
Hood material	Stainless steel (likely)
Maintenance	Clean with damp cloth and neutral detergent
Safety	Do not flambé under the hood, do not leave unattended
Usage	Domestic use only
Weight	Approximately 12 kg (estimate)

Frequently Asked Questions - 487702 FRANKE

How to install the Franke 487702 hood?

The minimum safety distance between the cooking surface and the hood is 650 mm. Installation can be done by screwing or clipping onto side brackets. Use an exhaust duct of 120 mm or 150 mm and ensure proper earthing.

What is the difference between extractor and recirculation mode?

In extractor mode, air is expelled outside via a duct. In recirculation mode, air is filtered by an activated charcoal filter then returned to the kitchen. Recirculation mode requires an oriented grille and charcoal filters.

How to clean the grease filters?

The metallic grease filters can be washed in the dishwasher or by hand. It is recommended to clean them every 2 months of use, or more often if necessary.

When to replace the activated charcoal filter?

The activated charcoal filter cannot be washed and should be replaced approximately every 3 to 4 months, or more often with heavy use.

What to do if the hood does not work after installation?

First check that the power supply is correct and that the bipolar switch is in the on position. Make sure the extractor drawer is properly engaged (a click should be heard). If the problem persists, contact after-sales service.

How to replace the hood lamps?

Disconnect the appliance from the power supply. Remove the metallic grease filters. Unscrew the old lamps and replace them with lamps of the same specifications. Reinstall the filters.

What safety precautions should be observed?

Never flambé food under the hood. Monitor deep fryers because overheated oil can ignite. Do not let children use the appliance unsupervised. Respect the minimum safety distance.

Why is the hood noisy?

Normal noise is due to the motor and air flow. If noise is excessive, check that the filters are clean and the duct is not blocked. Poor installation can also cause vibrations.

Can the hood be used without external exhaust?

Yes, in recirculation mode. An activated charcoal filter must be installed and the supplied oriented grille used. The air is filtered and returned to the kitchen.

How to adjust the extraction speed?

Use the V button to choose among 3 speeds: minimum speed for silent ventilation, medium speed for daily use, and maximum speed for heavy steam.

USER MANUAL 487702 FRANKE

RECOMMENDATIONS AND SUGGESTIONS 4

CHARACTERISTICS 7

INSTALLATION 8

USE 10

MAINTENANCE 11

INDICE

IT

CONSIGLI E SUGGERIMENTI....13

CARATTERISTICHE....16

INSTALLAZIONE 17

USO....19

MANUTENZIONE 20

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS....22

CARACTERISTIQUES....25

INSTALLATION 26

UTILISATION 28

ENTRETIEN 29

INHALTSVERZEICHNIS

DE

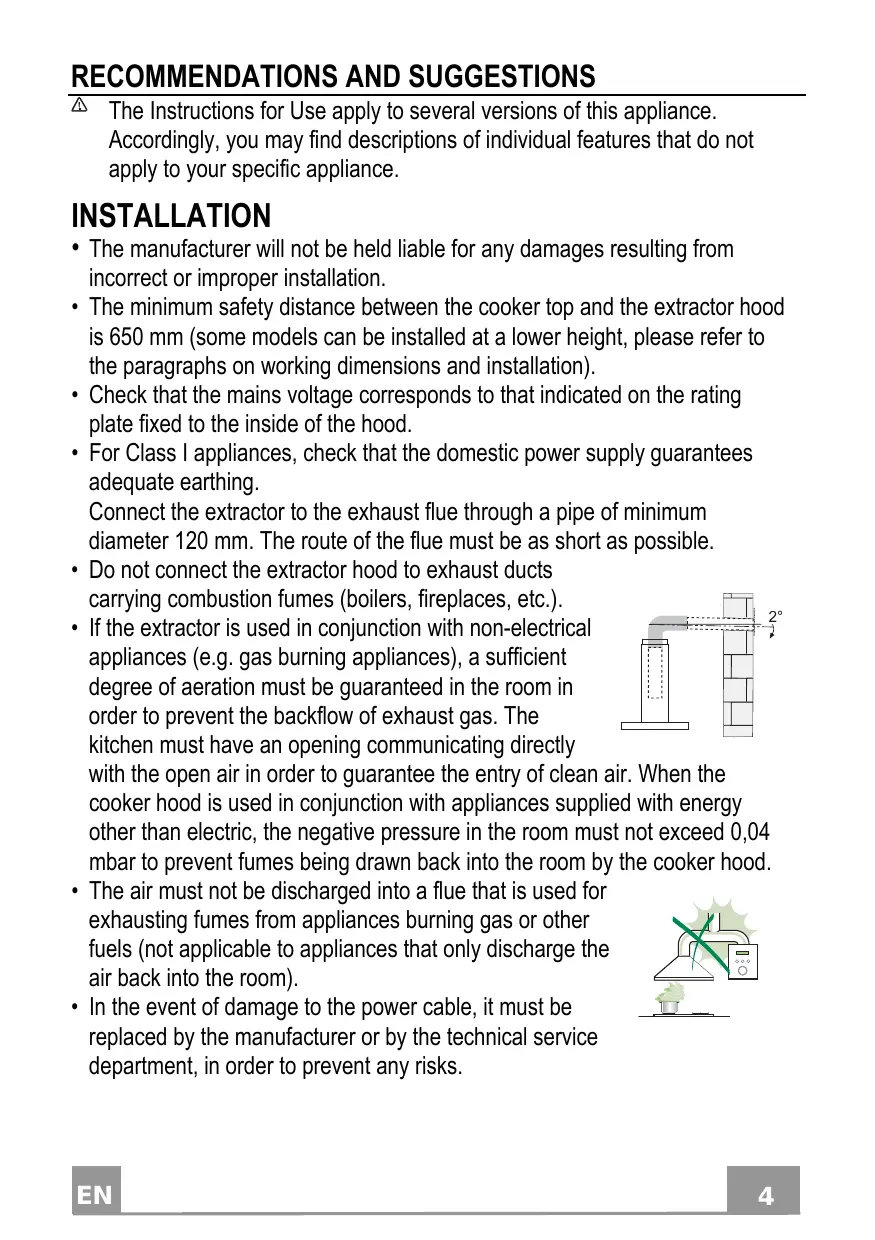

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
  Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly

with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

Illustration of a cooking setup with a pot and stove, featuring a crossed green pan and smoke (no text or symbols)

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol — on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

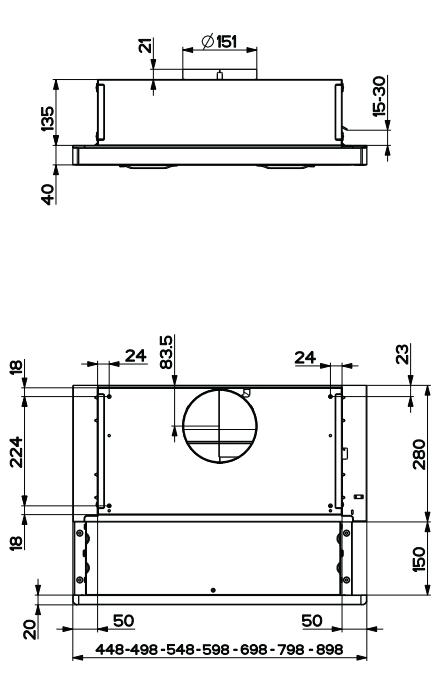

Dimensions

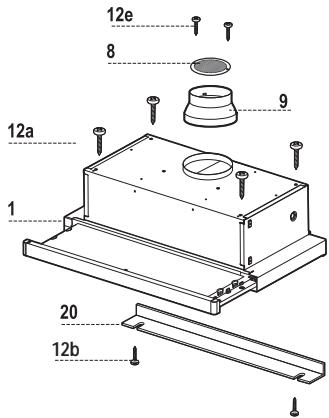

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
8	1	Directional Air Outlet grille
9	1	Reducer Flange ø 150-120 mm
20	1	Closing element
Ref.	Q.ty	Installation Components
12a	4	Screws 4,2 x 44,4
12b	2	Screws 4,2 x 12,7
12e	2	Screws 2,9 x 9,5
	Q.ty	Documentation
	1	Instruction Manual

Drilling the Support surface and Fitting the Hood

SCREW FITTING

• The hood support surface must be 135 mm above the bottom surface of the wall units.
• Drill the support with a 4,5 mm drill bit, using the drilling template provided.
• Cut a hole 150 mm in size on the support surface, using the drilling template provided.
  • Fix using the 4 screws 12a (4,2 x 44,4) provided.

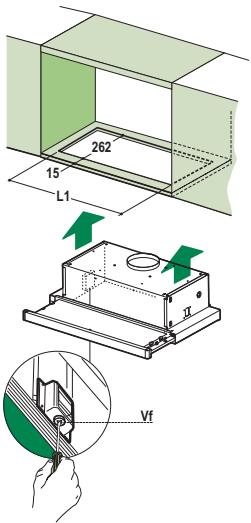

SNAP-ON FITTING

• The hood can be installed either directly on the bottom surface of the wall units using snap-on side supports.
• Cut a fitted opening in the bottom surface of the wall unit, as shown.
• Insert the hood until the side supports snap into place.
• Lock in position by tightening the screws Vf from underneath the hood.

Hood Type	45	50	55	60	70	80	90
L1	360	410	460	510	610	710	810

CLOSING ELEMENT

- The space between the edge of the hood and the rear wall can be closed by applying the element 20 provided, using the screws 12b.

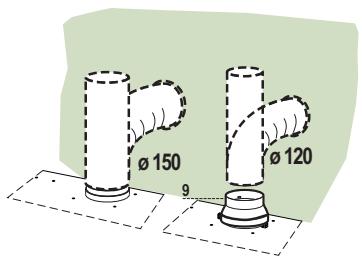

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

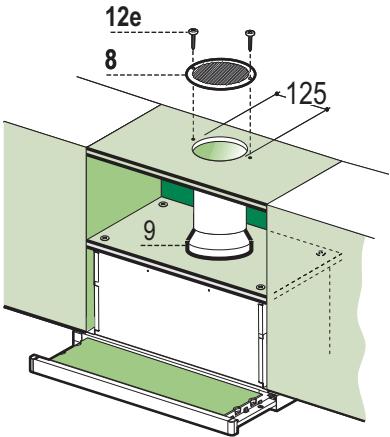

RECIRCULATION VERSION AIR OUTLET

• Cut a hole 125 mm in any shelf that may be positioned over the hood.
• Connect the flange to the outlet on the shelf over the hood using a flexible or rigid pipe 120mm .
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12e (2,9 x 9,5) provided.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• When opening the sliding carriage for the first time after installing the hood, pull it out briskly until it clicks.

Control panel

L Light Switches the lighting system on and off.

M Motor Switches the extractor motor on and off.

V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.

2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.

3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

L Light Switches the lighting system on and off.

M Motor Switches the extractor motor on and off.

V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.

2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.

Grease filters

CLEANING METAL CASSETTE GREASE FILTERS

• The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher.
• Pull out the sliding suction panel.
• Remove the filters one by one, after having disconnected the relative fastening elements.
• Wash the filters, taking care not to bend them. Let them get dry before refitting them. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When refitting the filters, make sure that the handle is visible on the outside.
• Close the sliding suction panel.

Illustration of a hand pressing a green directional arrow on a green circular background (no text or symbols)

Charcoal filter (Recycling version)

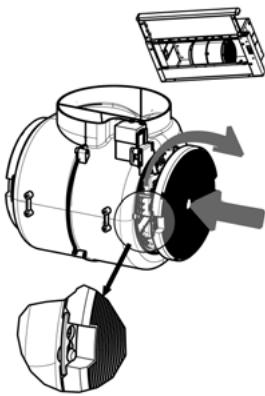

REPLACING CHARCOAL FILTERS

Warning: Turn the lights off and wait until the lamps cool down before you change the odour filter.

• These filters are not washable and cannot be regenerated, and must be replaced approximately every four months or more frequently by particularly heavy use.
• Pull out the sliding suction panel.
• Remove the grease filters.
• Remove the saturated carbon filter by releasing the fixing hooks
  • Fit the new filter by hooking it into its seating.
• Replace the grease filters.
• Close the sliding suction panel.

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Lighting

LIGHT REPLACEMENT

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Lamp	Power (W)	Socket	Voltage (V)	Dimension (mm)	ILCOS Code
0x8x4	4	E14	220-240	107 x 37	DRBB/F-4-220-240-E14-35/100
2x4x2	5	GU10	230	52 x 50	DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Illustration of a chemical experiment setup with a conical flask, beaker, and control panel (no text or symbols)

Diagram of a pipe connection with a 2° angle indicator, showing structural components without any text or symbols.

Illustration of a cooking setup with a pot and stove, featuring a crossed green pan and smoke (no text or symbols)

Illustration of a hand pressing a green directional arrow on a green circular background (no text or symbols)

Filtri antiodore (Versione Filtrante)

SOSTITUZIONE

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Illuminazione

Line drawing of a hand using a tool to apply or install a component, no text or symbols present

Lampada	Assorbimento (W)	Attacco	Voltaggio (V)	Dimensione (mm)	Codice ILCOS
(D-6487)	4	E14	220 – 240	107 x 37	DRBB/F-4-220-240-E14-35/100
[G 7TH]	5	GU10	230	52 x 50	DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Illustration of a chemical experiment setup with a conical flask, thermometer, and smoke rising (no text or symbols)

Illustration of a cooking pot with green smoke rising from a stove, crossed by a green X (no text or symbols)

Illustration of a hand pressing a green circular diagram with a diagonal line and arrow (no text or symbols)

Filtres anti-odeur (Version Recyclage)

REMLACEMENT

Technical diagram of a mechanical device with internal components and directional arrows (no text or labels)

Eclairage

REPLACEMENT LAMPES

Line drawing of a hand using a tool to adjust or install a mechanical component, enclosed in a circular frame (no text or symbols)

Ampoule	Absorption (W)	Culot	Voltage (V)	Dimensions (mm)	Code ILCOS
SWI	4	E14	220-240	107 x 37	DRBB/F-4-220-240-E14-35/100
	5	GU10	230	52 x 50	DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

Illustration of a cooking setup with a pot, steam rising, and a crossed green ribbon (no text or symbols)

Illustration of a hand pressing a green circular diagram with a checkmark (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Beleuchtung

AUSWECHSELN DER LAMPEN

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Illustration of a chemical experiment setup with a funnel, reaction flask, and control panel (no text or symbols)

Illustration of a cooking setup with a pot and stove, featuring a crossed green pan and smoke (no text or symbols)

Illustration of a hand pressing a green circular diagram with a diagonal line and arrow (no text or symbols)

Koku filtreleri (Filtreli Versiyon)

DEĞİŞTİRME

Technical diagram of a mechanical device with internal components and directional arrows (no text or labels)

Aydınlatma

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Ampul	Ampul Gücü (W)	Duy/Soket	Ampul Voltajı (V)	Boyut (mm)	ILCOS Kodu
^[asen]	4	E14	220-240	107 x 37	DRBB/F-4-220-240-E14-35/100
^[HWDO]	5	GU10	230	52 x 50	DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

Technical diagram showing a pipe connection to a brick wall with 2° angle标注 (no text or symbols beyond basic geometry)

Illustration of a cooking setup with a pot and stove, featuring green smoke rising from a chimney (no text or symbols)

Illustration of a hand pressing a green circular diagram with a diagonal line and arrow (no text or symbols)

Technical diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Osvětlení

VÝMĚNA ŽÁROVEK

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Žárovka	Příkon (W)	Patice	Napětí (V)	Rozměry (mm)	Kód ILCOS
[8A4V]	4	E14	220 – 240	107 x 37	DRBB/F-4-220-240-E14-35/100
	5	GU10	230	52 x 50	DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Illustration of a chemical experiment setup with a funnel, reaction flask, and control panel (no text or symbols)

Illustration of a cooking pot with steam rising, crossed by a green diagonal line (no text or symbols)

Illustration of a hand pressing a green directional arrow on a green circular background (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Valaistus

LAMPPUJEN VAIHTAMINEN

Line drawing of a hand using a tool to adjust or install a component, enclosed in a circular frame (no text or symbols)

Lamppu	Ottoteho (W)	Kanta	Jännite (V)	Koko (mm)	ILCOS-koodi
[soart]	4	E14	220-240	107 x 37	DRBB/F-4-220-240-E14-35/100
	5	GU10	230	52 x 50	DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

Illustration of a cooking pot with steam rising, crossed by a green diagonal line (no text or symbols)

ПЛАНКА

Illustration of a hand pressing a green circular diagram with a diagonal line and a green arrow symbol (no text or labels)

Technical diagram of a mechanical device showing internal components and directional arrows (no text or labels)

Освітлення

ЗАМИНА ЛАМП

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present
