USER MANUAL CHG7402X BEKO

Please read this manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Suitable for contact with food.

Do not immerse the appliance, power cable, or power plug in water or any other liquids.

Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

1 Important safety and environmental instructions

4

1.1 General safety 4
1.2 Compliance with the WEEE Directive and disposal of waste products .7
1.3 Package information 7

2 Your Chopper 8

2.1 Overview 8
2.2 Technical data 9

3 Operation 10

3.1 Intended use 10
3.2 Initial use. 10
3.3 Operation 10
3.4 Maximum quantities and preparation times 12
3.5 Things to do for energy saving 12

4 Cleaning and care 13

4.1 Cleaning 13
4.2 Storage 13
4.3 Handling and transportation 13

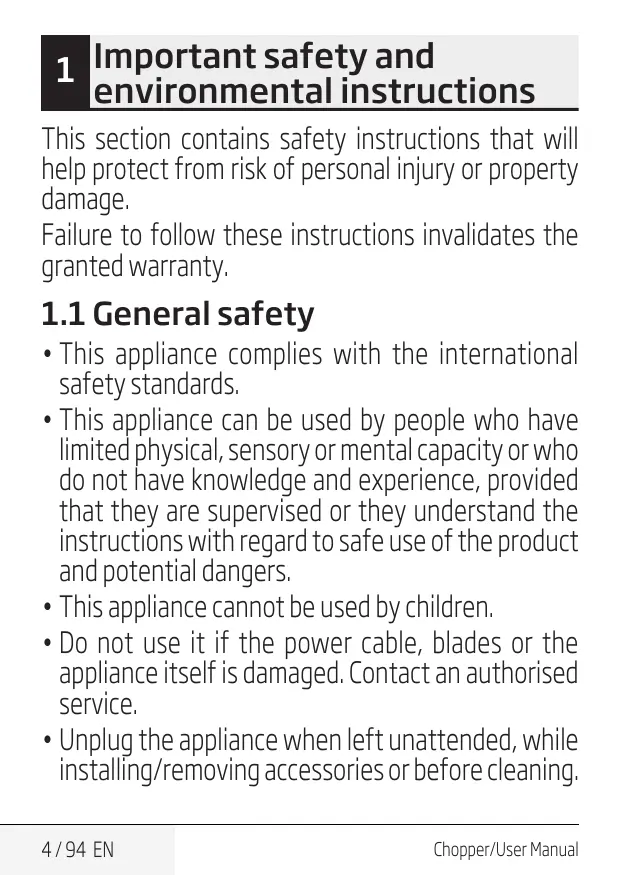

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers.
• This appliance cannot be used by children.
• Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.
• Unplug the appliance when left unattended, while installing/removing accessories or before cleaning.

1 Important safety and environmental instructions

• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cord.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance before cleaning, disassembly, accessory replacement and wait for it to stop completely.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not use the device for hot food.
• Use the appliance only with the supplied rubber base and glass container.
• Do not operate the appliance without the ingredients in the bowl.
• Remove bones and stones from food to prevent the blades and the appliance from getting damaged.

1 Important safety and environmental instructions

• This appliance is not suitable for dry or hard foods as this will quickly cause the blades to become dull.
• To prevent overheating, do not use the appliance continuously for more than 10 seconds. Leave to cool for 1 minute in between each 10 seconds of operation.
• Follow all warnings to prevent injuries due to incorrect use.
• When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use. Use caution and hold the chopping blade only from its plastic section.
• After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
• Do not immerse the appliance, power cable, or power plug in water or any other liquids.
• Do not operate or place any part of this appliance or its parts on or near hot surfaces.
• If you keep the packaging materials, store them out of the reach of children.

1

Important safety and environmental instructions

• Keep the appliance out of the reach of children.

1.2 Compliance with the WEEE Directive and disposal of waste products

This product does not include harmful and prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of Environment and Urban Planning. Complies with the WEEE Regulation. This appliance has been manufactured with high quality parts and

materials which can be reused and are suitable for recycling. Therefore, do not dispose the appliance with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Help protect the environment and natural resources by recycling used products.

1.3 Package information

Package of the product is made of recyclable materials in accordance with our national legislation. Do not dispose of the packaging materials together with the domestic or other wastes.

Take them to the packaging material collection points designated by the local authorities.

2 Your Chopper

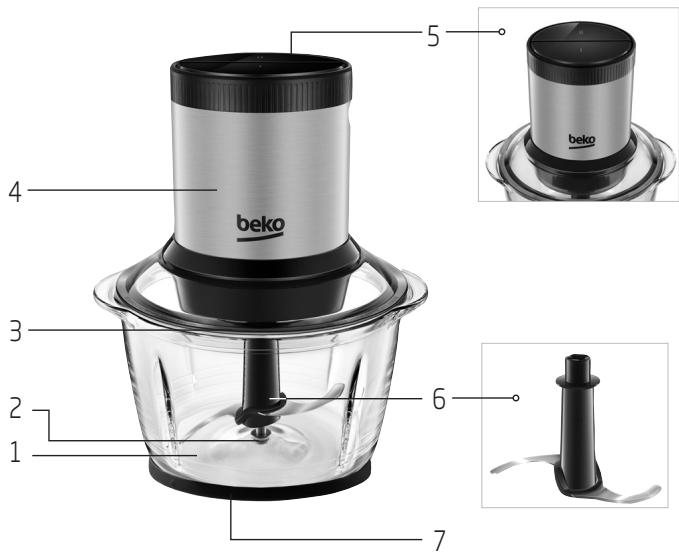

2.1 Overview

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your Chopper

1. Glass container
2. Fixed shaft
   3.Middle cover
3. Motor unit
4. Operating switch (speed adjustment I and II)
5. Chopper blade
6. Non-slip rubber base

2.2 Technical data

CE This appliance complies with the European Directives 2004/108/EC, 2006/95/EC, 2009/125/ EC and 2011/65/EU.

Power supply:

220-240V\~,50/60Hz

Power: 400 W

Technical and design modifications reserved.

3.1 Intended use

This appliance is intended only for household use; it is not suitable for professional use.

It is designed for chopping small amounts of solid food only.

3.2 Initial use

Clean the appliance parts before initial use (see 4.1).

3.3 Operation

1. Place your appliance on a hard and flat surface on its non-slip rubber base.
2. Remove motor unit (4) and middle cover (3) from the glass container.
3. Place the chopper blade (6) on fixed shaft (2) holding the plastic section.
4. Put the ingredients you want to prepare into the glass container (1) (see. 3.4).
5. Place middle cover (3) on glass container (1) (silicone seal facing down). Then, place the motor unit (4) on top.

WARNING: Fit the middle cover (3) on glass container. Otherwise, motor unit (4) will not be seated securely and appliance will not start.

1. Plug in the appliance.
2. Run the desired speed pressing the operation switch (5) (see. 3.4).
3. Do not use the appliance continuously for more than 10 seconds. Turn off the device when used for more than 10 seconds and wait for 1 min. before operating again.

WARNING:

When you do not exceed 10 seconds in intermittent uses, you can operate the appliance until the end of the process by waiting for a couple of seconds.

3 Operation

Soft foods like onions or parsley, 1-second, short intermittent presses will be sufficient.

1. Release the operation switch when the operation is finished. Unplug the appliance and wait for it to stop completely.
2. Remove motor unit (4) and then the middle cover (3).
3. Remove chopper blade (6) from the glass container (1) by pulling away holding the plastic section.
4. Remove the processed food from glass container (1).

The inner part of the blade has springs. When you seat the blade on fixed shaft, you will feel a backlash. Blade is secured when you turn it left or right for a quarter of turn.

1. When you want to remove blade from the shaft, turn the blade left or right for a quarter of turns to release and remove.

WARNING: Do not touch the blades with your bare hands.

3.4 Maximum quantities and preparation times

Ingredient	Max. amount	Processing time	Speed adjust-ment
Lean meat (small cubes)	300 g	20 s	max II
Onion/Garlic (small pieces)	300 g	20 s	max II
Hazelnut	300 g	20 s	max II
Tomato	300 g	15-20 s	max II
Cheese (small cubes)	150 g	5-10 s	max II
Fruit (cut into pieces)	300 g	15-20 s	max II
Parsley	100 g	10 s	max II
Candied date	500 g	5 s	max II

3.5 Things to do for energy saving

Follow the times recommended in the manual during use. Unplug the appliance after use.

4 Cleaning and care

4.1 Cleaning

1. Unplug the appliance before cleaning.
2. Wait for chopper blade (6) to stop.
3. Use a slightly damp cloth to clean the exterior of the motor unit (4).

WARNING: Do not use gasoline, solvent and abrasive cleaning agents or hard brush to clean the appliance.

WARNING: Be careful while cleaning chopper blade (6). It is sharp.

The glass bowl, chopping blade and middle cover can be washed in the dishwasher on the upper shelf.

WARNING: Never immerse the motor unit or its power cable in water or in any other liquid.

• Dry all parts of the appliance after cleaning.

4.2 Storage

If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance before lifting it.
• Store the appliance in a cool and dry place.
• Keep the appliance and cable out of the reach of children.

4.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.
