LONO FONDUE - Fondue WMF - Free user manual and instructions

USER MANUAL LONO FONDUE WMF

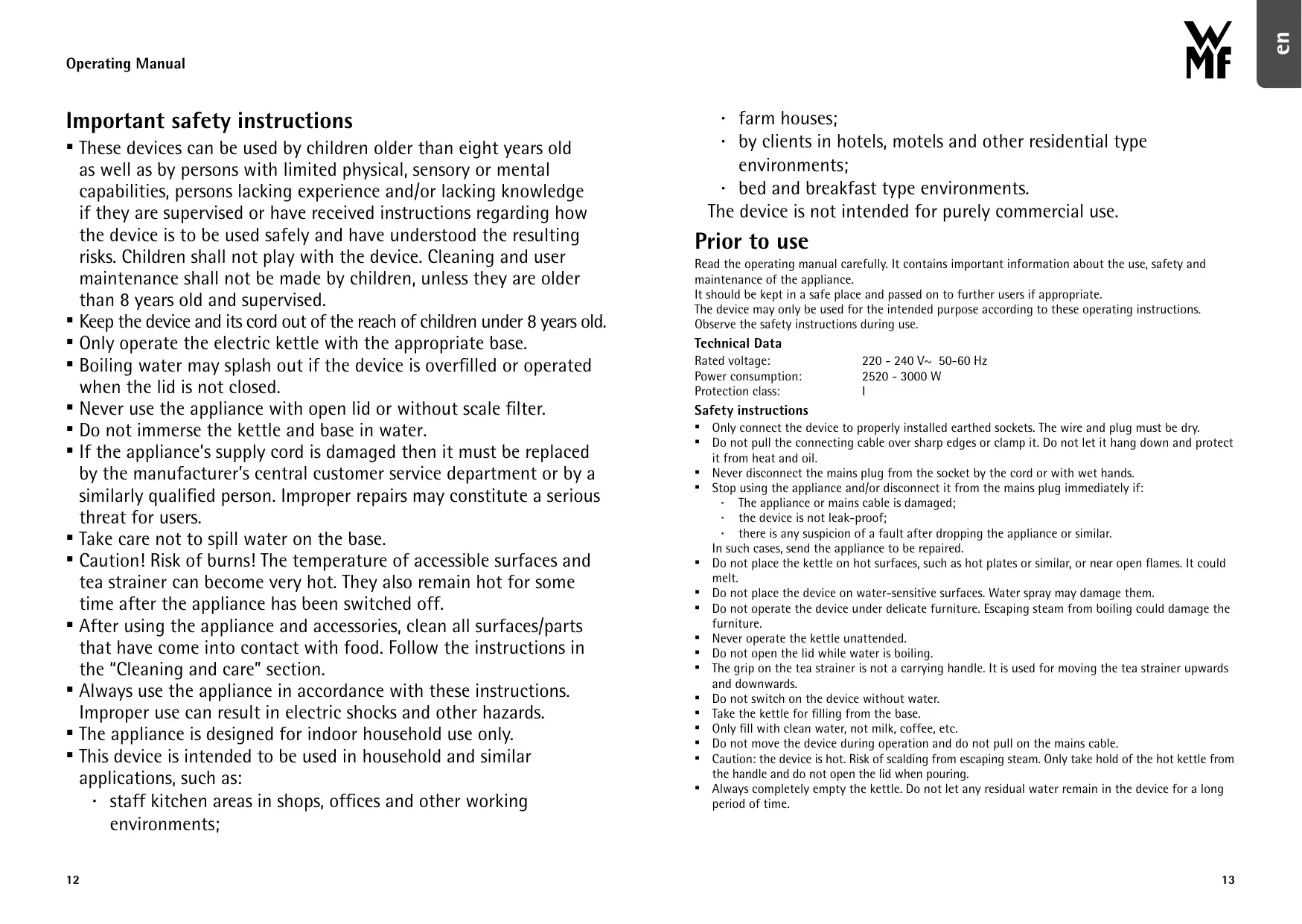

Important safety instructions ▪▪These devices can be used by children older than eight years old as well as by persons with limited physical, sensory or mental capabilities, persons lacking experience and/or lacking knowledge if they are supervised or have received instructions regarding how the device is to be used safely and have understood the resulting risks. Children shall not play with the device. Cleaning and user maintenance shall not be made by children, unless they are older than 8 years old and supervised. ▪▪ Keep the device and its cord out of the reach of children under 8 years old. ▪▪Only operate the electric kettle with the appropriate base. ▪▪Boiling water may splash out if the device is overfilled or operated when the lid is not closed. ▪▪Never use the appliance with open lid or without scale filter. ▪▪Do not immerse the kettle and base in water. ▪▪If the appliance’s supply cord is damaged then it must be replaced by the manufacturer’s central customer service department or by a similarly qualified person. Improper repairs may constitute a serious threat for users. ▪▪Take care not to spill water on the base. ▪▪Caution! Risk of burns! The temperature of accessible surfaces and tea strainer can become very hot. They also remain hot for some time after the appliance has been switched off. ▪▪After using the appliance and accessories, clean all surfaces/parts that have come into contact with food. Follow the instructions in the “Cleaning and care” section. ▪▪Always use the appliance in accordance with these instructions. Improper use can result in electric shocks and other hazards. ▪▪The appliance is designed for indoor household use only. ▪▪This device is intended to be used in household and similar applications, such as: ⋅⋅ staff kitchen areas in shops, offices and other working environments; 12

⋅⋅ by clients in hotels, motels and other residential type environments; ⋅⋅ bed and breakfast type environments. The device is not intended for purely commercial use.

Read the operating manual carefully. It contains important information about the use, safety and maintenance of the appliance. It should be kept in a safe place and passed on to further users if appropriate. The device may only be used for the intended purpose according to these operating instructions. Observe the safety instructions during use.

Rated voltage: Power consumption: Protection class:

220 - 240 V~ 50-60 Hz

2520 - 3000 W I Safety instructions

▪▪ Only connect the device to properly installed earthed sockets. The wire and plug must be dry. ▪▪ Do not pull the connecting cable over sharp edges or clamp it. Do not let it hang down and protect it from heat and oil. ▪▪ Never disconnect the mains plug from the socket by the cord or with wet hands. ▪▪ Stop using the appliance and/or disconnect it from the mains plug immediately if: ⋅⋅ The appliance or mains cable is damaged; ⋅⋅ the device is not leak-proof; ⋅⋅ there is any suspicion of a fault after dropping the appliance or similar. In such cases, send the appliance to be repaired. ▪▪ Do not place the kettle on hot surfaces, such as hot plates or similar, or near open flames. It could melt. ▪▪ Do not place the device on water-sensitive surfaces. Water spray may damage them. ▪▪ Do not operate the device under delicate furniture. Escaping steam from boiling could damage the furniture. ▪▪ Never operate the kettle unattended. ▪▪ Do not open the lid while water is boiling. ▪▪ The grip on the tea strainer is not a carrying handle. It is used for moving the tea strainer upwards and downwards. ▪▪ Do not switch on the device without water. ▪▪ Take the kettle for filling from the base. ▪▪ Only fill with clean water, not milk, coffee, etc. ▪▪ Do not move the device during operation and do not pull on the mains cable. ▪▪ Caution: the device is hot. Risk of scalding from escaping steam. Only take hold of the hot kettle from the handle and do not open the lid when pouring. ▪▪ Always completely empty the kettle. Do not let any residual water remain in the device for a long period of time.

▪▪ The mains plug is to be pulled: ⋅⋅ if malfunctions occur during use, ⋅⋅ before cleaning and care, ⋅⋅ after use. ▪▪ No liability is accepted for any damages resulting from misuse, incorrect operation or improper repairs. Claims under warranty are likewise excluded in such cases. ▪▪ Packaging material, such as plastic film bags, do not belong in the hands of children.

Operating the appliance for the first time and general information

The kettle is made from stainless steel and original Schott DURAN® glass. It is heat resistant, stable, neutral tasting and easy to clean. Thoroughly clean the inside of the kettle prior to the first use. (see the chapter entitled “Cleaning and care”). A strainer insert in the pour spout ensures that larger limescale particles are kept back when pouring. The unnecessary length of the connecting cable can be wound at the bottom of the base part. Connect the mains plug to an earthed socket. When filling the kettle, note the MIN (0.5 l) and MAX (1.4 l or 1.7 l) fill quantities. Note: If you use too little water, the dry-run protection (overheating protection) automatically switches the heating element off. If there is too much water then hot water may boil over, which can cause serious injury or burns. Depending on use, place one of the two lids on the kettle in order for the automatic BoilStop function to work reliably. Place the kettle on the base in any position. Do not use the water from the first boiling process for food preparation.

Operating the machine

You can prepare perfect cups of tea with the LONO 2-in-1 tea and water kettle by individually selecting the temperature and brewing time. Alternatively you can use the appliance as a kettle as well. It also offers additional functions such as keep warm and boil. The various options are explained in detail below. The temperature of the water and the length of time you leave the tea to infuse plays a key role in making tea. Below you will find an overview to act as a guide: The temperature and infusion time can be adapted depending on the type of tea and your personal preferences.

1. Remove the kettle from the base. 2. Use the lid with tea strainer (1). 3. Fill the tea strainer with the desired tea leaves. To do this, pull the tea strainer downwards to remove it from the holder (Fig. A). 4. Push the tea strainer back into the holder until you hear it click into place (Fig. B). 5. Fill the kettle with the required amount of water (MIN 0.5 l, MAX 1.4 l) 6. Place the lid with tea strainer on the kettle. Make sure that the tea strainer is fitted to the lid. To do this, pull the tea strainer upwards via the grip on the guide rod (Fig. C).The sieve is held in place by means of a magnet on the lid. 7. Put the kettle on the base in any position. 8. To activate the kettle, press the desired temperature/programme button (70°, 80°, 90°,100°C or „p“). The preset brewing time is indicated on the display. You can adjust the brewing time individually; see the section, „Setting the brewing time“. Alternatively, you can switch the kettle on by pressing the Start/Stop button. The temperature/ programme button (70°, 80°, 90°,100°C or „p“) that was last used is displayed. Note:If no key is pressed for 10 seconds, the kettle automatically switches itself off. The indicator lights go out. 9. Press the Start/Stop button (11) to start heating. The Start/Stop button (11) and the selected temperature button light up. You can interrupt the heating process at any time by pressing the Start/Stop button (11) or by removing the kettle from the base. 10. As soon as the desired temperature has been reached, the appliance beeps (several times at specific intervals). The brewing time on the display and the Start/Stop button flash. 11. Push the grip (2) on the tea strainer downwards as far as it will go. The tea is now in the water and its full flavour can develop (Fig. D). 12. Start the timer for the set brewing time by pressing the Start/Stop button. The remaining brewing time is indicated on the display. Note:The appliance turns off automatically after around 10 minutes without the need to press the Start/Stop button. The indicator lights go out. 13. Once the brewing time has passed, the appliance beeps (several times at specific intervals). The appliance then switches off automatically. You can also switch off the appliance by removing it from the base or by pressing the Start/Stop button. 14. Now pull the grip on the tea strainer upwards until it reaches the lid. The tea is now ready to be enjoyed. Note: Alternatively you can also place the sealed lid on the kettle to pour out the tea.

Herbal tea, fruit tea

Remove the kettle from the base.

Use the sealed lid (12). Fill the kettle with the required amount of water (MIN 0.5 l, MAX 1.7l). Place the lid on the kettle. Put the kettle on the base in any position. To activate the kettle, press the desired temperature/programme button (70°, 80°, 90°,100°C or „p“). The brewing time indicated on the display can be set to 00:00 if required (see the section, „Setting the brewing time“). Alternatively, you can also switch the kettle on by pressing the Start/Stop button. The temperature/ programme button (70°, 80°, 90°,100°C or „p“) that was last used is displayed. Note: If no key is pressed for 10 seconds, the kettle automatically switches itself off. The indicator lights go out. 15

7. To start heating, press the Start/Stop button. The selected temperature button and the Start/Stop button light up. You can interrupt the heating process at any time by pressing on the Start/Stop button (11) or by removing the kettle from the base. 8. As soon as the desired temperature has been reached, the appliance beeps (several times at specific intervals). The appliance switches off automatically. You can also switch off the appliance by removing it from the base or by pressing the Start/Stop button.

Setting the brewing time

The appliance is supplied with preset brewing times for the preset temperature/programme buttons (70°, 80°, 90°,100°C or „p“). If you wish to change these times depending on the type of tea, proceed as follows: ▪▪ When you press the required temperature button, the preset brewing time is indicated on the display. ▪▪ To change the brewing time, press the temperature button for more than 3 seconds until the colon starts to flash between the numbers on the display. You can now adjust the brewing time by repeatedly pressing the same temperature button, which increases in 30-second increments from 0 to 15 minutes. ▪▪ If the button is left unpressed for 8 seconds, the last time indicated on the display is saved and the appliance switches off. ▪▪ Your individual brewing temperature is now linked to the corresponding heating up temperature. ▪▪ You can adjust the times as you wish.

Individually setting the brewing time and brewing temperature

The programme button „P“ (9) enables you to set an individual brewing time and brewing temperature for your very personal cup of tea. You can select temperatures from 60°C to 100°C and brewing times from 0 to 15 minutes. ▪▪ Press the P button (9). The set temperature and brewing time that were used last flash alternately on the display. ▪▪ To change the values, press the P button (9) again for more than 3 seconds until the colon between the numbers on the display starts to flash. You can now set the brewing time by pressing repeatedly on the P button, which increases in 30-second increments from 0 to 15 minutes. If you stop pressing the P button, after a few seconds the appliance automatically saves the temperature setting. The C behind the temperature flashes on the display. You can increase the temperature in 5°C increments by pressing the P button repeatedly. ▪▪ If the P button is left unpressed for 8 seconds, the values are saved, there is a beeping sound and the appliance switches off.

The kettle is equipped with a pre-boil function. By boiling the water it is virtually sterile. To activate this function, press the appropriate temperature button twice when choosing the desired temperature (70°, 80° or 90° C). The temperature button selected and the 100° C button light up. Press the Start/Stop button to start boiling. Once the water has boiled, the 100° C button light goes out and the cooling process starts automatically. The Start/Stop button flashes. The actual temperature of the water is indicated on the display. As soon as the desired temperature has been reached, the appliance beeps (several times at specific intervals). You can now prepare the tea and begin the brewing process or use the water for another purpose. Note: Please note that it takes several minutes for the water to cool down from 100° to 60° or 70° C.

With the keep warm function you can keep freshly-brewed tea or hot water warm for up to 40 minutes. This function can only be used once the boiling and brewing processes have ended. It works like a rechaud, whereby the last temperature to be used is used as the keep warm temperature. To activate the keep warm function, press the Keep Warm button (10) and the Start/Stop button (11) in succession. Both buttons light up and the remaining time is indicated on the display. The keep warm function switches off automatically as soon as you remove the glass container from the base or the 40-minute keep warm period has lapsed. Note: The keep warm function cannot be activated with a water temperature of 100°C.

A thermostat protects the kettle from overheating due to accidental operation without water by switching off the device. It is essential to allow the kettle to cool down before filling with water. Should the first thermostat malfunction due to improper use, an additional temperature limiter provides reliable protection.

▪▪ Remove the mains plug and allow the appliance to cool down. ▪▪ Do not immerse the appliance in water, but rather clean it using a damp cloth with a little washing-up liquid and then dry it. ▪▪ Do not use harsh or abrasive cleaning agents. ▪▪ The inside of the kettle should be cleaned with warm water and a washing-up brush. To do this, remove the sealed lid or the tea strainer lid. ▪▪ We recommend cleaning the glass container after each use to prevent tea deposits from forming. You can descale the kettle for more stubborn stains or limescale build-up. (see the chapter entitled “Descaling”). CAUTION: Never clean the kettle under running water. The scale filter(3) in the pour spout can be removed for cleaning. To do this, pull the clip on the filter upwards to remove the filter. To position the filter, hold it by the clip, place it on top of the pouring spout and push downwards. Make sure that the clip is positioned facing forwards towards the pour spout.

For easy cleaning, the scale filter (3), lid with tea strainer (1) and sealed lid (12) can be cleaned in the washing machine.

Descaling Limescale deposits lead to energy losses and impair the service life of the appliance. The appliance switches off prematurely if the layer of limescale is too thick. The limescale is then very difficult to remove. Therefore descale the appliance regularly. We recommend using Cromargol® kettle descaler. This product has been designed specifically for descaling kettles and is extremely effective, food safe and has a neutral smell and taste. Thanks to the special care formula with two double additives, the Cromargol® kettle descaler does not damage the materials. You can usually purchase Cromargol® from the store where you have purchased your appliance or from your chosen dealer. The Cromargol® / Cromargol® water kettle decalcifier is only available in Germany and Austria. ▪▪ Prior to descaling, unplug the appliance from the mains and allow it to cool down. ▪▪ Remove the strainer and place it inside the kettle. Replace the strainer after descaling has finished. ▪▪ Shake the bottle of Cromargol® before using it. Fill the kettle with one portion (100 ml) of Cromargol® kettle descaler and leave for approximately five minutes to take effect. Then fill the appliance with cold tap water to cover the limescale ring on the wall and leave to stand for 30 minutes. ▪▪ Then pour out the water and thoroughly rinse with cold tap water. ▪▪ Measure out and use other descaling agents according to the manufacturer’s instructions. Do not heat the solution during descaling. Caution: the warranty does not cover damage caused by failure to observe the descaling instructions.

▪▪ This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock. ▪▪ The replacement of the plug at the mains lead has to be done according to the following instructions: Warning - This appliance must be earthed Important: The wires in this mains lead are coloured in accordance with the following code: green/yellow Earth blue Neutral Live brown As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: ⋅⋅ the wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol or coloured green or green and yellow, ⋅⋅ the wire which is coloured blue must be connected to the terminal which is marked the letter N or coloured black, ⋅⋅ the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. ▪▪ If a 13 A (BS 1363) plug is used it must be fitted with a 13 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must be protected by a 10 A fuse either in the plug or adapter or at the distribution board. If in doubt - consult a qualified electrician. ▪▪ Never use the plug without closing the fuse cover.

The appliance complies with European directives 2014/35/EC, 2014/30/EC and

2009/125/EC. At the end of its life, this product must not be disposed of in normal household waste but must instead be delivered to a collection point for recycling electric and electronic appliances. The materials are recyclable in accordance with their labelling. The reuse, recycling or other use of old appliances makes an important contribution to protecting our environment. Please ask your local administration for the appropriate disposal point. Subject to alterations
