KF5105BK - Coffee maker BRAUN - Free user manual and instructions

Product type	Drip coffee maker
Brand	Braun
Model	KF5105BK
Intensity selection	Aroma Select (mild, normal, strong)
Anti-drip system	Yes (if carafe removed for more than 20s, possible overflow)
Automatic shut-off	Yes (for models KF5120)
Water filter type	Removable filter cartridge (space compensator included)
Coffee filter	Paper filter size 4
Carafe	With lid
Maintenance	Regular descaling recommended
Spare parts available	Water filter cartridge, space compensator, paper filters
Customer service	Contact Braun customer service if the ON/OFF button blinks

Frequently Asked Questions - KF5105BK BRAUN

Why does coffee preparation take too long?

This is often due to limescale buildup in the coffee maker. Perform regular descaling to avoid this problem.

Why does the filter basket overflow?

Several possible causes: the basket is not properly closed, the carafe is not centered underneath, the carafe lid is missing, the carafe has been removed for more than 20 seconds, or you are using too much ground coffee (no more than 10 scoops) or an incorrectly sized filter (use filter size 4).

Why is the coffee not hot?

This may be due to a power cut or the activation of the automatic shut-off (for models KF5120). Check the power supply.

Why is there ground coffee at the bottom of the carafe?

The paper filter was not properly inserted into the basket or it folded. Rinse the basket, place a new size 4 filter correctly and restart.

Why is the number of cups brewed less than the amount of water poured?

Some water is absorbed by the ground coffee and evaporates during brewing. The carafe indicates water capacity, not the volume of coffee obtained.

How to use the Aroma Select function?

Use the Aroma Select selector to choose the coffee strength: mild, normal, or strong, according to your preference.

Where can I buy replacement water filters?

Replacement water filters are available in stores, on the Braun website, or by contacting customer service.

What to do if the ON/OFF button blinks?

If the ON/OFF button blinks, this indicates a malfunction. Please contact Braun customer service.

How to descale the coffee maker?

Use a descaling product suitable for coffee makers. Follow the instructions of the descaling product manufacturer. Generally, fill the reservoir with water and descaling agent, run a cycle, then rinse thoroughly.

What is the space compensator for?

The space compensator must be installed in the water reservoir when the water filter cartridge is removed, to maintain the correct water volume. Keep it carefully.

USER MANUAL KF5105BK BRAUN

Register your product

www.braunhousehold.com/register

DEitte lessen Sie die Sicherheitshinweise (separate Broschure) sorgfaltig und vollständig, bevor Sie das Gerät in Betriebnehmen.
EN Please read safety instructions (separate booklet) carefully and completely before using the appliance.
FR Veuillez dire attentivement l'intégrality des instructions de sécurité (livret séparé) avant d'utiliser l'appareil.
ES Lea Completely las instrucciones de seguridad (manual分开) con atencion antes de utilizing el aparato.
NL Lees de veiligeheidsaanwijzingen (afzonderlijk boekje) aandachtig en volledig voordat u dit product gebruikt.
DK Laes sikkerhedsinstruktionerne (separat hæfte) omhyggeligt og fuldstændigt, før apparatet bruges.
NO Les alle sikkerhetsanvisingene grundig for du tar i bruk apparatet.
SE Lásigenom sakerhetsanvisingarna (separat háfte) noggrant innan du använder apparaten.
F1 Lue turvallisuusohjeet (erillinen kirjanen) huolella kokonaan ennen laitteen käytöä.
PL Przed uzyciem urzadzenia prosze uwaznie przycie bezpiecznych (osobna broszura).
CZ Přečěte si pečíve a kompletně bezpečnostníPokyny (samostnatá brožura) prěd použitím prístroje.
SK Kym začnete spotrebic použivat, dokladne si preštudujte bezpečnostnéPokyny (samostnatá brožúka).
HU Kérjuk, hovy a keszülék használata elött olvassa vegig figyelmesen a biztonsági utasításokat (kūlön füzet).
TR Cihazi kullanmadan once luften guvenlik talimatlarini dikkatle ve tamamen okuyun (ayri kitapqik).
RO Vă rugăm să citiți cu atențieși in intregime instrucțiunile de siguranta (broşură separata) înte de a Utiliza aparatul.
GR Mελεποτε με προσχή ὅλες τις έθηγίες ασφαλείας (ξεχωρισό φυλάδι) προτόν χρησιμοισίασετε τη σουκεύη.
KZ AcnantbI KOndaHapdbH aJbHda Kayinci3dk 6oibHwa HycaynapdbI (6eJIek KITan7a) 3eiH KOybTyreJeOkbH WbIfbHb13.
RU Ipeed nCnoIb3OBAHnem npi6opora BHNMaTeIbHO NOJIHoCTbIO IpOHTNe IHCTpyKcIMI NO TeXHnke 6e3oNaChOCTN (OTdIeNbHa8 6poUopa).
UA Ipeed BnKOpncTaHHaM npictpoU yBaXHo Ta nobHicTIO npOHTaIe IHCTpyKcio 3 TexHikn 6e3neKn (okpemy bpoosyp).
AR jLjIeJlIeJUJcJolJLJzJzJzJzJz(Juaio 5) JolJI cJalao oJg

De'Longhi Braun Household GmbH

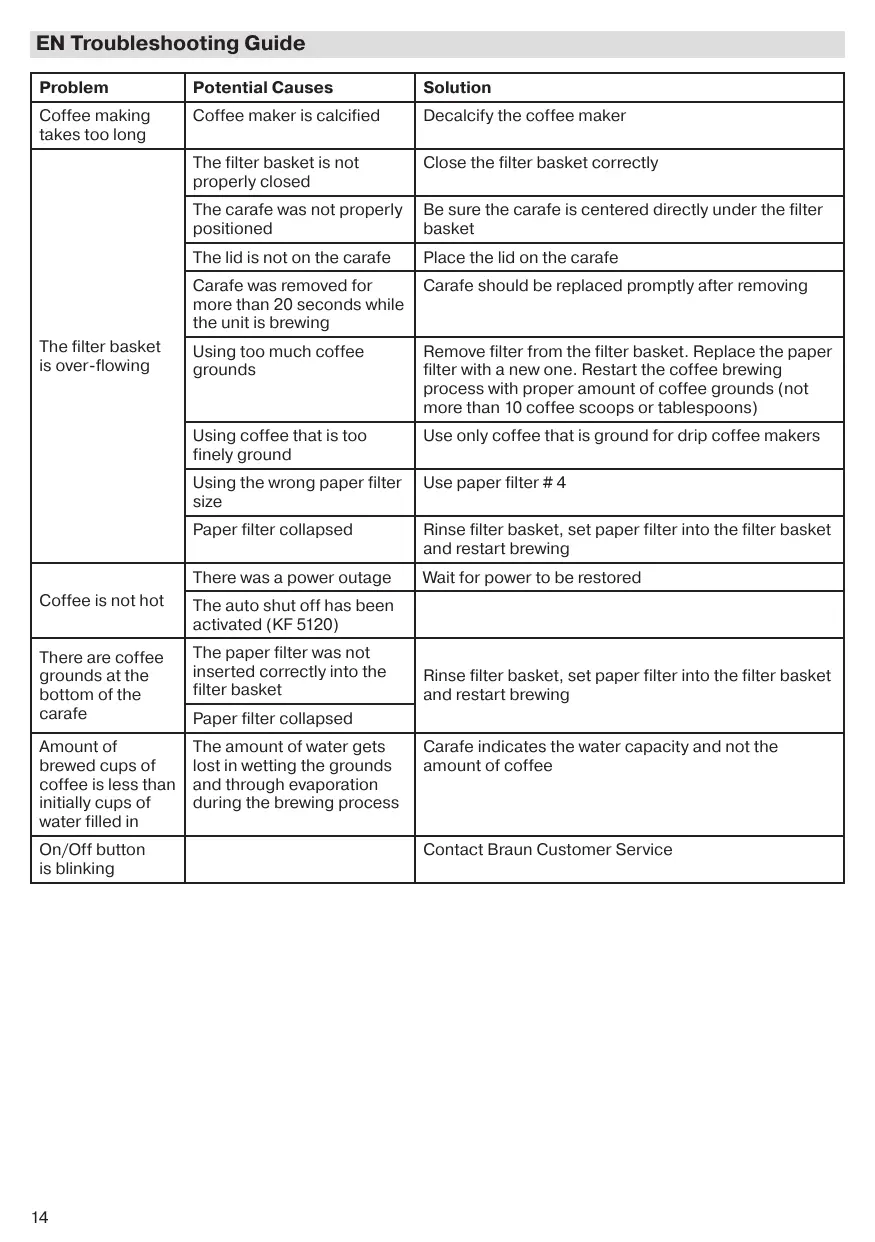

Problem	Potential Causes	Solution
Coffee making takes too long	Coffee maker is calcified	Decalcify the coffee maker
The filter basket is over-flowing	The filter basket is not properly closed	Close the filter basket correctly
	The carafe was not properly positioned	Be sure the carafe is centered directly under the filter basket
	The lid is not on the carafe	Place the lid on the carafe
	Carafe was removed for more than 20 seconds while the unit is brewing	Carafe should be replaced promptly after removing
	Using too much coffee grounds	Remove filter from the filter basket. Replace the paper filter with a new one. Restart the coffee brewing process with proper amount of coffee grounds (not more than 10 coffee scoops or tablespoons)
	Using coffee that is too finely ground	Use only coffee that is ground for drip coffee makers
	Using the wrong paper filter size	Use paper filter # 4
	Paper filter collapsed	Rinse filter basket, set paper filter into the filter basket and restart brewing
Coffee is not hot	There was a power outage	Wait for power to be restored
	The auto shut off has been activated (KF 5120)
There are coffee grounds at the bottom of the carafe	The paper filter was not inserted correctly into the filter basket	Rinse filter basket, set paper filter into the filter basket and restart brewing
	Paper filter collapsed
Amount of brewed cups of coffee is less than initially cups of water filled in	The amount of water gets lost in wetting the grounds and through evaporation during the brewing process	Carafe indicates the water capacity and not the amount of coffee
On/Off button is blinking		Contact Braun Customer Service

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.

Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown you have access to professional help from our team simply by calling:

02392 392333

For service in the Republic of Ireland please call:

012475471

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect.
• The product is used and maintained in accordance with the User Instructions.
• The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.
• No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.
• Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.
• The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant,

Hampshire PO9 2NH

www.braunhousehold.co.uk

Thank You for choosing Braun. We are confident that you will get excellent service from this product.

TO IMPROVE YOUR EXPERIENCE

Register now at www.braunhousehold.co.uk

By registering we may send you from time to time details on exclusive offers, promotions, recipes and inside tips.

Cpok xpaehn: He orpaHnueh

YcNoBn yTnIn3aun: YtNIn3nPoBaTb COOTBETCTBN C 3KoJIoRnueCKnM Tpe6ObaHnA m

YcNoBnTpaHcnpToPbOKn:BoBpeM TpaHCnpToPbOKn,He6pocaTbNHeIPOdBepraTb n3JIuShNe BV6paun.

YcNoBna peann3aun: IpaBnla peaIinauToBaHape Y cTaHOBJIeHbI N3FOTOBnTeJIeM, HOJOLXhbl COOTBeTCTBOBaTbpeRNOHaJIbHbIM, HauHOHaJIbHbIM MMeXdUHpOДHbIM HopMaM nCTaNapTaM.

Pon3BODnteB:

De'Longhi Braun Household GmbH, Carl-Ulrich-Strasse 4, 63263 Neu Isenburg, Germany

UA Noci6HnK i3 nouky Ta ycyHeHH HeCnpaBHOCTe
