BLP-4400 - Car stereo BLAUPUNKT - Free user manual and instructions

Product Type	Wireless Bluetooth headset with active noise cancellation (ANC)
Brand	Blaupunkt
Model	BLP-4400
Weight	105 g
Power Supply	DC 5 V / 180 mA
Battery Type	Lithium-ion polymer 360 mAh
Playback Time	9 hours
Standby Time	60 days
Charging Time	2 hours
Bluetooth Version	4.1
Radio Frequency	2.402 - 2.480 GHz
Sound Output	10 mW
Sound Frequency Range	20 Hz - 20 kHz
Active Noise Cancellation (ANC)	Yes, activation via dedicated button
Key Features	Music play/pause, call management (answer, end, reject, redial), volume control, track skip
Compatibility	Bluetooth devices (smartphones, tablets, etc.)
Maximum Consumption	0.9 W
Protection Rating	Not waterproof, keep dry
Maintenance and Cleaning	Keep dry, clean with a soft dry cloth
Safety	Do not expose to water or flames, use in temperate climate, respect battery polarity
Spare Parts and Repairability	Battery replaceable only by a qualified professional
General Information	Manufactured by Dag Technologie, France. EU declaration of conformity available online.

Frequently Asked Questions - BLP-4400 BLAUPUNKT

How to pair the BLP-4400 headset with my phone?

Press the multifunction button for 1 second until you hear a beep and see the blue light flashing. Enable Bluetooth on your phone, search for 'BLP4400' and select it. Connection is confirmed by a beep and a flash every 5 seconds.

How to activate active noise cancellation (ANC)?

Press the ANC button on the headset. The green light turns on. A slight hissing sound may be heard for a few seconds; this is normal.

How to recharge the headset battery?

Connect the provided USB cable (not included) to the headset's charging port and to a 5V power source. Charging time is approximately 2 hours.

What is the battery life?

In music playback, the battery life is about 9 hours. In standby, it can reach 60 days. The battery is a 360 mAh lithium-ion polymer.

Is the headset waterproof?

No, the headset is not waterproof. It must be kept dry and not exposed to splashes or water.

Can I use the headset while it's charging?

Use during charging is not mentioned in the manual. It is recommended not to use the device while charging to avoid any risk.

How to answer a call with the headset?

Press the multifunction button once to answer, and again to end the call. To redial the last number, press twice quickly in standby.

What accessories are included?

The manual does not list the included accessories. Usually, a USB cable and user manual are included, but check the packaging.

How to clean the headset?

Use a soft, dry cloth. Do not use chemical or abrasive products. Avoid moisture.

What to do if the headset does not turn on?

Make sure the battery is charged. Try charging for at least 2 hours. If the problem persists, contact customer service.

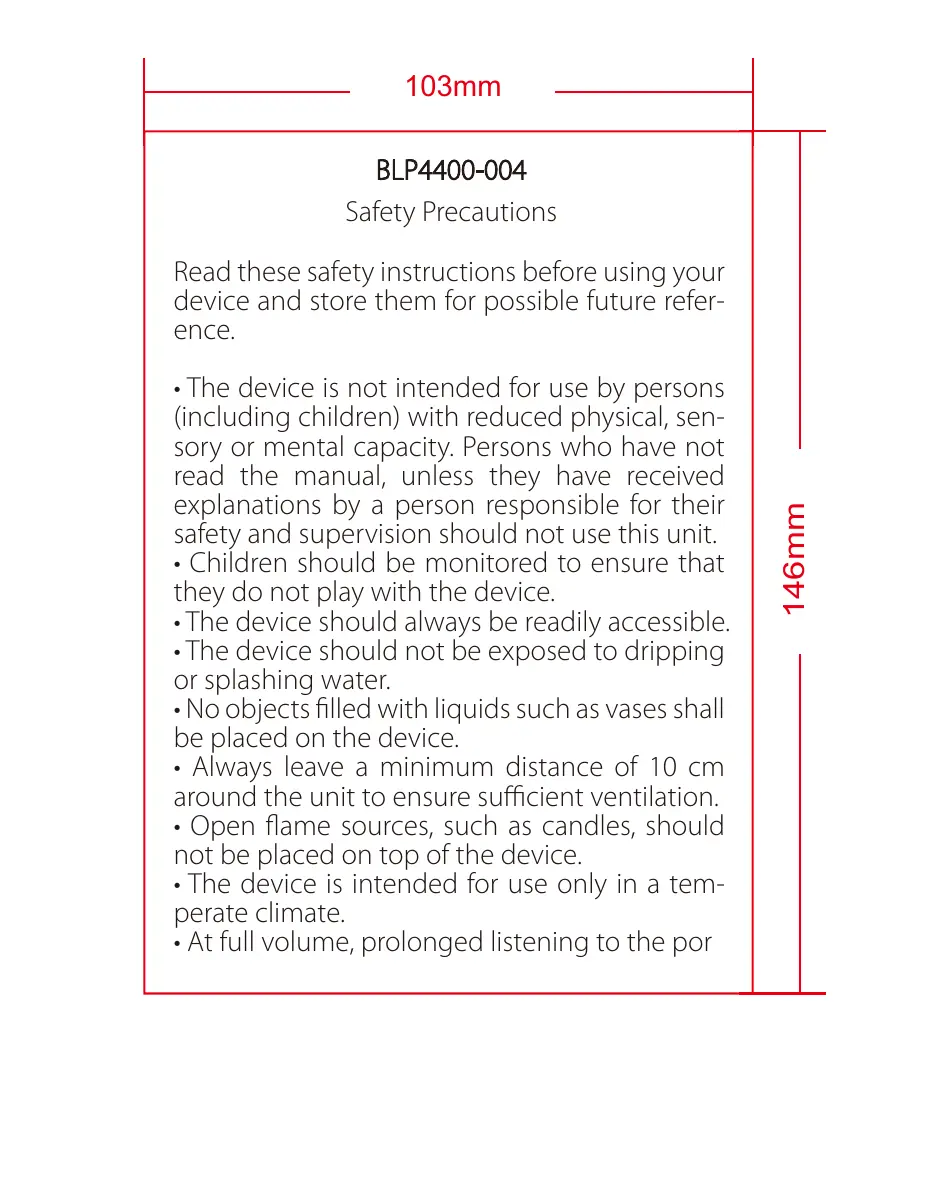

USER MANUAL BLP-4400 BLAUPUNKT

MAINTENEZ VOTRE APPAREIL AU SEC

Read these safety instructions before using your device and store them for possible future reference.

• The device is not intended for use by persons (including children) with reduced physical, sensory or mental capacity. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision should not use this unit.
  Children should be monitored to ensure that they do not play with the device.
  The device should always be readily accessible.
• The device should not be exposed to dripping or splashing water.
• No objects filled with liquids such as vases shall be placed on the device.
• Always leave a minimum distance of 10 cm around the unit to ensure sufficient ventilation.
• Open flame sources, such as candles, should not be placed on top of the device.
• The device is intended for use only in a temperate climate.
• At full volume, prolonged listening to the por

table audio device may damage the user's hearing and cause hearing troubles (temporary or permanent deafness, hearing drone, tinnitus, hyperacusis).

• So we recommend not to listen to the portable audio device at high audio volume and no more than one hour per day at medium audio volume.
• CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent.
• The battery should not be exposed to excessive heat such as sunshine, fire or similar.
• Different types of batteries, new and used batteries should not be mixed.
• The battery must be installed according to the polarity.
• If the battery is worn, it must be removed from the product.
• The battery must be disposed of safely. Always use the collection bins provided (check with your dealer) to protect the environment.
• The battery can't be replaced by the user, but only by the maker of this product, the after sales department or a qualified person.

SWITCH OFF IN RESTRICTED AREAS
Switch the device off where the use of the device

is not allowed or where there is a risk of causing interference or danger, for example on board an aircraft, near medical equipment, fuel, chemicals or blasting sites.

ROAD SAFETY COMES FIRST

Check the current laws and regulations regarding the use of this device in the areas where you drive.

• Do not handle the device when driving.
• Concentrate fully on the driving
• Radio signals could affect some of the car's electronic systems such as the audio stereo and alarm systems.

INTERFERENCE

All wireless devices are susceptible to interference which may affect their performance.

All our device conform to international standards and regulations, and if need be national ones, with a view to limiting user exposure to electromagnetic fields. These standards and regulations were adopted after the completion of extensive scientific research. This research established no link between the use of the mobile headset and any adverse effects on health if the device is used in accordance with standard practices.

AUTHORISED PERSONNEL

Only qualified people are authorized to install or repair this product.

ACCESSIONS

Only use batteries, chargers and other accessories which are compatible with this equipment. Do not connect incompatible products.

KEEP THE EQUIPMENT DRY

This equipment is not water proof. Keep it dry.

CHILDREN

Keep your device in a safe place, out of the reach of young children.

The device contains small parts that may present a choking hazard.

Specifications:

Rated voltage: DC 5V = 180mA

Max consumption: 0,9W

Polymer Lithium-ion battery 360mAh

Radio frequency : 2,402-2,480GHz

Sound power: 10mW

Frequency range: 20Hz-20KHz

Bluetooth compatible version: 4.1

Working range: 10m

Charging time: 2 hours

Using time:9 hours

Standby time : 60 days

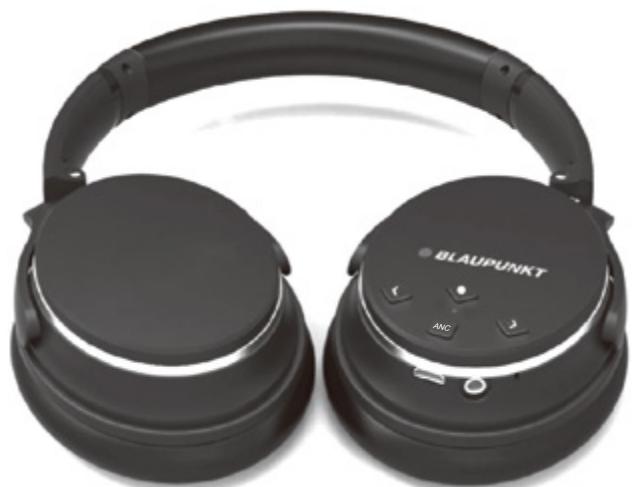

Function Overview :

ANC Noise Cancellation On/Off Button

• Multifunction Button (Bluetooth On/Off, Make/Answer/End/Reject Cal, Pause Wiress Only)
  Volume Down/Previous Song(Wireless Only)
  Volume Up/Next Song(Wireless Only)

Operation

Noise Cancelling

1. Press the ANC Button ON, the Noise Cancelling Indicator is green.
2. After turn the noise cancelling on, you may hear a slight hissing noise, this is normal will cease after a few seconds.
3. When using noise cancelling feature, if the battery is off, the green indicator is off, if you want to continue using noise cancelling feature, you need charge the battery. If you use wired connection you can continue use the headphones.

Wireless Operation

1. Press the Multifunction Button for one second, you will hear "BEEP" with the Blue Indicator Is Blinking. and the Bluetooth is in pairing mode.
2. Enable the Bluetooth on your mobile phone or the device you want to connect and scan/search for new device.
3. When BLP4400 is found, select and connect, you will hear voice remind "BEEP" and the Blue indicator will flash every five seconds. The connection is completed.

Play Music:

1. Press the Multifunction Button. Once to play music, and press it again to pause.
2. Press the Volume Down/ Previous Song Button. Once to play previous song, long press to reduce the volume.
3. Press the Volume Up/Next Song Button. Once to play next song, long press to increase volume.

Call Functions:

Call Answer: Press the Multifunction Button once to answer, and press again to end. Last number radial: in standby mode, press the Multifunction Button twice to radial.

EU compliance statement

Dag Technologie®, herby declares that this equipment conforms to the essential requirements and other relevant provisions of Directive 2014/53/UE. The declaration of Conformity can be viewed at the following internet address:

http://www.mms-support.net/OTA/ECD_DAG_BLP4400-004.pdf

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

To avoid possible hearing damage, do not listen at high audio volume for long periods of time.

Imported by Dag Technologie

79/81Ancienne route Nationale 7

69570 Dardilly

FRANCE

BLAUPUNKT

Enjoy it.

Dag Technologie

79/81Ancienne Route Nationale 7

69570 Dardilly - France

All rights reserved. All brand names are registered trademarks of their respective owners.

Specifications are subject to change without prior notice.

BLAUPUNKT

Manual del usuario

Enjoy it.

Radiofrequency:2,402-2,480GHz

Potencia: 10mW

Radio frequency : 2,402-2,480GHz

Potência: 10mW

Gama de frequencies: 20Hz-20KHz

Radiofrequence:2,402-2,480GHz

Vermogen: 10mW

Frequentiebereik: 20Hz-20KHz

Compatible Bluetooth- versie: 4.1

Gebruiksbereik: 10m

Oplaadtijd: 2 uur

Gebruiktijd: 9 uur

ANC Knapp for Brusreducing pa/av

• Multifunktionsknapp (Bluetooth pÅ/av, Ring/Besvara/Avsluta/Avvisa samtal, Pausa tradlõst)
  < Volym ned/Foregaardene Iat (endast trådlost)

  Volym upp/Nästa låt (endast trådlost)
