USER MANUAL EMS28201OS ELECTROLUX

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.registerelectrolux.com Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice. ENGLISH

SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING! Risk of suffocation, injury or permanent disability.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance. Children under 3 years must not be left unsupervised in the vicinity of the appliance. Keep all packaging away from children. Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot. If the appliance has a child safety device, we recommend you activate it. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.

1.2 General Safety

This appliance is intended to be used in household and similar applications such as: – Farm houses; staff kitchen areas in shops, offices and other working environments;

www.electrolux.com By clients in hotels, motels, bed and breakfast and other residential type environments Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware. Do not use a steam cleaner to clean the appliance. Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person. If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard. Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. Do not operate the appliance by means of an external timer or separate remote-control system. Do not heat liquids and other foods in sealed containers. They are liable to explode. Only use utensils that are suitable for use in microwave ovens. When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition. The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended. The appliance should be cleaned regularly and any food deposits removed. Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The temperature of accessible surfaces may be high when the appliance is operating. The microwave oven shall not be placed in a cabinet unless it has been tested in a Cabinet. The rear surface of appliances shall be placed against a wall. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

2. SAFETY INSTRUCTIONS

2.1 Installation

2.2 Electrical Connection

WARNING! Only a qualified person must install this appliance.

Do not install or use a damaged appliance. Obey the installation instruction supplied with the appliance. The appliance can be placed almost anywhere in the kitchen. Make sure the oven is placed on a flat, level surface and that vents as well as the surface underneath the appliance are not blocked (for sufficient ventilation). WARNING! Risk of fire and electrical shock.

All electrical connections should be made by a qualified electrician. The appliance must be earthed. Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. If the appliance is connected to the socket via an extension cord, make sure the cord is earthed. Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an

electrician to change a damaged mains cable. Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING! Risk of injury, burns and electrical shock or explosion.

Do not change the specification of this appliance. Do not let the appliance stay unattended during operation. Do not apply pressure on the open door. Make sure that the ventilation openings are not blocked. Do not use the appliance as a work surface and do not use the cavity for storage purposes.

2.4 Care and Cleaning

2.5 Disposal

WARNING! Risk of injury or suffocation.

WARNING! Risk of injury, fire, or damage to the appliance. Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Clean regularly the appliance to prevent the deterioration of the surface material. Do not allow food spills or cleaner residue to accumulate on door sealing surfaces. Remaining fat or food in the appliance can cause fire. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. If you use an oven spray, obey the safety instructions on the packaging.

Disconnect the appliance from the mains supply. Cut off the mains cable and discard it.

3. PRODUCT DESCRIPTION

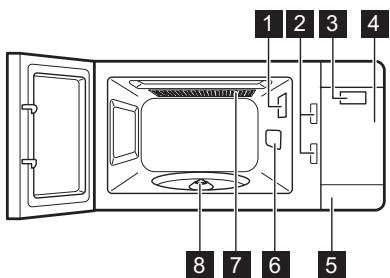

3.1 General overview

Lamp Safety interlock system Display Control panel Door opener Waveguide cover Grill Turntable shaft ENGLISH

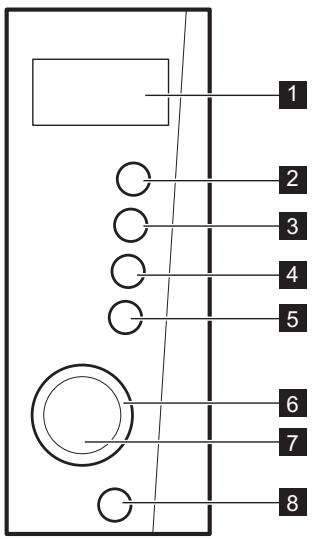

3.2 Control Panel

Symbol Function Description

Display Shows the settings and current time. Defrosting button To defrost food by weight or time. Auto Cooking button To set the Auto Cooking function. Grill To set the grill function. Power To set the power level. Setting knob To set the cooking time, weight or function. To use Auto cooking.

Start / +30 sec button To start the appliance or increase the cooking time for 30 seconds at full power. Stop / Clear button To deactivate the appliance or de‐ lete the cooking settings.

3.3 Accessories

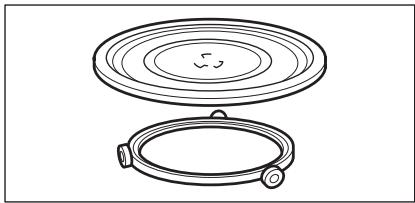

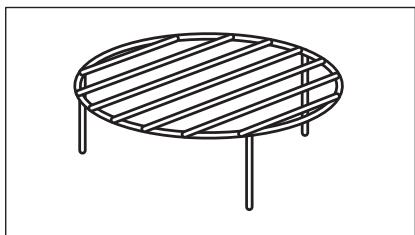

Turntable set Glass cooking tray and roller guide. Grill Rack Always use the turntable set to prepare food in the microwave. Use for:

grilling food combi cooking

4. BEFORE FIRST USE

WARNING! Refer to Safety chapters.

4.1 Initial Cleaning

CAUTION! Refer to chapter "Care and Cleaning".

Remove all the parts and additional packaging from the microwave. Clean the appliance before first use.

4.2 Setting the time

1. Open the door.

2. Press and hold

for 5 seconds to set 12 hour clock system.

3. Press

once more to set 24 hour clock system.

4. Turn the Time Setting knob to enter

the amount of hours.

5. Press

6. Turn the Time Setting knob to enter

the amount of minutes. to confirm.

7. Press

8. Close the door.

You can set the time in 12 hour or 24 hour clock system.

5. DAILY USE

WARNING! Refer to Safety chapters.

5.1 General information about

After you deactivate the appliance, let the food stand for some minutes. Remove the aluminium foil packaging, metal containers, etc. before you prepare the food. Cooking

• If possible, cook food covered with material suitable for use in the microwave. Only cook food without a cover if you want to keep it crusty
• Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or catch fire in some places.
• Do not use the appliance to cook eggs or snails in their shells, because they can explode. With fried eggs, pierce the yolks first. ENGLISH

Prick food with "skin" or "peel", such as potatoes, tomatoes, sausages, with a fork several times before cooking so that the food does not explode.

• For chilled or frozen food, set a longer cooking time.
• Dishes which contain sauce must be stirred from time to time.
• Vegetables that have a firm structure, such as carrots, peas or cauliflower, must be cooked in water.
• Turn larger pieces after half of the cooking time.
• If possible, cut vegetables into similarsized pieces.
• Use flat, wide dishes.
• Do not use cookware made of porcelain, ceramic or earthenware with small holes, e. g. on handles or unglazed bottoms. Moisture going into the holes can cause the cookware to crack when it is heated.
• The glass cooking tray is a work space for heating food or liquids. It is necessary for the operation of the microwave. Defrosting meat, poultry, fish
• Put the frozen, unwrapped food on a small upturned plate with a container below it so that the defrosting liquid collects in the container.

Suitable cookware and materials Cookware / Material Microwave Grilling Defrosting Heating Cooking

Non-ovenproof glass and porcelain 1) X

Glass and glass ceramic made of ovenproof/frost-proof material (e. g. Arcoflam), grill shelf

Ceramic 2), earthenware 2)

Heat-resistant plastic up to 200 °C 3)

Ovenproof glass and porcelain (with no metal components, e. g. Pyrex, heat-proof glass)

Turn the food after half of the defrosting time. If possible, divide and then remove the pieces that started to defrost. Defrosting butter, portions of gateau, quark

• Do not fully defrost the food in the appliance, but let it defrost at room temperature. This gives a more even result. Fully remove all metal or aluminium packaging before defrosting. Defrosting fruit, vegetables
• Do not fully defrost fruit and vegetables, which are to be further prepared while raw, in the appliance. Let them defrost at room temperature.
• You can use a higher microwave power to cook fruit and vegetables without defrosting them first. Ready meals
• You can prepare ready meals in the appliance only if their packaging is suitable for microwave use.
• You must follow the manufacturer's instructions printed on the packaging (e.g. remove the metal cover and pierce the plastic film).

www.electrolux.com Roasting film with microwave safe closure 3)

Roasting dishes made of metal, e. g. enamel, cast iron

Baking tins, black lacquer or siliconcoated 3)

Ready meals in packaging 3)

1) With no silver, gold, platinum or metal plating / decorations

2) Without quartz or metal components, or glazes which contain metals

3) You must follow the manufacturer’s instructions about the maximum temperatures.

X suitable -- not suitable

5.2 Activating and deactivating

the microwave CAUTION! Do not let the microwave operate if there is no food in it.

1. Press a Function button or

4. Press

to confirm and activate the microwave. To deactivate the microwave:

wait until the microwave deactivates automatically, when the time comes to an end. open the door. The microwave stops automatically. Close the door and press to continue to cook. Use this option to inspect food.

When the microwave deactivates automatically, an acoustic signal sounds.

2. If necessary repeatedly press

choose the power level.

3. Turn the Setting knob to set the time.

5.3 Power Setting table

Press the Function button Display Power setting 1 time HIGH High 2 times 630 W Medium High 3 times 450 W Medium 4 times 270 W Medium Low ENGLISH Press the Function button Display Power setting 5 times 90 W Low

Other functions Press the Display Grill button Power setting Grill 1 time Grill 1000 W Combi Cooking 2 times G270

5.4 Quick Start

The maximum cooking time is 90 minutes. Press to activate the microwave for 30 seconds at full power. The cooking time increases by 30 seconds with each additional press of the button.

• In standby mode, turn the Setting knob counterclockwise to set the cooking time, then press activate the microwave at full power.

5.5 Defrosting by weight

Do not use weight defrosting on food that is left out of the freezer for more than 20 minutes, or for frozen readymade food. To activate weight defrosting you must use more than 100 g of food and less than 2000 To defrost less than 200g of food place it on the edge of the turntable.

1. Press

once to set the weigh defrosting or twice for bread defrosting.

2. Turn the Setting knob to set the

weight. For weight defrosting the time is set automatically.

3. Press

to confirm and activate the microwave.

5.6 Multistage cooking

Defrosting can not be set as one of the stages. You can cook food in maximum 3 stages.

1. Repeatedly press

to set the power level.

2. Turn the Setting knob to set the

defrosting time or weight.

3. Repeatedly press the button with the

4. Turn the Setting knob to set the time.

to confirm and activate the

5. Press

microwave. After each step an acoustic signal sounds.

5.7 Grilling and Combi Cooking

You can change the power setting or time, while the Grilling or Combi cooking mode is active.

1. Press

to set the desired function.

2. Turn the Setting knob to set the time.

3. Press

to confirm and activate the microwave.

6. AUTOMATIC PROGRAMMES

1. Repeatedly press

to set the desired menu.

2. Turn the Setting knob to set the

weight of the menu. WARNING! Refer to Safety chapters.

6.1 Auto cooking

Use this function to easily cook favourite food. The microwave automatically sets the optimum settings. Symbol

3. Press

to confirm and activate the microwave. Display Menu Amount

Beverage (200 ml / cup) 1 cup 2 cups 3 cups 4 cups 5 cups 6 cups Gratinated Fish Fillet

7. USING THE ACCESSORIES

WARNING! Refer to Safety chapters.

7.1 Using the accessories

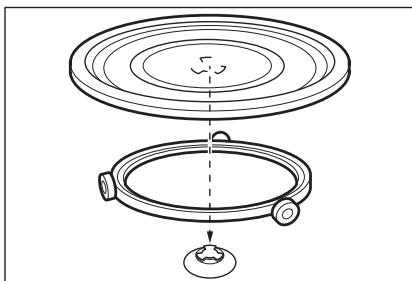

WARNING! Refer to Safety chapters. Inserting the turntable set CAUTION! Do not cook food without the turntable set. Use only the turntable set provided with the microwave. Never cook food directly on the glass cooking tray.

1. Place the roller guide around the

2. Place the glass cooking tray on the

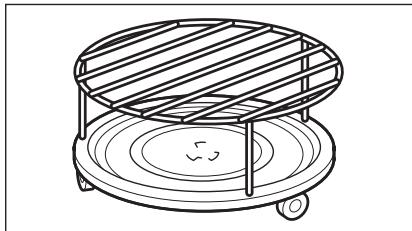

www.electrolux.com Inserting the grill rack Place the grill rack on the turntable set.

8. ADDITIONAL FUNCTIONS

8.1 Kitchen Timer

8.3 Econ Mode

You can set a maximum 90 minutes. The Econ Mode function operates when you connect the microwave to the electrical supply or after a power cut. 6 times.

1. Press

2. Turn the Setting knob to set the time.

3. Press

to confirm. The Timer still works when you open the door or pause the appliance. to cancel. Press When the set time is reached, an acoustic signal sounds.

8.2 Child Safety Lock

The Child Safety Lock prevents an accidental operation of the microwave. for 3 second. Press and hold An acoustic signal sounds. When the Child Safety Lock is active the display shows

9. HINTS AND TIPS

WARNING! Refer to Safety chapters. To start the function set the time first (refer to "Setting the time"). The Econ Mode function helps save energy during everyday cooking.

1. Open the door.

2. Press and hold

for 5 seconds. two more times.

3. Press

Econ flashes on the display.

4. Close the door.

After the end of cooking, the microwave counts down 3 minutes and deactivates. To activate the function while the microwave operates, press twice. ENGLISH

9.1 Tips for the microwave

Problem Remedy You cannot find details for the amount of food prepared. Look for a similar food. Increase or shorten the length of the cooking times according to the following rule: Double the amount = almost double the time, Half the amount = half the time The food got too dry. Set shorter cooking time or select lower micro‐ wave power. The food is not defrosted, hot or cooked after the time came to an end. Set longer cooking time or set higher power. Note that large dishes need longer time. After the cooking time comes to an Next time set a lower power and a longer time. end, the food is overheated at the Stir liquids halfway through, e.g. soup. edge but is still not ready in the mid‐ dle. To get better results for rice use a flat, wide dish.

9.2 Defrosting

Always defrost roast with the fat side down. Do not defrost covered meat because this may cause cooking instead of defrosting. Always defrost whole poultry breast side down.

9.3 Cooking

Cut the fresh vegetables into even size pieces before cooking. Cook all vegetables with a cover on the container.

9.4 Reheating

When you reheat packed ready meals always follow the instruction written on the packaging.

9.5 Grilling

Grill flat food items in the middle of the grill rack. Turn the food over halfway through the set time and continue grilling. Always remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking.

9.6 Combi Cooking

Let the meat, poultry, fish and vegetables stay covered after cooking. Use the Combi Cooking to keep the crispness of certain foods. Brush a little oil or melted butter over the fish. At the half of the cooking time, turn over the foods then continue. All vegetables should be cooked at full microwave power. There are 3 modes for Combi Cooking. Each mode combines the microwave and the grill functions at different time periods and power levels. Add 30 - 45 ml of cold water for every 250 g of vegetables.

10. CARE AND CLEANING

WARNING! Refer to Safety chapters.

10.1 Notes and tips on cleaning

Clean the front of the appliance with a soft cloth with warm water and a cleaning agent. To clean metal surfaces, use a usual cleaning agent. Clean the appliance interior after each use. Then you can remove dirt more easily and it does not burn on. Clean stubborn dirt with a special cleaner.

Clean all accessories regularly and let them dry. Use a soft cloth with warm water and a cleaning agent. To soften the hard to remove remains, boil a glass of water at full microwave power for 2 to 3 minutes. To remove odours, mix a glass of water with 2 tsp of lemon juice and boil at full microwave power for 5 minutes.

11. TROUBLESHOOTING

WARNING! Refer to Safety chapters.

11.1 What to do if...

Problem Possible cause Remedy The appliance does not operate. The appliance is deactivated. Activate the appliance. The appliance does not operate. The appliance is not plugged in. Plug in the appliance. The appliance does not operate. The fuse in the fuse box is blown. Check the fuse. If the fuse blows more than one time, contact a qualified electrician. The appliance does not operate. The door is not closed proper‐ Make sure that nothing blocks ly. the door. The lamp does not operate. The lamp is defective. The lamp has to be replace. There is sparking in the cavity. There are metal dishes or dishes with metal trim. Remove the dish from the ap‐ pliance. There is sparking in the cavity. There are metal skewers or Make sure that the skewers aluminium foil that touches the and foil does not touch the in‐ interior walls. terior walls. The turntable set There is an object or dirt be‐ makes scratching or low the glass cooking tray. grinding noise. Clean the area below the glass cooking tray. The appliance stop to operate without a clear reason. If this situation repeats call the Authorised Service Center. There is a malfunction. ENGLISH

11.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the appliance. Do not remove the rating plate from the appliance. We recommend that you write the data here: Model (MOD.)

Product number (PNC)

Serial number (S.N.)

12. INSTALLATION

WARNING! Refer to Safety chapters.

12.2 Electrical installation

WARNING! Only a qualified person must do the electrical installation.

12.1 General Information

CAUTION! Do not block the air vents. If you do that, the appliance can overheat. CAUTION! Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire. CAUTION! The minimum installation height is 85 cm.

The microwave is for a kitchen counter top use only. It must be placed on a stable and flat surface. Put the microwave far away from steam, hot air and water splashes. If the microwave is to close to the TV and radio it may cause interference in the received signal. If you transport the microwave in cold weather, do not activate it immediately after the installation. Let is stand in the room temperature and absorb the heat. The manufacturer is not responsible if you do not follow the safety precautions from the chapter "Safety Information". This microwave is supplied with a main cable and main plug. The cable has an earth wire with an earthing plug. The plug must be plugged into an outlet that is properly installed and earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock.

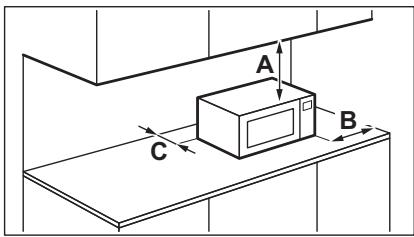

12.3 Minimal distances

www.electrolux.com Dimension

13. ENVIRONMENT CONCERNS

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. FRANÇAIS
