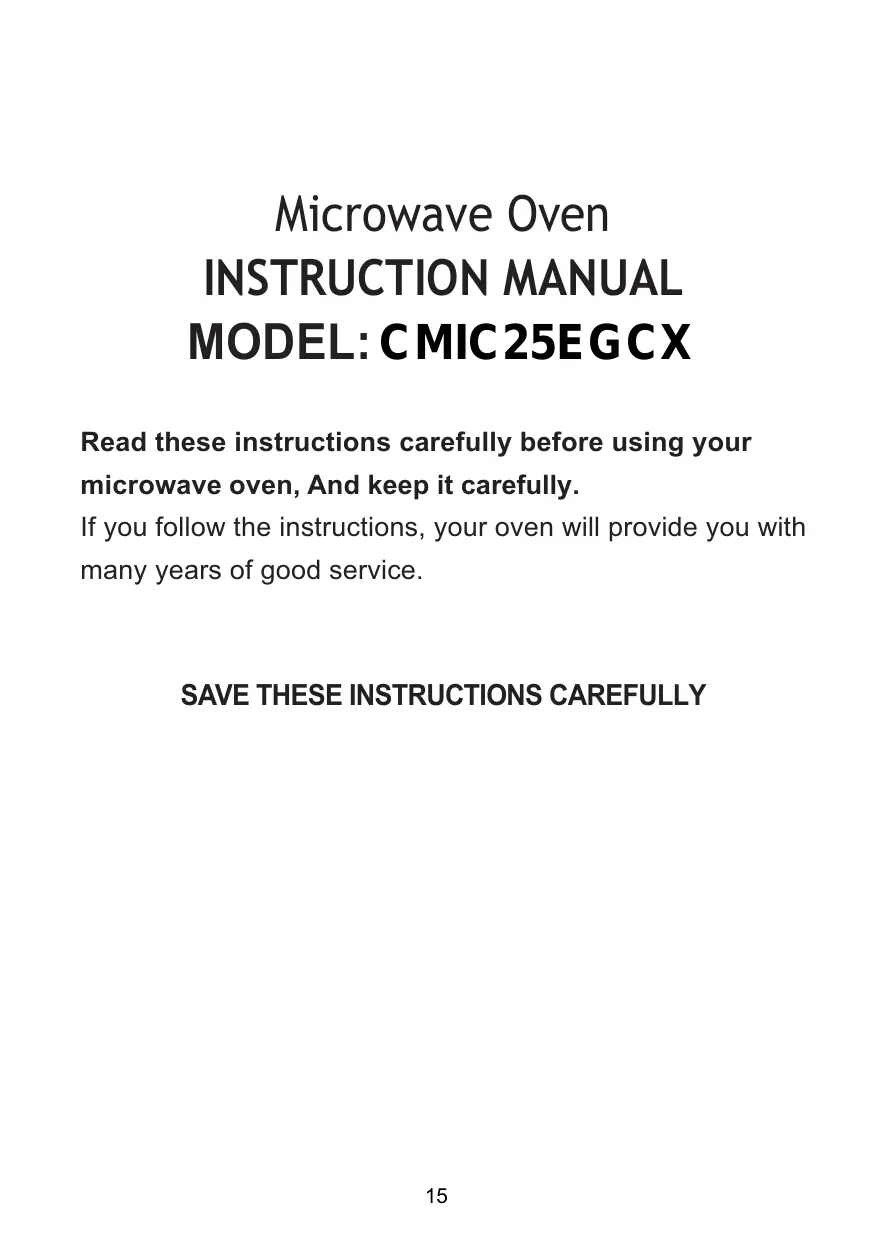

Microwave Oven INSTRUCTION MANUAL

MODEL: CMIC25EGCX

Read these instructions carefully before using your microwave oven, And keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS T O AVOID P O S S I B L E E X P O S U R E T O E X C E S S I V E M I C R O WAV E ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Sp ec i f i c at i o n s Model: CMIC25EGCX

Rated Voltage: 230V~50Hz Rated Input Power(Microwave): 1500W Rated Output Power(Microwave): 900W Rated Input Power(Grill): 1400W Rated Input Power(Convection): 2400W Oven Capacity: 25 L Turntable Diameter: 315mm External Dimensions: 516 462 305mm Net Weight: Approx. 17 kg

IMPORTA NT SA FETY INSTRUCTIONS

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

15. Use this appliance only for its intended

1. Warning: Liquids and other foods must

uses as described in manual. Do not not be heated in sealed containers since use corrosive chemicals or vapors they are liable to explode. this appliance. This oven is especially

2. Warning: It is hazardous for anyone other

designed to heat. It is not designed for than a competent person to remove a industrial or laboratory use. cover which gives protection against

16. If the supply cord is damaged, it must

exposure to microwave energy. be replaced by the manufacturer, its

3. Warning: Only allow children to use the

service agent or similarly qualified oven without supervision when adequate persons in order to avoid a hazard. instructions have been given so that the

17. Do not store or use this appliance

child is able to use the oven in a safe way outdoors. and understand the hazards of improper

18. Do not use this oven near water, in a

use. wet basement or near a swimming

4. Warning: When the appliance is operated

pool. in the combination mode, children should

19. The temperature of accessible surfaces

only use the oven under adult supervision may be high when the appliance is due to the temperatures generated. operating. Keep cord away from heated (only for grill series) surface, and do not cover any vents

5. Only use utensils suitable for use in

on the oven. microwave ovens.

20. Do not let cord hang over edge of table

6. The oven should be cleaned regularly and

or counter. any food deposits should be removed.

21. Failure to maintain the oven in a clean

7. Read and follow the specific:"PRECAUcondition could lead to deterioration

TIONS TO AVOID POSSIBLE EXPOSURE

of the surface that could adversely TO EXCESSIVE MICROWAVE ENERGY". affect the life of the appliance and

8. When heating food in plastic or paper

possibly result in a hazardous situation. containers, keep an eye on the oven due 22. The contents of feeding bottles and to the possibility of ignition. baby food jars shall be stirred or shaken

9. If smoke is observed, switch off or unplug

and the temperature checked before the appliance and keep the door closed consumption, in order to avoid burns. in order to stifle any flames.

23. Microwave heating of beverages can

10. Do not overcook food.

result in delayed eruptive boiling,

11. Do not use the oven cavity for storage

therefore take care when handling the purposes. Do not store items, container. such as bread, cookies, etc. inside the 24.The appliance is not intended for use by oven. persons (including children) with reduced

12. Remove wire twist-ties and metal handles

physical , sensory or mental capabilities, from paper or plastic containers/bags or lack of experience and knowledge, before placing them in the oven. unless they have been given supervision

13. Install or locate this oven only in

or instruction concerning use of the accordance with the installation appliance by a person responsible for their instructions provided. safety.

14. Eggs in the shell and whole hard-boiled 25.Children should be supervised to ensure

eggs should not be heated in microwave that they do not play with the appliance. ovens since they may explode, even 26.The microwave oven shall not be placed after microwave heating has ended. in a cabinet unless it has been tested in a cabinet. WA RNING

27.Appliances are not intended to be operated by means of an external timer or separate remote-control system. 28.The door or the outer surface may get hot when the appliance is operating. 29.The rear surface of appliance shall be placed against a wall. To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire extension cord. CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using

with a slightly damp cloth.

1. A short power-supply cord is provided to

2. Clean the accessories in the usual way

reduce the risks resulting from becoming in soapy water. entangled in or tripping over a longer cord.

3. The door frame and seal and

2. If a long cord set or extension cord is used:

neighbouring parts must be cleaned 1)The marked electrical rating of the cord set carefully with a damp cloth when they or extension cord should be at least as great are dirty. as the electrical rating of the appliance. 2)The extension cord must be a groundingTwo-round-pin plug type 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

Personal Injury Hazard See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold

water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is

warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

UTENSILS CAUTION Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Dinnerware Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Microwave-safe only (meat and candy thermometers). 8VHDVDFRYHUWRSUHYHQWVSODWWHULQJUHWDLQPRLVWXUHRUDVDZUDSIRU VWHDPLQJ

Materials to be avoided in microwave oven Utensils Aluminum tray Food carton with metal handle Metal or metaltrimmed utensils Metal twist ties Paper bags Plastic foam Wood Remarks May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

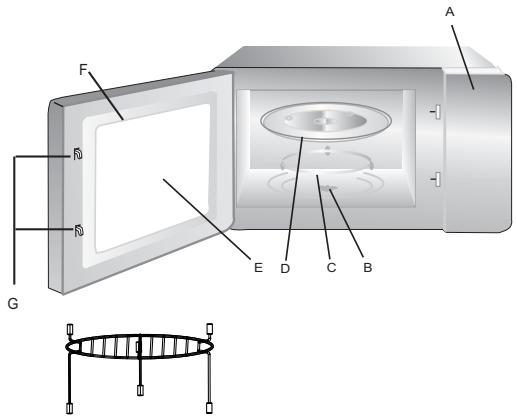

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Grill Rack( Only for Grill series )

Turntable Installation Hub (underside) a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must Glass tray always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. Turntable shaft d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service Turntable ring assembly center. Countertop Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached the oven cavity to protect the magnetron. Installation

(3) Blocking the intake and/or outlet openings can damage the oven. (4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household

outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label. Select a level surface that provide enough open space for the intake and/or outlet vents. 12 inch(30cm)

3.0 inch(7.5cm)

3.0 inch(7.5cm)

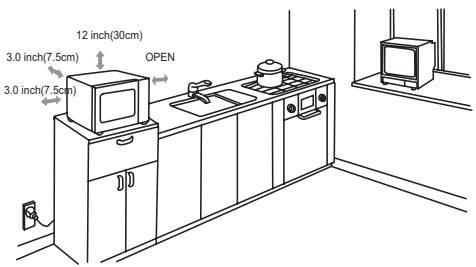

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open. (1) Leave a minimum clearance of 12 inches (30cm) above the oven. (2) Do not remove the legs from the bottom of the oven.

WARNING: Do not install oven over a

range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. OPERATION INSTRUCTION This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. 1.Clock Setting When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once.

1) Press " RELOJ/PREPROG ", the hour figure flash;

2) Turn "

" to adjust the hour figures, the input time should be within 0--23.

3) Press " RELOJ/PREPROG ", the minute figures will flash.

4) Turn "

" to adjust the minute figures, the input time should be within 0--59.

5) Press " RELOJ/PREPROG " to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if no oppreation in 1 minute, the oven

will go back to the previous status automatically.

2. Microwave Cooking

1) Press the " MICROONDAS " key once, and "P100" display.

2) Press " MICROONDAS " for times or turn "

" to select the microwave power "P100", "P80", "P50", "P30", "P10" will display in order.

3) Press " INICIO/+30 SEG./Ok" to confirm.

5) Press

" to adjust the cooking time. (The time setting should be 0:05- 95:00.) " INICIO/+30 SEG./Ok " to start cooking. Microwave Power Chart Microwave Power 100% 80% 50% 30% 10% Display P100 P80 P50 P30 P10 3.Grill Cooking

1) Press the " GRILL/COMBI. " key once, and "G-1" display.

2) Press " INICIO/+30 SEG./Ok " to confirm.

4) Press

" to adjust the grill time. (The time setting should be 0:05- 95:00.) " INICIO/+30 SEG./Ok " to start cooking. Note:If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press" INICIO/+30 SEG./Ok " to continue cooking. If no operation,it will continue working.

4.Combination Cooking

1) Press the " GRILL/COMBI. " key once, and "G-1" display.

2) Press " GRILL/COMBI. " for times or turn "

" to select the combination power, and "G-1","C-1", "C-2","C-3" or "C-4" will display for each added press.

3) Press " INICIO/+30 SEG./Ok " to confirm.

4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " INICIO/+30 SEG./Ok " to start cooking.

Note: Combination instructions Instructions Display

C-4 Microwave Grill Convection

5. Speedy Cooking

1) In waiting state, press " INICIO/+30 SEG./Ok " key to cook with 100% power level

for 30 seconds. Each press on the same key can increase 30 seconds.The maximum cooking time is 95 minutes.

2) During the microwave,grill and combination cooking and time defrost process,

press " INICIO/+30 SEG./Ok " to increase the cooking time.

3) In waiting states, turn "

" left to choose the cooking time directly. After choosing the time, press " INICIO/+30 SEG./Ok " to start cooking. The microwave power is 100%. Note: Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing " INICIO/+30 SEG./Ok "

6. Defrost By Weight

1) Press " DESCONGELAR POR TIEMPO/PESO " once, the screen will display "d-1".

2) Turn "

3) Press

" to select the food weight. The range of weight is 100-2000g. " INICIO/+30 SEG./Ok " key to start defrosting.

7. Defrost By Time

1) Press " DESCONGELAR POR TIEMPO/PESO " twice, the screen will display "d-2".

2) Turn "

" to select the cooking time.

3) Press " INICIO/+30 SEG./Ok " key to start defrosting.

8.Multi-Stage Cooking Two stages can be maximumly set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu cannot be set as one of the multi-stage. Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press " DESCONGELAR POR TIEMPO/PESO " twice, the screen will display "d-2";

2) Turn "

" to adjust the defrost time of 5 minutes;

3) Press" MICROONDAS " once;

4) Turn "

" to choose 80% microwave power till "P80" display;

5) Press " INICIO/+30 SEG./Ok " to confirm;

6) Turn "

" to adjust the cooking time of 7 minutes;

7) Press " INICIO/+30 SEG./Ok " to start cooking.

9. Kitchen Timer

(1) Press " RELOJ/PREPROG " twice, LED will display 00:00. (2) Turn " " to enter the correct timer.(The maximum cooking time is 95 minutes.) (3) Press " INICIO +30 SEG./Ok " to confirm setting. (4) When the kitchen time is reached, the buzzer will ring 5 times. If the clock be set(24-hour system), LED will display the current time. Note: The kitchen Time is differ from 24-hour system,Kitchen Timer is a timer.

10. Auto Menu

1) In waiting states, turn "

" right to choose the menu from "A1" to "A10";

2) Press " INICIO/+30 SEG./Ok " to confirm the menu you choose;

3) Turn "

" to choose th food weight;

4) Press " INICIO/+30 SEG./Ok " to start cooking;

5) After cooking finish, the buzzer sounds five times.

Vegetable Beverage/ Coffee

Pasta A8 Popcorn A9 Cake A10 Chicken Weight(g)

50(add 450ml cold water)

100(add 800ml cold water)

150(add 1200ml cold water)

C-4 100% 100% 80% 100% 100% 80% 100% Preheat at 160 degrees C-4

11. Convection Cooking(With preheating funtion)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1) Press the " CONVECCIÓN " key once, "150" flash.

2) Keep pressing " CONVECCIÓN " or turn "

" to select the convection function. Note:the temperature can be chosen from 150 degrees to 240 degrees.

3) Press the " INICIO/+30 SEG./Ok " to confirm the temperature.

4) Press the " INICIO/+30 SEG./Ok " to start preheating.When the

preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash.

5) Put the food into the oven and close the door.

Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)

6) Press the " INICIO/+30 SEG./Ok " key to start cooking.

Note: a. Cooking time cannot be input until the preheating temperature arrives. If the temperature arrives, door must be opened to input the cooking time. b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states. " to select the convection function. Note:the temperature can be chosen from 150 degrees to 240 degrees.

3) Press the " INICIO/+30 SEG./Ok " to confirm the temperature

4) Turn "

" to adjust the cooking time. (The maximum setting time is 95 minutes.)

5) Press the " INICIO/+30 SEG./Ok " key to start cooking.

13. Lock-out Function for Children

Lock: In waiting state, press " PARAR/CANCELAR " for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and " current time or 0:00. " indicator will light. LED will display Lock quitting: In locked state, press " PARAR/CANCELAR " for 3 seconds, there will be a long "beep" denoting that the lock is released, and " " indicator will disapear.

14. Inquiring Function

1) In cooking states of microwave,grill and combination, press " MICROONDAS ", the

current power will be displayed for 2-3 seconds.

2) In pre-set state, press " RELOJ/PREPROG " to inquire the time for delay start cooking.

The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.

3) During cooking state, press " RELOJ/PREPROG " to check the current time. It will be

displayed for 2-3 seconds.

15. Specification

(1) The buzzer will sound once when turning the knob at the beginning; (2) "INICIO/+30 SEG./Ok " must be pressed to continue cooking if the door is opened during cooking; (3) Once the cooking programme has been set , " INICIO/+30 SEG./Ok " is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled. (4) The buzzer sounds once by efficient press, inefficient press will be no responce. (5) The buzzer will sound five times to remind you when cooking is finished.
