Product type	Built-in dishwasher
Brand	INDESIT
Model	DIF 14B1 / DIF 14B1 EU
Capacity	13 standard place settings
Dimensions (W x H x D)	59.5 x 82 x 57 cm
Energy class	A+ (scale A+++ to D)
Annual energy consumption	295 kWh
Annual water consumption	3080 litres
Eco cycle duration	190 minutes
Noise level	49 dB(A)
Drying efficiency class	A
Wash programmes	Eco, Intensive, Normal, Prewash
Options	Half load, Delayed start, Multifunctional tablets (depending on model)
Water softener	Yes, with hardness adjustment
Anti-leak system	Yes, automatic water supply cut-off
Number of spray arms	2 (upper and lower)
Filtration type	3-part filter (cylindrical, cup, stainless steel)
Adjustable upper basket height	Yes, with Lift-Up system (depending on model)
Left-on consumption	5.0 W
Off consumption	0.5 W
Water connection	Cold or hot water (max 60°C), pressure 0.05-1 MPa
Net weight (approximate)	About 40-45 kg

Frequently Asked Questions - DIF 14B1 - DIF 14B1 EU INDESIT

How to install the dishwasher correctly?

Install the appliance on a flat and rigid floor. Connect the supply hose to a cold or hot water tap (max 60°C) with a pressure of 0.05 to 1 MPa. The drain hose must be placed between 40 and 80 cm from the floor. Ensure the electrical socket is earthed and matches the characteristics on the rating plate. Use new hoses and follow the leveling instructions.

Which programme should I choose for normally soiled dishes?

The Eco 50° programme is recommended for normally soiled dishes. It is the reference cycle for the energy label, offering the best efficiency in water and electricity consumption.

How to load the baskets for optimal washing?

Place heavily soiled dishes in the lower basket as the jets are more powerful there. Glasses and fragile items go in the upper basket. Knives and sharp utensils in the cutlery basket, points down. Do not overload the baskets and ensure the spray arms can rotate freely.

How to adjust the water hardness?

After switching on the appliance, press and hold the P button until a beep sounds, then turn on with ON/OFF. The Salt indicator will flash. Use the P button to select the level corresponding to your water hardness (see table in the manual, from 1 to 4). Confirm with ON/OFF.

What to do if the dishwasher does not start?

Check that the plug is properly inserted, the door is closed correctly, and the water supply is open. Turn off the appliance with ON/OFF, wait a minute and turn it on again. If the problem persists, consult the 'Troubleshooting' section of the manual.

How to clean the filters?

The three filters (cylindrical, cup and stainless steel) must be cleaned regularly. Turn the cylindrical filter counterclockwise to remove it, then take out the cup and stainless steel filter. Rinse them under running water and replace them correctly. Never remove the pump protection (black piece).

How to solve excessive foam?

Excessive foam is often due to over-dosing or an unsuitable washing product. Only use dishwasher detergent and follow the indicated doses. In case of foam, stop the cycle and clean the tub with a damp cloth. Run a rinse cycle without dishes.

What to do in case of a power cut during a cycle?

The programme stops automatically. When power returns, the cycle restarts from where it was interrupted. If the door was opened, close it. The dishwasher will resume washing normally.

How to maintain the spray arms?

Regularly disassemble the spray arms: the upper arm by unscrewing its plastic ring counterclockwise, the lower arm by pushing on the side tabs. Clean the nozzles with a small non-metallic brush to remove residues. Reassemble ensuring they are securely fixed.

What are the tips for saving water and energy?

Use the dishwasher fully loaded, select the Eco programme for normally soiled dishes. Activate the Half load option for small loads. Take advantage of off-peak hours with the Delayed start. Only use phosphate-free products and follow the dosage.

USER MANUAL DIF 14B1 - DIF 14B1 EU INDESIT

Precautions, advice and Assistance, 17-18

General safety

Disposal

Saving energy and respecting the environment

Assistance

DIF 14B1

Installation, 19-20

Positioning and levelling

Connecting the water and electricity supplies

Advice regarding the first wash cycle

Technical data

Description of the appliance, 21

Overall view

Control panel

Loading the racks, 22-23

Lower rack

Cutlery basket

Upper rack

Adjusting upper rack

Start-up and use, 24

Starting the dishwasher

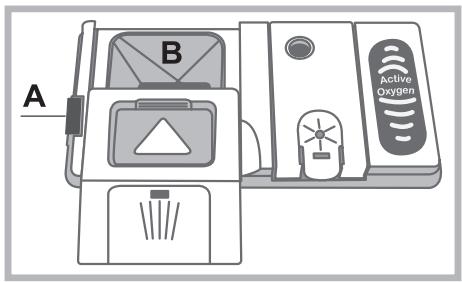

Measuring out the detergent

Wash cycles, 25

Table of wash cycles

Rinse aid and refined salt, 26

Measuring out the rinse aid

Measuring out the refined salt

Care and maintenance, 27

Shutting off the water and electricity supplies

Cleaning the dishwasher

Preventing unpleasant odours

Cleaning the sprayer arms

Cleaning the water inlet filter

Cleaning the filters

Leaving the machine unused for extended periods

Troubleshooting, 28

Product Fiche
Brand	INDESIT
Model	DIF 14B1
Rated capacity in standard place settings (1)	13
Energy efficiency class on a scale from A+++ (low consumption) to D (high consumption)	A+
Energy consumption per year in kWh (2)	295.0
Energy consumption of the standard cleaning cycle in kWh	1.04
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	5.0
Water consumption per year in litres (3)	3080.0
Drying efficacy class on a scale from G (low efficacy) to A (high efficacy)	A
Programme time for standard cleaning cycle in minutes	190
The duration of the left-on mode in minutes	10
Noise in dB(A) Re 1pW	49
Built-in model	Yes
NOTES
1) The information on the label and fiche relates to the standard cleaning cycle, this programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption. The standard cleaning cycle corresponds to the Eco cycle.
2) Based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption depends on how the appliance is used.
3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.

This appliance was designed and manufactured in compliance with international safety standards. The following information has been provided for safety reasons and should therefore be read carefully.

Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine.

Please read these instructions carefully: they contain important information on installation, use and safety.

This appliance is designed for domestic use or similar applications, for example:

• staff kitchen areas in shops, offices and other work environments; -farmhouses;
• use by guests in hotels, motels and other residential settings;
• bed & breakfasts.

General safety

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, or by inexperienced people who are not familiar with the product, unless supervision or instructions on how to use it are provided by someone who assumes responsibility for their safety.
• An adult must supervise children at all times to prevent them from playing with the appliance.
• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used by adults only to wash domestic crockery in accordance with the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.
• Do not touch the appliance when barefoot.
• When unplugging the appliance always pull the plug from the mains socket. Do not pull on the cable.
• The water supply tap must be shut off and the plug should be removed from the electrical socket before cleaning or maintaining the appliance.
• If the appliance breaks down, do not under any circumstances touch the internal parts in an attempt to perform the repair work yourself.
• Do not lean or sit on the open door of the appliance: this may cause the appliance to overturn.
• The door should not be left open as it may create

a dangerous obstacle.

• Keep detergent and rinse aid out of reach of children.
• The packaging material should not be used as a toy for children.

Disposal

• Disposal of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the re-using and recycling rate of the materials inside the machine, while preventing potential damage to the environment and public health. The crossed-out dustbin symbol is marked on all products to remind the owners of their obligations regarding separated waste collection.

For further information relating to the correct disposal of household appliances, owners may contact the relevant public authority or the local appliance dealer.

Saving energy and respecting the environment

Saving water and energy

• Only begin a wash cycle when the dishwasher is full. While waiting for the dishwasher to be filled, prevent unpleasant odours using the Soak cycle (see Wash cycles).
• Select a wash cycle that is suited to the type of crockery and to the soil level of the crockery using the Table of wash cycles:
• for dishes with a normal soil level use the Eco wash cycle, which ensures low energy/water consumption levels.
• If the load is smaller than usual activate the Half Load option* (see Start-up and use).
• If your electricity supply contract gives details of electricity-saving time bands, run wash cycles when electricity prices are lower. The Delayed Start button * (see Start-up and use) helps you organise the wash cycles accordingly.

Phosphate-free and chlorine-free detergents containing enzymes

• We strongly recommend that you use detergents that do not contain phosphates or chlorine, as these products are harmful to the environment.
• Enzymes provide a particularly effective action at temperatures around 50°C. As a result detergents containing enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the same results as a normal 65°C wash cycle.
• To avoid wasting detergent, use the product in appropriate quantities based on the manufacturer's recommendations, the hardness of the water, the soil level and the quantity of crockery to be washed. Even if they are biodegradable, detergents contain substances which may alter the balance of nature.

Assistance

Before contacting Assistance:

• Check whether the problem can be resolved using the Troubleshooting guide (see Troubleshooting).
• Restart the programme to check whether the problem has ceased to exist.
• If the problem persists, contact the Authorised Technical Assistance Service.

Never use the services of unauthorised technicians.

Please have the following information to hand:

• The type of malfunction.
• The appliance model (Mod.).
• The serial number (S/N).

This information can be found on the appliance data plate (see Description of the appliance).

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

Positioning and levelling

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.
2. Arrange the dishwasher so that its sides or back panel are in contact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop (see the Assembly Instruction sheet).
3. Position the dishwasher on a level, sturdy floor. If the floor is uneven, adjust the front feet of the appliance until it is horizontal. If the appliance is leveled correctly, it will be more stable and much less likely to move or cause vibrations and noise while operating. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm. Turn the spanner clockwise to increase the height and counterclockwise to decrease it (see the Building-in Instruction sheet attached to the documentation).

Connecting the water and electricity supplies

Connection to the water and electricity supplies should only be performed by a qualified technician. The dishwasher should not stand on the water hoses or electricity supply cable. The appliance must be connected to the water supply network using new hoses.

Never use old or second-hand hose sets. Do not reuse hoses from any previously installed dishwasher.

The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation.

Connecting the water inlet hose

• To a suitable cold water connection point: before attaching the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a 3/4 gas threaded connection.
• To a suitable hot water connection point: your dishwasher may be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60°C.

Screw the hose to the tap as described for connection to a cold water supply. If the inlet hose is not long enough, contact a specialist store or an authorized technician (see Assistance). The water pressure must be within the values indicated in the Technical Data table (see adjacent information).

The hose should not be bent or compressed.

Connecting the water outlet hose

Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm.

The outlet hose must be at a height ranging from 40 to 80 cm from the floor/surface where the dishwasher rests (A).

Before connecting the water outlet hose to the sink drain, remove the plastic plug (B).

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

• is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.

Some models are also equipped with the supplementary safety device New Acqua Stop*, which guarantees anti-flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstances should the water inlet hose be cut, as it contains live electrical parts.

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

• The socket is earthed and complies with current regulations.
• The socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door (see Description of the appliance);
• The power supply voltage falls within the values indicated on the data plate on the inside of the door.
• The socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug (see Assistance); do not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible. The cable should not be bent or compressed. If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards (see Assistance.)

• Only available in selected models.

Anti-condensation strip*

After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form.

Advice regarding the first wash cycle

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack, if any. Immediately before the first wash, completely fill the salt dispenser with water and then add approximately 1 kg of salt (see the chapter entitled 'Rinse aid and refined salt'). The water may overflow: this is normal and not a cause for concern. Select the water hardness value (see the chapter entitled 'Rinse aid and refined salt'). - After the salt has been poured into the machine, the LOW SALT indicator light* switches off.

A If the salt container is not filled, the water softener and the heating element may be damaged.

The machine has a buzzer or set of tones (depending on the dishwasher model) to inform the user that a command has been implemented: power on, cycle end, etc.

The symbols, indicator lights, and LEDs on the control panel or display may vary in color and may have a flashing or fixed light (depending on the dishwasher model).

Technical data
Dimensions	width 59,5 cm height 82 cm depth 57 cm
Capacity	13 standard place-settings
Water supply pressure	0,05 ÷ 1MPa (0.5 ÷ 10 bar) 7,25 – 145 psi
Power supply voltage	See appliance data plate
Total absorbed power	See appliance data plate
Fuse	See appliance data plate
CE	This dishwasher conforms to the following European Community Directives: -2006/95/EC (Low Voltage) -2004/108/EC (Electromagnetic Compatibility) -2009/125/EC (Comm. Reg. 1016/2010) (Ecodesign) -97/17/EC (Labelling) -2012/19/EU Waste Electrical and Electronic Equipment (WEEE)

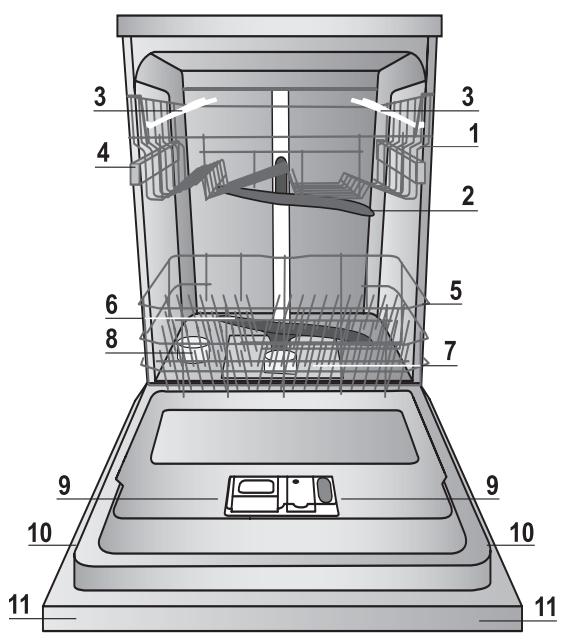

Overall view

1. Upper rack
2. Upper sprayer arm
3. Tip-up compartments
4. Rack height adjuster
5. Lower rack
6. Lower sprayer arm
7. Washing filter
8. Salt dispenser
9. Detergent dispenser, rinse-aid dispenser, and Active Oxygen device*
10. Data plate
11. Control panel***

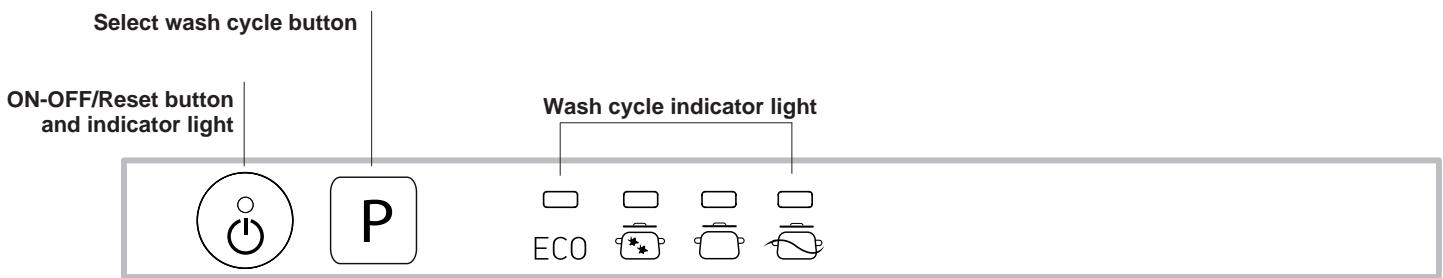

Control panel

The number and type of wash cycles and options may vary depending on the dishwasher model.

Tips

Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and containers. No preventive rinsing is needed under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Make sure that the lids, handles, trays and frying pans do not prevent the sprayer arms from rotating. Place any small items in the cutlery basket.

Since plastic dishes and non-stick frying pans usually retain more water drops, their drying will be not so good as that of ceramic or stainless-steel dishes.

Lightweight items such as plastic containers should be placed in the upper rack and arranged so that they cannot move.

After loading the appliance, make sure that the sprayer arms can rotate freely.

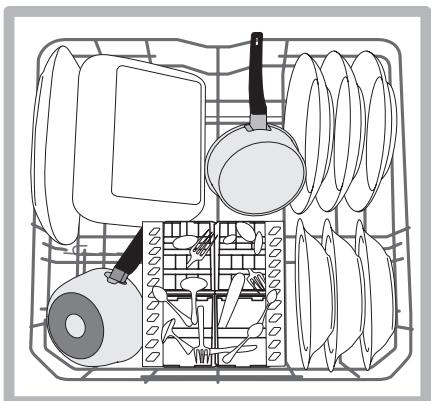

Lower rack

The lower rack can hold pans, lids, dishes, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides.

Very soiled dishes and pans should be placed in the lower rack because in this sector the water sprays are stronger and allow a higher washing performance.

*Only available in selected models with different numbers and positions.

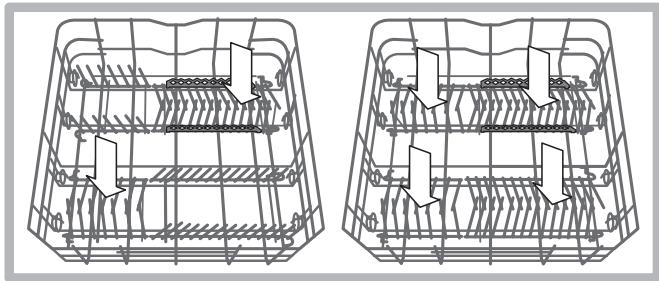

Several dishwasher models are fitted with tip-up sectors*. They can be used in a vertical position when arranging dishes or in a horizontal position (lower) to load pans and salad bowls easily.

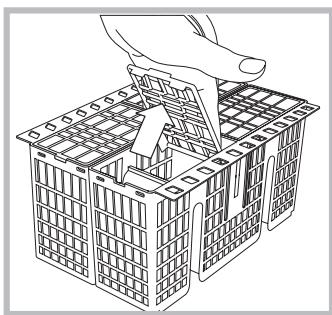

Cutlery basket

The basket is equipped with top grilles for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they must be positioned horizontally in the tip-up compartments on the upper rack.

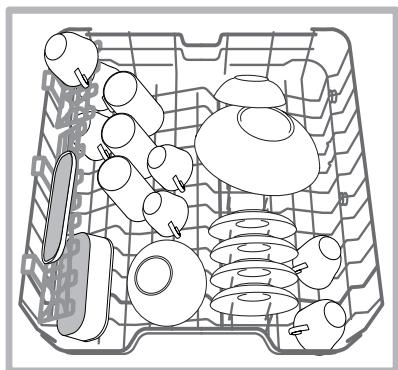

Upper rack

Load this rack with delicate and lightweight crockery such as glasses, cups, saucers and shallow salad bowls.

Several dishwasher models are fitted with tip-up sectors*. They can be used in a vertical position when arranging tea/ dessert saucers or in a lower position to load bowls and food containers.

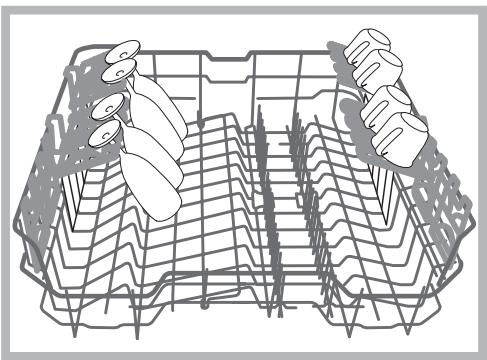

Tip-up compartments with adjustable position

The side tip-up compartments can be positioned at three different heights to optimize the arrangement of crockery inside the rack.

Wine glasses can be placed safely in the tip-up compartments by inserting the stem of each glass into the corresponding slots.

The upper rack can be adjusted for height based on requirements: high position to place bulky crockery in the lower rack and low position to make the most of the tip-up compartments/sectors by creating more space upwards.

Adjusting the height of the upper rack

In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower position.

The height of the upper rack should be adjusted WHEN THE RACK IS EMPTY.

NEVER raise or lower the rack on one side only.

If the rack is equipped with a Lift-Up device* (see figure), lift it up by holding its sides. To restore the lower position, press the levers (A) at the sides of the rack and follow the rack down.

Unsuitable crockery

Wooden crockery and cutlery. - Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant. - Parts in synthetic material which do not withstand high temperatures. Copper and tin crockery. - Crockery soiled with ash, wax, lubricating grease or ink.

The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

Damage to glass and crockery

Caused by:

• Type of glass and glass production process. Chemical composition of detergent. Water temperature of rinse cycle.

Tips:

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery.
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.
• Only available in selected models.

Starting the dishwasher

1. Turn the water tap on.
2. Open the door and press the ON/OFF button.
3. Measure out the detergent. (see adjacent information).
4. Load the racks (see Loading the racks).
5. Select the wash cycle in accordance with the type of crockery and its soil level (see Table of wash cycles) by pressing the P button.
6. Select the wash options*. (see Special wash cycles and Options).
7. Start the wash cycle by shutting the door.
8. The end of the wash cycle is indicated by beeps and by the flashing of the indicator light of the selected wash cycle. Open the door, switch off the appliance by pressing the ON/OFF button, shut off the water tap and unplug the appliance from the electricity socket.
9. Wait a few minutes before removing the crockery in order to avoid burns. Unload the racks, beginning with the lower level.

A - The machine will switch off automatically during long periods of inactivity in order to minimise electricity consumption.

A If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

Changing a wash cycle in progress

If a mistake was made in the wash cycle selection process, it is possible to change the cycle provided that it has only just begun: open the door, taking care to avoid the escaping steam, and press and hold the ON/OFF button; the machine will switch off. Switch the machine back on using the ON/OFF button and select the new wash cycle and any options desired; start the cycle by closing the door.

Adding extra crockery

Without switching off the machine, open the door, taking care to avoid the escaping steam, and place the crockery inside the dishwasher. Close the door: the cycle starts from the point at which it was interrupted.

Accidental interruptions

If the door is opened during the wash cycle or there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or the electricity supply restored.

• Only available in selected models.

Measuring out the detergent

A good wash result also depends on the correct amount of detergent being used. Exceeding the stated amount does not result in a more effective wash and increases environmental pollution.

Based on how soiled the items are, the amount can be adjusted to individual cases using powder or liquid detergent.

In the case of normally soiled items, use approximately either 35 gr (powder detergent) or 35 ml (liquid detergent). If tablets are used, one tablet will be enough.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

For good washing results also follow the instructions shown on the detergent box.

For further questions please ask the detergent producers' Advice Offices.

To open the detergent dispenser use the opening device "A".

Introduce the detergent into the dry dispenser "B" only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the Table of wash cycles to add the proper quantity. Compartment B comprises a level showing the maximum quantity of liquid or powder detergent that can be added to each cycle.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the wash cycle.

If all-in-one detergents are used, we recommend using the TABS option, because it adjusts the cycle so that the best washing and drying results are always achieved.

A Only use detergent which has been specifically designed for dishwashers.

DO NOT USE washing-up liquid.

Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended.

The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.

To achieve the best results from each washing and drying cycle, powder detergent, liquid rinse aid and salt should be used.

Wash-cycle data is measured under laboratory conditions according to European Standard EN 50242.

Based on the different conditions of use, the wash-cycle duration and data can change.

The number and type of wash cycles and options may vary depending on the dishwasher model.

Wash Cycle	Drying	Options	Wash Cycle Duration	Water Consumption (l/ cycle)	Energy Consumption (kWh/cycle)
1. Eco	Yes	No	03:10'	11,0	1,04
2. Intensive	Yes	No	02:30'	16,5	1,70
3. Normal	Yes	No	02:00'	16,0	1,40
4. Prewash	No	No	00:10'	4,0	0,01

Instructions on wash-cycle selection and detergent dosage

1. The ECO wash cycle is the standard cycle to which the energy label data refers. It can be used to wash crockery with a normal soil level and is the most efficient cycle in terms of energy and water consumption for this type of crockery. 27 gr/ml + 6 gr/ml* - 1 Tab ( Quantity of pre-washing detergent)
2. Heavily soiled dishes and pans (not to be used for delicate items). 30 gr/ml - 1 Tab
3. Normally soiled pans and dishes. 27 gr/ml + 6 gr/ml** - 1 Tab
4. Pre-wash while awaiting completion of the load with the dishes from the next meal. No detergent.

Standby consumption: Left-on mode consumption: 5.0 W - Off mode consumption: 0.5 W

Notes:

To reduce consumption, only run the dishwasher when it is full.

Note for Test Laboratories: for information on comparative EN testing conditions, please send an email to the following address: [e-mail]

Rinse aid and refined salt

Only use products which have been specifically designed for dishwashers.

Do not use table/industrial salt or washing-up liquid.

Follow the instructions given on the packaging.

If using a multi-functional product it is not necessary to add any rinse aid. However, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. (Follow the instructions given on the packaging). If you do not add salt or rinse aid, the LOW SALT* and LOW RINSE AID indicator lights will stay lit.

Measuring out the rinse aid

Rinse aid makes it easier for the crockery to dry, as water runs off the surfaces more readily and therefore does not leave streaks or marks. The rinse aid dispenser should be filled:

• When the LOW RINSE AID indicator light* on the control panel is illuminated, a reserve supply of rinse aid is still available for 1-2 cycles;

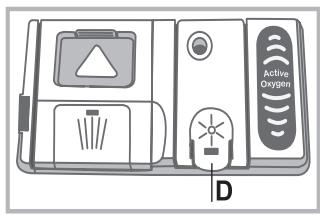

1. Open the dispenser "D" by pressing and pulling up the tab on the lid;
2. Carefully introduce the rinse aid as far as the maximum reference notch of the filling space - avoid spilling it. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

Rinse-aid dispenser setting

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid.

Switch the dishwasher on and off using the On/Off button. Press the P button 3 times. Switch on using the ON/OFF button, the indicator light of the set level flashes (set to factory level).

Adjust the level of rinse aid supply using the P button; during this procedure the rinse aid indicator light flashes.

Press the ON/OFF button to save the setting.

If the rinse aid level is set to ZERO (ECO cycle), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

Up to maximum 4 levels can be set based on the dishwasher model.

• If there are streaks on the crockery, set the adjustment device to a lower number (1-2.)
• If there are drops of water or limescale marks, set the adjustment device to a higher number (3-4.)

Setting the water hardness

Every dishwasher is equipped with a water softener which, by using refined salt specially designed for this type of appliance, supplies water without limescale which is then used to wash the crockery.

This dishwasher offers a setting which helps to reduce pollution and optimises washing performance in accordance with the water hardness level in your area. This information can be obtained from your local water supplier.

Switch the dishwasher on and off using the ON/OFF button. Press and hold the P button for a few seconds until you hear a beep sound. Switch the dishwasher on using the ON/OFF button, the indicator light of the set level flashes (water softener set to medium level).

During this procedure the salt indicator light flashes.

Adjust the hardness level using the P button, (1-2-3-4 see water hardness table) up to max. 4 levels.

Press the ON/OFF button to save the setting.

Even if using multi-functional tablets, the salt dispenser should still be filled.

Water Hardness Table				Average salt container capacity duration**
level	°dH	°F	mmol/l	months
1	0 - 11	0 - 20	1,1 - 2	5 months
2	12 - 17	21 - 30	2,1 - 3	3 months
3	17 - 34	31 - 60	3,1 - 6	2 months
4*	34 - 50	61 - 90	6,1 - 9	2/3 weeks
For values between 0°f and 10°f, we do not recommend the use of salt. * this setting may cause a slight increase in the duration of the cycles. ** for 1 wash cycle per day.

(°dH) = hardness measured in German degrees - °f = hardness measured in French degrees - mmol/l = millimoles per litre)

Measuring out the refined salt

In order to obtain the best possible results from a wash cycle, make sure that the salt dispenser is never empty.

Refined salt removes limescale from the water, thus avoiding the formation of deposits on crockery.

The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:

• When the green float cannot be seen by simply looking at the cap of the salt dispenser;
• When the LOW RINSE AID indicator light on the control panel is illuminated *:

1. Remove the lower rack and unscrew the cap (anticlockwise).
2. The first time you do this: fill the water tank right up to its edge.
3. Position the funnel (see figure) and fill the salt dispenser up to the edge (approximately

1 kg). It is normal for a little water to leak out.

1. Remove the funnel* and wipe any salt residues away from the opening; rinse the cap under running water and then screw it on, with the head facing downwards so as to let the water flow out of the four slots (star-shaped arrangement) in the lower part of the cap (cap with green float*).

It is advisable to perform this procedure every time you add salt to the dispenser.

Make sure the cap is screwed on tightly so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair).

When necessary, measure out the salt before a wash cycle so that any saline solution which has leaked out of the salt dispenser is removed.

• Only available in selected models.

Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle to avoid leaks.
• Always unplug the appliance when cleaning it and when performing maintenance work.

Cleaning the dishwasher

• The external surfaces of the machine and the control panel can be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.
• Any marks on the inside of the appliance may be removed using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine. - Clean the seals around the door and detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours.

Cleaning the sprayer arms

Food residue may become encrusted onto the sprayer arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

The two sprayer arms may both be removed.

To remove the upper sprayer arm, turn the plastic locking ring in an anti-clockwise direction. The upper sprayer arm should be replaced so that the side with the greater number of holes is facing upwards.

The lower sprayer arm can be removed by pressing on the side tabs and pulling it upwards.

Cleaning the water inlet filter*

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

A Clean the water inlet filter at the tap outlet regularly.

• Turn off the water tap.
• Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water.
• Re-place the filter and screw the water hose back into position.

Cleaning the filters

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They should be cleaned if you wish to achieve the best results in every wash.

Clean the filters regularly. A The dishwasher should not be used without filters or if the filter is loose. - After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below: 1. Turn the cylindrical filter C in an anti-clockwise direction and pull it out (fig. 1). 2. Remove the cup filter B by exerting a slight pressure on the side flaps (fig. 2); 3. Slide out the stainless-steel plate filter A. (fig. 3). 4. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (fig.4).

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

Leaving the machine unused for extended periods

• Disconnect the appliance from the electricity supply and shut off the water tap.
• Leave the door of the appliance ajar.
• When you return, run a wash cycle when the dishwasher is empty.
• Only available in selected models.

Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance.

Problem:	Possible causes / Solutions:
The dishwasher does not start or cannot be controlled.	• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program. • The appliance has not been plugged in properly. • The dishwasher door has not been shut properly.
The door won't close.	• The lock was released. Strongly push the door until a "clacking" noise is heard.
No water drains out from the dishwasher.	• The dishwasher cycle has not yet finished. • The water inlet hose is bent (see Installation). • The drain duct is blocked. • The filter is clogged up with food residues.
The dishwasher makes excessive noise.	• The dishes are rattling against each other or against the sprayer arms. • Excessive foam presence: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (see Start-up and use).
The dishes and glasses are covered in a white film or limescale deposits.	• The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt). • The lid on the salt dispenser is not closed properly. • The rinse aid has been used up or the dosage is too low.
The dishes and glasses are streaked or have a bluish tinge.	• The rinse aid dosage is too high.
The crockery has not been dried properly.	• A wash cycle without a drying programme has been selected. • The rinse aid has been used up or the dosage is too low (see Rinse aid and salt). • The rinse aid dispenser setting is not high enough. • The crockery is made from non-stick material or plastic.
The dishes are not clean.	• The racks are overloaded (see Loading the racks). • The crockery has not been arranged well. • The sprayer arms cannot move freely. • The wash cycle is too gentle (see Wash cycles). • Excessive foam presence: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (see Start-up and use). • The lid on the rinse aid compartment has not been shut correctly. • The filter is dirty or blocked (see Care and maintenance). • The refined salt level is low (see Rinse aid and salt).
The dishwasher does not take any water in - Tap shut-off alarm. (beeps are emitted* and all the cycle indicator lights flash. The ON/OFF indicator light flashes rapidly and the 2nd and 3rd wash cycle indicator lights flash.	• There is no water in the mains supply. • The water inlet hose is bent (see Installation.) • Turn on the tap and the appliance will start after a few minutes. • The appliance lock has been activated because no action was taken when the beeps sounded. • Switch off the machine using the ON/OFF button, turn on the tap and switch the machine back on after a few seconds by pressing the same button. Re-program the appliance and restart the wash cycle.

• Only available in selected models.

The electrical and water connections must be made only by a qualified technician. The dishwasher must not rest on the pipes or electrical cables. The appliance must be connected to the water supply using new pipes. Do not use old pipes.

The water inlet and outlet pipes and the electrical cable can be directed to the right or left for optimal installation of the machine.

Connection of the water supply hose

To the cold water tap: connect the supply hose to the tap with a 3/4 gas threaded opening. Tighten the nut by hand until it is snug, to avoid clogging from impurities. To the hot water tap: if your home has a centralized heating system, the dishwasher can be supplied with hot water from the water supply, provided the water temperature does not exceed 60°C.

Connect the hose to the tap as described above for the cold water connection. If the length of the water supply hose is insufficient, you should contact a specialized store or an authorized plumber (see Technical Service). The water pressure must be within the values indicated in the Technical Data table (see side).

Check that the water supply hose is not kinked or crushed.

Connecting the drain hose

Connect the drain hose, without bending it, to the drain pipe with a minimum diameter of 4 cm.

The drain hose must be positioned at a height of 40 to 80 cm from the floor or from the base of the dishwasher (A).

Before connecting the drain hose to the siphon, remove the plastic cap (B).

Anti-flood protection

To prevent flooding of the dishwasher:

• It is equipped with a system that stops the water supply in case of anomalies or internal leaks.

Some models are equipped with an additional protective device, New Acqua Stop*, which prevents flooding even in the event of a break in the water supply hose.

WARNING: DANGEROUS VOLTAGE!

It is strictly forbidden to cut the water supply hose, as it contains live electrical components.

Electrical connection

Before connecting the plug of the machine to the electrical outlet, it is necessary to check the following:

• The electrical outlet must be connected to ground and comply with standards; the electrical outlet must be rated for the maximum power consumption indicated on the rating plate located on the inside of the door.

(See description of the dishwasher);

• The mains voltage must match the data on the rating plate located on the inside of the machine door; the wall outlet must be compatible with the appliance's plug. Otherwise, have the plug replaced by an authorized technician (see Technical Service). Do not use adapters or extension cords.

The appliance must be installed so that the power cord and outlet are easily accessible.

The power cord must not be bent or compressed. If the power cord is damaged, to avoid danger, have it replaced by the manufacturer or an authorized service center (see Technical Service).

Anti-condensation film*

After installing the dishwasher or the heating element, open the door and stick the transparent self-adhesive film on the lower part of the door's inner panel to protect it from possible condensation.

Warning before first use of the machine

After installation, remove the protective plugs placed on the racks and remove the fixing rubbers from the upper rack (if present).

Immediately before the first wash cycle, fill the salt reservoir with water and add about 1 kg of salt (see section on water softener and regenerating salt): if water leaks from the reservoir, this is normal. Select the water hardness level (see section on water softener and regenerating salt).

• After filling with salt, the SALT indicator light* will go out.

If the reservoir is not filled with salt, the water softener and heating element may be damaged.

The machine is equipped with acoustic/sound signals (depending on the dishwasher model) that indicate the completion of a command: switching on, end of cycle, etc.

The symbols/indicator lights on the control panel/display may have different colors, flash, or stay on constantly (depending on the dishwasher model).

If you do not add salt or rinse aid, the SALT* and RINSE AID* indicator lights will always be on, which is normal.

Rinse aid dispenser

The rinse aid dispenser rinses the dishes, as the water drains better from their surface, and no residue or stains remain on the dishes in this way. It is necessary to fill the rinse aid dispenser:

When the indicator for lack of rinse aid lights up on the control panel, the remaining amount of rinse aid is enough for 1-2 cycles;

1. Open the dispenser "D" by pressing the full button on the lid;
2. Carefully pour the rinse aid up to the maximum mark of the dispenser, avoiding its leakage. If you accidentally spill rinse aid past the dispenser, remove the excess with a dry sponge.
3. Close the lid with a click.

Never pour rinse aid directly into the washing chamber of the machine.

Dosing the rinse aid

If you are not satisfied with the drying quality, you can adjust the rinse aid dose.

Turn the dishwasher on and off with the ON/OFF button. Press the P button 3 times. Turn the machine on with the ON/OFF button. The program indicator for the set dose lights up (factory setting). Adjust the rinse aid dosing with the button during the execution of this operation, the rinse aid indicator lights up.

Press the ON/OFF button to save the setting. The rinse aid dose can be set to zero (ECO). In this case, the rinse aid is not used, and the lack of rinse aid indicator does not light up due to its absence.

The maximum degree of dosing can be set depending on the model of the dishwasher.

• If white stains remain on the dishes, adjust the rinse aid dose to a lower value (1-2).
• If water drops or limescale stains remain on the dishes, adjust the rinse aid dose to a higher value (3-4).

Selection of water hardness level

This dishwasher uses specially regenerated salt for dishwashers, which removes limescale from the water.

used for washing dishes.

This dishwasher can be set to reduce environmental pollution and optimize the quality of washing dishes depending on the water hardness. You can find out the degree of water hardness in your area by contacting your water supply organization.

Turn the dishwasher on and off with the ON/OFF button. Hold the P button pressed for a few seconds to activate the acoustic signal. Turn the machine on with the ON/OFF button. The indicator of the programmed degree flashes (see setting to the desired degree of hardness).

During the execution of this operation, the salt indicator flashes.

Adjust the degree of water hardness with the P button; (1-2-3-4 see the water hardness table) up to the maximum 4th degree.

Press the ON/OFF button to save the setting. If you use multi-functional tablets, the salt container must be filled in any case.

Таблиca щecTKоCTN ВODы				Средnia автономность** бачок ду соли
уровен	°dH	°FH	mmol/l	Месясы
1	0 - 11	0 - 20	1,1 - 2	5 месяец
2	12 - 17	21 - 30	2,1 - 3	3 месяca
3	17 - 34	31 - 60	3,1 - 6	2 месяа
4*	34 - 50	61 - 90	6,1 - 9	2/3 недени

From 0°fH to 10°fH it is recommended not to use salt. * WHEN SETTING 5. THE CYCLE DURATION MAY INCREASE. ** 1 UNIT PER DAY.

(°dH = German degrees - °fH = French degrees - mmol/l = millimoles per liter)

Loading the regenerating salt

For a good washing result, it is necessary to check that the salt container is not empty.

The regenerating salt removes limescale from the water, which otherwise would remain on the dishes.

Products against limescale deposits

Always leave the door of the machine slightly open to avoid musty smells. - Regularly clean the perimeter seals of the detergent dispenser with a damp cloth. In this way, residues are removed - the main cause of unpleasant odors.

Cleaning the spray arms

Octatkn Pnun MOryT npuJInHyTb K nonactm opocnteJe n 3acopntb OTBepctna, n3 KOtOpbIX BbIXoNT Boa: Bpem O T BpemHn CJIeDyET npOBepTaB opocTeiN n IpouNiataBnx HEMetanJInueckoI ueTKoI.

O6a opocnteJRABJIOTcBcEMhbIM.

To remove the upper sprinkler, turn it counterclockwise against the mass of the spray arm. The upper sprinkler is installed with the openings facing upward.

To remove the lower sprinkler, press it on the sides and pull it upward.

Cleaning the water filter*

If the water supply has not been used for a long time, before connecting it to the water supply, let the water run until it becomes clear. Failure to observe this condition may lead to clogging of the filter and damage to the dishwasher.

Periodically clean the water filter located at the outlet of the tap. - Close the water supply tap. - Unscrew the water inlet hose, remove the filter and carefully rinse it under running water. - Reinsert the filter and secure the hose.

Cleaning the filters

The filter system consists of three filters that serve to clean the water for washing from food residues and to return it to circulation. For good results, it is necessary to clean the filters regularly.

Clean the filters regularly.

It is forbidden to use the dishwasher without filters or with an unsecured filter.
