Product type	Built-in ceramic glass hob
Brand	AIRLUX
Model	ATH320S (AT320)
Cut-out dimensions	280 x 490 mm
Appliance dimensions	Not specified in the manual; estimated ~300 x 510 mm
Weight	Not specified; estimated 8–12 kg
Power supply	230 V ~ 50/60 Hz, single-phase 1P+N
Total power	3000 W
Number of cooking zones	2
Front zone (dimensions / power)	50 x 155 mm / 1200 W
Rear zone (dimensions / power)	63 x 190 mm / 1800 W
Control type	Touch controls (sensitive)
Main functions	Programmable timer, control panel lock, residual heat indicator, automatic cooking (full power then keep warm), safety shutdown
Maintenance and cleaning	Ceramic glass cleaner, water and dish soap; avoid abrasive objects, metal scouring pads; do not use steam cleaners
Safety	Child lock (touch keys except on/off), automatic shut-off in case of forgetting, residual heat indicator, overheat protection, fault detection
Repairability index	Not communicated; spare parts available through after-sales service
General information	Domestic use only; installation and connection by a qualified electrician; protection class Y; do not install above a dishwasher or non-ventilated oven

Frequently Asked Questions - AT320 AIRLUX

How to turn the hob on and off?

To turn on, press the [①] key. The display shows [0]. To turn off, press [①] again. If a zone is still hot, [H] appears.

How to adjust the power of a cooking zone?

First select the zone with the selection key, then use [+] to increase or [-] to decrease the power level (from 1 to 9).

What does the [H] symbol displayed after cooking mean?

[H] indicates residual heat: the zone is still hot. Do not touch it and do not place sensitive objects. It turns off when the temperature becomes safe.

How to use the timer?

After selecting a zone and setting the power, press [-] and [+] simultaneously to access the timer setting. Adjust with [+] or [-] (0 to 99 minutes). The timer counts down and stops automatically.

How to lock the control panel?

Press [-] and the selection key simultaneously. The display shows [L]. To unlock, turn the hob back on and repeat the operation within 5 seconds.

What to do if an error code like [E] or [ER03] appears?

[E] means an electronic fault: contact customer service. [ER03] indicates an object or liquid covering the keys: clean the surface. [ER21] = overheating: let it cool down.

What utensils to use on this ceramic glass hob?

Use pans with a flat and smooth base. Avoid raw bases (unenamelled cast iron) and aluminium or synthetic containers. The bases should cover the cooking zone as much as possible.

How to clean the hob?

Turn off and wait for complete cooling. Use a special ceramic glass cleaner or soapy water. Never use abrasive sponges or steam cleaners. Remove sugar or sweet foods immediately.

What is the maximum power and number of zones?

The total power is 3000 W. The hob has 2 zones: front 1200 W (50x155 mm) and rear 1800 W (63x190 mm).

Can the hob be installed above an oven or dishwasher?

No. It is forbidden to install the hob above a dishwasher or a non-ventilated oven. For a ventilated oven, respect a minimum distance and follow the installation instructions.

USER MANUAL AT320 AIRLUX

instructions of use and maintenance

Chere cliente, cher client,

Thank you for having chosen our ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for later consulting.

SUMMARY

SAFETY 16

PRECAUTIONS BEFORE USING 16
USING THE APPLIANCE 16
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 17
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 18
OTHER PROTECTIONS 18

DESCRIPTION OF THE APPLIANCE 19

TECHNICAL DATA 19
CONTROL PANEL 19

USE 20

DISPLAY 20

STARTING UP THE APPLIANCE 20

BEFORE USING YOUR NEW HOB. 20
SENSITIVE TOUCHES 20
STARTING-UP 20
RESIDUAL HEAT INDICATION 20
TIMER 21
AUTOMATIC COOKING 21
CONTROL PANEL LOCKING 22

COOKING ADVICES 23

EXAMPLES OF POWER SETTING 23

MAINTENANCE AND CLEANING 23

WHAT TO DO IN CASE OF A PROBLEM 24

ENVIRONMENT PROTECTION 24

INSTALLATION INSTRUCTIONS 25

ELECTRICAL CONNECTION 26

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by installation or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate cannot be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance cannot be used above a dishwasher or a tumble-dryer: as steam may cause damage.
• The appliance is not intended to be operated by means of external timer or separate remote control system.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the hob whilst cooking using grease or oils that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.

• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.

• Do not place any metallic object on the hob except for pans or cooking utensils. In case of untimely engaging or residual heat, this one may heat, melt or even burn.

• Never cover the appliance with a cloth or a protection sheet. This could become very hot and catch fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• WARNING: Danger of fire: do not store items on the cooking surface.
• Never place any hot container over the control panel.

• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the underside of the appliance is large enough (2cm). This is essential to guarantee correct ventilation.

• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. All cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off at the main electrical supply.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information from the retailer or from the doctor.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Technical data

Type	ATH320S
Total power	3000 W
Energy consumption for the hob EChob**	182.6 Wh/kg
Front heating zone	50 x 155 mm
Nominal power	1200 W
Standardised cookware category**	A
Energy consumption ECw**	173.8 Wh/kg
Rear heating zone	63 x 190 mm
Nominal power	1800 W
Standardised cookware category**	B
Energy consumption ECw**	191.3 Wh/kg

** calculated according to the method of measuring performance (EN 60350-2).

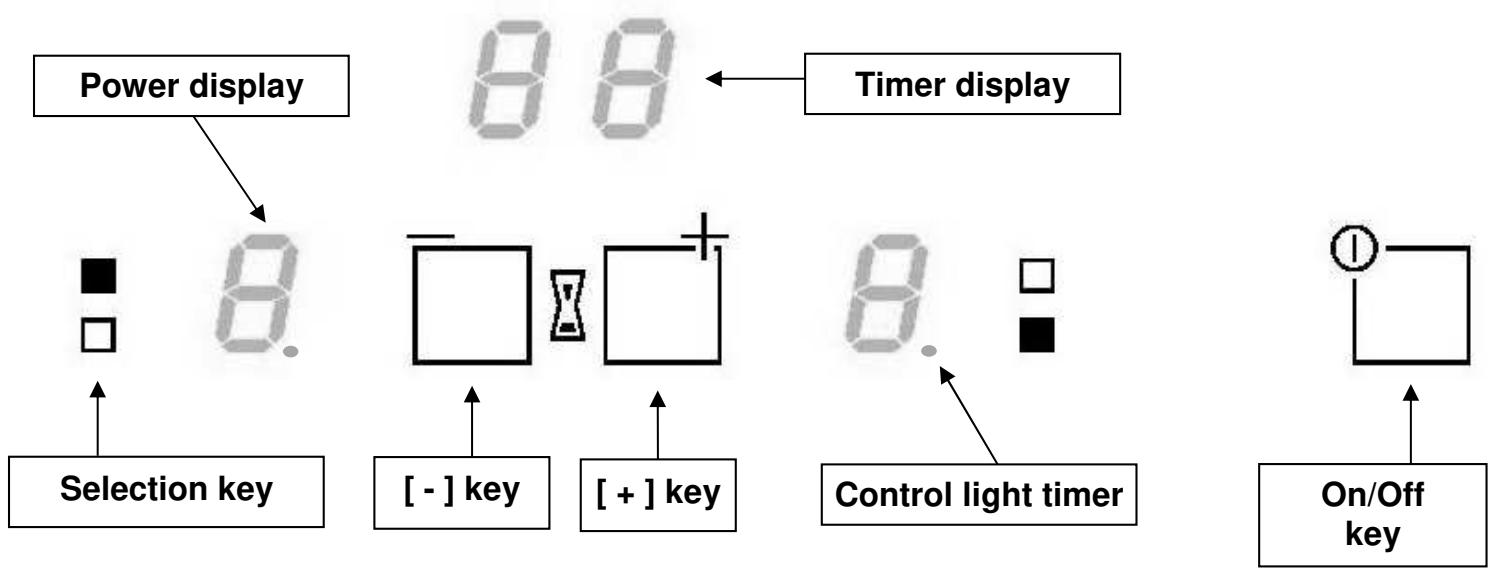

Control panel

Display

Display	Designation	Function
0	Zero	The heating zone is activated
1...9	Power level	Selection of the cooking level
A	Heat accelerator	Automatic cooking
E	Error message	Electronic failure
H	Residual heat	The heating zone is hot
L	Locking	Control panel locking.

STARTING UP THE APPLIANCE

Before using your new hob

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Sensitive touches

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a "beep" sound.

Touch only one key on the same time.

Starting-up

- Start-up/ switch off the hob

Action	Control panel	Display
To start	press key [①]	[0]
To stop	press key [①]	nothing or [H]
• Start-up/ switch off a heating zone
Action	Control panel	Display
Zone selection	press selection key	[0]
Increase power	press key [+ ]	[1] to [9]
Decrease power	press key [- ]	[9] to [1]
Stop	press key [- ]	[0] or [H]

If no action is made within 20 second the electronics returns in waiting position.

Residual heat indication

After the switch-off of the hob, the heating zone is still hot and indicates [H] on the display.

The symbol [H] disappears when the heating zone may be touched safely.

When the residual heat indicator light is on, don't touch the heating zone and don't put any heat sensitive object on them. There are risks of burn and fire.

Timer

The timer is able to be used simultaneous with all heating zones and this with different time settings (from 1 to 99 minutes) for each heating zone

- Start timer

Action

Zone selection

Increase power

To select « Timer »

Decrease the time

Increase the time

Control panel

press selection key

press key [+ ]

Press simultaneously [ - ] and [ + ]

Press key [-]

Press key [+ ]

Display

[0]

[1]to [9]

Timer [00] min

[00] wents to 30,29....

time increase

The time is confirmed and the cooking starts until the time reaches [ 00 ].

- Stop timer

Action

Zone selection

To select « Timer »

Press simultaneously [ - ] and [ + ]

Press key [-]

Display

[0]

The remaining time

[00] then stops

Automatic stop at the end of the cooking time :

As soon as the selected cooking time is finished the timer displays blinking [ 00 ] and a sound rings.

To stop the sound and the blinking it is enough to press any key.

- Egg timer function :

Action

Activate the hob

Select « Timer »

Decrease the time

Increase the time

Control panel

Press key [①]

Press simultaneously [ - ] and [ + ]

Press key [-]

Press key [+ ]

Display

[0] or [H]

Timer [00] min

[00] wents to 30,29....

time increase

After a few seconds the control light stops with blinking.

As soon as the selected cooking time is finished the timer displays blinking [ 00 ] and a sound rings.

To stop the sound and the blinking it is enough to press any key.

Automatic cooking

All the cooking zones are equipped with an automatic "go and stop" cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the preselected level.

Start-up:

Action

Zone selection

Full power setting

Automatic cooking

Power level selection

(for example « 7 »)

Control panel

press selection key

press key [+ ]

repress key [ + ]

press key [-]

Display

[0]

[1]to [9]

[9] is blinking with [A]

[9]wentsto[8][7]

[7] is blinking with [A]

- Switching off the automatic cooking:

Action

Zone selection

(for example « 7 »)

Power level selection

Control panel

press selection key

press key [-] or [+]

Display

[7] is blinking with [A]

Level selected

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [ 0/1 ]).

Locking:

Action

Activate the hob

Hob locking

Control panel

Press key [①]

Press [-] and hold down and then press the rear selection key

Display

[0] or [H]

[L]

• Unlocking :

Action

Activate the hob

Control panel

Press key [①]

Display

[L]

In the 5 seconds after start :

Unlocking the hob

Press [-] and hold down and then press the rear selection key

[0] or [H]

Examples of power setting

(The values below are indicative)

1 to 2	Melting, Reheating	Sauces, butter, chocolate, gelatine Dishes prepared beforehand
2 to 3	Simmering, Defrosting	Rice, pudding, sugar syrup Dried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5	Water	Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Medium cooking, Simmering	Meat, liver, eggs, sausages,
7 to 8	Cooking	Potatoes, fritters, waffles
9	Frying, roasting, Boiling water	Steaks, omelettes, fried dishes, water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning

Do not clean the hob if the glass is hot: risk of burn.

Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.

• Highly corrosive or abrasive detergents and cleaning equipment are likely to cause scratches and must be avoided
• Do not ever use any steam-driven or pressure appliance.
• Do not use any object that may scratch the ceramic.
• Ensure that the bottom of pans is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the bottom of the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

The hob or the cooking zone doesn’t start-up :

• The hob is badly connected on the electrical network.
• The protection fuse cut-off.
• The locking function is activated.
• The sensitive keys are covered with grease or water.
  An object is put on a key.

The symbol [E] displays:

• Call the After-sales Service.

One or all cooking zone cut-off :

• The safety system functioned.
• You forgot to cut-off the cooking zone for a long time.
  One or more sensitive keys are covered.
• The pan is empty and its bottom overheated.
• The hob also has an automatic reduction of power level and breaking Automatic overheating

The automatic cooking don't start :

• The cooking zone is still hot [ H ].
• The highest power level is set [ 9 ]

The control panel displays [ L ] :

Refer to the chapter control panel locking page.

The control panel displays [ Er03 ] :

• An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.

The control panel displays [ER21]:

• The hob is overheated, let it cool and then turnit on again.

The control panel displays [U400], [Er25] or [U4]:

• The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the SAV.

ENVIRONMENT PROTECTION

The packaging material is ecological and can be recycled.

The worn appliances contain certain noble metals. Apply to the local government about the possibilities of recycling.

Don't dispose of your appliance with general household waste
Get in touch with the waste collection centre of your local council that control the recycling of household appliances.

The installation comes under the exclusive responsibility of specialists.

The installer is held to respect the legislation and the standards enforce in his home country.

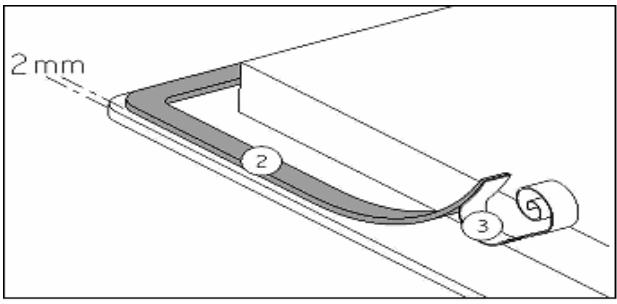

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.

His installation has to be done carefully, in conformity of the following drawing.

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

The cut out sizes are:

Reference	Cut-size
ATH320S	280 x 490 mm

• Ensure that there is a distance of 50 ~mm between the hob and the wall or sides.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100^ .
• The mural rods of edge must be heat-resisting.
• Not to install the hob to the top of a not ventilated oven or a dishwasher.
• To guarantee under the bottom of the hob casing a space of 20 ~mm to ensure a good air circulation of the electronic device.
• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760~mm .
• The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.

• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• The installation of this appliance and the connection to the electrical system should be entrusted only to a qualified electrician.

• Protection against the parts under tension must be ensured after installation
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the mains must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3mm .
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 ~V 50 / 60 ~Hz

Always connect the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover, use a medium screwdriver. Place it in the slits and open the cover.

(^*) calculated with the simultaneous factor following standard EN 60 335-2-6

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz	1 Phase + N	3 x 1,5 mm²	H 05 VV - F H 05 RR - F	16 A*

Connection of the hob

Monophase 230 ~V 1 P + N

Attach the earth to the terminal "earth", the neutral N to terminal N, the Phase L1 to one of the terminals L1.

Caution! Be careful that the cables are correctly engaged and tightened.

We cannot be held responsible for any accident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection

Gentile Cliente,
