BKFC2070X - Electric oven BRANDT - Free user manual and instructions

Product type	Built-in electric oven
Brand	Brandt
Model	BKFC2070X
Dimensions (H x W x D)	595 x 595 x 550 mm
Usable volume	70 L
Power supply	220-240 V single-phase, 50/60 Hz
Nominal power	Approximately 2500 W (estimate)
Energy class	A
Energy consumption (natural convection)	0.99 kWh
Energy consumption (fan-forced convection)	0.79 kWh
Cooking modes	Light, defrost, bottom heat, natural convection, fan-assisted natural convection, resistance + grill (3 positions), fan-assisted grill (3 positions), fan-forced, grill alone (3 positions), ECO mode
Temperature range	50-250°C (depending on mode)
Included accessories	Grid, drip tray, removable wire racks
Display	LCD with clock, timer, child safety lock
Cleaning	Self-cleaning catalytic side walls, glass door, enamel
Safety	Child lock, automatic shut-off, mandatory grounding
Interior lighting	Halogen lamp 25 W max, T300°C (energy class G)
Repairability	Repairs by qualified professional, spare parts available
Net weight	Approximately 35 kg (estimate)
Consumer service contact	0 892 02 88 01 (€0.50/min + call charges) or 09 69 39 25 25 (free service + call charges)

Frequently Asked Questions - BKFC2070X BRANDT

How to set the oven clock?

After plugging in, press Ⓤ. The hours flash, turn the K2 knob to set the hour (0-23). Press Ⓤ again to set the minutes (0-59) with K2. Confirm by pressing Ⓤ.

How to activate child safety?

Simultaneously press the Ⓗ and Ⓑ buttons for 3 seconds. A long beep sounds and the ⚙ logo appears. To deactivate, repeat the same procedure.

What cooking modes are available?

The oven offers several modes: defrost, bottom heat, natural convection, fan-assisted natural convection, resistance + grill (3 positions), fan-assisted grill (3 positions), fan-forced, grill alone (3 positions) and ECO mode.

How to start a programmed cooking?

Select the mode with the K1 knob, set the temperature with K2, then press ▶ to start cooking. You can set a duration with K1 (from 0:01 to 9:00) and confirm with Ⓓ.

Can I pause or cancel a cooking?

Yes, press ^11 once to pause, twice to cancel the program. If you do not confirm a modification within 3 seconds, it is cancelled.

How to clean the catalytic walls?

Remove all accessories and racks. Clean the base with hot water and dish soap. Start the natural convection mode at 250°C for 45 minutes. After cooling, wipe away residues with a damp sponge. Do not use abrasive products.

What if the oven light no longer works?

Unplug the appliance. Unscrew the glass protective bulb, replace the lamp with a halogen 25 W max, T300°C (class G). Replace the bulb. If the problem persists, contact after-sales service.

How to use the independent timer?

The oven must be on pause. Press , set the hour with K2, press again for minutes, then confirm with ▶. A beep sounds at the end.

The oven emits smoke or odor during first use, is this normal?

Yes, it is normal. Heat the empty oven at maximum temperature for about 1 hour to burn off manufacturing residues. Ventilate the room.

How to save energy with this oven?

Use ECO mode for gentle fan-assisted cooking. Press Ⓑ for 3 seconds to activate energy saving mode (the screen turns off). The oven also automatically goes into standby after 10 minutes of inactivity.

USER MANUAL BKFC2070X BRANDT

Front view of a Brandt oven with digital gauges and a transparent oven (no visible text or symbols)

BKFC2070X

FOUR CATALYSE INTEGRABLE 70 L

Front view of a modern oven with digital gauges and a visible inner tray (no text or symbols on the oven itself)

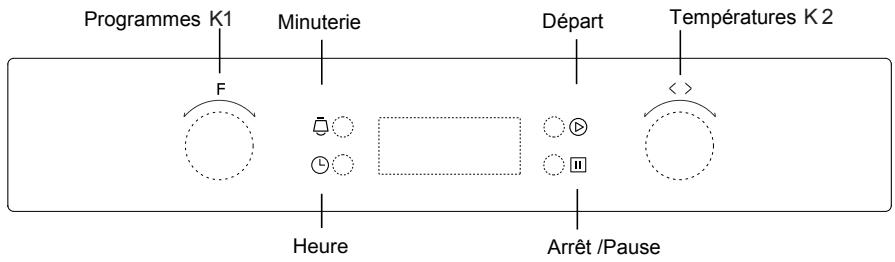

Bandeau de commande

Description des programmes

Pure technical line drawing of a grid-like structure without any text, numbers, or symbols

Pure technical line drawing of a heat exchanger or cooling unit with no text, numbers, or symbols

Technical line drawing of a rectangular frame with internal hexagonal structure (no text or symbols)

Technical line drawing of a mechanical oven or enclosure with internal structure (no text or symbols)

Technical diagram of a device with labeled components including N and L indicators and a switch symbol

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

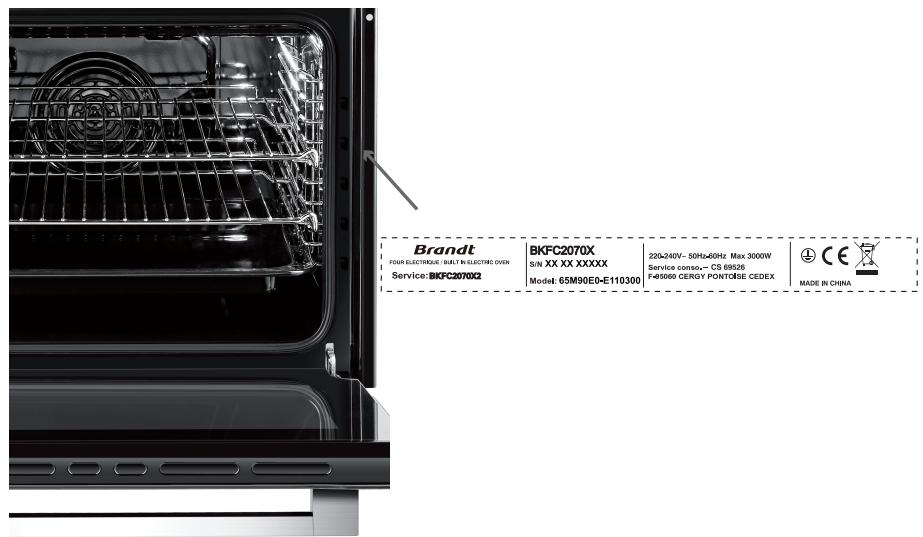

Interior view of an open kitchen oven with visible grating and ventilation grilles (no text or symbols)

Brandt

FOUR ELECTRIQUE / BUILT IN ELECTRIC OVEN

Service:BKFC2070X2

BKFC2070X

S/N XX XX XXXXX

Model: 65M90E0-E110300

220-240V-50Hz-60Hz Max 3000W

Service conso. - CS 69526

F-95060 CERGY PONTOISE CEDEX

MADE IN CHINA

Front view of a modern oven with digital gauges and a transparent oven (no visible text or symbols)

BKFC2070X

Built-in Electric Oven

User Manual

ACKNOWLEDGMENT

Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.

WARNING....3

PRODUCT DESCRIPTION....7

INSTALLATION....8

OPERATION INSTRUCTIONS....10

CLEANING AND MAINTENANCE....11

TECHNICAL CHARACTERISTICS....12

AFTER -SALES SERVICE ....13

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this

product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

This device complies with European Directives 2014/35 / EU relating to electrical safety and 2014/30 / EU relating to electromagnetic compatibility.

CE

WARNING!

Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.

• When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run up the new empty product with the conventional cooking function, 250 °C, 90 minutes to clean oil impurities inside the cavity.
• During the first use, it is completely normal that there will be a slight smoke and odors. If it does occur, you merely have wait for the smell to clear before putting food into the oven.
• Please use the product under the open environment.
• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven.

• Do not allow children to go near the oven when it is operating, especially when the grill is on.

• Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock.

• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring specifications.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety.
• Accessible parts may become hot during use. Young children should be kept away.
• An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• A steam cleaner is not to be used.
• The appliances are not intended to be operated by means of an external timer or separate remotecontrol system.
• The instructions for ovens that have shelves shall include details indicating the correct installations of the shelves.
• This user guide is available for download on the brand's website.
• In order to avoid overheating, the appliance must not be installed behind a decorative door.
• The electrical plug must remain accessible after installation.

SAFETY HINTS

• Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet.
• For oven: Oven door should not be opened often during the cooking period.
• The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.
• When the door or drawer of oven is open do not leave anything on it, you may unbalance your appliance or break the door.
• Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly.
• If you will not use the appliance for a long time, it is advised to plug i off.
• Do not use abrasive cleaning products or hard metal scrapers for cleaning the oven's glass door, as they could scratch the surface and cause the glass to shatter

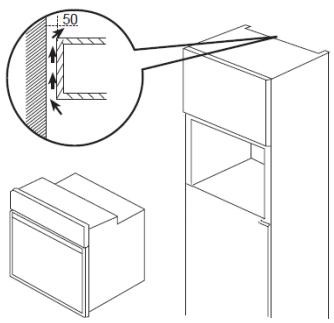

FITTING THE OVEN INTO THE KITCHEN UNIT

Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances adhered to when fixing the oven.

IMPORTANT

If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glues

of units that are made of veneered wood can withstand temperatures of at least 120 °C. Plastics or glues that cannot withstand such temperatures will melt and deform the unit, once the oven has been lodged inside the units, electrical parts must be completely insulated. This is a legal safety requirement. All guards must be firmly fixed into place so that it is impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear gap of at least 45 mm.

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.

CE

Exterior view of a modern oven with digital gauges and a closed baking pan (no visible text or symbols)

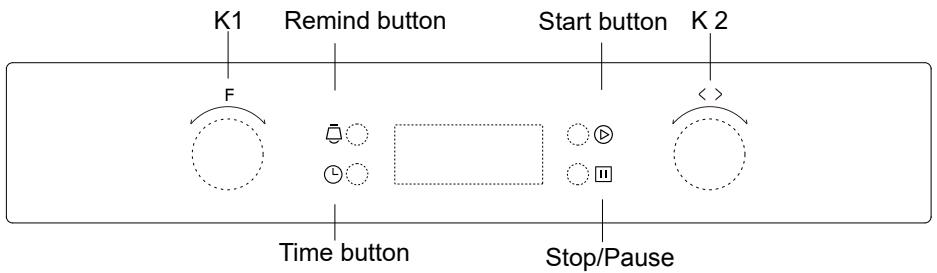


Symbol	Function description
	Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions. except ECO function.
	Defrost: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.
	Bottom heater: A concealed element in the bottom of the oven provides heat. It is mainly used for keeping food warm.The temperature can be set within the range of 60-120°C. The default temperature is 60°C.
	Conventional cooking: The top and bottom work together to provide convectional cooking.The temperature can be set within the range of 50-250°CThe default temperature is 220°C
	Convention with fan: Combination of the fan and both heating element provides more even heat penetration, saving up to 30-40% of energy. Dishes are lightly browned on the outside and still moist on the inside. Note: This function is suitable for grilling or roasting big pieces of meat at a higher temperature. The temperature can be set within the range of 50-250°C. The default temperature is 220°C.
	Double grilling: The inside radiant element and top element are working.Note: There are 3 different grill positions:180°C, 210°C, 240°C.The default temperature is 210°C.
	Double grilling with fan: The inside radiant element and top element are working with fan.Note: There are 3 different grill positions:180°C, 210°C, 240°C.The default temperature is 210°C.
	Convection: An element around the convection fan provides an additional source of heat for convection style cooking. In convection mode the fan automatically comes on to improve air circulation within the oven and creates an even heat for cooking.The temperature can be set within the range of 50-240°C. The default temperature is 180°C.
	Radiant grilling: The inner grill element switches on and off to maintain temperature.Note: There are 3 different grill positions:180°C, 210°C, 240°C.The default temperature is 210°C.
	Mode ECO:For energy-saved cooking. Cooking the selected ingredients in a gentle manner, and the heat comes from the top and the bottom.

INSTALLATION

ACCESSORIES

Pure geometric diagram of a rectangular grid with diagonal lines, no text or symbols present

Wire shelf : For grill, dishes, cake pan with items for roasting and grilling.

Technical line drawing of a rectangular plastic tray or container with internal grid structure (no text or symbols)

Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc, or for collecting fat / spillage and meat juices.

Pure technical diagram of a heat exchanger or cooling unit with no text, numbers, or symbols

Technical line drawing of a mechanical oven or enclosure with internal components (no text or symbols)

Slider bracket : For cooking larger size food, these shelf support rails on the right and left sides of the oven can be removed, dishes and tray can be put on the oven floor, using functions as Radiant grilling, Double grilling, Double grill with fan.

NOTE: When placing dishes on the oven floor, please DO NOT use functions with bottom heater to prevent heat gathering at bottom. (only for specific models)

Remove the screws connected the rail bracket and the cavity, and take it out from the clipping hole.

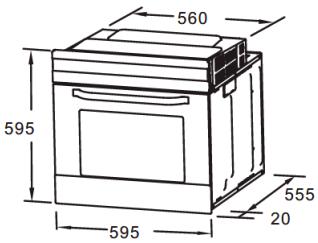

50

560 595 595 555 20

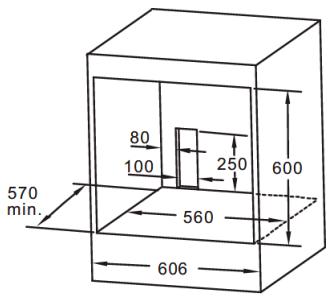

570 min. 80 100 250 600 560 606

Remark:

1. Only plus deviations are admissible for all dimension.
2. The cabinet is not include the power switch or socket.

NOTE: The number of accessories included depends on the particular appliance purchased.

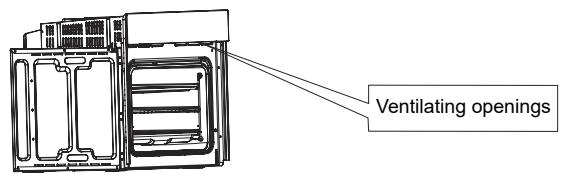

VENTILATING OPENINGS

Ventilating openings

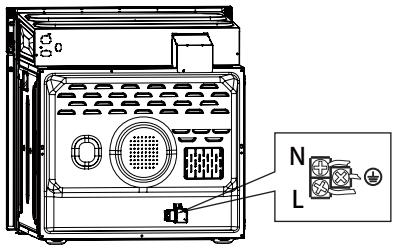

CONNECTION OF THE OVEN

N L

When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance.

Recipes for ECO mode

Recipes	Temperature (°C)	Level	Time (min)	Pre-heat
Potato Cheese Gratin	180	1	90-100	No
Cheese Cake	160	1	100-150	No
Meatloaf	190	1	110-130	No

Clock Setting

After connecting the unit to the power, the symbols "0:00" will be visible on the display.

1. Press " Ⓛ ", the hour figures will flash.

2. Rotate "K2" to adjust the hour figures, (time should be within 0--23).

3. Press " Ⓛ ", the minutes will flash.

4. Rotate "K2" to adjust the minutes setting, (time should be within 0--59).

5. Press " Ⓛ " to finish the clock settings. " : " will flash, and the time will be illuminated.

Note: The clock is 24 hours. After power on, if not set, the clock will show "0:00".

Function Setting

1. Rotate "K1" to choose the cooking function you require. The related symbol will illuminated.

2. Rotate "K2" to adjust the temperature.

3. Press " ☑ " to confirm the start of cooking.

4. The program operates; the default temperature is displayed and the default cooking time will be 9h. If necessary to select a cooking time, pls turn the left knob "K1" to select your cooking time between 0:01 and 9:00. And then press Ⓓ to validate

At the end of cooking, you will hear 5 times "beep" warning that the program is over. Cooking stops automatically.

NOTE:

1. The step quantities for the adjustment time of the knobs are as follow: 0--0:30min: step 1 minute 0:30--9:00hour: step 5 minutes.

2. The step quantities for the adjustment of temperature is 5^ C, and the grill function is 30^ C.

3. Rotate " K1 " to adjust the cooking time when cooking begins. Then press " ☑ " to confirm. If " ☑ " not pressed within 3 seconds, the oven will revert back to the previous time to continue cooking.

4. Rotate" K2 " to adjust the temperature when cooking begins. The related indicator will be illuminated. Then press " ☑ " to start cooking. If " ☑ " not pressed in 3 seconds, the oven will revert back to the previous temperattrue to continue cooking.

Lamp Setting

1. Rotate" K1 " to select the relevant function, then the corresponding icon will be on.

2. Press " ▶ " button to start, "0:00" and lamp icon" 🔗 " will light up, " : " will flash.

Inquiring Function

In the following states, you can use inquiring function, after 3 seconds return to the current state.

1. During working state, if the clock was set, press " ⏻ " button to see the current time; if the reminder function was set, press " 📋 " button to see the time of reminder.

2. In reminding state, if the clock was set, press " Ⓛ " button to see the current time.

Child lock Function

To Lock : press " ▶ " and " Ⅲ " simultaneously for 3 seconds, there will be a long " beeping " sound and the " 🔒 " will be illuminated.

Lock quitting : press " ▶ " and " Ⅲ " simultaneously for 3 seconds, there will be a long " beeping " sound indicating the child-lock is released.

Note: During working mode, if you want to stop cooking, press stop button quickly. Do not need to long pressing on stop button, it is invalid.

Reminder Function

This function will help to remind you to start cooking in a certain time from 0:01 to 9:59.

Only when oven in standby mode, the reminder can be set. Follow below to set the reminder:

1. Press reminder setting button " ☐";

2. Rotate " K2 " to set the hour time of reminder. (Time should be within 0--9).

3. Press reminder setting button " ☐ " again;

4. Rotate " K2 " to set minute time of reminder. (Time should be within 0--59).

5. Press " ▶" to confirm setting. The time will count down.

Note: The oven buzzer will sound for 10 times after the time back to the zero hour.

You can cancel the reminder during setting by pressing the stop button; After the reminder has been set, you can cancel it by pressing stop button twice.

Start/Pause/Cancel Function

1. If the cooking time has been set, press " ☑ " to start cooking. If the cooking is paused, press " ☑ " to resume cooking.

2. During cooking process, press " ☐" once to pause the cooking. Press " ☐" twice to cancel the cooking.

Energy-Saving Function

1. In waiting state and reminding state, press " ☑" for three seconds, the LED display will go off and set to energy-saving mode.
2. If no operation in 10 minutes under waiting state, the LED display will go off and go into energy-saving mode.
3. Under the energy-saving mode, press any key or rotate any can quit the knob energy-saving mode.

Note

1. The oven lamp will be on for all functions. (except ECO function)
2. Once the cooking programme has been set and the" ☑ " button is not pressed within 5 minutes, the current time will be displayed or turn back to waiting state. The setting program will be invalid.
3. The buzzer will sound once when effectively pressed, if not effectively pressed there will be no response.
4. The buzzer will sound five times to remind you when cooking has finished.

CLEANING AND MAINTENANCE

For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly.

• Before any maintenance and cleaning, disconnect the power.
• Set all controls in the OFF position.
• Wait until the inside of the unit is not hot but only slightly warm-cleaning is easier than when warm.
  -Pass a damp sponge on the other non-catalytic walls to remove the grease and/or dirt residues.

In case of heavy soiling, use hot water with non-abrasive cleaning product.

• For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal scrapers, these can scratch the surface or lead to the glass being damaged.
• Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
• Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild detergent.

Technical line drawing of a mechanical assembly with no visible text or symbols

BULB REPLACEMENT

1. Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet.
2. Unscrew the glass lamp cover by turning it counter-clockwise (note, it may be stiff) and replace the bulb with a new one of the same type.
3. Screw the glass lamp cover back in place.

NOTE: Only use 25W/230V, T300°C halogen lamps.

Simple line drawing of a mechanical component with a circular arrow indicating rotation (no text or symbols)

This product contains a light source of energy efficiency class: G

TECHNICAL CHARACTERISTICS

Brand name : Brandt

Model reference : BKFC2070X

Energy Efficiency Index EEI: 94

Energy class : A

Energy consumption per cycle in conventional mode : 0,99 kWh/cycle

Energy consumption per cycle in forced air mode : 0,79 kWh/cycle

Number of cavity : 1

The heat source per cavity : Electric

Volume : 70 l

Sequence(s) used to obtain the results indicated on the energy label in compliance with European standard EN 60350-1: 2016 and in accordance with European Directive 2014/65/EC.

AFTER -SALES SERVICE

INTERVENTIONS

Any repairs to your appliance must be made by a qualified professional accredited to work on the brand. When calling, please provide the full references of your appliance (commercial reference, service reference, serial number), so that we can handle your call better. This information appears on the manufacturer's nameplate on the equipment.

Brandt FOUR ELECTROX / BUILT IN ELECTRIC DIVEN Service: BKFC2070X2 BKFC2070X S/N XX XX XXXXX Model: 65M90E0-E110300 220-240V- 50Hz-60Hz Max 3000W Service conso.- CS 69526 F49560 CERGY PONTOISE CEDEX Made in CHINA

NOTE:

With a view to constantly improving our products, we reserve the right to make changes to their technical, functional or aesthetic characteristics in line with technological progress.
