USER MANUAL MW-2897 TRISTAR

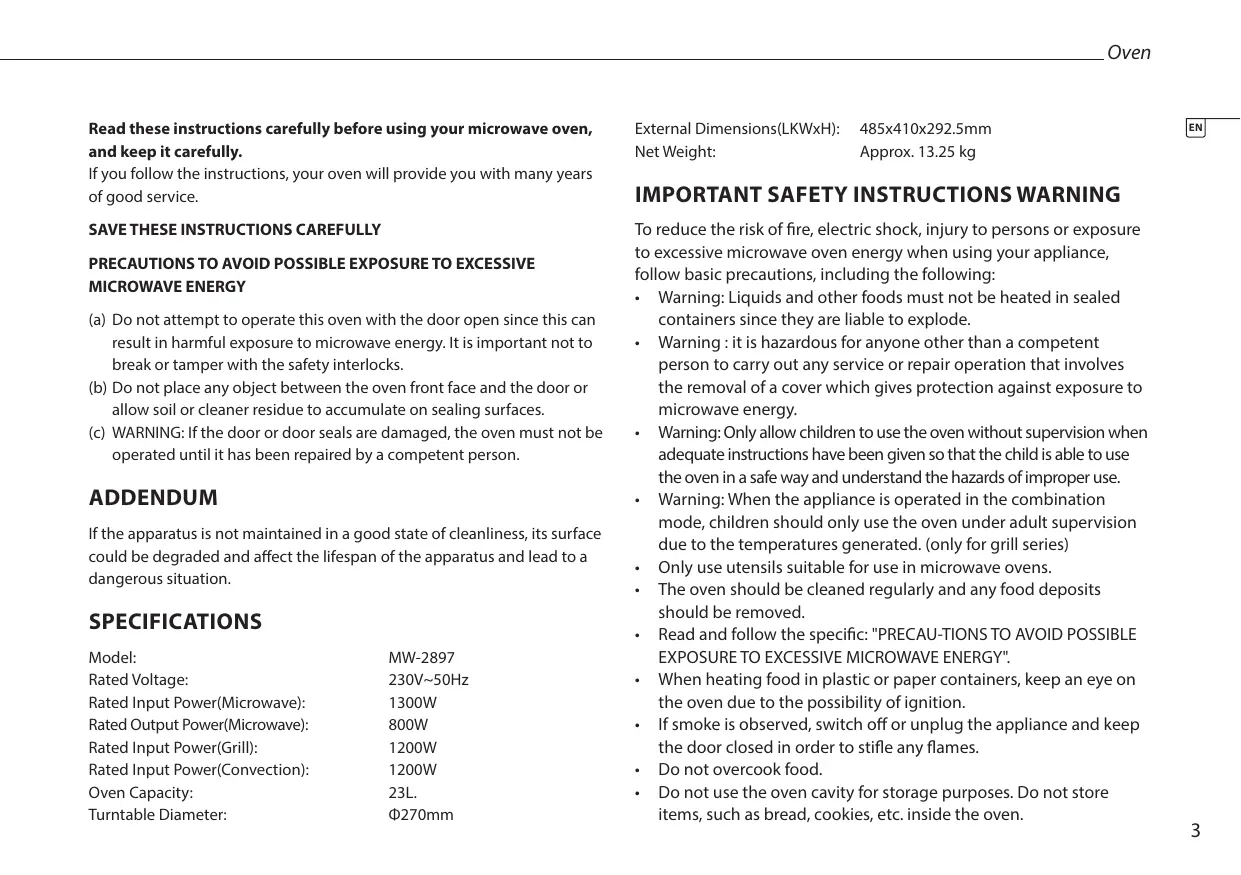

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. External Dimensions(LKWxH): Net Weight:

SAVE THESE INSTRUCTIONS CAREFULLY

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Warning : it is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
• Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food deposits should be removed.
• Read and follow the specific: "PRECAU-TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. SPECIFICATIONS Model: MW-2897 Rated Voltage: 230V~50Hz Rated Input Power(Microwave): 1300W Rated Output Power(Microwave): 800W Rated Input Power(Grill): 1200W Rated Input Power(Convection): 1200W Oven Capacity: 23L. Turntable Diameter: Ф270mm 485x410x292.5mm Approx. 13.25 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. Install or locate this oven only in accordance with the installation instructions provided. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not store or use this appliance outdoors. Do not use this oven near water, in a wet basement or near a swimming pool. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven. Do not let cord hang over edge of table or counter. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

WARNING: Ensure that the appliance is switched off before

replacing the lamp to avoid the possibility of electric shock. Accessible parts may become hot during use. Young children should be kept away. 29.Steam cleaner is not to be used. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.) The rear surface of appliance shall be placed against a wall. DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. CLEANING Be sure to unplug the appliance from the power supply.

• Clean the inside of the oven after using with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water. Microwave-grill

The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. UTENSILS CAUTION

Two-round-pin plug Personal Injury Hazard

• It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire extension cord.
• A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
• If a long cord set or extension cord is used:
• The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
• The extension cord must be a grounding-type 3-wire cord.
• The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. Utensil Test:
• Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
• Do not exceed 1 minute cooking time. Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

Instruction manual Utensils Remarks Utensils Remarks Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual

1. Control panel

2. Turntable shaft

3. Turntable ring

4. Glass tray

5. Observation

6. Door assembly

7. Safety interlock

8. Grill Rack

Turntable Installation

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable ring assembly must always be used during cooking.
• All food and containers of food are always placed on the glass tray for cooking.
• If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

INSTALLATION AND CONNECTION

Remove all packing material and accessories. Examine the oven for any damage such as dents or a broken door. Do not install if the oven is damaged. Remove any protective film, found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. Select a level surface that provide enough open space for the intake and/or outlet vents.

The rear surface of appliance shall be placed against a wall. A minimum clearance of 7.5cm is required between the oven and any adjacent walls. One side must be open. Leave a minimum clearance of 30cm above the oven. Do not remove the feet from the bottom of the oven. Blocking the intake and/or outlet openings can damage the oven. Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label. Do not install the oven over a stove or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. The accessible surface may be hot during operation. OPERATION INSTRUCTION This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. Clock Setting When the microwave oven is electrified, the oven will display "0:00", buzzer

Instruction manual will ring once.

• Press "CLOCK/KITCHEN TIMER" to choose 12-hour or 24-hour.
• Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour) or 1--12(12-hour).
• Press "CLOCK/KITCHEN TIMER", the minute figures will flash.
• Turn " " to adjust the minute figures, the input time should be within 0--59.
• Press "CLOCK/KITCHEN TIMER" to finish clock setting. ":" will flash. Note:
• If the clock is not set, it would not function when powered.
• During the process of clock setting, if you press "STOP/CLEAR ", the oven will go back to the previous status automatically. Microwave Cooking
• Press the "MICROWAVE" key once, and "P100" display.
• Press "MICROWAVE" for times or turn " " to select the microwave power from 100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order.
• Press "START/+30SEC./CONFIRM" to confirm.
• Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
• Press "START/+30SEC./CONFIRM" to start cooking. NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0--- 1 min : 5 seconds 1—5 min : 10 seconds 5---10 min : 30 seconds 10---30 min: 1 minute 30---95 min: 5 minutes Microwave Power Chart

Press Once Twice Thrice 4 times 5 times Microwave Power 100% 80% 50% 30% 10% Grill Cooking

• Press the "GRILL/COMBI" key once, and "G-1" display.
• Turn " " to select the grill power. Stop turning when "G-1" displays.
• Press "START/+30SEC./CONFIRM " to confirm.
• Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
• Press "START/+30SEC./CONFIRM" to start cooking. Note: If half the grill time passes, the oven will sound twice to tell you to turn the food over. You can just leave it continue cooking. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press "START/+30SEC./CONFIRM" to continue cooking. Combination Cooking
• Press the "GRILL/COMBI" key once, and "G-1" display.
• Press " GRILL/COMBI " for times or turn " " to select the grill power. Stop turning when "C-1","C-2","C-3" or "C-4" displays.
• Press "START/+30SEC./CONFIRM" to confirm.
• Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
• Press "START/+30SEC./CONFIRM" to start cooking. Instructions Display Microwave

Convection Cooking(With preheating funtion) The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

• Press the "CONVECTION" key once, "100" flash. Microwave-grill

Keep pressing "CONVECTION" or turn " " to select the convection function. Note: the temperature can be chosen from 100 degrees to 190 degrees.

• Press the "START/+30SEC./CONFIRM" to confirm the temperature.
• Press the "START/+30SEC./CONFIRM" to start preheating. When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash.
• Put the food into the oven and close the door.
• Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
• Press the "START/+30SEC./CONFIRM" key to start cooking. Note:
• Cooking time cannot be input until the preheating temperature arrives.
• If the temperature arrives, door must be opened to input the cooking time.
• If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states. Convection Cooking( Without pre-heating function)
• Press the "CONVECTION" key once, "100" flash.
• Keep pressing "CONVECTION" or turn " " to select the convection function. Note: the temperature can be chosen from 100 degrees to 190 degrees.
• Press the "START/+30SEC./CONFIRM" to confirm the temperature
• Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.) Kitchen Timer
• Press " CLOCK/KITCHEN TIMER " twice, LED will display 00:00.
• Turn " " to enter the correct timer. (The maximum cooking time is 95 minutes.)
• Press "START/+30SEC./CONFIRM " to confirm setting.
• When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times. If the clock has been set(24-hour system), LED will display the current time. Note: The kitchen Time is differ from 24- hour system Kitchen Timer is a timer.

• Press "W.T./Time Defrost " to choose the defrosting by weight function. "dEF1" will be displayed.
• Turn " " to input the weight."100","200","300","400","500","600","800", "1000", "1200","1400","1600","1800 and "2000" will be displayed in order.
• Press "Start/+30Sec./Confirm" to start defrosting. If "Stop/Clear" is pressed, it will go back to waiting state. At this time, press "Start/+30Sec./Confirm" again or the time for pause is more than 5 minutes, it will turn back to the waiting state. Press "Start/+30Sec./ Confirm" in 5 minutes, the unit goes on working and time counts down. When it is finished, the buzzer sounds five times and turn back to the waiting state.
• When half the defrost time pass, the buzzer will sound twice remind you to turn the food over, if no action is taken, the unit will continue working and the defrost result is not well. Defrost By time
• Press "W.T./Time Defrost" twice to choose the function of defrost by time. "dEF2" will be displayed.
• Turn " " to input the cooking time. The MAX. time is 95 minutes.
• Press "Start/+30Sec./Confirm" to start defrosting. If "Stop/Clear" is pressed, it will go back to waiting state. At this time, press "Start/+30Sec./ Confirm" again or the time for pause is more than 5 minutes, it will turn back to the waiting state. Press "Start/+30Sec./Confirm" within 5 minutes, the unit goes on working and time counts down. Auto Menu
• In waiting state, turn " " right to choose the function wanted, and "A1","A2","A3"...."A10" will be displayed.
• Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.
• Turn " " to choose the weight of menu, and "g" indicator will light.

Press "START/ +30 SEC./CONFIRM" to start cooking. Note 1: When you choose A8 cake, please do not put the cake into the oven at the beginning. The oven needs to be preheated to 160 degree first. After several minutes, the buzzer sounds twice to remind you to put the cake into the oven. After putting the cake in the oven, please press "Start/+30Sec./Confirm" again. The timer will count down, and the cake will be cooked perfectly. Note 2: During A10 Roast chicken cooking, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "START/ +30SEC./ Confirm" to continue cooking. If no operation, the oven will continue working. 1 (about 230g) 2 (about 460g) 3 (about 690g) 100%

100% Menu Weight(g) Power

1(about 240 ml) 2(about 480 ml) 3(about 720 ml) 100%

50(add cold water 450 ml) 100(add cold water 800 ml) 150(add cold water 1200 ml) 80%

Preheat at 160 degrees

C-2 C-2 C-2 Speedy Cooking

• In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
• During microwave, grill, convection and combination states, press "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. Note: this function cannot work under defrost, auto menu and multi-stage cooking. Lock-out Function for Children
• Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and " indicator will light. LED will display current time or 0:00.
• Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released, and " indicator will disappear. Microwave-grill Special Specifications
• The maximum cooking time of "Microwave", "Grill", "Defrost by time", "Convection" and "Combine" is 95 minutes.
• When the door is open, the lamp will light. If it keeps opening in 10 minutes, the lamp will be off and the display will change to waiting states .
• When open the door in waiting states or during setting process, the initial display will stay the same. It can change and set too. But the "START" key will not work.
• Close the door, the lamp will be off. The setting can be changed. And the "START" key can work too. TROUBLE SHOOTING Trouble Possible Cause Remedy Oven can not be started.

1) Power cord not

2) Fuse blowing or

circuit breaker works.

3) Trouble with outlet.

4) Door not closed

well. Close door well. Glass turntable makes noise when microwave oven operates (5) Dirty roller rest and oven bottom. Refer to "Maintenance of Microwave" to clean dirty parts.

• Unplug. Then plug again after 10 seconds.
• Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
• Test outlet with other electrical appliances. Normal Microwave oven interfering TV reception Radio and TV reception may be iterfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Dim oven light In low power microwave cooking, oven light may become dim. It is normal. Steam accumulating on door, hot air out of vents In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal. Oven started accidentally with no food in. It is forbidden to run the unit without any food inside. It is very dangerous.

Gebruiksaanwijzing splijten of breken

Gebruiksaanwijzing 1 (ongeveer 230 gram) 2 (ongeveer 460 gram) 3 (ongeveer 690 gram) 100%

100% Menu Weight(g) Power

1(ongeveer 240 ml) 2(ongeveer 480 ml) 3(ongeveer 720 ml) 100%

Microwave Power Chart Prima 1 vez 2 vezes 3 vezes 4 vezes 5 vezes A10 Frango Assado

C-2 C-2 C-2 1(about 240 ml) 2(about 480 ml) 3(about 720 ml) 100%
