USER MANUAL CL-E300 CITIZEN

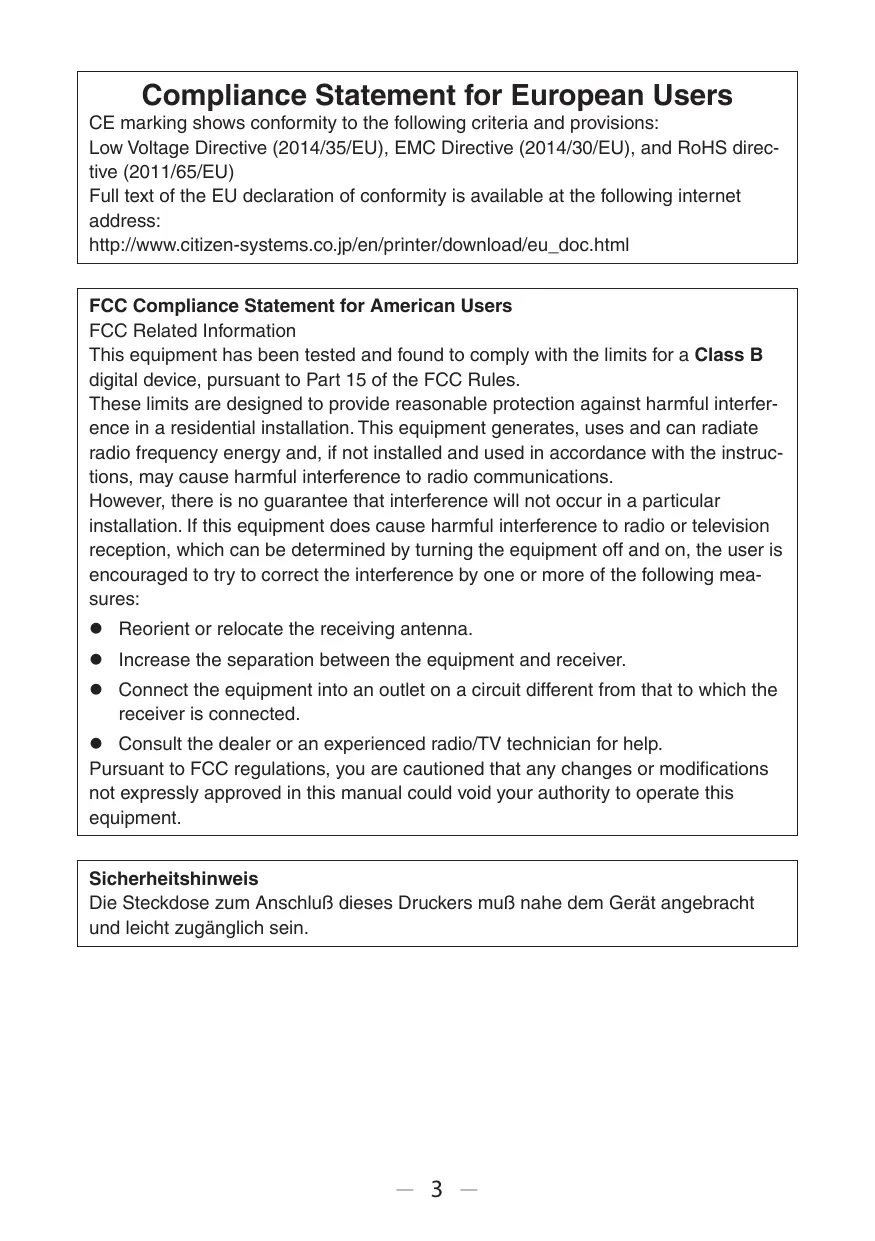

Compliance Statement for European Users CE marking shows conformity to the following criteria and provisions: Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), and RoHS directive (2011/65/EU) Full text of the EU declaration of conformity is available at the following internet address: http://www.citizen-systems.co.jp/en/printer/download/eu_doc.html FCC Compliance Statement for American Users FCC Related Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Sicherheitshinweis Die Steckdose zum Anschluß dieses Druckers muß nahe dem Gerät angebracht und leicht zugänglich sein.

GENERAL PRECAUTIONS Before using this product, be sure to read through this manual. After having read this manual, keep it in a safe, readily accessible place for future reference. The information contained herein is subject to change without prior notice. Reproduction or transfer of part or all of this document in any means is prohibited without permission from Citizen Systems. Note that Citizen Systems is not responsible for any operation results regardless of omissions, errors, or misprints in this manual. Note that Citizen Systems is not responsible for any trouble caused as a result of using options or consumables that are not specified in this manual. Except explained elsewhere in this manual, do not attempt to service, disassemble, or repair this product. Citizen Systems Japan Co., Ltd. shall not be liable for damages caused by improper or incorrect usage or by the usage environment. Data is basically for temporary use and not stored for an extended period of time or permanently. Please note that Citizen Systems is not responsible for damage or lost profit resulting from the loss of data caused by accidents, repairs, tests or other occurrences. If you find omissions, errors, or have questions, please contact your Citizen Systems dealer. NOTICE IN NO EVENT SHALL CITIZEN (INCLUDING ANY OF ITS PARENT, SUBSIDIARY OR AFFILIATED COMPANIES) BE LIABLE TO PURCHASER OR OTHERS FOR ANY COLLATERAL, CONSEQUENTIAL, INDIRECT, INCIDENTAL, GENERAL OR EXEMPLARY DAMAGES, INCLUDING WITHOUT LIMITATION ANY DAMAGES INCURRED AS OR IN CONNECTION WITH ANY LOSS OF USE, DATA, REVENUES OR PROFITS, ARISING OUT OF OR CONNECTED IN ANY WAY WITH THE PURCHASE OR USE OF ITS PRINTER PRODUCTS (INCLUDING PARTS, SUPPLIES, SOFTWARE, FIRMWARE, OR OTHER ITEMS OR SERVICES SOLD OR LICENSED BY IT), HOWSOEVER ARISING AND REGARDLESS OF THE FORM OF ACTION (INCLUDING NEGLIGENCE) AND WHETHER CITIZEN HAS BEEN INFORMED OF THE POSSIBILITY THEREOF. WARRANTY: TERMS AND CONDITIONS OF ANY WARRANTY APPLICABLE TO THIS AND OTHER CITIZEN PRODUCTS, TOGETHER WITH OTHER USEFUL INFORMATION ABOUT CITIZEN PRODUCTS AND SERVICES, CAN BE FOUND AT THE CITIZEN (U.S./CSA) WEBSITE: https://www.citizen-systems.com/us/ THE WARRANTY, IF ANY, APPLICABLE TO ANY CITIZEN PRODUCT AND SERVICE SHALL BE THAT OF THE APPLICABLE CITIZEN SELLING ENTITY, IN EFFECT ON THE DATE OF PRODUCT OR SERVICE PURCHASE.

Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance. CITIZEN is a registered trademark of Citizen Watch Co., Ltd. QR Code is a registered trademark of DENSO WAVE INCORPORATED. Ethernet is a registered trademark of Fuji Xerox Corporation. Bluetooth® is a registered trademark of Bluetooth-SIG Inc. Android is registered trademarks of Google Inc, in the United States and/or other countries. Datamax® is a registered trademark of Honeywell International Inc. Maxi Code is a registered trademark of UPS. Zebra®, Eltron®, ZPL2™, and EPL2™ are registered trademarks of ZIH Corp., USA PDF417 is a trademark or registered trademark of Motorola, Inc. in the U.S. and other countries. TrueType™ is a trademark of Apple Inc. All other trademarks are the property of their respective owners. Citizen Systems use these trademarks in accordance with the license of relevant owners. Copyright© CITIZEN SYSTEMS JAPAN CO., LTD. 2020

OBSERVED Before using this product for the first time, carefully read these SAFETY PRECAUTIONS. Improper handling may result in accidents (fire, electric shock or injury). In order to prevent injury to operators, third parties, or damage to property, special warning symbols are used in the User’s Manual to indicate important items to be strictly observed. After having read this Manual, keep it in a safe, readily accessible place for future reference. Some of the descriptions contained in this manual may not be relevant to some printer models. The following describes the degree of hazard and damage that could occur if the printer is improperly operated by ignoring the instructions indicated by the warning symbols. Be sure to read this information carefully. WARNING Neglecting precautions indicated by this symbol may result in fatal or serious injury. CAUTION Neglecting precautions indicated by this symbol may result in injury or damage to property. This symbol is used to alert your attention to important items.

Warnings WARNING Do not perform any of the following actions as they may result in damage or malfunction of the device, overheating, the generation of smoke, fire, or electric shock. If the device is damaged or defective, turn off the power, disconnect the power plug from the electrical outlet, and contact your retailer. Ÿ Do not step on, drop, hit, or otherwise subject the device to significant force or impact. Ÿ Do not use the device in environments of poor ventilation or in a manner that blocks device vents. Ÿ Do not use the device in environments, such as laboratories, where chemical reactions occur or environments exposed to air that contains salt or toxic gases. Ÿ Use the device in environments at specified power supply voltage and frequency (100 to 240 V and 50/60 Hz). Ÿ Do not connect or disconnect the power cord or an interface cable by holding the cable itself. Do not pull or carry the device while cables are under load. Ÿ Do not drop or insert small objects such as clips or push-pins into the device. Ÿ Do not connect too many power cords to a single electrical outlet. Ÿ Do not spill tea, coffee, juice, or other beverages onto the device. Do not subject the device to insecticides. If liquid is spilled onto the device, turn off the power, disconnect the power plug from the electrical outlet, and contact your retailer. Ÿ Do not disassemble or modify the device. Ÿ Do not use non-specified AC adapters. Ÿ Use only the included power cord. Do not use the included power cord with other devices. Ÿ Do not use deformed or damaged power cords. Ÿ Do not unnecessary process power cords. Exposed wire due to damaged power cords or melted sheaths may cause current leakage, malfunction, or electric shock. Contact your retailer if the power cord becomes damaged. Ÿ Do not place objects around the power plug.

CAUTION Caution label is attached in the position shown in the following figure. Carefully read the handling precautions before using the printer. These labels indicate that the head becomes hot, so touching it may cause burns, and touching the auto cutter and manual cutter when opening the paper cover may cause cuts on hands.

Ÿ Do not touch the area around the thermal head during or right after the printing process. This area will be hot and may cause burns. Ÿ Do not drop or insert small objects such as clips or pins into the printer. Doing so may result in failure. Ÿ Exercise caution when carrying or transporting the device. Dropping the device may damage other objects or cause injury. Ÿ Make sure to open the printer cover fully when it needs to be opened. Failure to do so may result in the printer closing unexpectedly, which may cause injury. Ÿ Exercise caution when the printer cover is open. Contact with edges may result in injury. Ÿ Do not open the printer cover while the printer is printing. Ÿ Do not use thinner, trichlene, benzene, ketone-based solvents, or cleaning cloths with chemicals to clean the case surface. Ÿ Do not use the device in environments exposed to significant levels of oil, metal shavings, waste, and dust. Ÿ Do not spill liquids onto the device or expose the device to spray chemicals. Ÿ Do not step on, drop, hit, or otherwise subject the device to significant force or impact. Ÿ Make sure to use the control panel correctly. Pressing buttons randomly may cause malfunction and even failure. Do not use sharp objects including tips of pens to operate the control panel. Ÿ If some abnormality occurs during use, immediately stop using the device and disconnect the power plug from the electrical outlet. Ÿ Do not disassemble the device for repairs in case of failure. Always contact the dealer for repairs. Ÿ The auto cutter has internal blades near the media discharge port. Never insert hands inside the media discharge port whether the printer is operating or not. Ÿ There is a risk of the thermal head being damaged by static electricity. Take measures to prevent the charging of static electricity in advance, and do not directly touch the thermal head heating element and connector terminal parts when handling the printer. Ÿ Clean the platen regularly because printing or cutting at the correct position may become impossible if it is dirty.

CAUTION Ÿ Do not use or store the device in environments exposed to excessive heat, moisture, direct sunlight, near heaters, extremely high or low altitudes, excessive humidity, or excessive dust. Ÿ Do not use the device in environments, such as laboratories, where chemical reactions occur. Ÿ Do not use the device in environments exposed to air that contains salt or toxic gases. Ÿ Place printers on level, stable surfaces in environments with good ventilation. (Do not place the printer such that the vents are against walls.) Ÿ Do not place objects on top of the device. Ÿ Using the device near radios or televisions or plugging the power cord into the same electrical outlet as used by such devices may cause reception interference. Ÿ Use the device in environments at specified power supply voltage and frequency. Ÿ Use only the included power cord. Do not use the included power cord with other devices. Ÿ Do not place objects or step on power cords. Ÿ Do not pull or attempt to carry the device by the power cord or an interface cable. Ÿ Do not connect too many power cords to a single electrical outlet. Ÿ Do not bundle the power cord. Ÿ Hold the power cord by the power plug to connect and disconnect to/from electrical outlets. Ÿ Ensure connectors are properly connected. In particular, reversing the polarity may damage internal parts. Ÿ Turn the power switch off before connecting or disconnecting interface cables. Ÿ Do not run long signal lines or make connections with noisy devices to the extent possible. If necessary, use shielded twisted pair cables for signal lines and take any other necessary steps to ensure signal integrity. Ÿ Place the device near an electrical outlet and ensure that the power plug can be unplugged easily so that the power to the device can be cut quickly if necessary. Ÿ Use electrical outlets with ground terminal screws. Using electrical outlets without ground terminals may result in injury due to static electricity. Ÿ Do not install the printer in a location where there is vibration or in an unstable location.

4. Configuring Printer Settings Using the Specialized Utility.......63

Thank you for purchasing the Citizen Systems Line Thermal Printer CL-E300 / CL-E303 / CL-E300EX / CL-E303EX. This printer is a line direct thermal printer developed for labels, tags, tickets, and many other applications.

< Compact and Stylish Design > Boasting the smallest footprint in the industry, this printer was designed to be compact to free users from placement restrictions. The stylish design enables the device to be used in different environments. Exterior color options include black and pure white. < High-speed, High-quality Printing > This printer utilizes the direct thermal method and a thermal print head and includes a 32-bit RISC CPU with a maximum operating frequency of 216 MHz and thermal history control to provide high-speed, high-quality performance up to 8 IPS with the CL-E300/CL-E300EX model and up to 6 IPS with the CL-E303/ CL-E303EX model. < Adjustable Sensors Provided as Standard > Adjustable media/black line sensors are provided as standard so that the detection position can be adjustable horizontally. This enables sensors to be placed at detection positions suitable for different types of media. < Interface > Standard interfaces include a 9-pin, DSUB RS-232C interface, full-speed USB

2.0 port, and an Ethernet port that supports 10BASE-T and 100BASE-TX . These

interfaces enable high-speed connections to many peripheral devices (CL-E300/ CL-E303). Support is available for RS-232C, Bluetooth, wired LAN, wireless LAN (2G/5G), and wired/wireless LAN interface with USB host thanks to an interchangeable interface board (CL-E300EX/CL-E303EX). XML print functions are provided for the wired/wireless LAN interface (CL-E300EX/ CL-E303EX).

< Excellent Usability > Manual media cutters are installed at the top and bottom of the media discharge port to cut media after being printed for better usability in many different environments. The operation panel has been designed to have a different color than the main exterior color for better visibility and stress-free operation. Thermal heads and platen rollers can be easily replaced without the use of tools. < Easy to Use > Use the LabelPrinterUtility developed by Citizen to configure printer settings from a host computer. The built-in LinkServer™ printer tool can be used over wired LAN or USB connections (Android device) to change settings and perform other operations (CL-E300/ CL-E303). Printer includes functionality to enable users to quickly adjust head balance. < Models with cutter, models with peeler and models with AC adapter storage case are available > Models equipped with an auto cutter and models equipped with a peeler are also available. The auto cutter models that are available include the integrated fixed blade/adjustable blade model*1 and the interchangeable fixed blade/adjustable blade model*2. Models that allow you to store the AC adapter at the bottom of the printer are also available. *¹ Standard cutter capable of cutting paper up to 0.19 mm thick. *² Economy cutter capable of cutting paper up to 0.15 mm thick.

Make sure the following items are included with your printer. NAME Printer Exterior appearance Standard model and optional interface model Model with AC adapter storage case Integrated cutter model Separable cutter model Peeler model AC adapter

• All models except models with an AC adapter storage case

Model numbers indicate printer features according to the following system. CL - E300 X E B N N A

CL-E300/CL-E303 N: USB port, wired LAN, and serial port CL-E300EX/CL-E303EX RS: Serial RS-232C BT: Bluetooth ET: Wired LAN HET: Wired LAN + USB host WX2/WX5: Wireless LAN (2.4G/5G) HWX5: Wireless LAN + USB host NN: USB

N: None BC: Integrated cutter PC: Separable cutter PE: Peeler

7. AC adapter storage case

A: Not available S: Available Certain combinations may not be available. Please contact us for inquiries on desired configurations.

2. Part Names and Function

2.1 Front of Printer

Standard model and optional interface model

Model with AC adapter storage case

• The figure illustrates the standard model with AC adapter case.

Integrated cutter model

Separable cutter model

Enables users to check the media level.

Opens upward so users can replace or set media.

Includes 2 LEDs and 1 key. Enables users to perform different printer operations and check printer status. Refer to 2.2 Operation panel

4. Cover release buttons

The cover is opened by pressing the buttons on both the right and left sides.

The operation panel includes 2 LEDs and 1 key.

Turns on when the power is turned on and turns off when the power is turned off.

Turns on or flashes in green, red, and amber depending on the printer status. Color Green Amber Red, green, amber

Lights/ flashes Flashes Flashes Off Status Printer is online Receiving data Startup Error or alarm Paused

2.3 FEED Key Operation Depending on Printer

Status Startup Turning on the power to the printer while pressing and holding the FEED key with the cover closed changes starts the printer in the special function mode. Refer to 7. Configuring the Printer Using the Operation Panel Online state (status LED is solid green) (1) Press the FEED key while the printer is not receiving data to feed media. Ÿ If label media is specified, the printer automatically stops after detecting the beginning of media. If continuous media is specified, the printer stops after a certain amount of feed operation. Ÿ If Tear off mode is selected in the Function Select setting, the printer feeds media to the tear-off position. Ÿ For models with a cutter, the printer will feed media to the cut position and then cut the media. (2) Press and hold the FEED key for at least 3 seconds while the printer is not receiving data to change the operation mode to the online configuration mode. Refer to 8. Online Configuration Mode (3) Continue to press and hold the FEED key for about another 5 seconds without releasing it so that the buzzer emits 4 tones and the cut operation is performed once. This function is enabled for only the integrated cutter. Printing (status LED is solid or flashing in green) Press the FEED key while the printer is printing or receiving data to pause the printer.

The status LED turns off, and the printer pauses.

If the FEED key is pressed while the printer is printing, the printer will finish printing the current label and then stop. Press the FEED key again to resume printing operation for the remaining labels in the print job. Paused (status LED is off) Press and hold the FEED key to change to the clear job mode. Refer to 9. Clearing Jobs Stored in the Printer Error/alarm has occurred (status LED flashes in red, green, or amber) Press the FEED key to clear the error or alarm.

Model with AC adapter storage case

1. External media feed port

This port is used to feed media into the printer.

Turns the printer power supply on and off.

Connects to the included AC adapter.

This button prints and initializes network settings.

9. USB power supply connector

Supplies power to USB devices. 10.Interface connector (Wired LAN, etc.) Connect to the interface cable. CAUTION Do not connect a USB cable to the Ethernet interface. Doing so may damage connectors/interfaces.

2.5 Inside of Printer

Integrated cutter model Separable cutter model

Prints characters and graphic data on paper (paper rolls).

This sensor detects the media position.

When using roll media, absorbs tension generated by media feed operations to prevent print errors.

This sensor detects the media position. Devices are equipped with lock mechanisms.

3.1 Printing Preparation Process

The printer must be set up according to the following process before printing can be performed. Refer to the description of each section for detailed information on each step of the process.

Unpack and check the package contents

Physical installation

Connecting the AC Adapter

Connecting the Printer to a Host Computer

Operation Check Refer to 1.2 Unpacking Refer to 3.2 Loading Paper Refer to 3.3 Adjusting Media Sensor Positions Refer to 3.4 Connecting the AC Adapter Refer to 3.5 Connecting the Printer to a Host Computer Refer to 7.2 Test print mode

Installing the Printer Driver onto the Host Computer

Installing the Configuration Application onto the Host Computer Refer to 3.8 Install the Printer Driver Refer to 4.2 Obtaining the LabelPrinterUtility

Perform a test print from the printer driver installed on the host computer.

Loading roll media (Standard model and cutter model)

Press the cover release buttons on both the right and left sides to open the top cover. CAUTION Note the following precautions when the top cover is open. Ÿ Do not touch the thermal head. Ÿ Do not touch the cutter blades.

Insert the media shaft through the core of the media roll and then install the media shaft guide. Ÿ The media shaft is designed to accommodate both 1-inch and 1.5-inch media roll cores by flipping it upside down. The media shaft has markings indicating which side supports the different core sizes. Select the media shaft orientation in accordance with the size of the media roll core. 1’ CORE 1.5’ CORE CAUTION Ÿ Use media rolls that have the print surface on the outer side. Do not use media rolls that have the print surface on the inner side. Labels may peel when such media roll is back-fed. Ÿ If the media shaft is not installed correctly, the top cover or bottom of the printer will prevent media from feeding properly and cause paper jams.

Set the media so that the media shaft guide is on the right side of the media when looking at the front of the printer.

Press the media shaft guide onto the media roll so that the center of the media aligns with the center of the media shaft and then set the media into the printer.

1. Assemble the media shaft and media shaft guide.

2. Insert the media shaft through the core of the media roll and then set the assembly into

3. Set the media in the printer and slide the media to the left from the perspective of looking

at the front of the printer. Insert the media shaft guide into the paper at this position. CAUTION Too much abutment force by media shaft guide may cause improper feeding of media, which may negatively impact print quality.

If using an integrated cutter model, insert the media through the cutter slit. Media insertion slot Media CAUTION Insert media into the slit correctly. Failure to do so may result in improper feeding of media, which may cause paper jams.

Make sure the media is in abutment with the left media guide and then adjust the position of the right media guide in accordance with the media width. From the front of the printer, set in front of the edge of media by approximately 10 mm. CAUTION Too much abutment force of the right movable paper guide may cause improper feeding of media, which may negatively impact print quality.

Slide the head balance adjustment slider located near the thermal head along the media size scale (inch) so that the position of the notch in the slider matches the media width. media size scale Thermal printhead Head balance adjustment slider

4” 4.65” CAUTION Adjust the head pressure horizontal balance carefully so as not to damage the thermal head. Damaged thermal heads will result in poor printing, paper jams, and malfunction.

Close the top cover. CAUTION Press the push marks on left and right sides at the top of the top cover and ensure that the top cover hooks on each side lock securely. If the top cover is not securely locked, this may cause print errors, paper jams, and malfunction.

Check whether the print mode is set to peeling mode. Check whether the value of “Function Select” in the “After Print Setup” menu is set to “Peel”. Refer to 4.1 List of Settings CAUTION The peeler model can only be used in the peeling mode.

Perform the operations of procedure 1 to procedure 4 in section “3.2 Loading Paper”.

Peel the label from the backing paper. Make sure that the area with the backing paper only is at least 20 cm from the end of the backing paper (illustration A). Refer to 3.2 Loading Paper

Grip the opening handles with both hands, and gently pull forward. Media hold-down bar Opening handle Opening handle Peeler cover CAUTION If the media hold-down bar is held down with a finger and the peeler cover is opened, there is a possibility of damage to the media hold-down bar. Do not apply a strong downward force to the peeler cover while it is open. Doing so may damage the peeler.

When the peeler cover is open, pass the backing paper between the peeling plate and the peeler roller. Peeling plate Peeler roller Peeling plate Platen

Pull down the backing paper further, so that it extends at least 7 cm from the peeler cover (illustration A).

Make sure the media is in abutment with the left media guide and then adjust the position of the right media guide in accordance with the media width.

Slide the head balance adjustment slider located near the thermal head along the media size scale (inch) so that the position of the notch in the slider matches the media width. media size scale Thermal printhead Head balance adjustment slider

4” 4.65” CAUTION Adjust the head pressure horizontal balance carefully so as not to damage the thermal head. Damaged thermal heads will result in poor printing, paper jams, and malfunction.

Close the top cover. CAUTION Press the push marks on left and right sides at the top of the top cover and ensure that the top cover hooks on each side lock securely. If the top cover is not securely locked, this may cause print errors, paper jams, and malfunction.

10. Pull the backing paper extending from the peeler cover downwards, and eliminate the

Turn on the power to the printer, and press the FEED key on the operation panel. Feed the media and check that it stops at the position where one label has been peeled. CAUTION If the peeled label has not stopped at an appropriate position, due to differences in media types, media width, etc., adjust the MACHINE PEEL POSITION using the label printer utility extension function. Refer to 4.2 Obtaining the LabelPrinterUtility

CAUTION Do not apply a strong downward force to the peeler cover while it is open. Doing so may damage the peeler. If the peeling sensor is exposed to strong light such as direct sunlight, the peeling sensor may malfunction and the peeler may not operate correctly. If the media does not peel normally and becomes wound around the peeler roller or the platen, or if there is a paper jam, open the peeler cover and remove the media. If the media, etc., within the peeler cannot be removed, do not apply unreasonable force, but contact your retailer or representative office. When label media or backing paper is wound around the peeler roller, the peeler does not operate normally. Only use the peeler after eliminating the blockage. Allow the backing paper after peeling to hang in a vertical direction of the printer installation surface. Also, when a large quantity of the backing paper after peeling has accumulated, the backing paper does not hang vertically, and the backing paper may become entangled in feet causing the printer to fall or an injury. It is recommended that the backing paper be disposed of before it has accumulated in a large quantity. If the peeled label media is removed by peeling in the parallel or downward direction, deviation of the media may occur. Be sure to peel away from the backing paper in the upward direction. If the peeler cover is left closed for a long period of time, the components around the platen may become deformed. During transport, keep the peeler cover open. External media feed cannot be used. Set label media with a roll outer diameter of φ127 or less in the printer for use. If the media width changes after long-term use, there is a possibility that printing or feeding will be affected, depending on the state of wear of the platen and the peeler roller. If it is not possible to clean the platen and peeler roller or to improve the adjustment of the head balance and the media guide, it is recommended that the thermal head or the platen be replaced. It is recommended that the platen be replaced after 5 to 10 km (50,000 to 100,000 labels of length 10 cm), because the printing quality is affected. If dust or dirt is adhering to the peeling sensor, the peeling sensor may not operate correctly, so it should be periodically cleaned. If label media adhesive or paper dust are deposited on the platen, the peeler roller or the media hold-down bar, deviation of the peeling position or peeling defects may occur, so it is recommended that they be cleaned when replacing the media. Refer to 11. Maintenance

Press the cover release buttons on both the right and left sides to open the top cover.

Insert the fanfold media through from the external media feed port at the back of the printer. CAUTION Note the following precautions when the top cover is open. Ÿ Do not touch the thermal head. Ÿ Do not touch the cutter blades.

Leaving the specified gap from the printer, place the fanfold paper so that it is at the same height as the printer and becomes parallel with the printer as shown in the figures below. 150 mm Label length + 50 mm or more Place the fanfold media so that it is parallel with the printer.

Insert the fanfold media through below the media shaft and set the media shaft guide by aligning it with the media width.

If using an integrated cutter model, insert the media through the cutter slit. Media insertion slot Media CAUTION Insert media into the slit correctly. Failure to do so may result in improper feeding of media, which may cause paper jams.

Make sure the media is in abutment with the left media guide and then adjust the position of the right media guide in accordance with the media width. From the front of the printer, set in front of the edge of media by approximately 10 mm. CAUTION Too much abutment force of the right movable paper guide may cause improper feeding of media, which may negatively impact print quality.

Slide the head balance adjustment slider located near the thermal head along the media size scale (inch) so that the position of the notch in the slider matches the media width. media size scale Thermal printhead Head balance adjustment slider

4” 4.65” CAUTION Adjust the head pressure horizontal balance carefully so as not to damage the thermal head. Damaged thermal heads will result in poor printing, paper jams, and malfunction.

Close the top cover. CAUTION Press the push marks on left and right sides at the top of the top cover and ensure that the top cover hooks on each side lock securely. If the top cover is not securely locked, this may cause print errors, paper jams, and malfunction.

Cut position of media with a perforated line For models with cutters When cutting media with perforated lines with the auto cutter, adjust the media stop position so that the media is cut at a position after a perforated line. When making the adjustment, set the vertical printing position to a value larger than the media stop position. Otherwise, the media may come off the platen during back feeding. Adjust each setting using the printer driver or LabelPrinterUtility. Paper feed direction Perforated line Cut position For standard models When tearing manually, the media can be torn at the position of the perforated line. When adjusting the paper stop position, set the vertical printing position to a value larger than the media stop position. Otherwise, the media may come off the platen during back feeding. Adjust each setting using the printer driver or LabelPrinterUtility.

Compatible Paper Types CAUTION Do not directly cut the label part in cutter models. Doing so may cause the label media adhesive to accumulate on cutter blades, which could result in failure. Refer to the following specification table for information on the types of media compatible with this printer. Continuous media Label Notch detection Black mark detection

Label media Use of transport sensor Use of reflective sensor Direction of media feed

Use the transmissive sensor when using media that has both gaps between labels and black lines.

Cutting at perforated lines is not recommended because an extremely large amount of paper dust and paper scraps will be generated. Furthermore, cleaning the platen at the start of use is recommended.

If the label pitch is 1 inch or less, configure an accurate label pitch with the [Small Media Adjustment] setting.

Use carbon-based ink with an OD value of at least 1.5 to print black lines.

The stop position and cut position may change depending on the width or type of media that is used. Adjust these positions using the Paper Position setting.

This section describes the procedure to adjust sensors when loading media. Transmissive and reflective sensors can be used for the media sensors. The printer comes from the factory equipped with a transmissive sensor. The media sensor must be replaced with a reflective sensor for certain types of media. Refer to 7.1 Sensor Adjustment Mode Range of Paper Sensor Adjustment The following figure illustrates the range of media sensor adjustment. Left fixed media guide 118 mm (Max. media width) (Moval scope of transport sensor)

(Moval scope of reflective sensor)

Dimension of media feed

Transmissive Sensor Adjustment

Adjust the position of the bottom sensor and upper sensor in accordance with the media width. Move the bottom sensor and upper sensor by the same number of steps from the position of the triangle (). Upper sensor Thermal head Bottom sensor Bottom sensor lock Platen roller variable range variable range The range of bottom sensor and upper sensor horizontal adjustment is 10 steps between the triangle marks (). Use a pen or other object with a narrow tip to unlock the bottom sensor and then reposition it. Lock the sensor in place once the new position has been determined. CAUTION The bottom sensor and upper sensor must be in alignment with each other. Attempting to move the sensor while still locked may damage it. Reflective Sensor Adjustment

Set the bottom sensor at a position so that the center of the sensor window is in alignment with the center of the black line. Media (Face side) Black mark (Reverse side) CAUTION Do not install the upper sensor directly above the bottom sensor. Normal operation may not be possible.

3.4 Connecting the AC Adapter

CAUTION Ÿ Use the dedicated AC adapter designed for this device. Ÿ Make sure the power switch on the printer is turned off before connecting the AC adapter. Ÿ Insert the AC adapter connector completely into the DC jack.

Insert the DC plug on the output side of the AC adapter into the DC jack in the printer.

Insert the plug of the AC cord into an electrical outlet. Standard model AC Adapter

For a model with an AC adapter storage case

Insert the plug of the AC cord into the AC port.

3.5 Connecting the Printer to a Host Computer

Use the following procedure to connect this printer to a host computer. CAUTION Interface cables are required to connect the printer to a host computer. Do not connect a USB cable to the wired LAN interface. Doing so may damage connectors. When using an expansion interface, do not use two or more interfaces at the same time (the printer gives priority to USB on the main unite side).

Turn off the power to the printer and host computer.

Insert the cable into the appropriate interface port at the back of the printer. Tighten any locking screws to secure the cable. CL-E300/CL-E303 Serial cable USB cable LAN cable CL-E300EX/CL-E303EX USB cable (Type-B)

LAN cable Serial cable Insert the other end of the cable into the appropriate interface port in the host computer. Tighten any locking screws to secure the cable. Using an Ethernet connection Configure network settings as necessary. Refer to 5. Configuring the Wired LAN Network Settings Using the Utility Software Refer to 5.2 NetToolK

3.6 Connecting with a Peripheral Device

Connect a peripheral device as described in the following procedure. For details on this board, including explanations about the USB host function and XML peripheral device support, refer to the separate manual.

Connect the cable of a peripheral device to this port. USB cable (Type-A) CAUTION A peripheral device cannot be controlled if it is connected to the USB power supply port. Be sure to connect it to the USB port of the interface board.

3.7 USB Power Supply Port

Power (max. 2.1 A) can be supplied to a mobile device or other USB device by connecting the cable of the USB device to the power supply port. Connecting Mobile Device or Other Device

Connect the cable of a mobile device or other device to the USB power supply port. CAUTION This port does not support USB data communication. Power may not be able to be supplied depending on the USB device to be used. In this case, use the device’s dedicated AC adapter or battery charger. A USB cable for power supply is not included with this product. Use a commercially available USB cable or the one that comes with the USB device.

Install the printer driver onto the host computer. Printer drivers are available for download from the Citizen Systems support website. The latest documentation, drivers, utilities, and other support information are also available from this website. https://www.citizen-systems.co.jp/en/printer/download Once a printer driver has been downloaded, follow the on-screen instructions to install the driver.

the Specialized Utility Use the LabelPrinterUtility configuration application to change printer settings. Refer to the following sections for more information on obtaining and using LabelPrinterUtility. Refer to 4.2 Obtaining the LabelPrinterUtility Refer to 4.3 Using the LabelPrinterUtility

4.1 List of Settings

This section describes the procedures to configure printer settings using the LabelPrinterUtility. For details on changing various settings of a wired/wireless LAN expansion interface board, refer to the following explanation. Refer to 5.2 NetToolK The following table lists the settings configurable with “LabelPrinterUtility”. Home menu Page Setup - 1 Sub menu Print Speed Default 6 IPS Print Darkness 10 Darkness Adjust 00 Continuous Media Length

-1.00 to 1.00 inch -25.4 to 25.4 mm -1.00 to 1.00 inch -25.4 to 25.4 mm

Notes Sets the print speed

• In the peeler model, even when this is set to 5 IPS or higher, the setting is 4 IPS. Adjusts the print density Fine adjustment of the density command Sets the length of continuous media The lower row shows millimeter values when using the printer in mm mode Adjusts the printing start position Adjusts the horizontal image position Home menu Page Setup - 2 Sub menu Vertical Image Configurable range Notes

-120 to 120 dots 0 to 15 dots

Shifts the horizontal print position by the specified number of dots for each sheet/label. This is useful when significant load is placed on the portion of the thermal head, such as when printing vertical borders. Selects the type of label sensor type Setting for small label support Sets the length for small label media Sets the character set Home menu System Setup Sub menu Default Sensor Level

Paper End Level 3.00 V Error Reporting On Printing Buzzer Select Exec/Err Metric/Inch Inch Max Media Length

Notes Sets the sensor threshold Sets the paper end level Error reporting setting Sets the conditions at which the buzzer is triggered Sets the unit of measure Sets the maximum length of label media Prevents changes via setting commands Prevents changes via key operation Changes the command mode for DMX mode (only when Datamax® emulation is selected) Sets the media length measuring function when the power is turned on (only when Zebra® emulation mode is selected on international models) Prevents changes via CI commands (only when Zebra® emulation mode is selected on international models) Datamax®/Zebra® compatibility selection DM4 Datamax® 400 DMI Datamax® IClassTM DPP Datamax® Prodigy Plus® ZPI2 Zebra® ZPL2TM EPI2 Zebra® EPL2TM Sets the emulation sensing function (international models only) Home menu After Print - 1 Sub menu AutoConfigure

Default Function Select Tear Cutter Action *Only valid for models with cutters Backfeed Configurable range Notes Enables/disables the auto configuOff ration of optional equipment. On Enables auto configuration (automatically sets each mode when equipped with a cutter or peeler, regardless of the Function Select setting) Off - Disables auto configuration. Turn this setting Off and select operation with Function Select when you do not want to use the cutter if installed.

• In the peeler model, print modes other than the peeling mode cannot be used, so the AutoConfigure must be On. Off Selects the operation mode when Tear AutoConfigure is Off. Each opCut On tion has a specified media stop (only valid for models position. Enables operation of the with cutters) applicable device when selected. Peel (enabled only for the peeler model) Backfeed Cutter action setting Through Prints only when AutoConfigure for a model with a cutter is On or when [Backfeed] is selected for the Function Select setting. The [Backfeed] option performs a back-feed after each cut operation. The [Through] option continues the print operation at the trailing edge of each sheet/label from the first sheet/label to the n-1 sheet/label when the number of copies is set to n. A back-feed operation is then performed at the trailing edge of the last sheet/label or when printing a single sheet/label.

Cut/Tear/Peel -1.00 to 1.00 inch -25.4 to 25.4 mm Repeat Last Set Repeat Last One Feeds Media

Notes Adjusts the stop position. This setting is dependent on the Metric/Inch setting. Each device has an initial stop position as configured with the settings previously described. This setting sets a relative value from these other settings. Changes the operation of the FEED key Repeat Last Set Reprints a set of labels. This setting is ignored when Zebra®* emulation mode is selected. Repeat Last One Reprints the last page only. Prints only 1 sheet/label from the current number when using counts. Feeds Media Functions as the FEED key. Disables reprinting. Home menu Interface - 1

None Odd Even 8 bits 7 bits Notes Sets the baud rate of the serial interface 1 bit 1 bit 2 bits Sets the stop bits for the serial interface Yes Yes Printer VCOM Auto DTR X-ON

Off Any length from 0 to 31 characters long using single-byte letters (uppercase and lowercase), numbers, and symbols 1024 - 65535

Sets the communication parity of the serial interface Sets the data length for the serial interface Sets the USB VCOM protocol (flow control) Sets the IPv4 network address Sets the IPv4 subnet mask Sets the IPv4 gateway Enables/disables IPv4 DHCP Name to assign to the device to identify the printer Print port number Home menu Interface - 2

Timeout time (in seconds) for connection with host machine When the set number of seconds elapses without data being received from the host in the state in which a session is established, a timeout occurs and the session is disconnected. If this is set to 0, there will be no timeout. Close all Pending session processing when Move next timeout Sets whether to disconnect all other sessions or to enable sending and receiving when there are two or more sessions established and a timeout occurs for the session that was established first Disable Transmission data processing Enable when host machine not connected Off Off Enables/disables IPv6

Sets a IPv6 network address Example: If the network address you wish to set is 2001:0db8:0000: 0123:4567:89ab:cdef:feed, specify the value for each network address field in decimal notation separated by periods as shown below.

Enables/disables IPv6 static network address IPv6 gateway address setting For how to specify an address, refer to the Notes column in “IPv6 Address”. *1 Contains menus of option interface settings that can be configured for this printer. *3 CL-E300/CL-E303 or Serial Interface option card model only *4 CL-E300/CL-E303 only

Home menu Interface (Enabled only when a Bluetooth interface board is installed.) Sub menu Bluetooth Security Setting Bluetooth Connection Destination Bluetooth Device Search Bluetooth iOS Reconnect Request Bluetooth PIN Code Default Medium Configurable range Medium High All Devices Authenticated Devices Off Off Notes Sets the security level of the Bluetooth interface Sets the connection destination of the Bluetooth interface

CL-E300_XX CL-E303_XX PIN code of the Bluetooth interface The initial setting is the last 4 digits of the 12-digit address (excluding the :) Device name of the Bluetooth interface Bluetooth Device Name All Devices

Sets device searching of the Bluetooth interface Sets the reconnect request made to iOS by the Bluetooth interface Home menu Sub menu Global Configu- ration Default Config Set 1 Machine Information Model Number

• Appears as “CL-E300EX” for the CL-E300EX model, “CL-E303” for the CL-E303 model, and “CLE303EX” for the CL-E303EX model RH******** Displays the serial number Displays the boot version

Displays the ROM version

Displays the ROM creation date

Displays whether the resistance value of the head is within the specification range Displays the print counter Displays the service counter Displays the cut counter only for models with cutters Displays the sensor level Print Counter Service Counter Cut Counter

Displays the type of interface board installed

**.**.**.**.**.** Displays the MAC address *2 This cannot be obtained with LabelPrinterUtility. To check the value, print the list of settings. *5 CL-E300EX/CL-E303EX only Refer to 7.3 Configuration Print Mode

4.2 Obtaining the LabelPrinterUtility

Access the following URL from a PC to download the LabelPrinterUtility. https://www.citizen-systems.co.jp/en/printer/download

Save the downloaded LabelPrinterUtility.exe to the desired folder.

4.3 Using the LabelPrinterUtility

Start LabelPrinterUtility.exe. Refer to the user manual for more information on using the application.

Settings Using the Utility Software You can check and change the settings of the wired LAN interface board by using utility software that runs in Windows. The utility software includes CITIZEN Network Seeker which can be used with CLE300/CL-E303 and NetToolK which can be used with CL-E300EX/CL-E303EX.

(1) Starting Network Seeker After obtaining the program “NetSeeker.exe” from the CD-ROM or our website, double click the program. A dialog box appears. Start a search for printers by clicking the “Seek” button.

Start a search for Ethernet interface boards on the network. Waits for a response during the time configured with [Communication timeout].

2. “Edit config” button

Change the settings of the selected board.

3. Board information list

Single click to select a board and double click to change settings.

Single click to select a board and double click to change settings.

5. Configuration display section

View the settings of the selected board.

6. Client condition display

When “Busy” is displayed, operations to search, change settings, and so on are prohibited. If you click “Stop”, the “Busy” status is cleared forcibly.

7. Communication timeout

You can configure the time-out duration for searches and other operations.

View the status of the utility. (2) Changing Settings You can configure an Ethernet interface board by selecting it at the main dialog box, and then clicking “Edit config”. These are unalterable parameters. These parameters are for display purposes only.

These are changeable parameters. Users can change these parameters.

3. IP address from DHCP

5. Gateway IP address

(1) Installing the NetToolK After obtaining “NetToolkSetup.exe” from the CD-ROM or our website, start it. Refer to the user manual for more information on using the installer. (2) Information list window

Select ”Tools” – ”Settings” to switch the display of the LAN interface board information. When the “Show LAN board information” check box is selected, the LAN interface board operation status can be displayed as shown below.

Operation status of the wireless LAN interface board

Refresh the list of the LAN interface board. The application periodically refreshes the list, but you can refresh the list manually by clicking this button.

5. ”Go to Web Page” button

Select the LAN interface board you want to configure, and then click “Configure using a web browser”. The browser starts and displays the Web manager.

6. ”Configure the LAN Board” button

Select the LAN interface board you want to configure, and then click “Configure Select the LAN See Board”. See Setup Window.

7. LAN interface board list

The list displays the LAN interface boards connected to network. The LAN interface boards connected to the same subnet are displayed.

(3) Setup Window You can configure the LAN interface board by selecting the LAN interface board from the list screen and clicking “Configure the LAN Board”. To login at the login screen, enter a username and password. Username: admin (factory default) Password: admin (factory default)

Use the “General“ tab to configure WLAN board name and IP address.

Use the “Supported Protocols" tab to enable LPR and the RAW protocol, set printer timeout duration, enable "Priority to Ethernet", and enable UPnP.

Use the “User Account“ tab to change the administrator name and password.

5. “Maintenance“ Tab

Use the “Maintenance“ tab to restart the wired/wireless LAN interface board, return the settings to the factory default settings, and update the firmware.

• Contact us for details on updating the firmware.

CAUTION If you forget the new username and password, settings must be returned to the factory default settings. If the computer at which you are performing configuration and LAN interface board have different subnet values, a message like the one shown below appears in red letters. If this message appears, set the IP address using the “Configure WLAN Board” button before configuring the LAN interface board. Only the server name and IP address can be configured. Configure the IP address correctly one time before configuring the wireless LAN interface board.

LinkServer Printer and network settings can be configured using a Web browser or Android app via the LinkServer function built into the CL-E300/CL-E303. CAUTION For Android, you need to download the app and provide a USB cable yourself. The Android app can be downloaded from Google Play. https://play.google.com/store/apps/details?id=com.citizen.app.linkserver

6.1 LinkServer user roles

LinkServer has the following three user roles available: User, Operator, and Administrator The menus that appear for each user role can be changed to restrict operational access to LinkServer. The Home screen for the user role appears when first connecting.

Open a Web browser and enter the IP address of the desired printer into the address bar (area circled in red). The example illustrates the entry of “http://169.254.1.10”.

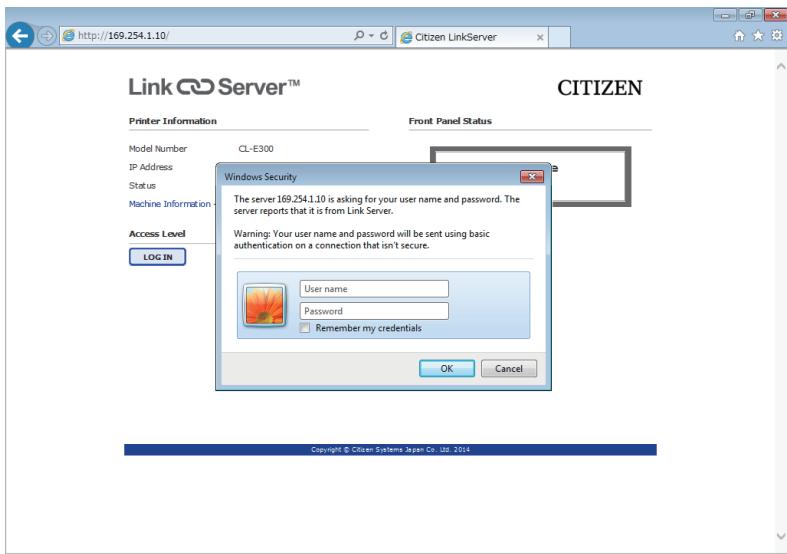

Press the [LOG IN] to display the authentication window.

Enter your user name and password. The default authentication credentials for the Operator role are as follows. Ÿ User name: Operator Ÿ Password: Operator The default authentication credentials for the Administrator role are as follows. Ÿ User name: Admin Ÿ Password: Admin The user name and password for the Operator and Administrator roles can be changed in the User Settings menu. User names and passwords can contain up to 20 single-byte, alphanumeric characters and symbols. After successful authentication, the Home screen for the Operator or Administrator role appears. Administrator Home Screen The menus that appear for the User and Operator roles can be changed from the User Settings menu.

Press the Menu button on the Home screen to perform printer operations. Ÿ Printer Information: Displays printer information. Ÿ Configure The Printer: Provides access to the same settings as configured with LabelPrinterUtility. Ÿ Operate The Printer: Used to operate the printer.

Once you are finished, press the [LOG OUT] button to log out. The Home screen for the User role appears again after logging out.

Preparation You will need a so-called USB OTG (On-The-Go) adapter. Which has a micro USB or Type-C male connecter on the Android side (depending on your Android device) and a Type-A female connecter on the other side. Then you can connect a regular USB cable for printer which has a Type-A male and Type-B male to connect to a printer. USB Type-C male connector Micro USB male connector USB Type-A female connector Printer Start OTG adapter

USB cable Usage The LinkServer app automatically starts up when a supported printer model is connected by USB to your Android device.

The app shows you the printer information or lets you set up the printer. Press “SAVE” to apply changes. The printer will automatically restart and save the new settings. Wait until the printer starts up completely if you wish for further operations.

Operation Panel The following operations can be performed from the control panel after changing the printer operation mode to the special mode.

Adjust media sensors

Change emulation modes

Initialize the printer *This device is not equipped with the [Menu Configuration Mode] featured in other models.

With the top cover closed, turn on the power to the printer while pressing and holding the FEED key. The printer changes to the special mode. The buzzer emits 3 short tones and the status LED flashes alternately in green and red.

Press the FEED key to select the desired operation mode. Mode Buzzer Status LED Color Interval Alternately in green and Flashes quickly red Special function mode 3 short tones Sensor Adjustment Mode Press the FEED key ↓ 1 short tones Green Flashes Test print mode Press the FEED key ↓ 2 short tones Green Flashes quickly Configuration print mode Press the FEED key ↓ 3 short tones Amber Flashes Press the FEED key ↓

Mode Buzzer Status LED Color Amber Interval Flashes quickly Emulation switching mode 4 short tones HEX dump mode Press the FEED key ↓ 5 short tones Red Flashes Initialization mode Press the FEED key ↓ 6 short tones Red Flashes quickly Press the FEED key ↓ Returns to the sensor adjustment mode.

Once the desired operation mode has been selected, press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone. The printer is now in the desired operation mode.

After finishing use of operation modes, press and hold the FEED for at least 3 seconds to return to the normal startup mode. After you have finished configuring each mode, restart the printer.

To return to the normal startup mode without selecting an operation mode after changing to the special function mode, press and hold the FEED key for at least 3 seconds.

If you continue to press and hold the FEED key for at least 3 seconds after the buzzer emits a long tone, the buzzer will emit 4 short tones, and then printer restarts.

The printer restarts, and changes to normal mode.

7.1 Sensor Adjustment Mode

Use this mode to adjust media sensors (upper or lower) in accordance with the media used. Set the sensor position and media before starting this adjustment procedure. Setting transmissive sensor positions and media

Align the bottom sensor and upper sensor with each other at the same position.

Peel a label and set the media so that only the backing paper (glassine paper) reaches the platen roller and media sensor. If the media has black lines, do not set the media so that a black line is between the sensors. Refer to Transmissive Sensor Adjustment Upper sensor Media gap Label Liner media Bottom sensor

Adjust the sensors. Refer to Sensor adjustment Setting reflective sensor positions and media

Adjust the reflective sensor so that it is underneath the media.

Set the media so that the media covers the platen roller and media sensor. Set that media so that black lines or gaps between labels do not cover the sensor. Ÿ Using continuous media and label media without gaps between labels Set the media so that a section without a black line (or label face stock for label media) does cover the platen roller and media sensor. Continuous media Black mark Bottom sensor Label Liner media Black mark Bottom sensor

CAUTION Do not install the upper sensor directly above the bottom sensor. Normal operation may not be possible. Ÿ Using label media with gaps Peel a label and set the media so that only the backing paper (glassine paper) reaches the platen roller and media sensor. Label Liner media Black mark Bottom sensor

Adjust the sensors. Refer to Sensor adjustment Sensor adjustment

Turn on the power to the printer while pressing and holding the FEED key to start the printer in special function mode.

Press the FEED key once to select sensor adjustment mode. The buzzer emits 1 short tone. The status LED also flashes in green.

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone and then press the FEED key again. The printer is now in sensor adjustment mode.

Press the FEED key to select either transmissive sensor or reflective sensor. Each press of the FEED key toggles between transmissive sensor and reflective sensor options. Sensor Transmissive sensor Reflective sensor Buzzer Status LED Color Green 1 short tones Press the FEED key ↕ 2 short tones Green

Interval Flashes Flashes quickly

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone. The sensor adjustment process starts. Ÿ Once sensors have been adjusted, the buzzer emits 1 short tone. Ÿ The buzzer emits 1 long tone if sensor adjustment fails. If this happens, check the sensor and media positions.

To save and complete the sensor adjustments, press and hold the FEED key for at least 3 seconds. The buzzer emits 4 short tones, and the printer restarts.

This mode prints the test sample. This printer can print test samples to label media and continuous media. Printing test samples is a quick way to check print quality. Dimension of media feed Load media and then perform the following procedure.

Turn on the power to the printer while pressing and holding the FEED key to start the printer in special function mode.

Press the FEED key twice to select test print mode. The buzzer emits 2 short tone. The status LED also flashes quickly in green.

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone. The printer is now in test print mode.

Press the FEED key to select the media. Each press of the FEED key toggles between label media and continuous media. Media Buzzer Status LED Color Green Label media 1 short tones Continuous Press the FEED key ↕ 2 short tones Green Interval Flashes Flashes quickly

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone. The test print process starts. Ÿ Once the test sample has been printed, press the FEED key to print another test sample without a feed operation.

Once the test sample has been printed, turn the power to the printer off and on again to reset the printer in the normal startup mode. CAUTION Normal mode printing can also be performed when the printer is in test print mode. Note that pressing the FEED key while the printer is in test print mode will not feed media. Instead, it will print a test sample.

This mode is used to print the printer settings configuration when using continuous media mode. Printing the current settings configuration is a quick way to check the current configuration. Example of printed settings configuration Load media and then perform the following procedure.

Turn on the power to the printer while pressing and holding the FEED key to start the printer in special function mode.

Press the FEED key 3 times to select configuration print mode. The buzzer emits 3 short tone. The status LED also flashes in amber.

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone. The configuration print process starts. Once the configuration has been printed, the printer will be in the online state.

To print configurations that include default settings, continue pressing and holding the FEED for at least 3 seconds without releasing your finger at step 4.

Release the FEED key once the buzzer emits a long tone and then press the FEED key again. The process to print a configuration that includes default settings starts. Once the configuration has been printed, the printer will be in the online state.

7.4 Emulation switching mode

This mode is used to change the command set used.

Turn on the power to the printer while pressing and holding the FEED key to start the printer in special function mode.

Press the FEED key 4 times to select emulation switching mode. The buzzer emits 4 short tone. The status LED also flashes quickly in amber.

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone. The printer is now in emulation switching mode.

Press the FEED key to select an emulation switching mode. Each press of the FEED key cycles through the emulation mode options of Datamax mode, Zebra mode, and Eltron mode. Emulation mode Datamax mode Buzzer Status LED Color Green 1 short tones Interval Flashes Zebra mode Press the FEED key ↓ 2 short tones Green Flashes quickly Eltron mode Press the FEED key ↓ 3 short tones Amber Flashes Press the FEED key ↓ Returns to Datamax mode.

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone and then press the FEED key again. The selected emulation mode is set, and the printer restarts.

This mode is used to print a hex dump list (data received by the printer represented in hex values) for confirmation of the data content. Example of dump list printing Load media and then perform the following procedure.

Turn on the power to the printer while pressing and holding the FEED key to start the printer in special function mode.

Press the FEED key 5 times to select HEX dump mode. The buzzer emits 5 short tone. The status LED also flashes in red.

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone. The printer is now in HEX dump mode.

Press the FEED key to select the media. Each press of the FEED key toggles between label media and continuous media. Media Buzzer Status LED Color Green Label media 1 short tones Continuous Press the FEED key ↕ 2 short tones Green Interval Flashes Flashes quickly

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone and then press the FEED key again. The hex dump list print process starts.

Once the HEX dump list has been printed, turn the power to the printer off and on again to reset the printer in the normal startup mode.

7.6 Initialization Mode

This mode is used to initialize printer settings and the user memory area.

Turn on the power to the printer while pressing and holding the FEED key to start the printer in special function mode.

Press the FEED key 6 times to select initialization mode. The buzzer emits 6 short tone. The status LED also flashes quickly in red.

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone. The printer is now in initialization mode.

Press the FEED key to select initialization of settings or initialization of the user memory area. Each press of the FEED key toggles between settings initialization and user memory area initialization. Initialization option Settings initialization User memory area initialization Buzzer Status LED Color Green 1 short tones Press the FEED key ↕ 2 short tones Green Interval Flashes Flashes quickly

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone and then press the FEED key again. Once the selected initialization process completes, the printer restarts.

Press and hold the FEED key for at least 3 seconds while the printer is online and not receiving data. The printer is now in online configuration mode. The buzzer emits 3 short tones and the status LED flashes alternately in green and red.

Press the FEED key to select media sensor mode. Media sensor mode Transmissive sensor mode Buzzer Status LED Color Green 1 short tones Interval Flashes Reflective sensor mode Press the FEED key ↓ 2 short tones Green Flashes quickly Continuous media mode Press the FEED key ↓ 3 short tones Amber Flashes Press the FEED key ↓ 4 short tones Amber Flashes quickly Press the FEED key ↓ 5 short tones Red Flashes Bluetooth connection update mode All Bluetooth pairing information deletion mode

Press the FEED key ↓ Returns to the transmissive sensor mode.

Press and hold the FEED key for at least 3 seconds.

Release the FEED key once the buzzer emits a long tone. The selected media sensor mode is set.

• Only when a Bluetooth interface board is installed

9. Clearing Jobs Stored in the Printer

Jobs stored in the printer can be cleared when the printer is paused.

Press the FEED key if the printer is printing or receiving data. The printer is now paused.

Press and hold the FEED key for at least 3 seconds. The buzzer emits 1 short tone.

Release the FEED key. One job has been cleared. Alternatively, continue to press and hold the FEED key for at least 3 second without releasing your finger until the buzzer emits 2 short tones.

Release the FEED key once the buzzer emits 2 short tones. All jobs have been cleared.

10. Cutter manual operation mode

Press and hold the FEED key for at least 3 seconds while the printer is online and not receiving data. The printer switches to online configuration mode. The buzzer emits 3 short tones and the status LED flashes alternately in green and red.

Press and hold the FEED key for at least another 5 seconds without releasing it.

The buzzer emits 4 tones and the cut operation is performed once. This function is enabled for only the integrated cutter. — 100 —

Perform printer maintenance on a regular basis to ensure that the printer is always in good working condition. Thermal printhead Platen CAUTION Excluding ethyl alcohol, do not use solvents such as benzene, acetone, thinner, or others to clean the printer. Doing so may cause the printer surface or other parts to deform. — 101 —

11.1 Plastic Surface of Printer and Platen

Use a soft cloth or cotton swab dipped with a small amount of ethyl alcohol to wipe off dust and dirt. CAUTION Using an excessive amount of ethyl alcohol to clean the platen may cause surface deformation, which would result in unstable feed operation.

Use a cotton swab dipped with a small amount of ethyl alcohol. CAUTION The thermal head is hot immediately after printing. Do not touch the thermal head at this time. Do not touch the thermal head with bare hands or do not allow metals to come into contact with the thermal head.

Peeled label detection sensor Use a soft cloth or cotton swab to wipe off dust and dirt. Peeler roller Use a soft cloth or cotton swab dipped with a small amount of ethyl alcohol to wipe off dust and dirt. CAUTION You may get injured by the peeling plate during cleaning. Take sufficient care. — 102 —

12.1 Error/Alarm Indications

The status LED and buzzer are used to confirm error status when errors occur in the printer. Status LED Flashes in red Flashes in red Buzzer 2 short tones 3 short tones Flashes in red 4 short tones Flashes in red 6 short tones Flashes in amber Repetitions of long tones Error Error description (in bold) and resolution Top cover is not closed correctly. Ÿ Close the top cover correctly. End of Media Error Printer has run out of media. Media is not set correctly. Ÿ Open the top cover and load media or set the media correctly. Media Load Error Label gaps or black lines cannot be detected. Media Jam Error Ÿ Check the media sensor positions. Ÿ Readjust the media sensors. Ÿ Make sure the selection of transmissive sensor, reflective sensor, or continuous media matches the type of media used. Media cannot be transported. Ÿ Open the top cover, remove any media blocking transport, and set the media again. Cutter Error Cutter is not operating. (models with cutters) Ÿ Open the top cover and remove any media or other object blocking cutter operation. Ÿ If the cutter does not operate after removing foreign objects, the cutter may not be connected or installed correctly or may have failed. Contact your retailer. Home position cannot be detected. Ÿ The auto cutter may have failed. Contact your retailer. Peeler Error The peeler cannot be recognized. (models with peeler) Ÿ Turn the power to the printer off and on again. Ÿ If the peeler does not operate after turning the power off and on again, it may not be correctly connected or installed, or there may be a breakdown. Contact your retailer. Head Low The thermal head is at a low temperature (approximately Temperature Error -10°C). Ÿ Use the printer in proper environments of at least 0°C. The thermal head is not connected. Ÿ Check the cable connection with the thermal head. Head Up Error — 103 — Status LED Flashes alternately in red and green Flashes alternately in red and amber Flashes in amber Flashes in red Buzzer Error Repetitions of long tones RS-232C Communication Error Repetitions of long tones Hardware Error None Head High Temperature Alarm Motor High Temperature Alarm None Head Check Alarm Error description (in bold) and resolution Parity error Framing error Receive buffer is full Transmission buffer is full Ÿ Check the communication settings. A hardware error has been detected. Ÿ Immediately turn off the power to the printer and contact your retailer. The thermal head or feed motor is at a high temperature. Ÿ Printing stops if the thermal head reaches approximately 70°C or more while printing. Printing resumes automatically once the temperature falls to approximately 60°C or lower. Ÿ Printing stops if the feed motor reaches approximately 95°C or more while operating. Printing resumes automatically once the temperature falls to approximately 85°C or lower. The heater element resistance value of the thermal head is abnormal. A thermal head with a number of heater elements differing from the specifications is installed. Ÿ We recommend contacting your retailer and requesting replacement of the thermal head.

• The CL-E300/CL-E303 does not have a broken head element check function so if there are vertical white lines that you suspect are caused by a broken head element, clean the thermal head and then perform a print check in the test print mode. If the white line problem is not resolved, the head element may be broken. — 104 —

12.2 Troubleshooting

This section explains the corrective action to take when trouble occurs with the printer or an error message is displayed. Items to check when a malfunction occurs When the printer malfunctions during operation, take corrective action with reference to the following table. If the corrective action does not solve the problem, consult with the service personnel at the dealer where you purchased the printer. Indication Check The LED do not Is the plug of the power cord correctly light up when printer inserted into the electric outlet? power is connected. Is the connector of the power cord correctly inserted into the power inlet of the printer? Is the power cord damaged? Is power supplied to the electric outlet the printer is connected to? Is the main fuse in the building’s fuse box burnt out? Corrective action Insert the plug of the power cord correctly in the electric outlet. Insert the connector of the power cord correctly into the power inlet of the printer. Replace the power cord. Consult with the dealer where the printer was purchased to make sure you obtain a cord made especially for the printer. Note: Do not use any power cord except one made especially for the printer. Check to make sure power is supplied to the outlet. If there are any problems, make sure power is supplied to the building. Or find out if a power failure has occurred. If necessary, replace the main fuse in the building’s fuse box, and reset the main breaker. Ask a qualified serviceman to carry out the replacement. Refer to 3.4 Connecting the AC Adapter — 105 — Indication Check Paper is feeding, but Is the thermal printhead dirty? nothing is printed. Is a label stuck to the head? Corrective action If it is dirty, remove the dirt with the attached head cleaner (Sold separately). If a label is stuck to the thermal printhead remove it. Note: Do not use a metal object to remove a label stuck to the inside of the printer. (This may damage the thermal printhead.) If adhesive label material is stuck to the thermal printhead, remove it with a soft cloth soaked in ethyl alcohol. Refer to 11. Maintenance Indication The printer is not printing neatly. Check Are the media correctly set? Is the printing density too high or too low? Corrective action Correctly set the media. Set the appropriate printing density using the menu or control software. Is the platen dirty? If it is dirty, clean it with ethyl alcohol. Is it deformed? If it is deformed, replace it. Note: Consult with the dealer that supplied the printer concerning the replacement. Is the thermal printhead dirty? If it is dirty, remove the dirt with the atIs a label stuck to the head? tached head cleaner (Sold separately). If a label is stuck to the thermal printhead remove it. Note: Do not use a metal object to remove a label stuck to the inside of the printer. (This may damage the thermal printhead.) If adhesive label material is stuck to the thermal printhead, remove it with a soft cloth soaked in ethyl alcohol. Is the printer’s head pressure balance cor- Use the slider to adjust the head pressure rect for the width of the media that is used? of the thermal print head. Refer to 3.2 Loading Paper Refer to 4.1 List of Settings Refer to 11. Maintenance — 106 — Indication Check The printing position Are the media correctly set? changes. Is the platen dirty? Is it deformed? Are the data contents and the command signals from the host appropriate? Are the menu values set appropriately? Are the sensitivities of the media sensors appropriate for the media that is used? Corrective action Correctly set the media. If it is dirty, clean it with ethyl alcohol. If it is deformed, replace it. Note: Consult with the dealer that supplied the printer concerning the replacement. If an error message is displayed, check the content of the software and the communication status set by the host computer. Set the correct menu values using the operating panel or the host computer. Set the media sensitivity to appropriate values. If this does not solve the problem, change the “Sensor level” that is set in the “System setup.” Refer to 2.2 Operation panel Refer to 3.2 Loading Paper Refer to 4.1 List of Settings Refer to 11. Maintenance — 107 —

12.3 Basic Specifications

Printing Item Print method Resolution Description Direct thermal CL-E300/ CL-E300EX CL-E303/ CL-E303EX Max. print width Max. print length Print density Main scanning line density: 203 dots/inch (8 dots/mm) Sub-scanning line density: 203 dots/inch (8 dots/mm) Head dots: 864 dots (effective dots: 832) Main scanning line density: 300 dots/inch (11.8 dots/mm) Sub-scanning line density: 300 dots/inch (11.8 dots/mm) Head dots: 1248 dots (effective dots: 1240) 104 mm / 4.1 inch CL-E300/ CL-E300EX CL-E303/ 105 mm / 4.1 inch CL-E303EX CL-E300/ (Datamax) 2539.7 mm/99.99 inch CL-E300EX (Zebra) 2540.0 mm/100.00 inch CL-E303/ 1,270.0 mm / 50.00 inch CL-E303EX Print density is adjustable with software — 108 — Print speed Item Print speed setting CL-E300/ CL-E300EX CL-E303/ CL-E303EX Peeler model Description 2 to 8 inch per second in 1-inch increments (7 to 8 inch per second possible at normal temperature using a print density of 10 and the recommended direct thermal media) 2 to 6 inch per second in 1-inch increments 2 to 4 inch per econd in 1-inch increments Print mode Item Batch mode Tear off mode Cut mode Peeling mode Description Normal printing (single or multiple sheets) Back-feeds to the tear-off position after printing is complete. (Labels may peel when roll media is back-fed.) Prints while cutting after every specified number of sheets/labels. Two types of cut mode operations are available. Ÿ Back-feed Ÿ Cut-through (Cut-through pauses printing to cut the previous label when it reaches the cut position. Printing resumes after the cut operation, but a gap may be formed at the location where printing was paused.) The label is peeled from the backing paper after label printing. — 109 — Media Item Media types Roll media orientation Recommended media Max. media width Min. media width Min. label width Min. label pitch*1 Description Roll, fanfold media (Continuous label media, die-cut media, continuous tag media, and continuous ticket media) Outer surface Label media (Ricoh 150LA-1), tag media (Ricoh 130LHB)

ness integrated cutter model separable cutter

Max. media length CL-E300/ Standard model and cutter model: CL-E300EX (Datamax) 2539.7 mm/99.99 inch (Zebra) 2540.0 mm/100.00 inch Peeler model (max. label length): 120 mm / 4.72 inches CL-E303/ Standard model and cutter:model: CL-E303EX 1,270.0 mm / 50.00 inch Peeler model (max. label length): 120 mm / 4.72 inches Min. media length*1 6.35 mm / 0.25 inch*2 (Peeler model : 25.40 mm / 1.00 inch) Min. media thickness 0.0635 mm / 0.0025 inch Loaded roll diameter Max. external diameter: 127 mm / 5 inch Media core: 25.4 or 38.1 mm / 1 or 1.5 inch (Peeler model: 38.1 mm / 1.5 inches) *1 To use media with a pitch of less than 1 inch, enable the [Small Media Adjustment] setting. *2 For models with a cutter, the cutter operation will not be performed if the media length is less than 25.4 mm (1 inch). — 110 — Barcodes Item Datamax® emulation Onedimensional Twodimensional Zebra® emulation Onedimensional Twodimensional Eltron® emulation Onedimensional Twodimensional Description

• GS1 Databar Truncated (RSS-14 Truncated)
• GS1 Databar Stacked (RSS-14 Stacked)
• GS1 Databar Stacked Omnidirectional (RSS-14 Stacked Omnidirectional)
• GS1 Databar Truncated (RSS-14 Truncated)
• GS1 Databar Stacked (RSS-14 Stacked)
• GS1 Databar Stacked Omnidirectional (RSS-14 Stacked Omnidirectional)
• GS1 Databar Expanded (RSS Expanded)
• German Postal Code ·Interleaved2of5 ·POSTNET ·Planet

1. 7 types of fixed-pitch fonts

CG Triumvirate smooth font CG Triumvirate bold smooth font CL-E300/CL-E300EX: 6, 8, 10, 12, 14, 18, 24, 30, 36, and 48 points CL-E303/CL-E303EX: 4, 5, 6, 8, 10, 12, 14, 18, 24, 30, 36, and 48 points Character sets: Compliant with code page 850

4. TrueType™ rasterizer

5. Kanji fonts (Gothic)

JIS 1st level Kanji, JIS 2nd level Kanji, Special symbol, Extended Kanji 16 dot, 24 dot, 32 dot, 48 dot

1. 5 types of fixed-pitch fonts

CG Triumvirate Condensed Bold

4. TrueType™ rasterizer

5. Kanji font (Gothic)

JIS 1st level Kanji, JIS 2nd level Kanji, Special symbol, Extended Kanji 24 dot

1. 5 types of fixed-pitch fonts

2. 2 types of fixed-pitch fonts

*3 Depending on the reader, OCR font recognition may be poor. — 112 — Symbol Sets*4 Item Single-Byte sets (Datamax® , Zebra® Emulation) Double-byte sets (Datamax® Emulation) Description

• EUC ·JIS ·Shift JIS ·Unicode ·KS Code ·GB Code *4 Use it when drawing a TrueType font. Eltron® Emulation does not support a TrueType font. *5 “PC866U Ukraina” is supported only in Datamax® emulation. Control Languages Supports the Datamax® language, Zebra® language and Eltron® language Digital Processing Components Item CPU ROM RAM Description 32-bit RISC CPU (max. operation frequency of 216 MHz) 16 MBytes of flash ROM (user area: 4 MBytes) 32 MBytes of SDRAM (user area: 4 MBytes) Media detection sensors Item Transmissive sensor Reflective sensor Peeled label detection sensor Description Detects label gaps, tag notches, and out of media state Detects black lines on back of media and out of media state Detects peeled label (peeler model only) — 113 — Communication interfaces CL-E300/CL-E303 Item Description RS-232C, 9-pin D-SUB female connector Baud rates: 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps Full-speed USB 2.0 (12 Mbps), Type B connector 10BASE-T / 100BASE-TX, RJ45 connector Serial USB Ethernet CL-E300EX/CL-E303EX integrated Optional interface Item USB Serial Bluetooth Wired LAN Wireless LAN USB host+ Wired/Wireless LAN Description Full-speed USB 2.0 (12 Mbps) RS-232C, 9-pin D-SUB male connector Baud rates: 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps (Bluetooth3.0)+ Full-speed USB 2.0 (12 Mbps) 10BASE-T / 100BASE-TX, RJ45 connector (IEEE802.11a/b/g/n)+Ethernet (10BASE-T / 100BASE-TX) Full-speed USB 2.0 (12 Mbps)×2+ Ethernet (10BASE-T / 100BASE-TX) Indicators and switches Item LED Buzzer Operation keys Panel button Head-up detection switch Power switch Description Power on (green), status/errors/alarms (green, red, and amber) Alarms, warnings, and other indications 1 (Performs feed and other operations) CL-E300/CL-E303: Prints and initializes the wired LAN settings CL-E300EX/CL-E303EX: Prints and initializes the expansion interface board settings Detects head-up states Turning the Power On/Off — 114 — Power supply AC adapter (CEC Level VI-compliant) Input: 100 to 240 VAC, 50/60 Hz Output: 24 VDC, 2.5 A Dedicated USB power supply port (CL-E300EX/CL-E303EX) Output: 5 VDC, (Max.) 2.1 A Supported Standards

UL: 60950-1st, 2nd Edition

CSAC22.2 No.60950-1-07, 2nd Edtion

FCC: 47 CFR Part 15, Subpart B, Class B

EN301 489-17 V3.1.1 (Wireless Lan/Bluetooth Interface option card model only)

EN301 489-1 V2.1.1 (Wireless Lan/Bluetooth Interface option card model only)

Energy Star: Energy Equipment, Version2.0

BIS / UL CoC(Mexico) / S-mark SIN(AC Adapter) / RCM(Australia) / EAC(Russia) — 115 — Reliability Item Description When the recommended paper is used under our given printing conditions: Wear resistance 50 km (damage due to foreign matter being caught in the head is not applicable) Platen 100 km (replacement recommended after 5 to 10 km in the peeler model only) Integrated type: Min. 300,000 cuts (60 μm ≤ paper thickness < 150 μm) Min. 100,000 cuts (150 μm ≤ paper thickness ≤ 190 μm) Interchangeable type: Min. 300,000 cuts (60 μm ≤ paper thickness < 85 μm, paper width ≤ 4 inches) Min. 200,000 cuts (85 μm ≤ paper thickness ≤ 150 μm, paper width ≤ 4 inches) Min. 150,000 cuts (85 μm ≤ paper thickness ≤ 150 μm, paper width ≤ 2 inches) Head Platen Auto cutter Environmental conditions Refer to 12.4 Usage Conditions Refer to 12.5 Storage Conditions Electrostatic Voltage EN61000-4-2:2009-compliant AC Power Consumption Item CL-E300 CL-E303 CL-E300EX CL-E303EX Description 100 V/50 Hz: 1.5 W standby, 66 W during operation (USB, print speed of 8 IPS, print density of 10, printing rate of 12.5 %) 220 V/50 Hz: 1.7 W standby, 64 W during operation (USB, print speed of 8 IPS, print density of 10, printing rate of 12.5 %) 100 V/50 Hz: 1.7 W standby, 60 W during operation (USB, print speed of 6 IPS, print density of 10, printing rate of 12.5 %) 220 V/50 Hz: 1.7 W standby, 58 W during operation (USB, print speed of 6 IPS, print density of 10, printing rate of 12.5 %) 100 V/50 Hz: 1.5 W standby, 73 W during operation (USB, print speed of 8 IPS, print density of 10, printing rate of 12.5 %) 220 V/50 Hz: 1.7 W standby, 65 W during operation (USB, print speed of 8 IPS, print density of 10, printing rate of 12.5 %) 100 V/50 Hz: 1.7 W standby, 62 W during operation (USB, print speed of 6 IPS, print density of 10, printing rate of 12.5 %) 220 V/50 Hz: 1.7 W standby, 58 W during operation (USB, print speed of 6 IPS, print density of 10, printing rate of 12.5 %) — 116 — External Dimensions Refer to External Dimensions*6 Weight

Standard model and optional interface model (with AC adapter storage case): 2.7 kg

Integrated cutter model: 2.3 kg

Quick Start Guide/Safety Instructions Factory Options (the default setting)

Cutter (integrated or interchangeable)

Peeler — 117 — External Dimensions*6 Standard model — 118 — Model with AC adapter storage case Integrated cutter model — 119 — Separable cutter model Optional interface model Increase in size due to expansion interface board: Max. 20 mm

Peeler model *6 Dimensions are design values. Actual dimensions may vary due to variance in manufacturing processes. — 120 —

12.4 Usage Conditions

(1) Safe operating temperature: 0 to 40°C (2) Safe printing temperature: 5 to 35°C (3) Humidity: 30 to 80% RH (no condensation) Operating assurance temperature Printing assurance temperature

Conditions assuring operation and printing

12.5 Storage Conditions

(1) Temperature: -20 to 60°C (excluding record sheet) (2) Humidity: 5 to 85% RH (excluding record sheet, no condensation) *However, for storage at high temperature and humid environments, the combination of 40°C and 85% RH (no condensation) is taken as the worst value. — 121 —

Serial Interface (CL-E300/CL-E303) Interface Specifications Transfer method Signal level Baud rates Data length Stop bits Parity Interface Start-stop synchronization method, full-duplex communication RS-232C 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps 7 bits or 8 bits 1 bits or 2 bits Even, odd, or none 9-pin D-SUB female connector (CL-E300/CL-E303) 9-pin D-SUB male connector (CL-E300EX/CL-E303EX) CL-E300/CL-E303 female connector

CL-E300EX/CL-E303EX male connector

— 122 — Signal Line/Pin Assignment Signal code INIT RXD Signal Reset Receive data Pin No.

SGND Signal line ground

— 123 — Function Reset printer signal line Signal line used by printer to receive data from external devices Signal line used by printer to send data to external devices Signal line used by printer to notify external devices that printer is ready to communicate Signal line ground reference Signal line used by external devices to notify printer that they are ready to communicate Signal line used by printer to notify external devices that the printer is read to receive data Signal line used by external devices to notify printer that they are ready to receive data (Factory use only) XON / XOFF Protocol

Conditions for XON code output Ÿ Communication is possible after the power is turned on. Ÿ Scenario in which the receive buffer has less than 128 bytes available causing output of the XOFF code followed by the receive buffer then having at least 1,024 bytes available.

Conditions for XOFF code output Ÿ Scenario in which the receive buffer has less than 128 bytes available. Receive buffer 16k bytes XOFF 128 bytes 1024 bytes XON DTR Protocol

Conditions when DTR signal state changes to Ready (High) Scenario in which the receive buffer has at least 128 bytes available. Note that once the receive buffer has less than 1,024 bytes available causing the DTR signal to change to the Busy (Low) state, the DTR signal state remains in the Busy (Low) state until the receive buffer has at least 1,024 bytes available.

Conditions when DTR signal state changes to Busy (Low) Scenario in which the receive buffer has less than 128 bytes available. — 124 — USB Interface Specifications Standard Transmission speed Receive buffer Connector Compliant with Universal Serial Bus Specification 2.0 Supports Full-speed 12 Mbps transfer 16 kB receive buffer USB Type B connector Signal Line/Pin Assignment Signal code VBUS DD+ GND Signal USB power Negative signal line Positive signal line GND Pin No. Function USB power (+5 V) Negative signal line Positive signal line GND

Bluetooth interface (CL-E300EX/CL-E303EX) Specifications Version Profile Bluetooth 3.0 + EDR Serial Port Profile (SPP) iPod Accessory Protocol (iAP) Class 2 (10 m line of sight)

Approx. 3 mA (average 27 mA during communication, maximum 70 mA) “CL-E300_XX”, “CL-E303_XX” (XX is the last two digits of the Bluetooth device address, default setting) Power class Frequency band Electrical specifications Device name Names of parts

Status LED The Bluetooth communication/connection/error status is indicated by this LED.

USB connector Data can be exchanged by USB communication. CAUTION When using this interface board as a USB interface, do not connect USB cables to both the main unit side and interface board side. If USB cables are connected to both, priority will be given to communication of the one connected to the connector on the main unit side. — 125 — Bluetooth status LED Status Detection standby Description Standing by for detection and connection Connection standby Standing by for connection Status LED (green) iAP connection Data session unopened Ready to communicate (SPP/iAP) data transfer is possible Error Error or settings being configured Unlit Pairing operation You need to perform the operations below the first time you establish a Bluetooth connection for Bluetooth data communication.

2. Configure pairing settings

Confirm that Bluetooth is enabled on the host PC before searching for Bluetooth devices. This product will be indicated as “CL-E300_XX” or “CL-E303_XX” (XX is the last 2 digits of the unique Bluetooth device address) when detected in the device search. Select this product from among the detected devices.

2. Configuring pairing settings

Normally, selecting the printer during device detection will transition directly to pairing settings. CAUTION Some host PC configurations and models may not transition directly to pairing settings after the printer is selected during device detection. — 126 — Functions

1. Communication status display by LED

2. Security settings available (authentication, encryption, and device search

restriction) This product is provided with the two security levels of high and medium. The difference between the security levels is whether or not there are authentication requests and encryption requests. An authentication request is required when starting a service search or iAP/ SPP connection, and there is the following relationship for the authentication and encryption requests of the two security levels, including whether or not there is support for SSP on the device. Device without support for SSP Security setting Service search authentication request PIN code connection authentication SPP connection authentication request Encryption request Medium High

Yes Yes Yes Yes Yes Yes Yes Device with support for SSP Security setting Service search authentication request PIN code connection authentication SPP connection authentication request Encryption request Medium High

3. Pairing information retention function (maximum 8; most recent 8 if 8 is exceeded)

4. Connection approval by means of secure simple pairing (SSP) or a PIN code

The initial value of the PIN code is the last 4 digits of the 12-digit address (excluding the colon “:”) that is printed by a self test print, and if the PIN code contains any alphabet letters (A to F), specify them in uppercase. (Example: When 01:23:45:67:89:AB, the initial PIN code is 89AB.) For a host with the SSP function, pairing is achieved without any additional operation. For a host without the SSP function, you will be asked for a PIN code so enter the PIN code. — 127 —

5. Connection update function

Executing “Bluetooth connection update mode” in the online configuration mode transitions to the discoverable state. Also, executing “All Bluetooth pairing information deletion mode” in the same configuration mode deletes the saved pairing information and transitions to a discoverable state. If the paring information on the host is deleted, the device may not be displayed when you perform a device search again unless you also delete the pairing information on the printer. If that happens, delete the pairing information with the connection update switch to transition to the discoverable state.

6. Auto reconnection

With iOS device Bluetooth communication, a connection between a paired iOS device and the printer is not automatically restored after it is lost. However, when auto reconnection is enabled, the printer tries to reconnect with an iOS device after two-way communication is enabled and automatically restores the connection. CAUTION Even when “No” is indicated for a request, do as requested if there is a request from the connected party. Encryption for the security medium setting is enabled only for an authenticated iAP/SPP connection. This function is enabled when shipped from the factory. Auto reconnection can take some time to connect when the host is not an iOS device. Even if the partner device is an iOS device, the conditions below can interfere with the auto reconnection function. Ÿ When you want Bluetooth communication to cut off after printing is complete Ÿ When there are multiple iOS devices printing on the same printer Under such conditions, disable auto reconnection. Since processes such as the initial setup of the Bluetooth module are performed when the power is turned on, startup may take several seconds to complete. When large amounts of data will be transferred from a host, perform control such as transfer time and transfer data amount adjustment on the user side so that the transfer data buffers on both the printer and host do not become full. For pairing information deletion and reconnecting, refer to the following. Refer to 8. Online Configuration Mode — 128 — Ethernet Interface (CL-E300/CL-E303) Supported Protocols Supported Protocols Transport layer protocols Application layer protocols ARP, IP, and TCP TCP and UDP DHCP, HTTP, SNMP, and Raw Socket Port Raw Socket Port Performs bidirectional communication of print data and printer status. Port No. Direction of port communication Max. socket connections Printable connections Timeout 9100 (user-configurable) Bidirectional 1 (other sockets are reserved) Default: 60 seconds Configurable between 0 and 300 seconds. Value of 0 disables timeouts. HTTP Server The Web monitoring function can be used to configure printer and network settings. Refer to the pages describing the Web monitor for more information. Refer to 6. Configuring Printer Settings Using LinkServer Port No. Max. simultaneous connections HTTP version

HTTP/1.1 DHCP Automatically retrieves IP address information from a DHCP server within 60 seconds after the power is turned on. If IP address information cannot be retrieved automatically, a fixed IP address (default is 169.254.1.10) is applied. SNMP Agent SNMP Version Port No. Supported MIBs Community name SNMPv2 (Trap function not supported) HOST-RESOURCES-MIB and Citizen-MIB (Private) public — 129 — Connector Connections Pin No.

Signal TX+ TXRX+ N.C. N.C. RXN.C. N.C. Function Transmit (positive) Transmit (negative) Receive (positive) Receive (negative)

Compatible connectors Printer: RJ-45 connector LED operation The following table describes port LED operation.

Communication speed 100 Mbps 10 Mbps/disconnected LED (Green) Flashes

2. Network status indicator

Status Connecting Disconnected Exchanging data LED (amber) Off Flashes CAUTION To check the current Ethernet settings, press the Ethernet panel button located next to the Ethernet interface to printout the settings. To initialize Ethernet settings, press and hold the Ethernet panel button for at least 3 seconds. Once the buzzer emits a short tone, press and hold the Ethernet panel button again within 3 seconds for at least 3 seconds. — 130 — Wired/wireless LAN interface (CL-E300EX/CL-E303EX) Specifications Interface main part Wireless (*1) Access method Security Ethernet Standard Network Hardware Port IP version Protocol Port for printing IP address setting Operation panel USB ports Software Setting change procedure Firmware updates Supported platforms Infrastructure WPA2-PSK (encryption: AES, TKIP) WPA-PSK (encryption: AES, TKIP) WEP (key length: 64-bit/128-bit) 10BASE-T/100BASE-TX, full duplex/half duplex auto negotiation RJ-45 IPv4

TCP, UDP, HTTP, ICMP, DHCP, SNMP

RAW (9100 port: user-configurable), LPR Manual, DHCP 4 LEDs, (2 on panel and 2 on RJ45 connector), 1 button Connector: USB-A x 0/1/2 USB standard: USB 2.0 High Speed Browser, PC configuration tool, cloud Browser, PC configuration tool, cloud Windows 7, Windows 8, Windows 10, HTML5 browser — 131 — USB_Wi-Fi adapter part (*1) Model number Wi-Fi specifications WU606n Supported standards IEEE802.11n IEEE802.11g IEEE802.11b No. of channels 1 to 13 channels Frequency band

36/40/44/48 channels

52/56/60/64 channels

100/104/108/112/116/ 120/124/128/132/136/140 channels

(2.412 to 2.472 MHz) W52: 5.2 GHz band (5150 to 5250 MHz) W53: 5.3 GHz band (5250 to 5350 MHz) W56: 5.6 GHz band (5470 to 5725 MHz) IEEE802.11n: Max. 150 Mbps IEEE802.11a: Max. 54 Mbps IEEE802.11g: Max. 54 Mbps IEEE802.11b: Max. 11 Mbps Connecting a USB Device The function assigned to each USB port differs. Connect the USB device to be connected to the correct place in reference to the following figure.

Wired/Wireless LAN USB host model

For peripheral device control or wireless LAN adapter connection Connects a peripheral device or wireless LAN adapter.

For host computer communication Connect with a host computer. The printer and host computer will communicate via USB.

For supplying power Connect a mobile device or other USB device. Power can be supplied to a connected USB device.

• This port does not support USB data communication.

For wireless LAN adapter connection Connect a wireless LAN adapter. Refer to 3.7 USB Power Supply Port — 133 — Panel button operation Board operations are performed using the panel button on the rear of the LAN board. Panel button Ethernet Panel button Wireless LAN Panel button Wired/Wireless LAN USB host model Enabling LAN connection Turn on the printer. Operation of this board will start about 20 seconds later. Printing LAN setup information Press the panel button. Entering setting mode Hold down the panel button. A buzzer* will sound once to indicate that setting mode has been entered. Ÿ You can use setting mode to read factory settings. Ÿ If no operation is performed for 3 seconds in configuration mode, the mode switches back to normal mode. Returning to factory settings Enter the board setting mode, and then hold down the panel button. This returns the board to its factory settings. CAUTION The board will automatically restart after this operation is complete. After clearing settings, you will need to re-configure network settings. — 134 — LED Functions The tables below explain how to interpret LED indications.

Wired/Wireless LAN USB host model

1. Wired LAN transmission speed

Transmission speed 100 Mbps 10 Mbps/Not connected LED (green) Lit Unlit

2. Wired LAN connection/transmission status

Connection status Connected Not connected Data transmission in progress LED (yellow) Lit Unlit Flashing

3. Wired/Wireless LAN status

Connection status No printer connection Printer No network connec- connection tion Connected by wired LAN Wired LAN operation Connected by wireless LAN * Wireless LAN operation * Resource error System error LED (green) Unlit Lit LED (red) Unlit Description Board is not connected with a printer. Board is connected with a printer. Lit Flashing (1-second cycle) Lit Getting an IP address from the DHCP server over wired LAN. Lit Flashing Flashing (2-second (1-second cycle) cycle) Flashing Lit (2-second cycle) Alternate flashing (1-second cycle) Alternate flashing (0.2-second cycle) *: Only when using wireless LAN — 135 — Network operation being performed over wired LAN. Connecting to an access point or getting an IP address from the DHCP server over wireless LAN. Network operation being performed over wireless LAN. Board is unable to operate normally. Board is unable to operate normally. Web Manager The interface board has a Web Manager function that can be used to connect to the board with a web browser and change board settings. Starting up Web Manager

In the address field, input the board's IP address and then press [Enter]. HOME Screen This is the Web manager home screen. The following screen is an example for a wireless LAN. Here, press the [CONFIG] button. — 136 — CONFIG Screen This will display the Login dialog box shown below. Log in as an administrator and then configure interface board settings. User Name Input a board administrator user name. (Initial setting: admin) Password Input the administrator user password. (Initial setting: admin) [Login] button After inputting an administrator user name and password, click the [Login] button. This displays the setting screen. For details about settings, refer to the separate manual. — 137 — CL-E30X_UM_121EN PMC-2101 January 2021
