USER MANUAL 10S44 D SAD929C - 10S44 D SAD929C VALBERG

This product is guaranteed for a period of 2 years from the date of purchase* against any failure resulting from a manufacturing or material defect. This warranty does not cover defects or damage resulting from incorrect installation, improper use or abnormal wear of the product. *as shown on the sales receipt.

CONDITION DE GARANTIE FR ELECTRO DEPOT

1 route de Vendeville

59155 FACHES-THUMESNIL - FRANCE INSTRUCTIONS FOR USE

CONSIGNES D'UTILISATION

GEBRUIKSAANWIJZINGEN

Overview of the appliance

Using your dishwasher

Installation instruction Loading the baskets Quick user guide Using your dishwasher Wash cycle table

Maintenance and cleaning

Troubleshooting tips Availability of spare parts Error codes

EN FR Preview of the appliance

• Before using your dishwasher :

1. Set the water softener

2. Loading the salt Into the softener 3. Loading the basket 4. Fill the detergent dispenser

NOTE Please check the section «Water Softener», if you need to set the water softener.

Using your dishwasher

IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

B SAL T A B Upper spray arm

Loading the salt into the softener

• If your model does not have any water softener, you may skip this section.

• Always use salt intended for dishwasher use.

NOTE Pictures are only for reference, different models may be different.

• The salt container is located beneath the lower basket and should be filled as explained in the following:

WARNING Only use salt specifically designed for dishwashers use!

Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.

EN B Using the appliance

WARNING Only fill with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion

• Please follow the steps below for adding dishwasher salt:

B Using the appliance

• The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run. • If salt has spilled, run a soak or quick program to remove it.

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of dishwasher salt. 3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container. 4. After filling the container, screw back the cap tightly. 5. The salt warning light will turn off after the salt container has been filled with salt. 6. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

EN B B Using the appliance

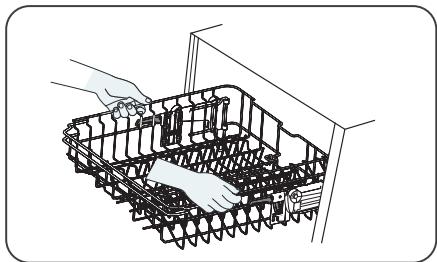

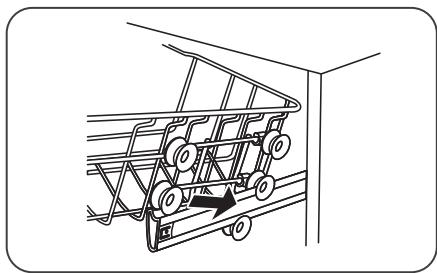

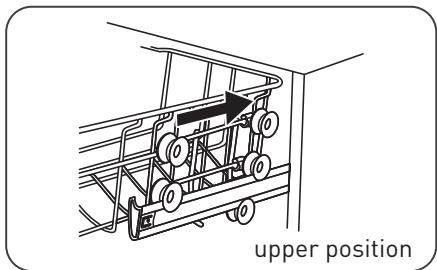

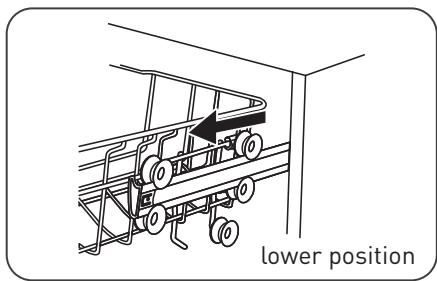

Adjusting the upper basket

4. Push in the upper basket.

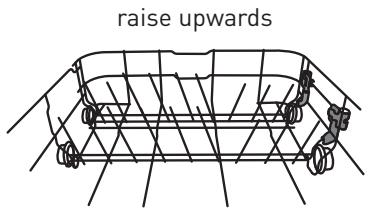

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. To adjust the height of the upper rack, follow these steps: 1. Pull out the upper basket. upper position • Type 2: 1. To raise the upper basket, just lift the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle. lower position 2. Remove the upper basket.

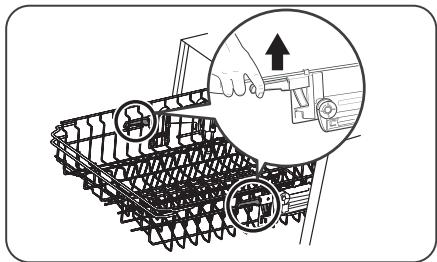

2. To lower the lift the adjust handles on each side to release the basket and lower it to the lower position.

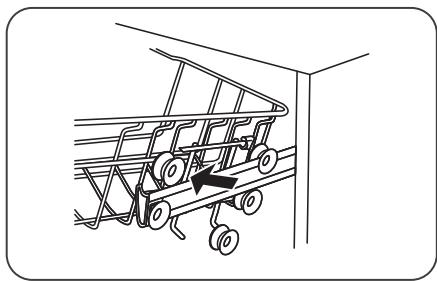

3. Re-attach the upper basket to upper or lower rollers.

EN B B Using the appliance

Installation instruction

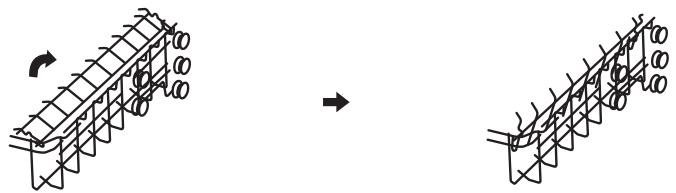

Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

Folding back the rack shelves

The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. raise upwards

WARNING Electrical shock hazard

Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. WARNING The installation of the pipes and electrical equipments should be done by professionals. About power connection

WARNING For personal safety:

• Do not use an extension cord or an adapter plug with this appliance. • Do not, under any circumstances, cut or remove the earthing connection from the power cord. Electrical requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Electrical connection Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

WARNING Ensure that proper earthing exists before use

EN B Using the appliance

Water supply and drain

Cold water connection • Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. • If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. • This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

ordinary supply hose

B Using the appliance

How to connect the safety supply hose

1. Pull the safety supply hoses out from storage compartment located at rear of dishwasher. 2. Tighten the screws of the safety supply hose to the faucet with thread 3/4inch. 3. Turn the water fully on before starting the dishwasher. How to disconnect the safety supply hose 1. Turn off the water. 2. Unscrew the safety supply hose from the faucet. Connection of drain hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000 mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

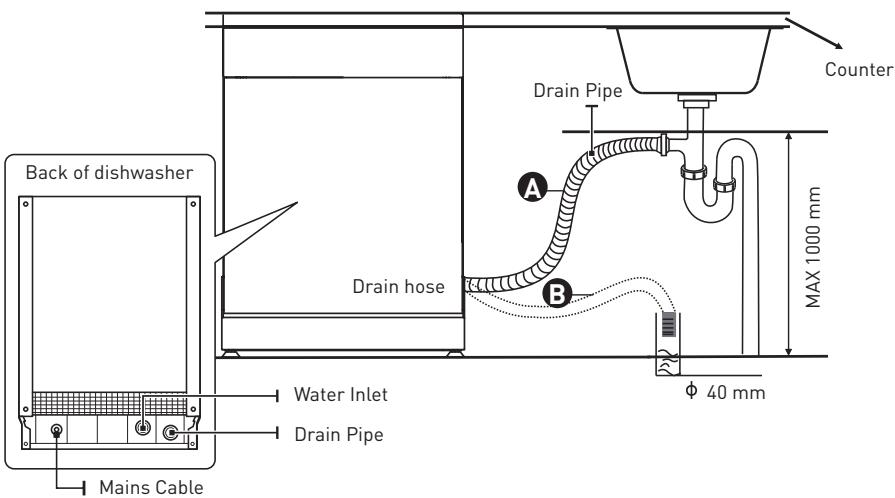

WARNING Please securely fix the drain hose in either position position B

WARNING A hose that attaches to a tap can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

EN Back of dishwasher

Drain Pipe Mains Cable

About the safety supply hose

• The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

A B Using the appliance

How to drain excess water from hoses

If the connection to the drain pipe is positioned higher than 1000 mm, excess water may remain in the drain hose. It will be necessary to drain excess water from the hose into a bowl or suitable container that is held outside and lower than the sink. Water outlet • Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.

B Using the appliance

Free Standing Installation

Fitting between existing carbinets The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof.

• Ensure that the water drain hose is not kinked or squashed.

Extension hose • If you need a drain hose extension, make sure to use a similar drain hose. • It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher could be reduced. Syphon connection The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dishwasher. Positioning the appliance • Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. • The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Levelling the appliance Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°

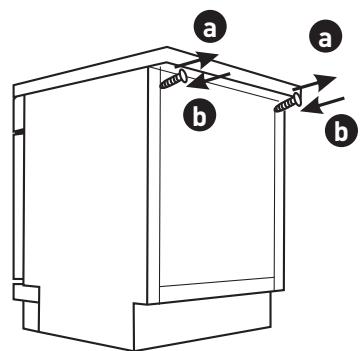

Underneath existing work top

(When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top a .

WARNING After removing the work top, the screws must be screwed again under the rear edge of the top b a b

EN B B Using the appliance

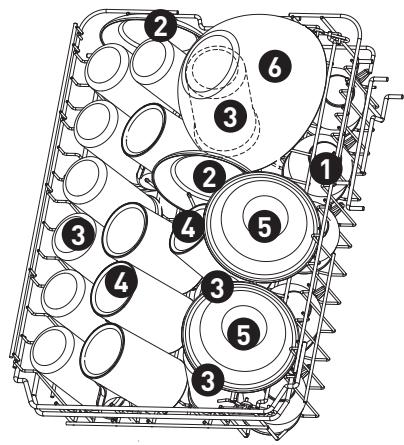

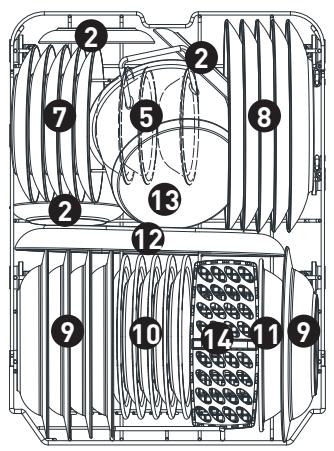

According to EN60436:

Loading the dishwasher to its full capacity will contribute to energy and water savings. Upper basket: 22

NOTE Please place the light flat wares on the shelf. The maximum loading weight is 1.5kg.

B B Using the appliance

Information for comparability tests in accordance with EN60436

Capacity: 10 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: MAX Softener setting: H3

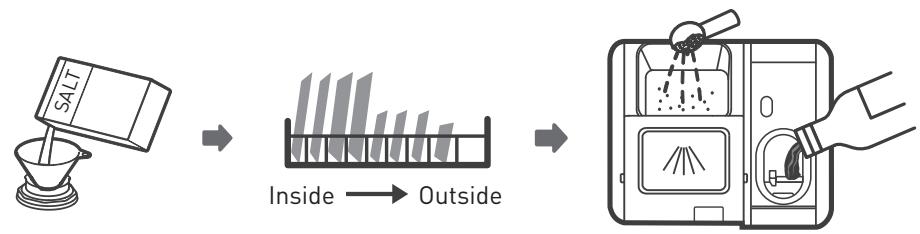

Please read the corresponding content on the instruction manual for detailed operating method.

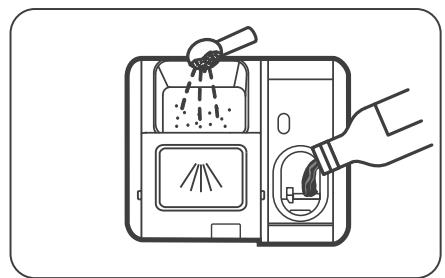

4. Fill the dispenser with detergent and rinse aid.

1. Install the dishwasher

(Please check the section “INSTALLATION INSTRUCTION ”.)

5. Select a suitable programme and start the dishwasher.

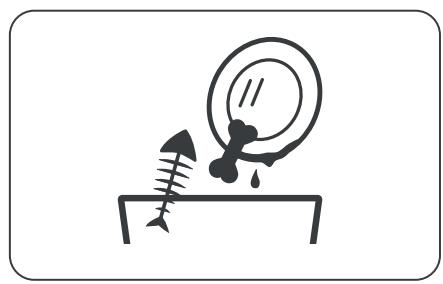

2. Remove larger residue from dishes. Avoid pre-rinsing.

EN B B Using the appliance

Using your dishwasher

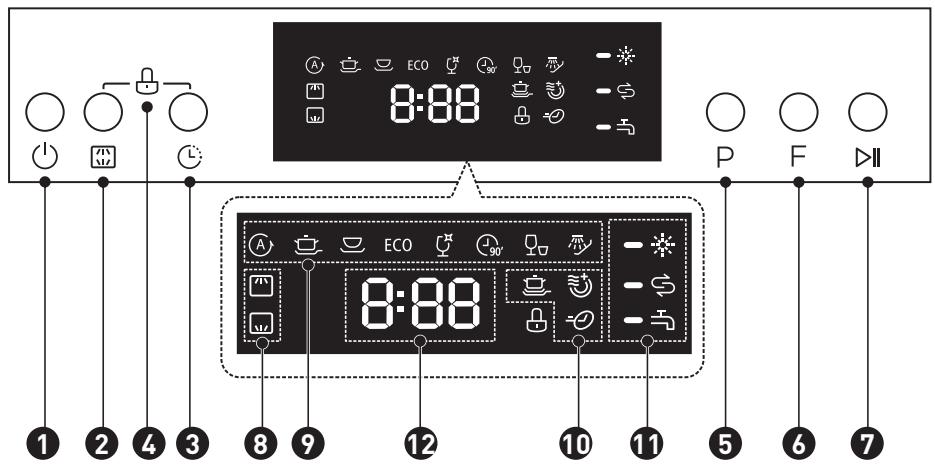

Display Control panel

When you select Upper, only the dishes in the upper rack will be washed. The spray system of the lower basket will not operate. Lower When you select Lower, only the dishes in the lower rack will be washed. The spray system of the upper basket will not operate. Auto Auto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on food.

For heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food.

For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.

Press this button to turn on your dishwasher.

Press the button to select either upper basket or lower basket loaded, and the response indicators will be lit.

Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hour.

This option allows you to lock the buttons on the control panel - except the Power button - so children cannot accidently start the dishwasher by pressing the buttons on the panel.

To lock or unlock the buttons on the control panel, press and hold the Alt button + Delay button for 3 seconds simultaneously.

Press this button to select the appropriate washing program, the program indicator will be lit.

Press the button to select a function, corresponding indicator will be lit.

Press the button to start the selected washing program or pause the working program.

ECO This is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.

Glass For lightly soiled crockery and glass. 90 min For normally soiled loads that need quick wash. Rapid A shorter wash for lightly soiled loads that do not need drying. Soak To rinse dishes that you plan to wash later that day.

To wash very dirty, hard to clean dishes. (It can only be used with Intensive, Universal, ECO, Glass, 90 min )

B Using the appliance

For better drying result. (It can only be used with Intensive, Universal, ECO, Glass, 90 min ) Express Reduce the program time. (It can only be used with Intensive, Universal, ECO, Glass, 90 min)

2. Within 60 seconds after the appliance was switched on, press the Programme button for more than 5 seconds to start the water softener setting mode;

3. Press the Program button again to select the proper setting according to your local environment, the setting will change in the following sequence: H1 -> H2 -> H3 -> H4 -> H5 -> H6. 4. Press the Power button to end the setting mode.

WATER HARDNESS Rinse Aid

If the “ ” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill.

If the “ ” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. Water Faucet If the “ ” indicator is lit, it means the water faucet closed.

To show the and delay time, error code etc.

• The water softener must be set manually, using the water hardness dial. • The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. • The more minerals there are, the harder your water is. • The softener should be adjusted according to the hardness of the water in your area. • Your local Water Authority can advise you on the hardness of the water in your area.

1°dH=1.25 °Clarke=1.78 °fH=0.178mmol/l

The factory setting: H3 Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extents by 4 minutes. 1)

NOTE Please check the “Loading The Salt Into The Softener”, if your dishwasher lacks salt.

• Please follow the steps below for adjustment in salt consumption.

1. Close the door, switch on the appliance;

dH Adjusting salt consumption

• The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Regeneration occurs every

X program sequence 1)

EN B Using the appliance

NOTE If your model does not have any water softener, you may skip this section.

Water Softener • The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. • The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water. Preparing and loading dishes • Consider buying utensils which are identified as dishwasher-proof. • For particular items, select a program with the lowest possible temperature. • To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes

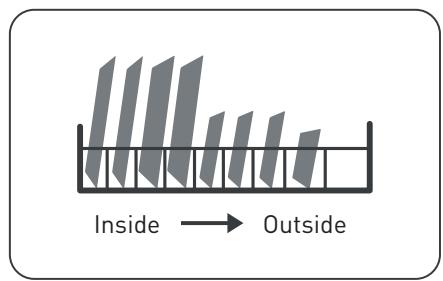

Recommendations for loading the dishwasher

• Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in the following way: • Items such as cups, glasses, pots/pans, etc. must face downwards. • Curved items, or ones with recesses, should be loaded aslant so that water can run off. • All utensils are stacked securely and can not tip over. • All utensils are placed in the way that the spray arms can rotate freely during washing. • Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. • Dishes and items of cutlery must not lie inside one another, or cover each other. • To avoid damage, glasses should not touch one another. • The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups. • Long bladed knives stored in an upright position are a potential hazard!

- Cutlery with wooden, horn china or mother-of-pearl handles - Plastic items that are not heat resistant - Older cutlery with glued parts that are not temperature resistant - Bonded cutlery items or dishes - Pewter or cooper items - Crystal glass - Steel items subject to rusting - Wooden platters - Items made from synthetic fibres Are of limited suitability: - Some types of glasses can become dull after a large number of washes - Silver and aluminum parts have a tendency to discolour during washing - Glazed patterns may fade if machine washed frequently

• Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

NOTE Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

EN B Using the appliance

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket.

WARNING Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Loading the lower basket

• We suggest that you place large and difficult to clean items into the lower basket:such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. • The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

B Using the appliance

NOTE For the best washing effect, please load the baskets refer to standard loading options.

Function of the rinse aid and detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to run off the dishes. Your dishwasher is designed to use liquid rinse aids.

WARNING Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g.

Dishwasher cleaning agent, liquid detergent). This would damage the appliance. When to refill the rinse aid The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used. • The Low Rinse Aid indicator (

) will be lit when more rinse aid is needed.

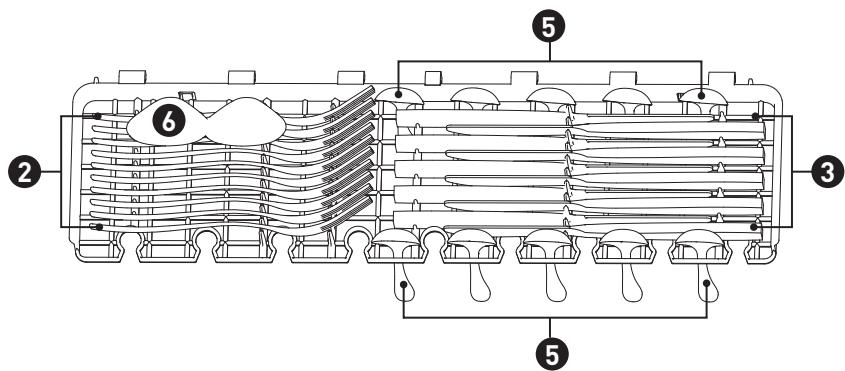

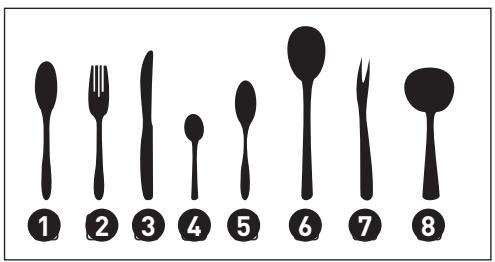

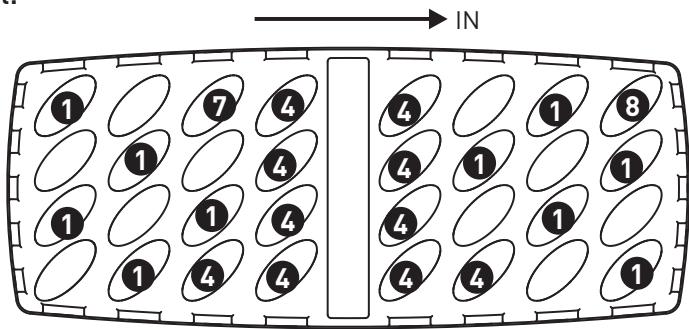

Loading the cutlery basket

Cutlery should be placed in the cutlery basket separate from each other in the appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning performance.

WARNING Do not let any item extend through the bottom.

Always load sharp utensils with the sharp point down! 26

EN B Using the appliance

Function of detergent

• The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher.

B Using the appliance

2. Pour the rinse aid into the dispenser, being careful not to overfill.

• Most of the commercial quality detergents are suitable for this purpose.

WARNING Proper Use of Detergent

• Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry. • Do not fill detergent into the dispenser until you are ready to start the dishwasher Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

3. Close the cap after all.

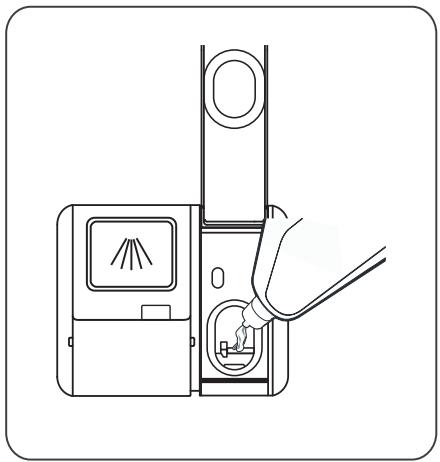

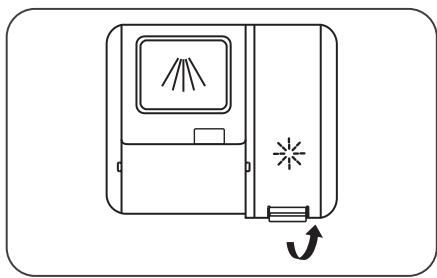

Filling the rinse aid reservoir

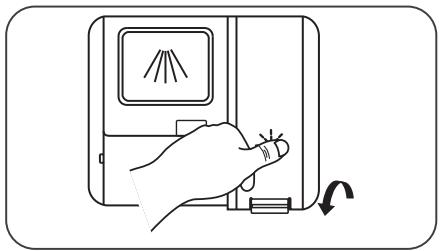

1. Remove the rinse reservoir cap by lifting up the handle.

Adjusting the rinse aid reservoir

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps. 1. Open the door, switch on the appliance. 2. Within 60 seconds after step 1, press the Program button more than 5 seconds, and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency. 3. Press the Program button to select the proper set according to your using habits, the sets will change in the following sequence: D1->D2->D3->D4->D5->D1. The higher the number, the more rinse aid the dishwasher uses. 4. Without operation in 5 seconds or press the power button to exit the set model, the set success. 28

EN B Using the appliance

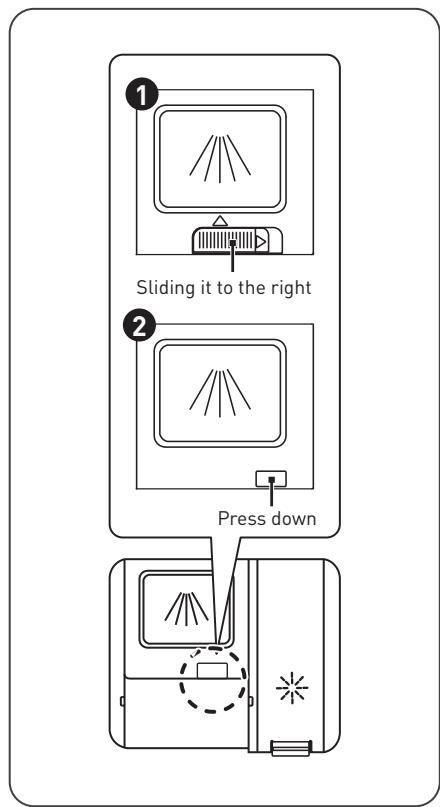

Filling the detergent dispenser

1. Please choose an open way according to the actual situation. 1 Open the cap by sliding the release catch. 2 Open the cap by pressing down the release catch.

B Using the appliance

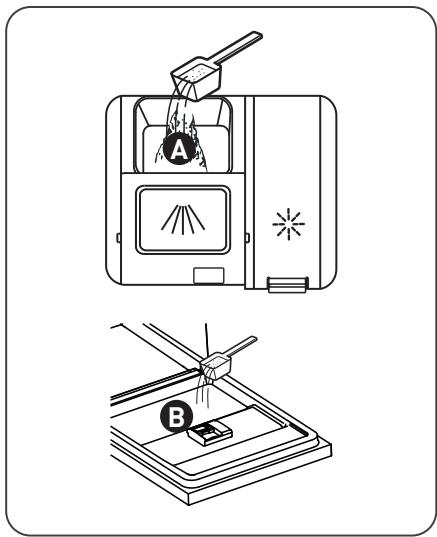

2. Add detergent into the larger cavity A for the main wash cycle. For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door.

The additional detergent will activate during the pre-wash phase.

A Sliding it to the right

3. Close the flap by sliding it to the front and then pressing it down.

• Be aware that depending on the soiling of water, setting may be different. • Please observe the manufacturer’s recommendations on the detergent packaging.

EN B B Using the appliance

• The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. • Consumption values and program duration are only indicative except for ECO program. (

) indicates that the program uses rinse aid in the last rinse.

Description of cycle

NOTE The ECO program is suitable to clean normally soiled tableware, that for this use, it is the most efficient program in terms of its combined energy and water consumption, and it is used to assess compliance with the EU ecodesign legislation.

Saving energy 1. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. 2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions. Starting a programme 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.

2. Pour in the detergent.

3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”. Make sure that the water supply is turned on to full pressure. 4. Close the door, press the Power button, to switch on the machine.

5. Choose a program, the response light will turn on. Then press the Start/Pause button, the dishwasher will start its cycle.

Changing the program mid-cycle • A programme can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. 33

EN B Using the appliance

To reset the dishwasher, follow the instructions below:

B Using the appliance

Automatic opening / Activ'Door

1. Press the Start/Pause button to pause the washing.

2. Press Program button for more than 3 seconds the machine will be in program selection mode.

At the end of the wash, the door will open automatically for optimal drying.

3. You can change the program to the desired cycle setting.

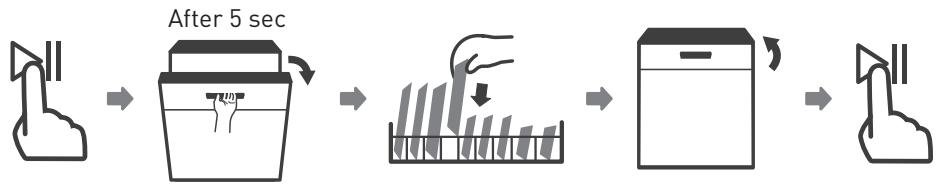

Forget to add a dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: 1. Press the Start/Pause button to pause the washing.

NOTE Except programs of “Rapid” and “Soak”, other programs have Activ’Door by default.

2. Wait 5 seconds then open the door.

3. Add the forgotten dishes. 4. Close the door. 5. Press the Start/Pause button, the dishwasher will continued to run after 10 seconds. After 5 sec

NOTE The dishwasher door must not be blocked when set to open automatically.

This can disrupt door lock functionality.

WARNING It is dangerous to open the door mid-cycle, as hot steam may scald you.

EN C Useful information

C Useful information

Maintenance and cleaning

The door and the door seal • Clean the door seals regularly with a soft damp cloth to remove food deposits. • When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. • These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. • Any deposits should be wiped off before the door is closed. The control panel • If cleaning is required, the control panel should be wiped with a soft damp cloth only.

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. • Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

• The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. • Follow the steps below to clean the filter.

NOTE Pictures are only for reference, different models of the filtering system and spray arms may be different.

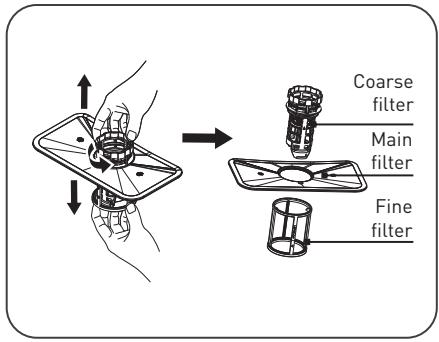

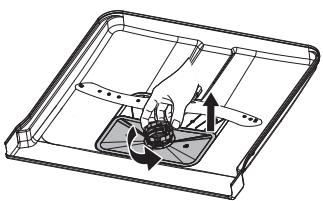

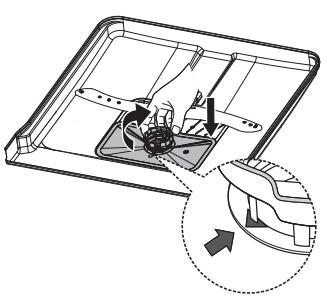

1. Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

EN C C Useful information

2. The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

4. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

Main filter Fine filter

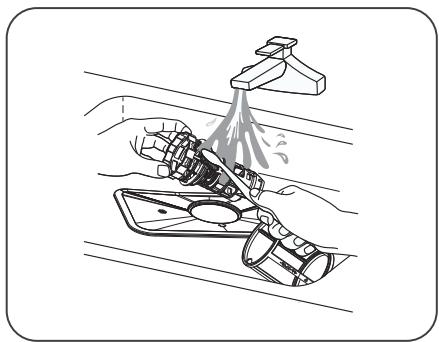

3. Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush.

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. • NEVER use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

EN C Useful information

• It is necessary to clean the spray arm regularly for hard water chemicals will clog the spray arm jets and bearings.

C Useful information

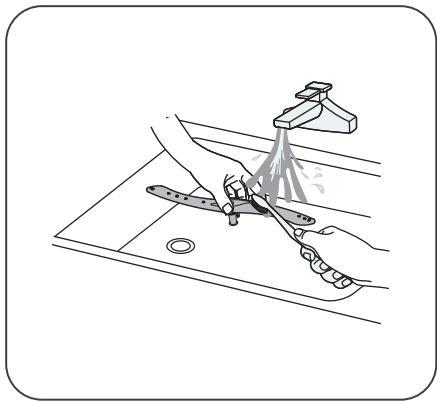

3. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

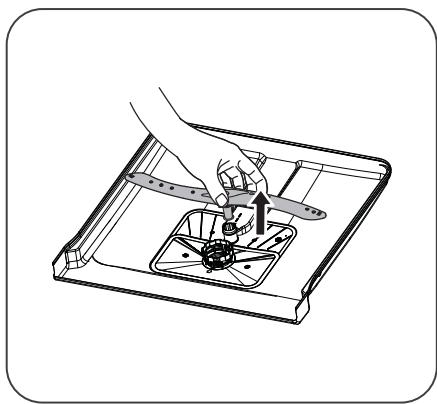

• To clean the spray arm, follow the instructions below:

1. To remove the upper spray arm, hold the nut in the center still and rotate the spray arm counterclockwise to remove it.

Caring for the dishwasher

2. To remove the lower spray arm, pull out the spray arm upward.

• Please take frost protection measures on the dishwasher in winter. Every after washing cycles, please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

EN C Useful information

4. Reconnect the water inlet pipe to the water valve.

C Useful information

5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

Moving the appliance

• If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

• After every wash, turn off the water supply to the appliance and leave the door slightly open for a while so that moisture and odors are not trapped inside.

• One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

• Before cleaning or performing maintenance, always remove the plug from the socket. No solvents or abrasive cleaning • To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. • To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers. When not in use for a long time • It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance. 42

EN C C Useful information

Before calling for service

Reviewing the charts on the following pages may save you from calling for service Problem

• Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 of cold water to the bottom of the dishwasher.

• Replace fuse or reset circuit breaker.

Fuse blown, or the circuit break tripped.

Power supply is not turned on.

• Remove any other appliances sharing the same circuit with the dishwasher.

• Make sure the power cord is properly plugged into the wall socket.

Water pressure is low

Door of dishwasher not properly closed.

• Door of dishwasher not properly closed.

Twisted or trapped drain hose.

• Check the drain hose.

• Check the filter system.

Kitchen sink clogged.

• Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining, you may need a plumber rather than a serviceman for dishwashers.

Water not pumped from dishwasher

• Make sure the dishwasher is turned on and the door is closed securely.

• Check that the water supply is connected properly and the water is turned on.

• Close the dishwasher door, then select any cycle.

Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. • Repeat if necessary.

Stained tub interior

White film on inside surface

There are rust stains on cutlery

• Always wipe up spills immediately.

Detergent with colourant may have been used.

• Make sure that the detergent has no colourant.

Hard water minerals.

• To clean the interior, use the damp soft cloth with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.

The affected items are not corrosion resistant.

• Avoid washing items that are not corrosion resistant in the dishwasher.

• Always run the quick wash program. without any

A program was not run after crockery in the dishwasher dishwasher salt was added. and without selecting the Traces of salt have gotten Turbo function (if present), into the wash cycle. after adding dishwasher salt. The lid of the softer is loose.

• Check the softener lid is secure.

C C Useful information

Knocking noise in the dishwasher

A spray arm is knocking against an item in a basket

• Interrupt the program and rearrange the items which are obstructing the spray arm.

Rattling noise in the dishwasher

Items of crockery are loose in the dishwasher.

• Interrupt the program, and rearrange the items of crockery.

This may be caused by on-site installation or the cross-section of the piping.

• This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.

The dishes were not loaded correctly.

• See "Preparing And

The program was not powerful enough.

• Select a more intensive program.

Not enough detergent was dispensed.

• Use more detergent, or change your detergent.

Items are blocking the movement of the spray arms.

• Rearrange the items so that the spray can rotate freely.

The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.

• Clean and/or fit the filter correctly. Clean the spray arm jets.

Cloudiness on glassware.

Combination of soft water and too much detergent.

• Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.

White spots appear on dishes and glasses.

Hard water area can cause limescale deposits.

• Check water softener settings or fill status of salt container.

Black or grey marks on dishes

Aluminium utensils have rubbed against dishes

• Use a mild abrasive cleaner to eliminate those marks.

Knocking noise in the water pipes

The dishes are not clean

EN Useful information

Detergent left in dispenser

Dishes block detergent dispenser

• Re-loading the dishes properly.

• Use gloves if detergent residue can be found on dishes to avoid skin irritations.

Dishes are removed too soon

• Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.

Wrong program has been selected.

• With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time.

Use of cutlery with a lowquality coating.

• Water drainage is more difficult with these items.

Cutlery or dishes of this type are not suitable for washing in the dishwasher.

The dishes aren’t drying

WARNING Self-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty.

EN C C Useful information

Availability of spare parts

Seven years after placing the last unit of the model on the market:

Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software.

If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes.

Faucets is not opened, or water intake is restricted,or water pressure is too low.

Ten years after placing the last unit of the model on the market:

Malfunction of heating element.

Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.

Not reaching required temperature.

Some element of dishwasher leaks.

Failure of orientation of distributary valve.

Open circuit or break of distributary valve.

Failure of communication between main circuit board with display circuit board.

Open circuit or break wiring for the communication.

• If overflow occurs, turn off the main water supply before calling a service. • If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. • If there is an error code that cannot be solved, please request professional assistance.
