Product type	Built-in automatic espresso machine
Brand	BOSCH
Model	CTL836EC6
Power supply	220-240 V, 50/60 Hz, 1600 W
Maximum pump pressure	19 bar
Water tank capacity	2.4 L
Coffee bean container capacity	500 g
Dimensions (H x W x D)	455 x 495 x 375 mm
Net weight	19 - 20 kg
Grinder type	Ceramic
Power cord length	1.7 m
Available drinks	Ristretto, Espresso, Cappuccino, Latte Macchiato, Café au lait, Milk foam, Hot milk, Hot water

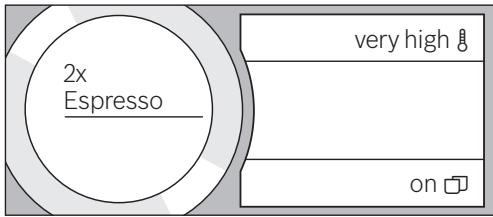

Special features	Aroma Double Shot, Two cups at once, Custom drinks (8 slots)
Grind setting	Sliding adjustment, finely adjustable
Milk system	Integrated with dispensing nozzle and stainless steel milk container
Connectivity	Home Connect Wi-Fi compatible, control via mobile app
Maintenance programs	Descale, Clean, Calc'nClean
Child safety	Lock by long press of a button
Display and control	Touchscreen with control ring
Included accessories	Measuring spoon, hardness test strip, milk hoses, milk container, suction tube
Warranty	According to distributor's terms

Frequently Asked Questions - CTL836EC6 BOSCH

Coffee has no crema, what to do?

The coffee variety may be inadequate. Use a coffee with a higher proportion of Robusta. Ensure the beans are freshly roasted. Set a finer grind if necessary.

Coffee is too acidic, how to fix?

A too coarse grind can make coffee acidic. Set a finer grind or use a finer coffee powder. Possibly change the coffee variety.

The milk system is not sucking milk, what to check?

Check that the dispensing nozzle and hoses are not blocked. Clean the suction tube. Use cold milk with at least 1.5% fat content. Ensure parts are correctly assembled.

An error message appears on the screen, what to do?

Refer to the Troubleshooting chapter in the manual. For example, the message 'Clean the brewing unit' indicates that this part needs cleaning. If the message persists, contact customer service.

How to descale the machine?

Press the maintenance programs menu, select Descaling. Use a BOSCH TCZ8002N descaling tablet dissolved in 0.5 L of warm water in the tank. Follow the on-screen instructions (duration approx. 21 minutes).

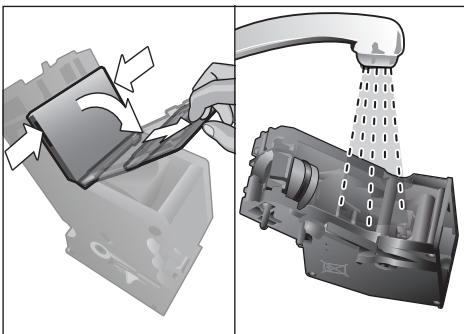

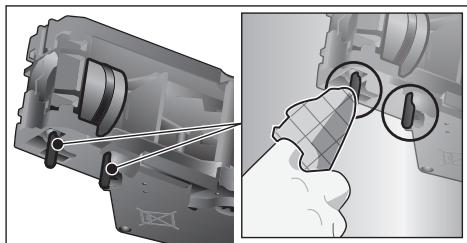

How to clean the brewing unit?

Open the door, turn off the appliance via the main switch. Remove the protective cover and the coffee grounds drawer. Unlock the unit with the lever and remove it. Clean it under running water without dish soap, dry it, then reassemble.

How to adjust water hardness?

Use the supplied test strip to measure hardness. In the menu, select Water hardness and set the level (1 to 4) corresponding to your measurement. Correct adjustment ensures accurate descaling alerts.

How to connect the machine to Home Connect?

Make sure your router is on 2.4 GHz. In the menu, enable Wi-Fi and choose automatic (WPS) or manual connection. Follow the instructions in the Home Connect app to complete the pairing.

Why does the message 'Empty the collection trays' appear even though the tray is empty?

The collection tray may be dirty or damp. Clean it and dry it thoroughly. If the problem persists, remove the tray and replace it after turning on the appliance.

The machine does not turn on, what to check?

Check that the main switch (located behind the door) is in position [I]. Make sure the power cord is properly plugged in and the power outlet works. If the problem persists, contact a qualified electrician.

USER MANUAL CTL836EC6 BOSCH

Fully automatic espresso machine

CTL636E.6 CTL836E.6

[de] Gebrauchsanleitung Kaffeevollautomat 2
[en] Instruction manual Fully automatic espresso machine 33
[fr] Mode d'emploi Machine a expresso entierement automatique 62
[nl] Gebruiksaanwijzing Volautomatische espressomachine 94

Included in delivery (see page 33)

Included in delivery (for use) 33

Congratulations 34

Intended use 35

Important safety information. 35

Overview. 37

Controls 37

Initial use 38

Control panel 40

Preparing drinks 40

Preparation using coffee beans. 43

Preparation using milk. 43

Preparation using ground coffee 44

Dispensing hot water. 44

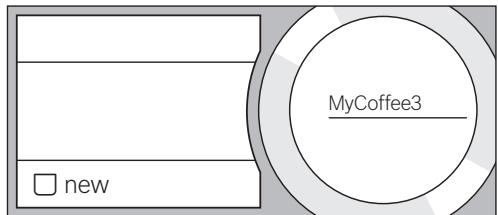

Personalised drinks 45

Adjusting the grind setting 46

Child-proof lock. 46

Menu. 46

Home Connect. 48

Care and daily cleaning. 51

Service programmes 54

Tips on energy saving 57

Frost protection. 57

Storing accessories 57

Accessories 57

Disposal. 57

Guarantee. 57

Simple troubleshooting. 58

Technical specifications 61

Included in delivery (for use)

(Figure A on the fold-out pages)

Fully automatic coffee machine
Instruction manual
Quick reference guide
Measuring spoon
Water hardness testing strip
1 Milk tube (set)
9 Milk container
Suction pipe

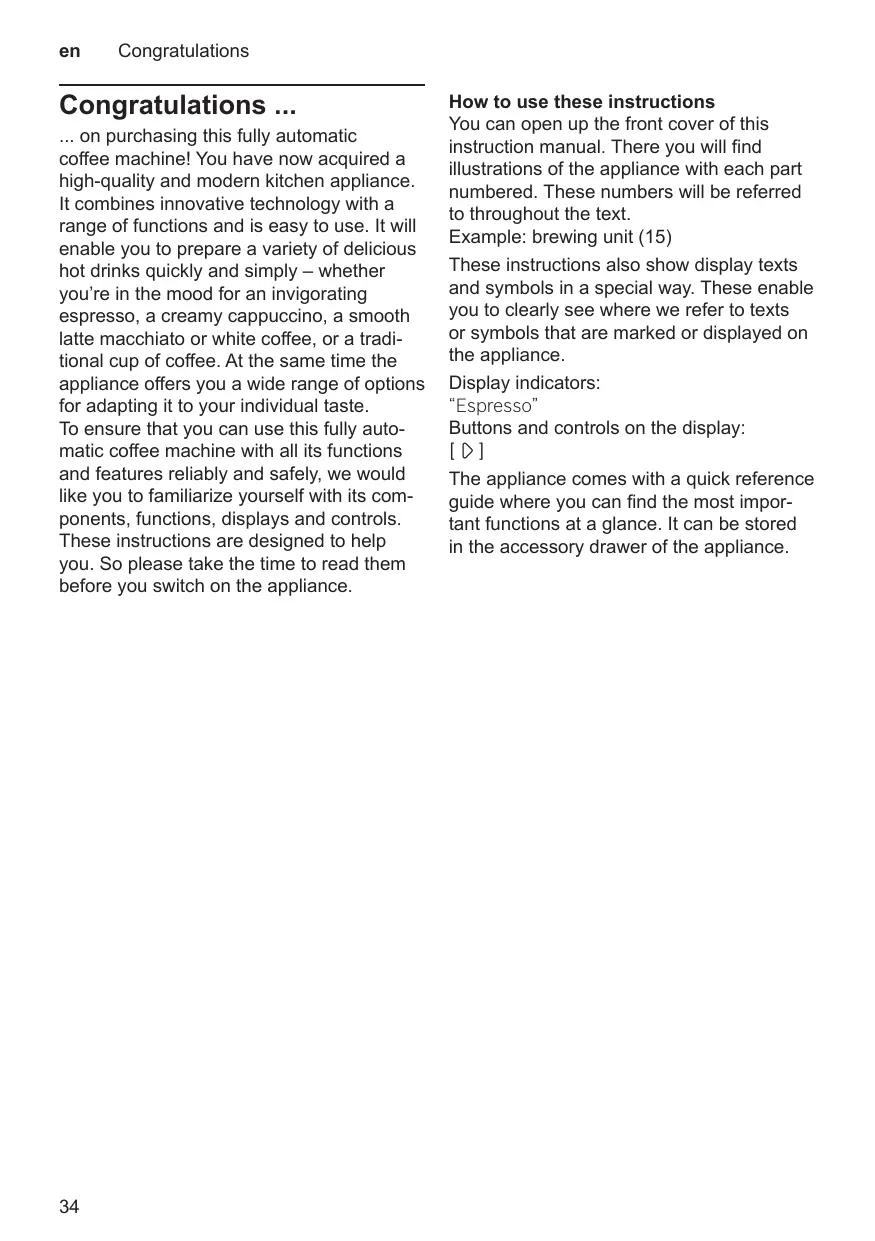

Congratulations …

... on purchasing this fully automatic coffee machine! You have now acquired a high-quality and modern kitchen appliance. It combines innovative technology with a range of functions and is easy to use. It will enable you to prepare a variety of delicious hot drinks quickly and simply – whether you're in the mood for an invigorating espresso, a creamy cappuccino, a smooth latte macchiato or white coffee, or a traditional cup of coffee. At the same time the appliance offers you a wide range of options for adapting it to your individual taste. To ensure that you can use this fully automatic coffee machine with all its functions and features reliably and safely, we would like you to familiarize yourself with its components, functions, displays and controls. These instructions are designed to help you. So please take the time to read them before you switch on the appliance.

How to use these instructions

You can open up the front cover of this instruction manual. There you will find illustrations of the appliance with each part numbered. These numbers will be referred to throughout the text.

Example: brewing unit (15)

These instructions also show display texts and symbols in a special way. These enable you to clearly see where we refer to texts or symbols that are marked or displayed on the appliance.

Display indicators:

"Espresso"

Buttons and controls on the display:

[ ]

The appliance comes with a quick reference guide where you can find the most important functions at a glance. It can be stored in the accessory drawer of the appliance.

Intended use

Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transit.

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Please read and follow the operating instructions carefully and keep them for later reference! Enclose these instructions when you give this appliance to someone else. This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Warning

Risk of electric shock!

The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.
- Connect and operate the appliance only in accordance with the specifications on the rating plate.
- Do not use the appliance if the power cord and/or appliance are damaged.
Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.
If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
- Never immerse the appliance or mains cord in water.
If there is a fault, pull out the mains plug immediately or switch off the power supply.
- Avoid spillage on the connector.

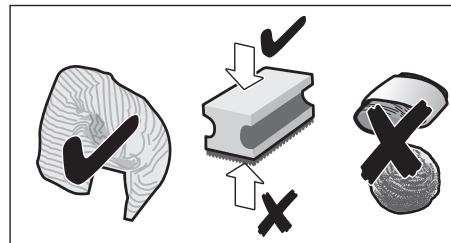

Please note the special information on cleaning in the instructions.

Warning Hazard due to magnetism! The appliance contains permanent magnets which can affect electronic implants such as pacemakers or insulin pumps. Persons wearing electronic implants must maintain a minimum distance of 10 cm from the appliance and from the following parts upon removal: milk container, milk system, water tank and brewing unit.

Warning Risk of suffocation!

• Do not allow children to play with packaging material.
  Store small parts safely as they can be easily swallowed.

Warning

Risk of injury!

• Do not reach into the grinding unit!
• Be careful not to jam your fingers when closing the door.
  A misuse of the appliance can potentially lead to injury.

Warning

Risk of burns!

The beverage outlet gets very hot. After use, always let it cool down before you touch it.
After the use the heating element surfaces can be subjected to residual heat.
- Freshly prepared beverages are very hot. Leave to cool a little if necessary.

Warning Risk of scalding (Home Connect)! If an unattended remote start takes place, third parties might be scalded if they reach under the coffee dispenser during drinks dispensing. You should therefore make sure that with an unattended remote start that there is no risk to other people, in particular not to children, or to property.

Overview

(Figures B to E on the fold-out pages)

1 Appliance door

a Recessed grip (for opening the door)
b Drip plate

2 Control panel (see next page)

a Control ring
b Information display
c Touch display (left and right)

3 Outlet system (coffee, milk, hot water), height-adjustable

a Cover

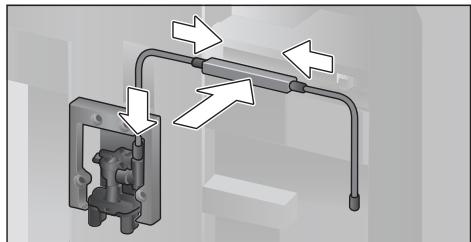

4 Milk system

a Snap lever
b Beverage outlet (upper part, lower part)
c Milk tube (2 pieces)
d Connecting element, metal (for magnet holder)

5 Mains switch [O / I] (power supply)

6 Accessory drawer (for quick reference guide and accessories)

a Quick reference guide
b Measuring spoon
c Water hardness strip
d Milk tube (set)

7 Removable water tank
a Lid for water tank
8 Removable bean container
a Lid for bean container

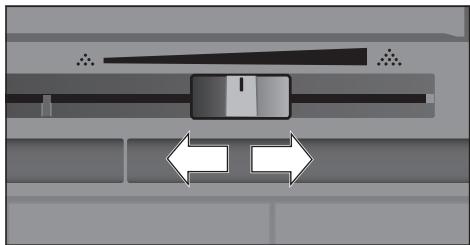

9 Slide regulator for grinding degree setting
10 Magnet holder (for connecting element)
11 Removable drawer (for ground coffee/cleaning tablet)
12 Holder (for milk tube)
13 Protective cover (for brewing unit)
14 Brewing unit

a Locking mechanism
b Cover

15 Eject lever
16 Removable Drip tray

a Drip tray cover
b Coffee grounds container

17 Collecting tray

18 Holder

a Suction pipe

19 Rating plate (E number, FD)

20 Shelf with sensor (for milk container)

21 Milk container

a Stainless steel container
b Lower part of the lid
c Upper part of the lid

Further information about the appliance, such as how to change the opening angle of the door, can be found in the assembly instructions.

Controls

The appliance features user-friendly menu navigation to ensure that operation is as easy as possible while at the same time offering a wide range of functions. That means a range of options can be selected with just a few operating steps.

Mains switch [O/1]

The power switch [O/I] (with the door open) is used to switch the appliance on, or to switch it off fully (power supply off).

Important: Do not press the mains switch while the appliance is in use. Switch off the appliance only when it is in energy saving mode, so that it can rinse automatically.

Control panel (touch field)

Important: These operating instructions refer to several models. In some models [①] and [▷] are touchscreen elements.

[①] on/off

Press [ ① ] to switch on the appliance or put it into energy saving mode. The appliance is rinsed automatically.

The appliance does not rinse if:

if it is still warm when switched on, or
if no coffee was dispensed before it was switched off.

The appliance is ready for use as soon as the symbols for the drinks selection appear on the display.

[ ]start/stop

Press [ ] for either beverage preparation or to launch a service programme.

Press [D] again while the drink is being prepared to prematurely halt dispensing.

There are four menu fields in the control panel which can be activated by touching. The active menu field lights up red.

[coffee menu]

[coffee menu] lights up as soon as the appliance is in operation. Drinks can be selected and dispensed or settings for the drinks can be changed.

[☆]MyCoffee

Touch [☆] to open the selection of "Personalised beverage preparation". Personal settings for coffee drinks can be saved and called up (see the section "Personalised drinks").

[]Menu

Touch [ ] to call up the menu. Settings can be made, information called up or the appliance connected with "Home Connect" (see section "Menu").

[]Service

Touch [ ] to open the selection of service programmes. Run the desired programme as described in the section "Service programmes".

Press [] [or again to exit the respective menu.

Control ring

Turn the control ring to navigate in the display or to change parameters.

Information display

The round display shows the drink selected, the settings or information.

Touch display (left and right)

Depending on the setting, different fields are shon in both the touch displays. A field is activated when touched either to enter settings or change values.

Initial use

General

Fill the appropriate container using only pure, cold, uncarbonated water and solely roasted beans. Do not use coffee beans that have been glazed, caramelised or treated with other additives containing sugar, since they will block the brewing unit.

Before the appliance can be switched on and used, it must be assembled and connected according to the enclosed assembly instructions.

Setting up the appliance

Remove any protective plastic film.

Important: Only use the appliance in a frost-free room. If it has been transported or stored at temperatures below 0^ , wait at least 3 hours before initial use.

Take hold of the appliance door by the recessed grip and open.
- Remove the water tank, rinse it and fill it with fresh water up to the "max." mark.
- Replace the water tank and click into place.
- Remove the bean container, fill with coffee beans and replace.
- Set the mains switch to [ ① ] and close the appliance door.

The appliance heats up and is rinsed.

The control panel is activated.

"Language" appears.

• Turn the control ring with your finger to select the desired language and touch the [Water hardness] field.

It is important to set the water hardness correctly to enable the appliance to accurately indicate when the descending programme should be run. The preset water hardness is level 4. If a water softener is installed in the house, please set the water hardness to level 3. You can also check the water hardness by asking your local water supplier.
Use the enclosed test strip to determine the water hardness. Briefly dip the test strip in water and check the result after one minute.

Level	Water hardness
	German (°dH)	French (°fH)
1	1-7	1-13
2	8-14	14-25
3	15-21	26-38
4	22-30	39-54

Turn the control ring with you finger to set the water hardness determined.
[Home Connect] appears on the left and on the right [Set-up complete].
To now connect the appliance to the WLAN network (home network), touch [Home Connect].
To connect the appliance to the WLAN network later on, touch [Set-up complete]. The settings for Language and Water hardness are saved.

When selecting [Home Connect] please read the detailed description in the section "Home Connect".

The appliance is ready to use as soon as the drink symbols are shown and the [coffee menu] lights up.

The integrated fan switches on each time a drink is dispensed and switches off again after a few minutes.

When the appliance is used for the first time after running a service program, or if it has not been operated for a long period, the first beverage will not have the full aroma and should not be consumed.

When the fully automatic coffee machine is first used, a suitably thick and stable "crema" is only achieved after the first few cups have been dispensed.

Switch off appliance

Press [①].

The appliance rinses and switches to energy saving mode.

Exception: If only hot water is dispensed, the appliance switches off without rinsing.

To switch the appliance off completely, open the appliance door and set the mains switch to [O].

Important: Do not press the mains switch while the appliance is in use. Switch off the appliance only when it is in energy saving mode, so it can rinse automatically.

The factory settings of the fully automatic coffee machine are programmed for optimal performance. The appliances switches automatically to the energy saving mode after a configured time and rinses (duration can be set, see "Switch off after" in the section "Menu").

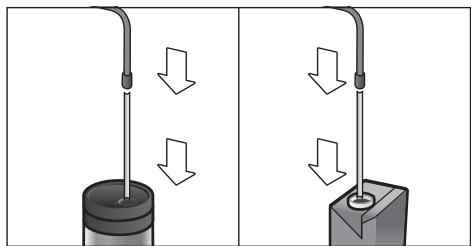

The appliance is equipped with a sensor. If there is a milk container, this will be correspondingly shown on the display when switching to the energy saving mode. If there is milk in the container, please keep in the fridge.

Control panel

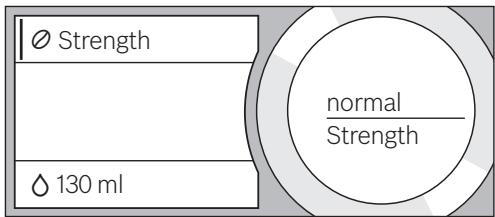

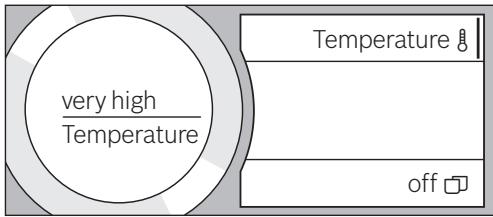

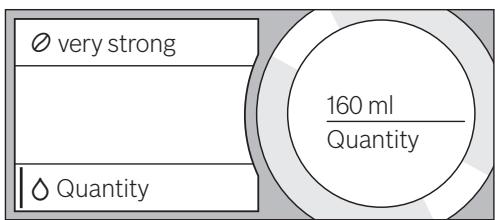

Information is shown on the display or settings can be entered by touching the touchscreen and the control ring.

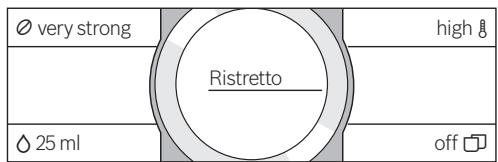

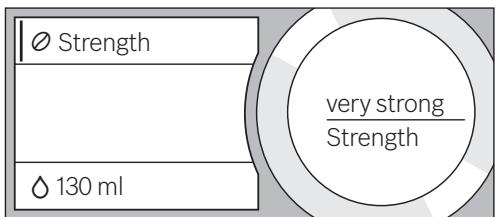

Display

The control panel shows the selected drinks, settings and setting options, as well as messages about the appliance's operating status.

e.g. Drink selection

e.g. Information

Information disappears after operating the appliance or after a short time.

The information remains however in the information display in the form of a small symbol.

Bean container almost empty

Water tank almost empty

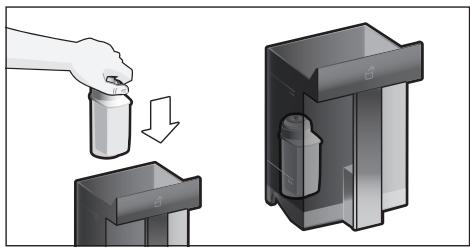

Replace water filter

Cleaning programme necessary

Dscaling programme necessary

Calc'nClean programme necessary

Prompts to take action

If the action required was carried out, e.g. filling the water tank, the corresponding message and symbol will disappear.

Operation

Touch texts or symbols combined with turning the control ring to navigate in the control panel (for an example, see section "Drink adjustment").

An audible signal is heard when touching the touch display. These audible signals can be switched on or off (see the section "Menu - Key tones").

Preparing drinks

This fully automatic coffee machine can be operated using coffee beans or ground coffee (but not instant coffee).

If using coffee beans, they will be freshly ground for each brewing. For optimum quality, store the beans in a cool place in sealed containers.

i Important: Fill the water tank with fresh, uncarbonated, cold water every day. The tank should always contain sufficient water for operating the appliance.

Tip: Cups should be prewarmed, e.g. with hot water. This applies particularly to small thick-walled espresso cups.

For some settings, coffee is prepared in two stages (see the section "Aroma Double Shot" and "Two cups at once"). Please wait until the process is completely finished.

Beverage selection

Turn the control ring to select different drinks: The symbol and the name of the selected drink will appear in the middle of the information display.

The values currently set, e.g. for the coffee strength and temperature are shown on the left and right of the touch display.

∅ very strong	Ristretto	high #
25 ml		off ☐

The following drinks can be selected:

Ristretto

Espresso

Espresso Macchiato

Coffee

Cappuccino

Latte Macchiato

Caffe Latte

Milk froth

Warm milk

Hot water

The drink selected can be directly prepared with the pre-set values or first adjusted to individual taste.

If the appliance is connected to Home Connect, additional drinks can be selected from "Coffeeworld" and adjusted in the app. The last "Coffeeworld" drink selected in the app is shown in the display and can also be adjusted and dispensed directly at the appliance.

Drink adjustment

Touch one of the fields shown on the touch display, e.g. [] to activate the field, [] turns red.

Turn the control ring to change the setting.

Touch [ ] again to save the setting.

An example:

The values for a cup of Coffee can be changed as follows:

Turn the control rind and select "Coffee".

○ normal	Coffee	high
△ 130 ml		off

• Touch the field, e.g. [] to active, [] lights up red.

Turn the control ring and set the desired coffee strength in the middle of the information display, e.g. to "very strong".

• Touch the field [△].
  Turn the control ring to set the required amount of coffee, e.g. "160 ml".

Touch the field [8].
Turn the control ring and set the desired temperature, e.g. "very high".

Save the settings by touching the active field or by starting to dispense the drink.

very strong	Coffee	very high
160 ml	off

There are different setting options depending on the type of drink. For coffee drinks, for example, the strength, temperature and quantity can be set, for milk only the volume.

The following settings are possible: Coffee strength

very mild

mild

normal

strong

very strong

Double Shot strong

Double Shot strong +

Double Shot strong ++

Aroma Double Shot

The longer the coffee is brewed, the more bitter substances and undesired aromas are released. This has a negative effect on the taste and makes the coffee less easily digestible. For extra strong coffee, the appliance has therefore a special Aroma Double Shot function. When half the quantity has been prepared, it grinds and brews fresh coffee beans so that only the pleasant, aromatic scents are released.

The Aroma Double Shot function is not available for ristretto, espresso macchiato, and when ground coffee is used.

Volume

The volume differs depending on the type of drink and can be set in ml steps.

The volume dispensed can fluctuate depending on the quality of the milk.

Drink temperature

Values for coffee drinks:

normal

high

very high

Values for hot water:

70^ C

White tea

80^ C

Green tea

90^ C

Black tea

Max

Fruit tea

If no controls are activated for approx. 30 seconds, the appliance will automatically exit the settings mode. The settings made will be automatically stored.

Two cups at once

Touch [□] to prepare two cups of the selected drink simultaneously. The setting is shown as text, e.g. "2xEspresso".

Touch [□].

• Place two cups left and right underneath the beverage outlet.
  Press [ ] to start dispensing.

The selected drink is prepared and then dispensed into both cups.

The drink is prepared in two stages (two grinding operations).

Please wait until the process is completely finished.

Two cups at once cannot be dispensed for the settings "Aroma Double Shot" or "ground coffee".

Preparation using coffee beans

The appliance must be ready for use.

• Place a cup underneath the beverage outlet.
  Turn the control ring and select "Ristretto", "Espresso" or "Coffee".

The display shows the selected drink along with the preset values for the drink.

very strong	Coffee	very high
160 ml	off

The settings can be changed as described in the section "Drink adjustment".

Press [D] to start dispensing. The coffee is brewed and then dispensed into the cup. Press [D] again to prematurely halt dispensing.

Preparation using milk

This fully automatic coffee machine has an integrated beverage outlet. This can be used to prepare coffee drinks with milk or also milk froth and warm milk.

Risk of burns!

The beverage outlet gets very hot. After use, always let it cool down before you touch it.

Milk container

The milk container has been designed especially for use together with this fully automatic coffee machine. It is intended solely for use in the household and for storing milk in the refrigerator. The insulated container keeps milk cool for a number of hours.

Important: Remove cups or glasses before opening the door in case they fall.

Connecting the milk container or a milk carton:

Open the appliance door.
- Remove the cover of the beverage outlet towards the front.
- Connect and fix the milk tubes and connecting elements as illustrated.

• Attach the cover firmly from the front on to the beverage outlet.
• Attach the suction pipe and insert into the milk container or a milk carton.

• Close the appliance door.

Dried milk residues are difficult to remove, therefore always clean (see the section "Cleaning the milk system").

Coffee drinks with milk

• Place a cup or glass underneath the beverage outlet.
  Turn the control ring and select "Espresso Macchiato", "Cappuccino", "Latte Macchiato" or "Caffe Latte".

The display shows the selected drink along with the preset values for this drink.

The settings can be changed as described in the section "Drink adjustment".

Press [D] to start dispensing.

The milk is dispensed into the cup or glass first. Then the coffee is brewed and runs into the cup or glass.

Press [ ] again to stop the current step of the process prematurely.

Milk froth or warm milk

• Place a cup or glass underneath the beverage outlet.
  Turn the control ring and select "Milk froth" or "Warm milk".

The settings can be changed as described in the section "Drink adjustment".

• Press [D] to start dispensing.
  Milk froth or warm milk is dispensed from the beverage outlet.
  Press [D] again to prematurely halt the dispensing process.

Preparation using ground coffee

When using ground coffee, the setting for the strength of the coffee and dispensing two cups at once is not available.

Important: Remove cups or glasses before opening the door in case they fall.

The appliance must be ready for use.

Open the appliance door.
- Remove the ground coffee drawer. The removable drawer must be dry.
Put in coffee powder (maximum 2 level measuring spoons); do not press firmly.

Caution!

Do not use whole beans or instant coffee.

Replace the ground coffee drawer.
- Close the appliance door.

If coffee is not dispensed within 90 seconds, the brewing chamber empties automatically to avoid an overflow. The appliance is then rinsed.

• Place a cup underneath the beverage outlet.
• Turn the control ring and select a coffee drink or a coffee drink with milk. The display shows the selected drink, a measuring spoon and the preset values for this drink.

The settings can be changed as described in the section "Drink adjustment".

For coffee drinks with milk, please observe the instructions in the section "Preparation using milk".

Press [D] to start dispensing. The coffee is brewed and then dispensed into the cup. When selecting coffee drinks with milk, the milk is first dispensed and then the coffee brewed.

For another drink with ground coffee, repeat the procedure.

Dispensing hot water

Risk of burns!

The beverage outlet gets very hot. After use, always let it cool down before you touch it.

The appliance must be ready for use.

• Remove the milk tube from the milk container.
• Remove any milk or coffee residue from the outlet.
• Place a cup or glass underneath the beverage outlet.
  Turn the control ring and select "Hot water".

The settings can be changed as described in the section "Drink adjustment".

Press [ ] to start dispensing.
The message appears "Milk hose separated from milk container?"
If still connected, remove the milk tube and touch [Yes] on the display. Hot water flows out of the beverage outlet. Press [D] again to prematurely halt the dispensing process.

Personalised drinks

Touch [☆] to open the selection for personalised drinks.

Up to 8 storage spaces can be used. Save your favourite drinks that are frequently dispensed here with all their settings.

Touch [☆] to exit the menu without saving at any time.

Entering or changing drinks

• Touch [☆]. The selection of memory locations appears.
• Turn the control ring to choose an empty memory location (empty glass) to make a new entry, change an occupied memory location, or delete a favourite drink.
• Select [new] at an empty memory location or [Details] at an occupied memory location.

The menu for adjusting the drinks opens. The last drink dispensed is shown with the last settings selected.

If you do not wish to save last drink dispensed, turn the control ring and select another drink.
- Touch each setting to be changed and turn the control ring to adjust the values as desired.

Other setting options appear depending on the selection.
- Touch [Further details | Save] to enter other settings.

For milk drinks, the mixing ratio of coffee and milk can be set.

• The settings can be stored under an individual name. Touch [Name]. The mask for entering the name opens.

Back to Details	Anna m	Delete letter
		Save letter
Name		Save

Turn the control ring and select a letter or a symbol.
- Touch [Save letter] to confirm the letter selected or [Delete letter] to delete it.
- Select other letters or symbols and confirm.
- With [Save] the entry is adopted. The selection menu opens.
- Touch [☆] to exit the menu.

Deleting a drink

Touch [☆]
Turn the control ring and select the occupied memory location.
- Touch [Details] and [Further details | Save].
- Touch [Delete beverage] and then [Delete].

The memory location is again free.

Select a personalised drink and dispense

Touch [☆]. The selection of memory locations opens.

Turn the control ring and select the desired memory location.
- Place a cup or glass underneath the beverage outlet.
Press [D] to start dispensing.

Adjusting the grind setting

This fully automatic coffee machine has an adjustable grinding unit. This enables the grinding level of the coffee to be individually changed.

Open the appliance door.
- Slide the regulator to select the grinding degree setting between finely ground coffee ... and coarsely ground coffee ...

• Close the appliance door again.

For dark roast coffee beans, choose a finer grind, for lighter beans a coarser grind.

Tip: Only make small changes to the grinding degree setting.

The new setting will not become apparent until after the second cup of coffee.

If the display shows the message "Select a coarser degree of grinding", this means that the beans are being ground too finely. Adjust the grinding level to a coarser setting.

Child-proof lock

The appliance can be locked to protect children against scalding and burns.

Press and hold [ ] for at least 4 seconds. "Child-proof lock activated" briefly appears on the display.
No further operation is now possible; only [] can be pressed.
To deactivate the child lock, press and hold [] for at least 4 seconds.

"Child-proof lock deactivated" briefly appears on the display.

Menu

The menu is used for changing individual settings, accessing information and launching processes.

• Touch [] to open the menu.

The different setting options will appear in the touch display and the current setting in the round information display.

Navigating through the menu:

By touching e.g. language the corresponding setting option is activated and highlighted red.

Turn the control ring to enter the settings, e.g. "English". By touching [Next], other setting options will appear.

Language	English	Illumination
Water hardness		Brightness illumination
Switch off after		Next>

For example:

Set the appliance at 15 minutes to switch off automatically:

Touch [J]. The menu opens.
- Touch [Switch off after], the field is highlighted red.
Turn the control ring and select "00h15m".
- Touch [S]. [Save] and [Do not save] appears.
- Touch [Save]. The setting is saved.
The drink selection appears on the display.

Press [] to exit the menu at any time. If no entry is made within approx. 30 seconds, the menu closes automatically and the settings are not saved.

The following settings can be made:

Language

Set the desired language to show the display texts.

Water hardness

Set this to the local water hardness.

Level "1 (soft)" to "4 (very hard)" can be selected. The preset water hardness is "4 (very hard)".

It is important to set the water hardness correctly to enable the appliance to accurately indicate when the descaling programme should be run.

You can check the water hardness using the enclosed test strip or by asking your local water supplier. If a water softening system is installed in the house, please select the "Softening device" setting.

Water filter

If a water filter is inserted, renewed or removed, the setting "insert", "replace" or "remove" must be made in the menu.

A water filter lessens limescale deposits, reduces impurities in water and improves the coffee taste. Water filters are available from retail outlets or from customer services (see the section "Accessories").

Inserting or renewing a water filter: A new water filter must be rinsed before it can be used.

Turn the control ring to select either "insert" or "replace".
Press the water filter firmly into the opening of the water tank.

• Fill the water tank with water up to the "max" mark.
• Remove the milk tube from the milk container and close the door.

Caution: Do not jam the tube when closing the door.

• Place a container with a capacity of 0.5 litre under the outlet.
  Press [D].

Water will now flow through the filter to rinse it.

Then empty the container.

The appliance is ready for use again.

Rinsing the filter simultaneously activates the setting for the change filter display.

The filter is no longer effective when the "Replace water filter - Press [ ]" display appears, or at the latest after two months. It needs to be replaced for reasons of hygiene and to prevent a build-up of limescale (which could damage the appliance).

If a new filter is not inserted, select the setting [remove] and press [D].

The message "Remove filter, reinsert water tank, close door" appears.

If the appliance has not been used for a prolonged period (for example, while you are on holiday), the existing filter should be rinsed before the first time the appliance is used again. To do this, simply dispense a cup of hot water.

Detailed information about the water filter can be found in the manual supplied with the filter.

Home Connect

Settings for connection to WLAN network (home network) and mobile devices (see section "Home Connect").

Switch off after

To set how long the appliance should wait after the last drink was prepared before it automatically rinses and switches itself off. You can specify values from 15 minutes to 8 hours. The factory setting is 30 minutes.

Illumination

Setting the illumination of the beverage outlet. "on", "when in use" or "off" can be selected.

Brightness illumination

Setting the illumination lightness of the beverage outlet. "Level 1" to "Level 10" can be selected.

Brightness display

Setting the illumination lightness of display.

Key tones

Switch the signal tones on or off.

Clock displ.

Display option for time Off or Digital (on). The setting for this can be changed in the Clock menu option.

If the appliance is switched off at the mains or there is a power failure, the settings for the time will be lost.

Clock

Setting for the current time.

Frost protection

Service programme to prevent frost damage during transportation and storage.

This programme completely empties the appliance.

Empty the water tank and reinsert.
If available remove the milk container and close the door.

The appliance automatically empties all its pipes.

Empty the drip tray and re-insert.

Beverage info

Display shows how many drinks have been prepared since its initial use.

Factory settings

Resets your own settings to the condition when delivered.

• Touch [Reset] or [Do not reset] to either confirm or interrupt.

Home Connect

This fully automatic coffee machine is Wi-Fi-capable and can be remotely controlled using a mobile device (e.g. tablet PC, smartphone). The Home Connect App offers additional functions which are a perfect complement to the networked appliance.

If the appliance is not connected to the WLAN network (home network), it functions in the same way as a fully automatic coffee machine with no network connection and can be operated as usual via the display.

Important information:

The home network router must be operated in the 2.4 GHz frequency range. Please check it and adjust it if necessary.

The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on this at www.home-connect.com.

Please ensure that you follow the safety instructions given at the beginning of this instruction manual and that these are also observed when operating the appliance via the Home Connect app and when away from home. Please also follow the instructions in the Home Connect App.

Operation on the appliance itself always takes priority, and during this time it is not possible to operate the appliance using the Home Connect App.

Setting up

To implement settings via Home Connect, you must have installed the Home Connect App on a mobile device (e.g. tablet PC, smartphone). Please observe the supplied Home Connect documents with regard to this. Follow the steps specified by the app to implement the settings.

Login of the appliance in the WLAN network can be carried out on initial set-up of the fully automatic coffee machine either directly or using the menu (first touch [ ] to open the menu):

Touch [Home Connect].
- Touch [Wi-Fi] to start the wireless connection. "Wi-Fi on" appears in the display.
- Touch [Connect network]. The following selection appears: [Connect automatically] and [Manually connect].

If the router has WPS functionality, please select [Connect automatically].

Connect automatically in the WLAN network (home network)

• Touch [Connect automatically]. The display shows [Automatic network connection].
  Press the WPS button on the home network router within a few minutes and wait until the display of the fully automatic coffee machine shows "Network connection successful".
• Open the app on the mobile device.
• Touch [Connect with app]. The fully automatic coffee machine connects with the app.
  Wait until [Successfully connected with app] lights up briefly in the display.
• Touch [Remote start]. A warning message appears.
• Touch [Next] and read the warning message.
• Touch [confirm].

With the mobile device the functions of the fully automatic coffee machine can now be used to their full extent via the app.

i If [Remote start] - [Deactivate] is selected, only the modes of the fully automatic coffee machine are displayed in the Home Connect app. You can specify settings but not start drinks dispensing.

Connect manually in the WLAN network (home network)

• Touch [Manually connect]. The fully automatic coffee machine sets up a separate WLAN network which can be accessed with a tablet or smartphone. The display shows the SSID (the name) and the key (the password) of this network.

• Log the mobile device in to the network of the fully automatic coffee machine with the "HomeConnect" SSID and the "HomeConnect" key.

• Start the app on the mobile device and follow the instructions for network login in the app and the supplied Home Connect documents.

The login process is complete when "Network connection successful" lights up briefly in the display of the fully automatic coffee machine.

• Touch [Connect with app]. The app must also be opened on the mobile device. The fully automatic coffee machine connects with the app.
  Wait until [Successfully connected with app] lights up briefly in the display.
• Touch [Remote start]. A warning message appears.
• Touch [Next] and read the warning message.
  Touch [confirm].

With the mobile device the functions of the fully automatic coffee machine can now be used to their full extent via the app.

i If [Remote start] - [Deactivate] is selected, only the modes of the fully automatic coffee machine are displayed in the Home Connect app. You can specify settings but not start drinks dispensing.

Switching Wi-Fi on and off

Wi-Fi can be switched "On" or "Off" as required (e.g. when on holiday).

i Network information is retained after the appliance is switched off.

After switching on, wait a few seconds until the fully automatic coffee machine has connected to the WLAN network again.

In networked standby mode the appliance requires a maximum of 2 W.

• Touch [] to open the menu.
  Touch [Home Connect].
• Touch [Wi-Fi] to switch the wireless module "On" and "Off".

Additional settings

Home Connect can be adapted to your individual needs at any time.

Note: The fully automatic coffee machine must be connected to the WLAN network.

Disconnecting

The fully automatic coffee machine can be disconnected from the WLAN network at any time.

If the fully automatic coffee machine is disconnected from the WLAN network, it cannot be operated using Home Connect.

• Touch [♂] to open the menu.
  Touch [Home Connect].
  Touch [Disconnect from network].

The connection to the network and app is disconnected. Wi-Fi and remote start are switched off.

Information about the WLAN network is cleared.

Connecting with app

The Home Connect app can be installed on any number of mobile devices, which can then be used to connect to the fully automatic coffee machine.

The fully automatic coffee machine must already be connected to the WLAN network.

• Open the app on the mobile device.
• Touch [♂] to open the menu.
  Touch [Home Connect].
• Touch [Connect with app] to connect to the appliance with the app.

Remote start

If you wish e.g. to start drinks dispensing on the fully automatic coffee machine via a mobile device, Remote start must be activated.

Risk of burns!

If an unattended remote start takes place, third parties might be scalded if they reach under the coffee dispenser during drinks dispensing. You should therefore make sure that with an unattended remote start that there is no risk to other people, in particular not to children, or to property.

The [Remote start] text field is is only visible if connection with Home Connect has been successfully completed.

If Remote start is switched off, only the modes of the fully automatic coffee machine are displayed in the Home Connect app.

• Touch [] to open the menu.
  Touch [Home Connect].
• Touch [Remote start] to switch the function Remote start "On" and "Off".

Device Info

Display for network and device information

• Touch [] to open the menu.
  Touch [Home Connect].
• Touch [appliance Info]. The SSID, IP, MAC address and serial number of the appliance are displayed for a few seconds.

Display

The top right-hand corner of the display shows the Home Connect status with a symbol:

Connected to the network

Not connected to the network

No connection to server

Remote diagnostics

In the event of faults, customer service can use remote diagnostics to access your appliance. Contact customer service and ensure that your appliance is connected to the Home Connect server and check that the remote diagnostics service is available in your country.

For more information and to check whether the remote diagnostics service is available in your country, please visit the Help & Support area of the Home Connect website for your country: www.home-connect.com

Information on data protection

When the fully automatic coffee machine is connected for the first time to a WLAN network which is connected to the Internet, the appliance transmits the following categories of data to the Home Connect server (initial registration):

• Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
  Security certificate of the Wi-Fi communication module (to ensure a secure IT connection).
  The current software and hardware version of the fully automatic coffee machine.
  Status of any previous resetting to the factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time.

i Please note that the Home Connect functions can only be used in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.

Declaration of Conformity

Robert Bosch Hausgeräte GmbH hereby declares that the appliance which features Home Connect functionality is in accordance with the essential requirements and the other relevant provisions of the directive 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.bosch-home.com on the product page of your appliance with the additional documents.

2.4 GHz band: 100 mW max.

Care and daily cleaning

Risk of electric shock!

Never immerse the appliance in water. Do not steam-clean the appliance.

Wipe the outside of the appliance with a soft, damp cloth.
Clean the control panel using a micro-fibre cloth.
- Do not use any cleaning agents containing alcohol or spirits.
- Do not use abrasive cloths or cleaning agents.

Always remove any limescale, residues of coffee or milk, cleaning or descending solution immediately. It is possible for corrosion to form underneath such deposits.
New sponge cloths may contain salts. Salts can cause rust film on stainless steel and must therefore be washed out thoroughly before use.
- Open the door and pull the drip tray out forwards.

• Remove drip tray cover and coffee grounds container.
  Empty, clean and dry individual parts.

Important: The drip tray and coffee grounds container should be emptied and cleaned every day in order to prevent deposits.
- Remove the ground coffee drawer, clean under running water and dry well.

Wipe and dry the inside of the appliance (support, drip tray and the ground coffee drawer) and collecting tray.
- Replace the dried parts, e.g. the ground coffee drawer.

Do not put the following parts in the dishwasher:

Accessory drawer, water tank, lid of the water tank, beverage outlet cover, bean container, lid of the bean container, metal connecting element, ground coffee drawer, protective cover of the brewing unit and the milk container.

The following parts may be cleaned in the dishwasher:

Drip plate, collecting tray, drip tray, drip tray cover, coffee grounds container, milk tubes, suction pipes, individual parts of the beverage outlet, measuring spoon and individual parts of the milk container lid.

If the appliance is cold when switched on, or if it is switched off after dispensing coffee, it rinses automatically. The system is therefore self-cleaning.

Important: If the appliance is not used for a lengthy period (e.g. while you are on holiday), clean the entire appliance thoroughly, including the milk system, the ground coffee drawer and the brewing unit before use.

Cleaning the milk system

The milk system is automatically cleaned with a short jet of steam directly after preparing a milk drink.

Tip: For particularly thorough cleaning, the milk system can be additionally rinsed with water (see the section "Rinsing the milk system").

Important: Clean the milk system manually every week and, if required, also more often (see the section "Cleaning the milk system manually").

Risk of burns!

The beverage outlet gets very hot. After use, always let it cool down before you touch it.

Rinsing the milk system

Touch [].
- Touch [Rinse milk system] to select the programme.

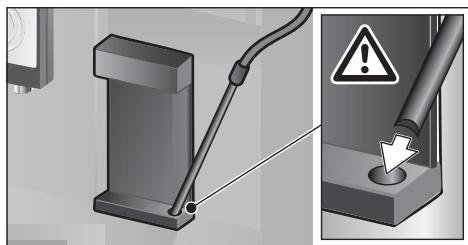

- Open door and remove suction pipe from the milk tube.
Wipe the suction pipe and insert the end of the suction pipe into the hole on the coffee grounds container.

• Close the door. Be careful not to jam the milk tube.
• Place an empty glass underneath the beverage outlet.

Press [D].
The milk system is rinsed with water.
Then empty the glass.
- Touch [ ] to exit the programme.

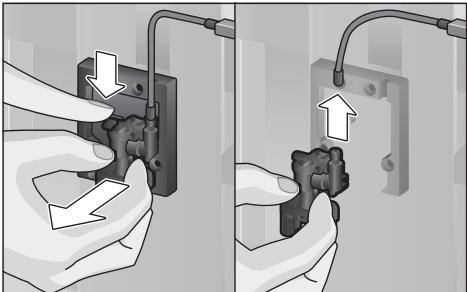

Cleaning the milk system manually Take the milk system apart to clean it:

• Push the beverage outlet down completely and pull the cover forward to remove.
  Press the snap lever to the left of the beverage outlet downwards and pull the beverage outlet forward.

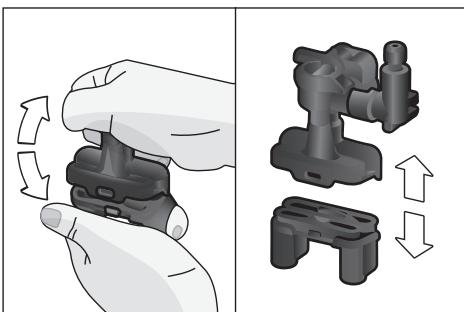

• Remove the milk tube. Dismantle the top and bottom sections of the beverage outlet.

• Separate the milk tubes, connecting element and suction pipe.

Clean the individual parts with a detergent solution and a soft cloth.
- Rinse all parts with clean water and dry them.

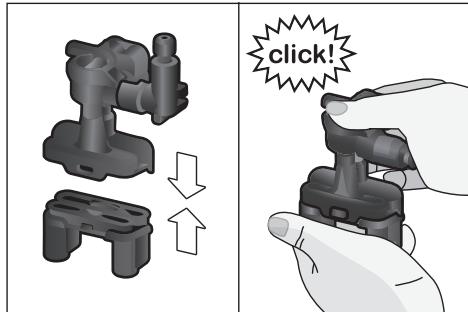

Put the individual parts back together again (see also the quick reference guide).

• Attach the beverage outlet directly from the front firmly to the three connections.
  Replace the cover.

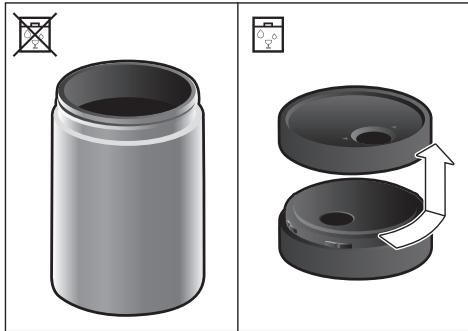

Cleaning the milk container

For reasons of hygiene, the milk container should be cleaned regularly. Only the individual parts of the lid are suitable for being cleaned in the dishwasher. Clean the stainless steel milk container by hand with a mild detergent.

Cleaning the brewing unit

(see also the Quick reference guide) In addition to the automatic cleaning programme, the brewing unit should be removed regularly for cleaning.

Open the appliance door.
Use the mains switch [O/I] to switch off the appliance completely.

• Remove the protective cover of the brewing unit.
  Remove the coffee grounds container.
• Slide the red latch on the brewing unit all the way to the left.
  Press the eject lever right down. The brewing unit will be released.
  Take hold of the brewing unit by the recessed grips and carefully remove it.
• Remove the cover of the brewing unit and clean thoroughly under running water.

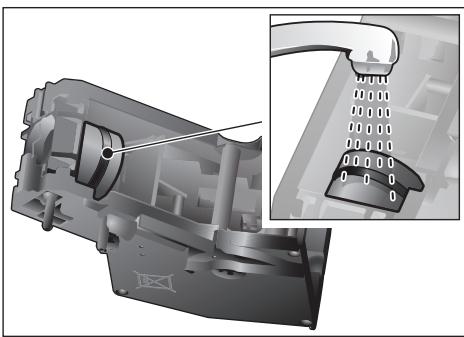

Clean the strainer of the brewing unit thoroughly under the water jet.

Thoroughly clean the connecting nozzles of the brewing unit.

Important: Clean it without using washing-up liquid and do not put it in the dishwasher.

Clean the inside of the appliance thoroughly with a moist cloth, removing any coffee residues.
- Leave the brewing unit and the inside of the appliance to dry.
Place the cover back on the brewing unit.
- Push the brewing unit all the way into the appliance and press on the middle until it audibly clicks into place.

Important: The red latch must be right over at the left at before replacing (see diagram E).

Press the eject lever right up and push the red latch right over to the right to 出
Insert the coffee grounds container.
Replace the protective cover.
- Close the appliance door.

Service programmes

(see also the Quick reference guide) The following messages will appear on the display at certain intervals, either "Descalating programme urgently required!" or "Cleaning programme urgently required!" or "Calc'nClean programme urgently required!". The unit should immediately be cleaned or descaled using the appropriate programme. Alternatively, the two processes Descale and Clean can be carried out together using the Calc'nClean function (see the section "Calc'nClean"). Failure to carry out the service programme according to the instructions may damage the appliance.

Important: If the appliance is not descaled when it is supposed to be, the message "Descaling programme is overdue. Device will shortly be locked." will appear. Immediately perform the descending process in accordance with the instructions. If the appliance is locked, it can only be operated again once the descending process has been carried out.

To display how many beverages can still be prepared before one of the service programmes needs to be run, proceed as follows:

Touch [].

The service programmes appear. The counter, e.g. "Clean after approx. 28 cups" provides information on when to perform the respective programme next.

Warning!

For each of the service programmes, use descending and cleaning agents as described in the instructions and observe the (relevant) safety information. Never interrupt a service programme. Do not drink liquids! Never use citric acid, vinegar or any vinegar-based agents to descale the appliance. Never place descending tablets or other descending materials in the coffee drawer!

Important:

Before starting each service program (Descale, Clean or Calc'nClean) remove the brewing unit, clean as instructed and replace it.

Be careful not to jam the milk tube when closing the door.

After completion of each service programme, wipe the appliance immediately with a soft, damp cloth to remove any residues from the descaling and cleaning solution. It is possible for corrosion to form underneath such deposits.

New sponge cloths may contain salts. Salts can cause rust film on stainless steel and must therefore be washed out thoroughly before use. Clean the beverage outlet, milk tubes and connecting piece thoroughly.

Specially developed, suitable.
descaling and cleaning tablets are
available from retail outlets or from
customer services (see the section
"Accessories").

Using a water filter increases the intervals until a descending programme needs to be performed.

Dscaling

Takes about 21 minutes.

Touch [].
- Touch [Descale] to select the programme.
The display indicates the progress of the programme.
Empty drip trays and replace.
Remove the water filter (if there is one) and press [D].
Pour lukewarm water into the empty water tank up to the "0.5 l" mark and then dissolve one Bosch descaling tablet TCZ8002N in it.

If there is not enough descending solution in the water tank, you will be asked to do the following. Refill using uncarbonated water and press [D] again.

• Remove the suction pipe from milk container, wipe it and insert the end of the suction pipe into the hole on the coffee grounds container.
• Close the appliance door.
• Place a container with a capacity of 0.5 litre under the beverage outlet.
  Press [D]. The descending programme will now run for about 19 minutes.
  Remove the container and press [ ]
• Rinse the water tank and (if removed) replace the water filter.
• Fill the tank with fresh water up to the "max" indicator.
  Replace the water tank and close the door.
• Place the container underneath the beverage outlet again.
  Press [D]. The descending programme will now run for about 2 minutes and rinse the appliance.
• Remove the container, empty the drip trays, replace and close the appliance door.
  Press [D]. The appliance has finished descaling and is ready for use again.
  Touch [念 ] to exit the program.

Cleaning

Takes about 5 minutes.

Touch [].
- Touch [Clean] to select the programme.
The display indicates the progress of the programme.
Clean the beverage outlet and replace, empty the drip trays and replace.
- Open the ground coffee drawer, drop in a cleaning tablet and close the coffee drawer again.
- Close the appliance door.
- Place a container with a capacity of 0.5 litre under the beverage outlet.
Press [D]. The cleaning programme will now run for about 5 minutes.
- Remove the container, empty the drip trays, replace and close the appliance door.
Press [D]. The appliance has finished cleaning and is ready for use again.
- Touch [ ] to exit the program.

Calc'nClean

Takes about 26 minutes.

Calc'nClean combines the functions Descale and Clean. If both programmes are due to be carried out close together, the fully automatic coffee machine will automatically suggest this service programme.

Touch [].
- Touch [Calc'nClean] to select the programme.
The display indicates the progress of the programme.
Clean the beverage outlet and replace, empty the drip trays and replace.
- Open the ground coffee drawer, drop in a cleaning tablet and close the coffee drawer again.
Remove the water filter (if there is one) and press [D]
Pour lukewarm water into the empty water tank up to the "0.5 l" mark and then dissolve one Bosch descaling tablet TCZ8002N in it.

If there is not enough descending solution in the water tank, you will be asked to do the following. Refill using uncarbonated water and press [ ] again.

• Remove the suction pipe from milk container, wipe it and insert the end of the suction pipe into the hole on the coffee grounds container.
• Close the appliance door.
• Place a container with a capacity of 0.5 litre under the beverage outlet.
  Press [D]. The programme will now run for about 19 minutes.
  Remove the container and press [ ]
• Rinse the water tank and (if removed) replace the water filter.
• Fill the tank with fresh water up to the "max" indicator.
• Replace the water tank and close the door.
• Place the container underneath the beverage outlet again.
  Press [D]. The programme will now run for about 7 minutes and rinse the appliance.
• Remove the container, empty the drip trays, replace and close the appliance door.
  Press [D]. The appliance is descaled, cleaned and ready for use again.
  Touch [ ] to exit the program.

Special rinsing

i Important: If any of the service programmes is ever interrupted, for instance by a power failure, please proceed according to the information on the display:

• Rinse the water tank and refill it with fresh water up to the "max" mark.
  Press [D]. The programme will now run for about 2 minutes and rinse the appliance.
• Empty the drip trays, replace and close the appliance door. The appliance is ready for use again.
• Touch [ ] to exit the program.

Tips on energy saving

Press [①] to switch the appliance to "energy saving mode". The appliances use very little power when in "energy saving mode", but monitors all safety-relevant functions so as to avoid damage.
In the menu under "Switch off after", set the automatic switch off period to 15 minutes.
- Reduce the brightness of the display and the illumination in the menu to save energy.
If possible, do not interrupt the dispensing of coffee or milk froth. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly.
- Descale the appliance regularly to avoid a build-up of limescale. Limescale residues cause higher energy consumption.

Frost protection

To prevent frost damage during transport and storage, completely empty the appliance beforehand (see the section "Menu - Frost protection").

Storing accessories

The fully automatic coffee machine has a special accessory drawer for storing the Quick reference guide and the accessories in the appliance.

Put the measuring spoon and the water filter into the accessory drawer.
Put the Quick Reference Guide into the special support at the front of the accessory drawer.
The long suction pipe can be stored in the holder on the inside of the door.
The connecting element can be fixed to the magnetic holder above the ground coffee drawer.

Accessories

The following accessories are available from retailers or from customer service:

Accessories	Order number Retail/Customer service
Cleaning tablets	TCZ8001N/00311808
Descaling tablets	TCZ8002N/00576694
Water filter	TCZ7003/00575491
Care set	TCZ8004/00576331
Milk container with “FreshLock” lid	TCZ8009N/00576165
Restrictors for opening angle 92°	00636455

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Simple troubleshooting

Problem	Cause	Solution
Strongly fluctuating coffee or milk froth quality (e.g. fluctuation in quantity or milk froth spraying).	Build-up of limescale in the appliance.	Descale the appliance accord- ing to the instructions, see the section “Service programmes”.
	The suction pipe is blocked.	Clean the suction pipe.
Drinks cannot be dispensed.	Beverage outlet or one of the 3 connections are blocked.	Clean the beverage outlet and the connections.
The drink runs out at the entire outlet during dispensing.	Lower part of the beverage outlet is missing.	Attach the lower part, see the section “Cleaning the milk system”.
Too little milk froth, none at all, or the milk system is not taking in any milk.	Build-up of limescale in the appliance.	Descale the appliance accord- ing to the instructions, see the section “Service programmes”.
	Beverage outlet or one of the 3 connections are blocked.	Clean the beverage outlet and the connections.
	Milk not suitable for foaming.	Do not use milk that has already been boiled. Use cold milk with a fat content of at least 1.5%.
	Beverage outlet or the milk tubes are not correctly assembled.	Moisten the individual parts and put them together again.
	The suction pipe is blocked.	Clean the suction pipe.
The personally selected volume is not reached. Coffee dispensing slows to a trickle or stops completely.	Coffee is ground too finely. Preground coffee is too fine.	Adjust the grinding level to a coarser setting. Use a coarser ground coffee.
	Heavy build-up of limescale in the appliance.	Descale the appliance accord- ing to the instructions, see the section “Service programmes”.
	The brewing unit is soiled.	Clean brewing unit, see chapter “Cleaning the brewing unit”.
Hot water milky or tastes of coffee.	Milk tube has not been removed.	Remove the milk tube from the milk container.
	Milk or coffee residue in the beverage outlet.	Clean the beverage outlet.
Coffee has no “crema”.	Unsuitable type of coffee.	Use a type of coffee with a higher proportion of robusta beans.
	The beans are no longer fresh.	Use fresh beans.
	The grinding level is not suitable for the beans.	Adjust the grinding unit to a finer setting.
Coffee is too “acidic”.	The grinding level is too coarse. Preground coffee is too coarse.	Adjust the grinding unit to a finer setting. Use a finer ground coffee.
	Unsuitable type of coffee.	Change the type of coffee.
Coffee is too "bitter".	Coffee is ground too finely. Preground coffee is too fine.	Adjust the grinding level to a coarser setting. Use a coarser ground coffee.
	Unsuitable type of coffee.	Change the type of coffee.
Coffee tastes burnt.	The brewing temperature is too high.	Reduce the temperature, see the section "Drink adjustment".
	Coffee is ground too finely. Preground coffee is too fine.	Adjust the grinding level to a coarser setting. Use a coarser ground coffee.
	Unsuitable type of coffee.	Change the type of coffee.
Coffee is too "weak".	Coffee strength selected is too weak.	Raise the strength of the coffee, see the section "Drink adjustment".
	Ground coffee jammed in the coffee drawer.	Remove the ground coffee drawing, clean and dry thoroughly.
Ground coffee sticks in the coffee drawer.	Ground coffee sticks together.	Do not press the ground coffee firmly into the coffee drawer.
	Coffee drawer is damp.	Remove the ground coffee drawing, clean and dry thoroughly.
The water filter does not stay in position in the water tank.	The water filter is not mounted correctly.	Firmly press the water filter straight down into the tank connection.
Bean container sticks when inserting.	There are beans in the housing.	Remove the beans.
The coffee grounds are not compact and are too wet.	The grinding setting is too fine or too coarse, or not enough ground coffee has been used.	Adjust the grinding unit to a coarser or finer setting, or use 2 level measuring spoons of ground coffee.
Grinding level adjustment is stiff.	Too many beans in the grinding unit.	Dispensing a drink from coffee beans. Only make any subsequent changes to the grinding level in small steps.
Brewing unit cannot be inserted.	Brewing unit is in the wrong position.	Insert the brewing unit according to the instructions, see the section "Cleaning the brewing unit".
	Brewing unit is locked.	Unlock the brewing unit, see the section "Cleaning the brewing unit".
Protective cover of the brewing unit cannot be properly attached.	Brewing unit is not locked.	Lock the brewing unit, see the section "Cleaning the brewing unit".
There is water under the drip tray.	This water is condensed.	Do not insert drip tray without cover.
Display shows “12:00”	Power failure or appliance switched off at mains.	Re-enter values; do not switch the appliance off at the mains or select the “off” option in the Clock displ. menu.
Display shows “Milk container connected?” despite connected milk container.	Container is outside the range of the sensor.	Position the container at the right edge.
	Material e.g. milk carton is not recognised.	Confirm the display request with “Yes” or use the enclosed milk container.
Display shows “Overvoltage or undervoltage”	Voltage too high or too low.	Contact electricity or grid provider. Have the power supply checked by an expert.
Display shows “Leave device to cool”	Appliance is too hot.	Switch off appliance for 30 minutes.
Display shows, for example: “Fault: E0510”	The appliance has a fault.	Proceed according to the display screen.
Display shows “Fill bean container” although the container is already full, or the grinder is not grinding any beans.	Beans are not falling into the grinding unit (beans too oily).	Gently tap the bean container. Possibly change the type of coffee. When the bean container is empty, wipe it with a dry cloth.
Display shows “Clean brewing unit”	Brewing unit is soiled.	Clean the brewing unit.
	Too much ground coffee in the brewing unit.	Clean the brewing unit. Do not place more than two level measuring spoons of ground coffee in the drawer.
	The mechanism of the brewing unit is stiff.	Clean the brewing unit, see the section “Care and daily cleaning”.
Display shows “Refill with still water or remove filter”	Water tank wrongly inserted	Insert water tank correctly
	Carbonated water in the water tank.	Fill the water tank with fresh tap water.
	Float is stuck in the water tank.	Remove the tank and clean thoroughly.
	New water filter not rinsed according to instructions, or water filter used or defective.	Rinse the water filter according to the instructions and then switch on, or use a new water filter.
	Air in the water filter.	Dip the water filter into water until no more air bubbles escape, replace the filter.
Display shows "Empty drip trays" despite them being empty.	Drip tray is soiled and wet.	Clean and dry the drip tray thoroughly.
	Emptying is not detected when the appliance is switched off.	When the appliance is switched on, remove and re-insert the drip tray.
Display shows "Insert drip trays" even though drip tray in use.	Inside of appliance (tray holder) dirty.	Clean the inside.
	The coffee grounds container is not fully inserted.	Push the coffee grounds container all the way in.
Very frequent display that de-scaling is necessary.	Water is too hard.	Insert water filter and configure settings accordingly in the menu.
Water dripped onto the inner floor of the appliance when the drip tray was removed.	Drip tray was removed too soon.	Wait a few seconds after the last drink was dispensed before removing the drip tray.
Display shows "Switch off with power switch, then back on after 30 sec!"	Appliance is too warm.	Leave the appliance to cool down.
	Dirty brewing unit.	Clean the brewing unit.
Home Connect does not work correctly.		Go to www.home-connect.com
If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.

Technical specifications

Power connection (voltage – frequency)	220-240V – 50/60 Hz
Power rating	1600 W
Maximum static pump pressure	19 bar
Maximum water tank capacity (without filter)	2.4 l
Maximum capacity of the coffee bean container	500 g
Length of power cable	1.7 m
Dimensions (H x B x D)	455 x 495 x 375 mm
Weight, empty	19-20 kg
Type of grinding unit	Ceramic

Sommaire

80^ Thevert

90°C Thé noir

Max Tisane fruitée

AE United Arab Emirates,

BSH Home Appliances FZE

Round About 13,

Plot Nr MO-0532A

Jebel Ali Free Zone - Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

ELEKTROSERVISH.p.k

Rr. Shkelqim Fusha, Selite,

Pallati "Matrix Konstruksion",

Kati 0 dhe +1

1023 Tirane

Tel.: [phone], -131

Fax:[phone]

mailto:[e-mail]

EXPERT SERVIS

Rugae Kavages,

Kulla B Nr 223/1 Kati I

1023 Tirane

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Cel: [phone]

mailto:[e-mail]

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

Fax: [phone]

mailto: [e-mail]

www.bosch-home.com.au

*Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel.: [phone]

Fax: [phone]

mailto:bosch_siemens_sarajevo@

yahoo.com

BE Belgique, Belgie, Belgium

BSH Home Appliances S.A. - N.V.

Business center FPI, floor 5,

Cherni vrah Blvd. 51B

1407 Sofia

Tel.: [phone]

mailto:[e-mail]

www.bosch.home.bg

BH Bahrain,

Khalaifat Est.

P.O.Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

BY Belarus, Bénapycb

Service 0.40 €/min +prx appel

mailto:[e-mail]

To arrange an engineer visit, to order

spare parts and accessories or forproduct advice please visit

www.bosch-home.co.uk or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Eλλας

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kuçanski uredağidi d.o.o.

Ulica grada Vukovara 269F

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/hr

HU Magyarorszag, Hungary

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.bosch-home.ie

• Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bharat,

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

*Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KZ Kazakhstan, Ka3aKCTAH

IP Anackiy A.N. PTN-Service

Kuyshi Dina str.23/1 N3

Astana

Tel.: [phone]

mailto: [e-mail]

Technodom Service

Utegen Batira str.73

480096 Almaty

Tel.: [phone]

mailto: [e-mail]

www.technodom.kz

Kombitechnocentr

Zhambyl st. 117

480096 Almaty

Tel.: [phone]

mailto:[e-mail]

www.cts.kz

TOO Evrika Service

Shimkent, Riskulova 22.

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

www.evrika.com

AV SERVICE

Abulhair hana Str.51

Uralsk 090000

Tel.: [phone]

mailto:[e-mail]

www.avservice.kz

LB Lebanon, jLij

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O.Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukso g.23

09132 Vilnius

Tel. [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

UAB Emtoservis

Savanoriu pr. 1 (Centrine bustine)

03116 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.emtoservis.lt

LU Luxembourg

S.R.L. "Rialto-Studio"

yn. UyceBa 98

2012 KuniHneB

TeJ./ΦaKc:022 23 81 80

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

Ul. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069324812

mailto:[e-mail]

MK Macedonia,Makeonna

GORENEC

Jane Sandanski 69 lok.3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Oxford House Ltd.

Notabile Road

Mriehel BKR 14

Tel.: [phone]

Fax: [phone]

www.oxfordhouse.com.mt

MV Raajjeyge Jumhooriyyaa, Maledives

Lintel Investments

Ma. Maadheli, Majeedhee Magu

Malé

Tel.: [phone]

mailto:mohamed.zuhuree@

lintel.com.mv

NL Nederlande, Netherlands

Unit F2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto: [e-mail]

www.bosch-home.co.nz

• Mo-Fr: 8:30am to 5:00 pm (exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia,

i001 i001

Abdul Latif Jameel Electronics

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljazeera.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvagen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore, 新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

• Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm

(exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

www.bosch-home.com/tr

• Cagli merkezini sabit hatlardan

aramanin bedeli sehir ici ücretlendirme,

Cep telefonlarindan isekullanan

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

Rruga Mag Prishtei-Ferizaj

70000 Ferizaj

Tel.: [phone]

Tel.: [phone]

mailto:[e-mail]

XS Srbija, Serbia

BSH Kučni aparati d.o.o.

Milutina Milankovica br. 9ž

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand-Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/zai

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.
