How to use the automatic programs on the SABA MO 2519IX microwave?
Frequently Asked Questions - 26/03/2026
Response Notice-Facile

The SABA MO 2519IX microwave features an automatic menu (A-1 to A-8) that allows you to easily cook different types of food without having to manually adjust the power and duration. The program automatically adjusts according to the selected weight or quantity.

Available automatic programs:

  • A-1 - Auto reheating: 200 g, 400 g or 600 g
  • A-2 - Vegetables: 200 g, 300 g or 400 g
  • A-3 - Fish: 250 g, 350 g or 450 g
  • A-4 - Meats: 250 g, 350 g or 450 g
  • A-5 - Pasta: 50 g (with 450 ml of water), 100 g (with 800 ml of water), 200 g, 400 g or 600 g
  • A-6 - Potatoes: 200 g or 400 g
  • A-7 - Pizzas: 200 ml or 400 ml
  • A-8 - Soups: 200 ml or 400 ml

How to use the automatic programs:

  • Step 1: Place the food in a microwave-safe container and put it on the turntable.
  • Step 2: Turn the knob to the right to select the desired program (the screen will display A-1, A-2, A-3, etc. successively).
  • Step 3: Press the “+30Sec./Confirm” button to validate the chosen program.
  • Step 4: Turn the knob to select the weight or quantity according to the table. The weight will be displayed on the screen.
  • Step 5: Press “+30Sec./Start” again to begin the automatic cooking.

Practical example: To cook 350 g of fish with the automatic program, turn the knob to “A-3”, press Confirm, select the weight 350 g, then press Start. The oven will automatically execute the optimized cooking cycle for this quantity of fish.

The automatic programs allow for simplified cooking tailored to each type of food. It is advisable to keep the door closed during cooking and to check the food after a few uses to assess whether the settings match your cooking preferences.

Respond (be the first)
What are the wattage equivalents for power levels P100, P80, P50, P30, and P10 on the SABA MO 2519IX microwave?
Frequently Asked Questions - 03/02/2026
Response Notice-Facile

The power levels indicated by P100, P80, P50, P30, and P10 on the SABA MO 2519IX microwave correspond to percentages of the maximum power of the appliance. To convert these levels into Watts, you need to know the maximum power in Watts of the microwave.

Interpretation of power levels:

  • P100 : 100 % of maximum power
  • P80 : 80 % of maximum power
  • P50 : 50 % of maximum power
  • P30 : 30 % of maximum power
  • P10 : 10 % of maximum power

For example, if the maximum power of the microwave is 1000 Watts:

  • P100 = 1000 W
  • P80 = 800 W
  • P50 = 500 W
  • P30 = 300 W
  • P10 = 100 W

If you do not know the maximum power of your microwave, it is usually indicated on a label at the back of the appliance or in its technical specifications.

Respond (be the first)
How to use the microwave function on the SABA MO 2519IX microwave oven?
Frequently Asked Questions - 14/01/2026
Response Notice-Facile

To use the microwave function of your SABA MO 2519IX appliance, follow these simple steps:

  1. Open the door: Open the microwave door to access the inside.
  2. Place the food: Place the food or dish you want to heat on the turntable. Make sure the turntable is properly positioned.
  3. Close the door: Close the microwave door until it clicks securely.
  4. Select the microwave function: On the control panel, choose the microwave function. This can be done via a dedicated button or a dial, often identified by a symbol representing waves.
  5. Set the cooking time: Use the buttons or dial to set the desired duration for heating your food.
  6. Start cooking: Press the “Start” button to begin cooking.
  7. Monitor the cooking: You can observe the cooking through the glass door. If necessary, open the door to check or stir the food.
  8. End of cooking: When the time is up, the microwave will emit a sound signal. Open the door carefully as the contents may be hot.

By following these steps, you will be able to effectively use the microwave function of your SABA MO 2519IX to heat or cook your food.

Respond (be the first)
How to activate the defrost mode on the SABA MO 2519IX microwave?
Frequently Asked Questions - 26/11/2025
Response Notice-Facile

To activate the defrost mode on your SABA MO 2519IX microwave, follow these simple steps:

  1. Turn on the microwave by plugging it in and pressing the power button if necessary.
  2. Select the defrost mode by pressing the "Mode" or "Menu" button until the "Defrost" option appears on the screen.
  3. Choose the type of food if your model offers it (for example meat, fish, vegetables) using the selection buttons.
  4. Indicate the weight of the food to be defrosted if the microwave prompts you, which allows for automatic adjustment of the cycle duration.
  5. Start the process by pressing the "Start" button.
  6. Monitor the defrosting: it is recommended to check the status of the food halfway through and turn or stir it if necessary for even defrosting.

This function is designed to defrost your food effectively and safely, avoiding partial cooking. Be sure to follow the weight and food type indications for optimal results.

Respond (be the first)

Download the instructions for your Microwaves in PDF format for free! Find your manual MO 2519IX - SABA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MO 2519IX by SABA.

USER MANUAL MO 2519IX SABA

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

Safety instructions GB-2

Specifications . GB-6

Cleaning GB-12

Utensils. GB-12

Setting up your oven . GB-16

Installation Instructions GB-18

Operation Instructions GB-22

Trouble shooting GB-30

Disposal of old electrical appliances GB-32

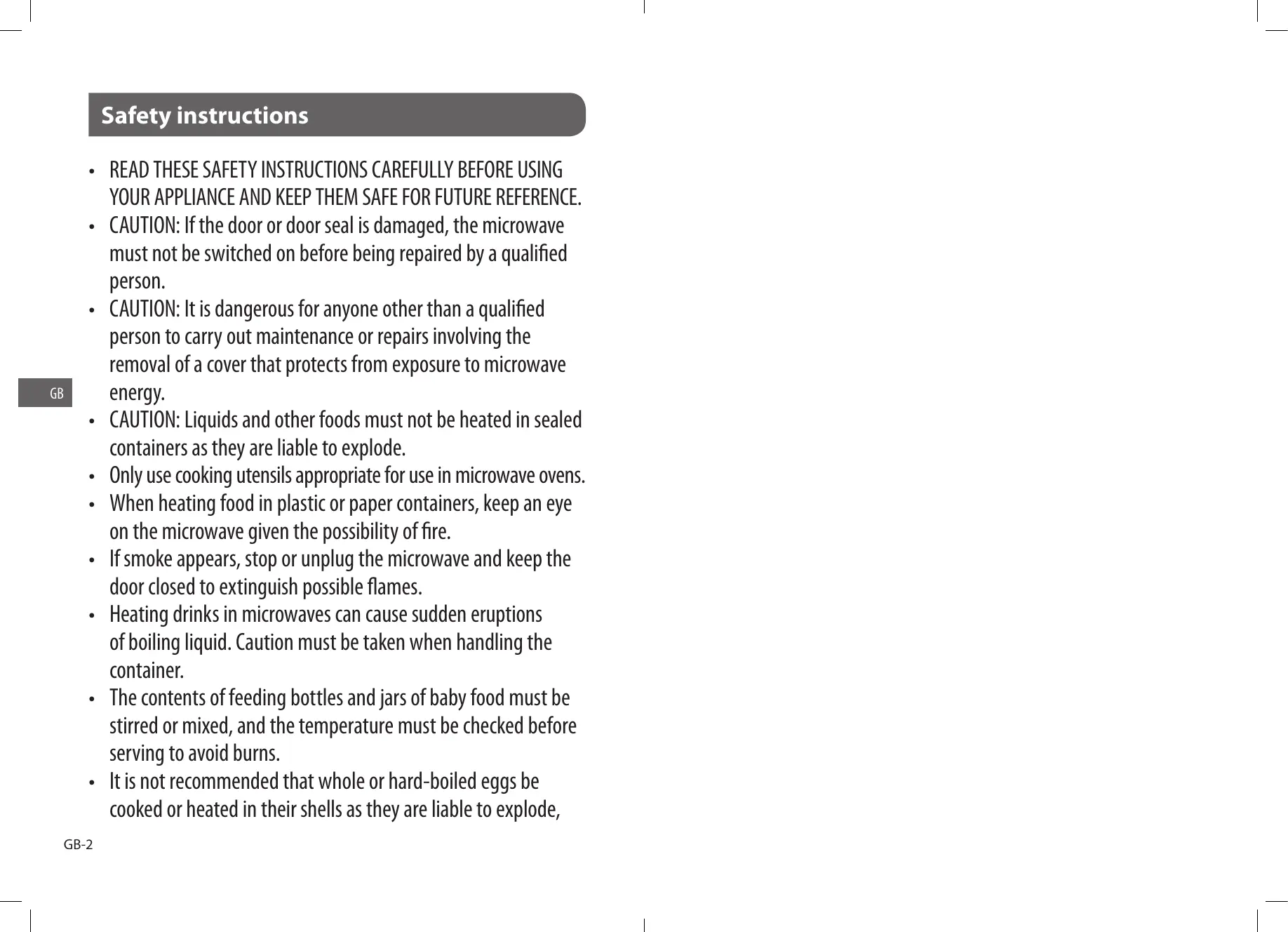

Safety instructions

  • READ THESE SAFETY INSTRUCTIONS CAREFULLY BEFORE USING YOUR APPLIANCE AND KEEP THEM SAFE FOR FUTURE REFERENCE.
  • CAUTION: If the door or door seal is damaged, the microwave must not be switched on before being repaired by a qualified person.
  • CAUTION: It is dangerous for anyone other than a qualified person to carry out maintenance or repairs involving the removal of a cover that protects from exposure to microwave energy.
  • CAUTION: Liquids and other foods must not be heated in sealed containers as they are liable to explode.
  • Only use cooking utensils appropriate for use in microwave ovens.
  • When heating food in plastic or paper containers, keep an eye on the microwave given the possibility of fire.
  • If smoke appears, stop or unplug the microwave and keep the door closed to extinguish possible flames.
  • Heating drinks in microwaves can cause sudden eruptions of boiling liquid. Caution must be taken when handling the container.
  • The contents of feeding bottles and jars of baby food must be stirred or mixed, and the temperature must be checked before serving to avoid burns.
  • It is not recommended that whole or hard-boiled eggs be cooked or heated in their shells as they are liable to explode,

even after cooking.

  • We recommend that you clean the microwave regularly and remove any food deposits.
  • Failure to keep the appliance clean may lead to permanent deterioration of the surface, reducing the useful life of the appliance and potentially leading to hazardous situations.
  • The microwave oven is designed for heating foodstuffs and drinks. The drying of foodstuffs or of linen and the heating of heating pads, slippers, sponges, wet linen and other similar items may entail a risk of injury, inflammation or fire.
  • This appliance is designed to be used for domestic and similar purposes, such as:

  • kitchenettes used by employees in shops, offices and other working environments;
    -farms;
    — use by customers of hotels, motels and other environments of a residential nature;

  • other bed and breakfast-type accommodation.

  • This appliance can only be used by children aged under 8 years and persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they are supervised or have received instructions for using the appliance in a safe way and understand the dangers involved.

  • Children must not use the appliance as a toy.
  • Cleaning and user maintenance must not be carried out by children unless aged 8 years and older and supervised by an

adult.

  • If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to avoid any hazards.
    Metal food and drink containers must not be heated in the microwave.
  • The appliance must not be steam cleaned.
  • The microwave oven is designed to be encased.
  • The power socket must remain easily accessible.
  • Warning: If the appliance does not work in combined mode, it is recommended that children only use the oven under adult supervision due to the high temperatures generated.
  • CAUTION: This appliance and its accessible parts become hot during use.
  • You must not touch the heating elements.
  • Children younger than 8 years old should be kept away unless continuously supervised.
  • During use, the appliance will become hot. You must not touch the heating elements inside the microwave.
  • CAUTION: The accessible parts can become hot during use.
  • It is recommended that young children are kept away from the appliance.
  • The appliance must not be installed behind a decorative door, to prevent overheating.
  • Refer to the CLEANING AND UPKEEP section for detailed information on cleaning the door seals, cavities, adjacent parts and surfaces in contact with food.

  • For more detailed information on the dimensions of the appliance, its installation and mounting on the support, please refer to the «INSTALLATION» section.

SABA MO 2519IX - Safety instructions - 1

Warning: very hot surface!

  • Care should be taken not to move the turntable when removing the containers from the appliance.
  • The appliance must not be installed at a height greater than or equal to 900mm above the floor.
  • Keep the appliance and its cable out of reach of children under 8 years of age.
  • Do not use abrasive cleaning products or metal scourers to clean the glass door of the oven as this can scratch the surface and lead to the glass shattering.
  • Only use the thermal probe designed for this appliance.
  • Accessible surfaces may become very hot when the appliance is in use.
  • This appliance is not designed to be used in conjunction with a separate timer or remote control system.

SABA MO 2519IX - Warning: very hot surface! - 1

Surfaces are likely to become hot during use.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:M02519IX
Rated Voltage:230V~50Hz
Rated Input Power(Microwave):1450W
Rated Output Power(Microwave):900W
Rated Input Power(Grill):1000W
Oven Capacity:25L
Turntable Diameter:Ø315mm
External Dimensions:595x400x388mm
Net Weight:Approx. 18.5kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

  1. Read and follow the specific: «PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY».
  2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.
  3. Keep the appliance and its cord out of reach of children less than 8 years.
  4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.(For appliance with type Y attachment)
  5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
  6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection

against exposure to microwave energy.

  1. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
  2. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
  3. Only use utensils that are suitable for use in microwave ovens.
  4. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
  5. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
  6. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
  7. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
  8. The oven should be cleaned regularly and any food deposits removed.
  9. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
  10. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-

sensing probe.)

  1. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
  2. This appliance is intended to be used in household and similar applications such as:

  3. staff kitchen areas in shops, offices and other working environments;

  4. by clients in hotels, motels and other residential type environments;
    -farm houses;
  5. bed and breakfast type environments.

  6. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

  7. Metallic containers for food and beverages are not allowed during microwave cooking.
  8. The appliance shall not be cleaned with a steam cleaner.
  9. Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)
  10. The microwave oven is intended to be used built-in.
  11. Steam cleaner is not to be used.

  12. Surface of a storage drawer can get hot.

  13. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
  14. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
  15. WARNING: Accessible parts may become hot during use. Young children should be kept away.
  16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
  17. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
  18. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

To Reduce the Risk of Injury to Persons

Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

  1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
  2. If a long cord set or extension cord is used:
    1). The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
    2). The extension cord must be a grounding-type 3-wire cord.
    3). The long cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

Cleaning

Be sure to unplug the appliance from the power supply.

  1. Clean the cavity of the oven after using with a slightly damp cloth.
  2. Clean the accessories in the usual way in soapy water.
  3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
  4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
  5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300 ml (1 / 2 pint) water and heat on 100 % microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

Utensils

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on «Materials you can use in microwave oven or to be avoided in microwave oven.» There may be certain non-metallic utensils that are not safe to use for microwaving.

If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

  1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
  2. Cook on maximum power for 1 minute.
  3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
  4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

UtensilsRemarks
Browning dishFollow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
DinnerwareMicrowave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jarsAlways remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
GlasswareHeat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bagsFollow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cupsUse for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towelsUse to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paperUse as a cover to prevent splattering or a wrap for steaming.
PlasticMicrowave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrapMicrowave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
ThermometersMicrowave-safe only (meat and candy thermometers).
Wax paperUse as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

UtensilsRemarks
Aluminum trayMay cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handleMay cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensilsMetal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist tiesMay cause arcing and could cause a fire in the oven.
Paper bagsMay cause a fire in the oven.
Plastic foamPlastic foam may melt or contaminate the liquid inside when exposed to high temperature.
WoodWood will dry out when used in the microwave oven and may split or crack.

Setting up your oven

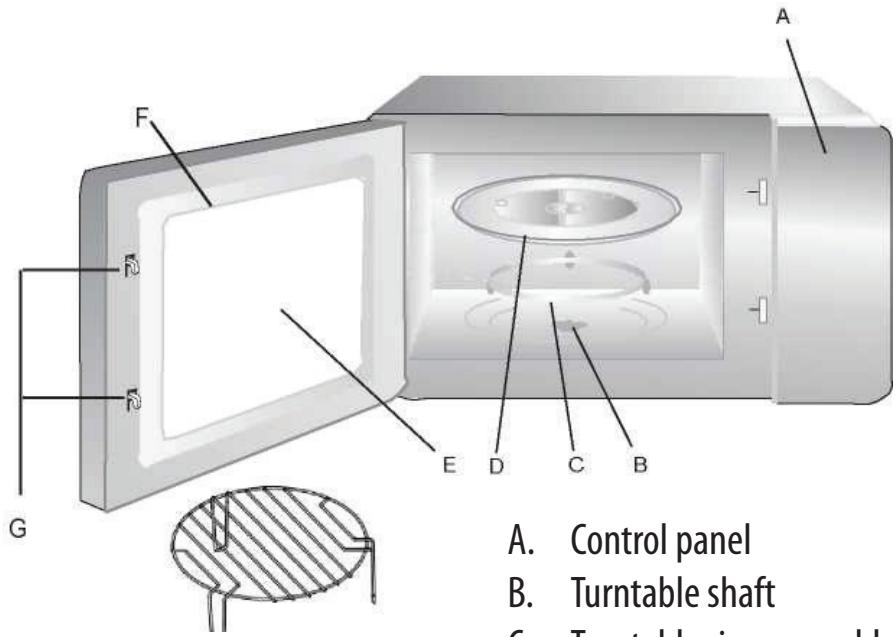

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray1
Turntable ring assembly1
Instruction Manual1

SABA MO 2519IX - Names of Oven Parts and Accessories - 1

Grill Rack (Cannot be used in microwave function and must be placed on the glass tray )

A. Control panel
B. Turntable shaft
C. Turntable ring assembly
D. Glass tray
E. Observation window
F. Door assembly
G. Safety interlock system

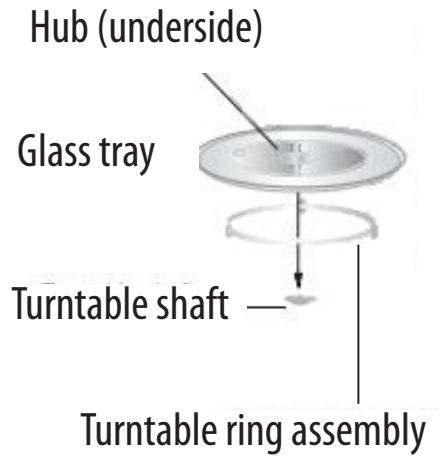

Turntable Installation

SABA MO 2519IX - Turntable Installation - 1

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

  1. This appliance is only intended for domestic use
  2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard
  3. Please observe the special installation instructions.
  4. The appliance can be installed in a 60cm wide wall- mounted cupboard.
  5. The appliance is fitted with a plug and must only be

connected to a properly installed earthed socket.

  1. The mains voltage must correspond to the voltage specified on the rating plate.
  2. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm .
  3. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

SABA MO 2519IX - Installation and connection - 1

The accessible surface may be hot during operation.

Installation Instructions

Please Read the Manual Carefully Before Installation

Please note

Electrical connection

The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm . The fitted cabinet must not have a back wall behind the appliance.

A gap must be maintained between the wall and the base of the unit above. Specific gap size could be referenced by the diagrams.

Minimum installation height: 85 cm.

Do not cover ventilation slots and suction holes.

Note:

Do not trap or bend the power cable.

SABA MO 2519IX - Note: - 1

SABA MO 2519IX - Note: - 2

Screw Mounting Plate Trim-kit plastic cover

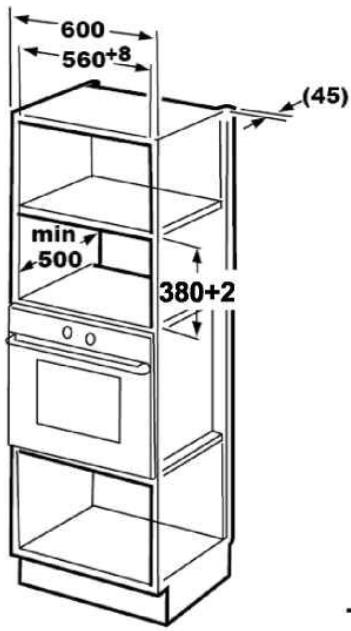

A. Built-in furniture

SABA MO 2519IX - Note: - 3

SABA MO 2519IX - Note: - 4

B. Prepare the cabinet

  1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.

SABA MO 2519IX - Note: - 5

SABA MO 2519IX - Note: - 6

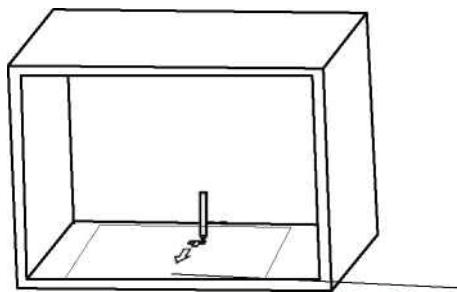

  1. Make the marks on the bottom plane of cabinet according to marks “a» of the template

SABA MO 2519IX - Note: - 7
Centre line

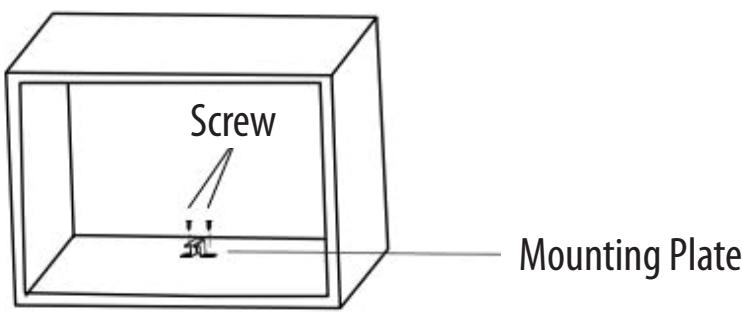

  1. Remove the bottom cabinet template and fix the mounting plate with screw.

SABA MO 2519IX - Note: - 8

C. Install the oven

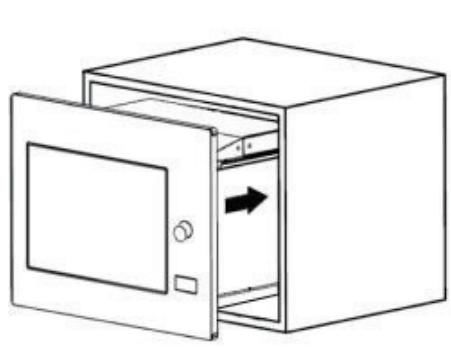

4. Install the oven to the cabinet

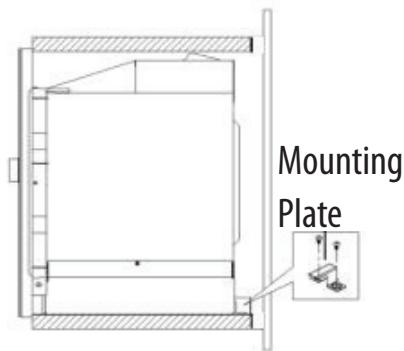

  • Make sure the back of the oven is locked by mounting plate.
  • Do not trap or kink the power cord.

SABA MO 2519IX - Note: - 9

SABA MO 2519IX - Note: - 10

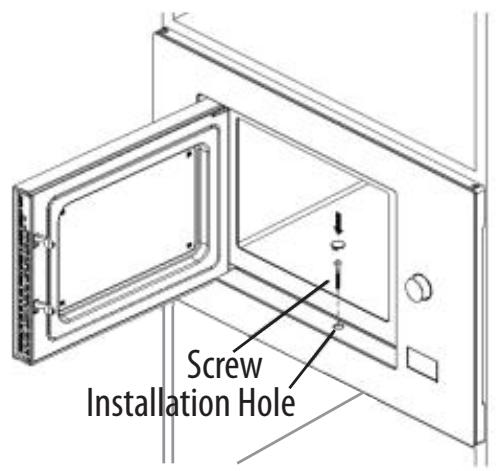

  1. Open the door, fix the oven to the cabinet with Screw, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.

SABA MO 2519IX - Note: - 11

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1). Press " r r r 口 & " once to select clock function, the hour figures will flash.
2). Turn " " to adjust the hour figures, the input time should be within 0-23.
3). Press " ", the minute figures will flash.
4). Turn " = " to adjust the minute figures, the input time should be within 0-59.
5). Press " r l " to finish clock setting. ":"will flash, and the time will light.

Note:

1). The clock will not work if it is not set when powered.
2). During the process of clock setting, if you press "O", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " .” once, the screen will display

"P100".Press" repeatedly or turn

"to choose the microwave power you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press.

Then press " ( 14) + 30Sec. " to confirm, and turn "

to set cooking time from 0:05 to 95:00. Press " +30Sec. again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1). Press " [3]43 . once, the screen display "P100".
2). Press " ~~~~~~~ ." once again or turn》 to choose 80 % microwave power.
3). Press " ( ) + 30Sec. " to confirm, and the screen displays "P 80".
4). Turn " " to adjust the cooking time until the oven displays "20:00".
5). Press " +30Sec. "to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

0---1 min:5 seconds
1---5 min:10 seconds
5---10 min:30 seconds
10---30 min:1 minute
30---95 min:5 minutes

"Microwave/Grill/Combi." Pad instructions

OrderDisplayMicrowave PowerGrill Power
1P100100%
2P8080%
3P5050%
4P3030%
5P1010%
6G0%100%
7C-155%45%
8C-236%64%

3. Grill or Combi. Cooking

Press " ." once, the screen will display

"P100". Press " repeatedly or turn "

to choose the cooking mode you want, and “G», “C-1” or “C-2” will display for each added press.

Then press " +30Sec." to confirm, and turn

"to set cooking time from 0:05 to 95:00. Press again to start cooking.

SABA MO 2519IX - Grill or Combi. Cooking - 1

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1). Press "√" once, the screen display "P100".
2). Press " for times or turn " "to choose combi. 1 mode.

3). Press "press" +30Sec. "to confirm, and the screen displays «C-1».
4). Turn to adjust the cooking time until the oven displays 10:00
5). Press " +30Sec. " to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press " +30Sec " to continue cooking. If no operation, the oven will continue working.

4. Quick Start

1). In waiting state, Press " + 30Sec. " to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
2). In microwave, grill, combination cooking or time defrost state each press of " + 30Sec. " can increase 30 seconds of cooking time.
3). In waiting state, turn left to set cooking time with 100 % microwave power. After adjusting cooking time, then press " 一 一 一 一 一 一 一 一 一 一 一 一 一 一 一 一 一 — 一 一 一 一 一 一 一 一 一 一 一 一 一 一 一 一 microwave power. After adjusting cooking time, then press " +30Sec . " to start cooking.

5. Defrost By Weight

1). Press " ” once, and the oven will display «dEF1».
2). Turn " " to select the weight of food from 100 to 2000 g.
3). Press "press" +30Sec. "to start defrosting.

6. Defrost By Time

1). Press "twice, and the oven will display
"DEF2".
2). Turn "Q" to select the defrost time. The MAX time is 95 minutes.
3). Press " + 30 Sec. to start defrosting. The defrost power is P30, and it will not be changed.

7. Kitchen Timer

1). Press "口" twice, the screen will display 00:00.
2). Turn " " to enter the correct timer. (The maximum cooking time is 95 minutes.)
3). Press " + 30 Sec . "to confirm setting.
4). When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times.

If the clock be set (24-hour system), the screen will display the current time.

Note: The kitchen Time is different from 24-hour system, Kitchen Timer is a timer.

8. Auto Menu

1). Turn "h" right to choose the menu, and «A-1» to «A-8» will display.
2). Press " ( ab^ ) + 30Sec . "to confirm.
3). Turn " " to choose the default weight as the menu chart.
4). Press " + 30Sec. " to start cooking.

Example: If you want to use «Auto Menu» to cook fish for 350g.

1). Turn "clockwise till «A-3» display.
2). Press " ( 4 - 1) + 30Sec . "to confirm
3). Turn "O" to select the weight of fish till «350» display.
4). Press "press" +30Sec. "to start cooking.

The automatic menu procedure:

MenuWeightDisplay
A-1 Auto Reheat200 g200 g
400 g400 g
600 g600 g
A-2 Vegetable200 g200 g
300 g300 g
400 g400 g
A-3 Fish250 g250 g
350 g350 g
450 g450 g
A-4 Meat250 g250 g
350 g350 g
450 g450 g
A-5 Pasta50 g (with water 450ml)50 g
100 g (with water 800ml)100 g
A-6 Potato200 g200 g
400 g400 g
600 g600 g
A-7 Pizza200 g200 g
400 g400 g
A-8 Soup200 ml200 ml
400 ml400 ml

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section automatically.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the

following:

1). Press " ” twice, and the oven will display «dEF2».
2). Turn " to select the defrost time till “5:00” display.
3). Press " . "once, the screen display "P100".
4). Press " [3]·s ." once again or turn to " choose 80% microwave power.

5). Press " +30Sec." to confirm, and the screen displays "P80".
6). Turn " to adjust the cooking time till the oven displays "7:00".
7). Press " +30Sec. " to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. When cooking finishes, buzzer sounds five times.

10. Inquiring Function

1). In states of microwave, grill and combination cooking, press " [3]·s , the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the

former state;

2). In cooking state, press " " to inquire the time and the time will display for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press "☑" for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the screen will display.
Lock quitting: In locked state, press "☑" for 3 seconds, there will be a long «beep» denoting that the lock is released.

Trouble shooting

Normal
Microwave oven interfering TV receptionRadio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven lightIn low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of ventsIn cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.It is forbidden to run the unit without any food inside. It is very dangerous.
TroublePossible CauseRemedy
Oven cannot be started.(1) Power cord not plugged in tightly.Unplug. Then plug again after 10 seconds.
(2) Fuse blowing or circuit breaker works.Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
(3) Trouble with outlet.Test outlet with other electrical appliances.
Oven does not heat.(4) Door not closed well.Close door well.

Disposal of old electrical appliances

SABA MO 2519IX - Disposal of old electrical appliances - 1

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be

collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

SABA MO 2519IX - Disposal of old electrical appliances - 2

Manual assistant
Powered by Anthropic
Waiting for your message

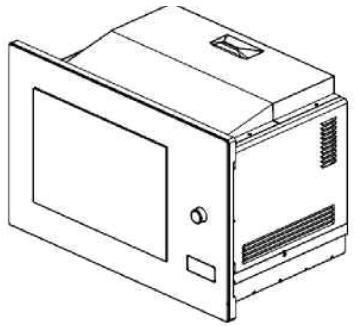

Product information

Brand : SABA

Model : MO 2519IX

Category : Microwaves
