USER MANUAL UF205NFWD SABA

natural_image Plain white rectangular panel with a small metallic handle on the left side (no text or symbols visible)

FR

GB

natural_image Warning sign depicting a flame inside a triangle (no text or symbols)
natural_image Diagram of a screwdriver inserted into a mechanical component, showing a downward force arrow (no text or symbols present)

SABA UF205NFWD - 1

natural_image Technical line drawing of a mechanical assembly with a tool inserted, showing a component on a base (no text or symbols)

SABA UF205NFWD - 2

natural_image Diagram of a tool being inserted into a bracket, showing a screwdriver and adjustment knob (no text or symbols)
natural_image Pure technical line drawing of a mechanical component with no text or symbols
natural_image Technical line drawing of a mechanical lifting device with an inset showing a circular component (no text or symbols)
natural_image Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)
natural_image Simple line drawing of a folded paper or metal frame with two downward arrows indicating force or movement (no text or symbols)

SABA UF205NFWD - 3

INSTALLATION

text_image H F F 90° I G
A550
B594
C1683
Dmin=50
Emin=50
Fmin=10
G840
H150
I115°

NIVELER LE REFRIGERATEUR

text_image Two safety signs: a checkmark and a cross, both pointing at a barrier with a minus sign.

SABA UF205NFWD - NIVELER LE REFRIGERATEUR - 1

text_image Allonger Raccourcir

USAGE QUOTIDIEN

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

SABA UF205NFWD - USAGE QUOTIDIEN - 1

text_image SABA since 1923

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE.

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE – further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.

TABLE OF CONTENT

SAFETY INSTRUCTIONS.... 3
DESCRIPTION OF THE DEVICE....9
DOOR REVERSAL....10
INSTALLATION....13
DAILY USE.... 15
MAINTENANCE 21
TROUBLESHOOTING 26
CUSTOMER SERVICE 27
TECHNICAL INFORMATION...... 28
DISPOSAL 29
DISPOSAL OF OLD ELECTRICAL
APPLIANCES 29

SAFETY INSTRUCTIONS

  1. IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
  2. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications;

  1. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
  2. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  3. WARNING: Do not damage the refrigerant circuit.
  4. If the refrigerant circuit is damaged:

- Avoid naked flames and sources of ignition.

- Thoroughly ventilate the room in which the appliance is situated.

  1. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
  2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  3. Children shall not play with the appliance.
  4. Cleaning and user maintenance shall not be made by children without supervision.
  5. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
  6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  7. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  8. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

  9. For information on the installation, handling, maintenance and disposal of the device, and the method of replacing the lamp, please refer to the following paragraphs of this manual.

  10. Gas warning: risk of fire / flammable materials

SABA UF205NFWD - SAFETY INSTRUCTIONS - 1

text_image Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas, Before you scrap the appliance, please take off the doors to prevent children trapped.

  1. To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

  • One-, two- and three-star compartments are not suitable for the freezing of fresh food.
  • If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

WARNINGS

  1. If you are discarding an old freezer or refrigerator with a lock/ catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
  2. Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
  3. Do not insert oversized food as this could cause incorrect operation.
  4. Extreme caution must be used when moving an appliance.
  5. Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause ‘freezer burns’ on the lips.
  6. The appliance must be installed on the ground, on a flat, horizontal surface, making sure that the ventilation openings are completely clear.
  7. Never try to replace or repair any part or component of the appliance yourself; seek the assistance of professional, qualified personnel, if need be.

  8. This refrigerating appliance is not intended to be used as a built-in appliance.

  9. In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.
  10. To save energy, please avoid keeping the door open for a long time when using the appliance.
  11. Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.
  12. Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.
  13. As old refrigeration equipment may contain CFC's which will damage the ozone layer, when disposing of any refrigeration equipment please contact your local waste disposal department for advice on the correct method of disposal.
  14. Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

  15. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

  16. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

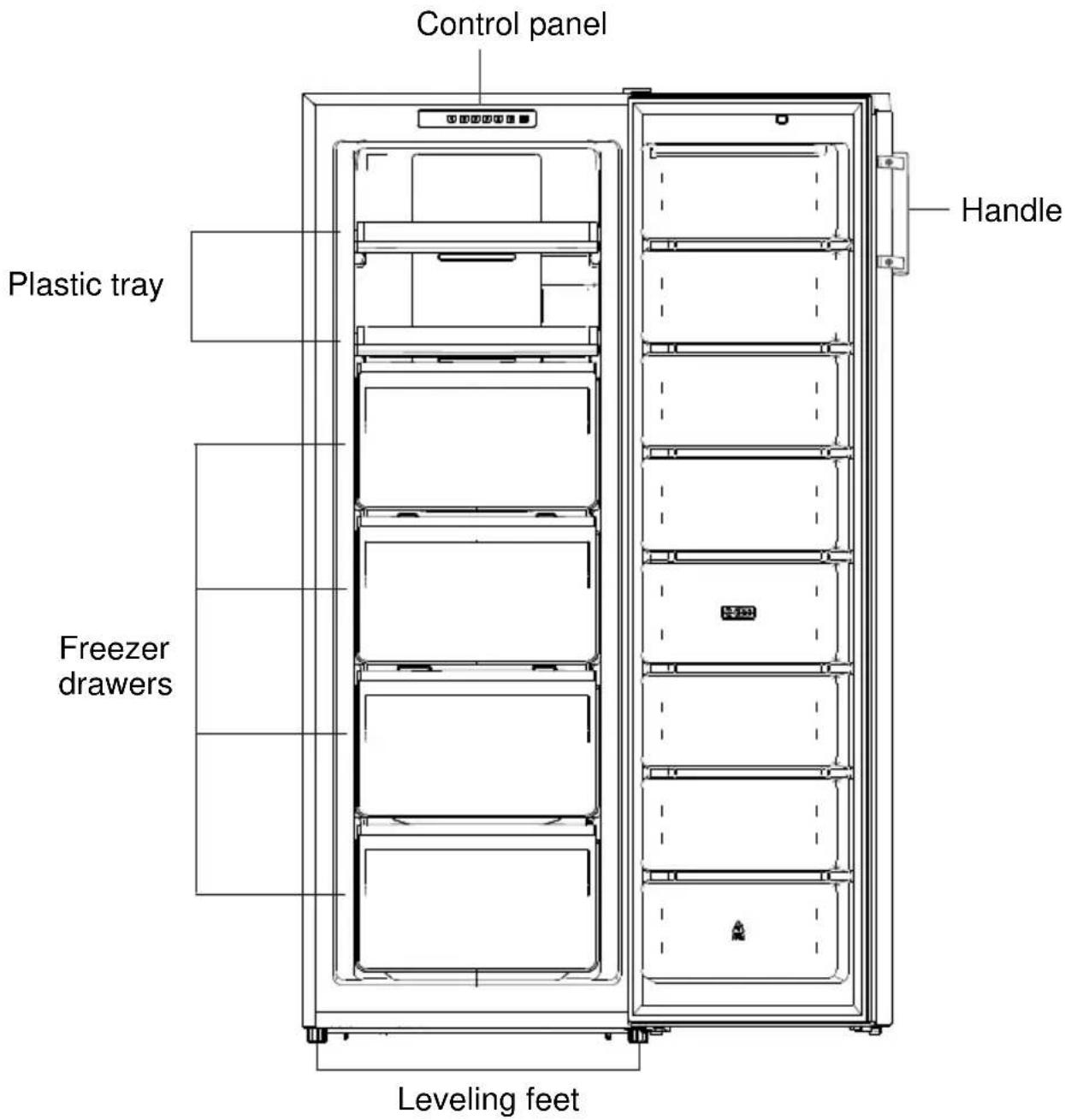

DESCRIPTION OF THE DEVICE

SABA UF205NFWD - DESCRIPTION OF THE DEVICE - 1

text_image Control panel Plastic tray Freezer drawers Handle Leveling feet

ACCESSORIES:

  • Energy label
  • Handle
  • User's manual
  • Ice tray

NOTE:

  • The appliance design is subject to change without prior notice.
  • Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most energy efficient.

DOOR REVERSAL

TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER.

  • Ensure the unit is unplugged and empty.
  • To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
  • All parts removed must be saved to do the reinstallation of the door.
  • Do not lay the unit flat as this may damage the cooling system.
  • It's better to have 2 people handle the unit during assembly.

  • Remove the top right hinge cover.

SABA UF205NFWD - TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER. - 1

natural_image Diagram of a tool being inserted into a container with a screwdriver, showing a downward arrow (no text or symbols present)

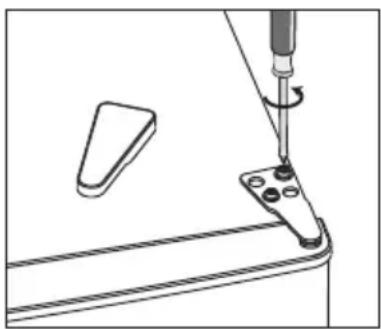

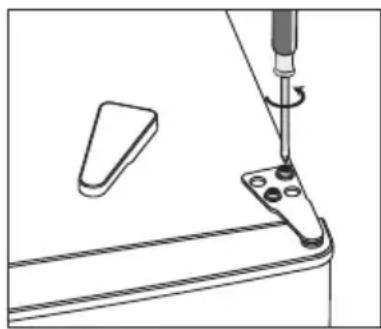

  1. Undo the screws. Then remove the hinge bracket.

SABA UF205NFWD - TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER. - 2

natural_image Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols
  1. Remove the top left screw cover.

SABA UF205NFWD - TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER. - 3

natural_image Mechanical diagram showing a screwdriver inserted into a bracket with a downward arrow indicating force (no text or symbols present)
  1. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.

SABA UF205NFWD - TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER. - 4

natural_image Pure geometric diagram showing a curved dashed line and a solid line with marked points, without any text or symbols.

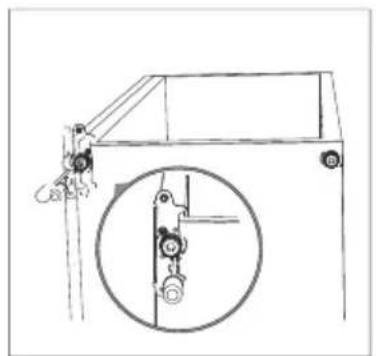

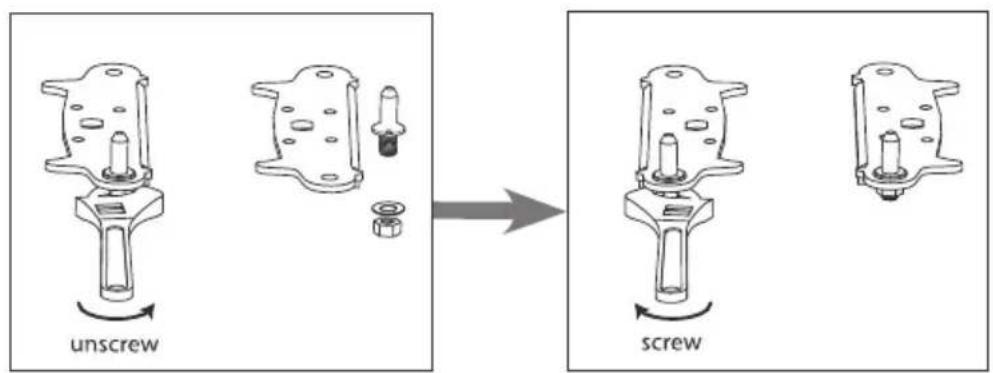

  1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

SABA UF205NFWD - TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER. - 5

text_image unscrew screw
  1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

SABA UF205NFWD - TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER. - 6

natural_image Technical line drawing of a mechanical device with an inset showing a pulley mechanism (no text or symbols)
  1. Place the upper door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.
  2. Insert the hinge bracket and screw it to the top of the unit.
  3. Use a spanner to tighten it if necessary.

SABA UF205NFWD - TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER. - 7

natural_image Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

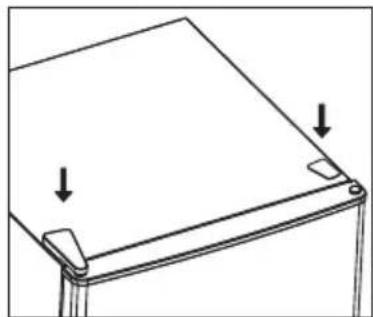

  1. Put the hinge cover and the screw cover back.

  2. With the doors closed, check that the doors are aligned horizontally and vertically and that the seal is closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

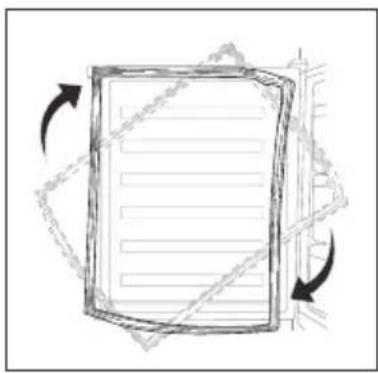

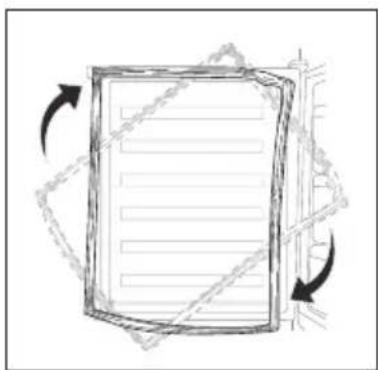

  3. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

SABA UF205NFWD - TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER. - 8

natural_image Simple line drawing of a folded paper or panel with two arrows pointing to the edges (no text or symbols)

SABA UF205NFWD - TOOL REQUIRED: PHILIPS SCREWDRIVER, FLAT BLADED SCREWDRIVER, HEXAGONAL SPANNER. - 9

natural_image Abstract diagram of a document frame with directional arrows indicating rotation or movement (no text or symbols)

INSTALLATION

  • Position the appliance and allow it to stand for two to three hours before it is turned on for the first time to allow the system to settle. Do not position next to any heat source e.g. cooker, boiler or in direct sunlight etc.
  • Allow at least 10cm of space at the top and 10 cm of space on both sides of the appliance and between the back of the appliance and the wall for adequate air circulation. The appliance is not designed for recessed installation (“building in”).
    • Install on a good firm level surface, and any unevenness of the floor should be corrected prior to installation, slight unevenness can be overcome by adjusting the front feet.
  • NOTE: If the appliance is positioned on a carpet, soft floor covering you should readjust the front feet once the appliance has had time to settle.

ELECTRICAL CONNECTION

Before plugging in, ensure that the voltage and frequency shown on the rating label correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

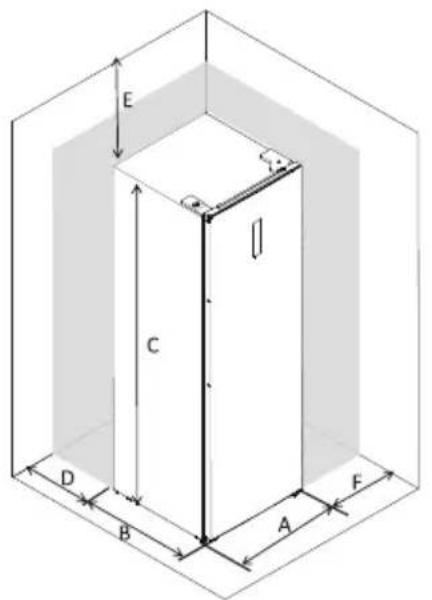

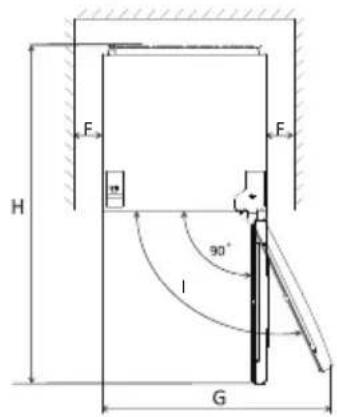

SPACE REQUIREMENT

  • Keep enough space of door open.
  • Keep at least 100mm gap at two sides and back.

SABA UF205NFWD - SPACE REQUIREMENT - 1

text_image E C D B A F

SABA UF205NFWD - SPACE REQUIREMENT - 2

text_image F H G 90° I F
A550
B594
C1683
Dmin=50
Emin=50
Fmin=10
G840
H150
I115 ^

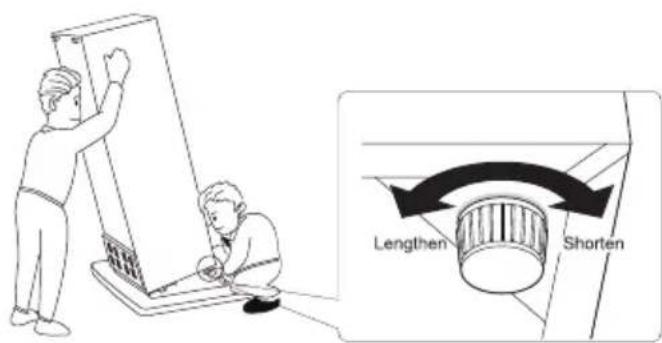

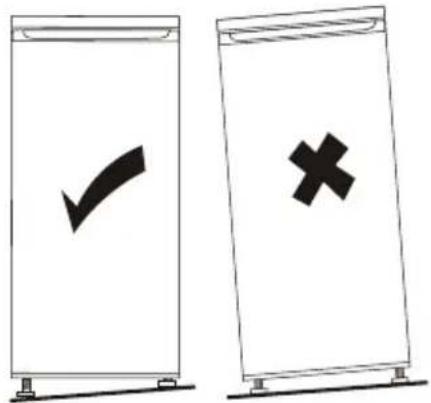

LEVELLING THE UNIT

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

SABA UF205NFWD - LEVELLING THE UNIT - 1

text_image Two vertical signs with checkmarks and a cross symbol, likely indicating approval or rejection status.

SABA UF205NFWD - LEVELLING THE UNIT - 2

text_image Lengthen Shorten

DAILY USE

  • This appliance is designed to operate in ambient temperature between 10^ and 43^ . If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer section will rise above -18^ and food spoilage may occur.
  • Remove all packaging materials from the appliance. Wash the inside of the cabinet with lukewarm water and bicarbonate of soda (5ml to 0.5 liter of water). Dry the appliance thoroughly.
  • When you use the freezer for the first time or after defrosting, set the thermostat control to the maximum position for at least 2 hours before introducing food to be stored, and then readjust to the normal position.
  • If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 12 hours. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.

TEMPERATURE AND MODE SETTING

- The temperature in the cabinet is controlled by the main control board, and the display board shows the current gear and mode. There are five gears to choose.

SABA UF205NFWD - TEMPERATURE AND MODE SETTING - 1

text_image SMART TEMPERATURE CONTROL -14 -16 -18 -20 -22 °C SET SUPER SUPER/3s

- User self setting mode: press the "SET" key, the LED gear indicator will flash, and the gear can be adjusted at this time. Each time you press this key, the temperature setting cycle will be -14^ , -16^ , -18^ , -20^ and 22^ . After flashing for 5 seconds, it will be determined. Normally, -18^ is recommended.

- Super freezing mode: press and hold the "SET" key for 3S to enter the super freezing mode, and the "SUPER" indicator light is on. Press the "SET" key for 3S again to exit the quick freezing mode, and the "SUPER" indicator light goes out.

FIRST USE

Cleaning the interior

Before using the appliance for the first time, clean the interior and all internal accessories with lukewarm water and some neutral soap to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT! Do not use detergents or abrasive powders, as these will damage the finish.

FREEZING FRESH FOOD

  • The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
  • Place the fresh food to be frozen in the freezer compartment.
  • The maximum amount of food that can be frozen in 24 hours is specified on the rating label.
  • The freezing process lasts 24 hours: during this period do not add other food to be frozen.
  • The combination of the drawers, baskets and shelves shown in the Description of the Device is optimal for efficient energy savings. Changing the combination proposition could impact the appliance’s performance.

STORING FROZEN FOOD

When first starting up or after a period out of use, let the appliance run for at least 2 hours on the higher settings before putting the product in the compartment.

IMPORTANT! In the event of accidental defrosting, for example, the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooking).

FoodStorage time
Bacon, casseroles, milk1 month
Bread, ice cream, sausages, pies, prepared shell fish, oily fish2 months
Non-oily fish, shellfish, pizza, scones and muffins3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces4 months
Butter, vegetables (blanched), eggs whale and yolks, cooked crayfish, mincedmeat (raw),pork (raw)6 months
lamb (raw), fruit cakesn,Fruit (dry, ar in syrup), egg 12 months

whites, be

TEMPERATURE SETTING TIPS

Correct temperature settings help minimize food waste and keep food fresh for as long as possible. The freezer should be set at -18^ C.

If the temperature setting is too high (freezer above -18^ ), the storage life of foods such as meat and bean products is shortened, leading to food waste.

Never forget: When you freeze fresh foods with a 'use by / best before / best by'date, ensure that they are frozen before the indicated date expires.

Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

Once defrosted, food should be consumed quickly. In order to avoid food waster, maintain a cooling temperature of 4–6°C.

THAWING

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

ENERGY SAVING TIPS

To help you make the most of the freezing process, here are some important hints:

  • The maximum quantity of food which can be frozen in 24 hrs. is shown on the rating label,
  • The freezing process takes 24 hours. No further food to be frozen should be added during this period;
  • Only freeze top-quality, fresh and thoroughly cleaned foodstuffs;
  • Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
  • Wrap the food in aluminium foil or polythene and make sure that the packages are airtight;
  • Do not allow fresh, unfrozen food to touch food that is already frozen, thus avoiding a rise in temperature of the latter;
  • Lean foods store better and longer than fatty ones; salt reduces the storage life of food,
    • Water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

HINTS FOR STORAGE OF FROZEN FOOD

To obtain the best performance from this appliance, you should:

• Make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

  • Ensure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
  • Avoid opening the door frequently or leave it open longer than absolutely necessary;
  • Once defrosted, food deteriorates rapidly and cannot be re-frozen;
  • Do not exceed the storage period indicated by the food manufacturer.

MAINTENANCE

NOISE FROM YOUR APPLIANCE

You may notice some rather unusual noises. The noises are caused by circulation of refrigerant in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your appliance.

PROLONGED OFF PERIODS

If the appliance is not in use for a long period of time, proceed as follows:

  1. Disconnect from the mains supply.
  2. Clean and dry the inside.
  3. Leave the door open to prevent any unpleasant smells from building up while the appliance is not in use.

NOTES FOR USE

  • Do clean and defrost your appliance regularly.
  • Do check contents of the compartments every so often.
  • Do store commercially prepared food in accordance with the instructions given on the packets.
  • Do choose high-quality fresh food and ensure it is thoroughly clean before freezing it.
  • Do wrap all food in food-quality polythene bags or air tight containers and make sure any air is excluded.

  • Do not store poisonous or any dangerous substances in your freezer. It is designed for the freezing of edible foodstuffs only.

  • Do not consume food which has been frozen for an excessive length of time.
  • Do not leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation.
  • Do not use sharp objects such as knives to remove the ice from the appliance. Only use a plastic scraper.
  • Do not put hot food into the appliance. Let it cool downto room temperature.
  • Do not put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst.
  • Do not give children ice-cream and water ices directly from the freezer as the low temperature may cause freezer burns' on the lips.
  • Do not try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and re-frozen.

CLEANING

  1. Unplug the appliance.
  2. Remove all substances.
  3. Clean the inside and outside walls with a clean sponge or soft cloth using warm water or 1 teaspoon of bicarbonate of soda to 1.2 liters of water.
  4. Rinse well and wipe dry with a clean soft cloth.

  5. If the appliance is not to be used for a long period of time, it is recommended to remove all the food stuff, clean the inside of the appliance and leave the door open to allow air circulation, thus avoiding unpleasant odors.

  6. Dust behind the refrigerator and on the ground should be cleaned timely to improve the cooling effect and energy saving.
  7. The interior of the refrigerator should be cleaned regularly to avoid odor.
  8. Check the door gasket regularly to make sure there is no debris.
  9. Please turn off the power before cleaning, remove all food, shelves, drawers, etc.
  10. Clean the door gasket with mild soap and water. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.
  11. For areas that are difficult to clean in the refrigerator (such as narrow splits, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, use some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.
  12. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator.
  13. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

  14. Do not use hard brushes, steel wool, wire brushes, abrasives(such as toothpaste), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, or acid or alkaline items to clean refrigerator, as these may may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.

  15. Do not rinse with water to avoid affecting the electrical insulation properties.
  16. It is advisable to clean the appliance regularly and to remove any food deposits or splashes; in particular, clean the door seals, recesses and adjacent parts.
  17. Don’t overlook parts of the appliance such as the humidity controller, light casing, racks, egg and butter compartments, ice cube tray, and all of the drainage areas.
  18. If the appliance is not kept clean and in good condition, its surface could deteriorate and inexorably affect the length of its service life, and could lead to a dangerous situation.
  19. The appliance must not be steam cleaned.
  20. Use only a non-abrasive sponge, rinse with clean water then dry thoroughly before putting the parts back in place.
  21. Never use abrasive cleaning products or hard metal scrapers to clean the appliance, as they could scratch the surfaces and break down the coating.
    • After cleaning, leave the inside of the appliance to dry with the door open before plugging it into the mains again.
  22. When re-stocking the appliance, be especially careful not to hit, scratch, crack or break the internal surfaces.

DOOR OPEN ALARM

If the door is not closed for 90 seconds, an open door alarm will be triggered.

The alarm can be cancelled by pressing the SET key or closing the door.

HIGH TEMPERATURE ALARM

If high internal temperature of the appliance is detected, a high temperature alarm will be triggered.

5 LEDs showing the settings will flash.

The alarm can be cancelled by pressing the SET key.

TROUBLESHOOTING

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation)

ProblemSolutionPossible Caus
Appliance does not work.Mains plug is not plugged in or is loose.Insert mains plug.
Fuse has blown or is defective.Check fuse, replace if necessary.
Socket is defective.Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much.Temperature is set too cold or the appliance runs at MAX setting.Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.Temperature is not properly adjusted.Please look in the initial Temperature Setting section
Door was open for an extended period.Open the door only as long as necessary.
A large quantity of warm food was placed in the appliance within the last 24 hours.Turn the temperature regulation to a colder setting temporarily.
The appliance is near a heat source.Please look in the installation location section.
Heavy build up of frost on the door seal.Door seal is not air tight.Carefully warm the leaking sections of the door seal with a hair dryer(on a cool setting).At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises.Appliance is not level.Re-adjust the feet.
The appliance is touching the wall or other objects.Move the appliance slightly.
A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

CUSTOMER SERVICE

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

Duration of availability of spare parts: 10 years.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

This instruction book is also available on our website: www.conforama.fr

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances: http://sav-client.conforama.fr/

SABA UF205NFWD - CUSTOMER SERVICE - 1

09 69 32 05 05

From Monday to Saturday, 08:30 to

19:00 Price of a local call

TECHNICAL INFORMATION

Flash the QR code on the energy label or below to access its main information.

ModelWebsiteQR Code
UF205NFWDhttps://eprel.ec.europa.eu/qr/2424118SABA UF205NFWD - TECHNICAL INFORMATION - 1
Reference:UF205NFWD
220-240V~Rated voltage:
Ampere:1.3A
Defrost power input:160W
50HzRated frequency
Climate class:SN,N,ST,T
Refrigerant:R600a(34g)
IProtection against electrical shock:
CYCLOPENTANEInsulation foam:

Climate class:

  • Extended temperate (SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’.
  • Temperate (N): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’.
  • Subtropical (ST): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’.
  • Tropical (T): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’.

DISPOSAL

The refrigerating gas contained in the circuit of this appliance is isobutane (R600a); it causes a low level of pollution but is inflammable. Please contact your local disposal department for advice on the correct method of disposal.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

SABA UF205NFWD - DISPOSAL OF OLD ELECTRICAL APPLIANCES - 1

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream.

Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

CONFORAMA France

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SABA

Model : UF205NFWD

Category : Freezer
