USER MANUAL FMOG23BX SABA
Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.
TABLE OF CONTENTS
Safety instructions 28
Specifications 32
Warning 32
Cleaning 33
Utensils 33
Setting up your oven 37
Installation 39
Control panel. 40
Operation instruction 41
Trouble shooting 47
Disposal of old electrical appliances 48
Safety instructions
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
- CAUTION: If the door or door seal is damaged, the microwave oven must not be switched on before being repaired by a qualified person.
WARNING: It is dangerous for anyone other than a qualified person to carry out maintenance or repairs involving the removal of a cover that protects against exposure to microwave energy.
WARNING: Liquids and other foods must not be heated in sealed containers as they are liable to explode.
- Leave a minimum space of 30cm above the upper surface of the microwave oven.
- Only use cooking utensils appropriate for use in microwave ovens.
- When heating food or drink in plastic or paper containers, keep an eye on the microwave oven given the possibility of fire.
- If smoke appears, stop or unplug the microwave oven and keep the door closed to extinguish possible flames.
- Heating drinks in microwaves can cause sudden eruptions of boiling liquid. Caution must also be taken when handling the container.
- The contents of feeding bottles or jars of baby food must be stirred or mixed, and the temperature must be checked before serving to avoid burns.
It is not recommended that whole or hard-boiled eggs be cooked or heated in their shells as they are liable to explode, even after cooking.
It is recommended that you clean the microwave oven regularly and remove any food deposits.
- Failure to keep the appliance clean may lead to permanent deterioration of the surface, reducing the useful life of the appliance and potentially leading to hazardous situations.
- The microwave oven is designed to be positioned freely.
- The microwave oven must not be placed on movable furniture.
- The microwave oven is designed for heating foodstuffs and drinks. The drying of foodstuffs or of linen and the heating of heating pads, slippers, sponges, wet linen and other similar items may entail a risk of injury, inflammation or fire.
-
This appliance is designed to be used for domestic and similar purposes such as:
-
kitchens used by employees in shops, offices and other working environments;
- farms;
- for guests in hotels, motels and other residential environments;
- bed and breakfast type accommodation.
Metal food and drink containers must not be heated in the microwave.
- The appliance must not be steam cleaned.
- This appliance can only be used by children aged under 8 years and persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they are supervised or have received instructions for using the appliance in a safe way and understand the dangers involved.
Children must not use the appliance as a toy.
- Cleaning and user maintenance must not be carried out by children unless they are aged 8 years and older and supervised by an adult.
- If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a qualified professional in order to avoid any danger.
- Group 2, Class B appliance
- This appliance is a Group 2 appliance as it intentionally generates radio-frequency energy for treating materials and is designed for domestic use in establishments directly connected to a low-voltage power supply network supplying buildings used for domestic purposes (Class B).
- Refer to the CLEANING AND UPKEEP section for detailed information on cleaning the door seals, cavities, adjacent parts and surfaces in contact with food.
- Warning: If the appliance does not work in combined mode, it is recommended that children only use the microwave
oven under adult supervision due to the high temperatures generated.
- Keep the appliance and its cable out of reach of children under 8 years of age.
- The back of the microwave oven must be placed against a wall.
- The appliance is not designed to be used in conjunction with a separate timer or with a control system used at a distance.
- The temperature of accessible surfaces may be high when the appliance is on.
- This appliance is not designed to be used in conjunction with a separate timer or remote control system.
The door or outer surface of the microwave oven may become hot while it is on.
- Surfaces are likely to become hot during use.
Warning, very hot surface!
- During use, the appliance will become hot. Be careful not to touch the heating elements inside the microwave oven.
- CAUTION: The accessible parts can become hot during use. It is recommended that young children are kept away from the appliance.
- The power socket must remain easily accessible.
Specifications
| Model: | FMOG23BX |
| Rated Voltage: | 230V~50Hz |
| Rated Input Power(Microwave): | 1250W |
| Rated Output Power(Microwave): | 800W |
| Rated Input Power(Grill): | 1000W |
| Oven Capacity: | 23L |
| Turntable Diameter: | Ø270mm |
| External Dimensions: | 485x409x293mm |
| Net Weight: | Approx. 14 kg |
Warning
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.
This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
32 Do not use an extension cord.
Cleaning
Be sure to unplug the appliance from the power supply.
- Clean the cavity of the oven after using with a slightly damp cloth.
- Clean the accessories in the usual way in soapy water.
- The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
- Cleaning Tip — For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100 % microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.
Utensils
CAUTION
Personal Injury Hazard
It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain nonmetallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.
Utensil Test:
- Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
- Cook on maximum power for 1 minute.
- Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
- Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
| Utensils | Remarks |
| Aluminum foil | Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. |
| Browning dish | Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. |
| Dinnerware | Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. |
| Utensils | Remarks |
| Glass jars | Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. |
| Glassware | Heat-resistant oven glassware only.
Make sure there is no metallic trim. Do not use cracked or chipped dishes. |
| Oven cooking bags | Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape. |
| Paper plates and cups | Use for short-term cooking/warming only. Do not leave oven unattended while cooking. |
| Paper towels | Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. |
| Parchment paper | Use as a cover to prevent splattering or a wrap for steaming. |
| Plastic | Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. |
| Plastic wrap | Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. |
| Thermometers | Microwave-safe only (meat and candy thermometers). |
| Wax paper | Use as a cover to prevent splattering and retain moisture. |
Materials to be avoided in microwave oven
| Utensils | Remarks |
| Aluminum tray | May cause arcing. Transfer food into microwave-safe dish. |
| Food carton with metal handle | May cause arcing. Transfer food into microwave-safe dish. |
| Metal or metal- trimmed utensils | Metal shields the food from microwave energy. Metal trim may cause arcing. |
| Metal twist ties | May cause arcing and could cause a fire in the oven. |
| Paper bags | May cause a fire in the oven. |
| Plastic foam | Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. |
| Wood | Wood will dry out when used in the microwave oven and may split or crack. |
Setting up your oven
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:
| Glass tray | 1 |
| Turntable ring assembly | 1 |
| Instruction Manual | 1 |
Grill Rack (Can not be used in microwave function and must be placed on the glass tray)

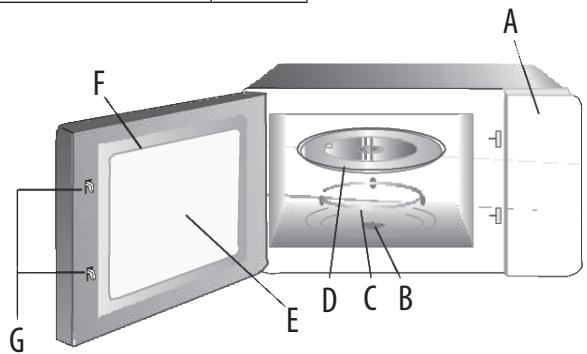

A. Control panel
B. Turntable shaft
C. Turntable ring assembly
D. Glass tray
E. Observation window
F. Door assembly
G. Safety interlock system
GB

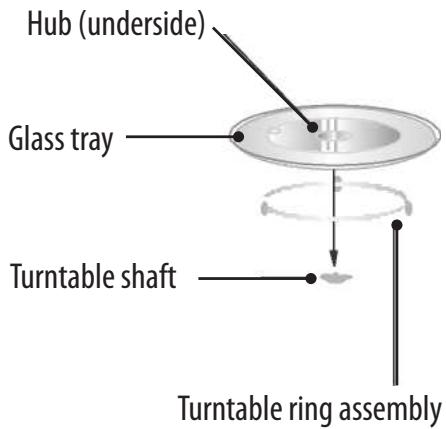

Turntable Installation
a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.
Countertop Installation
Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface.
Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
Installation

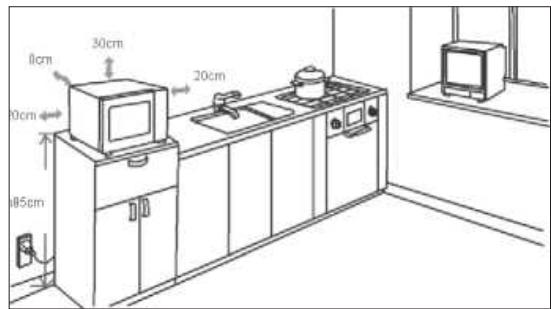

- Select a level surface that provide enough open space for the intake and/or outlet vents.
GB
1). The minimum installation height is 85cm .
2). The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
3). Do not remove the legs from the bottom of the oven.
4). Blocking the intake and/ or outlet openings can damage the oven.
5). Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.
WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.
The accessible surface may be hot during operation.

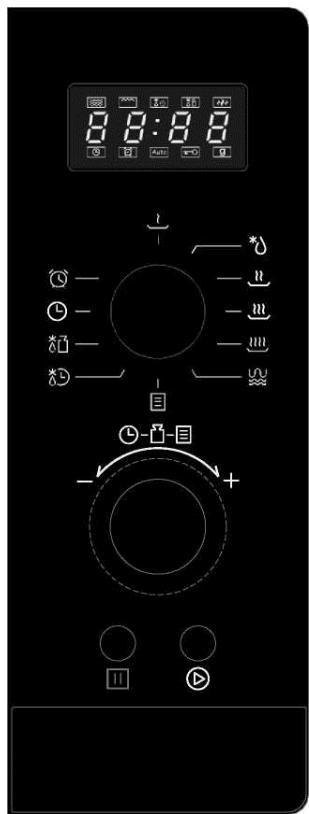

Control panel
GB
| Instruction |
| ? | Microwave Low |
| * | M.Low |
| || | Med |
| || | M. High |
| ||| | High |
| & | Grill/Combl. |
| [ ] | Auto Menu |
| & | Time Defrost |
| & | Weight Defrost |
| L | Clock |
| Q | Kitchen Timer |
| Weight |
| || | Stop/Clear |
| ◇ | Start/+30s/Confirm |
Operation instruction
This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

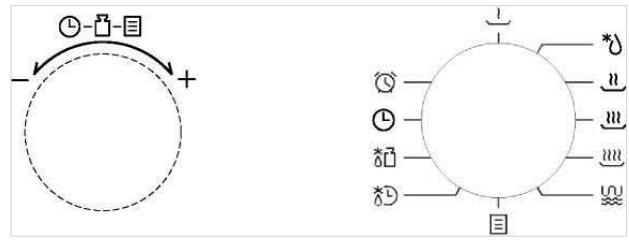

Knob Instructions
There are two knobs on the panel. For better operations, the manual call the left knob for parameter knob. Call the right knob for function knob.
GB
- Clock Setting
When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. Then the unit enters waiting states.
1). Turn function knob to "L", the hour figures flash.
2). Turn parameter knob to adjust the hour figures, the input time should be within 0-23.
3). Press "Start /+30s /Confirm" to confirm, the minute figures will flash.
4). Turn parameter knob to adjust the minute figures, the input time should be within 0-59.
5). Press "Start /+30s /Confirm" to finish clock setting. ". ." will flash.
Note:
1). Turn function knob to "Q", the screen will display "00:00".
2). Turn parameter knob to enter the correct time. (The maximum time is 95 minutes)
3). Press "Start /+30s /Confirm" to confirm setting.
4). When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times. If the clock has been set (24-hour system), screen will display the current time.
Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.
- Microwave Cooking
1). Turn the function knob to "↓", "↑"...". It refers to microwave power. And "P10", "P30"...."P100" dispalys.
2). Turn the parameter knob to adjust the cooking time. (The maximum cooking time is 95 minutes)
3). Press "Start/+30s /Confirm" to start cooking. Buzzer sounds once.
NOTE: the step quantities for the adjustment time are as follow:
| 0—1 min | 5 seconds |
| 1—5 min | 10 seconds |
| 5—10 min | 30 seconds |
| 10—30 min | 1 minute |
| 30—95 min | 5 minutes |
Microwave Power Chart
| Microwave Power | High | M.High | Med. | M.Low | Low |
| Display | P100 | P80 | P50 | P30 | P10 |
- Grill or Combi. Cooking
1). Turn the function knob to "UN", the screen will display "G"
2). Turn the parameter knob to choose the cooking mode you want, and "G", "C-1" or "C-2" will display in turn.
3). Press "Start/+30s /Confirm" to confirm.
4). Turn parameter knob to set the cooking time.
5). Press "Start/+30s /Confirm" to start cooking.
Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "Start/+30s /Confirm" to continue cooking. If no operation, the oven will continue working.
- Speedy Cooking
1). In waiting state, press "Start/+30s /Confirm" to start cooking with P100 power, each added press will increase 30 seconds cooking time up to 95 minutes.
2). In microwave, grill, combination cooking or time defrost state, each press of "Start/+30s /Confirm" can increase 30 seconds of cooking time.
3). In waiting state, turn parameter knob left to set cooking time with P100 microwave power, then press "Start/+30s /Confirm" to start cooking.
6. Defrost By Weight
1). When function knob poiting at "♂", "dEF1" displays;
2). Turn parameter knob to select the food weight. The range of weight is 100-2000g.
3). Press "Start/+30s /Confirm" to start defrosting.
7. Defrost By Time
1). When function knob poiting at "♂", "dEF2" displays;
2). Turn parameter knob to select defrost time. The range of time is 0:05-95:00.
3). Press "Start/+30s /Confirm" to start defrosting. The defrost power is P30. It cannot change.
8. Auto Menu
1). Turn function knob to "口" to choose auto cooking. "A-1" flash;
2). Turn parameter knob to choose the menu you need. "A-1", "A-2"..."A-8" will display.
3). Press "Start/+30s /Confirm" to confirm the menu you choose;
4). Turn parameter knob to choose the food weight;
5). Press "Start/+30s /Confirm" to start cooking;
- Lock-out Function for Children
Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long beep denoting entering the children-lock state and current time will display if the time has been set, otherwise, the screen will display "c::j".
Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released.
- ECO Function
Enter ECO mode: In waiting state, press "Stop/Clear" twice within 1 second, the screen will display "ECO" for 3 seconds. After 3 seconds, the oven will enter to waiting state.
If there is no operation, the screen will off after 1 minute. And any operation can light the screen again; if the door is opened, the oven lamp will be turned off automatically after 1 minute. Exit ECO mode: In waiting state, press "Stop /Clear" twice within 1 second, the screen will display "OFF" for 3 seconds. After 3 seconds, the oven will enter to waiting state.
If there is no operation, the screen is always light; if the door is opened, the oven lamp is always light.
Note: Unplug the power, the setting of ECO will be invalid.
- Specification
1). The buzzer will sound once when turning the multi-function knob at the beginning;
2). "Start /+30s /Confirm" must be pressed to continue cooking if the door is opened during cooking;
3). Once the cooking programme has been set, "Start/+30s / Confirm" is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
4). Buzzer sounds five times to remind you the cooking is finished.
Menu Chart
| Menu | Weight | Display |
| A-1 Pizza | 200 g | 200 |
| 400 g | 400 |
| A-2 Meat | 250 g | 250 |
| 350 g | 350 |
| 450 g | 450 |
| A-3 Vegetable | 200 g | 200 |
| 300 g | 300 |
| 400 g | 400 |
| A-4 Pasta | 50g
(with 450 ml cold water) | 50 |
| 100g
(with 800 ml cold water) | 100 |
| A-5 Potato | 200g | 200 |
| 400 g | 400 |
| 600 g | 600 |
| A-6 Fish | 250 g | 250 |
| 350 g | 350 |
| 450 g | 450 |
| A-7 Beverage | 1 cup (120 ml) | T |
| 2 cups (240 ml) | 2 |
| 3 cups (360ml) | 3 |
| Menu | Weight | Display |
| A-8 Popcorn | 50 g | 50 |
| 85 g | 85 |
| 100 g | 100 |
Trouble shooting
| Normal |
| Oven Interfering | Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances like mixer, vacuum cleaner and electric fan. It is normal |
| In low power microwave cooking become dim. It is normal. |
| Steam accumulating on hot air out of vents | |
| Oven started accidentally with no food in | It is forbidden to run the unit without any food inside. It is very dangerous. |
| Possible Cause | |
| Oven can not be started | Power cord not plugged in tightly | Unplug the plug again after 10 seconds |
| Fuse blowing or circuit breaker works | Replace fuse or reset circuit breaker (repaired by professional personnel of our company) |
| Test outlet with other electrical appliances |
| Oven does not heat | Door not closed well | Close door well |
Disposal of old electrical appliances
The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be
collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.
The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
