Product Type	Induction Cooktop
Model	ATIF64WHM
Brand	AIRLUX
Number of Cooking Zones	4
Total Power	7400 W
Nominal Power per Cooking Zone	2100 W
1st Booster Power	2600 W
2nd Booster Power	3700 W
Energy Consumption of the Cooktop	187,4 Wh/kg
Glass Dimensions (L x W x Th)	590 x 520 x 4 mm
Cutout Dimensions (L x W)	560 x 490 mm
Net Weight	Approximately 10 kg
Power Supply	230 V~ 50/60 Hz (single phase) or 400 V~ (two phase)
Power Cable	3 x 2.5 mm² (single phase) or 4 x 1.5 mm² (two phase)
Main Functions	Booster, Double Booster, Timer, Pause, Automatic Cooking, Keep Warm, Bridge, Grill, Pot Speed Test
Safety	Residual Heat Indicator, Pan Detection, Child Lock, Auto Shut-off, Overheat Protection
Care and Cleaning	Clean with a damp cloth and a ceramic glass cleaner. Do not use abrasive objects. Remove sugar immediately.
Spare Parts and Repairability	Repairs must be carried out by an authorized professional. Parts available from after-sales service.
General Information	Household use only. Installation and connection by a qualified electrician.

Frequently Asked Questions - ATIF64WHM - ATIF64WHM AIRLUX

What types of cookware to use on an induction cooktop?

Use pans with a ferromagnetic base: steel, cast iron, stainless steel with magnetic base. Check with a magnet. Avoid copper, aluminum, glass and ceramic.

What does the symbol [U] on the display mean?

The [U] symbol indicates that no pan is detected or that the cookware is not compatible. Place a suitable pan centered on the cooking zone.

How to clean the ceramic glass without scratching it?

Clean after cooling with a soft cloth and a special ceramic glass cleaner. Never use abrasive powder, steel wool or sharp objects.

Why does the cooktop turn off by itself?

It's normal: the cooktop is equipped with a maximum operating time limit according to the power level. For example, at level 9, it turns off after 1h30. This prevents forgetting.

What to do in case of glass crack?

Cut off the power supply immediately and contact after-sales service. Do not use the appliance anymore as there is a risk of electric shock.

How to use the Booster function?

Slide your finger to the end of the SLIDER or press at the end. The display shows [P]. The booster lasts 10 minutes and increases power for rapid heating.

Can I use pans with a diameter less than 10 cm?

No, the cooktop does not detect pans with a diameter smaller than the cooking zone (minimum 10 cm for some zones). Use suitable pans.

How to lock the keys for cleaning?

Hold your finger on the [•] key for 6 seconds. The lock indicator lights up. Only the on/off key remains active.

What does the code [E2] mean?

The [E2] code indicates an overheating of the cooktop. Let it cool down then turn it back on. If the problem persists, contact after-sales service.

How to set the timer on a cooking zone?

Select the power level, then press simultaneously on [-] and [+] of the timer until the zone indicator flashes. Use [-] and [+] to set the time. The countdown starts automatically after a few seconds.

USER MANUAL ATIF64WHM - ATIF64WHM AIRLUX

instructions of use and maintenance

Chere cliente, cher client,

Touchedeverrouillage

Thank you for having chosen our induction ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting.

SUMMARY

SAFETY 24

PRECAUTIONS BEFORE USING 24
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 26
OTHER PRECAUTIONS 26

DESCRIPTION OF THE APPLIANCE 27

TECHNICAL CHARACTERISTICS 27
CONTROL PANEL 27

USE OF THE APPLIANCE 28

DISPLAY 28
VENTILATION 28

STARTING-UP AND APPLIANCE MANAGEMENT 28

BEFORE THE FIRST USE 28
INDUCTION PRINCIPLE 28
SENSITIVE TOUCH 28
POWER SELECTION ZONE "SLIDER" AND TIMER SETTING ZONE 29
STARTING-UP 29
PAN DETECTION 29
RESIDUAL HEAT INDICATION 30
BOOSTER FUNCTION 30
TIMER 31
AUTOMATIC COOKING 32
STOP&GO FUNCTION 32
RECALL FUNCTION 32
"KEEP WARM" FUNCTION 33
BRIDGE AND AUTOMATIC BRIDGE FUNCTION 33
GRILL FUNCTION 33
CONTROL PANEL LOCKING 34

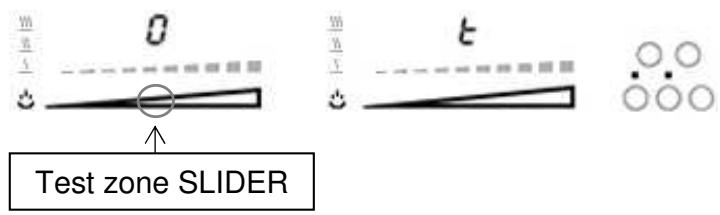

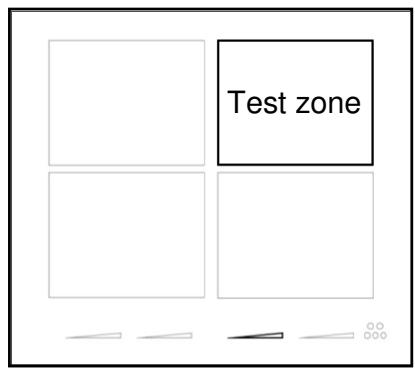

POT SPEED TEST FUNCTION 34
OPERATING TIME LIMITATION 36

COOKING ADVICES 37

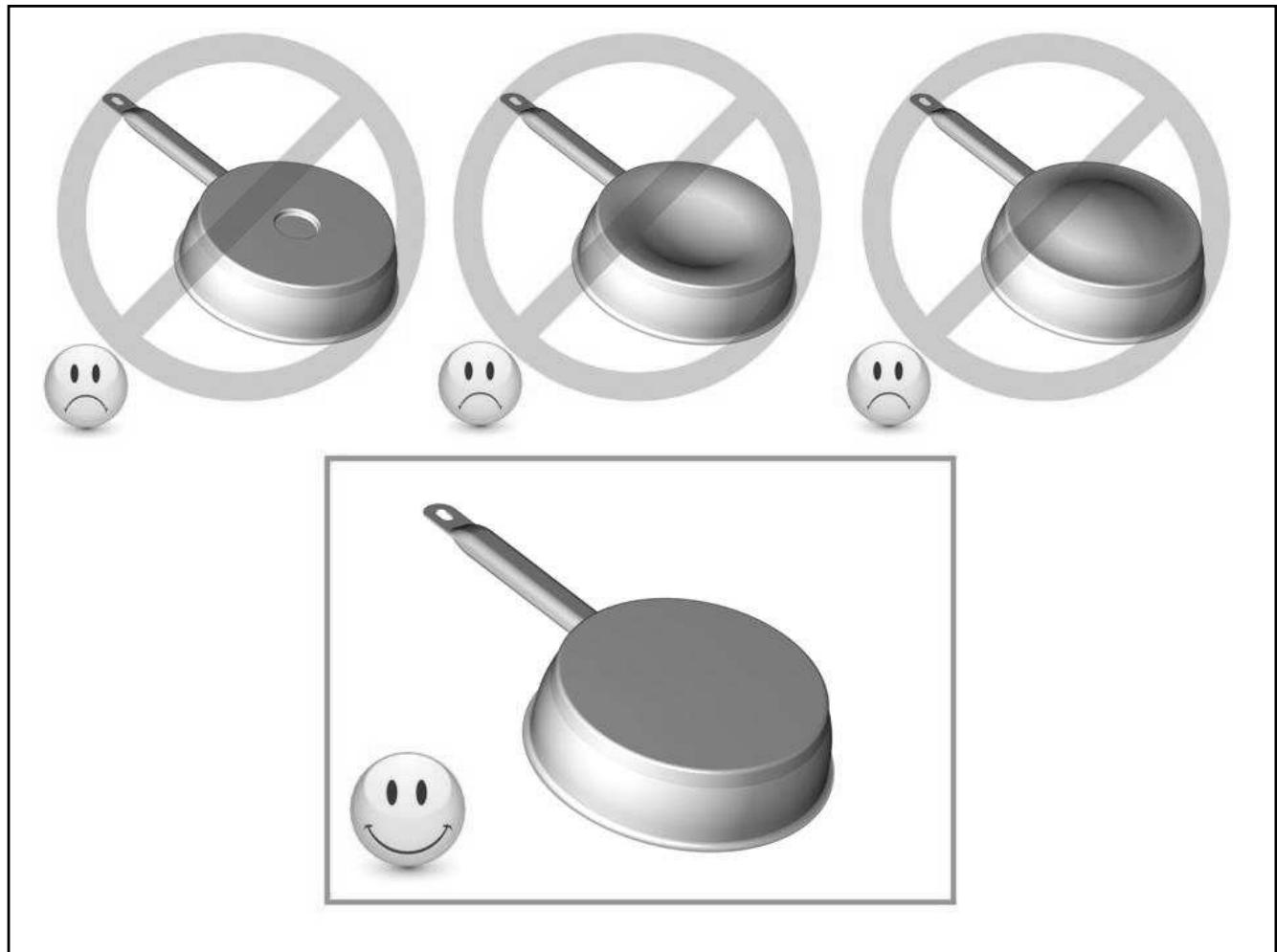

PAN QUALITY 37
PAN DIMENSION 37
EXAMPLES OF COOKING POWER SETTING 38

MAINTENANCE AND CLEANING 38

WHAT TO DO IN CASE OF A PROBLEM 38

ENVIRONMENT PRESERVATION 39

INSTALLATION INSTRUCTIONS 40

ELECTRICAL CONNECTION 41

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer can not be responsible for damage caused by building-in or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate can not be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance can not be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• The appliance is not intended to be operated by means of external timer or separate remote control system.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the cooking using grease or oils: that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.

Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
- In general do not place any metallic object except heating containers on the glass surface. In case of untimely engaging or residual heat, this one may heat, melt or even burn.
- Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• WARNING: Danger of fire: do not store items on the cooking surface.
• Never place any hot container over the control panel.

• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.

• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch on the appliance and turn off the electrical supplying.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other precautions

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information to the retailer or of the doctor.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

THE USE OF EITHER POOR QUALITY POT OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB AND/OR ITS ENVIRONMENT.

Technical characteristics

Type	ATIF64WHM ATIF64BKM
Total power	7400 W
Energy consumption for the hob EChob**	187.4 Wh/kg
Heating zone	220 x 180 mm
Minimum detection	Ø 100 mm
Nominal power*	2100 W
1stBooster power*	2600 W
2ndBooster power*	3700 W
Cookware**	Ø 150 mm
Energy consumption EChw**	182.8 Wh/kg
Cookware**	Ø 180 mm
Energy consumption EChw**	190.6 Wh/kg
Cookware**	Ø 210 mm (x2)
Energy consumption EChw**	188.1 Wh/kg

• The given power may change according to the dimensions and material of the pan.
  ** calculated according to the method of measuring performance (EN 60350-2).

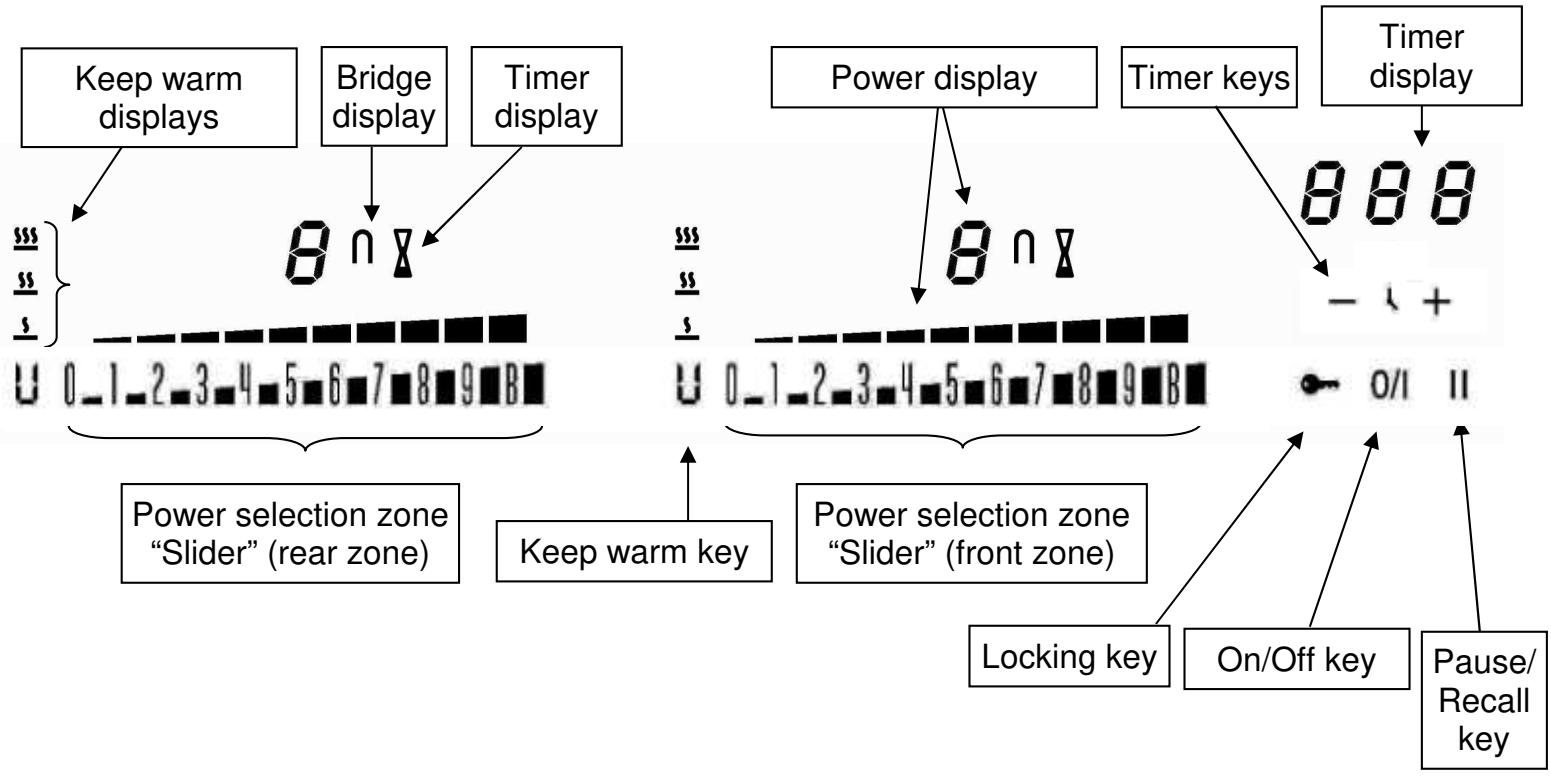

Control panel

Display

Display	Designation	Description
0	Zero	The heating zone is activated.
1...9	Booster level	Selection of the cooking level.
U	No pan detection	No pan or inadequate pan.
A	Heat accelerator	Automatic cooking.
E	Error message	Electronic failure.
H	Residual heat	The heating zone is hot.
P	1stBooster	The 1stBooster is activated.
II	2ndBooster	The 2ndBooster is activated.
U	Keep warm	Maintain automatically of 42, 70 or 94°C.
II	Stop&Go	The hob is in pause.
	Grill Function	The Grill Function is activated.

Ventilation

The cooling system is fully automatic. The cooling fan starts with a low speed when the calories brought out by the electronic system reach a certain level. The ventilation starts his high speed when the hob is intensively used. The cooling fan reduces his speed and stops automatically when the electronic circuit is cooled enough.

STARTING-UP AND APPLIANCE MANAGEMENT

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Induction principle

An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.

Of course the pan has to be adapted:

• All ferromagnetic pans are recommended (please verify it thanks a little magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms...
• Are excluded: cupper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,...

The induction heating zone adapts automatically the size of the pan. With a too small diameter the pan doesn't work. This diameter is varying in function of the heating zone diameter.

If the pan is not adapted to the induction hob the display will show [ ] .

Sensitive touch

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a "beep" sound.

In the case of a general use press only one key at the same time.

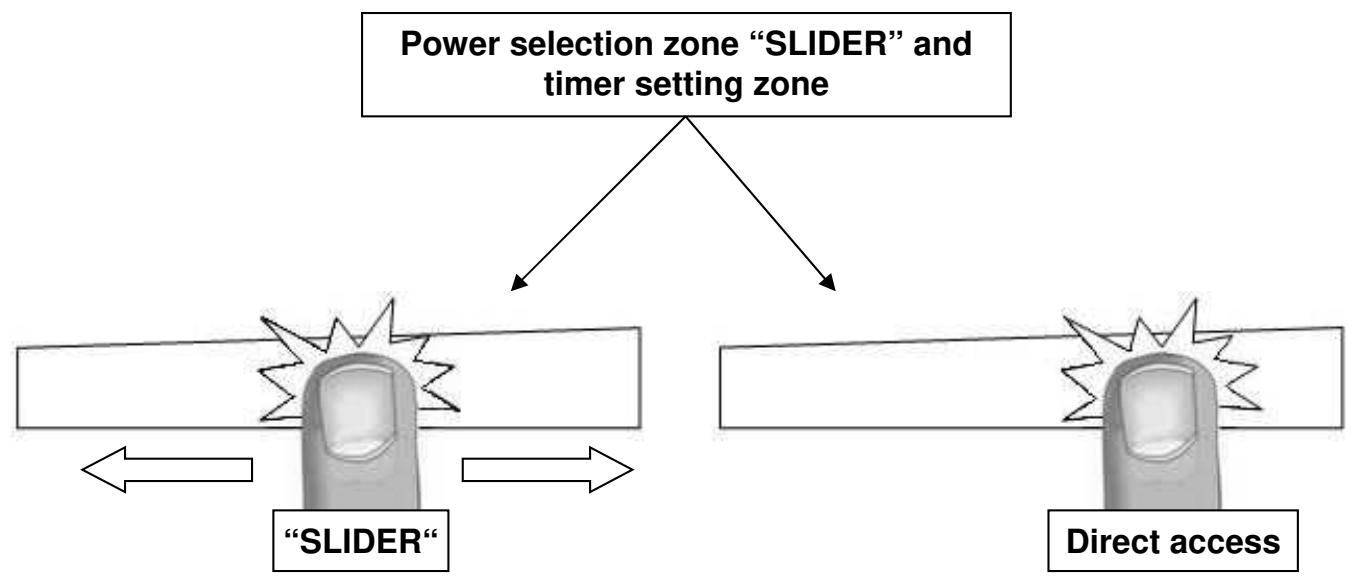

Power selection zone "SLIDER" and timer setting zone

To select the power with the slider, slide your finger on the "SLIDER" zone. You can already have a direct access if you put your finger directly on the chosen level.

Starting-up

• Start up / switch off the hob:

Action

To start

To stop

Control panel

press key [ 0/1 ]

press key [ 0/1 ]

Display

[0]

nothing or [H]

• Start up / switch off a heating zone:

Action

To set

(adjust the power)

To stop

Control panel

slide on the "SLIDER"

to the right or to the left

slide to [0] on "SLIDER"

Display

[1]to [P]

[0] or [H]

If no action is made within 20 second the electronics returns in waiting position.

Pan detection

The pan detection ensures a perfect safety. The induction doesn't work:

• If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [ ] . This symbol disappears when a pan is put on the heating zone.
• If the pan is removed from the heating zone the operation is stopped. The display shows [ ] . The symbol [ ] disappears when the pan is put back to the heating zone. The cooking continues with the power level set before.

After use, switch the heat element off: don't let the pan detection [ ] active.

Residual heat indication

After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.

The symbol [ H ] disappears when the heating zones may be touched without danger.

As far as the residual heat indicators are on light, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.

Booster function

Booster [P] and Double Booster [ 1 & 1 ] grant a boost of Power to the selected heating zone. If this function is activated the heating zones work during 10 minutes with an ultra high Power. This is foreseen for example to heat up rapidly big quantities of water, like nuddles

- Start up / Stop the Booster:

Action	Control panel	Display
Start up the Booster	Slide to the end of the “SLIDER”	[P]
	Or press directly on the end of the “SLIDER”
Stop the Booster	Slide on the “SLIDER”	[9] to [0]

- Start up / Stop Double Booster:

Action	Control panel	Display
Start up the Booster	Slide to the end of the “SLIDER” Or press directly on the end of the “SLIDER”	[P]
Start up Double Booster	Re-press key [P]	[”,”, and P]
Stop the Double Booster	Slide on the “SLIDER”	[P] to [0]
Stop Booster	Slide on the “SLIDER”	[9] to [0]

Power management:

The hole cooking hob is equipped with a maximum of Power. When the Power function is activated, and in order to exceed the maximum Booster, the electronic system orders to reduce automatically the power level of an other heating zone. The display is blinking on [ 9 ] during a few seconds and then shows the maximum of power allowed:

Heating zone selected [ P ] is displayed

The other heating zone: (example: Booster level 9) [ 9 ] goes to [ 6 ] or [ 8 ] depending the type of zone

Timer

The timer is able to be used simultaneous with all heating zones and this with different time settings (from 0 to 999 minutes) for each heating zone.

• Setting and modification of the cooking time:

Action	Control panel	Display
Select the power level	slide on the “SLIDER”	[1] to [P]
Select theTimer	Press simultaneously key [-] and [+] from the timer until the desired display is on	Timer display on
Decrease the time	Press key [-] from the timer	[60] to 59, 58...
Increase the time	Press key [+] from the timer	Time increase

After a few seconds, the [min] display stops with blinking.

The time is confirmed and the timer starts.

• To stop the cooking time:

Action	Control panel	Display
Select the Timer	Press simultaneously key [ - ] and [ + ] from the timer until the desired display is on	Timer display on
Stop the time	Press key [ - ] from the timer	[ 000 ]

If several timers are activated, repeat the process.

- Egg timer function :

Egg timer is an independent function. It stops as soon as a heating zone starts up.

If the egg timer is on and the hob is switched off, the timer continues until time runs out.

Action	Control panel	Display
Activate the hob	press display [0/1]	[0]
Select the Timer	Press simultaneously key [-] and [+] from the timer	[000]
Decrease the time	Press key [-] from the timer	[60] to 59, 58...
Increase the time	Press key [+] from the timer	Time increase

After a few seconds, the [min] display stops with blinking.

The time is confirmed and the timer starts.

Automatic stop at the end of the cooking time:

As soon as the selected cooking time is finished the timer displays blinking [ 000 ] and a sound rings.

To stop the sound and the blinking, press the key [-] and [+] .

Automatic cooking

All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power during a certain time, and then reduces automatically its power on the pre-selected level.

Start-up:

Action

slide on the "SLIDER" to [7] and stay 3s

Display

[7] is blinking with [A]

- Switching off the automatic cooking :

Action

Power level selection

Control panel

slide on the "SLIDER"

Display

[0]to [9]

Stop&Go function

This function brakes all the hob's cooking activity temporarily and allows restarting with the same settings.

- Start up/stop the pause function :

Action

Engage pause

Stop the pause

Control panel

press pause key

press pause key

Press on the animated "slider"

Display

[II] and control light on

"Slider" animated

previous settings

Recall Function

After switching off the hob [ 0/1 ], it is possible to recall the last settings.

• cooking stages of all cooking zones (Booster)
• minutes and seconds of programmed cooking zone-related timers
• Keep warm function
  Automatic cooking

The recall procedure is following:

• Press the key [0/I]
• Then press [II] before the light stops blinking.

The previous settings are again active.

"Keep warm" Function

This function allows the reach and automatically maintains at the temperature of 42, 70 or 94^ . This will avoid liquids overflowing and fast burning at the bottom of the pan.

To engage, to start the function « Keep warm »:

Action	Control panel	Display
42°C to engage	Press once on keep warm key	[U] and []
70°C to engage	Press twice on keep warm key	[U] and []
94°C to engage	Press 3 times on keep warm key	[U] and [$$]
To stop	Slide on the “SLIDER”	[0] to [9]
	or press keep warm key until [0]	[0]

The maximum duration of keeping warm is 2 hours.

Bridge and automatic Bridge Function

This function allows the use of 2 cooking zones at the same time with the same features as a single cooking zone. With this function the Double Booster function is not allowed.

Action	Control panel	Display
Activate the hob	Press key [0/1]	[0]
Activate the bridge	Press simultaneously on keep warm key of the 2 cooking zones or put a great pan on the 2 zones and press on the 2 “SLIDER”	[0] and [∩]
Increase bridge	Slide on the “SLIDER” witch indicates the power	[∩] blink [∩]
Stop the bridge	Press simultaneously on keep warm key of the 2 cooking zones	[1] to [9]

Grill Function

Action	Control panel	Display
Activate the hob	Press key [0/I]	[0]
	put the grill plate on the 2 zones to use	[∩] blink
Activate the Grill	Press simultaneously on the « SLIDER » of the 2 cooking zones	[♂]
Increase the Grill	Slide on the “SLIDER” witch indicates the power	power level on the slider
Stop the Grill	Press simultaneously on the « SLIDER » of the 2 cooking zones	[0]

Control panel locking

To avoid modification of the setting of the cooking zones, in particular during cleaning, the control panel can be locked (with exception to the On/Off key [ 0/I ]).

Action

Locking the hob

Unlock the hob

Control panel

Press locking key during 6s

Press locking key during 6s

Display

locking light on

locking light off

Pot Speed Test function

With induction technology the cookware is an important part of the cooking system.

As a part of the cooking system, you should make sure that the cookware you are using, offers the best cooking experience by giving back the high performance level of our induction hob.

The Pot speed Test function offers the possibility to measure the efficiency and the heating rate of your cookware.

The test can only be performed when there is no current cooking operation and only on the zone specified below.

Each action has to be done in the 6 seconds after the previous one.

Put the cookware on test zone

Start the hob

Press on/off key [ 0/1 ]

On/Off key

In the 6 seconds after start

Activate the function

Press simultaneously on the locking key and on the test zone "SLIDER".

Test zone SLIDER

Locking key

[0], [t] and locking control light are displayed.
[0] is fixed.
[t] and locking control light are blinking.

Start the test

Press on the test zone "SLIDER".

[0] is moving.

[t] is blinking.

Locking control light is fixed.

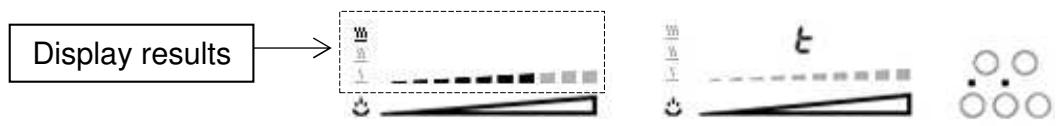

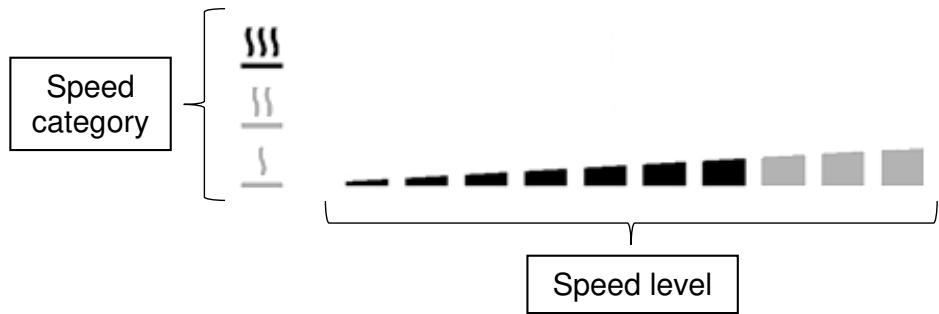

Test results

For example, the cookware speed level 7:

The cookware is classified in one of these 3 categories, with refined speed level displayed on the bar graph.

Category symbol	Indication
	Low speed performance, the cookware is not recommended for induction cooking.
	Medium speed performance, the cookware is adapted for induction cooking.
$$$	High performance cookware for the best induction cooking experience.

Important advises:

Some cookware could have such low efficiency that they are even not detected by the hob, in this case the symbol [] will be displayed.

The cookware should always be centred in the test zone, an improper centring may cause inaccurate results.

The results are displayed for 3 seconds, after this time the hob switches automatically in normal mode and can be used for cooking.

Note that the speed level is not the only important point assessing the quality of the cookware and to make sure that is perfectly adapted for induction please refers to the "Cooking advices" chapter for more details.

Operating time limitation

Each cooking zone is equipped with an operating time limitation: the cooking zone is automatically switched off after a certain time without any change of settings. This time is varying according to the selected power level as described in the table below.

Power level	Operating time (hours)
1	8.7
2	6.7
3	5.3
4	4.3
5	3.5
6	2.8
7	2.3
8	1.9
9	1.5

Pan quality

Adapted materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.

Not adapted materials: aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.

The manufacturers specify if their products are compatible induction.

To check if pans are compatibles:

• Put a little water in a pan placed on an induction heating zone set at level [ 9 ]. This water must heat in a few seconds.
• A magnet stucks on the bottom of the pan.

Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn't mean any failure on the appliance and doesn't influence the cooking operating.

Pan dimension

The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone.

To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking zone.

Examples of cooking power setting

(the values below are indicative)

1 to 2	Melting Reheating	Sauces, butter, chocolate, gelatine Dishes prepared beforehand
2 to 3	Simmering Defrosting	Rice, pudding, sugar syrup Dried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5	Water	Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Medium cooking Simmering	Meat, lever, eggs, sausages Goulash, roulade, tripe
7 to 8	Cooking	Potatoes, fritters, wafers
9	Frying, roosting Boiling water	Steaks, omelettes, fried dishes Water
P and , , ,	Frying, roosting Boiling water	scallops, steaks Boiling significant quantities of water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-cleaning or pressure washer.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.
• Do not use a steam cleaner to clean this appliance.

WHAT TO DO IN CASE OF A PROBLEM

The hob or the cooking zone doesn't start-up:

• The hob is badly connected on the electrical network.
  The protection fuse cut-off.
  The looking function is activated.
• The sensitive keys are covered of grease or water.
  An object is put on a key.

The control panel displays [U]:

There is no pan on the cooking zone.
- The pan is not compatible with induction.
- The bottom diameter of the pan is too small.

The control panel displays [E]:

• Disconnect and replug the hob.
  Call after sales

One or all cooking zone cut-off:

• The safety system functioned.
• You forgot to cut-off the cooking zone for a long time.
  One or more sensitive keys are covered.
• The pan is empty and its bottom overheated.
• The hob also has an automatic reduction of Booster level and breaking Automatic overheating

Continuous ventilation after cutting off the hob:

• This is not a failure, the fan continuous to protect the electronic device.
• The fan cooling stops automatically.

The automatic cooking system doesn't start-up:

The cooking zone is still hot [H].
- The highest Booster level is set [ 9 ].

The control panel displays [U]:

Refer to the chapter "Keep warm".

The control panel displays [II]:

Refer to the chapter "Stop&Go"

The control panel displays [ ] or [ Er03 ] :

• An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.

The control panel displays [E2]:

• The hob is overheated, let it cool and then turn it on again.

The control panel displays [E8]:

• The air inlet of the ventilator is obstructed, release it.

The control panel displays [ U400 ] :

• The hob is not connected to the network. Check the connection and reconnect the hob.

The control panel displays [ Er47 ] :

• The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the SAV.

ENVIRONMENT PRESERVATION

• The materials of packing are ecological and recyclable.

• The electronic appliances are composed of recyclable, and sometimes harmful materials for the environment, but necessary to the good running and the safety of the appliance.

• Don't throw your appliance with the household refuses

• Get in touch with the waste collection centre of your commune that is adapted to the recycling of the household appliances.

The installation comes under the exclusive responsibility of specialists.

The installer is held to respect the legislation and the standards enforce in his home country.

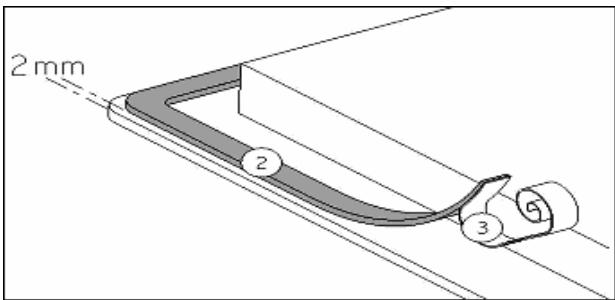

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.

His installation has to be done carefully, in conformity of the following drawing.

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

	Cut size		Glass size (mm)
Type	Width	Depth	Width	Depth	Thick
ATIF64WHM	560	490	590	520	4
ATIF64BKM

• Ensure that there is a distance of 50 ~mm between the hob and the wall or sides.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100^ .
• The mural rods of edge must be heat-resisting.
  Not to install the hob to the top of a not ventilated oven or a dishwasher.
• To guarantee under the bottom of the hob casing a space of 20 ~mm to ensure a good air circulation of the electronic device.
• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760~mm .
• The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.

• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.

• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3mm .
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 ~V 50 / 60 ~Hz .

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz	1 Phase + N	3 x 2,5 mm²	H 05 VV - F H 05 RR - F	25 A *
400V~ 50/60Hz	2 Phases + N	4 x 1.5 mm²	H 05 VV - F H 05 RR - F	16 A *

• calculated with the simultaneous factor following the standard EN 60 335-2-6

Caution! Be careful that the cables are correctly engaged and tightened.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

Gentile Cliente,
