USER MANUAL NMW 25 D NODOR

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model: Rated Voltage: NMW 25 TG 230V~50Hz Rated Input Power(Microwave): 1450W Rated Output Power(Microwave): 900W Rated Input Power(Grill): 1000W 25L Oven Capacity: Turntable Diameter: 315mm External Dimensions(WxDxH): 595x431.8x388 mm Net Weight: Approx. 18.58kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning : Liquids and other foods must

not be heated in sealed containers since they are liable to explode.

2. Warning : It is hazardous for anyone other

than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children

aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of

reach of children less than 8 years.

5. Only use utensils suitable for use in

6. The oven should be cleaned regularly and

any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper

containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or unplug

the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage

purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles

from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in

accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled

eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. 15.This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.

16. If the supply cord is damaged, it must

be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance

18. Do not use this oven near water, in a

wet basement or near a swimming pool.

19. The temperature of accessible surfaces

may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.

20. Do not let cord hang over edge of table

21. Failure to maintain the oven in a clean

condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and

baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore

care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 25.Children should be supervised to ensure that they do not play with the appliance. 26.The appliances are not intended to be operated by means of an external timer or separate remote-control system.

27. Accessible parts may become hot during use. Young children should be kept away.

28.Steam cleaner is not to be used. 29 During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

30. Only use the temperature probe recommended for this oven.(for ovens provided with a

facility to use a temperature-sensing probe.)

31. WARNING: The appliance and its accessible parts become hot during use.Care should

be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

32. The microwave oven must be operated with the decorative door open.(for ovens with a

decorative door.) 33.surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE

REFERENCE To Reduce the Risk of Injury to Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the interna components can cause serious personal injury or death. Do not disassemble this appliance. 2)The extension cord must be a groundingtype 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire extension cord.

1. A short power-supply cord is provided

to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is

used: 1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using

with a slightly damp cloth.

2. Clean the accessories in the usual way

3. The door frame and seal and

neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners

or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the

cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth. UTENSILS See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold

water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is

warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use as a cover to prevent splattering or a wrap for steaming. Browning dish Dinnerware Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic Plastic wrap Thermometers Wax paper Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Microwave-safe only (meat and candy thermometers). Use as a cover to prevent splattering and retain moisture. Materials to be avoided in microwave oven Utensils Aluminum tray Food carton with metal handle Metal or metaltrimmed utensils Metal twist ties Paper bags Plastic foam Wood Remarks May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

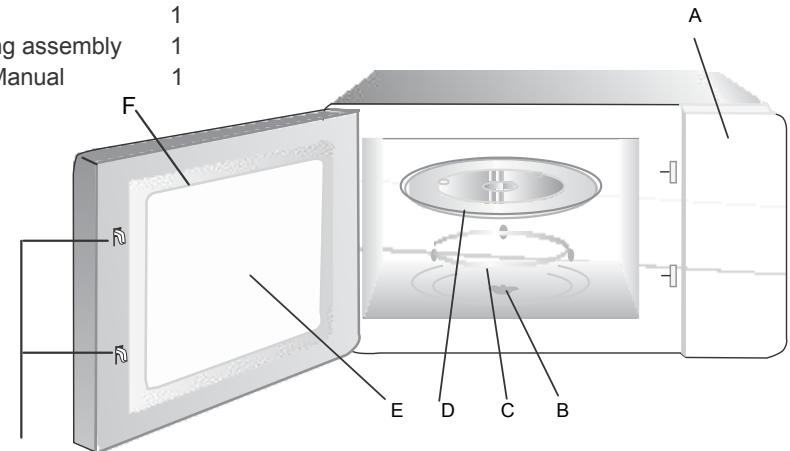

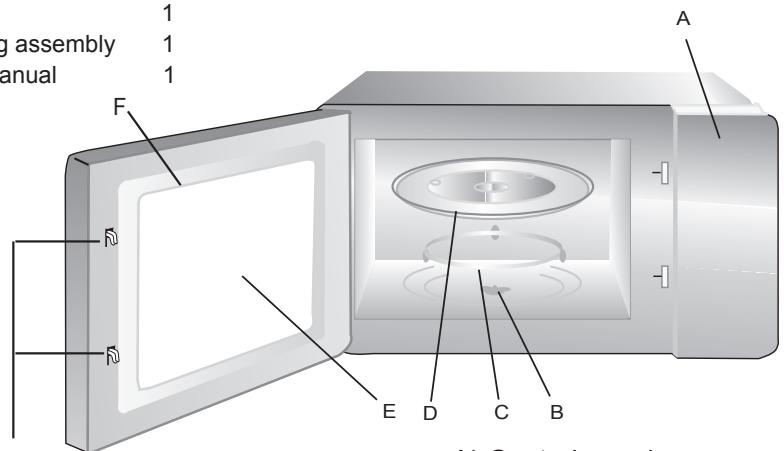

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual

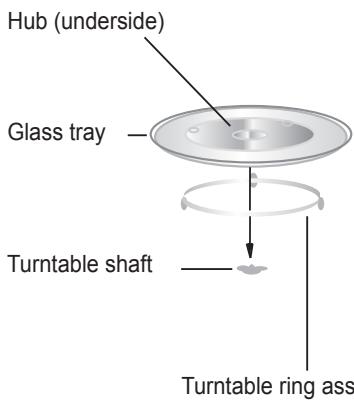

Grill Rack( Only be used in grill function and be placed on the glass tray ) Turntable Installation Hub (underside) a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must Glass tray always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or Turntable shaft breaks, contact your nearest authorized service center. Turntable ring assembly Installation and connection 1.This appliance is only intended for domestic use. 2.This oven is intended for built-in use only.It is not intended for counter-top use or for use inside a cupboard.

3. Please observe the special installation instructions.

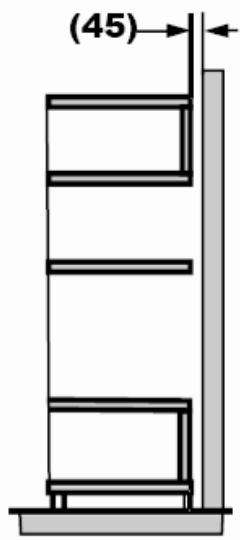

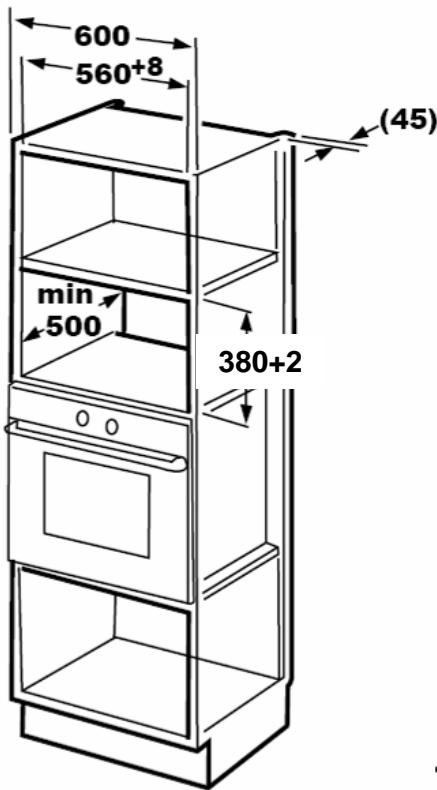

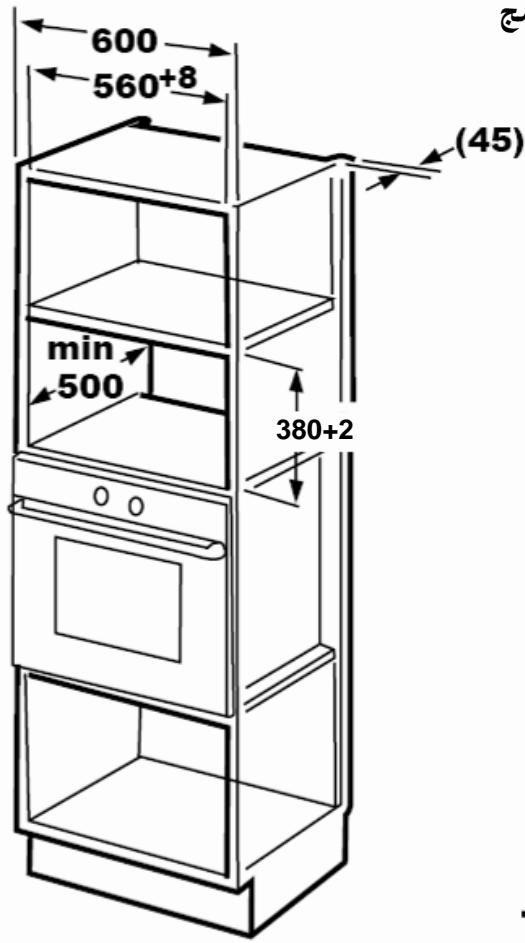

4.The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm deep and 85cm off the floor). 5.The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. 6.The mains voltage must correspond to the voltage specified on the rating plate. 7.The socket must be installed and connecting cable must only be replaced by a qualified electrician.If the plug is no longer to accessible following installation,an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm. 8.Adapters,multi-way strips and extension leads must not be used. Overloading can result in a risk of fire. The accessible surface may be hot during operation. Installation Instructions Please Read the Manual Carefully Before Installation

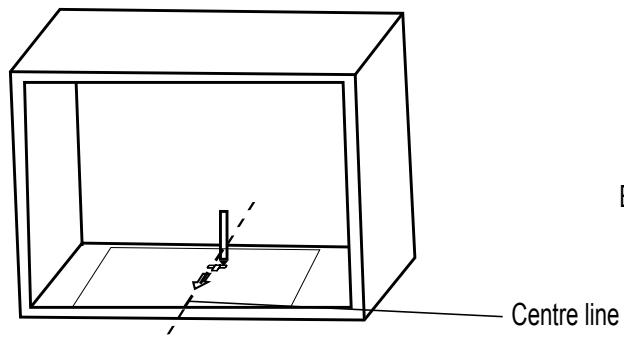

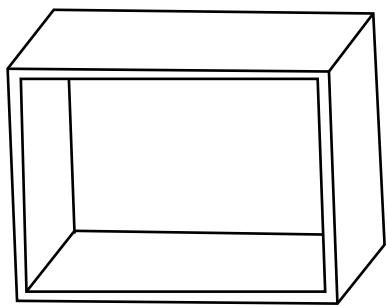

put the template on the bottom plane of cabinet.

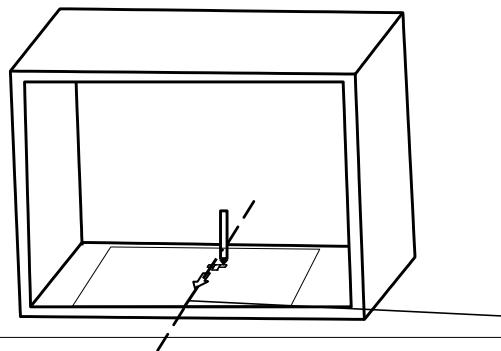

2. Make the marks on the bottom plane of cabinet according to marks"a" of

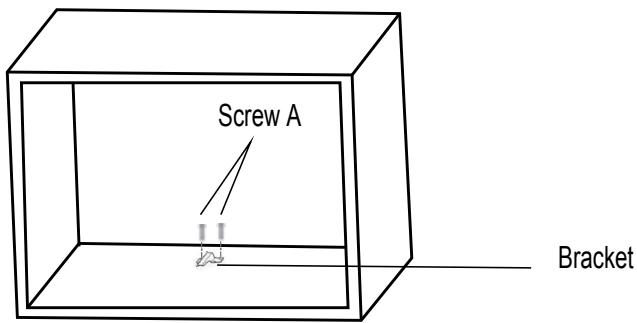

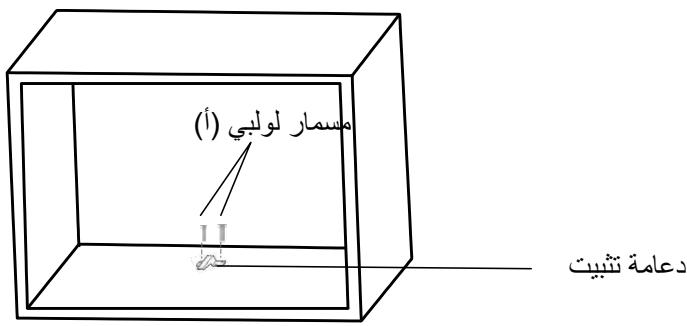

3. Remove the bottom cabinet template and fix the bracket with screw A.

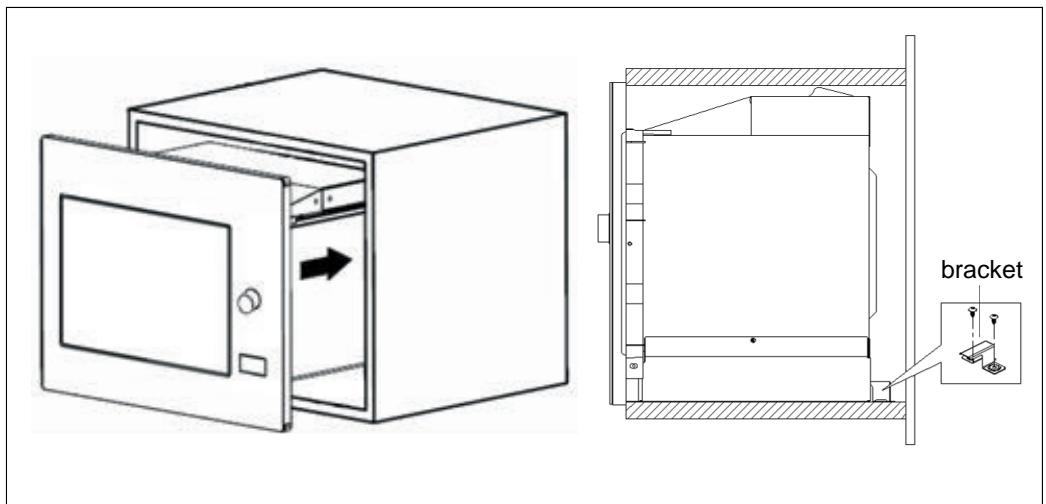

Screw A Bracket C .Install the oven

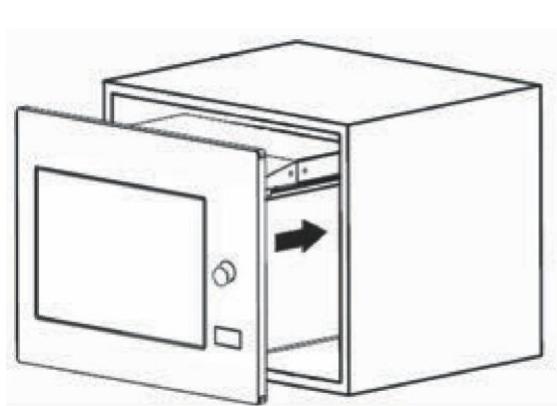

4. Install the oven to the cabinet

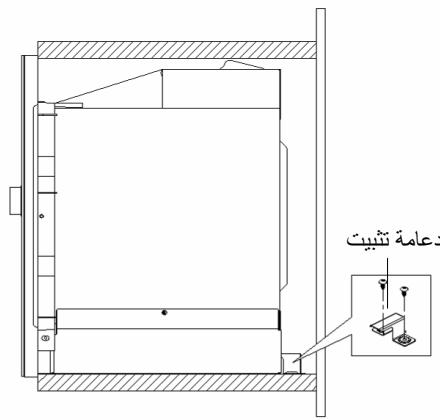

- Make sure the back of the oven is locked by bracket. - Do not trap or kink the power cord. bracket

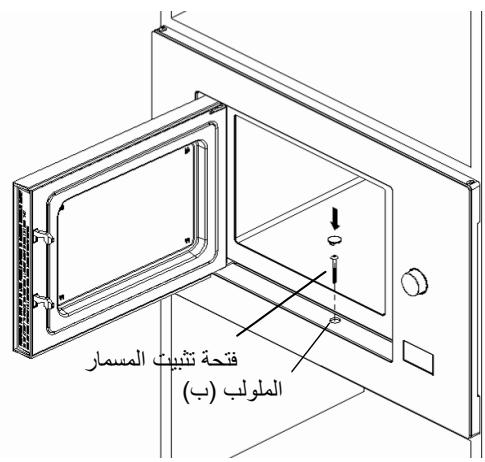

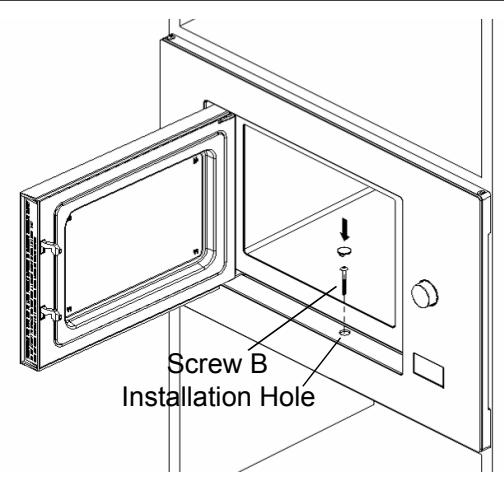

5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole.

Screw B Installation Hole OPERATION INSTRUCTION This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. 1.Clock Setting When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once. " twice, the hour figure flash;

" to adjust the hour figures,the input time should be within 0--23. ", the minute figures will flash. "or " " to adjust the minute figures, the input time should be within 0--59. " to finish clock setting. ":" will flash.

The clock setting has been finished. Note: 1) If the clock is not set, it will display 0:00 in waiting state.

2) During the process of clock setting, if you press "

", the oven will go back to the previous status automatically.

2. Microwave Cooking

" key once, and "P100" will display.

" for times or press " "and " " to select the microwave power from100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order.

4)Press " " to confirm. " or " "to adjust the cooking time. (The time setting should be 0:05- 95:00.)

" once the LED will display "P100", and press " for times or press the " " or " " to choose the power you want, and "G","C-1" or "C-2" will display. Then press " to confirm, and press " 95:00. Press " " or "

" to set cooking time from 0:05 to " again to start cooking. Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

" once, the screen display "P100".

2) Continue to press "

" until the screen displays "C-1". " to confirm. " or " " to adjust the cooking time until the oven displays "10:00". " to start cooking . Combination Power instructions: Display Microwave Power Grill Power

100% Combi.1 C-1 55% 45% Combi.2 C-2 36% 64% Program Grill Note:If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press" " to continue cooking. If no operation, the oven will continue working.

4. Defrost By Weight

" once, the screen will display "dEF1". "or " " to select the food weight. The range of weight is 100-2000g. " key to start defrosting.

" twice, the screen will display "dEF2". "or " " to select the cooking time.The maximum time is 95 minutes. " key to start defrosting. 6.Multi-Stage Cooking Two stages can be maximumly set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu cannot be set as one of the multi-stage. Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following: " twice, the LED display "dEF2".

" once, LED will dispaly "P100". " or " " to choose microwave power till "P80" display; " to confirm, LED will display "P80".

" to adjust the defrost time of 5 minutes; "or " " to adjust the cooking time of 7 minutes; " to start cooking.

(1) Press " (2) Press " " once, LED will display 00:00. " or " " to enter the correct timer. (The maximum cooking time is 95 minutes) (3) Press " " to confirm setting, timer indicator will be lighted. (4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times. If the clock be set(24-hour system), LED will display the current time. Note: The kitchen Time is differ from 24-hour system, Kitchen Timer is a timer.

1) In waiting state, press "

" to choose the menu from "A-1" to "A-8". " to confirm the menu you choose. "or"

" to choose the food weight. " to start cooking.

5) After cooking finish, the buzzer sounds five times.

50g(with 450 ml cold water)

100g(with 800 ml cold water) 200 g

1) In waiting state, press "

" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

2) During the microwave,grill,combination cooking and the defrost by time process,

press " " to increase the cooking time.

3) In waiting state, turn "

then press " " to set cooking time with 100% microwave power, " to start cooking. Note:Under the states of auto menu and defrost by weight, cooking time cannot be increased by pressing "

10. Lock Function for Children

Lock: In waiting state, press " " for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the LED will display " Lock quitting: In locked state, press " ". And the lock icon will light. " for 3 seconds, there will be a long "beep" denoting that the lock is released.

11. Inquiring Function

1) In cooking states of microwave, grill and combination. Press "

" the current power will be displayed for 2-3 seconds.

2) During cooking state, press "

" to check the current time. It will be displayed for 2-3 seconds.

(1) " " must be pressed to continue cooking if the door is opened during cooking; (2) Once the cooking programme has been set , " " is not pressed in 1 minute. The oven will turn back the waiting state. The setting will be cancelled. (3) The buzzer sounds once by efficient press, inefficient press will be no responce. (4) After a cooking finish, the buzzer sounds fiver times. Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. Four à micro-ondes MANUEL D'UTILISATION
